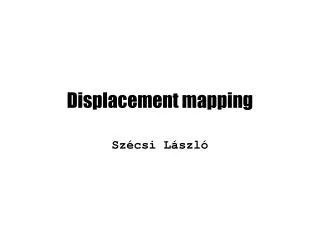

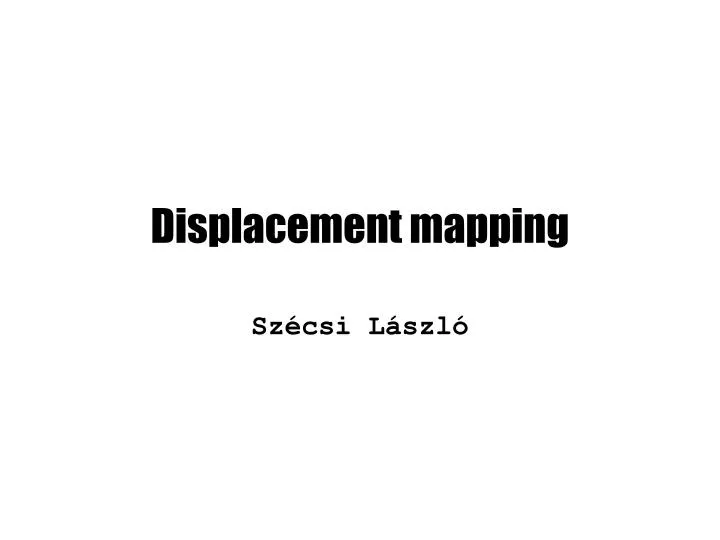

Displacement mapping

Displacement mapping Szécsi László

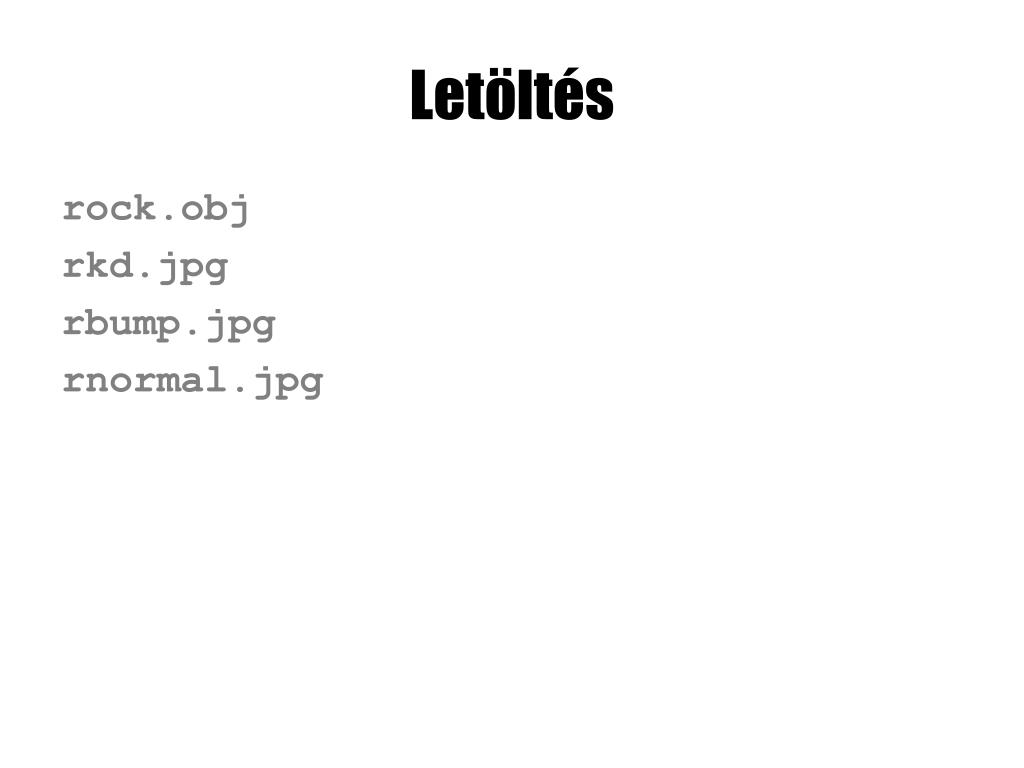

Letöltés • rock.obj • rkd.jpg • rbump.jpg • rnormal.jpg

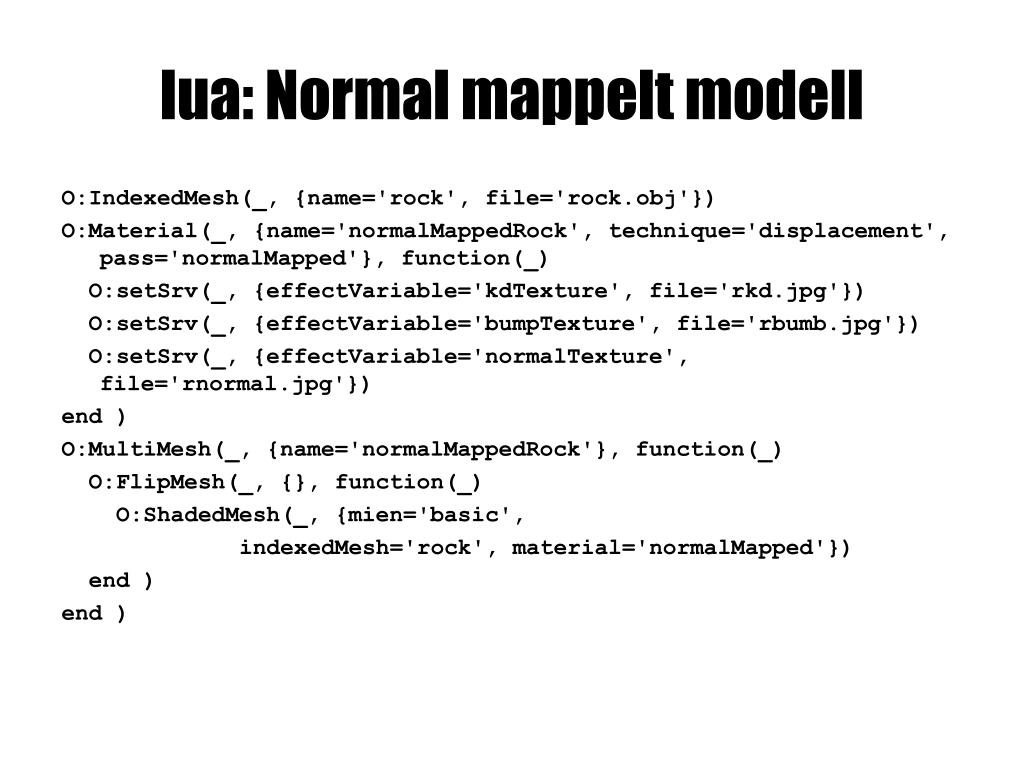

lua: Normal mappelt modell • O:IndexedMesh(_, {name='rock', file='rock.obj'}) • O:Material(_, {name='normalMappedRock', technique='displacement', pass='normalMapped'}, function(_) • O:setSrv(_, {effectVariable='kdTexture', file='rkd.jpg'}) • O:setSrv(_, {effectVariable='bumpTexture', file='rbumb.jpg'}) • O:setSrv(_, {effectVariable='normalTexture', file='rnormal.jpg'}) • end ) • O:MultiMesh(_, {name='normalMappedRock'}, function(_) • O:FlipMesh(_, {}, function(_) • O:ShadedMesh(_, {mien='basic', • indexedMesh='rock', material='normalMapped'}) • end ) • end )

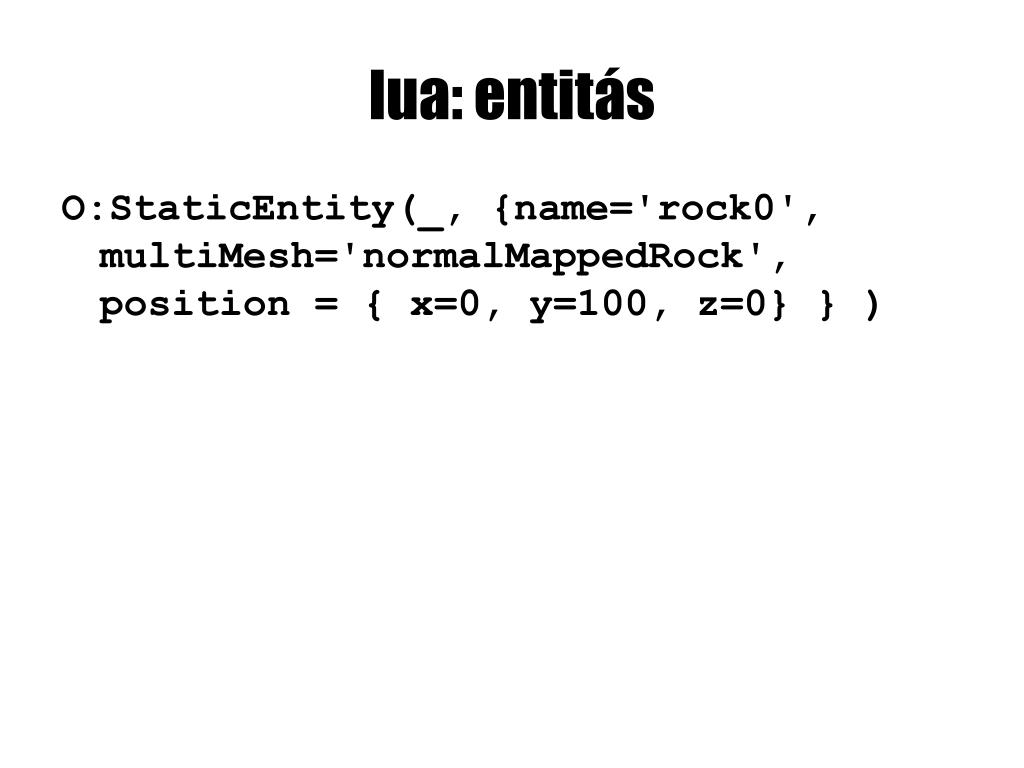

lua: entitás • O:StaticEntity(_, {name='rock0', multiMesh='normalMappedRock', position = { x=0, y=100, z=0} } )

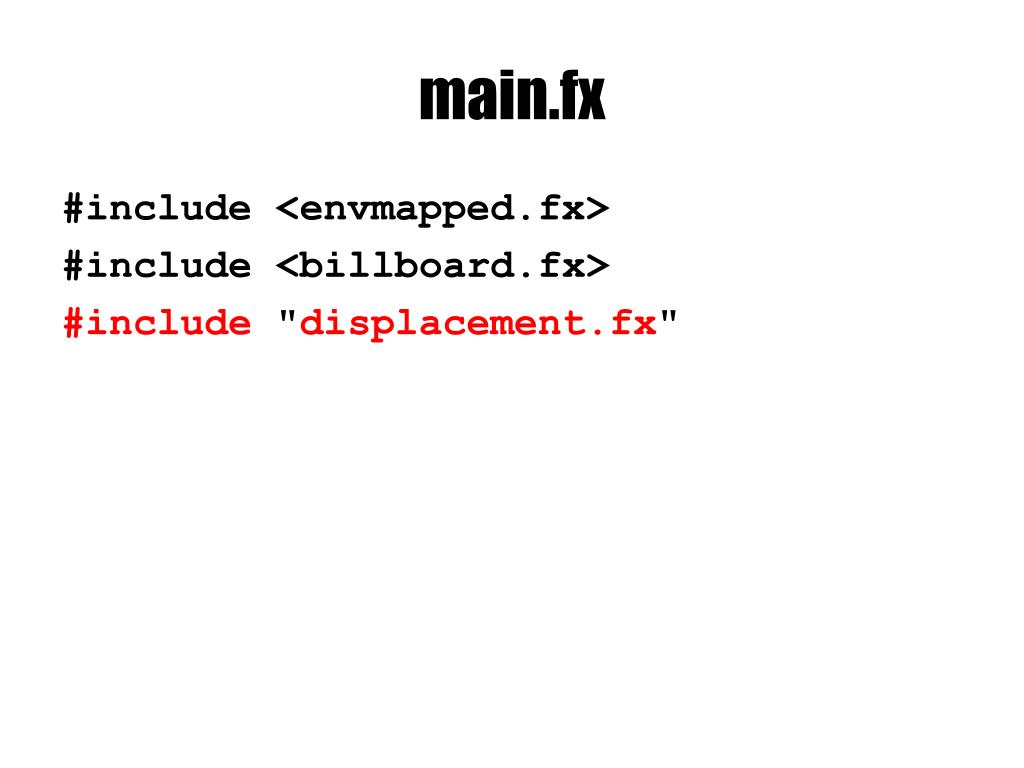

main.fx • #include <envmapped.fx> • #include <billboard.fx> • #include "displacement.fx"

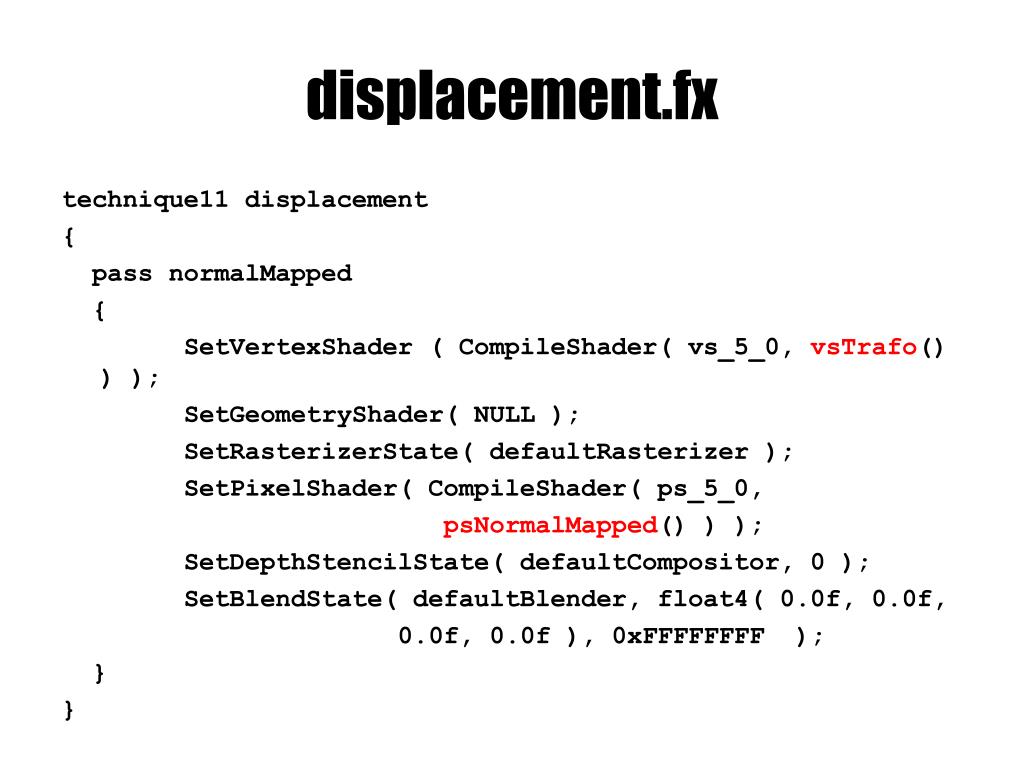

displacement.fx • technique11 displacement • { • pass normalMapped • { • SetVertexShader ( CompileShader( vs_5_0, vsTrafo() ) ); • SetGeometryShader( NULL ); • SetRasterizerState( defaultRasterizer ); • SetPixelShader( CompileShader( ps_5_0, • psNormalMapped() ) ); • SetDepthStencilState( defaultCompositor, 0 ); • SetBlendState( defaultBlender, float4( 0.0f, 0.0f, • 0.0f, 0.0f ), 0xFFFFFFFF ); • } • }

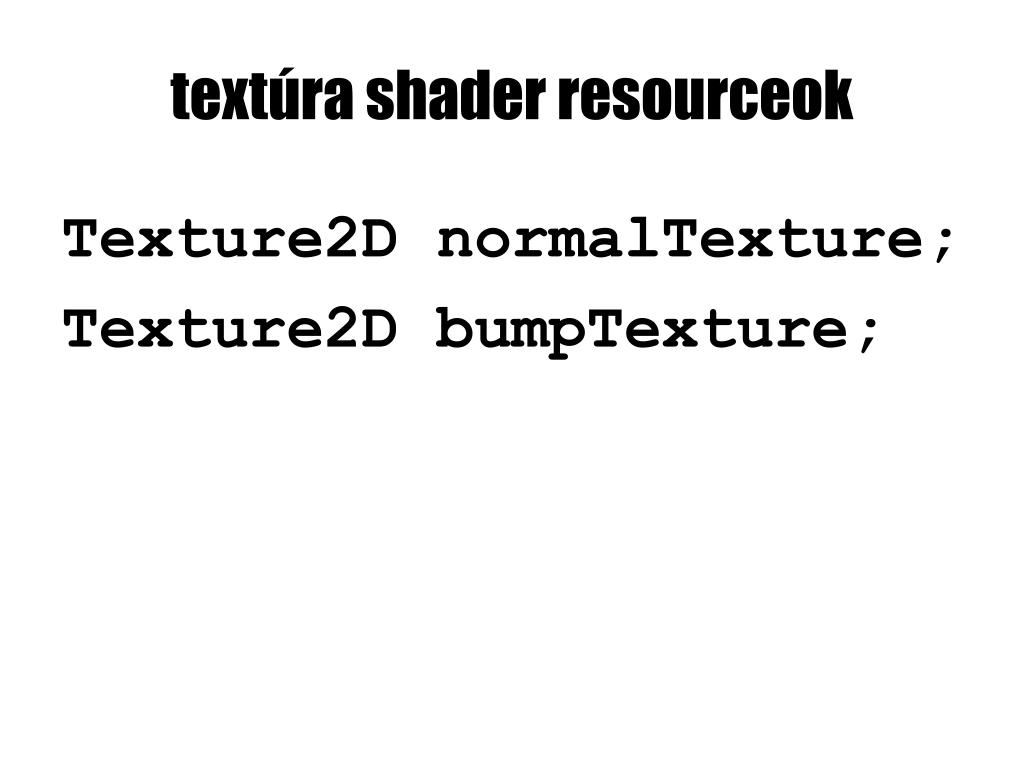

textúra shader resourceok • Texture2D normalTexture; • Texture2D bumpTexture;

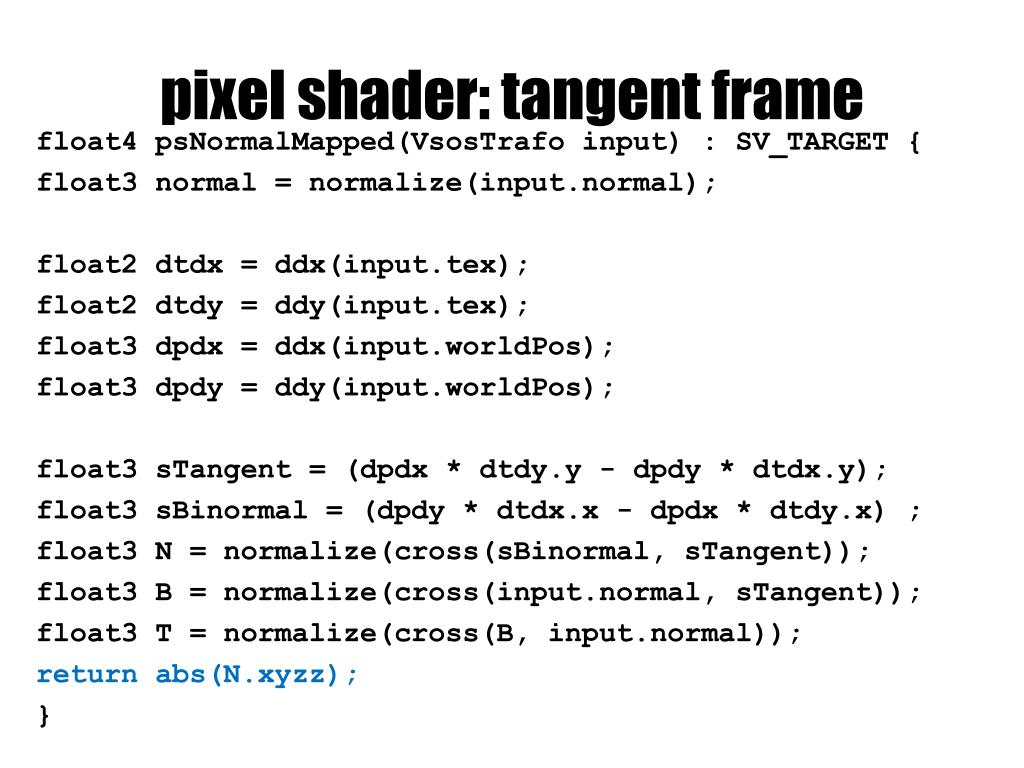

pixel shader: tangent frame • float4 psNormalMapped(VsosTrafo input) : SV_TARGET { • float3 normal = normalize(input.normal); • float2 dtdx = ddx(input.tex); • float2 dtdy = ddy(input.tex); • float3 dpdx = ddx(input.worldPos); • float3 dpdy = ddy(input.worldPos); • float3 sTangent = (dpdx * dtdy.y - dpdy * dtdx.y); • float3 sBinormal = (dpdy * dtdx.x - dpdx * dtdy.x) ; • float3 N = normalize(cross(sBinormal, sTangent)); • float3 B = normalize(cross(input.normal, sTangent)); • float3 T = normalize(cross(B, input.normal)); • return abs(N.xyzz); • }

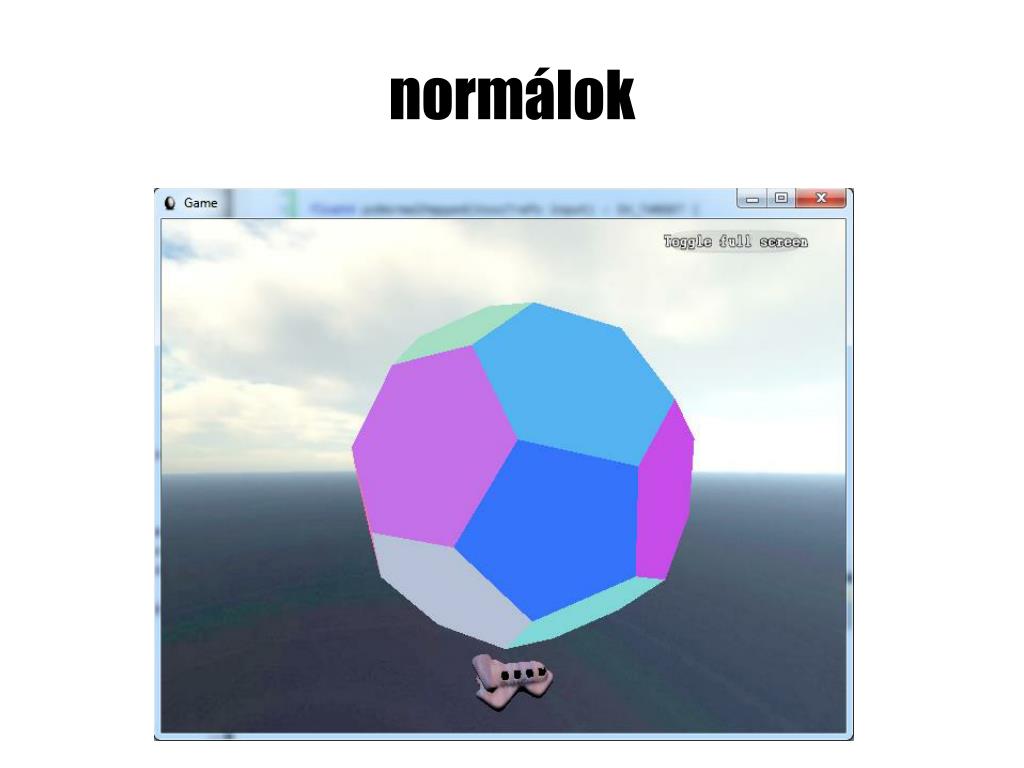

normálok

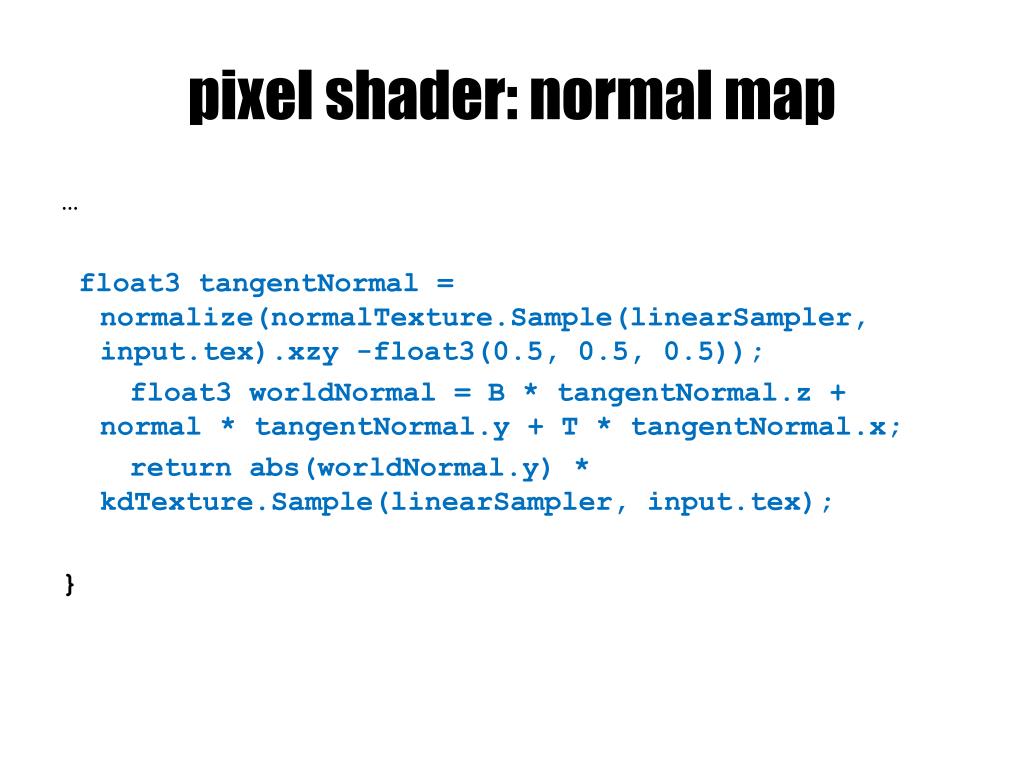

pixel shader: normal map • … • float3 tangentNormal = normalize(normalTexture.Sample(linearSampler, input.tex).xzy -float3(0.5, 0.5, 0.5)); • float3 worldNormal = B * tangentNormal.z + normal * tangentNormal.y + T * tangentNormal.x; • return abs(worldNormal.y) * kdTexture.Sample(linearSampler, input.tex); • }

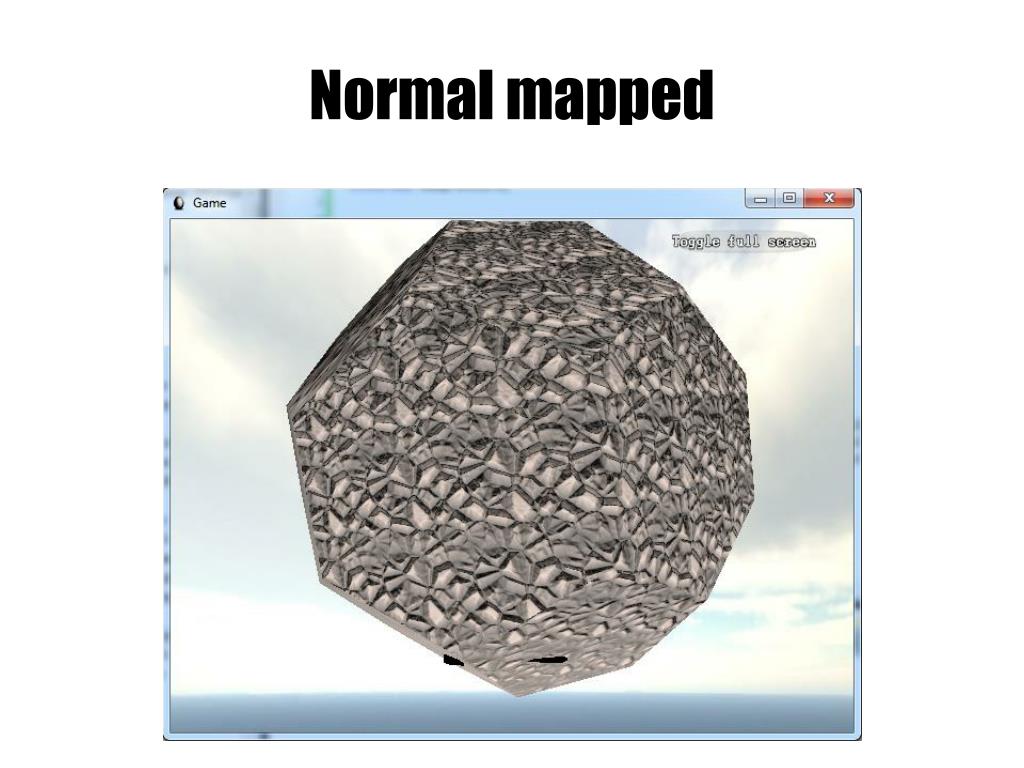

Normal mapped

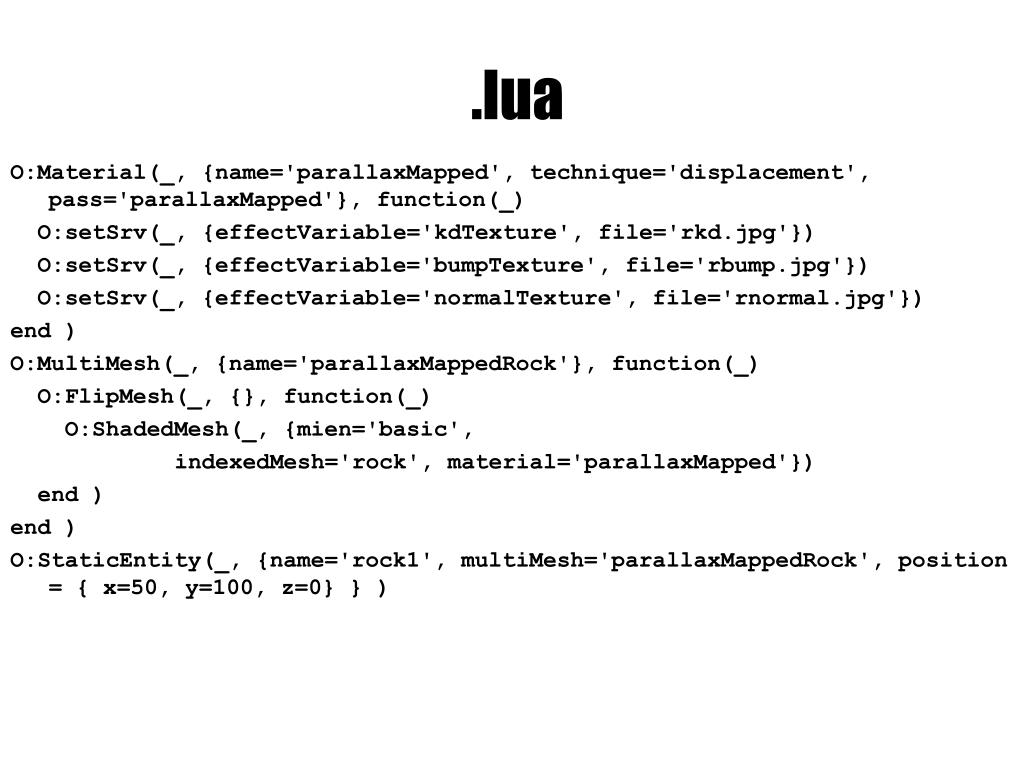

.lua • O:Material(_, {name='parallaxMapped', technique='displacement', pass='parallaxMapped'}, function(_) • O:setSrv(_, {effectVariable='kdTexture', file='rkd.jpg'}) • O:setSrv(_, {effectVariable='bumpTexture', file='rbump.jpg'}) • O:setSrv(_, {effectVariable='normalTexture', file='rnormal.jpg'}) • end ) • O:MultiMesh(_, {name='parallaxMappedRock'}, function(_) • O:FlipMesh(_, {}, function(_) • O:ShadedMesh(_, {mien='basic', • indexedMesh='rock', material='parallaxMapped'}) • end ) • end ) • O:StaticEntity(_, {name='rock1', multiMesh='parallaxMappedRock', position = { x=50, y=100, z=0} } )

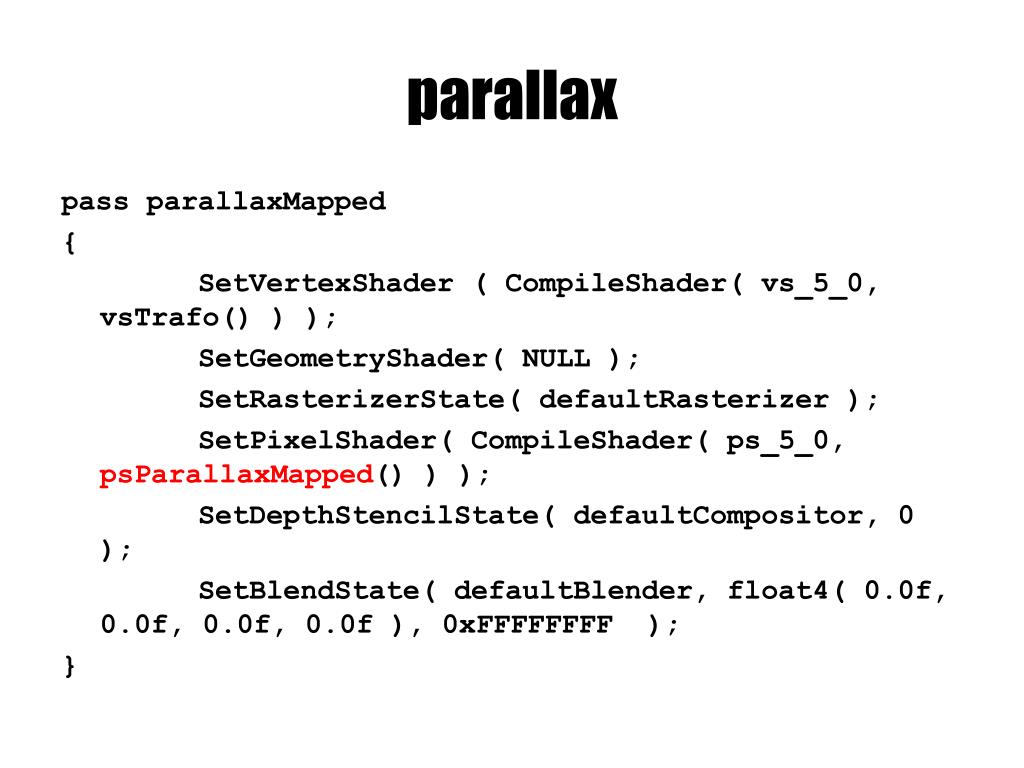

parallax • pass parallaxMapped • { • SetVertexShader ( CompileShader( vs_5_0, vsTrafo() ) ); • SetGeometryShader( NULL ); • SetRasterizerState( defaultRasterizer ); • SetPixelShader( CompileShader( ps_5_0, psParallaxMapped() ) ); • SetDepthStencilState( defaultCompositor, 0 ); • SetBlendState( defaultBlender, float4( 0.0f, 0.0f, 0.0f, 0.0f ), 0xFFFFFFFF ); • }

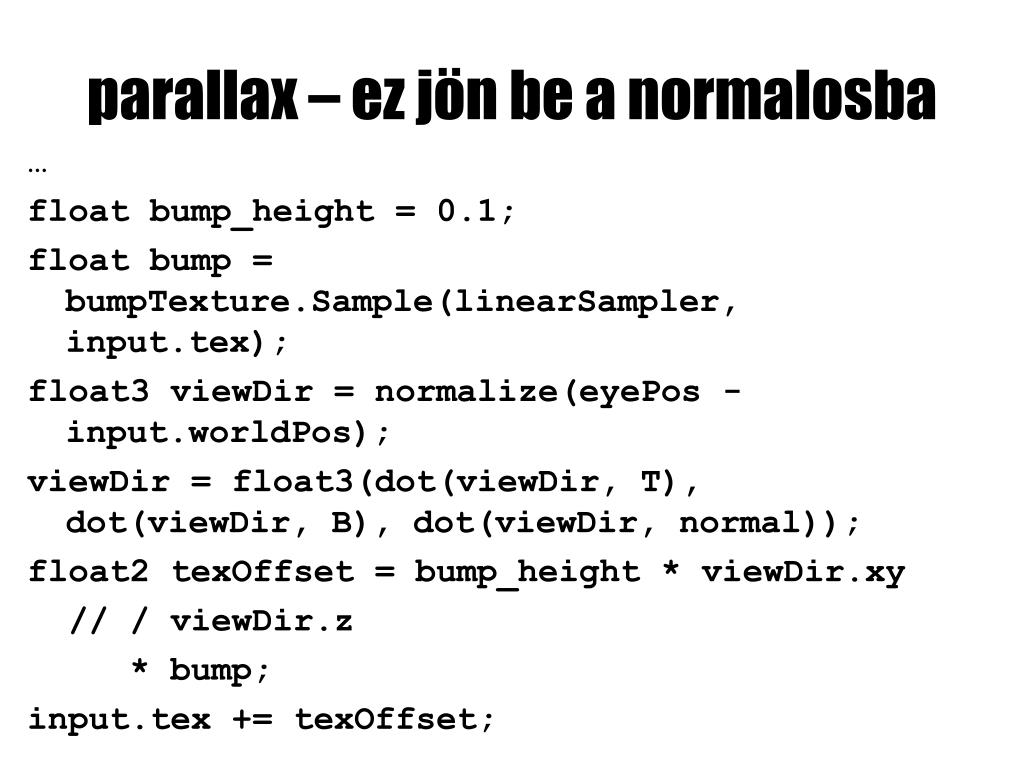

parallax – ez jön be a normalosba • … • float bump_height = 0.1; • float bump = bumpTexture.Sample(linearSampler, input.tex); • float3 viewDir = normalize(eyePos - input.worldPos); • viewDir = float3(dot(viewDir, T), dot(viewDir, B), dot(viewDir, normal)); • float2 texOffset = bump_height * viewDir.xy • // / viewDir.z • * bump; • input.tex += texOffset;

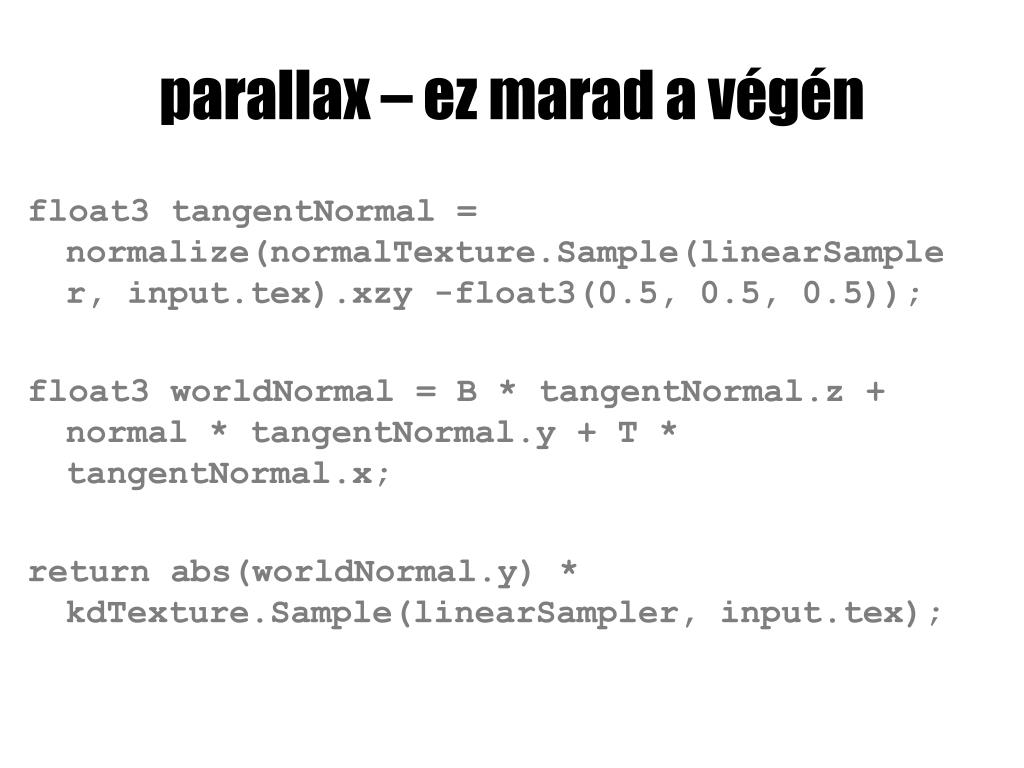

parallax – ez marad a végén • float3 tangentNormal = normalize(normalTexture.Sample(linearSampler, input.tex).xzy -float3(0.5, 0.5, 0.5)); • float3 worldNormal = B * tangentNormal.z + normal * tangentNormal.y + T * tangentNormal.x; • return abs(worldNormal.y) * kdTexture.Sample(linearSampler, input.tex);

.lua • O:Material(_, {name='reliefMapped', technique='displacement', pass='reliefMapped'}, function(_) • O:setSrv(_, {effectVariable='kdTexture', file='rkd.jpg'}) • O:setSrv(_, {effectVariable='bumpTexture', file='rbump.jpg'}) • O:setSrv(_, {effectVariable='normalTexture', file='rnormal.jpg'}) • end ) • O:MultiMesh(_, {name='reliefMappedRock'}, function(_) • O:FlipMesh(_, {}, function(_) • O:ShadedMesh(_, {mien='basic', • indexedMesh='rock', material='reliefMapped'}) • end ) • end ) • O:StaticEntity(_, {name='rock2', multiMesh='reliefMappedRock', position = { x=100, y=100, z=0} } )

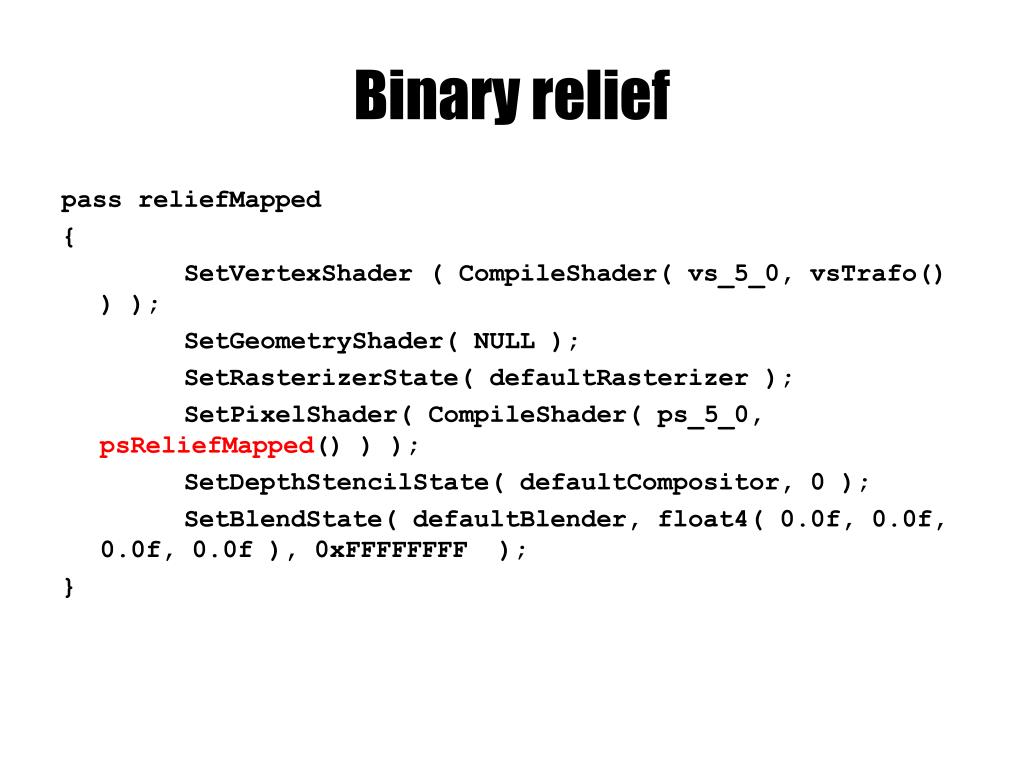

Binary relief • pass reliefMapped • { • SetVertexShader ( CompileShader( vs_5_0, vsTrafo() ) ); • SetGeometryShader( NULL ); • SetRasterizerState( defaultRasterizer ); • SetPixelShader( CompileShader( ps_5_0, psReliefMapped() ) ); • SetDepthStencilState( defaultCompositor, 0 ); • SetBlendState( defaultBlender, float4( 0.0f, 0.0f, 0.0f, 0.0f ), 0xFFFFFFFF ); • }

ez ugyanaz • float4 psReliefMapped(VsosTrafo input) : SV_TARGET { • float3 normal = normalize(input.normal); • float2 dtdx = ddx(input.tex); • float2 dtdy = ddy(input.tex); • float3 dpdx = ddx(input.worldPos); • float3 dpdy = ddy(input.worldPos); • float3 sTangent = (dpdx * dtdy.y - dpdy * dtdx.y); • float3 sBinormal = (dpdy * dtdx.x - dpdx * dtdy.x) ; • float3 N = normalize(cross(sBinormal, sTangent)); • float3 B = normalize(cross(input.normal, sTangent)); • float3 T = normalize(cross(B, input.normal)); • float bump_height = 0.2; • float bump = bumpTexture.Sample(linearSampler, input.tex); • float3 viewDir = normalize(eyePos - input.worldPos); • viewDir = float3(dot(viewDir, T), dot(viewDir, B), dot(viewDir, normal));

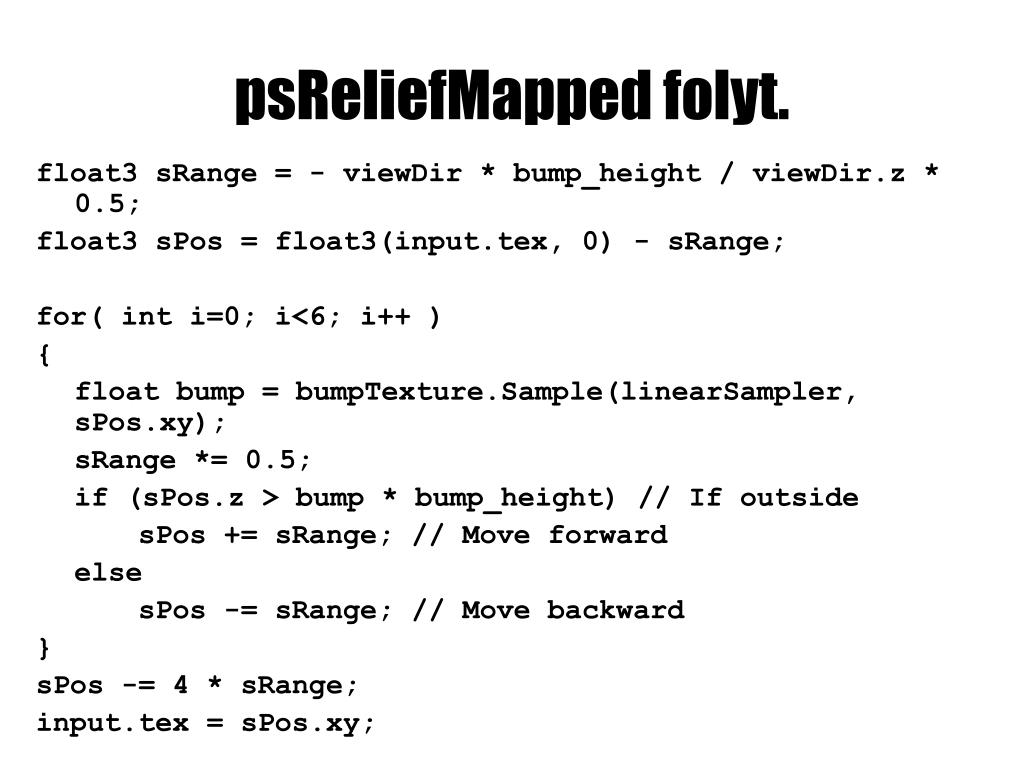

psReliefMapped folyt. • float3 sRange = - viewDir * bump_height / viewDir.z * 0.5; • float3 sPos = float3(input.tex, 0) - sRange; • for( int i=0; i<6; i++ ) • { • float bump = bumpTexture.Sample(linearSampler, sPos.xy); • sRange *= 0.5; • if (sPos.z > bump * bump_height) // If outside • sPos += sRange; // Move forward • else • sPos -= sRange; // Move backward • } • sPos -= 4 * sRange; • input.tex = sPos.xy;

psBinaryRelief folyt. • float3 tangentNormal = normalize(tex2D(normalMapSampler, input.tex).xzy -float3(0.5, 0.5, 0.5)); • float3 worldNormal = B * tangentNormal.z + normal * tangentNormal.y + T * tangentNormal.x; • return abs(worldNormal.y) * tex2D(kdMapSampler, input.tex);}

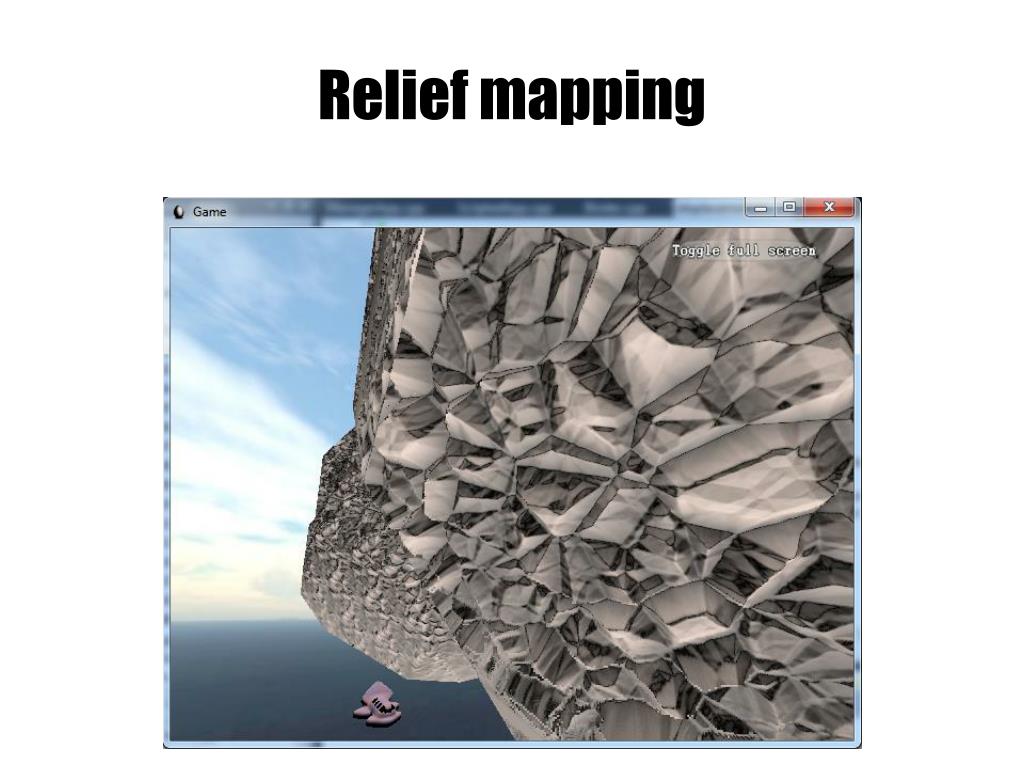

Relief mapping

Displacement mapping
