Presentation Transcript
slide1

CAMPUS NETWORK

INFRASTRUCTURE

UPGRADE

HUB

slide2

FIBER/ROUTER

BACKBONE

Rust-GSB-Education Bldg

Multi- and Single-Mode

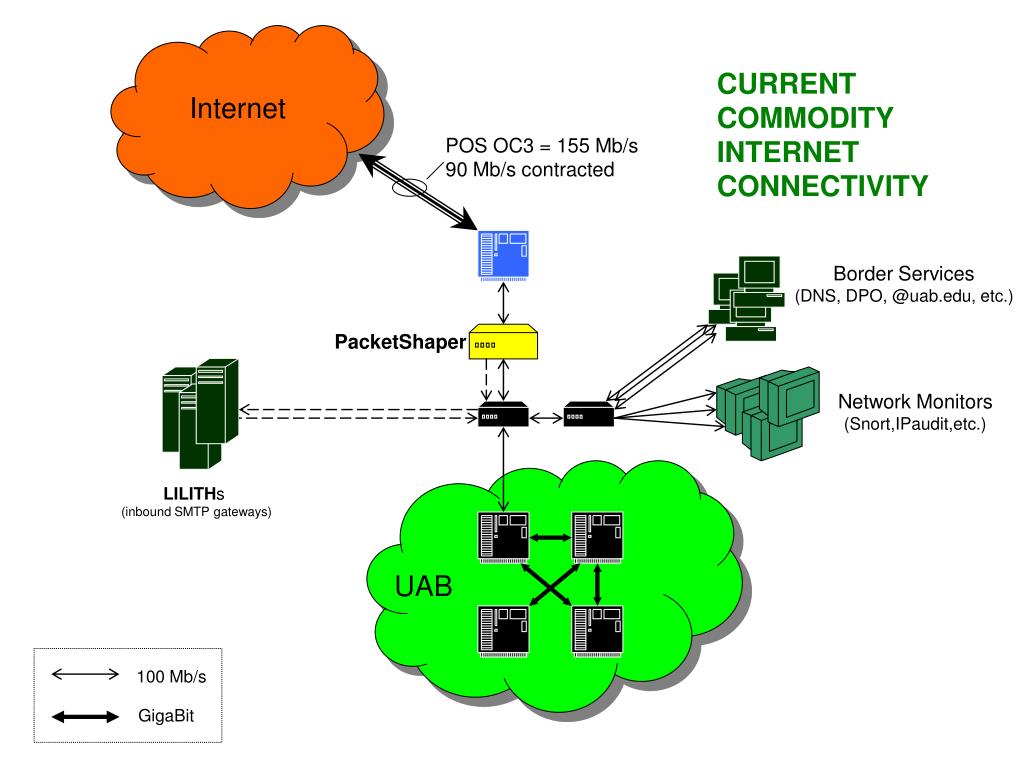

slide3

CURRENT

COMMODITY

INTERNET

CONNECTIVITY

Internet

POS OC3 = 155 Mb/s

90 Mb/s contracted

Border Services

(DNS, DPO, @uab.edu, etc.)

PacketShaper

Network Monitors

(Snort,IPaudit,etc.)

LILITHs

(inbound SMTP gateways)

UAB

100 Mb/s

GigaBit

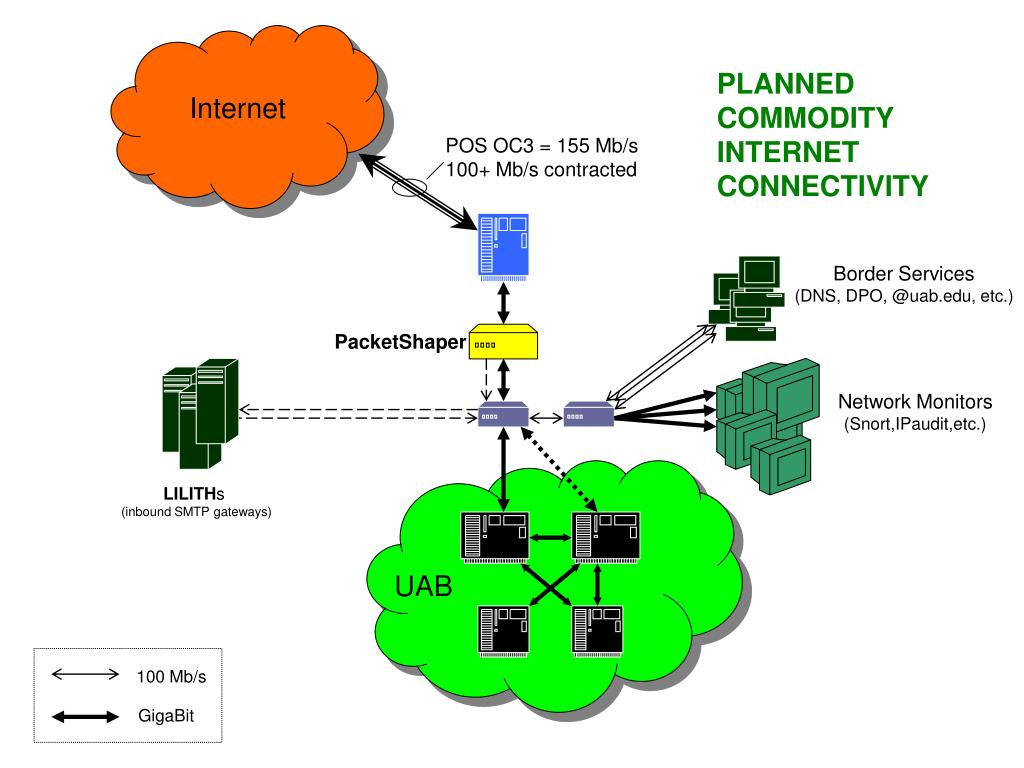

slide4

PLANNED

COMMODITY

INTERNET

CONNECTIVITY

Internet

POS OC3 = 155 Mb/s

100+ Mb/s contracted

Border Services

(DNS, DPO, @uab.edu, etc.)

PacketShaper

Network Monitors

(Snort,IPaudit,etc.)

LILITHs

(inbound SMTP gateways)

UAB

100 Mb/s

GigaBit

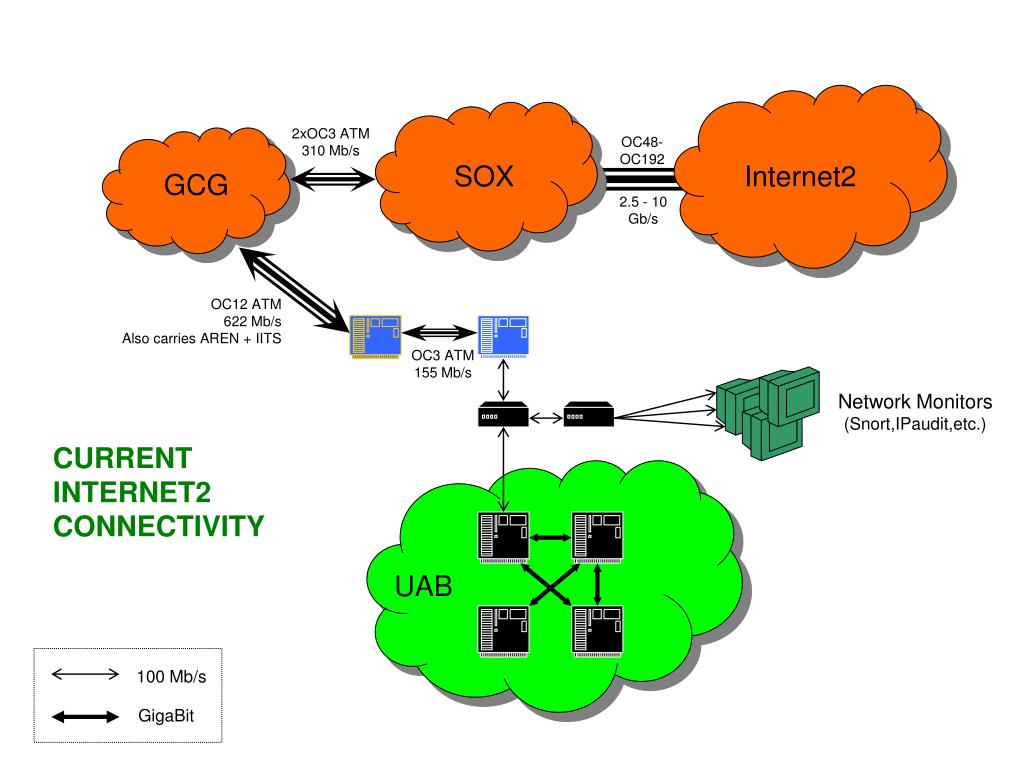

slide5

2xOC3 ATM

310 Mb/s

OC48-

OC192

SOX

Internet2

GCG

2.5 - 10

Gb/s

OC12 ATM

622 Mb/s

Also carries AREN + IITS

OC3 ATM

155 Mb/s

Network Monitors

(Snort,IPaudit,etc.)

CURRENT

INTERNET2

CONNECTIVITY

UAB

100 Mb/s

GigaBit

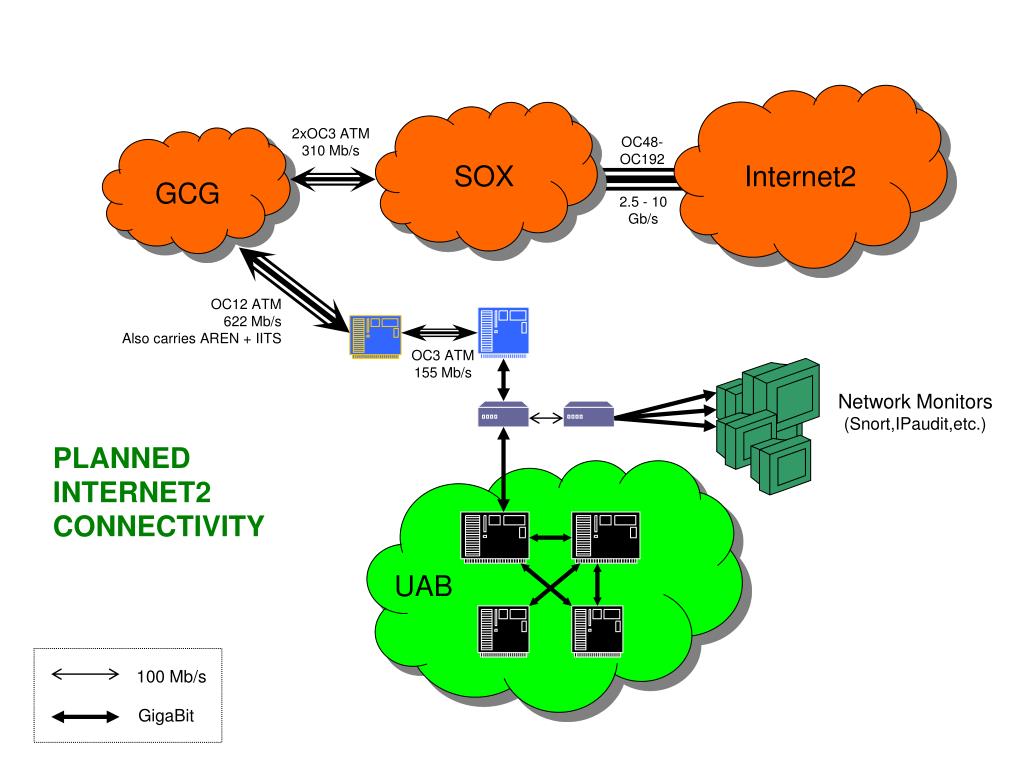

slide6

2xOC3 ATM

310 Mb/s

OC48-

OC192

SOX

Internet2

GCG

2.5 - 10

Gb/s

OC12 ATM

622 Mb/s

Also carries AREN + IITS

OC3 ATM

155 Mb/s

Network Monitors

(Snort,IPaudit,etc.)

PLANNED

INTERNET2

CONNECTIVITY

UAB

100 Mb/s

GigaBit

slide7

AREN

BACKBONE

GCG

http://www.asc.edu/

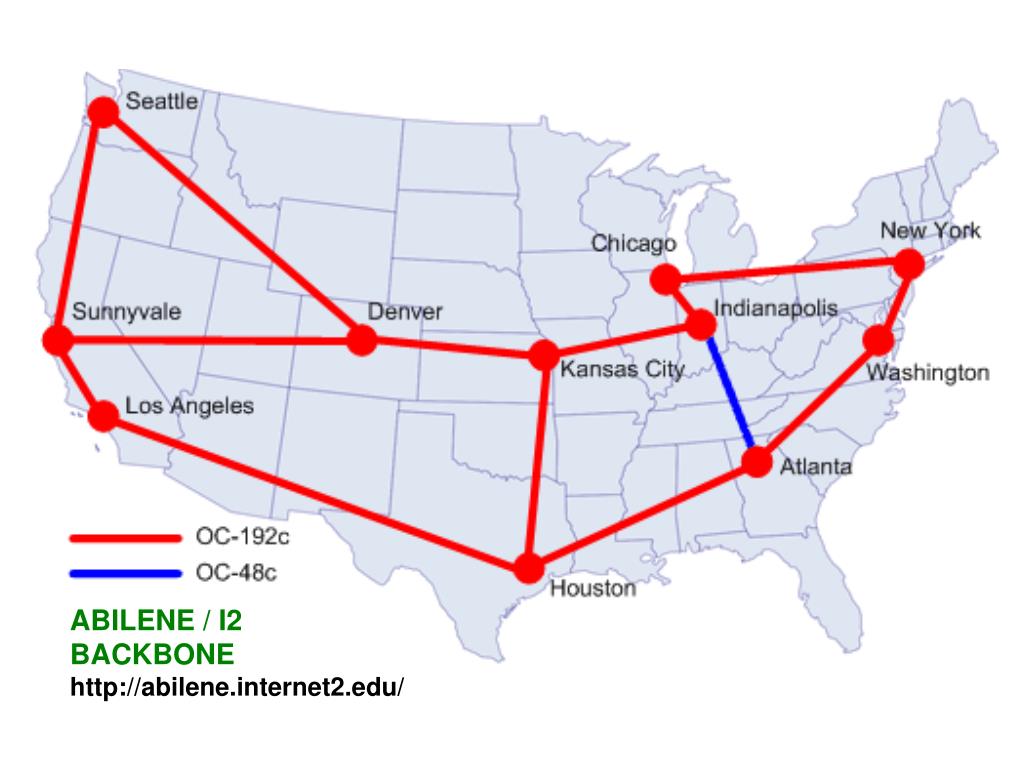

slide8

ABILENE / I2

BACKBONE

http://abilene.internet2.edu/

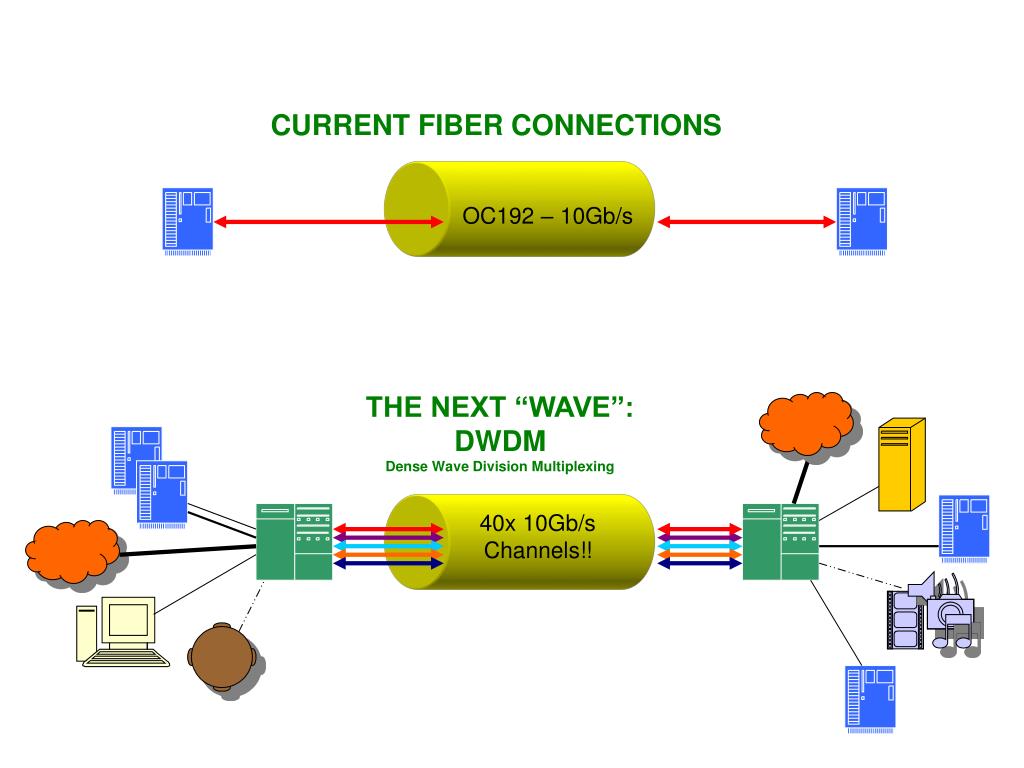

slide10

CURRENT FIBER CONNECTIONS

OC192 – 10Gb/s

THE NEXT “WAVE”:

DWDM

Dense Wave Division Multiplexing

40x 10Gb/s

Channels!!
