  1. Chapter 3: The Image, its Mathematical and Physical Background 3.1. Overview 3.2. Linear Integral Transforms 3.3. Images as Stochastic Processes 3.4. Image Formation Physics

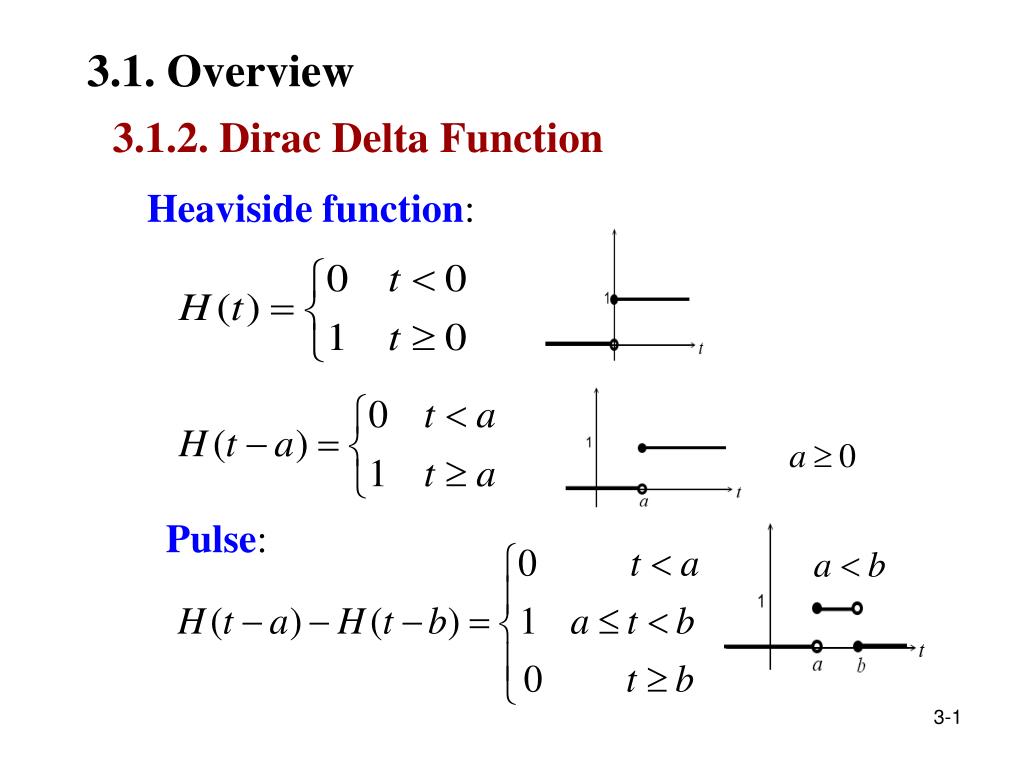

  2. 3.1.2. Dirac Delta Function Heaviside function: 3.1. Overview Pulse:

  3. Impulse: Dirac Delta Function: 2D delta function:

  4. Sampling: Image function:

  5. Show Proof: 4

  6. by Hospital’s rule 3-5

  7. 3.1.3. Convolution

  8. 。Discrete case: Wraparound If N < A+B,

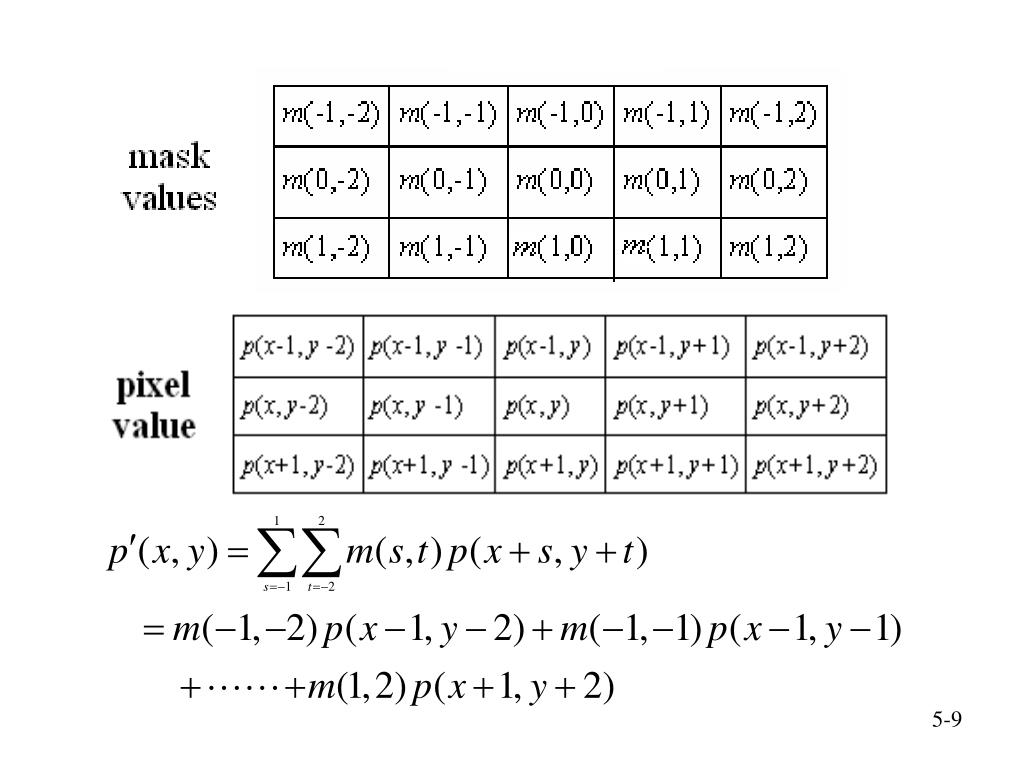

  9. In practice, 5-8

  10. 5-9

  11. Properties: Show Proof:

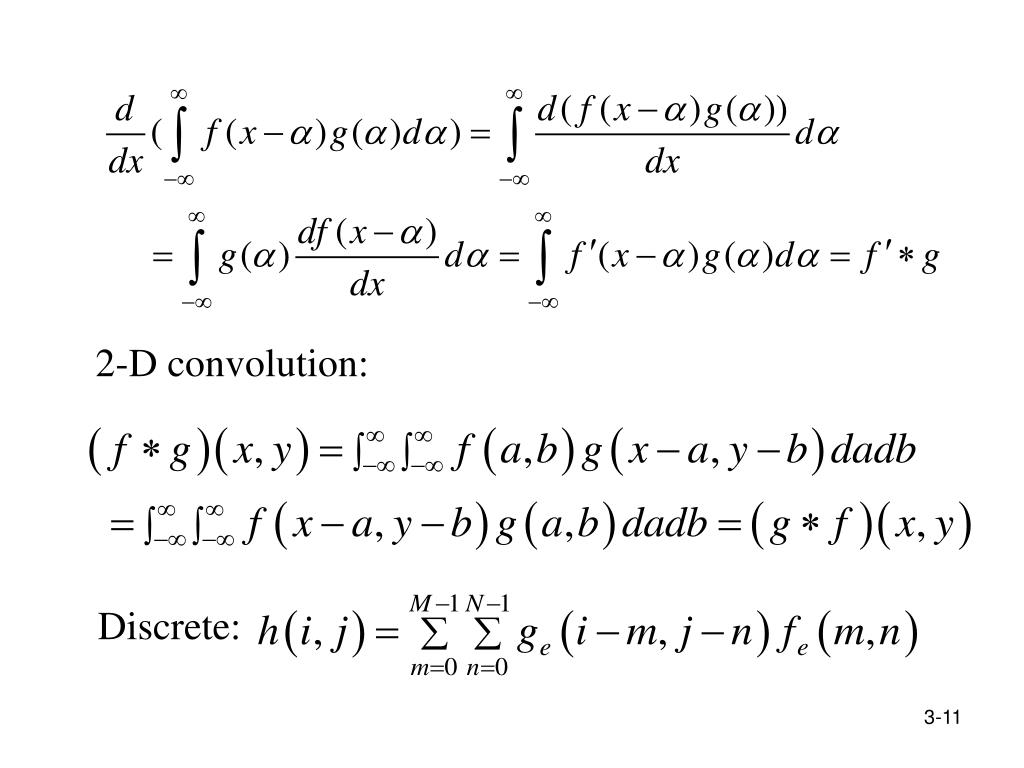

  12. 2-D convolution: Discrete: 3-11

  13. Correlation: ( )

  14. Transform: → domain 1 domain 2 e.g., Fourier transform Frequency domain Spatial domain → → Advantages: implicit explicit properties Examples: Fourier, wavelet, cosine, radon, slant, Haar, Hough, Paley-Walsh transforms, …..…. 3.2. Linear Integral Transforms 3.2.3. Fourier Transform

  15. Fourier series -- A periodic (T) function f(x) can be written as where In complex form where and 3-14

  16. Since 3-15

  17. 3-16

  18. In continuous case, 3-17

  19. Fourier transform (FT) 1-D: aggregates the sinuous component of f.

  20. Complex spectrum Phase spectrum Amplitude spectrum Power spectrum Properties: 1. 2. (Parseval’s theory)

  21. Examples: 3-20

  22. 3-21

  23. Discrete Fourier transform Input signal: 3-22

  24. FFT: Successive Doubling Method Then Let Assume . Let N = 2M. ∴ 3-23

  25. Let 3-26

  26. --------- (B) Consider 3-26

  27. 3-26

  28. ○ Analysis: The Fourier sequence F(u), u = 0 , … , N-1 of f(x), x = 0 , … , N-1can be formed from sequences u = 0 , …… , M-1 Recursively divide F(u) and F(u+M); eventually, each contains one element F(w), i.e., w = 0, and F(w) = f(x). 3-27

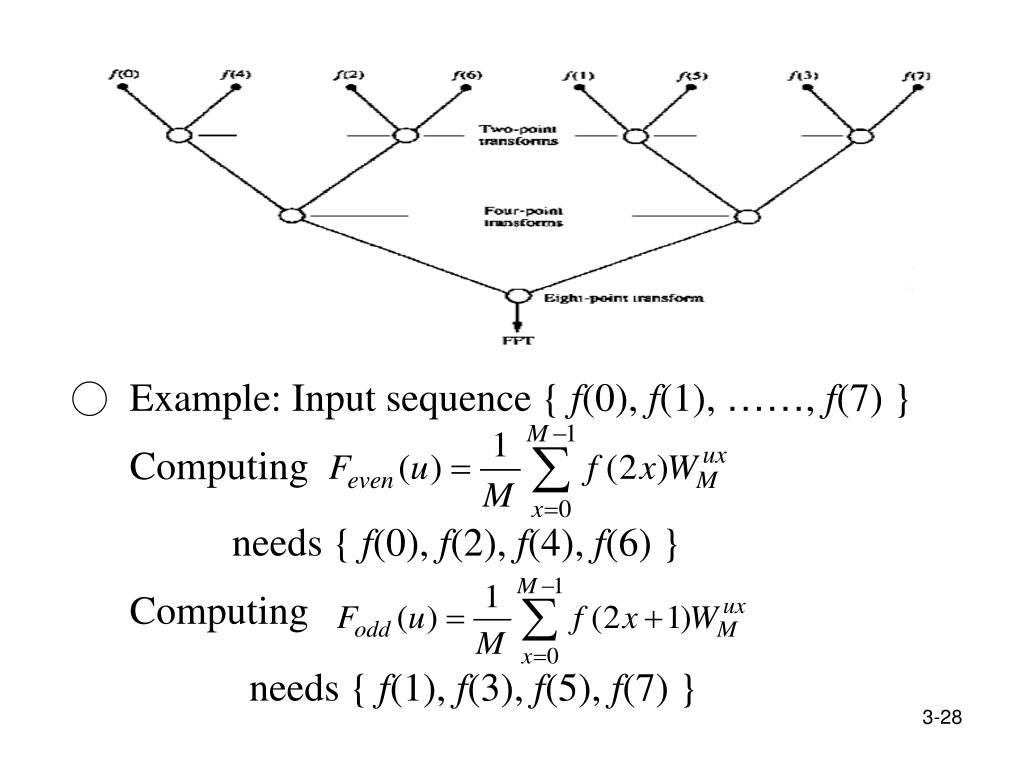

  29. ○ Example: Input sequence { f(0), f(1), ……, f(7) } Computing needs { f(0), f(2), f(4), f(6) } Computing needs { f(1), f(3), f(5), f(7) } 3-28

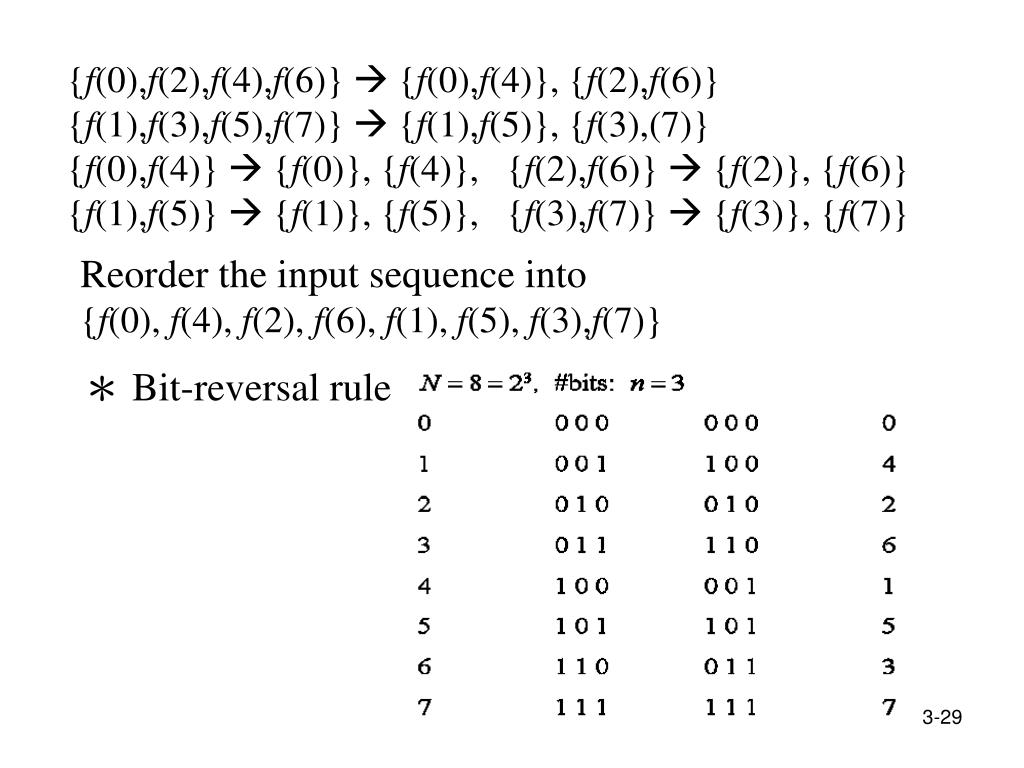

  30. {f(0),f(2),f(4),f(6)}  {f(0),f(4)}, {f(2),f(6)} {f(1),f(3),f(5),f(7)}  {f(1),f(5)}, {f(3),(7)} {f(0),f(4)}  {f(0)}, {f(4)}, {f(2),f(6)}  {f(2)}, {f(6)} {f(1),f(5)}  {f(1)}, {f(5)}, {f(3),f(7)}  {f(3)}, {f(7)} Reorder the input sequence into {f(0), f(4), f(2), f(6), f(1), f(5), f(3),f(7)} *Bit-reversal rule 3-29

  31. 3-30

  32. ○ Inverse FFT ← Given ← compute into FFT. The output is i. Input ii. Taking the complex conjugate and multiplying by N , yields the f(x) 3-31

  33. ○ 2-D: Discrete Fourier transform 3-32

  34. 3-33

  35. Properties: Linearity Periodicity Conjugate symmetry 3-34

  36. Shifting

  37. 。 Examples: 1-D signal 2-D image f F F’ 3-36

  38. Rotation Polar coordinates: Correlation theorem Convolution theorem 3-37

  39. ○ Any real function can always be decomposed into its even and odd parts, i.e., e.g.,

  40. ○ Convolution involving impulse function ※ Copyf(x) at the location of each impulse 3-40

  41. 3.2.5. Sampling theory Continuous function Dense sampling Sparse sampling Objective: looking at the question of how many sampling should be taken so that no information is lost in the sampling process

  42. Spatial domain Frequency domain f(x): band-limited function Sampling function Sampling 3-42

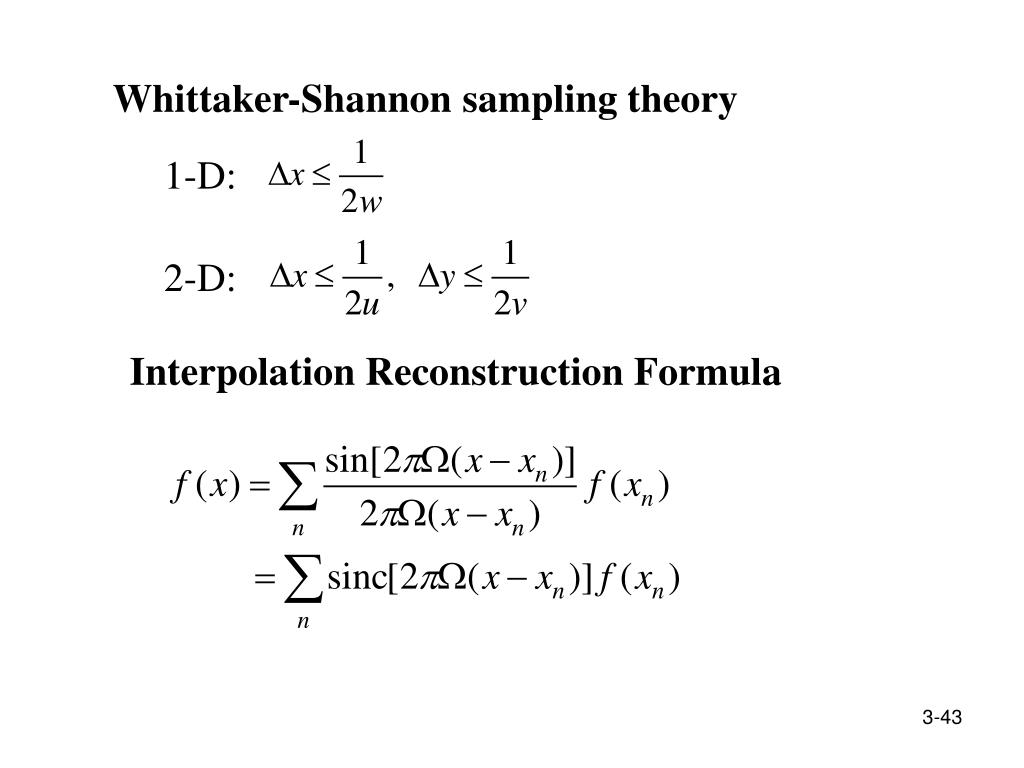

  43. Whittaker-Shannon sampling theory 1-D: 2-D: Interpolation Reconstruction Formula 3-43

  44. 3.2.7. Wavelet transform Fourier spectrum provides all the frequencies present in a signal but does not tell where they are present. Windowed Fourier transformsuffers from the dilemma: Small range – poor frequency resolution Large range – poor localization Wavelet: wave that is only nonzero in a small region Wave Wavelet

  45. Types of wavelets: Haar: Morlet: Mexican hat:DOG, LOG

  46. ○ Operations on wavelet: (a) Dilation: i) Squashing ii) Expanding (b) Translation: i) Shift to the right ii) Shift to the left (c) Magnitude change: i) Amplification ii) Minification 3-46

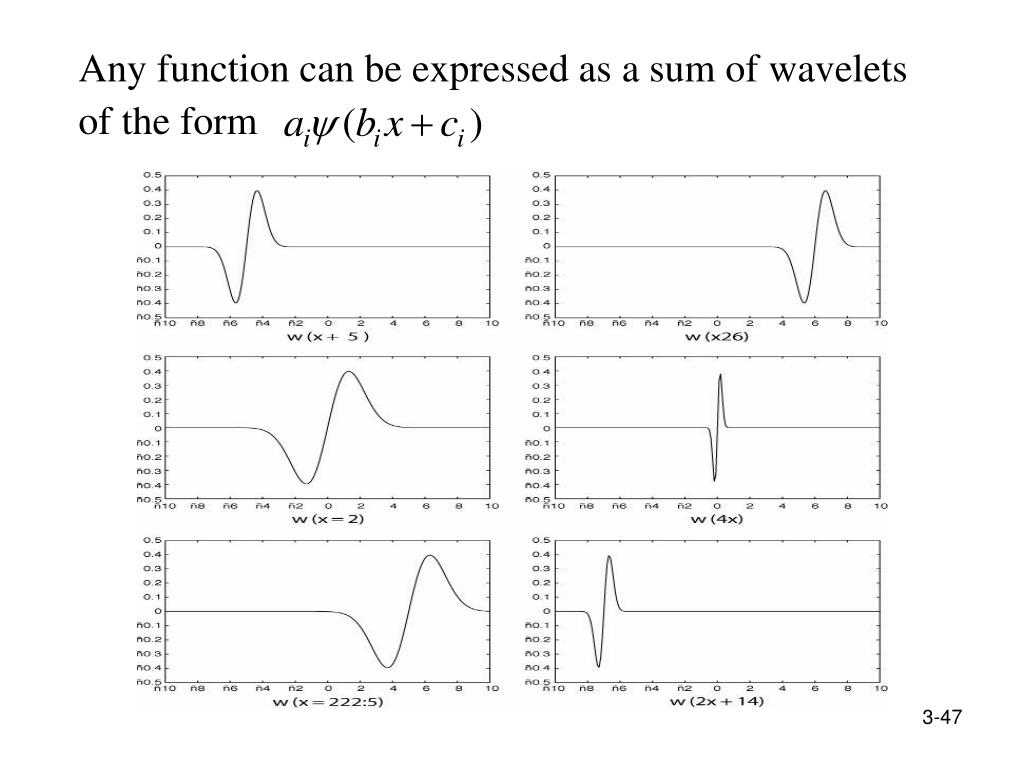

  47. Any function can be expressed as a sum of wavelets of the form 3-47

  48. Wavelet transform:decomposes a function into a set of wavelets where : wavelets : mother wavelet New variables: scale translation Inverse wavelet transform:synthesize a function from wavelets coefficients

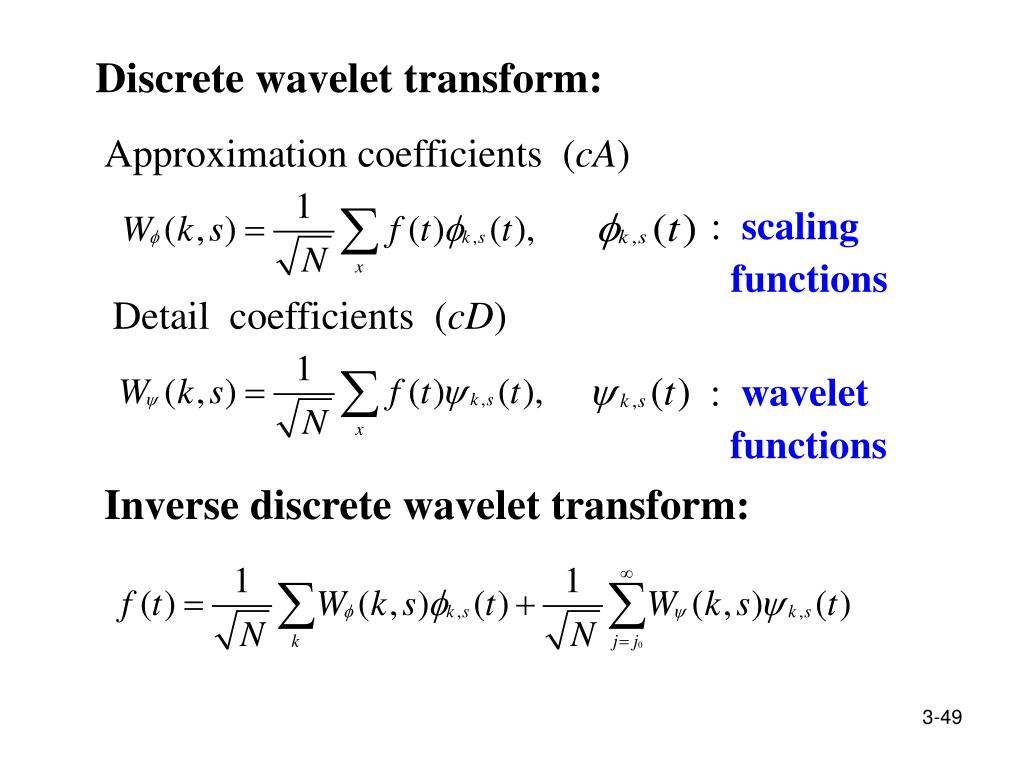

  49. Discrete wavelet transform: Approximation coefficients (cA) : scaling functions Detail coefficients (cD) : wavelet functions Inverse discrete wavelet transform:
