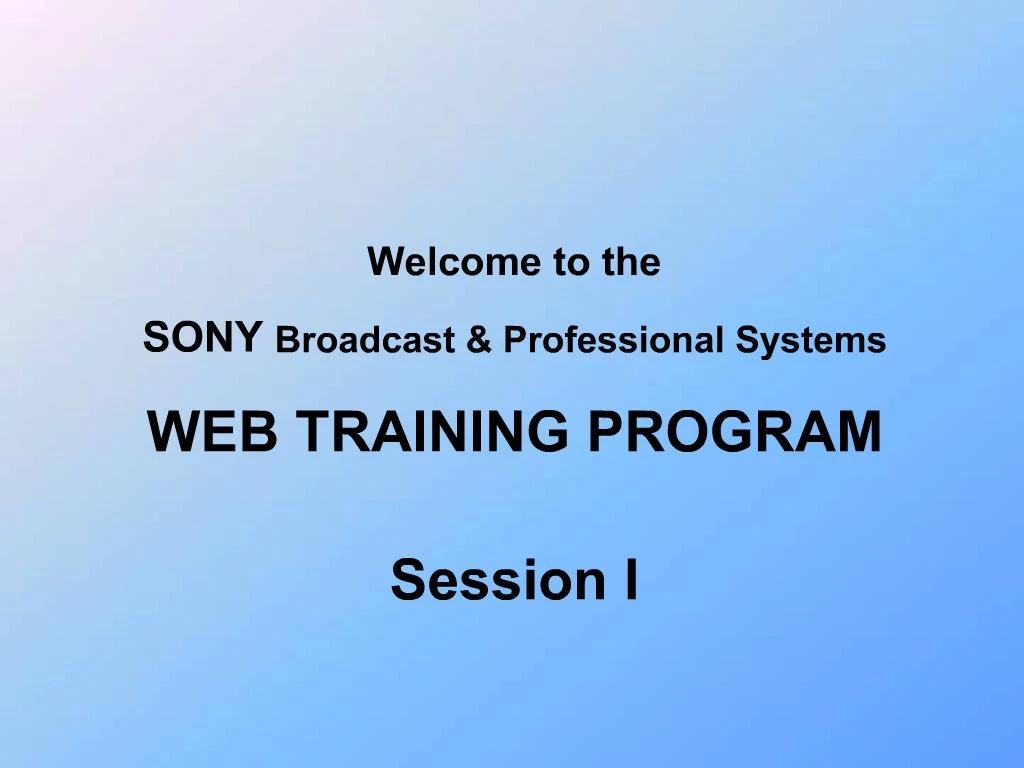

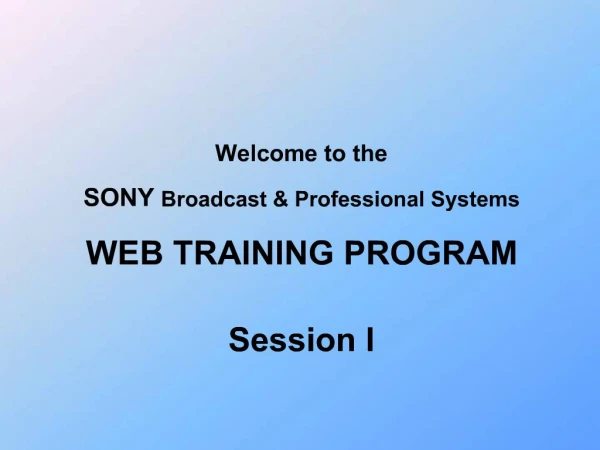

    1. Welcome to the SONY Broadcast & Professional Systems WEB TRAINING PROGRAM

    2. Introductory Comments

    3. Sony Distributor Training Christopher J. Soltesz Pro AV/Display SSE 9/9/04

    4. DVCAM Camcorders

    5. Acquisition Systems

    6. DSR-PDX10 Camcorder DVCAM’s Swiss Army Knife News Stringer, Independent Film, Event Videography, Gov’t/Education i.LINK and USB-2 Capable 1/4.7” CCD One Million Pixels Super Steady Shot True 16:9 Image Capture List Price $2,395.00

    7. DSR-PD170 Camcorder The Industry Standard Camcorder for Virtually All Video Applications Has Been Improved!! 16:9 Capable NTSC/PAL Available List Price $3,940.00

    8. DSR-PD170 New Features: New Advanced HAD CCD’s Minimum illumination 1 lux (PD150 rated 2 lux) Audio S/N Ratio improved by 6dB (in manual mode) Wide Conversion Lens (VCL-HG0758 0.7X) included New Lens Hood

    9. DSR-PD170 New Features: On handle zoom lever and Record start/stop button Larger Handle and Viewfinder Increased adjustment steps in Iris control (12 to 24) Simultaneous operation of both LCD and Viewfinder Same Price!!

    10. DSR-250 Camcorder ENG/Event Videography Super SteadyShot/Optical Stabilzation System 12 x Lens with 48 x Digital Zoom Three 1/3” 380K Pixel CCD 16:9 Capable Standard and MiniDV Cassettes DVCAM and DV Format Built-In LCD Screen List Price $5,530.70 Order the DSR250PAC (includes VCT-U14 Tripod Mounting Plate

    11. DSR-390 Camcorder ENG, EFP or Studio Configuration DSP Digital Signal Processing Three 1/2 “ Type Power HAD EX CCDs 65dB S/N, -115dB Smear F13 @ 2000 lux Sensitivity 0.4 lux Min Illumination True Eye Color Process DynaLatitude List Price $9,870.00

    12. DSR-570 Camcorder ENG, EFP, or Studio Configuration 2/3” 16:9 Native Power HAD CCDs All Digital Camcorder 4:3/16:9 Switchable Advanced Digital Signal Processing ENG, Independent, Feature Movie Production, Government/Education List Price $18,000.00

    13. Camera Lenses 101: All Sony ˝” and 2/3” cameras have removable lenses Sony uses standard Bayonet Mount Specific Lenses for Imager sizes Lens Models are named by size: ˝” Canon “YH”, Fujinon “S” 2/3” Canon “YJ”, Fujinon “A” Rear Lens controls are not interchangeable between manufacturers

    14. DVCAM VTR’s

    15. VTR Line-up: Proof of this commitment is Sony’s complete Digital Acquisition lineup. Not just one camcorder,... but a full lineup. From the famous and astounding quality of DSR-PD100A to the top Broadcast Quality and Performance of the DSR-500WS, SONY offers you a perfect professional solution for any situation. Sony is a leader in manufacturing and innovative technology of DSP and CCD. The ability to perfectly match the DSP to the CCD is fundamental in achieving top quality digital video. Why can only Sony do this? Because Sony manufactures BOTH the CCD and the DSP. Other camera manufacturers have had access to the Sony CCD but not to the DSP, which is a unique and proprietary design. Thousands of customers have migrated to digital video with Sony DVCAM. The DSR-200A was AND STILL IS a key tool in the transition from Analog Video to Digital video. You have demanded more features and more performance at this price point. We heard your message loud and clear! The DSP/CCD technology and the Sony KNOW-HOW have allowed the creation of…...Proof of this commitment is Sony’s complete Digital Acquisition lineup. Not just one camcorder,... but a full lineup. From the famous and astounding quality of DSR-PD100A to the top Broadcast Quality and Performance of the DSR-500WS, SONY offers you a perfect professional solution for any situation. Sony is a leader in manufacturing and innovative technology of DSP and CCD. The ability to perfectly match the DSP to the CCD is fundamental in achieving top quality digital video. Why can only Sony do this? Because Sony manufactures BOTH the CCD and the DSP. Other camera manufacturers have had access to the Sony CCD but not to the DSP, which is a unique and proprietary design. Thousands of customers have migrated to digital video with Sony DVCAM. The DSR-200A was AND STILL IS a key tool in the transition from Analog Video to Digital video. You have demanded more features and more performance at this price point. We heard your message loud and clear! The DSP/CCD technology and the Sony KNOW-HOW have allowed the creation of…...

    16. DVCAM VTR Capabilities: Master Series (B&P) “Studio” Deck RS-422 Editing Control Full Complement of Digital/Analog I/O’s (Some may be Opt.) Jog/Shuttle Control DVCPRO Playback Frame Accurate Edit Capability Not so Inexpensive PV Series Simple Servo System i.LINK ONLY Digital I/O Perfect for DV NLE’s Not a lot of B’s & W’s Not Editing decks Inexpensive

    17. DSR-11 VTR Basic DVCAM Deck; Great for NLE’s & DV-SP Record and Playback Standard and Mini Cassette Size PAL/NTSC Switchable Timecode Recording via DV IN Composite, Y/C I/O i.LINK List Price $2,052.00

    18. DSR-25 VTR Built in LCD Monitor and Front Panel Display DVCAM & DV-SP Record and Playback Standard and Mini Size Cassette PAL/NTSC Switchable Compact Size (half-rack size width, 2U height) Duplication (Including Cassette Memory) Timecode Recording via DV IN Timecode/User Bit Preset i.LINK, Composite, Y/C I/O List Price $3,300.00

    19. DSR-30 VTR DVCAM Player/Recorder Built in Control Tray with jog/shuttle dial Standard and Mini size Cassette Only DVCAM Deck that provides Letterbox capability Time Code Reader/Generator LANC Control i.LINK List Price $4,717.14

    20. DSR-45 VTR Built in LCD Monitor and Front Panel Display DVCAM & DV-SP Record and Playback Standard and Mini Size Cassette Compact Size (half-rack size width, 2U height) Duplication (Including Cassette Memory) Timecode Recording via DV IN Timecode/User Bit Preset Component I/O and 4Ch. XLR Outputs i.LINK, Composite, Y/C I/O RS232C and RS422A Control List Price $4,606.66

    21. DSR-50 Portable VTR Portable Field Recorder Built in LCD Monitor and Front Panel Display DVCAM & DV-SP Record and Playback Standard and Mini Size Cassette Battery Powered (BP style) Component I/O and 4Ch. XLR Inputs (Mic or Line) i.LINK, Composite, Y/C I/O LP: $6,050.00

    22. DSR-1500A VTR DVCAM, DV & DVCPRO Playout Without Adaptor or Menu Changes i.LINK output from DVCAM, DV & DVCPRO tapes Frame Accurate Insert Edit Capability Full Digital and Analog Interface Options Half Rack, 3RU High List Price $6,245.00

    23. DSR-1600 VTR Studio DVCAM Editing Player DVCAM, DV & DVCPRO Playout Without Adaptor or Menu Changes Frame Accurate Edit Capability Component, Composite and Y/C outputs Full Digital Interface Options 3RU High List Price $6,510.00

    24. DSR-1800 VTR Studio DVCAM Editing Recorder DVCAM, DV & DVCPRO Playout Without Adaptor or Menu Changes Frame Accurate Insert Edit Capability Component, Composite and Y/C I/O Full Digital Interface Options 3RU High List Price $9,300.00

    25. Ultimate in 25 Mbps Recording Ideal for All 1/4” Digital Video Production Playback of All DV (25 Mbps) Family Formats Studio Editing Recorder Front Panel Editing Control Standard Analog and Digital I/O’s Pre-read Function Double Scan Playback Optional i.LINK* List Price $14,750.00 DSR-2000 VTR

    26. DSR-2000 Playback Compatibility: Playback capability of DV(SP), DV(LP), DVCAM and DVCPRO. DVCPRO Video output via all analog interfaces & SDI. No DVCPRO recorded tape output via i.LINK or SDTI(QSDI) - Data structure of DVCPRO is proprietary. Recording format is DVCAM only. The DSR-2000 boasts playback compatibility with all DV (25 Mb/s) format recorded tapes. This is especially useful because home-use DV products are now widely used in professional video applications due to their compact portability and superior picture quality For maximum versatility in a wide range of video editing environments, the DSR-2000 is designed to playback DVCAM tapes, DV tapes recorded in both SP/LP modes, and even DVCPRO tapes* without any mechanical adaptor. Moreover, it is possible to use these tapes directly as editing source material or dub up to other formatThe DSR-2000 boasts playback compatibility with all DV (25 Mb/s) format recorded tapes. This is especially useful because home-use DV products are now widely used in professional video applications due to their compact portability and superior picture quality For maximum versatility in a wide range of video editing environments, the DSR-2000 is designed to playback DVCAM tapes, DV tapes recorded in both SP/LP modes, and even DVCPRO tapes* without any mechanical adaptor. Moreover, it is possible to use these tapes directly as editing source material or dub up to other format

    27. DSR-2000 Exclusive: Double-Scan Playback

    28. DSR-2000 Exclusive: Double-Scan Playback

    29. DVCAM Field Editor Digital slow motion (xą50%) DMC and Jog Audio DV / DVCAM / DVCPRO playback Dual video input capability Optional digital interfaces (SDI/SDTI(QSDI)/i.Link) DSBK-160A w/ SDI & i.Link List Price $13,100.00 DSR-70A VTR

    30. DSR-1/1 Dockable VTR Dockable DVCAM Recorder Docks to DXC cameras (DXC-D50, D35, D30, etc.) Mini and Standard Cassettes Dual Pro 50 and Pro 76-pin interfaces Time Code Generator Reader List Price $8,475.00

    31. DVCAM HDD’s

    32. DSR-DU1 Digital HDD Unit Regarding our NLE alliances - Unofficially - Apple FCP 4.0 and Vegas 4.0 have both qualified the DSRDU1 using SBP2. These now join Canopus and Pinnacle (Purple) supporting our DVCAM HDDs via SBP2. Avid Certified via AV/C Protocol with Express DV 3.5 Adobe Certified via SBP/2 Protocol with Premier 6.5 (and 7.0) Pinnacle Certified via SBP/2 Protocol with Liquid Purple Canopus Certified via SBP/2 Protocol with CWS-30/50/100 Series Matrox Certified via AV/C Protocol with RT.X10, RT.X100 and DigiSuite Max Regarding our NLE alliances - Unofficially - Apple FCP 4.0 and Vegas 4.0 have both qualified the DSRDU1 using SBP2. These now join Canopus and Pinnacle (Purple) supporting our DVCAM HDDs via SBP2. Avid Certified via AV/C Protocol with Express DV 3.5 Adobe Certified via SBP/2 Protocol with Premier 6.5 (and 7.0) Pinnacle Certified via SBP/2 Protocol with Liquid Purple Canopus Certified via SBP/2 Protocol with CWS-30/50/100 Series Matrox Certified via AV/C Protocol with RT.X10, RT.X100 and DigiSuite Max

    33. DSR-DR1000 HDD Recorder With additional products like the new DSR-DR1000, you’ll be seeing faster and faster production work-flow with versatile tools for a more creative, and less time consuming, production process . With additional products like the new DSR-DR1000, you’ll be seeing faster and faster production work-flow with versatile tools for a more creative, and less time consuming, production process .

    34. High Quality & Affordability: Performance equivalent to DVCAM Master Series Full complement of analog and digital interfaces Compact, lightweight design Low cost: $6,040.00 LP The new DSR-DR1000 offers real benefits to the production process – Maximum 6 hour recording time in DVCAM format Instant access to all video clips Simultaneous playback of any predetermined video sequence while recording is taking place The Clip Segment Playback function allows seamless playback of clip sequences – a virtual cut-edit system. Interval recording function allows you to set the DSR-DR1000 to switch between standby and record modes, useful for scientific observation or surveillance applications. Interval times can be set to 30sec, 1min, 5min, or 10 minutes, while recording times can be set to 0.5sec, 1.0sec, 1.5sec, or 2.0sec. Continuous loop recording, useful for recording unpredictable events. This function allows you to utilize the complete capacity of the hard disk, similar to an endless loop tape. Pre-alarm recording allows automatic recording triggered by an external alarm signal via the CONTROL terminal on the rear panel (or a REC command via the front panel or the RS422A port). In this mode, the DR1000 will maintain a 30 sec loop on the hard drive and start recording when triggered. This ensures that 30 seconds prior to any REC command will also be stored on the hard disk. Network connectivity is possible via Ethernet 10/100 Base-T, offering file transfer via FTP using SNMP protocols. A transfer rate of 10Mbps is possible between 2 DSR-DR1000s, and 15Mbps between a DSR-DR1000 and a PC, offering workflow efficiencies within LAN environments. The new DSR-DR1000 offers real benefits to the production process – Maximum 6 hour recording time in DVCAM format Instant access to all video clips Simultaneous playback of any predetermined video sequence while recording is taking place The Clip Segment Playback function allows seamless playback of clip sequences – a virtual cut-edit system. Interval recording function allows you to set the DSR-DR1000 to switch between standby and record modes, useful for scientific observation or surveillance applications. Interval times can be set to 30sec, 1min, 5min, or 10 minutes, while recording times can be set to 0.5sec, 1.0sec, 1.5sec, or 2.0sec. Continuous loop recording, useful for recording unpredictable events. This function allows you to utilize the complete capacity of the hard disk, similar to an endless loop tape. Pre-alarm recording allows automatic recording triggered by an external alarm signal via the CONTROL terminal on the rear panel (or a REC command via the front panel or the RS422A port). In this mode, the DR1000 will maintain a 30 sec loop on the hard drive and start recording when triggered. This ensures that 30 seconds prior to any REC command will also be stored on the hard disk. Network connectivity is possible via Ethernet 10/100 Base-T, offering file transfer via FTP using SNMP protocols. A transfer rate of 10Mbps is possible between 2 DSR-DR1000s, and 15Mbps between a DSR-DR1000 and a PC, offering workflow efficiencies within LAN environments.

    37. Features and Benefits

    38. Additional Features 2 Channel audio monitor output: Two channels of analog audio output are available either through the XLR connectors or RCA pin jacks located on the rear panel of the J Series compact players. The audio channels to be output to the analog outputs and headphone jack can be selected from Ch 1/2, Ch 3/4, and Cue track. UMID and Essence Mark readable: The J-30 SDI can read UMID and Essence Marks.

    39. J-10SDI & J-30SDI Rear Panel

    40. J-10 & J-30 Rear Panel

    41. Pricing & Availability

    42. JH Series HD ˝” VTR’s JH-1 (for HDCAM 1080 only) Playback Rates: 1080/25P, 29.97 P, 1080/50i, 59.94i Video Outputs: HD Analog (Y, Pr, Pb), Composite Analog, Computer Display (D-Sub 15), i.LINK (Option) Audio Outputs: Analog Monitor (XLR x2; RCA x2) Interfaces: RS-232C , RS422A Infrared Remote Control (SIRCS) LP $15,038.00

    43. JH Series HD ˝” VTR’s JH-3 (includes HDCAM 24Psf) Playback Rates: Same as J-H1 PLUS 1080/23.98P, and 24P 3:2 Pulldown Capability Built-In Video Outputs: HD SDI, HD Analog (Y, Pr, Pb), Computer (D-Sub15), SDI (Standard Def), Composite Analog (BNC + RCA),iLink (Option) External Reference (HD or SD) Audio Outputs: Analog Monitor (XLR x2; RCA x2) Interfaces: RS-232C, RS422A, SIRCS (Infrared Rem Ctl) Time Code Output LP $26,312.00

    44. Some Helpful Hints

    45. Some Helpful Hints: The DSR-390 and DSR-570WS are available in Studio Configuration. To mount the Studio viewfinder on the camera, you will need to order a part. The Accessory Shoe Kit part number is: A-8274-968-A. This part number comes with the CA-370 intercom adaptor.

    46. Helpful Hints (cont.): All of the PV camcorders (DSR-PDX10, DSR-PD170, and DSR-250) can record directly from i.LINK. This means that the customer can use their camcorder as a recorder from their NLE. The DSR-390 and DSR-570WS will not accept i.LINK input. Both camcorders can use the optional DSBK-501 Pool Feed Board (composite input board).

    47. Helpful Hints (cont.): The DSR-2000 is the only DVCAM deck that can playback (and edit from) DV-LP tapes. The DSR-2000 is the only DVCAM deck with Pre-Read (read before write) capability. The DSR-2000 is also the only DVCAM deck with Dual-Scan Playback. This can provide the capability to “repair” off-track recordings.

    48. Helpful Hints (cont.): The DSR-1500A is the only DVCAM deck with DVCPRO playback over i.LINK.

    49. Helpful Hints (cont.): The DSR-DR1000 offers the best range of off-speed PB of all the DVCAM products (from -2X to +2X). The DSR-DR1000 can record and PB at the same time (great for time shifting satellite feeds at a TV station, or for sports Slow-mo).

    50. What is aspect ratio?

    51. DXC-D50

    52. New DXC-D50 Series Product Outline Introduce the ultimate version of DXC cameras. As the successor of DXC-D35series, by utilizing same technology of BVP camera, it creates the highest performance in this camera range. Targeted for business and professional use and for small TV stations. Highest specification among competitors Introducing a New RCP with joystick type

    53. DXC-D50 Product Overview:

    56. Main Specifications New Power HAD EX CCD’s Sensitivity Vertical Smear FIT like -140dB of rejection Signal to Noise ratio 65dB New LSI 12 bit A/D and over 30 bit processing Camera comes either 4:3 or 16:9 (switchable to 4:3). Customer has to choose!

    57. Comparison Chart

    58. Remote Control Panels for DXC/DSR RCP-D51 RCP-D50

    59. RCP Concept Enhancing system versatility of DXC system to fit to professional users To fulfill the demand for Joystick operation for DXC user To support full functional camera control by new software oriented controller

    60. New RCP-D50/D51 Outline Features Fully controllable remote control panel JOYSTICK control (D50 only) Large LCD screen with touch panel Picture monitoring on LCD panel Memory stick for scene file store/recall Scene Files can be stored on PC and e-mailed

    61. RCP-D50/D51 System Configuration

    65. RCP Features New features: Joystick type New for DXC series Memory Stick Scene file store/recall Firmware update LCD panel Menu operation for full functionality

    66. RCP Pricing: RCP-D50 and RCP-D51 Target List Price US $3.8K RCP-D50 Joystick Type US $3.4K RCP-D51 Dial Type

    67. DXC-D50 Configurations Camcorders Multicore Triax

    68. DXC-D50 DVCAM Camcorders DSR-1/1 mounts directly to camera head via 76pin digital connection. DSRD50LPAC This package includes the DXC-D50L and DSR1/1. DSRD50WSLPAC This package includes the DXC-D50WSL and DSR1/1.

    69. DXC-D50 Beta-SP Camcorders PVWL50PAC2: Package Includes DXC-D50L and PVV-3. PVWD50WSLPAC2 Package Includes DXC-D50WSL and PVV-3.

    70. DXC-D50 Studio Configurations: Camera Head (4:3 or 16:9/4:3 switchable) Camera Adaptor Camera Control Unit Studio or ENG Viewfinder (or both) Remote Control Panel (RCP with 5m cable) No Transmission Cables!! No Rack Mounts!!

    71. DXC-D50 Multicore Studio: Six 4:3 and Three 16:9 (Widescreen) Packages Differences are: DXC-D50H (Camera Head Only) DXC-D50L (Incl. Eng.VF and VCT) DXC-D50WSL (Widescreen L package) With or without RCP-D50 (joystick) or RCP-D51 All packages include DXF-51 5”Studio Viewfinder Packages do not include CCZ-AD Multicore cable

    72. DXC-D50 Triax Studio: Two 4:3 and two 16:9 Triax Packages All include CA-TX7, CCU-TX7/1, DXBK-701 and DXF-51. Differences are: 4:3 packages include DXC-D50H, RCP-D50 or RCP-D51, VCT-U14. 16:9 packages include DXC-D50WSL, RCP-D50 or RCP-D51. Packages do not include CCT Triax Cable

    73. HDC-X300

    74. HDC-X300 HD Camera

    75. HDC-X300 Features

    76. HDC-X300 Pricing and Availability HDC-X300 $15,000.00 List Price HDC-X300K $22,000.00 List Price HDC-X300 Camera and Canon Auto Focus Lens Package Now Shipping!!

    77. Questions & Answers Please enter your questions using text messaging feature now . . .
