  1. Correlating PPI node degree with SNP counts Michael Grobe (This work supported in part by: Research Technologies Indiana University)

  2. Do PPI nodes of high degree “have” more or fewer SNPs? Are hubs more or less susceptible to SNPs over evolutionary time? If so, why? If not, why?

  3. Hypothesis: The degrees of genes in a PPI network will correlate inversely with their SNP count. This hypothesis will be tested using (parts of) the following data resources: - dbSNP from NCBI, - the Disease Gene Network data collected by Rual, et al., Stetzl, et al., and Goh, et al. - several other NCBI resources

  4. dbSNP dbSNP is a large relational database maintained by the National Center for Biotechnology Information (NCBI) on a Microsoft SQLServer. (dbSNP seems to be misnamed.) NCBI provides several public interfaces to dbSNP: - a web-based interface for public use http://www.ncbi.nlm.nih.gov/SNP/ - a set of web-accessible scripts CGI scripts and (SOAP-based) Web Services, known as the Entrez eUtils, and, - an FTP repository of the data exported from the MS SQLServer. NCBI does NOT provide an interface for submitting SQL commands directly to the SQLServer. However, IUSM downloads the dbSNP data from the NCBI FTP repository, loads it into a local MS SQLServer, where it is available for use via JDBC, and UITS makes it available via Web pages and (SOAP-based) Web Services.

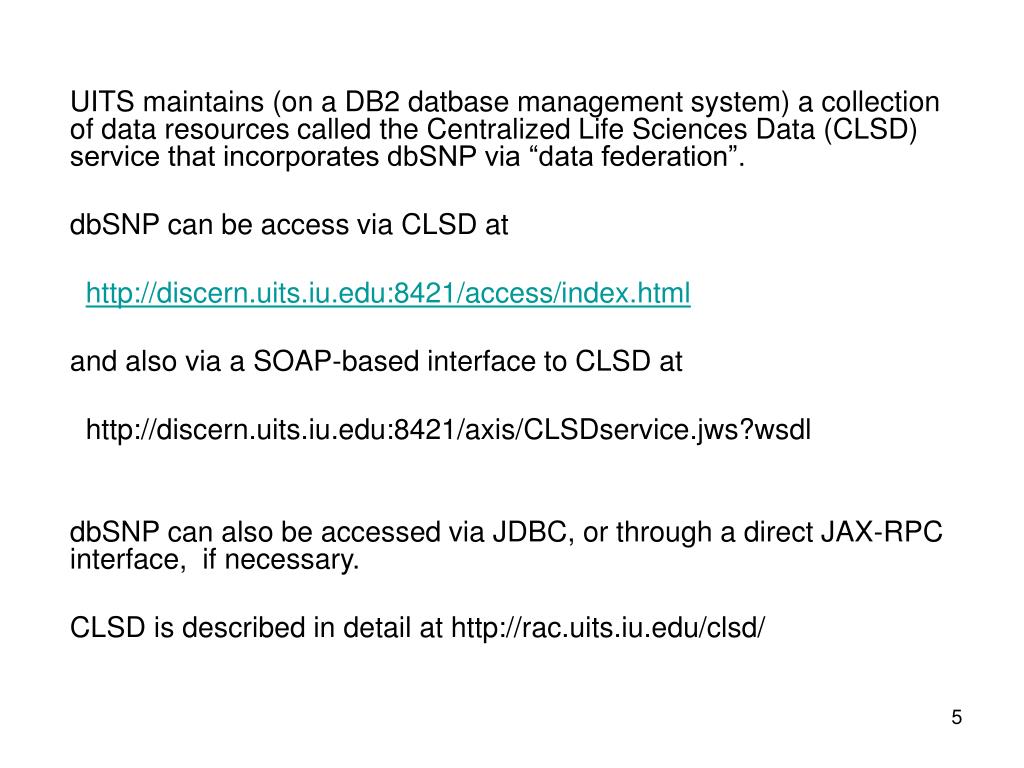

  5. UITS maintains (on a DB2 datbase management system) a collection of data resources called the Centralized Life Sciences Data (CLSD) service that incorporates dbSNP via “data federation”. dbSNP can be access via CLSD at http://discern.uits.iu.edu:8421/access/index.html and also via a SOAP-based interface to CLSD at http://discern.uits.iu.edu:8421/axis/CLSDservice.jws?wsdl dbSNP can also be accessed via JDBC, or through a direct JAX-RPC interface, if necessary. CLSD is described in detail at http://rac.uits.iu.edu/clsd/

  6. List of CLSD data resources BIND -- Pathways, Gene interactions ENZYME -- Enzyme nomenclature ePCR -- ePCR results of UniSTS vs Homo sapiens SGD -- Saccharomyces Genome Database DGN – The Disease Gene Network data from Goh, et al. (Provisional) KEGG data sources: + LIGAND -- Pathways, Reactions, & Compounds + PATHWAY -- Pathway map coordinates NCBI data sources: + LocusLink -- Genetic Loci. (retained for archival use.) + UniGene -- Gene clusters Federated data sources, where the data is stored: * at the originating site: + NCBI Nucleotide -- Nucleotide sequences + NCBI PubMed -- Journal abstracts * on local (mirror) servers external to CLSD but housed at IU * BLAST -- Basic Local Alignment Search Tool (mirrored at IU by UITS) * Nucleotide data: NT * Protein data: NR and Swiss-Prot * dbSNP -- Single Nucleotide Polymorphisms (mirrored at IU by IUSM)

  7. dbSNP is a relatively complex database. It includes about 300 tables for each species, and the separate species tables share about 80 additional tables. dbSNP is also rather large: dbSNP catalogs Shared, Human, and Mouse (circa early 2008) fill around 150 GB and 3 billion rows (of which about 2.8 billion are in dbSNP128_human). New versions come out every 6 months or so. This study uses Build 128, although Build 129 has been quite recently announced. The tutorial “Using dbSNP via SQL queries” describes the structure and use of dbSNP via SQL.

  8. The DGN PPI network The Disease Gene Network data within CLSD includes 3 networks: - a network of diseases that are “connected” when they involve the same gene, - a network of 1777 genes that are “connected” when they are implicated in the same disease, and - a Protein Protein Interaction (PPI) network built from networks defined by two different groups Rual, et al. and Stelzl, et al. The PPI is defined in the table called PPI_RUAL_STELZL; it has 7533 unique genes and 22,052 edges (in a half-matrix form). A companion table PPI_GENES lists every gene in the PPI network The PPI network was traversed to construct a list of shortest paths from each node to each other node: PPI_SHORTEST_PATH_LENGTHS. This is a kind of transitive closure and contains about 53 M records.

  9. SNPContigLocusID The main dbSNP table used in this project is SNPContigLocusID which contains information about the genes associated with each SNP. The Build 128 version of SNPContigLocusID contains about 13,129,868 rows (though about half of them specify “NW_” mRNA segments and were ignored). Here is a query that retrieves the records for 2 SNPs (among many others) that appear within, or close to, the coding region for JAK3. select * from b126_SNPContigLocusId_36_1 where snp_id in ( 3212724, 3212755 )

  10. Query results: Note that both of these SNPs have several records; SNP ID is NOT a key. SNPs may even map to different chromosomes!

  11. Here is a table of the Function Class (FXN_CLASS) codes .

  12. Number of (NT_) SNPs in each SNP function class select fxn_class, count(*) from dbSNP128_human.b128_SNPContigLocusId_36_2 where contig_acc like 'NT_%‘ [so not all 13 Mrows will appear] GROUP BY fxn_class ORDER BY fxn_class FXN_CLASSCountFXN_CLASSCount 3 78797 42 98053 6 6008473 44 15848 8 192868 53 144123 13 168608 55 27990 15 166205 73 645 41 2753 75 483

  13. Get gene IDs, symbols, and SNP counts The following query uses both DGN and dbSNP data to get a list of gene IDs, their symbols, and the number SNPs associated with each gene: select a.locus_id, b.locus_symbol, snp_counter from (select locus_id, count(*) as snp_counter from dbsnp128_human.b128_SNPContigLocusId_36_2 where contig_acc like 'NT_%' and locus_id in (select gene_id from disease_gene_net.ppi_genes ) group by locus_id) as a join (select distinct locus_id, locus_symbol from dbsnp128_human.b128_SNPContigLocusId_36_2) as b on b.locus_id = a.locus_id order by snp_counter desc

  14. Gene IDs, symbols, and SNP counts Here is a list of PPI genes with the top 100 SNP counts: 1756 DMD 60069 2104 ESRRG 7647 8224 SYN3 5495 1002 CDH4 4331 5799 PTPRN2 30328 1956 EGFR 7522 9577 BRE 5455 5884 RAD17 4286 26047 CNTNAP2 21661 9369 NRXN3 7088 8997 KALRN 5387 23254 KIAA1026 4275 5071 PARK2 19464 9215 LARGE 7046 4212 MEIS2 5271 817 CAMK2D 4207 5789 PTPRD 15867 56899 ANKS1B 7044 600 DAB1 5252 5602 MAPK10 4189 1305 COL13A1 15719 672 BRCA1 7024 351 APP 5196 8464 SUPT3H 4135 9734 HDAC9 14461 8618 CADPS 6798 2887 GRB10 5190 84570 COL25A1 4101 8379 MAD1L1 12441 6938 TCF12 6772 93986 FOXP2 5184 10142 AKAP9 4072 5152 PDE9A 12052 10207 INADL 6721 800 CALD1 5073 10466 COG5 4018 9586 CREB5 11921 1837 DTNA 6678 3119 HLA-DQB1 5039 64754 SMYD3 3988 2917 GRM7 11738 3084 NRG1 6392 659 PDE4DIP 4999 7492 ARID1B 3981 5649 RELN 11200 1896 EDA 6350 10580 SORBS1 4872 27133 KCNH5 3910 1523 CUTL1 9956 23345 SYNE1 6343 273 AMPH 4844 1390 CREM 3891 221935 SDK1 9194 4638 MYLK 6301 2066 ERBB4 4736 6262 RYR2 3879 9223 MAGI1 9091 9378 NRXN1 6157 6095 RORA 4644 8038 ADAM12 3874 23085 ERC1 9046 5558 PRIM2 5995 79109 MAPKAP1 4643 1501 CTNND2 3836 23236 PLCB1 8905 4897 NRCAM 5928 57509 MTUS1 4603 89797 NAV2 3798 1129 CHRM2 8895 2898 GRIK2 5877 4915 NTRK2 4562 10659 CUGBP2 3786 2272 FHIT 8366 9844 ELMO1 5835 1730 DIAPH2 4481 31 ACACA 3755 2918 GRM8 8128 3784 KCNQ1 5777 7518 XRCC4 4434 11214 AKAP13 3751 2139 EYA2 8091 6660 SOX5 5736 27185 DISC1 4413 1301 COL11A1 3736 29119 CTNNA3 8089 1740 DLG2 5616 1010 CDH12 4370 7273 TTN 3733 6487 ST3GAL3 8077 1630 DCC 5606 55714 ODZ3 4370 1838 DTNB 3698 53616 ADAM22 8006 5592 PRKG1 5574 6091 ROBO1 4346 7399 USH2A 3694 5890 RAD51L1 7786 3123 HLA-DRB1 5533 2895 GRID2 4332

  15. PPI node degree Here is a query that uses PPI_SHORTEST_PATH_LENGTHS to get degree for each node: select source, count(*) as degree from disease_gene_net.PPI_SHORTEST_PATH_LENGTHS where length = 1 and source in ( select gene_id from DISEASE_GENE_NET.PPI_GENES ) group by source order by degree

  16. PPI node degree Here is a query using that closure to get gene counts for each degree: select degree, count(*) from (select source, count(*) as degree from disease_gene_net.PPI_SHORTEST_PATH_LENGTHS where length = 1 and source in ( select gene_id from DISEASE_GENE_NET.PPI_GENES ) group by source ) as a group by degree order by degree

  17. Degree and gene count for all genes in the PPI net: 1 2267 23 24 46 3 76 4 2 1217 24 16 47 2 77 1 3 849 25 15 48 3 78 4 4 589 26 16 49 4 79 3 5 465 27 19 50 8 80 1 6 343 28 13 51 6 82 1 7 248 29 12 53 1 83 1 8 198 30 13 54 2 84 1 9 176 31 12 55 3 87 1 10 145 32 13 56 2 89 2 11 119 33 8 57 2 94 1 12 99 34 7 58 4 95 1 13 106 35 7 59 4 97 1 14 88 36 5 60 4 99 1 15 59 37 7 62 4 103 2 16 52 38 9 63 1 105 1 17 58 39 2 64 1 118 1 18 34 40 3 65 1 123 1 19 38 41 7 67 1 124 1 20 23 42 3 69 1 129 1 21 26 43 4 73 1 151 1 22 21 44 1 75 2 153 1 23 24 45 3 76 4 176 1

  18. To get PPI gene IDs, symbols, and degrees: select b.locus_id, b.locus_symbol, degree from (select source, count(*) as degree from disease_gene_net.PPI_SHORTEST_PATH_LENGTHS where length = 1 and source in ( select gene_id from DISEASE_GENE_NET.PPI_GENES ) group by source) as a join (select distinct locus_id, locus_symbol from dbsnp128_human.b128_SNPContigLocusId_36_2) as b on b.locus_id = a.source

  19. PPI gene IDs, symbols, and their degrees (top 100 degree values): 7157 TP53 176 4089 SMAD4 78 2547 XRCC6 59 5879 RAC1 50 5829 PXN 153 7431 VIM 78 6667 SP1 59 6303 SAT1 50 2885 GRB2 151 7704 ZBTB16 78 57473 ZNF512B 59 6774 STAT3 50 11007 CCDC85B 129 9094 UNC119 77 4067 LYN 58 8648 NCOA1 50 7186 TRAF2 124 672 BRCA1 76 5111 PCNA 58 26994 RNF11 50 7414 VCL 123 1499 CTNNB1 76 7534 YWHAZ 58 55660 PRPF40A 50 4087 SMAD2 118 1915 EEF1A1 76 55729 ATF7IP 58 25 ABL1 49 2130 EWSR1 105 3065 HDAC1 76 5777 PTPN6 57 3064 HD 49 4088 SMAD3 103 6498 SKIL 75 5970 RELA 57 4035 LRP1 49 4093 SMAD9 103 9869 SETDB1 75 6256 RXRA 56 10241 CALCOCO2 49 1956 EGFR 99 83755 KRTAP4-1 73 6908 TBP 56 4790 NFKB1 48 4188 MDFI 97 7329 UBE2I 69 596 BCL2 55 5894 RAF1 48 6714 SRC 95 5359 PLSCR1 67 1400 CRMP1 55 10399 GNB2L1 48 55791 C1orf103 94 5781 PTPN11 65 7088 TLE1 55 5371 PML 47 2534 FYN 89 2908 NR3C1 64 3320 HSP90AA1 54 7917 BAT3 47 3725 JUN 89 1742 DLG4 63 10524 HTATIP 54 801 CALM1 46 5295 PIK3R1 87 1107 CHD3 62 3717 JAK2 53 5578 PRKCA 46 2099 ESR1 84 1937 EEF1G 62 351 APP 51 8655 DYNLL1 46 5925 RB1 83 4086 SMAD1 62 3932 LCK 51 1051 CEBPB 45 7094 TLN1 82 57562 KIAA1377 62 5594 MAPK1 51 2185 PTK2B 45 367 AR 80 998 CDC42 60 5747 PTK2 51 4609 MYC 45 1387 CREBBP 79 4110 MAGEA11 60 9513 FXR2 51 11030 RBPMS 44 5764 PTN 79 5335 PLCG1 60 11161 C14orf1 51 857 CAV1 43 6464 SHC1 79 10980 COPS6 60 867 CBL 50 5300 PIN1 43 2033 EP300 78 2335 FN1 59 3866 KRT15 50

  20. Get SNP counts and degree values for each gene in the PPI: select locus_id, degree, snp_counter from (select locus_id, count(*) as snp_counter from dbsnp128_human.b128_SNPContigLocusId_36_2 where contig_acc like 'NT_%' and ( fxn_class = 41 or fxn_class = 42 or fxn_class = 44 ) group by locus_id) as a join (select source, count(*) as degree from disease_gene_net.PPI_SHORTEST_PATH_LENGTHS where length = 1 and source in ( select gene_id from DISEASE_GENE_NET.PPI_GENES ) group by source ) as b on source = locus_id order by degree

  21. Initial results: The previous query was used to derive correlations between degree values and SNP counts per gene for every gene in the PPI network: Degree SNP ClassGenesMeanMeanCorrelation All 7403 5.9 428 0.046 41,42,44 6569 6.0 8.5 0.062 Not 6 7397 5.9 55 0.094 13, 15 7383 5.9 18 0.054 6 7174 5.9 348 0.041 (Note that a few observations were omitted due to using the mer counting script for non-mer work.)

  22. More initial results: The same approach was used to derive correlations for the 1195 or so disease genes that also appear in the PPI net: Degree SNP ClassGenesMeanMeanCorrelation All 1193 7.5 592 0.086 41,42,44 1121 7.5 14.9 0.089 Not 6 1193 7.5 82.7 0.117 13, 15 1193 7.5 22.7 0.049 6 1161 7.5 523 0.041 (Note that a few observations were omitted due to using the mer counting script for non-mer work.)

  23. Perhaps a correlation can be found as a function of mer counts? That is, perhaps: “DNA bases in the gene per SNP” or “RNA bases in the gene transcript per SNP” or “amino acids in the protein product per SNP” will correlate with degree, especially for certain SNP classes? Testing these claims requires gene, mRNA transcript, and/or protein product lengths (and maybe intron lengths). Note that the SNPContigLocusId table includes pointers to mRNA and protein records, and includes the NCBI UIDs for each record. Scripts (get-mRNA-lengths.pl and get-protein-lengths.pl) were written to access the mRNA and protein contig data from NCBI and to count base pairs or amino acids, respectively.

  24. Scripts to download mer (base and aa) data The libwww-perl (LWP) module was used to interact with the NCBI eUtils that were mentioned earlier and are documented in “Using the NCBI eUtilities via CGI” at http://mypage.iu.edu/~dgrobe/entrez-dogma.html DNA lengths were obtained using a service at http://discern.uits.iu.edu:8421/view-sequences.html called “Get NCBI sequences for genes or specified regions” that will fetch gene FASTA records given gene names and/or NCBI UIDs. NCBI asks users to limit access to one every 3 seconds during off-peak hours and one every 15 seconds otherwise. As a result, these runs took over 24 hours.

  25. The resulting “mer file” sizes are like: - DNA length records: 22259 - mRNA length records: 32400 - Protein length records: 23803 There are frequently multiple mRNA and protein records for a gene; mean lengths were computed for each gene by downstream scripts. A script (get-gene-mRNA-SNPs-mers-per-SNP.pl) was written to compute mean lengths and perform correlations on the mer data.

  26. Here are correlations between node degree and mRNA bases per SNP: This table is for ALL PPI genes showing SNPs in the specified function class: Bases Mean per ClassGenesDegreeSNPCorrelation Not 6 7406 5.9 96 -0.032 All 7412 5.9 428 -0.046 41, 42, 44 6576 6.0 922 0.001 Note that the correlation between base count and SNP count was: -0.21.

  27. Here are correlations between node degree and DNA bases per SNP: This table is for ALL PPI genes showing SNPs in the specified function class : Bases Mean per ClassGenesDegreeSNPCorrelation 6 7174 5.9 348 -0.039 All 7403 5.9 198 -0.033 Note that the correlations between base count and SNP count were -0.097 and -0.12.

  28. Conclusion This study found no relationship between SNP count and PPI node degree, or between measures of mer counts per SNP and node degree.

  29. Discussion Are cell networks so robust that variation which “should” normally disrupt functioning gets over-ridden? If so, how? Are there parallel/redundant pathways for important processes? Are non-parallel pathways constructed to minimize the effects of variation? Do chaperone proteins (like HSP90) help make variant proteins safe for use within the cell (a la’ Whitesell and Lundquist)? (Note: around 20% of HSP-connected genes appear in the list of 100 genes (< 2%) with the highest degree.) Would hub genes within Reaction networks (as opposed to PPI networks) show SNP counts that correlate with their degree? Would PPIs composed only of co-located proteins display node degree-SNP count correlations? Do lethal genes show fewer SNPs?

  30. References The dbSNP Build Process http://www.ncbi.nlm.nih.gov/books/bookres.fcgi/helpsnpfaq/Build.pdf Using dbSNP via SQL queries http://mypage.iu.edu/~dgrobe/dbSNP/using-dbSNP-via-SQL.html Using the relational and eUtils interfaces to dbSNP http://mypage.iu.edu/~dgrobe/dbSNP/using-dbSNP-at-IU.html Using the NCBI eUtilities via CGI http://mypage.iu.edu/~dgrobe/entrez-dogma.html Kwang-Il Goh, Michael E. Cusick David Valle Hum, Barton Childs Hum, Marc Vidal, and Albert-Laszlo Barabasi, The human disease network, PNAS, May 22, 2007, vol. 104, no. 21, 8685. http://www.pnas.org/content/104/21/8685.abstract Get contents of tables related to the Goh (2007) paper http://discern.uits.iu.edu:8421/show-a-DISEASE_GENE_NET-Table.html Whitesell, Luke, and Susan L. Lundquist, HSP and the chaparoning of cancer, Nat Rev Cancer, 2005;510:761-772.
