  1. Military Aircraft Systems

  2. Air-to-Air Weapons

  3. AIM-120 AMRAAM

  4. AIM-120 AMRAAM Advanced Medium-Range Air-to-Air Missile Aircraft: • Tornado F3 • Typhoon F2

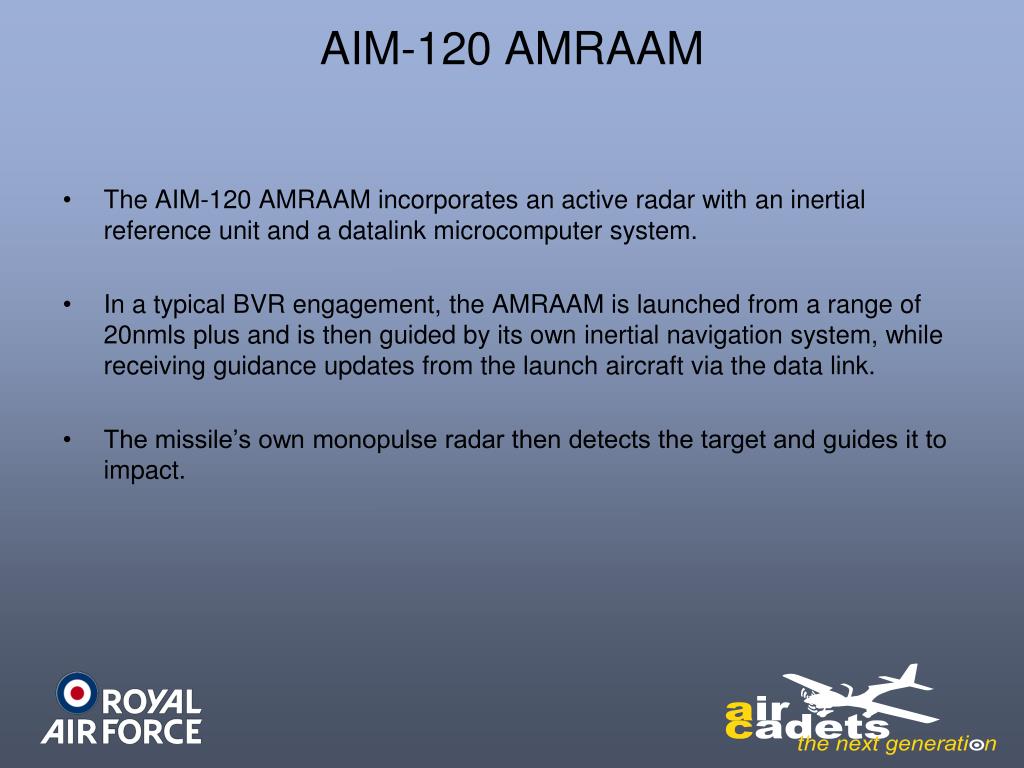

  5. AIM-120 AMRAAM • The AIM-120 AMRAAM incorporates an active radar with an inertial reference unit and a datalink microcomputer system. • In a typical BVR engagement, the AMRAAM is launched from a range of 20nmls plus and is then guided by its own inertial navigation system, while receiving guidance updates from the launch aircraft via the data link. • The missile’s own monopulse radar then detects the target and guides it to impact.

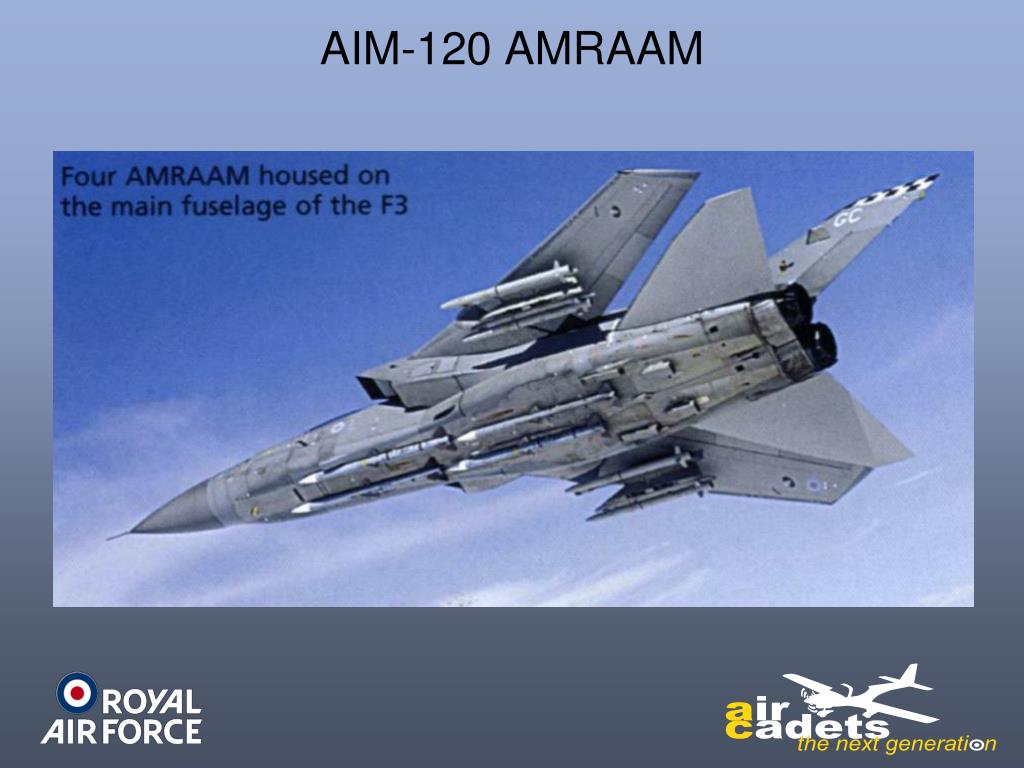

  6. AIM-120 AMRAAM

  7. AIM-120 AMRAAM

  8. AIM-120 AMRAAM Performance: Range: 20nmls+ Speed: Mach 2.5+ Sensor: Inertial midcourse/ active radar terminal Dimensions: Length: 3.66m Diameter: 0.18m Span: 0.53m Weight: 157kg
