ch 22 atmosphere
Ch 22-Atmosphere
  • Objectives
    • Composition of Earth’s atmosphere
    • Layers of atmosphere
    • Effects of air pollution
    • How radiant energy reaches Earth
    • How visible light and infrared energy warm Earth
    • Summarize the processes of radiation, conduction, and convection
    • Explain the Coriolis effect
    • Global patterns of air circulation, and name global wind belts
    • Identify factors that form local win patterns
    • Explain how heat energy affects the changing phases of water
    • Explain what absolute and relative humidity are, describe how they are measured
    • Describe what happens when the temp of air decreases to the dew pt or below the dew pt
    • Describe the conditions that are necessary for clouds to form
    • Explain the processes of cooling that can lead to formation of clouds
    • Identify the types of clouds
    • Describe ways in which fog can form
    • Processes that cause precipitation
    • Explain how rain can be produced artificially
characteristics of atmosphere

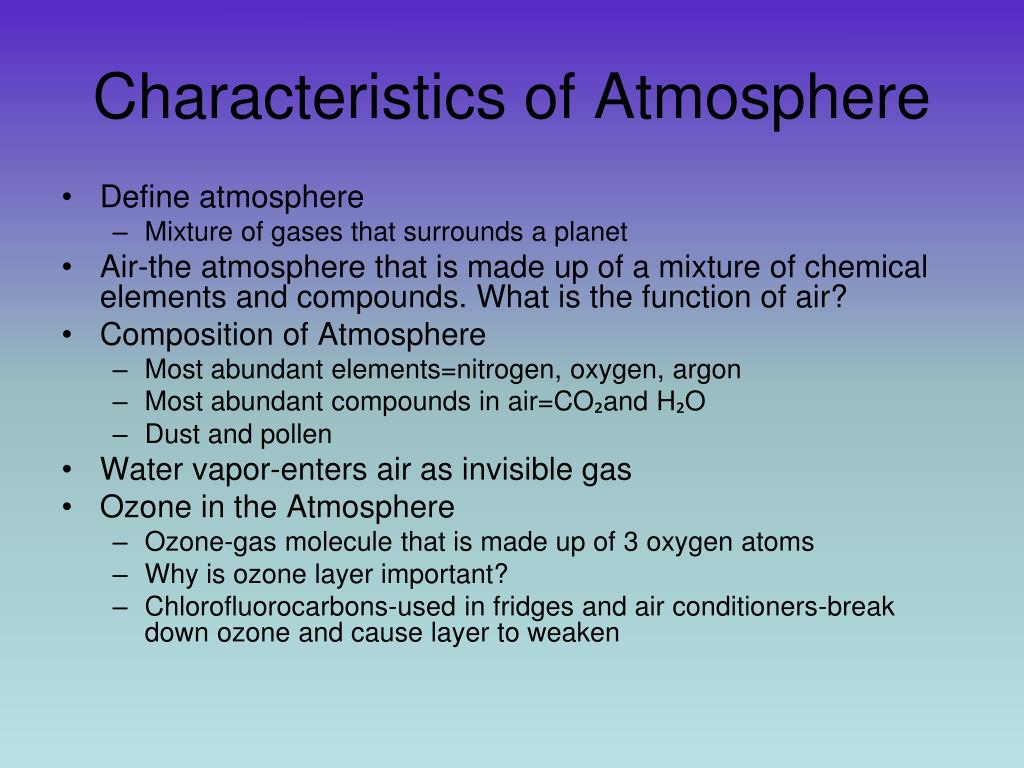

Characteristics of Atmosphere
  • Define atmosphere
    • Mixture of gases that surrounds a planet
  • Air-the atmosphere that is made up of a mixture of chemical elements and compounds. What is the function of air?
  • Composition of Atmosphere
    • Most abundant elements=nitrogen, oxygen, argon
    • Most abundant compounds in air=CO₂and H₂O
    • Dust and pollen
  • Water vapor-enters air as invisible gas
  • Ozone in the Atmosphere
    • Ozone-gas molecule that is made up of 3 oxygen atoms
    • Why is ozone layer important?
    • Chlorofluorocarbons-used in fridges and air conditioners-break down ozone and cause layer to weaken
atmospheric pressure
Atmospheric Pressure
  • Atmospheric pressure=the force per unit area exerted on a surface by weight of atmosphere
    • Pressure is exerted equally in all directions
    • Atmospheric pressure decreases as altitude increases
    • Pressure changes as a result of differences in temp and in amount of water vapor. Why?
  • Measuring Atmospheric Pressure
    • 3 units used for atmospheric pressure-atmospheres (atm), millimeters or inches of mercury, and millibars
    • Standard atmospheric pressure- 1 atm=760 mm of mercury=1000 millibars
    • Barometer-instrument used to measure atmospheric pressure
      • Mercurial and aneroid barometers
layers of atmosphere

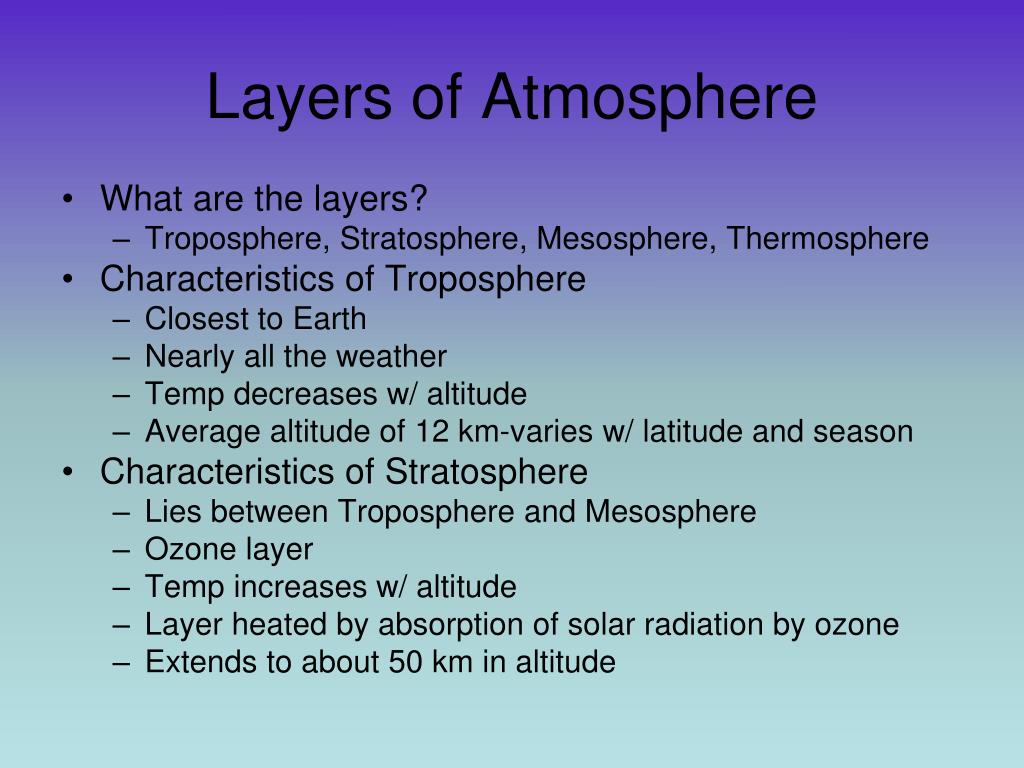

Layers of Atmosphere
  • What are the layers?
    • Troposphere, Stratosphere, Mesosphere, Thermosphere
  • Characteristics of Troposphere
    • Closest to Earth
    • Nearly all the weather
    • Temp decreases w/ altitude
    • Average altitude of 12 km-varies w/ latitude and season
  • Characteristics of Stratosphere
    • Lies between Troposphere and Mesosphere
    • Ozone layer
    • Temp increases w/ altitude
    • Layer heated by absorption of solar radiation by ozone
    • Extends to about 50 km in altitude
slide5

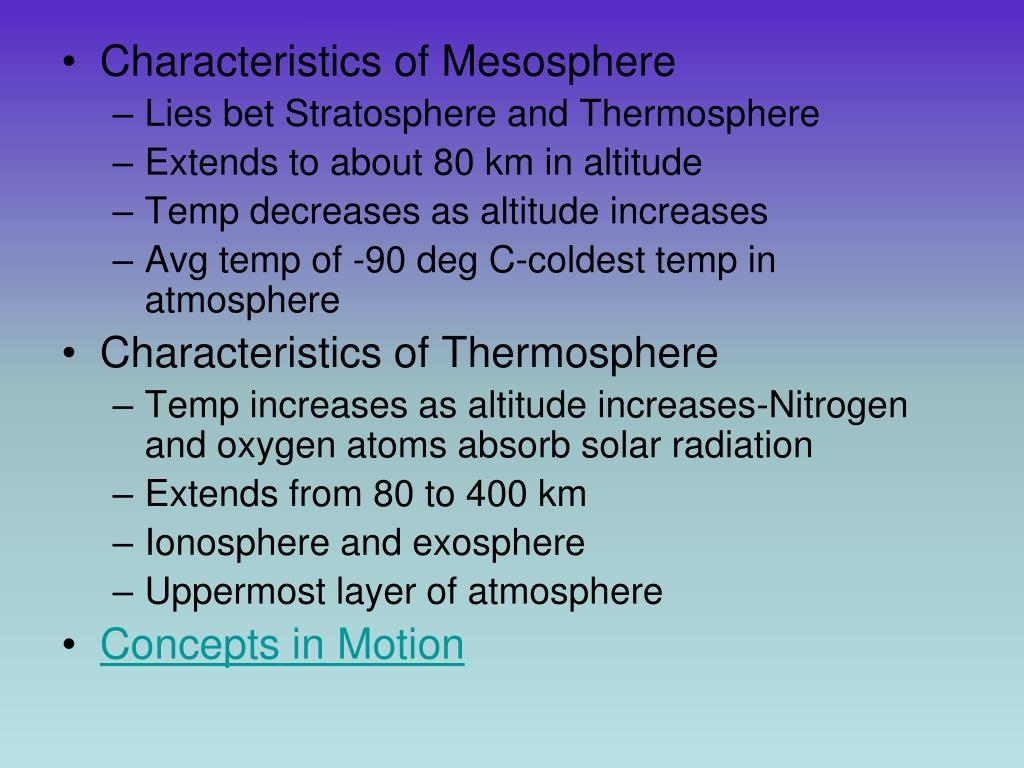

Characteristics of Mesosphere

    • Lies bet Stratosphere and Thermosphere
    • Extends to about 80 km in altitude
    • Temp decreases as altitude increases
    • Avg temp of -90 deg C-coldest temp in atmosphere
  • Characteristics of Thermosphere
    • Temp increases as altitude increases-Nitrogen and oxygen atoms absorb solar radiation
    • Extends from 80 to 400 km
    • Ionosphere and exosphere
    • Uppermost layer of atmosphere
  • Concepts in Motion
air pollution

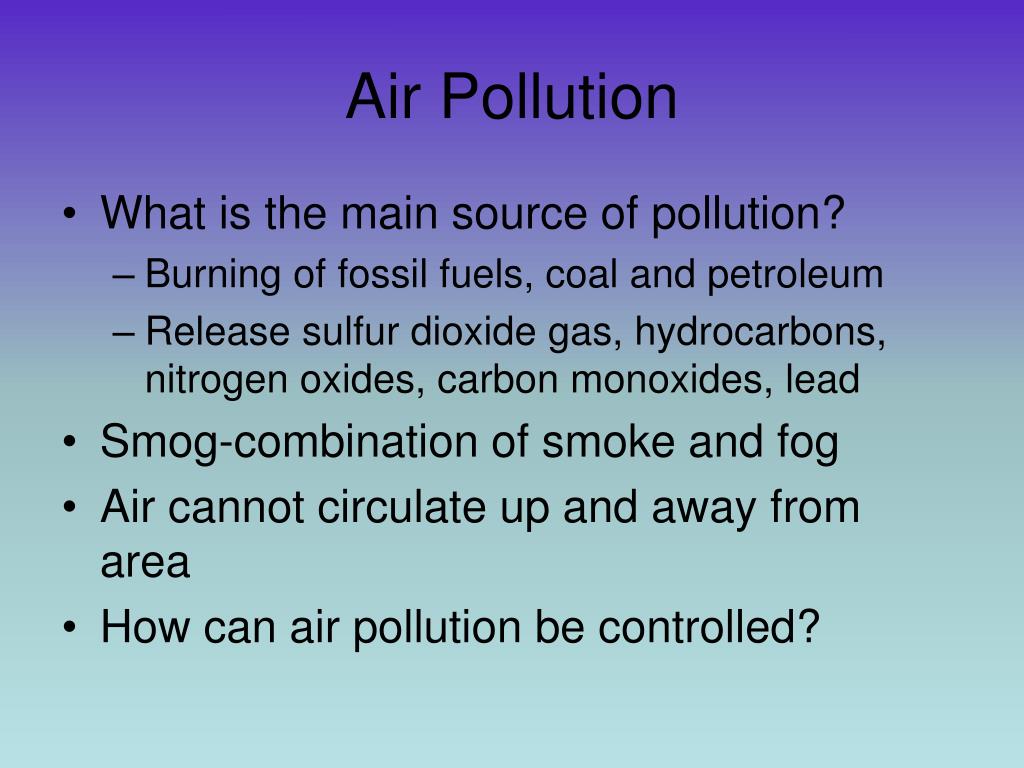

Air Pollution
  • What is the main source of pollution?
    • Burning of fossil fuels, coal and petroleum
    • Release sulfur dioxide gas, hydrocarbons, nitrogen oxides, carbon monoxides, lead
  • Smog-combination of smoke and fog
  • Air cannot circulate up and away from area
  • How can air pollution be controlled?
solar energy and radiation

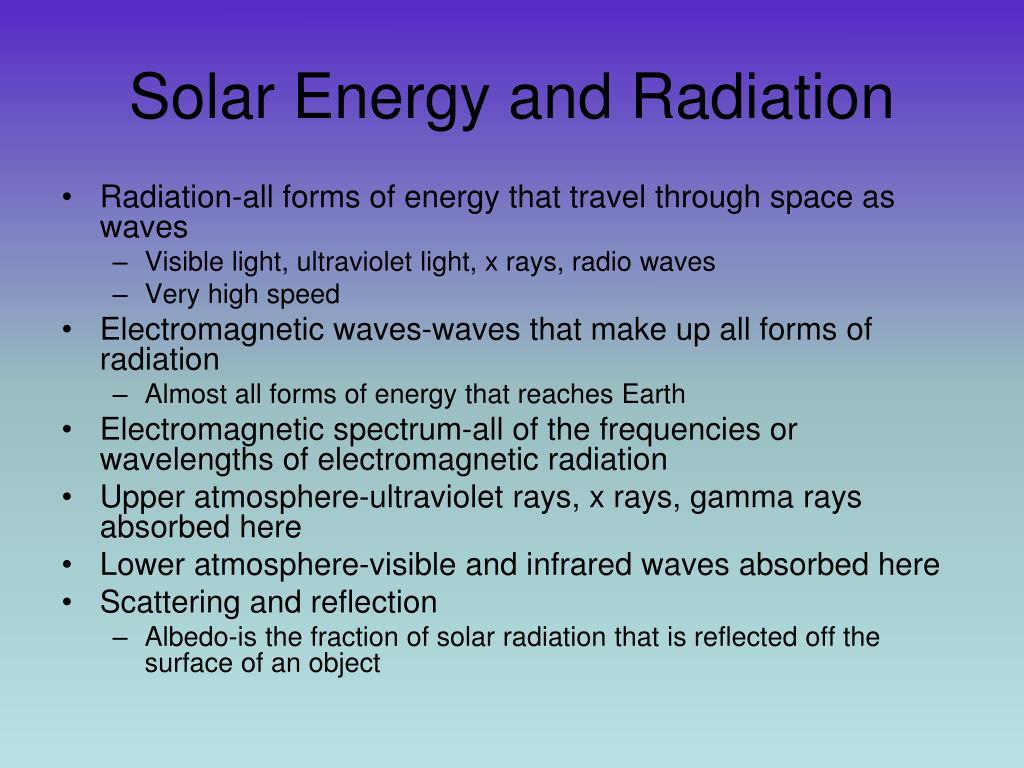

Solar Energy and Radiation
  • Radiation-all forms of energy that travel through space as waves
    • Visible light, ultraviolet light, x rays, radio waves
    • Very high speed
  • Electromagnetic waves-waves that make up all forms of radiation
    • Almost all forms of energy that reaches Earth
  • Electromagnetic spectrum-all of the frequencies or wavelengths of electromagnetic radiation
  • Upper atmosphere-ultraviolet rays, x rays, gamma rays absorbed here
  • Lower atmosphere-visible and infrared waves absorbed here
  • Scattering and reflection
    • Albedo-is the fraction of solar radiation that is reflected off the surface of an object
absorption and infrared energy

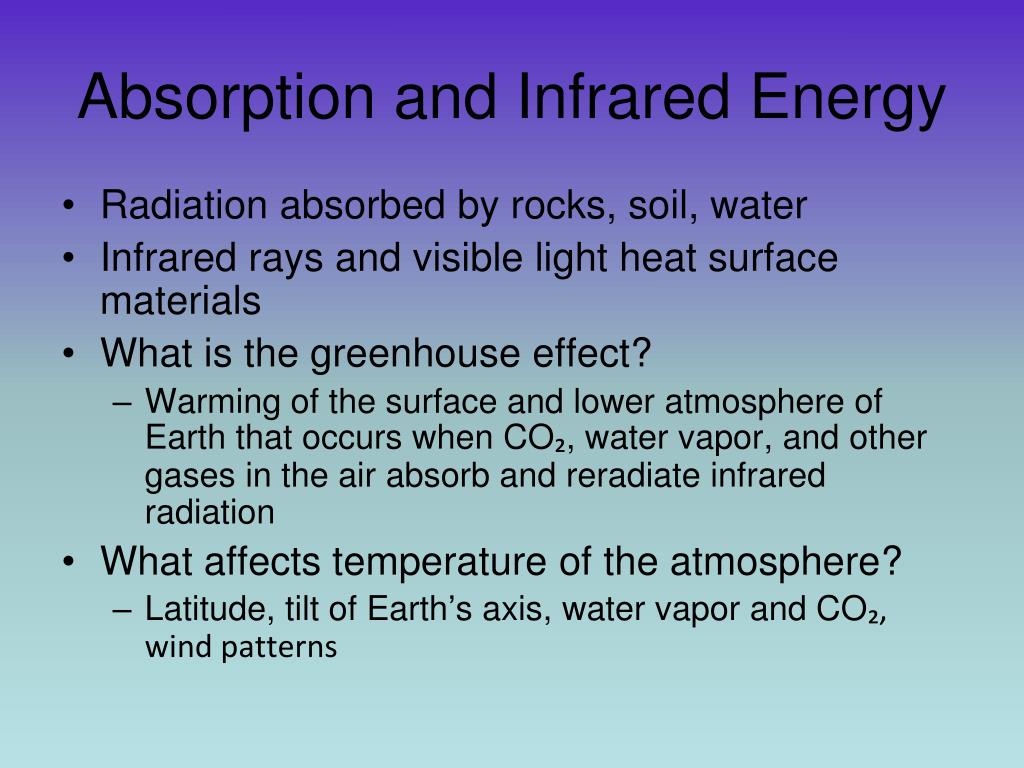

Absorption and Infrared Energy
  • Radiation absorbed by rocks, soil, water
  • Infrared rays and visible light heat surface materials
  • What is the greenhouse effect?
    • Warming of the surface and lower atmosphere of Earth that occurs when CO₂, water vapor, and other gases in the air absorb and reradiate infrared radiation
  • What affects temperature of the atmosphere?
    • Latitude, tilt of Earth’s axis, water vapor and CO₂, wind patterns
conduction and convection

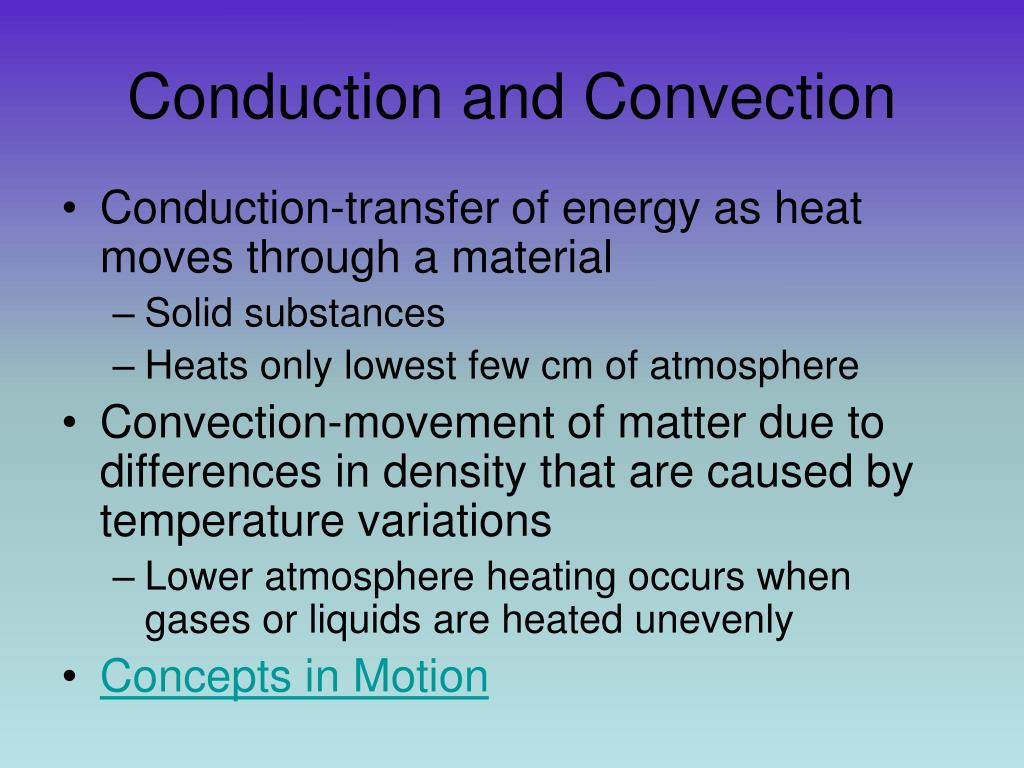

Conduction and Convection
  • Conduction-transfer of energy as heat moves through a material
    • Solid substances
    • Heats only lowest few cm of atmosphere
  • Convection-movement of matter due to differences in density that are caused by temperature variations
    • Lower atmosphere heating occurs when gases or liquids are heated unevenly
  • Concepts in Motion
atmospheric circulation

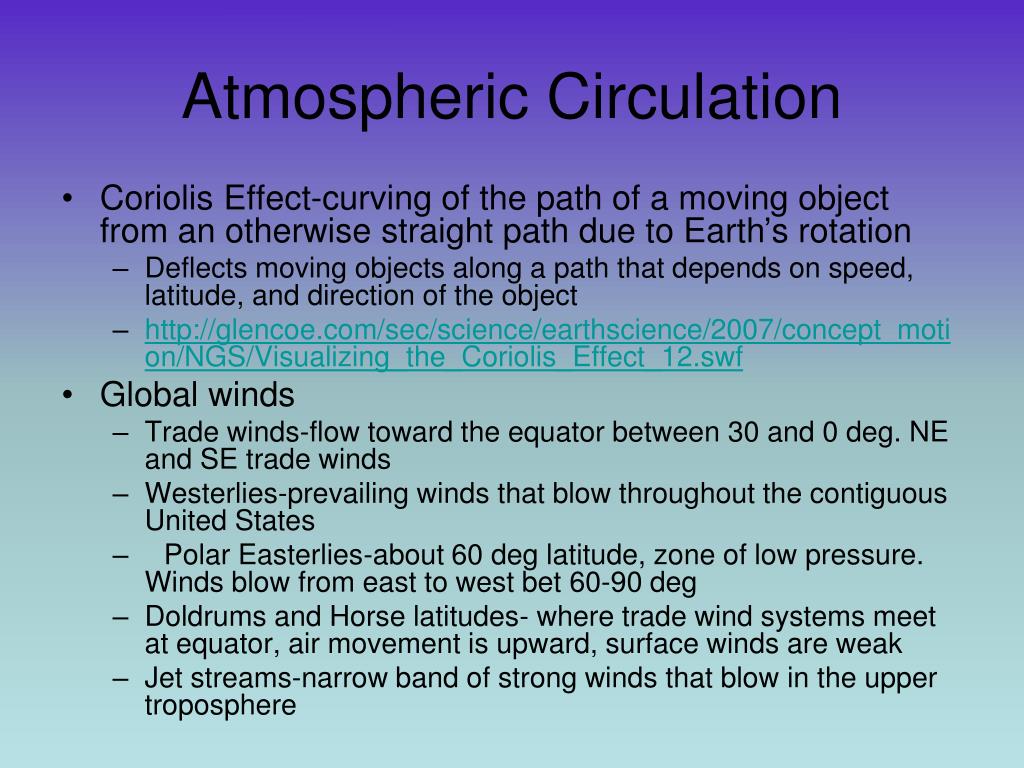

Atmospheric Circulation
  • Coriolis Effect-curving of the path of a moving object from an otherwise straight path due to Earth’s rotation
    • Deflects moving objects along a path that depends on speed, latitude, and direction of the object
    • http://glencoe.com/sec/science/earthscience/2007/concept_motion/NGS/Visualizing_the_Coriolis_Effect_12.swf
  • Global winds
    • Trade winds-flow toward the equator between 30 and 0 deg. NE and SE trade winds
    • Westerlies-prevailing winds that blow throughout the contiguous United States
    • Polar Easterlies-about 60 deg latitude, zone of low pressure. Winds blow from east to west bet 60-90 deg
    • Doldrums and Horse latitudes- where trade wind systems meet at equator, air movement is upward, surface winds are weak
    • Jet streams-narrow band of strong winds that blow in the upper troposphere
local winds
Local Winds
  • Local conditions and local temps cause local winds
  • Breezes-gentle winds that extend over distances of less than 100 km
  • Land breeze-blows cool air from land to water
  • Sea breeze-cool wind moving from water to land. Forms in afternoon
  • Mt breeze-at nighttime, cool air descends from mt peaks
  • Valley breeze-forms when warm air from valleys moves upslope, during daylight hrs
atmospheric moisture

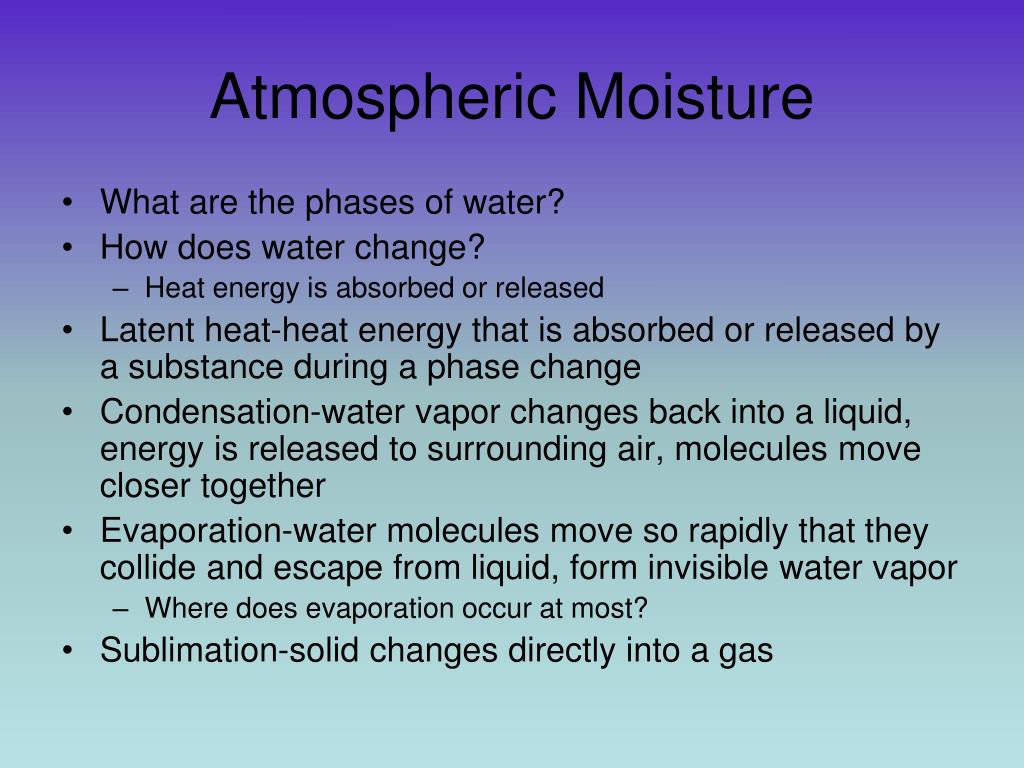

Atmospheric Moisture
  • What are the phases of water?
  • How does water change?
    • Heat energy is absorbed or released
  • Latent heat-heat energy that is absorbed or released by a substance during a phase change
  • Condensation-water vapor changes back into a liquid, energy is released to surrounding air, molecules move closer together
  • Evaporation-water molecules move so rapidly that they collide and escape from liquid, form invisible water vapor
    • Where does evaporation occur at most?
  • Sublimation-solid changes directly into a gas
humidity
Humidity
  • Water vapor in atmosphere
  • What controls humidity?
    • Condensation and evaporation
  • Dew pt-the temp at which rate of condensation equals rate of evaporation
  • Absolute humidity-mass of water vapor contained in a given volume of air
  • Relative humidity-ratio of the actual water vapor content of the air to the amount of water vapor needed to reach saturation
dew point

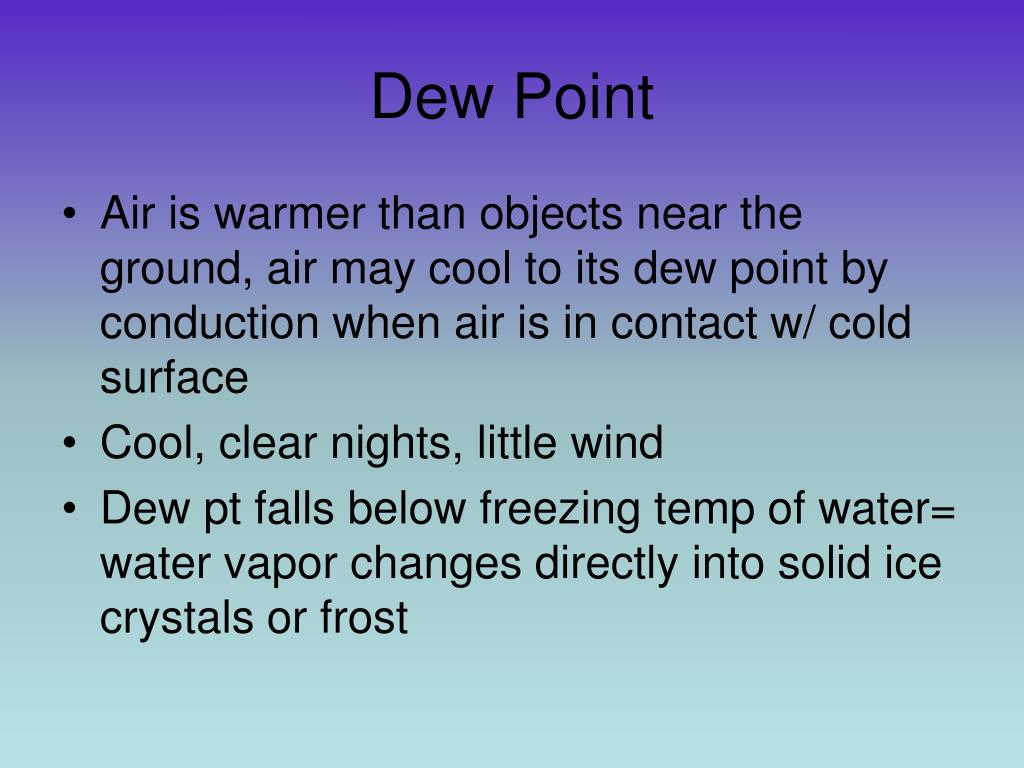

Dew Point
  • Air is warmer than objects near the ground, air may cool to its dew point by conduction when air is in contact w/ cold surface
  • Cool, clear nights, little wind
  • Dew pt falls below freezing temp of water= water vapor changes directly into solid ice crystals or frost
measuring humidity
Measuring Humidity
  • Thin polymer film
  • Psychrometers
  • Dew cell
  • Hair hygrometer
  • Radiosonde
  • Why measure humidity?
clouds and fog

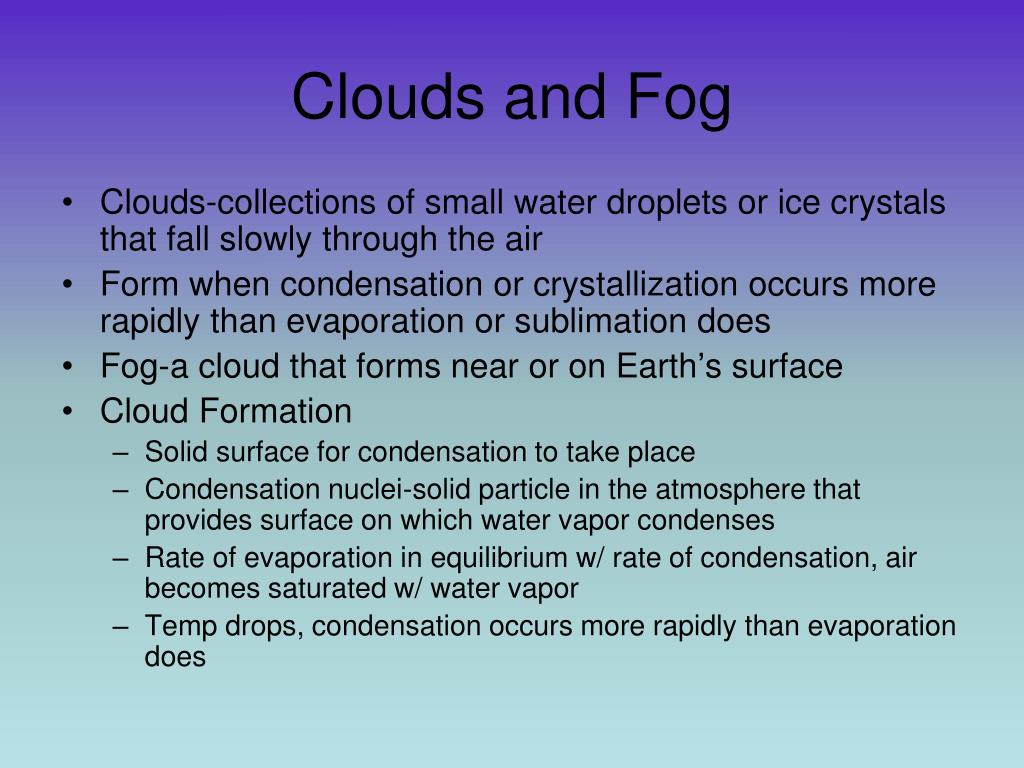

Clouds and Fog
  • Clouds-collections of small water droplets or ice crystals that fall slowly through the air
  • Form when condensation or crystallization occurs more rapidly than evaporation or sublimation does
  • Fog-a cloud that forms near or on Earth’s surface
  • Cloud Formation
    • Solid surface for condensation to take place
    • Condensation nuclei-solid particle in the atmosphere that provides surface on which water vapor condenses
    • Rate of evaporation in equilibrium w/ rate of condensation, air becomes saturated w/ water vapor
    • Temp drops, condensation occurs more rapidly than evaporation does
slide18

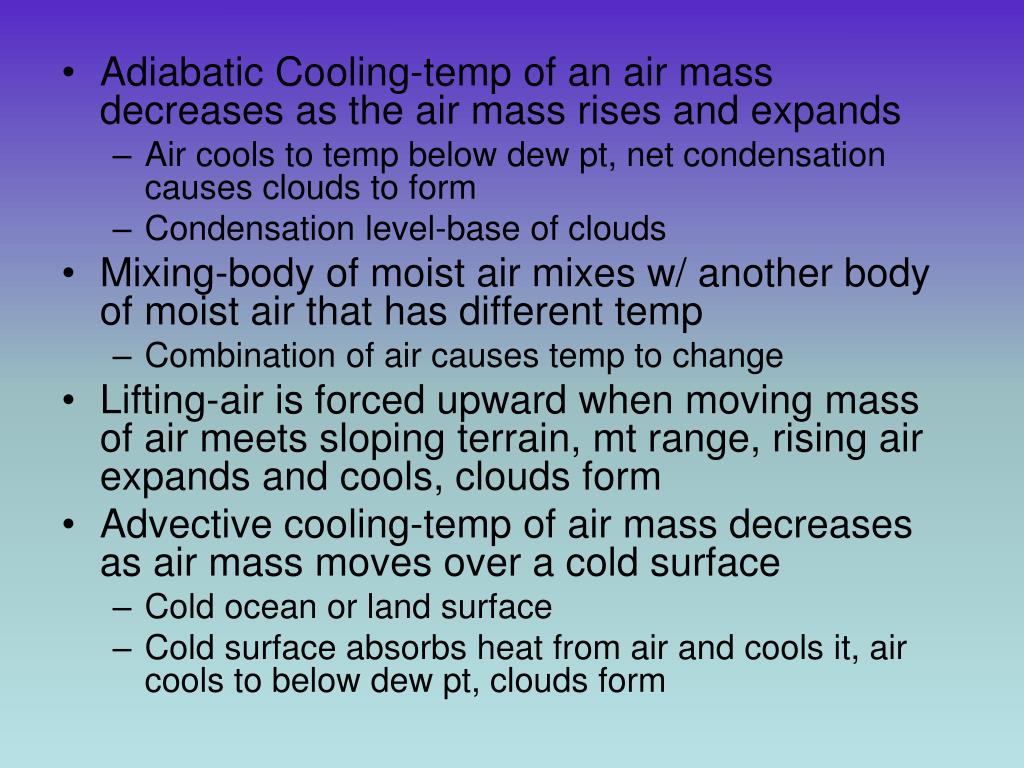

Adiabatic Cooling-temp of an air mass decreases as the air mass rises and expands

    • Air cools to temp below dew pt, net condensation causes clouds to form
    • Condensation level-base of clouds
  • Mixing-body of moist air mixes w/ another body of moist air that has different temp
    • Combination of air causes temp to change
  • Lifting-air is forced upward when moving mass of air meets sloping terrain, mt range, rising air expands and cools, clouds form
  • Advective cooling-temp of air mass decreases as air mass moves over a cold surface
    • Cold ocean or land surface
    • Cold surface absorbs heat from air and cools it, air cools to below dew pt, clouds form
types of clouds
Types of Clouds
  • Classified by shape and altitude
  • Stratus-flat, uniform base, low altitudes
    • Base is low, close to Earth’s surface
    • Cover large area, block out sun
    • Little precipitation
    • Nimbostratus and altostratus
  • Cumulus-low altitude, billowy, top that resembles cotton balls and dark bottom
    • Look fluffy
    • Warm, moist air rises and cools, cooling air reaches dew pt, clouds form
  • Cumulonimbus-high dark storm clouds
    • Thunderheads
    • Altocumulus and stratocumulus
  • Cirrus-feathery clouds composed of ice crystals w/ highest altitude
    • Altitudes of 6000 m
    • Cirrocumulus and cirrostratus
slide20
Altocumulus-4000 m

Cumulonimbus-2000 to 6000 m

slide21
Cirrus-8000 m

Nimbostratus-1000 m

slide22

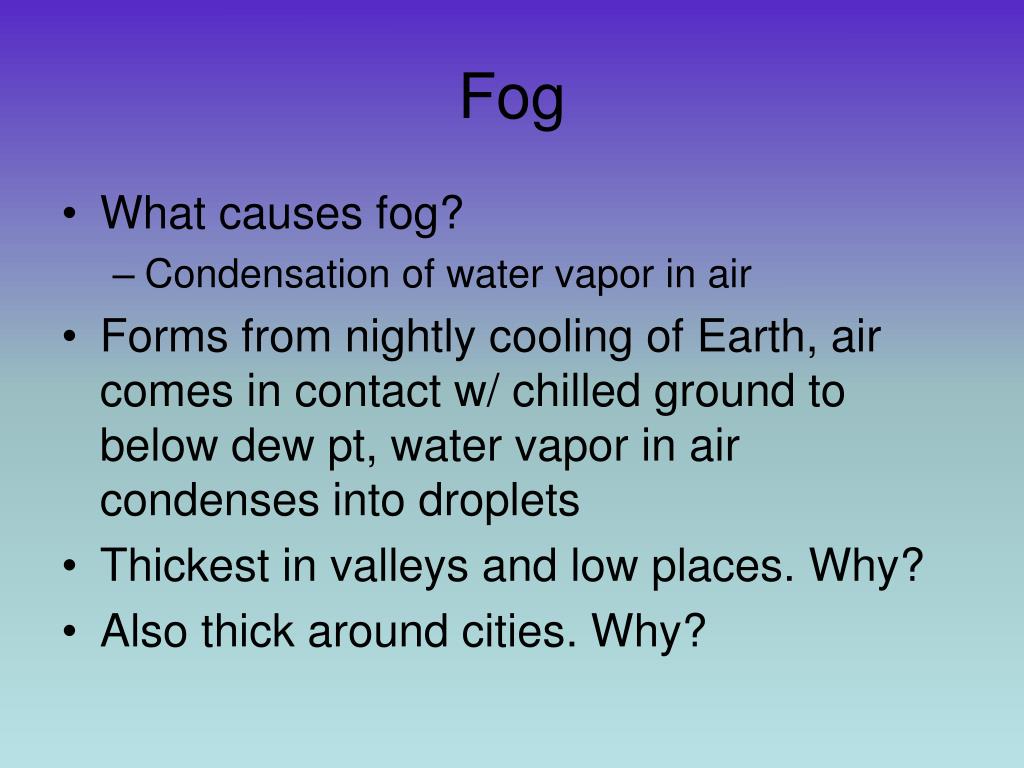

Fog
  • What causes fog?
    • Condensation of water vapor in air
  • Forms from nightly cooling of Earth, air comes in contact w/ chilled ground to below dew pt, water vapor in air condenses into droplets
  • Thickest in valleys and low places. Why?
  • Also thick around cities. Why?
precipitation

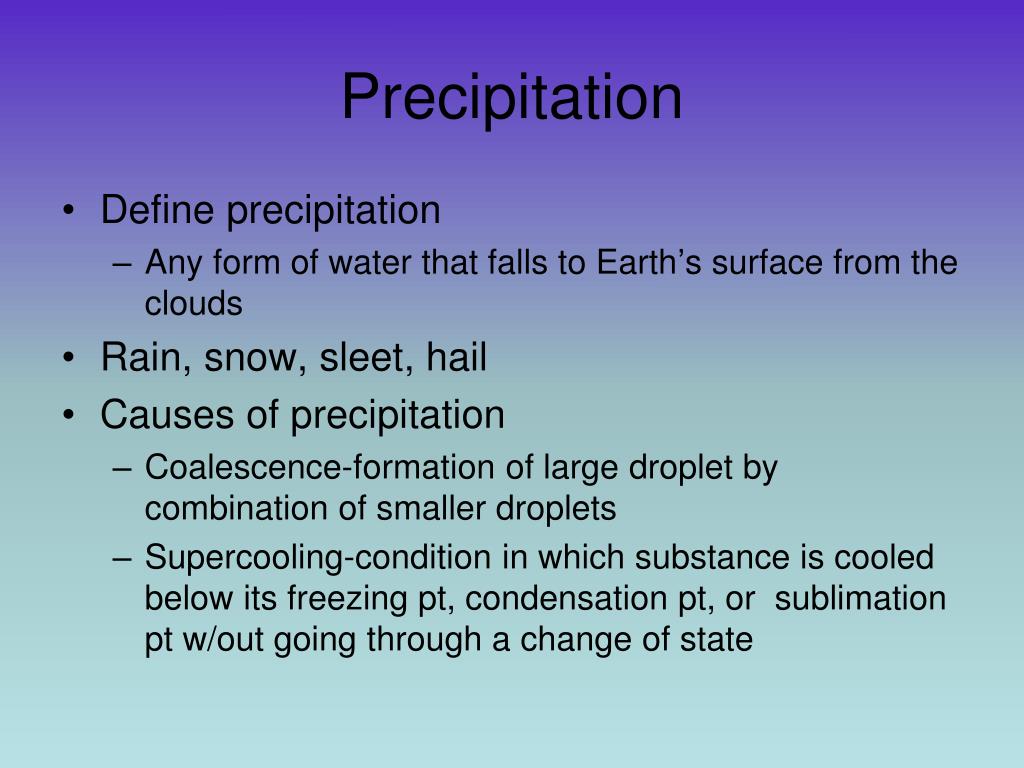

Precipitation
  • Define precipitation
    • Any form of water that falls to Earth’s surface from the clouds
  • Rain, snow, sleet, hail
  • Causes of precipitation
    • Coalescence-formation of large droplet by combination of smaller droplets
    • Supercooling-condition in which substance is cooled below its freezing pt, condensation pt, or sublimation pt w/out going through a change of state
measuring precipitation
Measuring Precipitation
  • Doppler Radar-can measure intensity of precipitation
    • Used by meteorologists for communicating weather
    • Bounces radio waves off rain or snow
    • Determine the location, direction of movement, intensity of precipitation
weather modifications

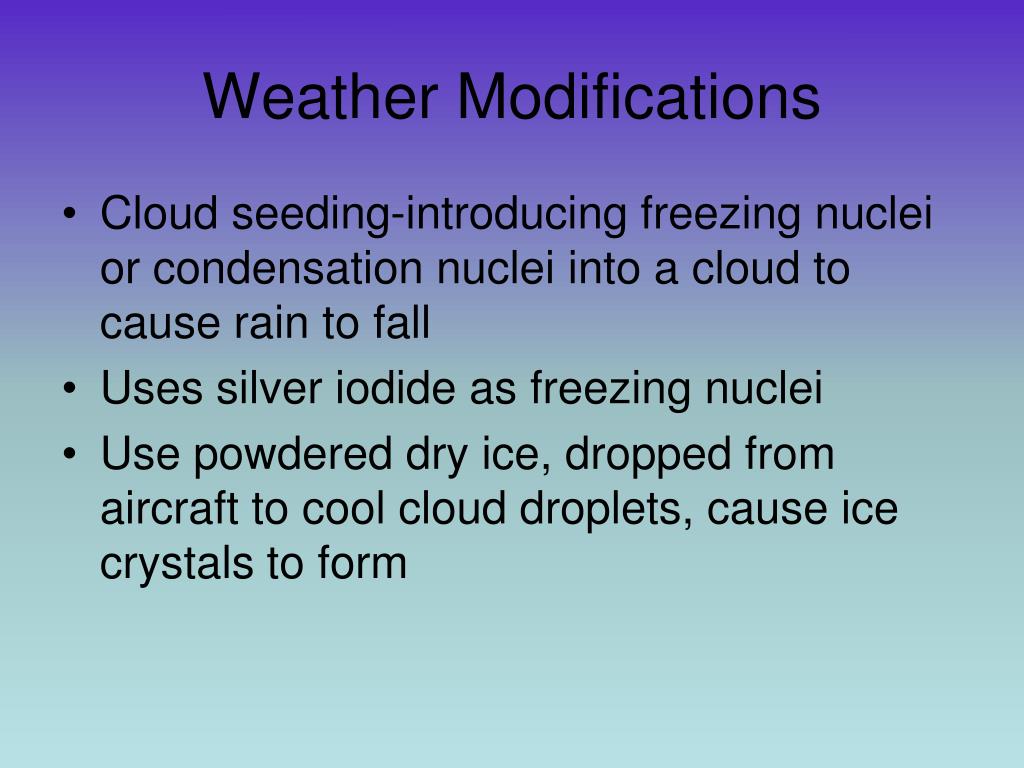

Weather Modifications
  • Cloud seeding-introducing freezing nuclei or condensation nuclei into a cloud to cause rain to fall
  • Uses silver iodide as freezing nuclei
  • Use powdered dry ice, dropped from aircraft to cool cloud droplets, cause ice crystals to form
