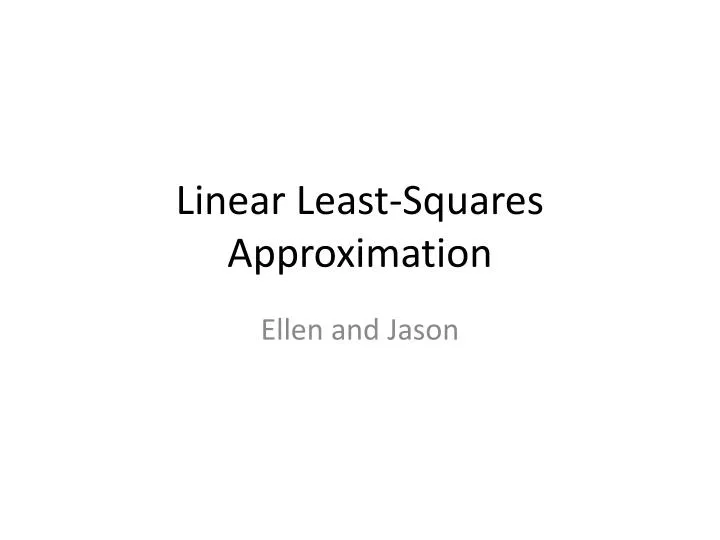

  1. Linear Least-Squares Approximation Ellen and Jason

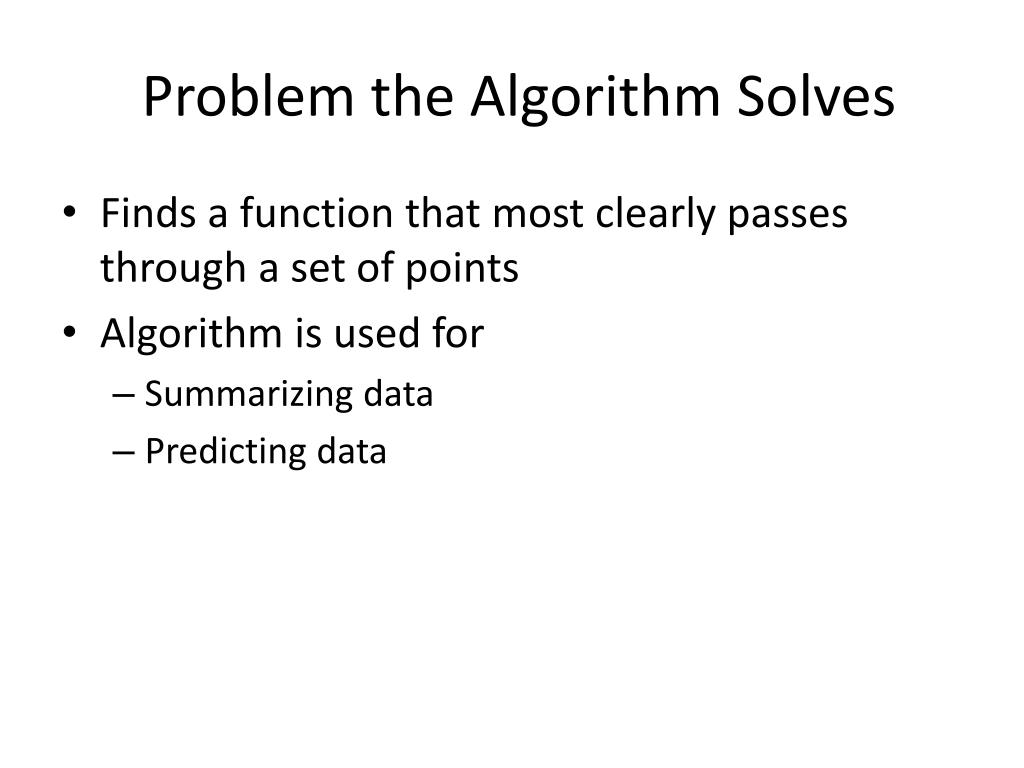

  2. Problem the Algorithm Solves • Finds a function that most clearly passes through a set of points • Algorithm is used for • Summarizing data • Predicting data

  3. Standard variable names & expressions • p = S Xk • q = S Yk • r = S XkYk • s = S (Xk)2 • d = (m + 1) s - (p)2 • a = [(m + 1) r - pq] / d • b =[sq – pr] / d • y = ax + b

  4. Standard Terms & Definitions • l1 Approximation: S | axk + b – yk | • l2 Approximation: j(a, b) = S (axk+ b – yk) 2

  5. Principle behind algorithm/How it was derived • S(yi – axi- b)2 This equation gives us the error.

  6. Principle behind algorithm/How it was derived df/dm = S 2(yi - mxi - b)(-xi) = S -2xiyi+ 2mxi2 + 2bxi Now we take the derivative with respect tom, and with respect to b. df/db = S 2(Yi - mxi - b)(-1) = S -2yi + 2mxi+ 2b

  7. Principle behind algorithm/How it was derived Now we want to set the equations to 0 because we are trying to find the minimum error. On the graph you can see that the minimum is at a point where the derivative would equal 0. • = S -2xiyi+ 2mxi2 + 2bxi • = S (-2xiyi) + m S (2xi2) + b S (2xi) • = S -2yi + 2mxi+ 2b • = S (-2yi) + m S (2xi) + b S (2)

  8. Principle behind algorithm/How it was derived • (-2xiyi) + m S (2xi2) + b S (2xi) = 0 • m S (2xi2) + b S (2xi) = S(2xiyi) • m S(xi2) + b S(xi) = S (xiyi) • (-2yi) + m S (2xi) + b S (2) = 0 • m S(2xi) + b S(2) = S(2yi) • m S(xi) + b = S(yi)

  9. Principle behind algorithm/How it was derived To get rid of variables A, C and m we multiply the first equation by C and the second equation by -A Am + Bb = E Cm + Db = F C(Am +Bb = E) -A(Cm + Db = F) => ACm + BCb= EC -ACm - ADb= -AF ----------------------- (BC – AD)b = EC – AF b = (EC-AF)/(BC-AD)

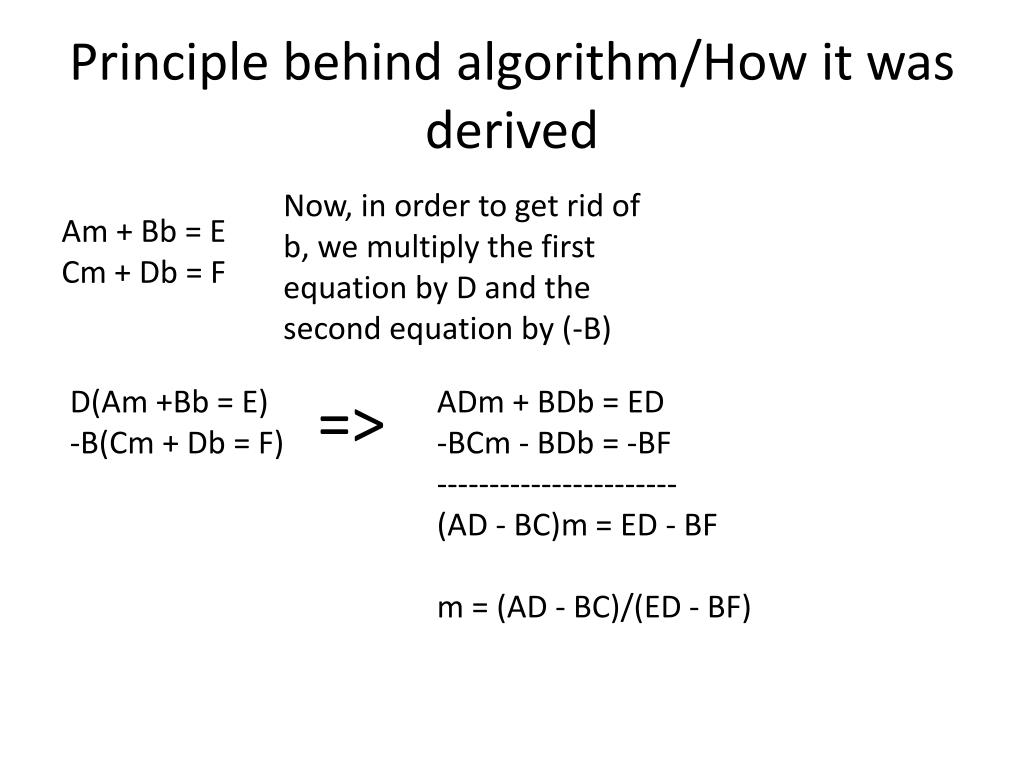

  10. Principle behind algorithm/How it was derived Now, in order to get rid of b, we multiply the first equation by D and the second equation by (-B) Am + Bb = E Cm + Db = F D(Am +Bb = E) -B(Cm + Db = F) => ADm+ BDb= ED -BCm - BDb= -BF ----------------------- (AD- BC)m = ED -BF m= (AD - BC)/(ED - BF)

  11. Example • Find the linear least-squares solution for the table of values p = 1 + 3 + 4 + 9 = 17 q = 2 + 6 + 9 + 8 = 25 r = (1*2) + (3*6) + (4*9) + (9*8) = 128 s = (12) + (32) + (42) + (92) = 107 d =(3+1)*107 - (172) = 139 a = [(3+1)*128- (17*25)] / 139 = 87/139 b = [(107*25) - (17*128)] / 139 = 499/139 Y = ax+b Y = (87/139)x + (499/139)

  12. Example: Graph

  13. Example: Error Point y - (ax +b) Point 1: [2 - (0.6259*1 +3.5900)] 2 = 4.9102 Point 2: [6 - (0.6259*3 + 3.5900)] 2 = 0.2833 Point 3: [9 - (0.6259*4 + 3.5900)] 2 = 8.4472 Point 4: [8 - (0.6259*9 + 3.5900)]2 = 1.4960 Error: 15.1367

  14. Advantages

  15. Disadvantages • Limitations in shapes • May not be effective for data that is nonlinear. For example, a linear function would not represent the sets of points in this graph very well.
