Development of Wireless GPS-Navigated Autonomous RC Vehicle for Optimal Path Following

This report outlines the development of a wireless remote-controlled (RC) vehicle equipped with GPS to autonomously follow paths. The primary goal is to implement a fastest route algorithm that enhances navigation efficiency. Key milestones include establishing communication between the GPS and microprocessor, writing the fastest route algorithm, and integrating all components into a cohesive unit. The project utilizes updated GPS data formats, incorporates a diagnostics menu, and manages steering and speed through PWM and H-Bridge control systems. Upcoming tasks focus on finalizing path following algorithms and completing peripheral programming.

etan
Download Presentation

Development of Wireless GPS-Navigated Autonomous RC Vehicle for Optimal Path Following

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

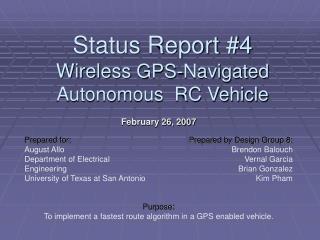

  1. Status Report #4Wireless GPS-Navigated Autonomous RC Vehicle Prepared for: August Allo Department of Electrical Engineering University of Texas at San Antonio Prepared by Design Group 8: Brendon Balouch Vernal Garcia Brian Gonzalez Kim Pham February 26, 2007 Purpose: To implement a fastest route algorithm in a GPS enabled vehicle.

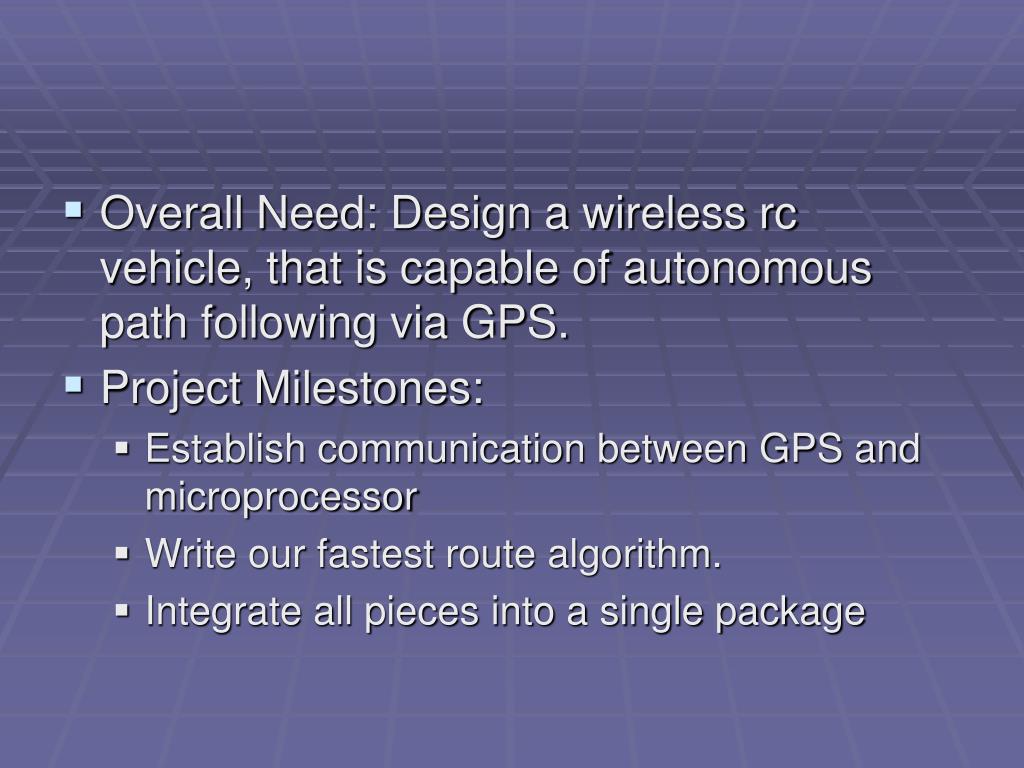

  2. Overall Need: Design a wireless rc vehicle, that is capable of autonomous path following via GPS. • Project Milestones: • Establish communication between GPS and microprocessor • Write our fastest route algorithm. • Integrate all pieces into a single package

  3. Task Completions • SIRF binary data instead of GPS NMEA encoded messages • added a diagnostics menu • GPS coordinates will now use XYZ Cartesian geodetic coordinates • Steering control circuit • PWM speed control circuit

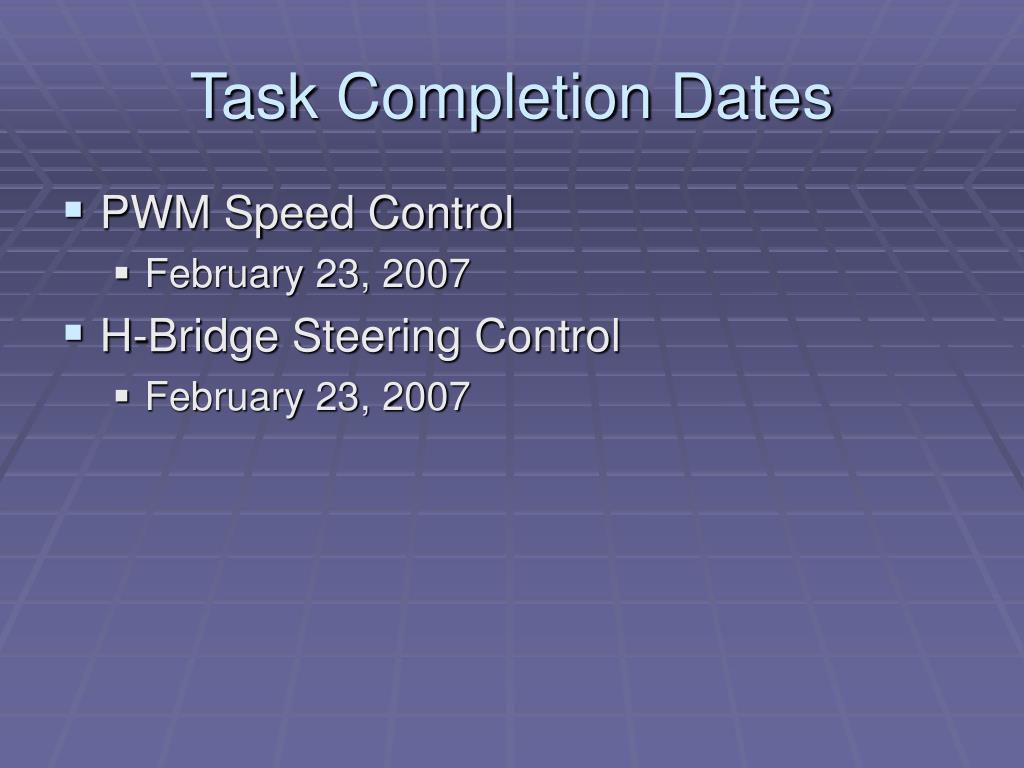

  4. Task Completion Dates • PWM Speed Control • February 23, 2007 • H-Bridge Steering Control • February 23, 2007

  5. Upcoming Tasks • Path following algorithm • Programming of processor to support peripheral devices • Parts: • Magnetometer

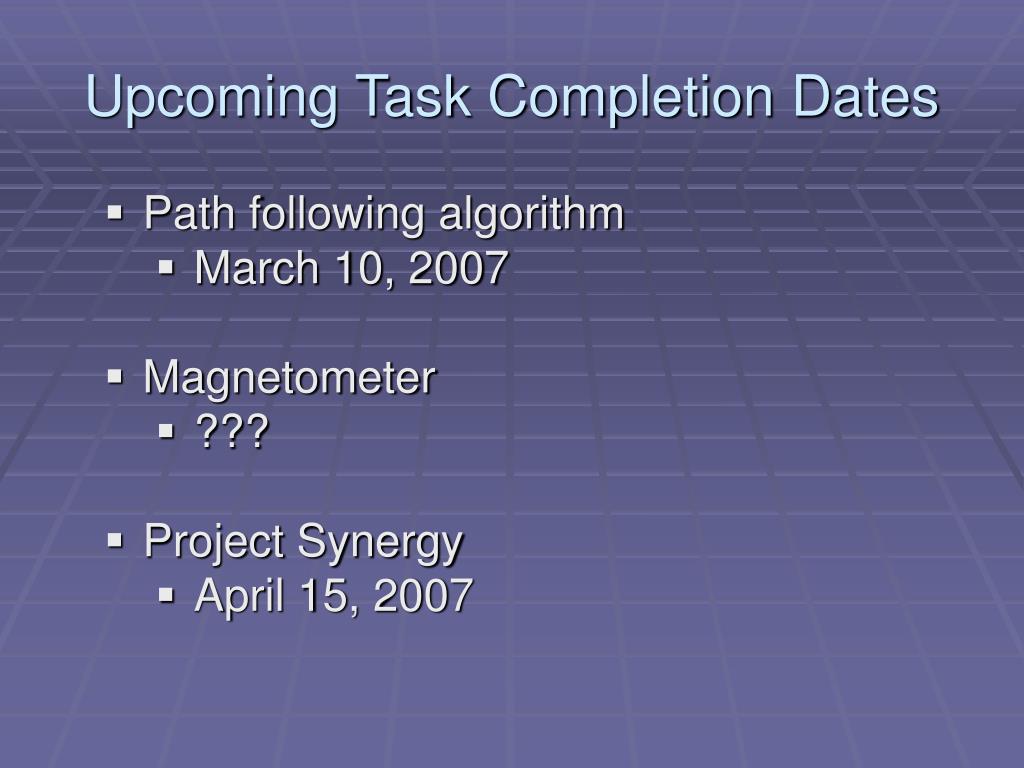

  6. Upcoming Task Completion Dates • Path following algorithm • March 10, 2007 • Magnetometer • ??? • Project Synergy • April 15, 2007

  7. PWM Speed Controller 75% STEERING 75% DIGITAL I/O 100% DIGITAL I/O 100% CPU 75% UART 100% ADC 50% COMPASS 0% RF LINK 100% UART 100% GPS Path following algorithm 50% GUI 80%
