    1. Organometallic Catalysts Saber Askari Presenter : Dr.Mirzaaghayan Advisor : May 2012

    2. Contents : • The basis for catalysis • Catalytic Cycle • History • Mechanistic Concept • Homogeneous Catalysis • Wilkinson’s Catalyst • Asymmetric hydrogenation • Hydroformylation • Monsanto Acetic acid Process • CATIVA Process • Wacker Process • Heterogeneous Catalysis • Ziegler-Natta Catalyst

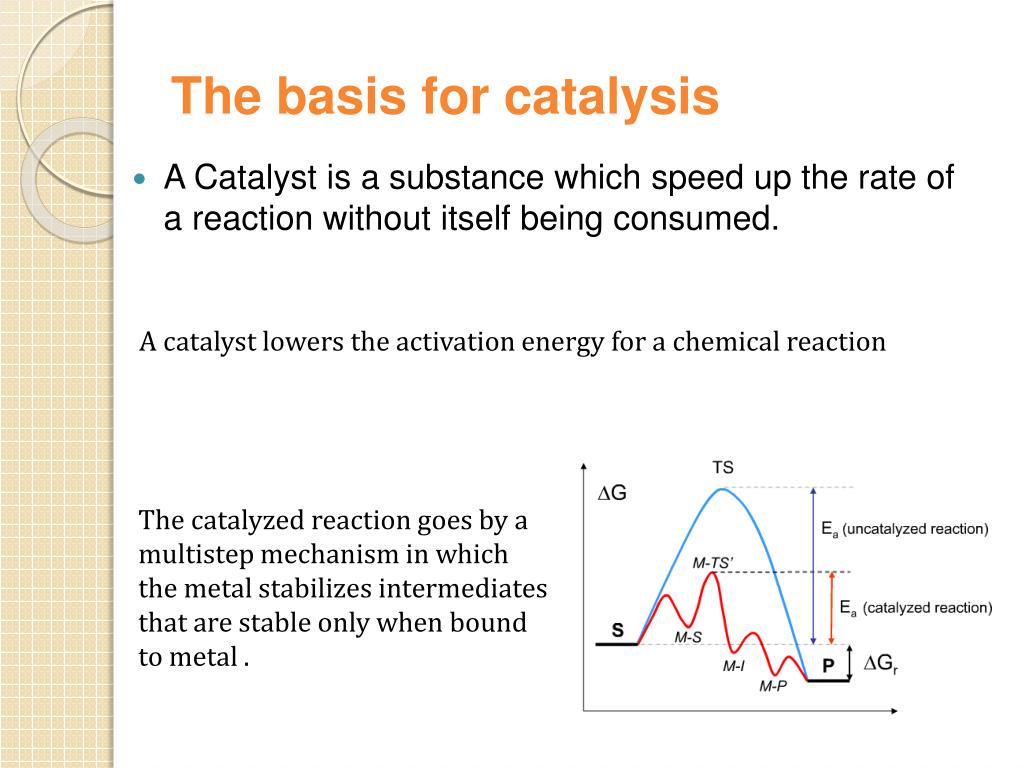

    3. The basis for catalysis • A Catalyst is a substance which speed up the rate of a reaction without itself being consumed. A catalyst lowers the activation energy for a chemical reaction The catalyzed reaction goes by a multistep mechanism in which the metal stabilizes intermediates that are stable only when bound to metal .

    4. Importance of catalysis • Many major industrial chemicals are prepared with the aid of catalysts • Many fine chemicals are also made with the aid of catalysts – Reduce cost of production – Lead to better selectivity and less waste

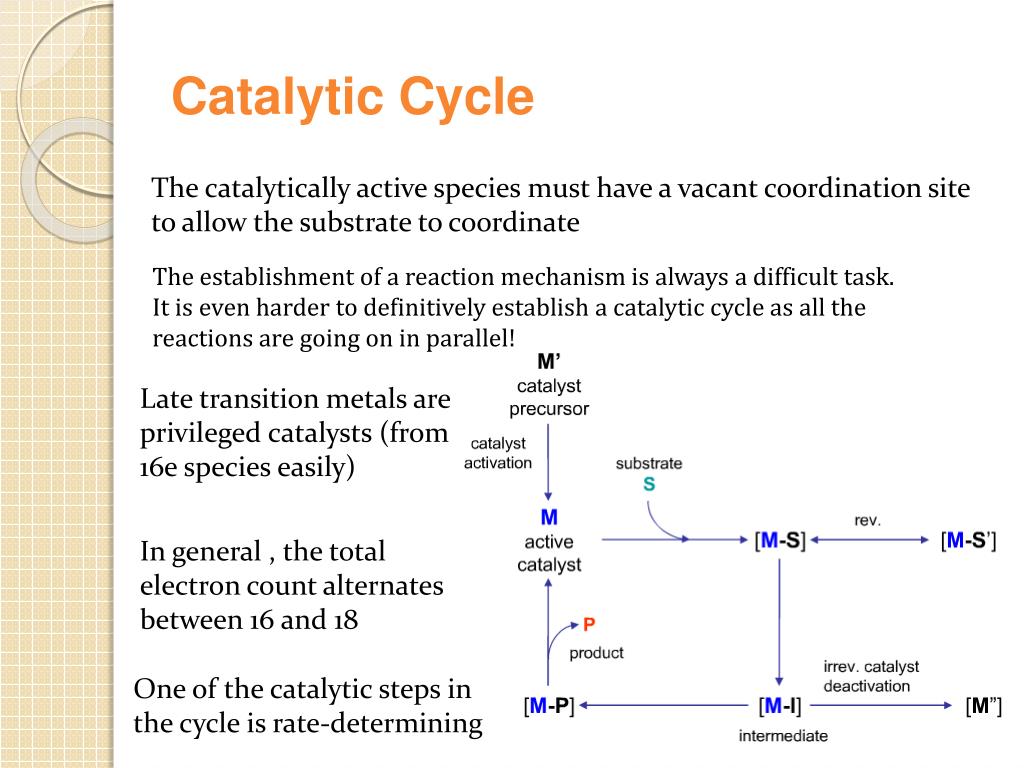

    5. Catalytic Cycle The catalytically active species must have a vacant coordination site to allow the substrate to coordinate The establishment of a reaction mechanism is always a difficult task. It is even harder to definitively establish a catalytic cycle as all the reactions are going on in parallel! Late transition metals are privileged catalysts (from 16e species easily) In general , the total electron count alternates between 16 and 18 One of the catalytic steps in the cycle is rate-determining

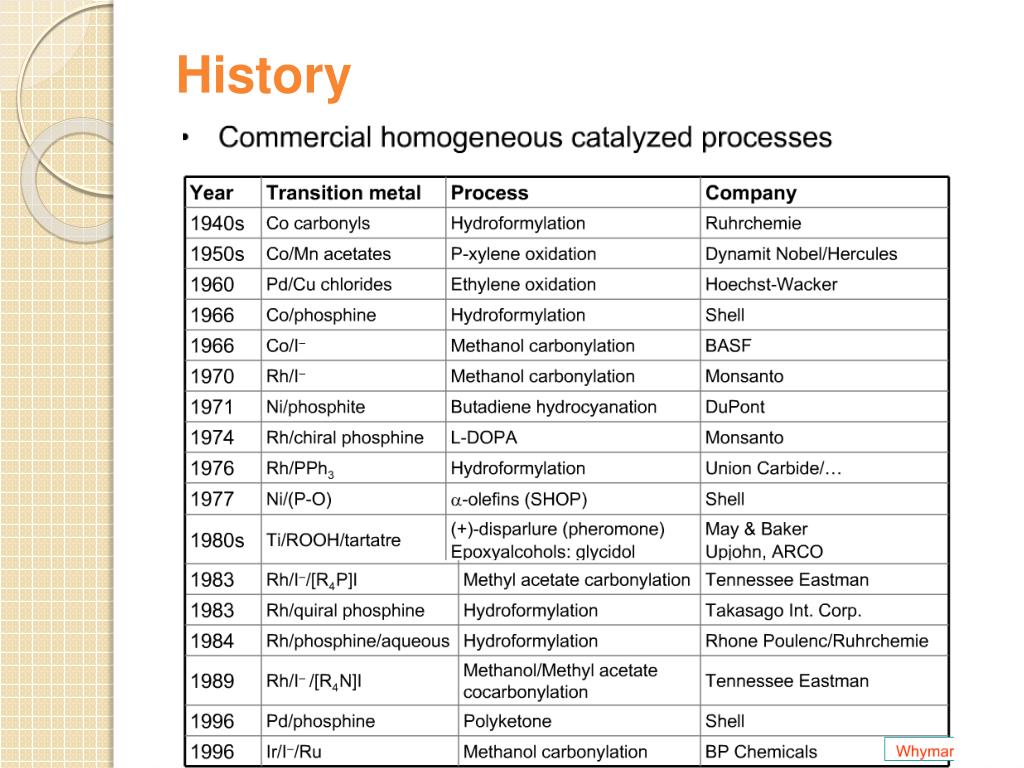

    6. History

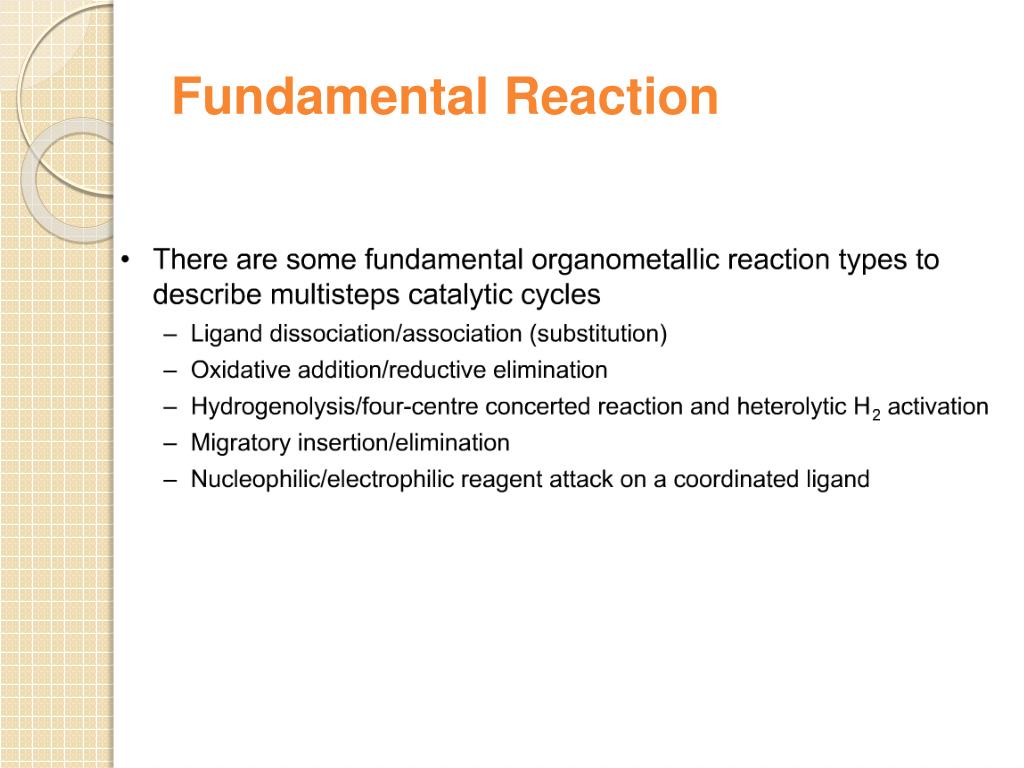

    7. Fundamental Reaction

    8. Mechanistic Concept

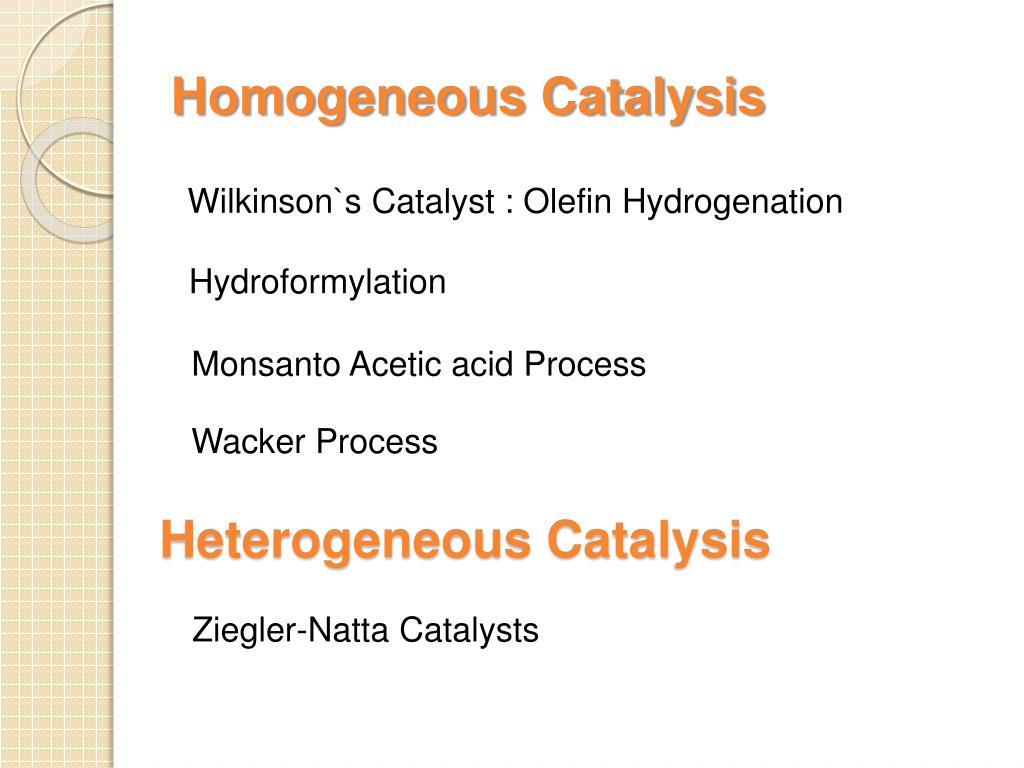

    9. Homogeneous Catalysis Wilkinson`s Catalyst : Olefin Hydrogenation Hydroformylation Monsanto Acetic acid Process Wacker Process Heterogeneous Catalysis Ziegler-Natta Catalysts

    10. Homogeneous Catalysis Homogenous catalysts are used when selectivity is critical and product-catalyst separation problems can be solved.

    11. Relatively high specificity • Advantages : • Relatively low reaction temperatures • Generally far more selective for a single product • far more easily studied from chemical & mechanistic aspects • far more active • Disadvantages : • far more difficult for achieving product/catalyst separations

    12. Most catalytic process can be built up from a small number of different types of step • Catalytic steps in homogeneous reactions – Association / dissociation of a ligand » requires labile complexes – Insertion and elimination reactions – Nucleophilic attack on a coordinated ligand – Oxidation and reduction of a metal center – Oxidative addition / reductive elimination

    13. Wilkinson’s Catalyst: RhCl(PPh3)3 was the first highly active homogeneous hydrogenation catalyst and was discovered by Geoffrey Wilkinson (Nobel prize winner for Ferrocene) in 1964. Wilkinson’s Catalyst is a Rh(I) complex, Rh(PPh3)3Cl containing three phosphine ligands and one chlorine. As a result of the olefin insertion (hydrogen migration) we obtain a Rh (III), 16e-, five coordinate species. A solvent occupies the sixth coordination site to take it to a 18e- species. Reductive elimination occurs to give the hydrogenated product and the catalytically active species.

    14. Bennett , IC , 1977 , 16 , 665

    15. Olefin Hydrogenation using Wilkinson’s Catalyst The complex RhCl(PPh3)3 (also known as Wilkinson’s catalyst) became the first highly active homogeneous hydrogenation catalyst that compared in rates with heterogeneous counterparts. Wilkinson, J. Chem. Soc. (A) 1966, 1711

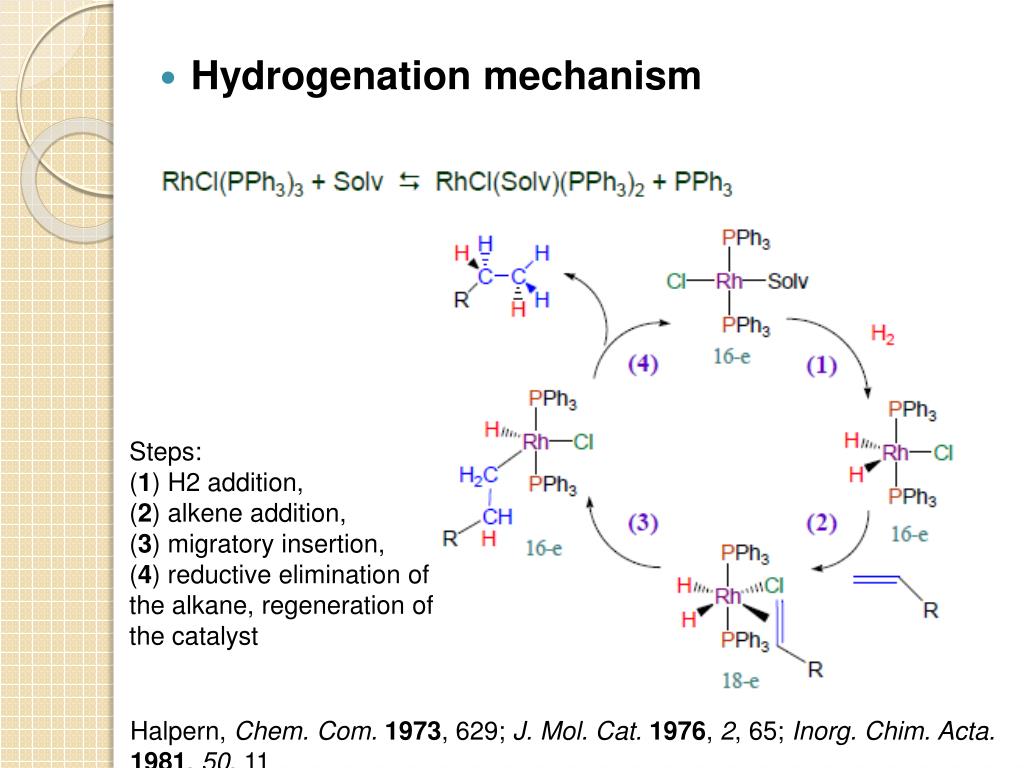

    16. Hydrogenation mechanism Steps: (1) H2 addition, (2) alkene addition, (3) migratory insertion, (4) reductive elimination of the alkane, regeneration of the catalyst Halpern, Chem. Com. 1973, 629; J. Mol. Cat. 1976, 2, 65; Inorg. Chim. Acta. 1981, 50, 11

    17. The rate of hydrogenation depends on : (a) presence of a functional group in the vicinity of the C=C bond (b) degree of substitution of the C=C fragment • Wilkinson’s catalyst selectivity

    18. Wilkinson’s catalyst selectivity Hydrogenation is stereoselective: Rh preferentially binds to the least sterically hindered face of the olefin:

    19. Wilkinson’s catalyst selectivity Cis-disubstituted C=C react faster than trans-disubstituted C=C: Schneider, JOC 1973, 38, 951

    20. Cationic catalysts Cationic catalysts are the most active homogeneous hydrogenation catalysts developed so far:

    21. Halpern’s mechanism of hydrogenation for cationic Rh catalysts with bidentate phosphines • Steps: • alkene addition, • (2) H2 addition, • (3) migratory insertion, • (4) reductive elimination of the alkane, regeneration of the catalyst. Halpern, Science 1982, 217, 401.

    22. Asymmetric hydrogenation A variety of bidentate chiral diphosphines have been synthesized and used to make amino acids by hydrogenation of enamides: Burk, Acc. Chem. Res 2000, 33, 363.

    23. Synthesis of derivative of L-dihydroxyphenylalanine

    24. Chiral hydrogenation catalysts Catalysts similar to Wilkinson’s but using chiral phosphine ligands have been used for the asymmetric hydrogenation of small molecules . – Important in the fine chemicals /pharmaceutical industry Noles and Nyori received the 2001 chemistry Nobel prize for the development of asymmetric hydrogenation catalysis

    25. Intermediates in Noyori’s transfer hydrogenation Knowles, JACS 1975, 97, 2567.

    26. Lanthanide Hydrogenation Catalysts Tobin Marks reported the extraordinary activity of (Cp*2LuH)2 for the hydrogenation of alkenes and alkynes. The monometallic complex catalyzes the hydrogenation of 1-hexene with a TOF = 120,000 hr-1 at 1 atm H2, 25ºC!! This is one of the most active hydrogenation catalysts known.

    27. Catalytically active species With bidentate ligands, olefin coordination can precede oxidative addition of H2 (S = methanol, ethanol, acetone). Halpern, JACS 1977, 99, 8055

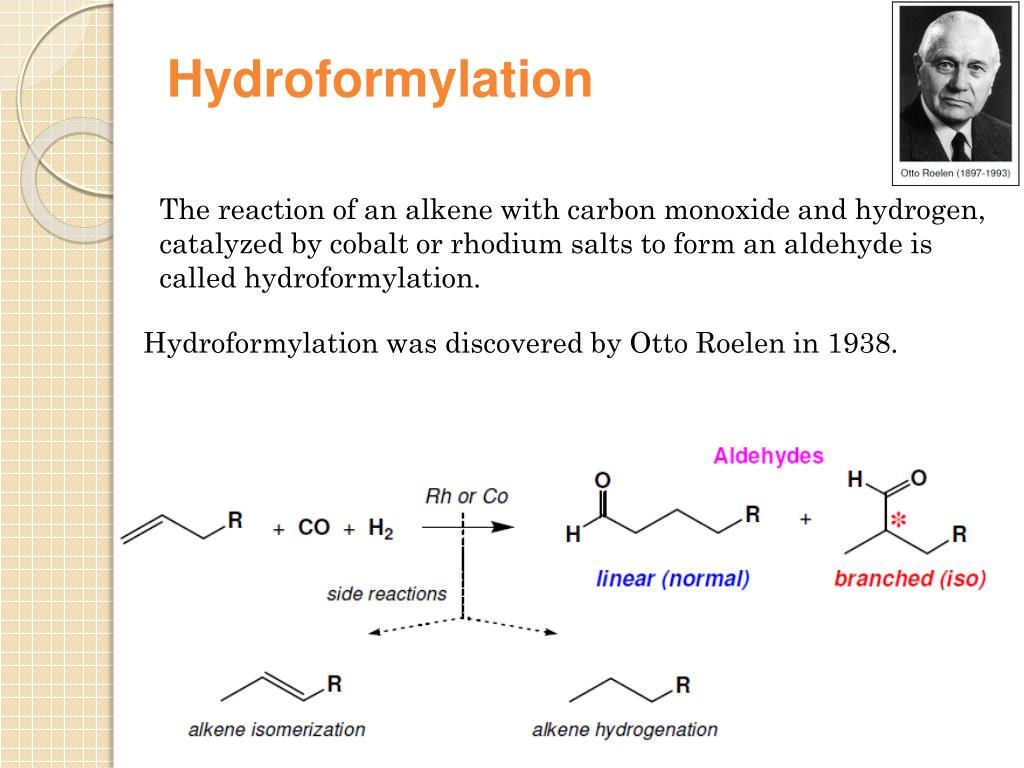

    28. Hydroformylation The reaction of an alkene with carbon monoxide and hydrogen, catalyzed by cobalt or rhodium salts to form an aldehyde is called hydroformylation. Hydroformylation was discovered by Otto Roelen in 1938.

    29. Heck , JACS,1961,83,4023

    30. Cobalt Phosphine modified catalyst

    31. Cobalt Phosphine catalyst Mechanism

    32. Monsanto Acetic acid Process 1960 basf 1966 monsanto

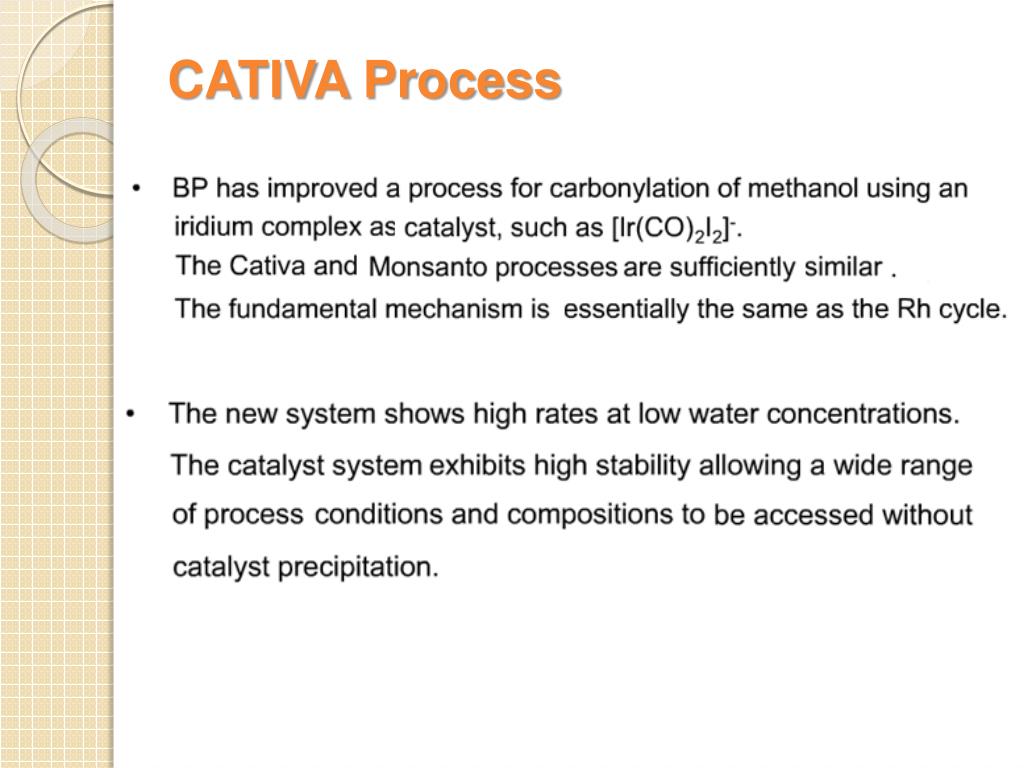

    33. CATIVA Process

    34. CATIVA Process

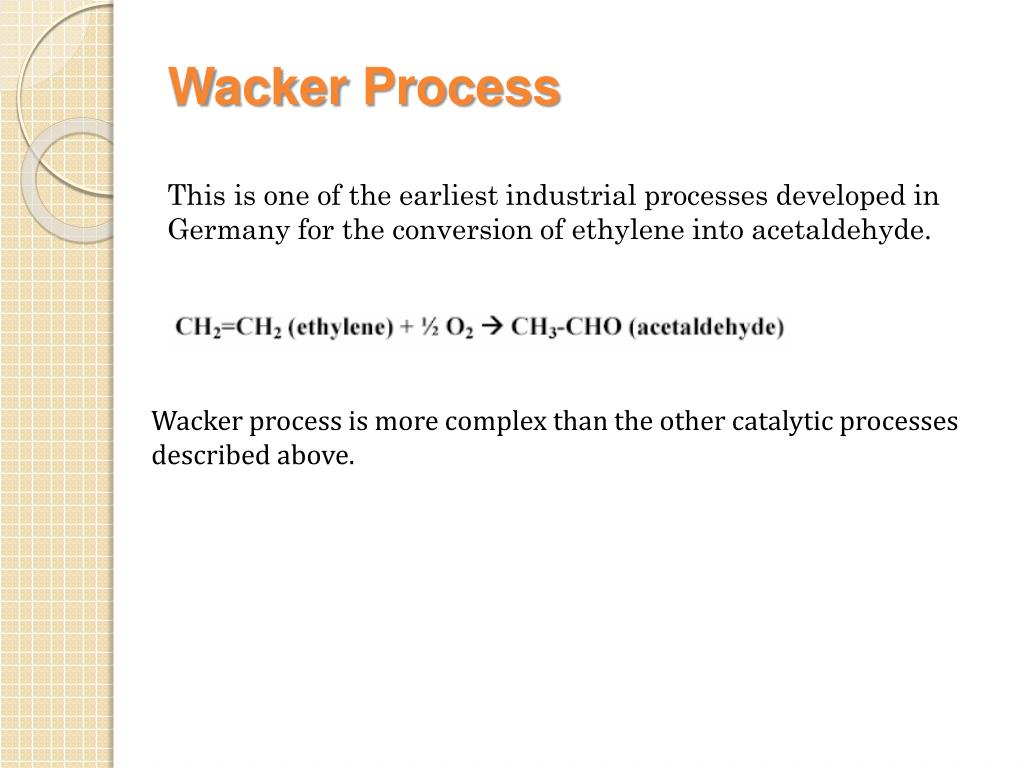

    35. Wacker Process This is one of the earliest industrial processes developed in Germany for the conversion of ethylene into acetaldehyde. Wacker process is more complex than the other catalytic processes described above.

    36. Heterogeneous Catalysis Heterogeneouscatalysts dominate chemical and petrochemical industry: ~ 95% of all chemical processes use heterogenous catalysts.

    37. Ziegler-Natta Catalysis for the Polymerization of olefins Polymers are large molecules with molecular weights in the range of 104 to 106. These consist of small building units known as monomers For example polyethylene is made up of ethylene monomers In all of these cases a single monomer is repeated several times in the polymer chain. The number of repeating units determines the molecular weight of the polymer.

    38. The German chemist Karl Ziegler (1898-1973) discovered in 1953 that when TiCl3(s) and AlEt3 are combined together they produced an extremely active heterogeneous catalyst for the polymerization of ethylene at atmospheric pressure. Giulio Natta (1903-1979), an Italian chemist, extended the method to other olefins like propylene and developed variations of the Ziegler catalyst based on his findings on the mechanism of the polymerization reaction. The Ziegler-Natta catalyst family includes halides of titanium, chromium, vanadium, and zirconium, typically activated by alkyl aluminum compounds Ziegler and Natta received the Nobel Prize in Chemistry for their work in 1963.

    39. There are typically three parts to most polymerizations:

    40. Thanks for your attention
