Presentation Transcript

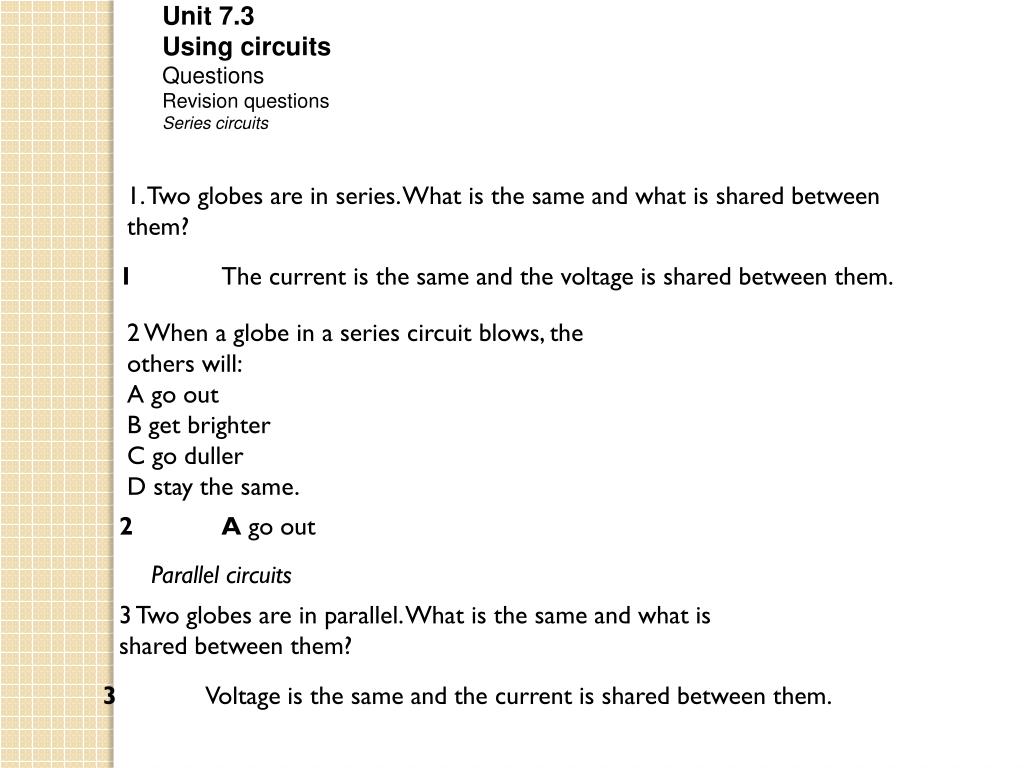

slide1
Unit 7.3

Using circuits

Questions

Revision questions

Series circuits

1. Two globes are in series. What is the same and what is shared between them?

1 The current is the same and the voltage is shared between them.

2 When a globe in a series circuit blows, the others will:

A go out

B get brighter

C go duller

D stay the same.

2 A go out

Parallel circuits

3 Two globes are in parallel. What is the same and what is

shared between them?

3 Voltage is the same and the current is shared between them.

slide2
4 When a globe in a parallel circuit blows, the others will:

A go out

B get brighter

C go duller

D stay the same.

4 D stay the same

Fairy lights

5 What is the effect of one globe blowing in a set of fairy lights wired in:

a parallel

b series?

5 a parallel: no change

b series: all will go out

6 How many 12-volt globes can operate at full power in a 240-volt series circuit of fairy lights?

6 Twenty 12 V globes can operate at full power in a 240 V series circuit of fairy lights (20 × 12 = 240).

slide3
More complex circuits

7 Does more current take the easy or hard path in a circuit?

7 More current takes the easy path in a circuit.

Household circuits

8 What voltage is household power?

8 Household power is 240 V.

9 Are the circuits in a house series or parallel?

9 Household circuits are parallel circuits.

slide4
10 Is household electricity AC or DC? Explain why.

10 Household electricity is AC because it is easier to generate and transmit than DC.

When something goes wrong

11 What is a fuse and what does it do?

11 A fuse is a thin metal wire designed to melt when excessive current flows through it, protecting the circuit.

12 List three ways of protecting a circuit and you from

damage.

12 fuses, circuit breakers, residual current detector (RCD)

slide5
13 When does an RCD cut the current to a circuit?

13 An RCD measures the current going into a circuit and the current coming out of the circuit. If the circuit is ‘good’, then the current in and out will be the same. If less current is coming out, then there is a current leak probably caused by a short-circuit. The RCD then cuts the current to the circuit.

14 How does electrocution kill?

14 Electrocution kills by damaging your tissues and interfering with the electrical signals that drive your heart.

15 List what you should do if you find a person who has

collapsed from electric shock.

15 Turn off the power. If this is not possible, do not touch the person directly. Perhaps use an insulator such as a plastic rope or garden hose to move them away from the source of electrocution. Then give first aid. Phone 000.

16 What is the emergency phone number from:

a a landline phone

b a mobile phone?

16 The emergency phone number is 000.
