  1. Forensic techniques day 1

  2. Fingerprints Indentifying Individual Prints

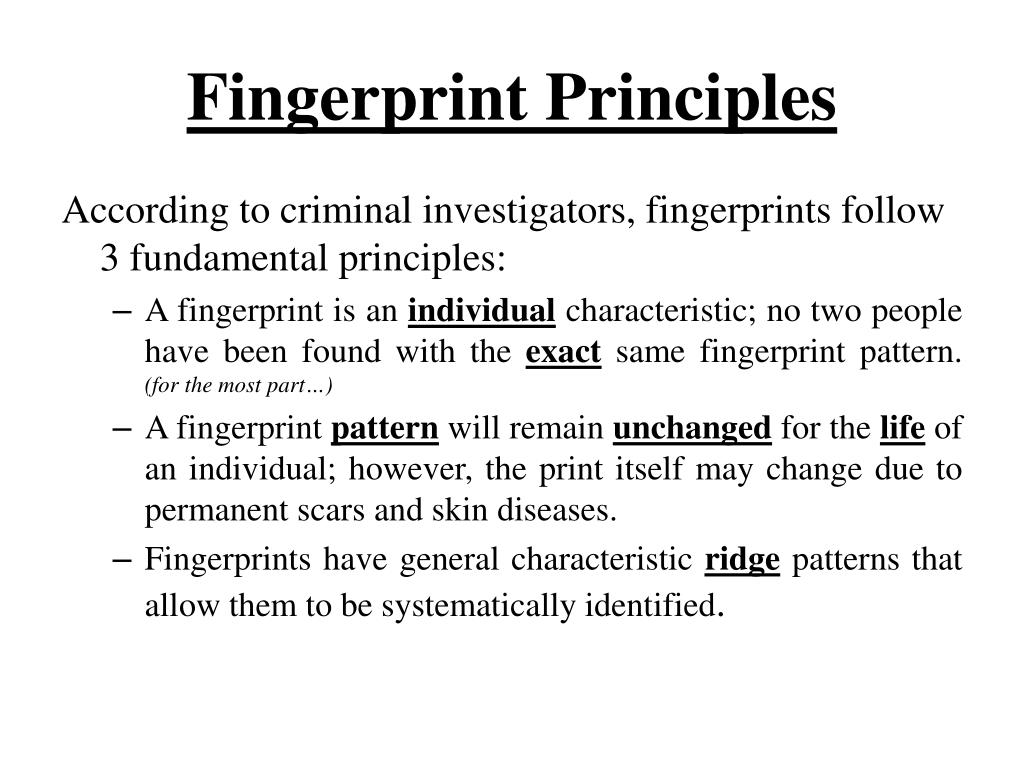

  3. Fingerprint Principles According to criminal investigators, fingerprints follow 3 fundamental principles: • A fingerprint is an individual characteristic; no two people have been found with the exact same fingerprint pattern. (for the most part…) • A fingerprint pattern will remain unchanged for the life of an individual; however, the print itself may change due to permanent scars and skin diseases. • Fingerprints have general characteristic ridge patterns that allow them to be systematically identified.

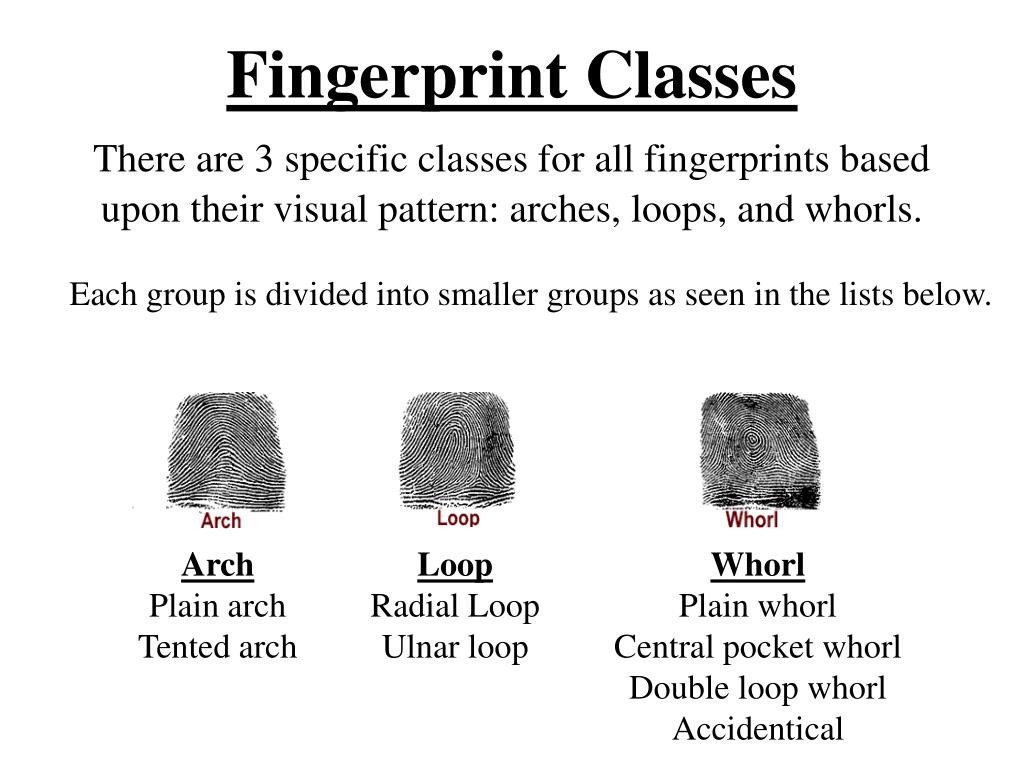

  4. Arch Plain arch Tented arch Loop Radial Loop Ulnar loop Whorl Plain whorl Central pocket whorl Double loop whorl Accidentical Fingerprint Classes There are 3 specific classes for all fingerprints based upon their visual pattern: arches, loops, and whorls. Each group is divided into smaller groups as seen in the lists below.

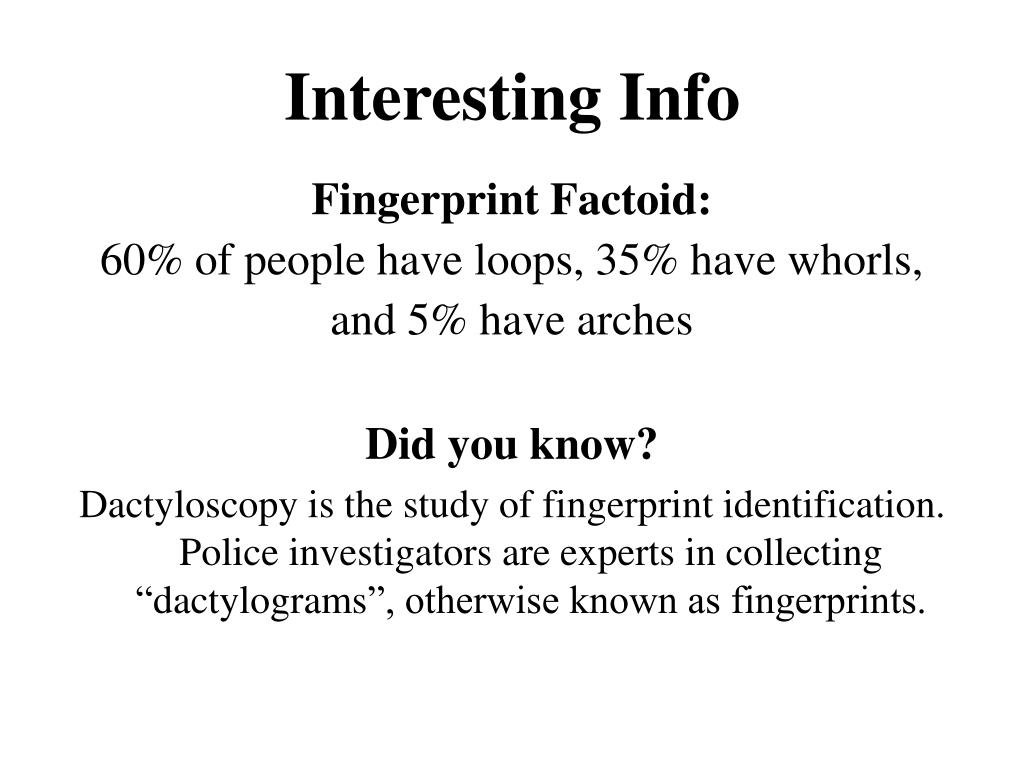

  5. Interesting Info Fingerprint Factoid: 60% of people have loops, 35% have whorls, and 5% have arches Did you know? Dactyloscopy is the study of fingerprint identification. Police investigators are experts in collecting “dactylograms”, otherwise known as fingerprints.

  6. Spike or “tent” Plain Arch Ridges enter on one side and exit on the other side. Tented Arches Similar to the plain arch, but has a spike in the center. Arches Arches are the simplest type of fingerprints that are formed by ridges that enter on one side of the print and exit on the other. No deltas are present.

  7. Left Hand Loops Loops must have one delta and one or more ridges that enter and leave on the same side. These patterns are named for their positions related to the radius and ulna bones, i.e. the bone the loop opening is facing towards. Ulna Radius Delta L – Radial Loop R - Ulnar Loop L – Ulnar Loop R - Radial Loop X-Ray Imagine: http://www.tooloop.com/wp-content/uploads/2013/12/Radius-Ulna-X-Ray.jpg

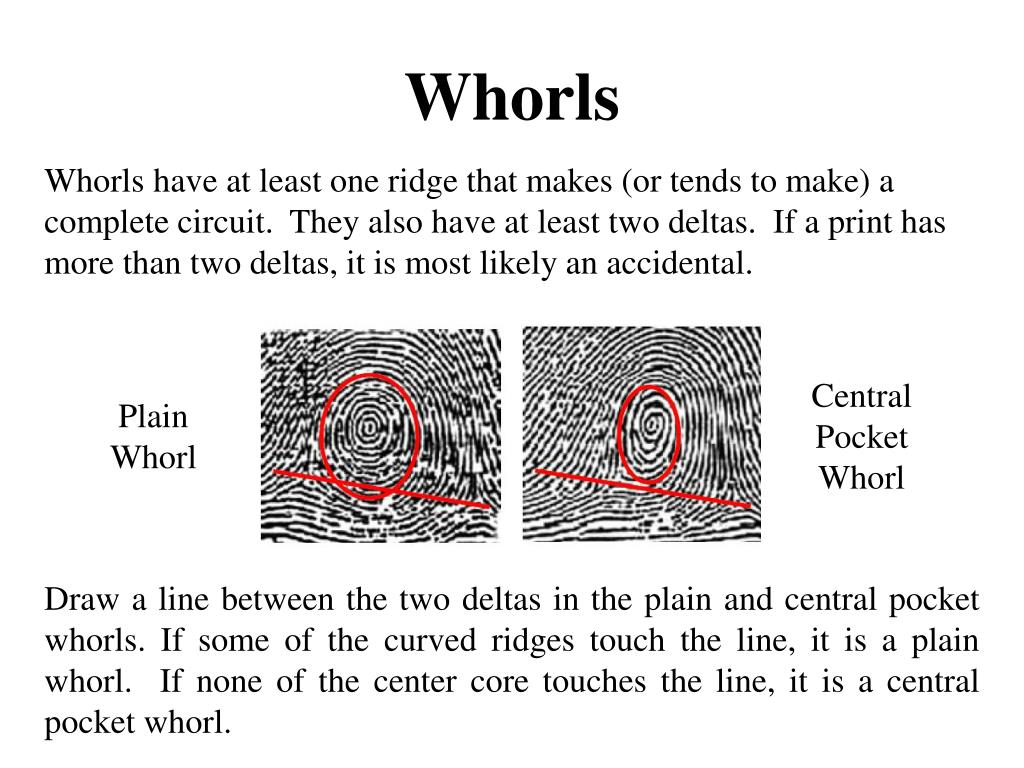

  8. Whorls Whorls have at least one ridge that makes (or tends to make) a complete circuit. They also have at least two deltas. If a print has more than two deltas, it is most likely an accidental. Central Pocket Whorl Plain Whorl Draw a line between the two deltas in the plain and central pocket whorls. If some of the curved ridges touch the line, it is a plain whorl. If none of the center core touches the line, it is a central pocket whorl.

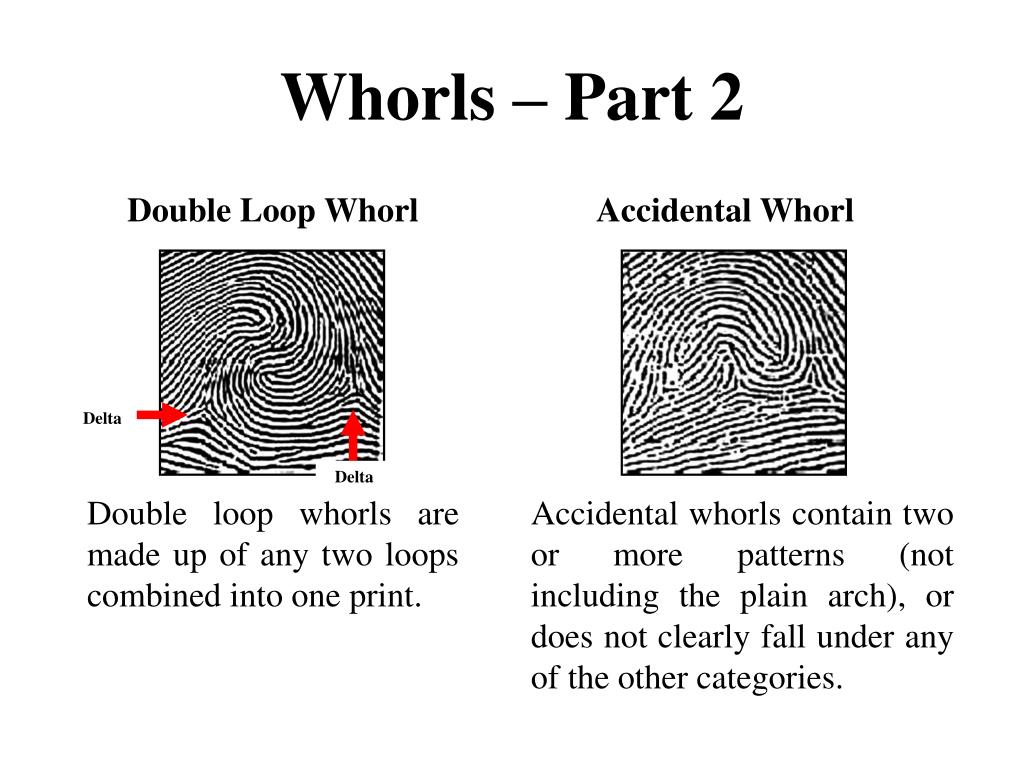

  9. Double Loop Whorl Accidental Whorl Double loop whorls are made up of any two loops combined into one print. Accidental whorls contain two or more patterns (not including the plain arch), or does not clearly fall under any of the other categories. Delta Delta Whorls – Part 2

  10. Fingerprint Classifications Also called Ulnar Loop Also called Radial Loop Also called central pocket loop Also called an accidental

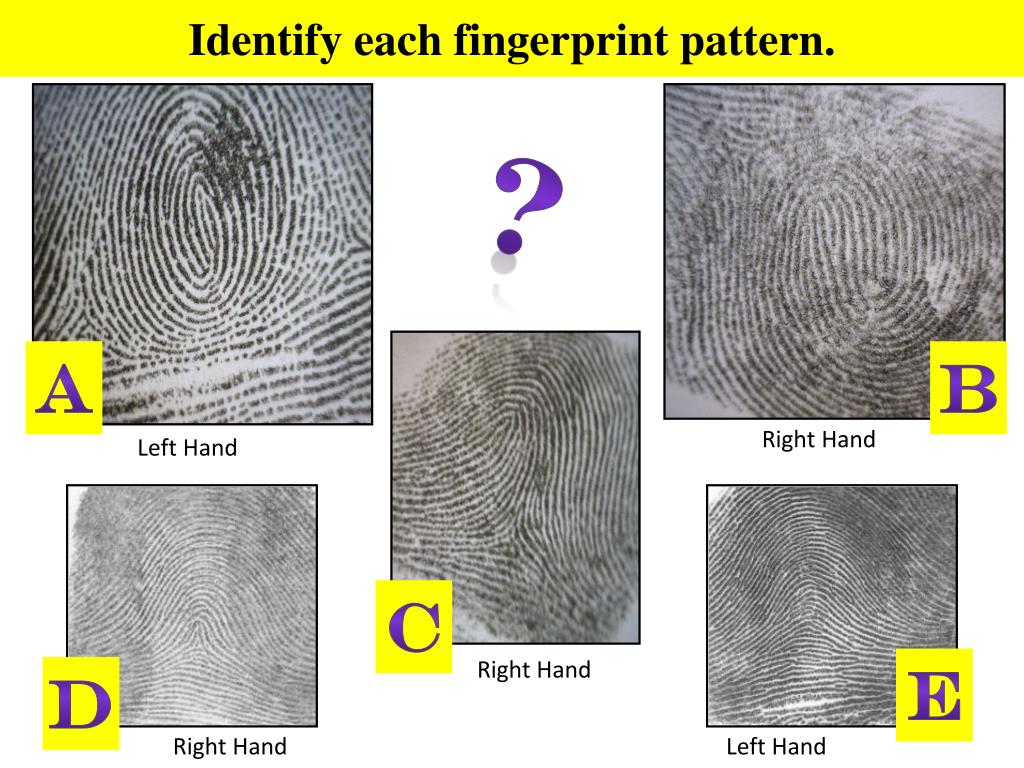

  11. Identify each fingerprint pattern. ? A B Right Hand Left Hand C Right Hand E D Right Hand Left Hand

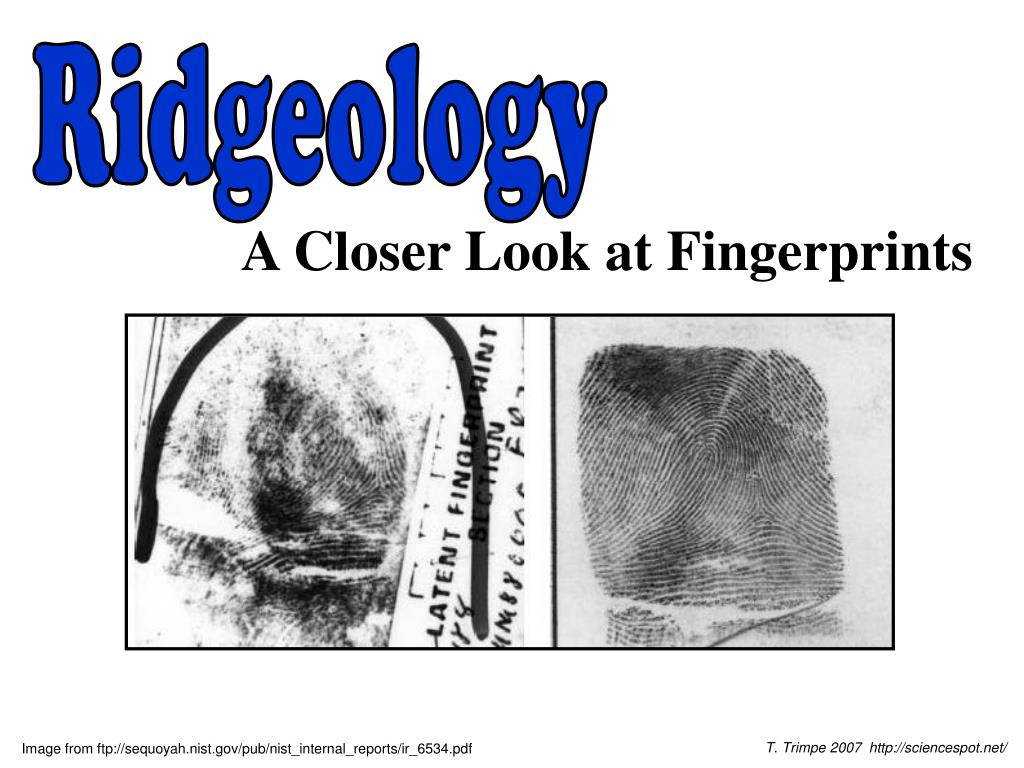

  12. Ridgeology A Closer Look at Fingerprints T. Trimpe 2007 http://sciencespot.net/ Image from ftp://sequoyah.nist.gov/pub/nist_internal_reports/ir_6534.pdf

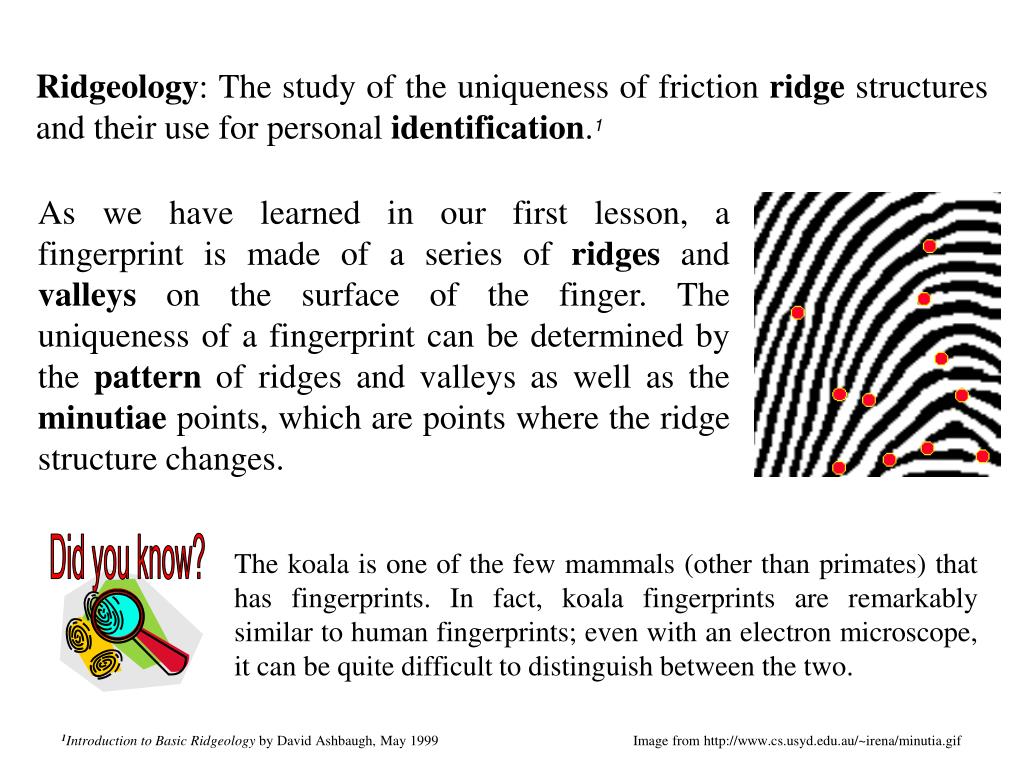

  13. As we have learned in our first lesson, a fingerprint is made of a series of ridges and valleys on the surface of the finger. The uniqueness of a fingerprint can be determined by the pattern of ridges and valleys as well as the minutiae points, which are points where the ridge structure changes. Did you know? The koala is one of the few mammals (other than primates) that has fingerprints. In fact, koala fingerprints are remarkably similar to human fingerprints; even with an electron microscope, it can be quite difficult to distinguish between the two. Ridgeology: The study of the uniqueness of friction ridge structures and their use for personal identification.1 1Introduction to Basic Ridgeology by David Ashbaugh, May 1999 Image from http://www.cs.usyd.edu.au/~irena/minutia.gif

  14. Automated Fingerprint Identification System (AFIS) AFIS is a computerized system capable of reading, classifying, matching, and storing fingerprints for criminal justice agencies. Quality latent fingerprints are entered into the AFIS for a search for possible matches against the state maintained databases for fingerprint records to help establish the identity of unknown deceased persons or suspects in a criminal case. http://www.fdle.state.fl.us/CrimeLab/images/fingerrint%20comparison%20for%20afis.jpg Fingerprint Identification When minutiae on two different prints match, these are called points of similarity or points of identification. At this point there is no international standard for the number of points of identification required for a match between two fingerprints. However, the United Kingdom requires a minimum sixteen points while Australia requires twelve.

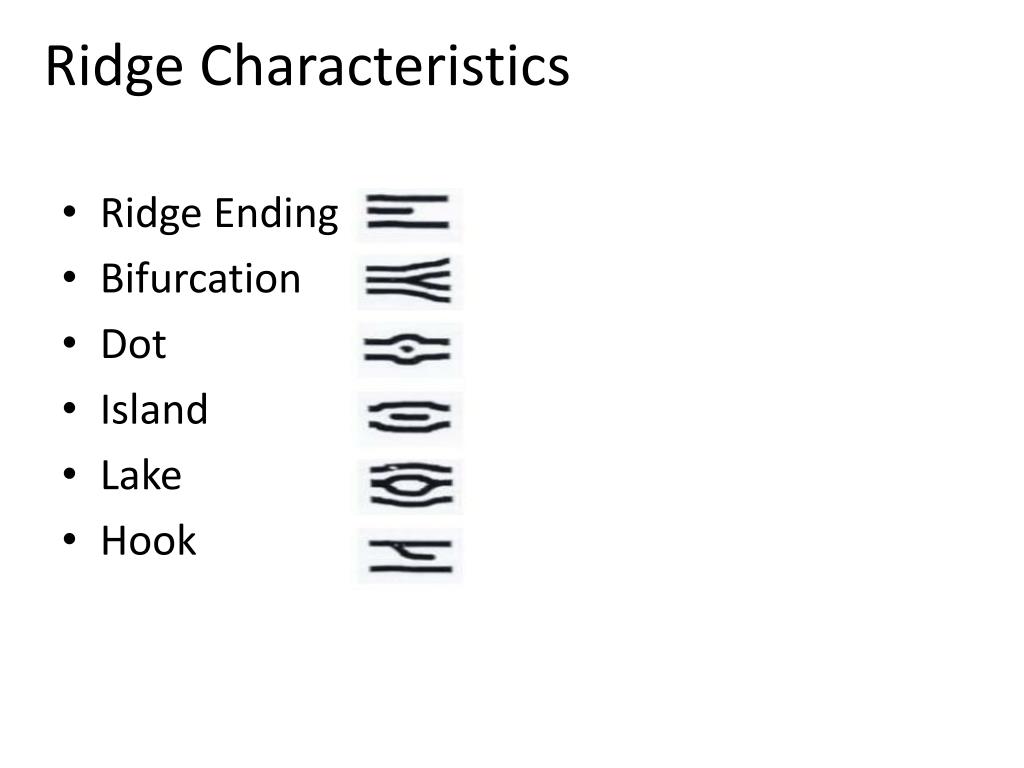

  15. Ridge Characteristics • Ridge Ending • Bifurcation • Dot • Island • Lake • Hook

  16. Ridge Characteristics • Bridge • Double Bifurcation • Trifurcation • Opposed Bifurcation • Ridge Crossing • Opposed Bifurcation/ Ridge Ending

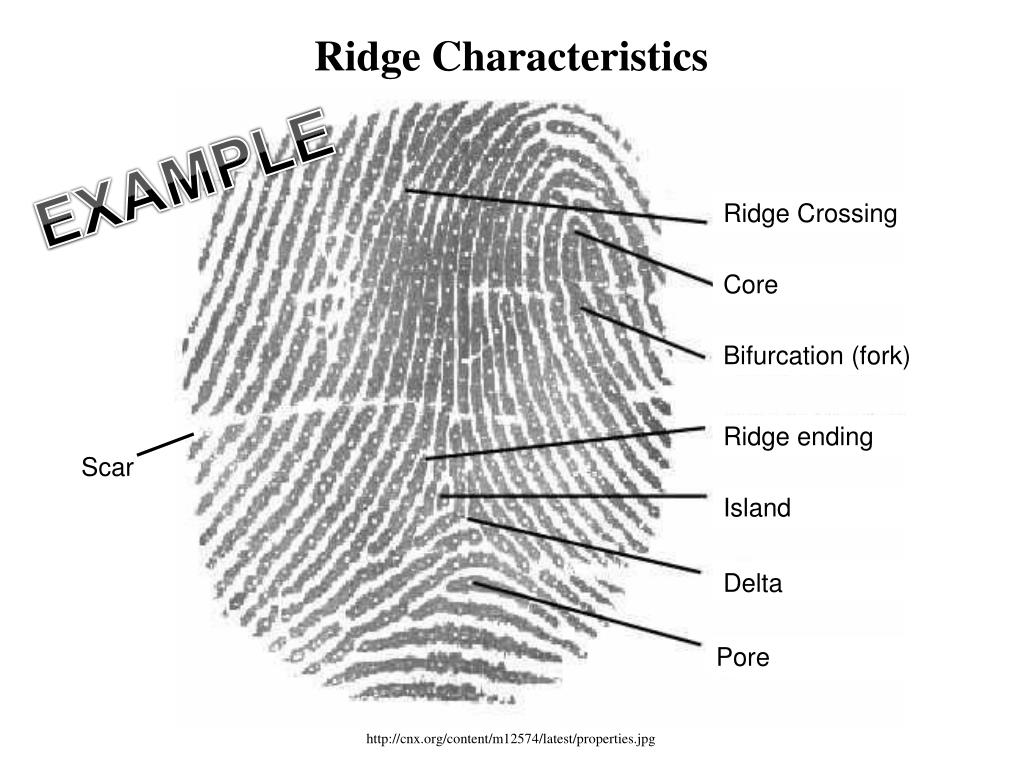

  17. Ridge Crossing Core Bifurcation (fork) Ridge ending Scar Island Delta Pore Ridge Characteristics EXAMPLE http://cnx.org/content/m12574/latest/properties.jpg

  18. http://www.dkfz.de/tbi/projects/bmcv/images/iu_it246_04s_fingerprint1.jpghttp://www.dkfz.de/tbi/projects/bmcv/images/iu_it246_04s_fingerprint1.jpg How many ridge characteristics can you identify in this fingerprint?

  19. Lets Identify a print!

  20. Latent Prints Forensic Science T. Trimpe 2007 http://sciencespot.net/

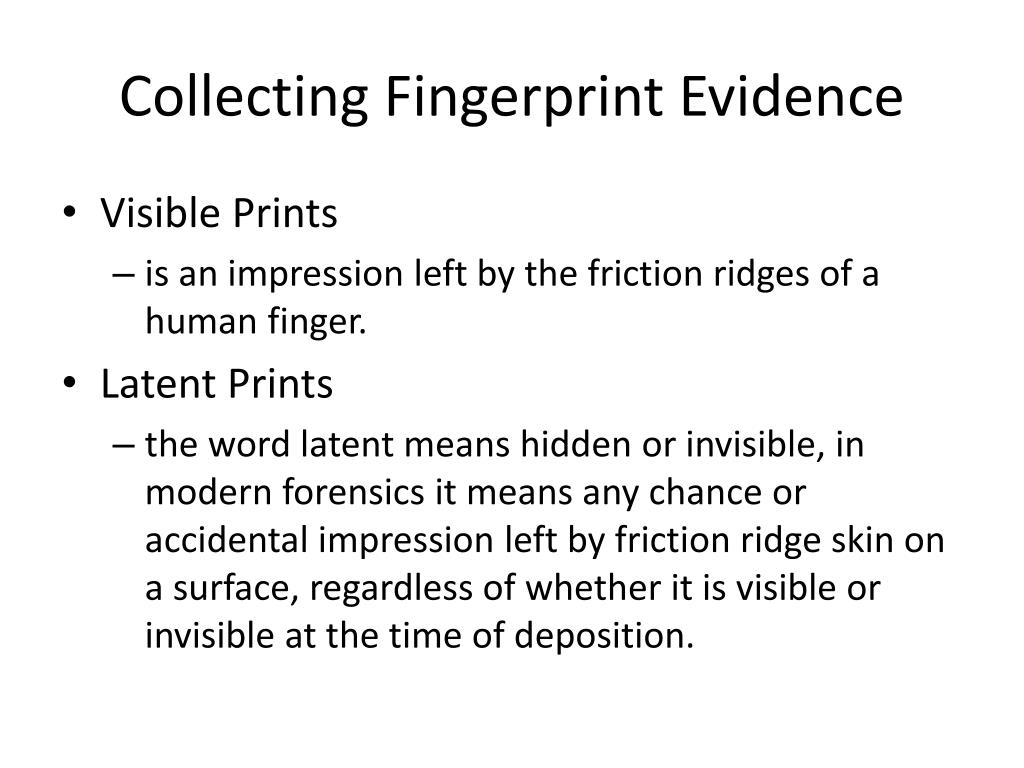

  21. Collecting Fingerprint Evidence • Visible Prints • is an impression left by the friction ridges of a human finger. • Latent Prints • the word latent means hidden or invisible, in modern forensics it means any chance or accidental impression left by friction ridge skin on a surface, regardless of whether it is visible or invisible at the time of deposition.

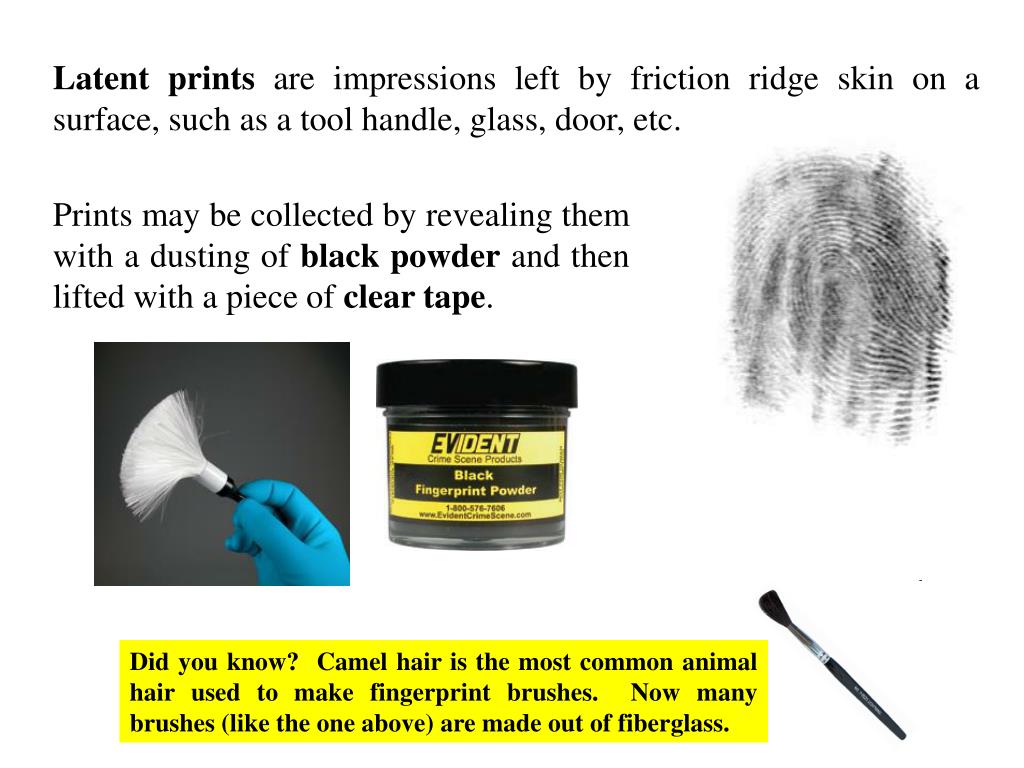

  22. Did you know? Camel hair is the most common animal hair used to make fingerprint brushes. Now many brushes (like the one above) are made out of fiberglass. Latent prints are impressions left by friction ridge skin on a surface, such as a tool handle, glass, door, etc. Prints may be collected by revealing them with a dusting of black powder and then lifted with a piece of clear tape.

  23. Magnetic powder can also be used to reveal latent prints. This type of powder works better on shiny surfaces or plastic baggies or containers. Some investigators use fluorescent powder and UV lights to help them find latent prints on multi-colored or dark surfaces. The cyanoacrylate fuming method (often called the super glue method) is a procedure that is used to develop latent fingerprints on a variety of objects. Ninhydrin is a chemical that bonds with the amino acids in fingerprints and will produce a blue or purple color. It is used to lift prints from surfaces such as paper and cardboard. Click the icon to view the Crime 360Super Glue Video Top Left: http://www.stapletonandassociates.com/images/MagPowder.jpg Bottom Left: http://www.ok.gov/osbi/images/ninhydrin%20print.jpg Bottom Right: http://www.forensicsrus.com/images/SupergluePrint.jpg

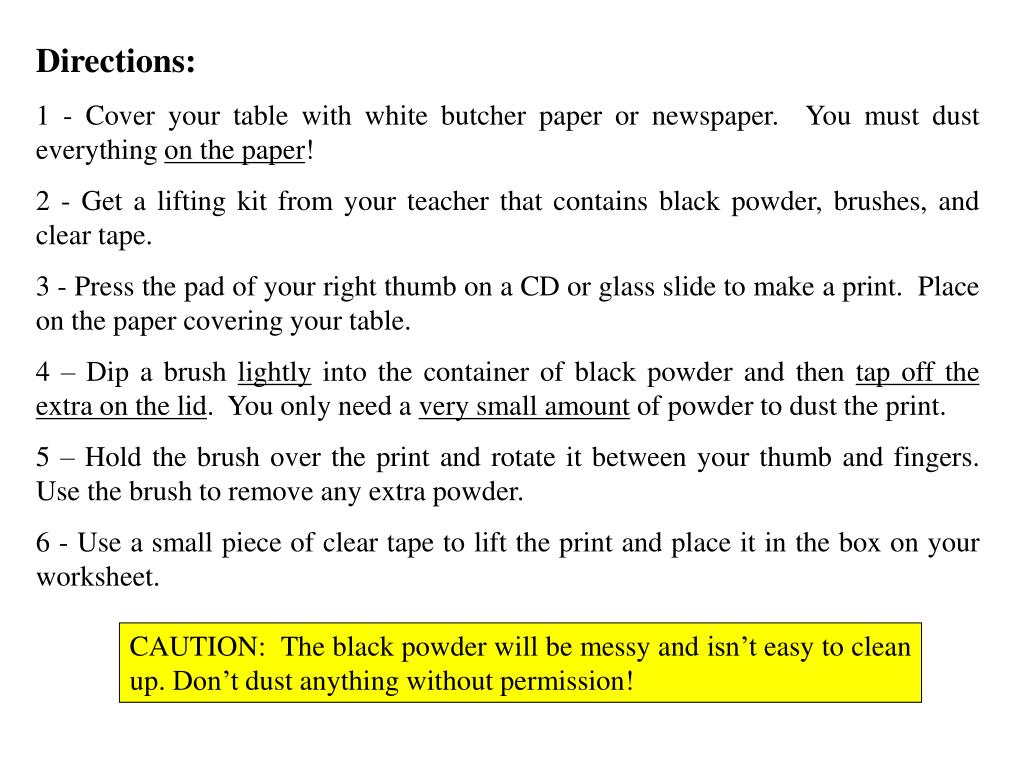

  24. Directions: 1 - Cover your table with white butcher paper or newspaper. You must dust everything on the paper! 2 - Get a lifting kit from your teacher that contains black powder, brushes, and clear tape. 3 - Press the pad of your right thumb on a CD or glass slide to make a print. Place on the paper covering your table. 4 – Dip a brush lightly into the container of black powder and then tap off the extra on the lid. You only need a very small amount of powder to dust the print. 5 – Hold the brush over the print and rotate it between your thumb and fingers. Use the brush to remove any extra powder. 6 - Use a small piece of clear tape to lift the print and place it in the box on your worksheet. CAUTION: The black powder will be messy and isn’t easy to clean up. Don’t dust anything without permission!

  25. Clean Up 1 – Clean off the CDs or glass slides and put them back in the kit with the brushes and tape. 2 – Have someone help you fold the paper in half and tap it to return the extra black powder to the container. 3 – Put the black powder in the box and have it checked in by your teacher. 4 – Get a towel and “dry” wash the table – especially the edges that weren’t covered with paper. 5 – Get a wet towel to wash off the table and then wipe it with some dry towels. Keep cleaning until all the black powder is off the table!

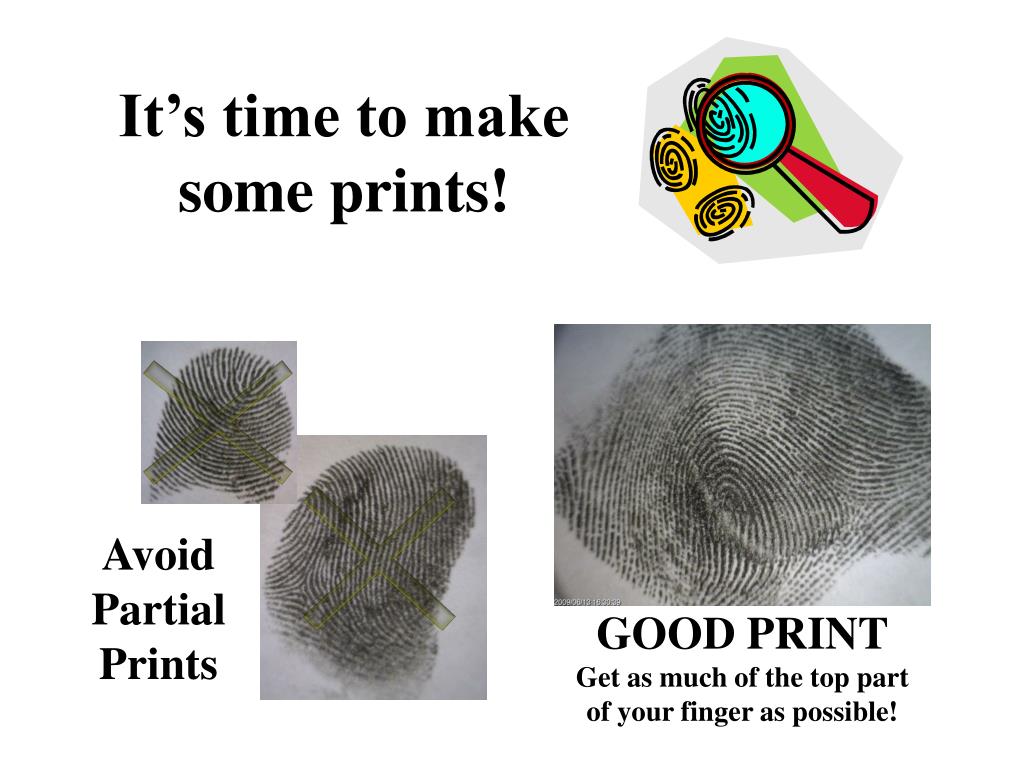

  26. It’s time to makesome prints! Avoid Partial Prints GOOD PRINTGet as much of the top part of your finger as possible!

  27. Directions 1st – Roll the “pad” portion of your thumb over the ink pad from the left side of your thumb to the right. You do not have to push down really hard! 2nd – Roll the “pad” portion of your thumb from the left side of your thumb to the right in the correct box on your paper to make a thumbprint. 3rd – Continue this process to make a fingerprint of all ten fingers on the “My Prints” worksheet. 4th –Use your notes and a magnifying lens to help you figure out what type of pattern is found in each of your fingerprints. Label each one with the pattern’s name.
