Presentation Transcript
slide1

SeaWiFS Views The Galapagos: Islands in the Stream

Gene Feldman/NASA GSFC, Laboratory for Hydrospheric Processes,

SeaWiFS Project Office (gene.c.feldman@nasa.gov)

Over the course of less than two weeks, SeaWiFS captured the development of a large plume of plankton-rich water straddling the equator and extending several hundred kilometers downstream from the island of Isabela in the Galapagos Archipelago.

The large phytoplankton bloom to the west of Isabela Island is a consistent feature, constantly changing in size and shape, which sustains an ecosystem like none other. Nowhere else in the world will corals, hammerhead sharks, flightless cormorants, penguins and fur seals be found on the same sub-tidal reef! Cold water from the sub-marine Cromwell current deflects against the Galapagos Platform bringing trace elements, such as iron, into the sunlit coastal waters. This seems to trigger these huge events. To the east, wind-driven upwelling along the equator also encourages production.

Such high primary production also provides for local semi-intensive sea-cucumber, fin-fish, and rock lobster fisheries. The future of the Galapagos Marine Reserve depends on the sustainable management of these resources and improved understanding of the natural environment. In an area also renowned for the devastating impact of large El Niño events, such human impacts might tip the sensitive balance between extinction and survival. The marine scientists of the Charles Darwin Research Station continue using SeaWiFS data as a valuable tool to assess the part such productivity plays in maintaining the unique biodiversity and endemism in the marine reserve.

For more information about the Galapagos and the ongoing work of the CDF please visit <http://www.darwinfoundation.org/>.

slide2

SeaWiFS Views

The Galapagos: Islands in the Stream

high resolution global modeling with the land information system http lis gsfc nasa gov
High Resolution Global Modelingwith the Land Information Systemhttp://lis.gsfc.nasa.gov

Christa Peters-Lidard, Paul Houser/974 (christa.peters@nasa.gov)

Sujay Kumar, Yudong Tian/974/GEST

Jim Geiger, Susan Olden, Luther Lighty/580

Objective:A high performance, high resolution (1 km) global land modeling and assimilation system.

Applications:Weather and climate model initialization and retrospective coupled modeling, Flood and water resources forecasting, Precision agriculture, Mobility assessment, etc.

1km MODIS LAI data

key lis milestones
Key LIS Milestones

Complete

  • Aug. 2002: Install LIS Cluster at GSFC
    • 200 nodes, 112 GB total memory, 22 TB total disk
  • Mar. 2003: First code improvement
    • Implement global LIS at 5 km resolution

Future

  • Feb. 2004: Second code improvement
    • Implement global LIS at 1 km resolution
  • Jul. 2004: Interoperability demonstration
    • Implement ESMF-compliant version of CLM in Global LIS
lis performance and scaling simulation one day 15 minute time step
LIS Performance and ScalingSimulation: one day, 15 minute time step

a. Performance improvement on single CPU at ¼o resolution

b. Scaling curves for NOAH & CLM at 5km resolution on O3K

  • solid lines depict LIS results on SGI O3K at NASA/ARC
  • hatched lines depict LIS goal of P/2 scaling

11.5 hr

Time (seconds)

< 2 hr

Number of Processors, P

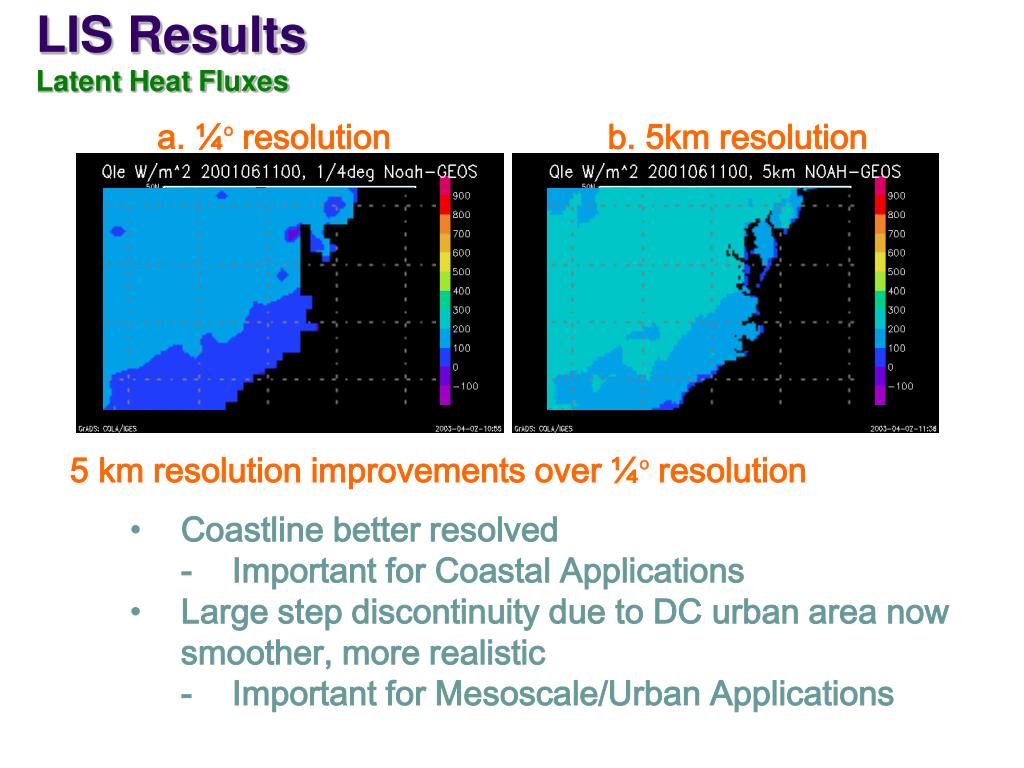

lis results latent heat fluxes
LIS ResultsLatent Heat Fluxes

a. ¼o resolution

b. 5km resolution

5 km resolution improvements over ¼o resolution

  • Coastline better resolved
    • - Important for Coastal Applications
  • Large step discontinuity due to DC urban area now smoother, more realistic
    • - Important for Mesoscale/Urban Applications
slide7

Status of Advanced Technology Microwave Sounder (ATMS) DevelopmentJames Shiue/NASA GSFC, Laboratory for Hydrospheric Processes, Microwave Sensors Branch (james.c.shiue@nasa.gov)

  • Kickoff in January 2001 –Contractor: (Aerojet) now—Northrop Grumman
  • System CDR held in May of 2002
  • Additional ΔCDRs on MMIC RF front-end electronics (subcontractor: BAE):

(a) K and Ka bands—March, 2003

(b) V & W bands—May, 2003

* NEΔT, calibration, etc., to meet requirements

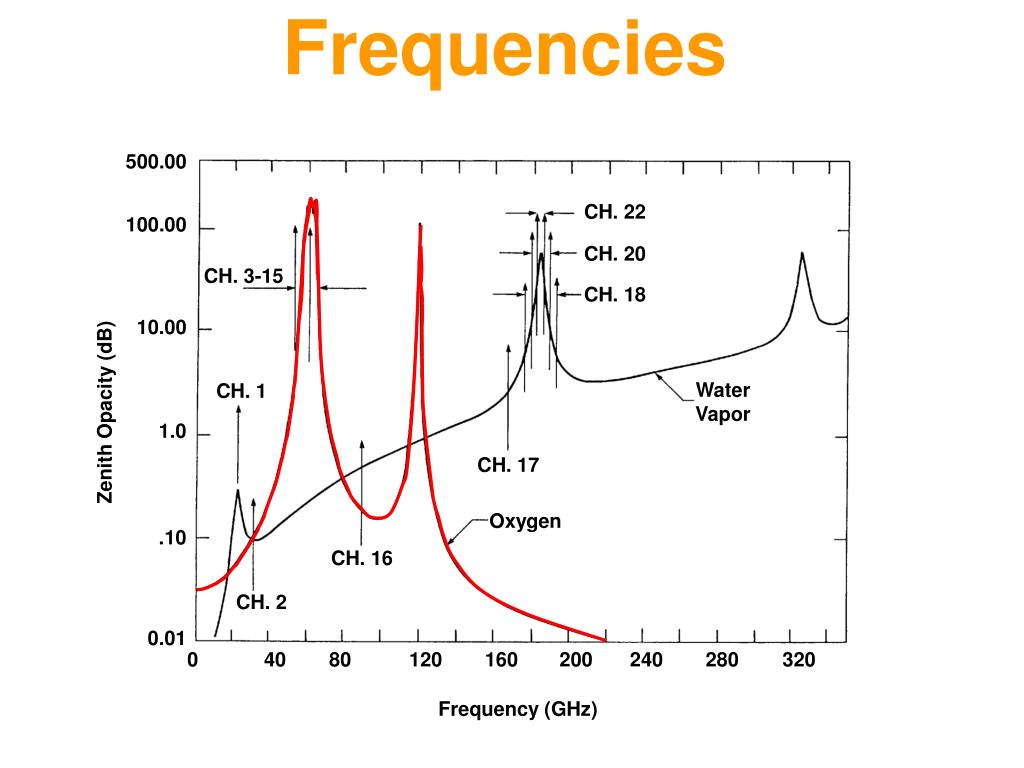

frequencies

500.00

CH. 22

100.00

CH. 20

CH. 3-15

CH. 18

10.00

Water

Vapor

CH. 1

Zenith Opacity (dB)

1.0

CH. 17

Oxygen

.10

CH. 16

CH. 2

0.01

0

40

80

120

160

200

240

280

320

Frequency (GHz)

Frequencies
channel parameters cont
Channel Parameters (Cont.)

QV, QH : quasi-vertical, quasi-horizontal polarizations

scanning characteristics

Footprints (km)

Chan Dx Dy

1, 2 323.1 141.8

3-16 136.7 60.0

17-22 68.4 30.0

Footprints (km)

Chan Dx

1, 2 74.8 5.2o

3-16 31.6 2.2o

17-22 15.8 1.1o

Beam width

Scanning Characteristics
  • Cross-track (for CrIS coincidence)
  • Contiguous 1.1° cells
  • Contiguous coverage at equator

(824 Km orbit, NPP)

105.45°

17.6 km

Scan spacing

16.0 km

Sample interval

Swath = 2503 km

Subsatellite track

the atms challenge
AMSU-(A1+A2) +MHS:

P~200 W, M~160 kg, Vol >1 m3

The ATMS Challenge

AMSU-A1

AMSU-A2

  • ATMS
  • 70 x 40 x 60 cm
  • 98 W (now ~155 w, including conting.)
  • 78 kg
  • 7 year life

MHS

atms instrument
ATMS Instrument

Nadir (z)

Anti-sun (y)

Velocity (x)
