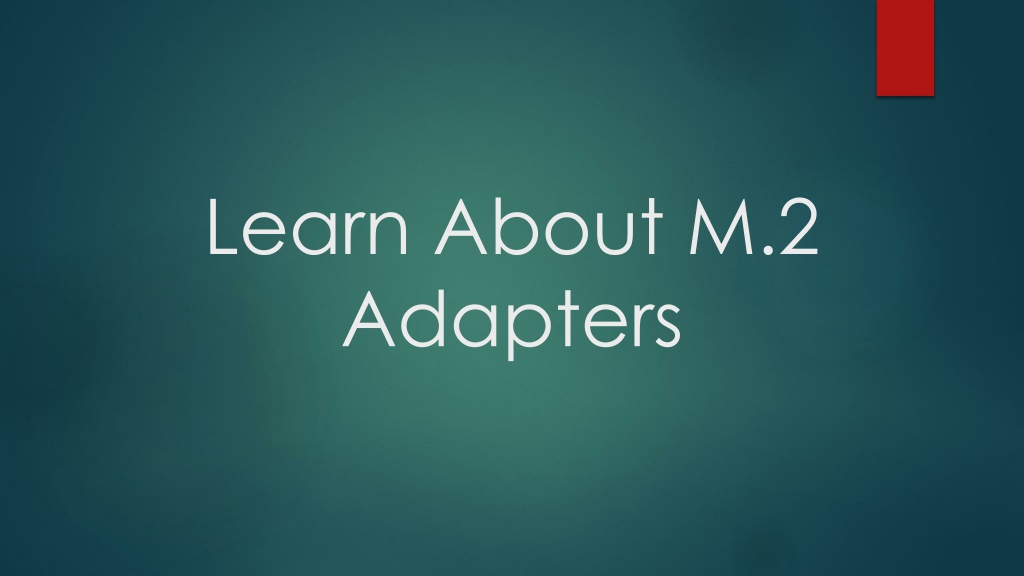

  1. Learn About M.2 Adapters

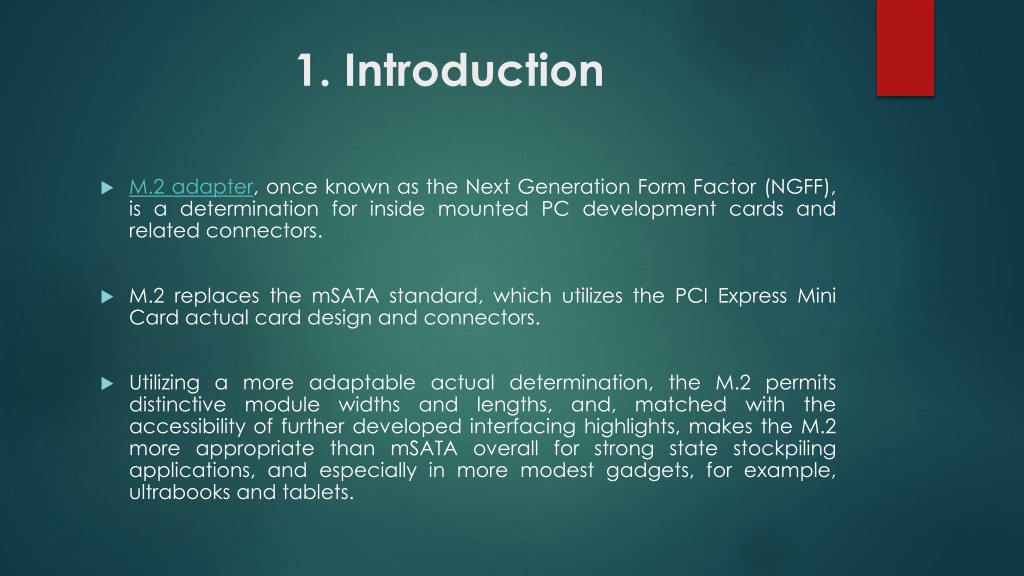

  2. 1. Introduction • M.2 adapter, once known as the Next Generation Form Factor (NGFF), is a determination for inside mounted PC development cards and related connectors. • M.2 replaces the mSATA standard, which utilizes the PCI Express Mini Card actual card design and connectors. • Utilizing a more adaptable actual determination, the M.2 permits distinctive module widths and lengths, and, matched with the accessibility of further developed interfacing highlights, makes the M.2 more appropriate than mSATA overall for strong state stockpiling applications, and especially in more modest gadgets, for example, ultrabooks and tablets.

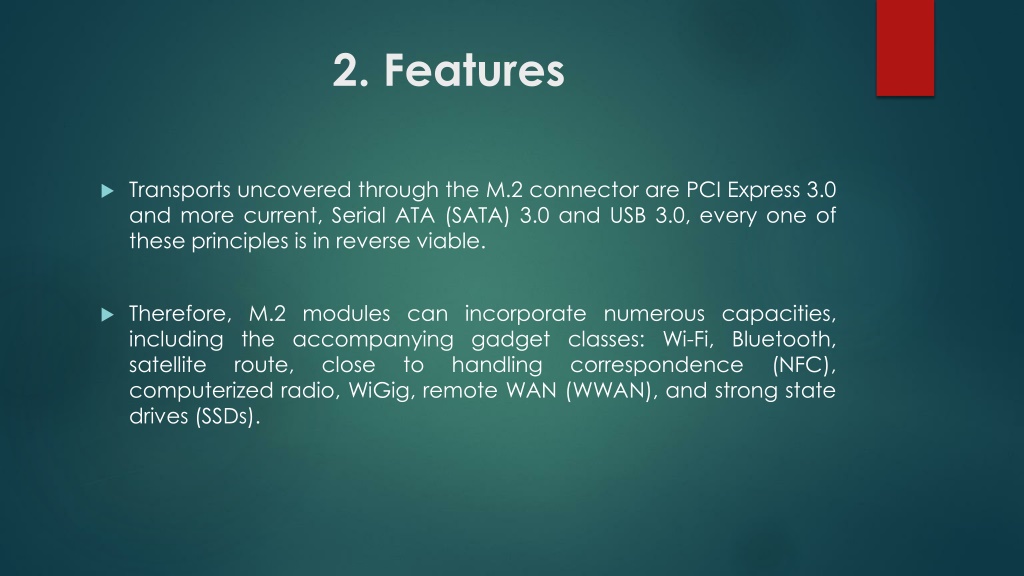

  3. 2. Features • Transports uncovered through the M.2 connector are PCI Express 3.0 and more current, Serial ATA (SATA) 3.0 and USB 3.0, every one of these principles is in reverse viable. • Therefore, M.2 modules can incorporate numerous capacities, including the accompanying gadget classes: Wi-Fi, Bluetooth, satellite route, close to handling correspondence (NFC), computerized radio, WiGig, remote WAN (WWAN), and strong state drives (SSDs).

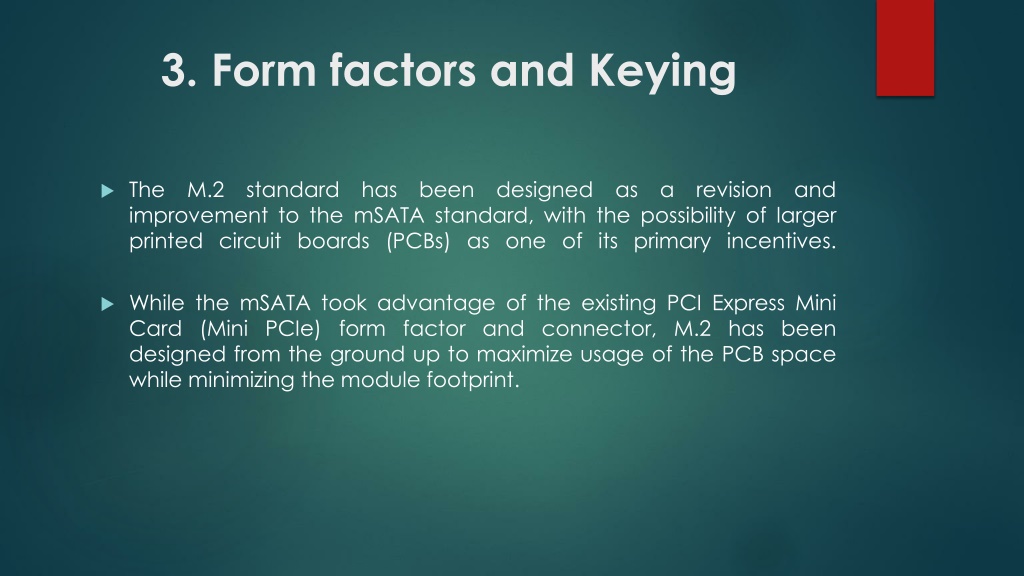

  4. 3. Form factors and Keying • The M.2 standard has been designed as a revision and improvement to the mSATA standard, with the possibility of larger printed circuit boards (PCBs) as one of its primary incentives. • While the mSATA took advantage of the existing PCI Express Mini Card (Mini PCIe) form factor and connector, M.2 has been designed from the ground up to maximize usage of the PCB space while minimizing the module footprint.

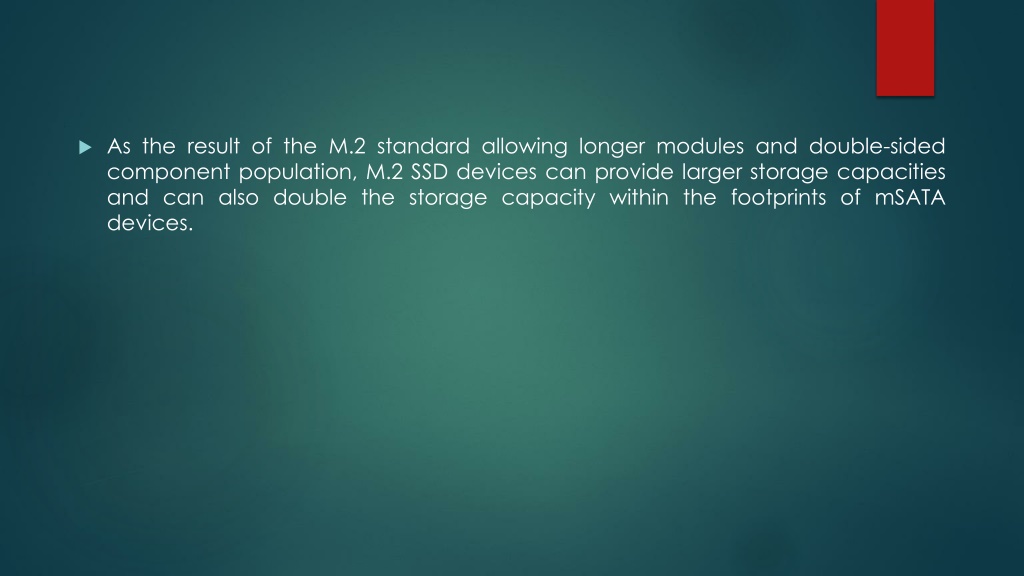

  5. As the result of the M.2 standard allowing longer modules and double-sided component population, M.2 SSD devices can provide larger storage capacities and can also double the storage capacity within the footprints of mSATA devices.

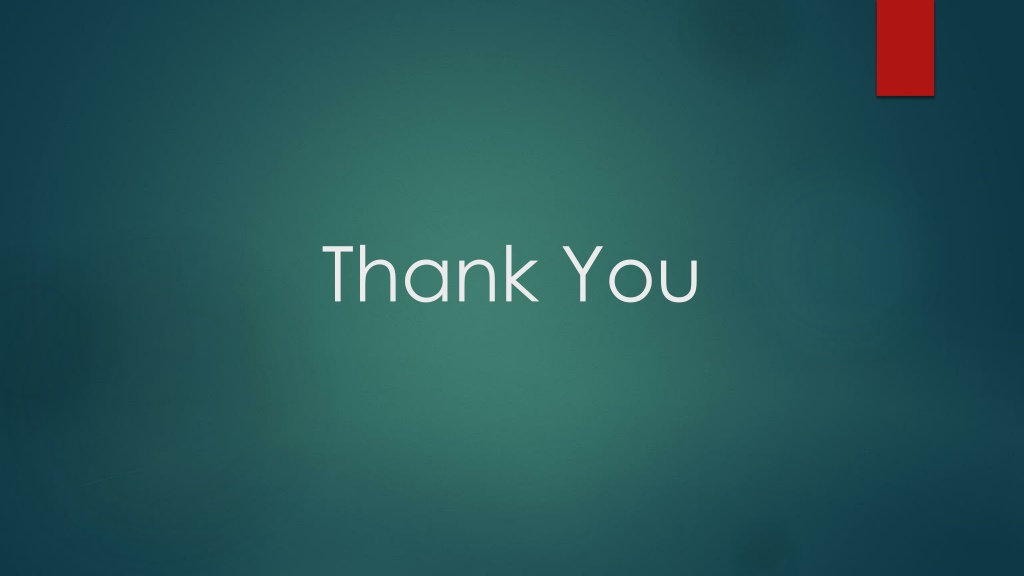

  6. Thank You
