Electronic Direct Injection Proportioner

2001, 2002 & 3012 Series Operation (See Installation and Operation Manual for detailed instructions). Foam Tank. Line Strainer. Check Valves. Flow Meter. Electronic Direct Injection Proportioner. 2000 Series. Water Tank. Multiple Discharges. Water Pump. Check Valves. Multiple

eortega
Download Presentation

Electronic Direct Injection Proportioner

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 2001, 2002& 3012 SeriesOperation(See Installation and Operation Manual for detailed instructions)

  2. Foam Tank Line Strainer Check Valves Flow Meter Electronic DirectInjection Proportioner 2000 Series Water Tank Multiple Discharges Water Pump

  3. Check Valves Multiple Discharges Electronic DirectInjection Proportioner 3012 Model Foam Tank Line Strainer Water Tank Flowmeter Water Pump

  4. Digital Display Operation • Digital display reads “Hypro” upon initial power-up • System then enters flow mode in standby • Operates as flowmeter

  5. Digital Display Operation • Push red “FOAM” button to arm system • “ON” light illuminates • Open foam discharge • Displays solution volume • “ON” light blinks when foam pump runs

  6. Digital Display Operation • Water flow display • Push “SELECT” button and total volume of water discharged is displayed • Gallons, liters, imperial gallons

  7. Digital Display Operation • Push “SELECT” button to enter “%” mode • Displays default injection percentage • “PA” Single tank system • “PC” Remote start/stop (“UP” or “DOWN” button will override default setting)

  8. Digital Display Operation • Push “SELECT” button to enter “TOTAL FOAM” • Displays total concentrate injected • Dual-tank mode • Totals for each tank • Display corresponds to tank chosen by dual-tank valve

  9. Digital Display Operation • Enter “INJECTION PERCENTAGE” from any mode • Press either “UP” or “DOWN” button momentarily to display current percentage setting • Hold either button for two seconds to change setting accordingly

  10. Operating Instructions System Reset Total Water%(Percent)Total Foam • Reset these modes to 0 or % to default setting • Push both the up and down buttons in desired mode

  11. Flowmeter • No flow restrictions • Wide operating range Size Max Accuracy Max Operating Tee Flow RangeFlow Range 1-1/2x1" 5 - 110 gpm 3 - 145 gpm 1-1/2" 10 - 320 gpm 3 - 380 gpm 2" 15 - 520 gpm 5 - 625 gpm 2-1/2" 20 - 750 gpm 8 - 900 gpm 3" 30 -1150 gpm 12-1380 gpm 4" 55 -1980 gpm 20 -2380 gpm

  12. Safety Features

  13. Low Foam Display • When Lo con is Displayed • Selected foam concentrate tank is getting low • If foam concentrate is added within 2 minutes Lo con goes out • If no foam concentrate is added within 2 minutes no con is displayed • When no con is Displayed • Foam concentrate pump will not run • Add foam concentrate until no con display goes out then push Red Foam button to start the foam pump

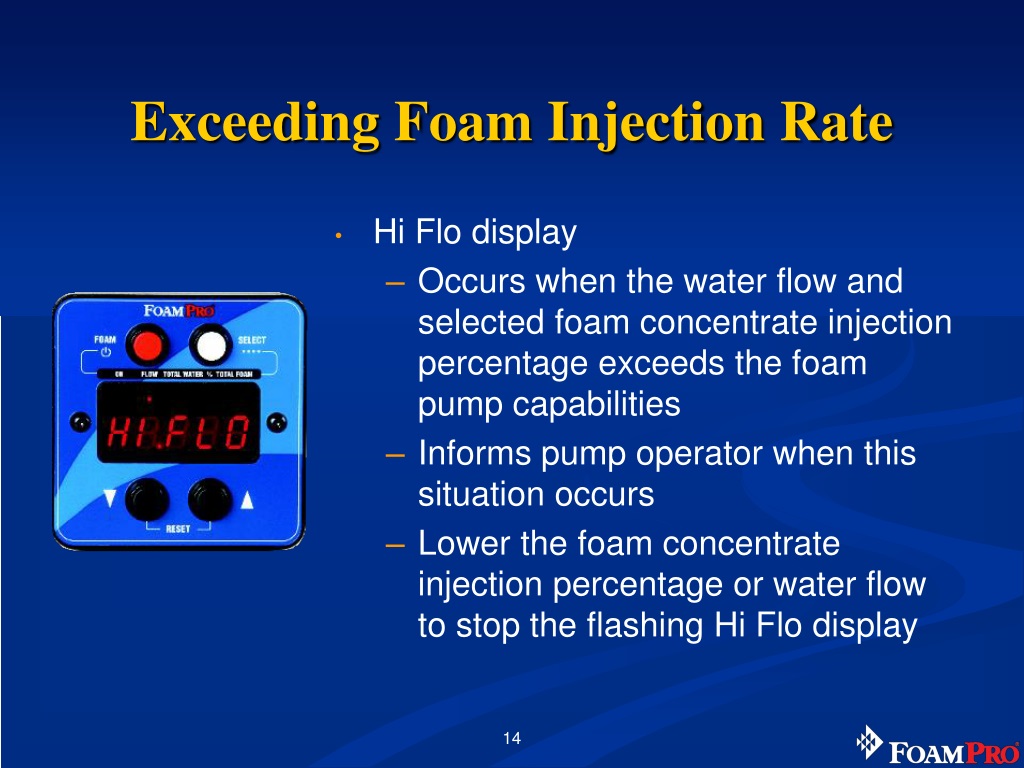

  14. Exceeding Foam Injection Rate • Hi Flo display • Occurs when the water flow and selected foam concentrate injection percentage exceeds the foam pump capabilities • Informs pump operator when this situation occurs • Lower the foam concentrate injection percentage or water flow to stop the flashing Hi Flo display

  15. Motor Driver • Module controls pump motor • Totally enclosed environmentally sealed • Incorporates system circuit breaker

  16. Digital Display Operation • Simulated flow • While in “FLOW” mode, push both lower buttons simultaneously • Three bars on left indicate manual mode • Pushing red “FOAM” button will turn foam pump on/off • Pump injects to simulated flow default setting

  17. System Air Purge • Enter “SIMULATED FLOW” • Turn injection valve from “INJECT” to “CAL/FLUSH” • Push red “FOAM” button on display to start foam pump

  18. System Air Purge (cont.) • Run until concentrate flows steady out of dump line • Push red “FOAM” button to stop pump • Turn injection valve to “INJECT” • Exit “SIMULATED FLOW”

  19. System Maintenance

  20. 2000 Series Foam Pump • Totally enclosed environmentally sealed motor • Housing incorporates speed sensor • Positive displacement plunger pump • Components made of corrosion resistant materials • Max operating pressure is 400 psi

  21. 3012 Foam Pump • Hydraulic motor • Housing incorporates speed sensor • Positive displacement plunger pump • Components made of corrosion resistant materials • Max operating pressure is 400 psi

  22. System Maintenance • Clean strainer(s) regularly • Purge pump to remove air pockets afterwards • Check oil level • Dip stick reading or • Sight glass

  23. Concentrate Management Systems

  24. Foam Tank B Foam Tank A Manual CMS

  25. Foam Tank B Foam Tank A Electronic CMS

  26. Digital Display Operation • Dual-tank function • Dual-tank valve in “A” • Displays “PA” and default setting • Dual-tank valve in “B” • Displays “Pb” and default setting • Default settings from 0.1 to 6.0%

  27. Dual Foam Concentrate Tank (CMS)

  28. Dual-Tank Flush • System does not require flushing after Class A foam use • Turn off and flush hose • Flush after using Class B foam • Flow water and engage foam system • Turn manual valve to “FLUSH” or electric valve to “OFF” (“Off” position is a constant flush)

  29. MultiFlo Interface

  30. Flowmeter Flowmeter Flowmeter Flowmeter MultiFlo Interface MultiFlo Display Control Cable Flowmeter Cable Std. Controller or AFC
