String combiner box

Enertech offers String Combiner box that provides interconnections between inputs leads from solar PV modules and the output leads to the re-combiner box or inverter.

enertechups
Download Presentation

String combiner box

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

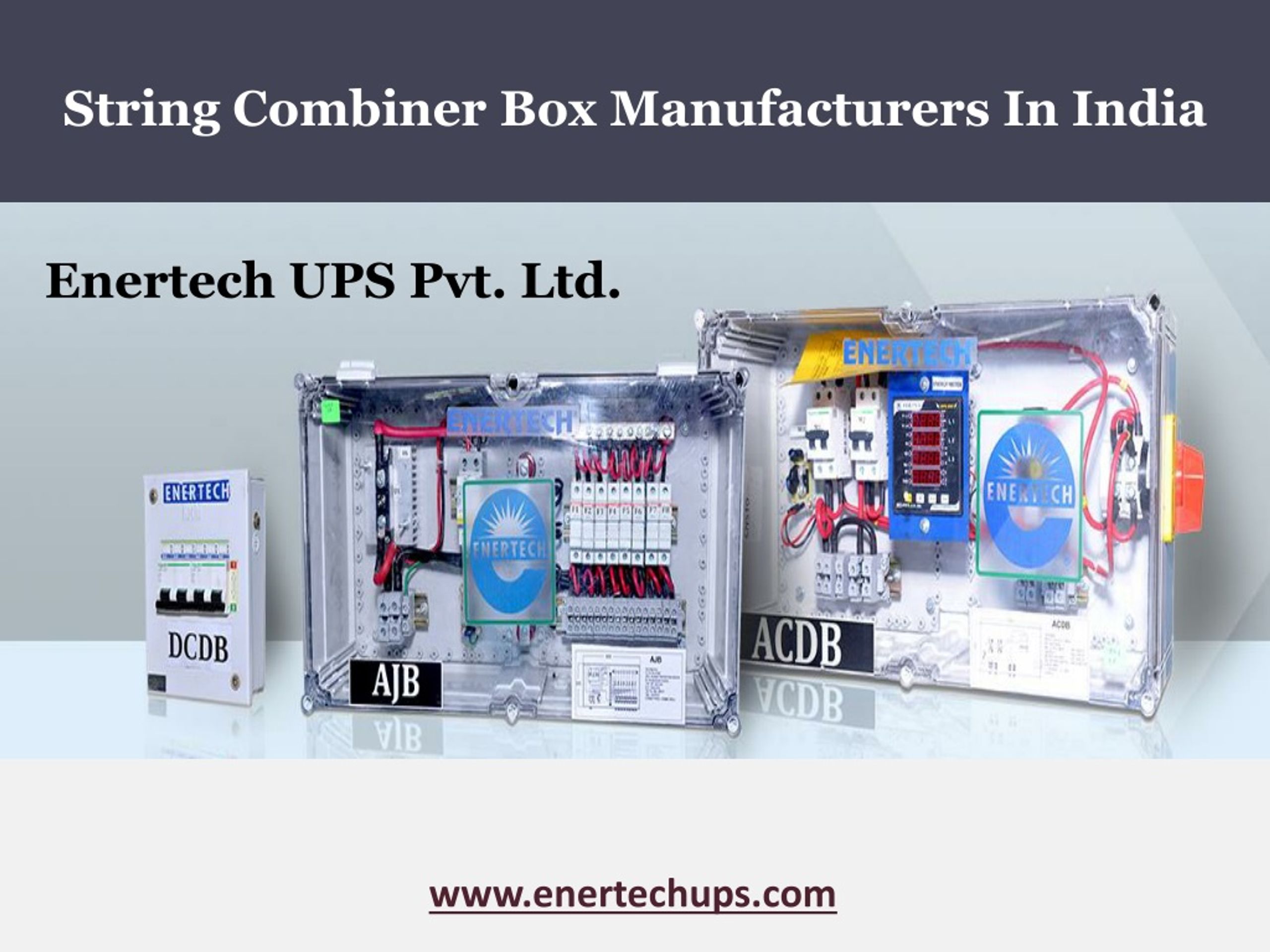

  1. String Combiner Box Manufacturers In India Enertech UPS Pvt. Ltd. www.enertechups.com

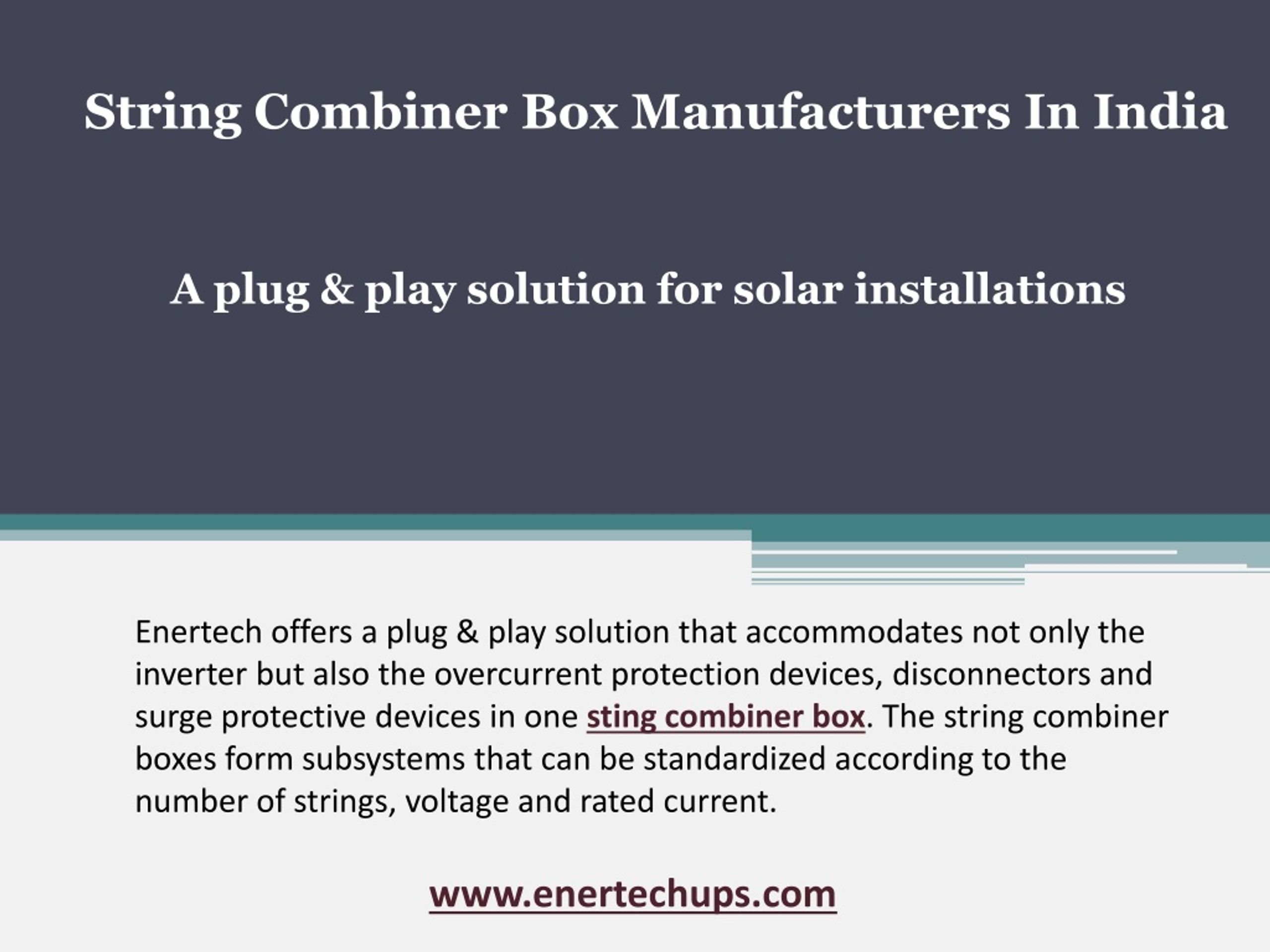

  2. String Combiner Box Manufacturers In India A plug & play solution for solar installations Enertech offers a plug & play solution that accommodates not only the inverter but also the overcurrent protection devices, disconnectors and surge protective devices in one sting combiner box. The string combiner boxes form subsystems that can be standardized according to the number of strings, voltage and rated current. www.enertechups.com

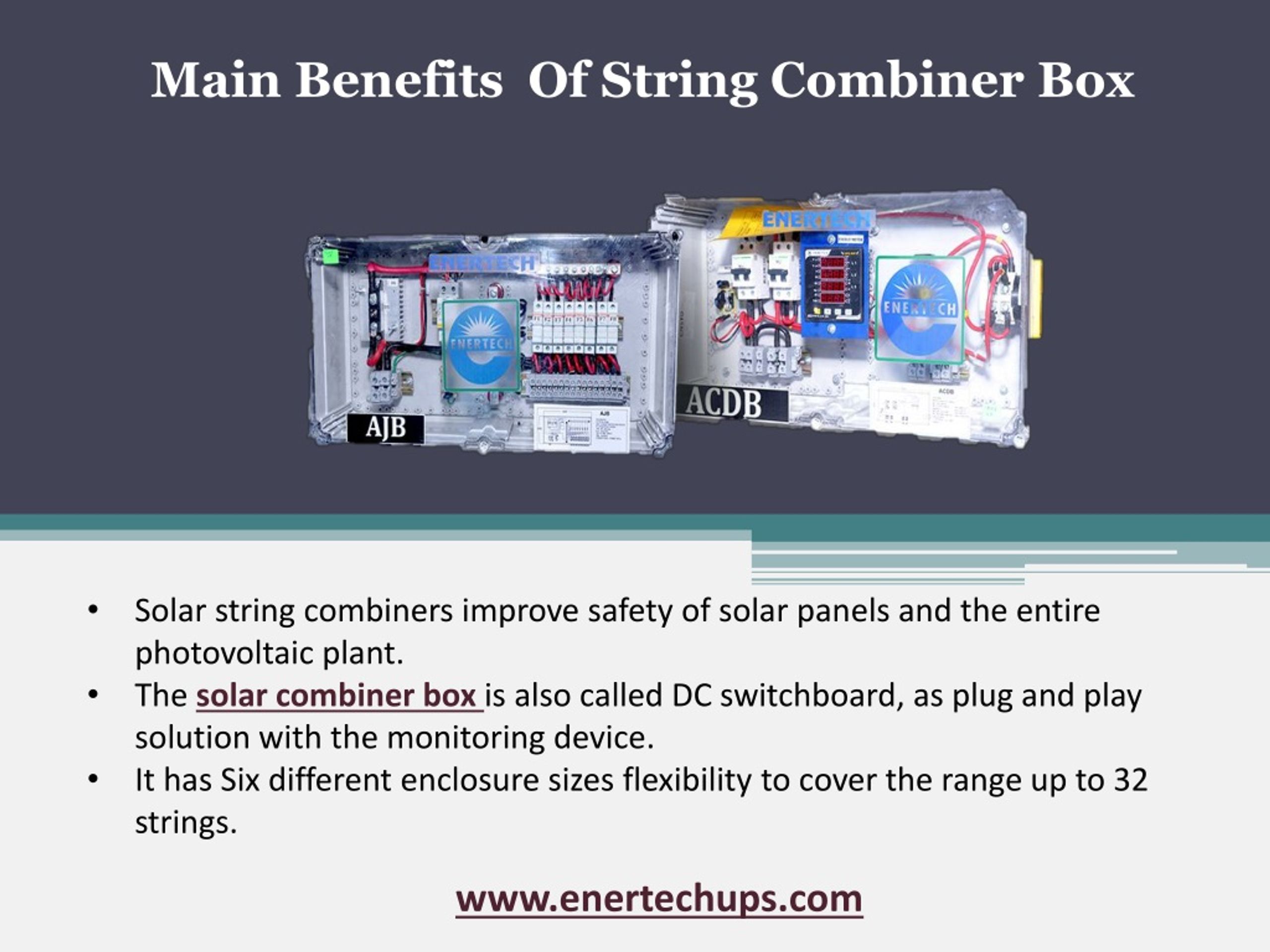

  3. Main BenefitsOf String Combiner Box • Solar string combiners improve safety of solar panels and the entire photovoltaic plant. • The solar combiner box is also called DC switchboard, as plug and play solution with the monitoring device. • It has Six different enclosure sizes flexibility to cover the range up to 32 strings. www.enertechups.com

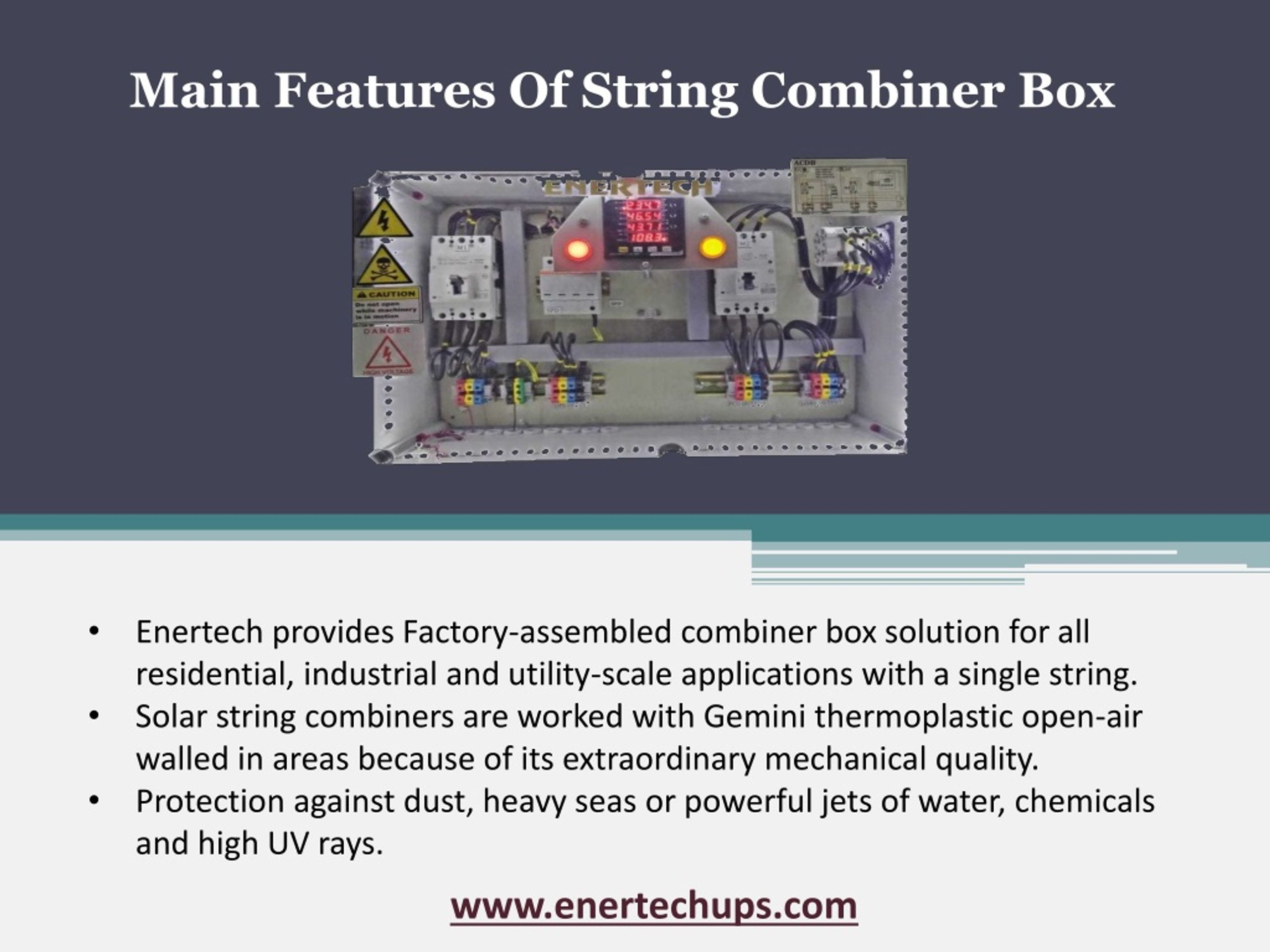

  4. Main Features Of String Combiner Box • Enertech provides Factory-assembled combiner box solution for all residential, industrial and utility-scale applications with a single string. • Solar string combiners are worked with Gemini thermoplastic open-air walled in areas because of its extraordinary mechanical quality. • Protection against dust, heavy seas or powerful jets of water, chemicals and high UV rays. www.enertechups.com

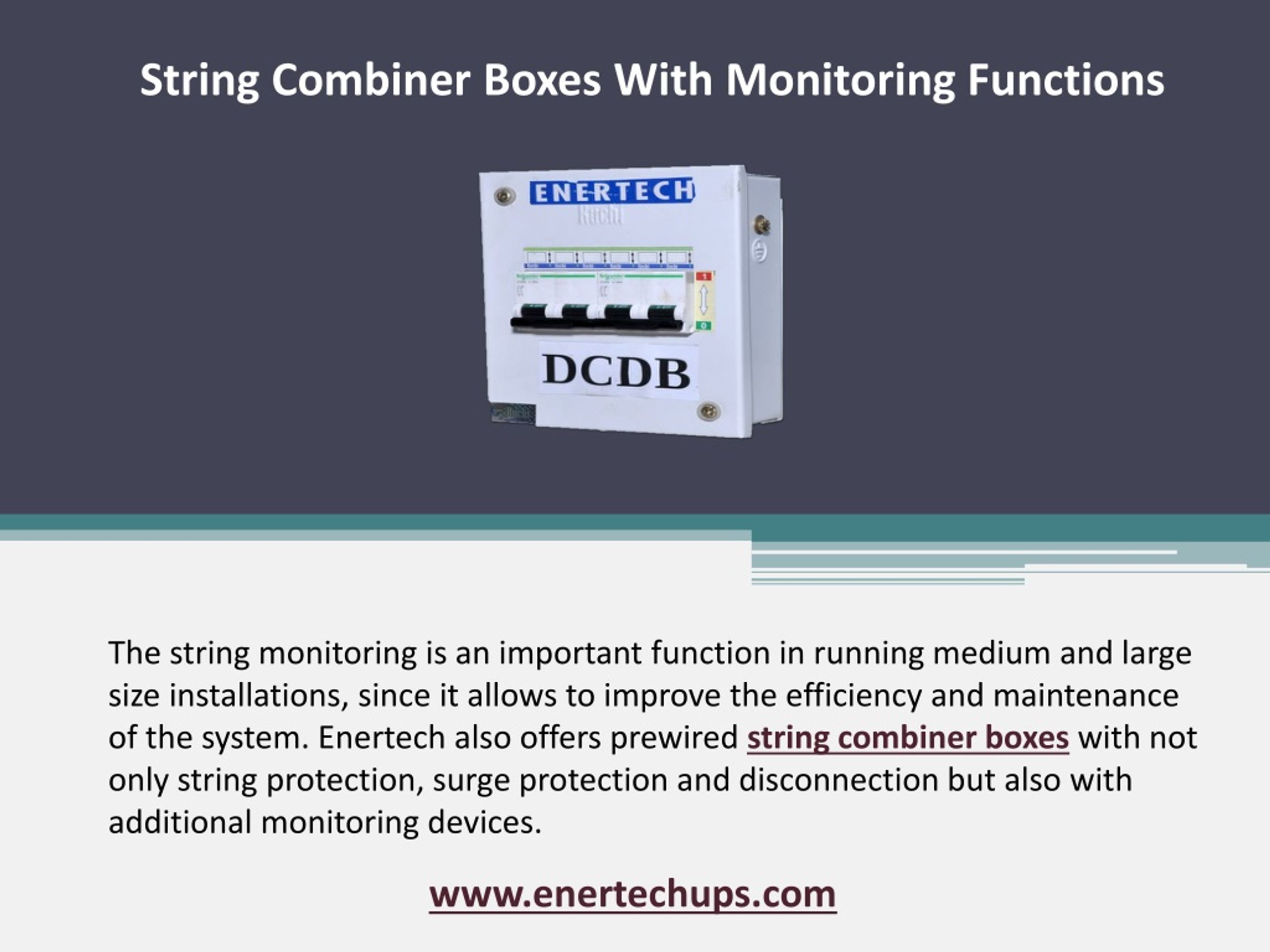

  5. String Combiner Boxes With Monitoring Functions The string monitoring is an important function in running medium and large size installations, since it allows to improve the efficiency and maintenance of the system. Enertechalso offers prewired string combiner boxes with not only string protection, surge protection and disconnection but also with additional monitoring devices. www.enertechups.com

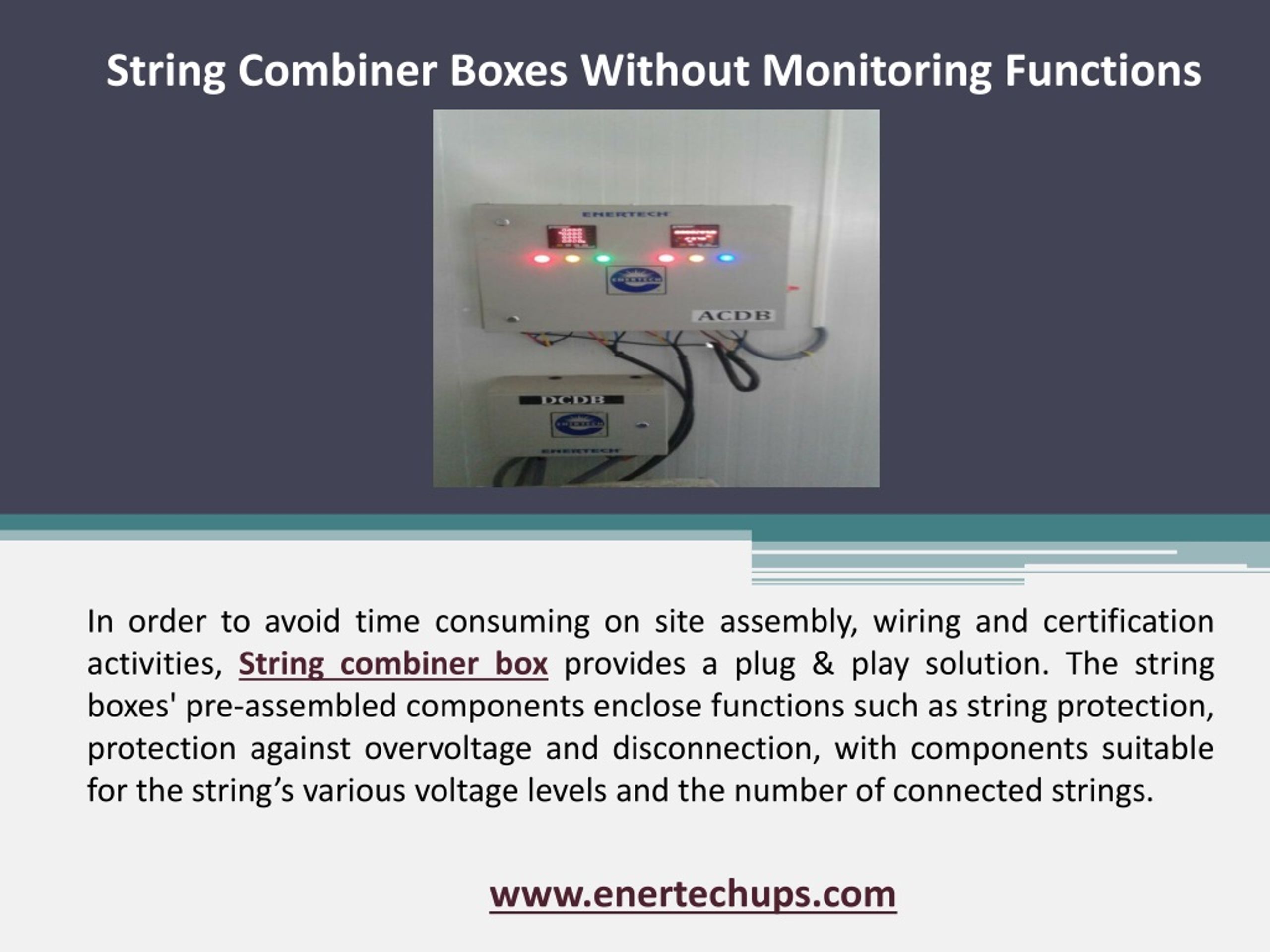

  6. String Combiner Boxes Without Monitoring Functions In order to avoid time consuming on site assembly, wiring and certification activities, String combiner boxprovides a plug & play solution. The string boxes' pre-assembled components enclose functions such as string protection, protection against overvoltage and disconnection, with components suitable for the string’s various voltage levels and the number of connected strings. www.enertechups.com

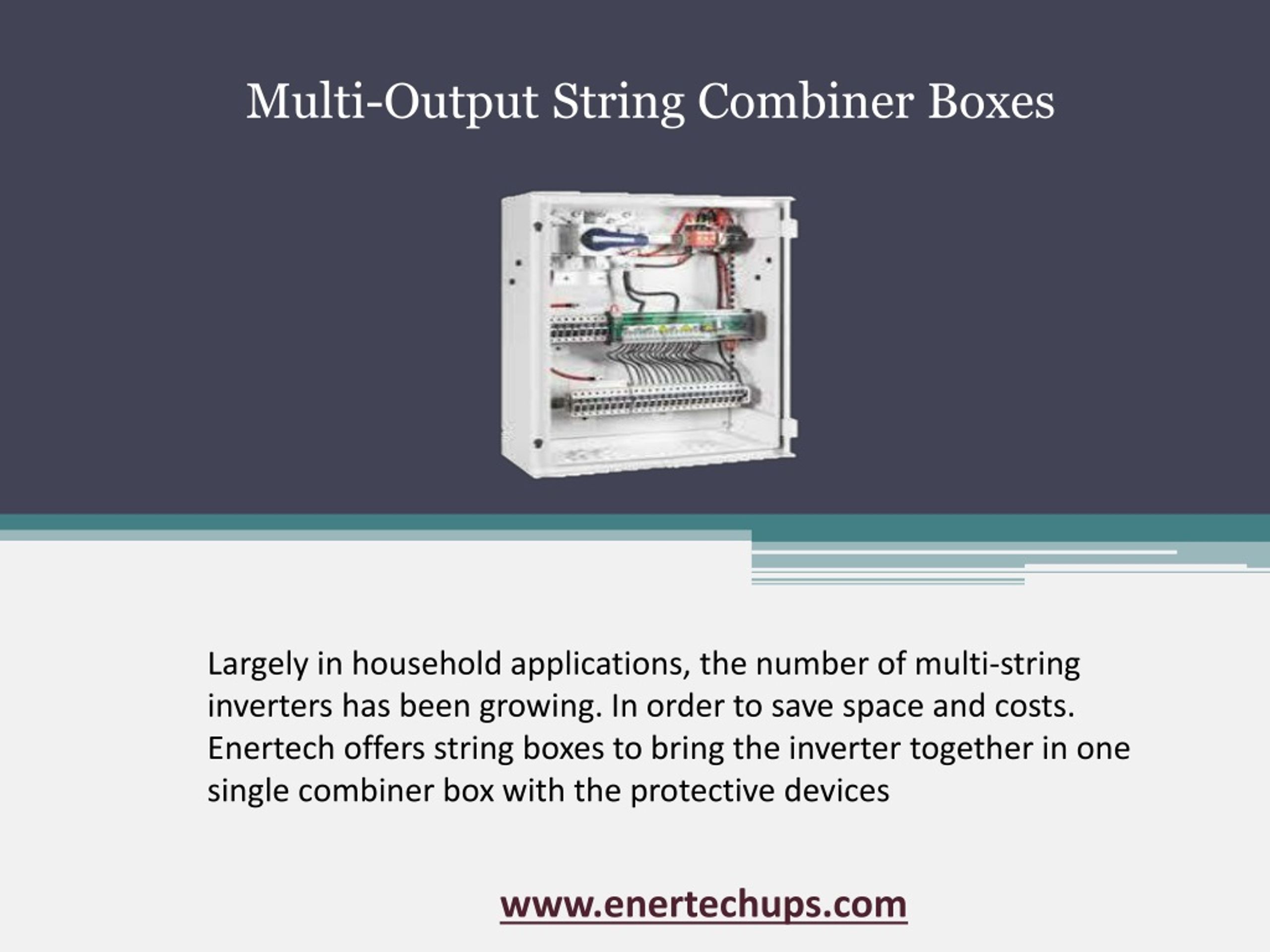

  7. Multi-Output String Combiner Boxes Largely in household applications, the number of multi-string inverters has been growing. In order to save space and costs. Enertech offers string boxes to bring the inverter together in one single combiner box with the protective devices www.enertechups.com

  8. Address - S. No. 399/1-2, Bhare,P.O. Ghotawade,NearPirangut,Taluka-Mulshi,Dist. Pune – 412115 Phone No. – 9370659050 Email id - sales@enertechups.com Website - www.enertechups.com
