  1. 73M1x66VOIP FXOMicroDAATMProduct Launch Training 6th June 2007 Confidential Information

  2. Teridian’s Mission: Intelligent integration for an analog world • World’s premier IC supplier for • Energy and Automation • Energy measurement & control • Motor control & process instrumentation Energy and Automation • Market leader in • Secure Access solutions • Conditional Access card readers • Point of Sale, eBanking & eIdentity Secure Access • Continued Networking Innovation • Reliable network connectivity • Multi-media QoS connectivity Networking Confidential Information

  3. Secure Access & Networking Training Series Teridian’s Training Series This is the third in a series of Webex training sessions. Available on extranet: MicroDAA Launch Training Consumer A/V Solutions June 6th: VoIP FXO Launch Training IP Camera Set Top Box & Digital TV Point of Sale eIdentity eBanking SIM Card Reader Multifunction Printer Fax VOIP & Access Networking Confidential Information

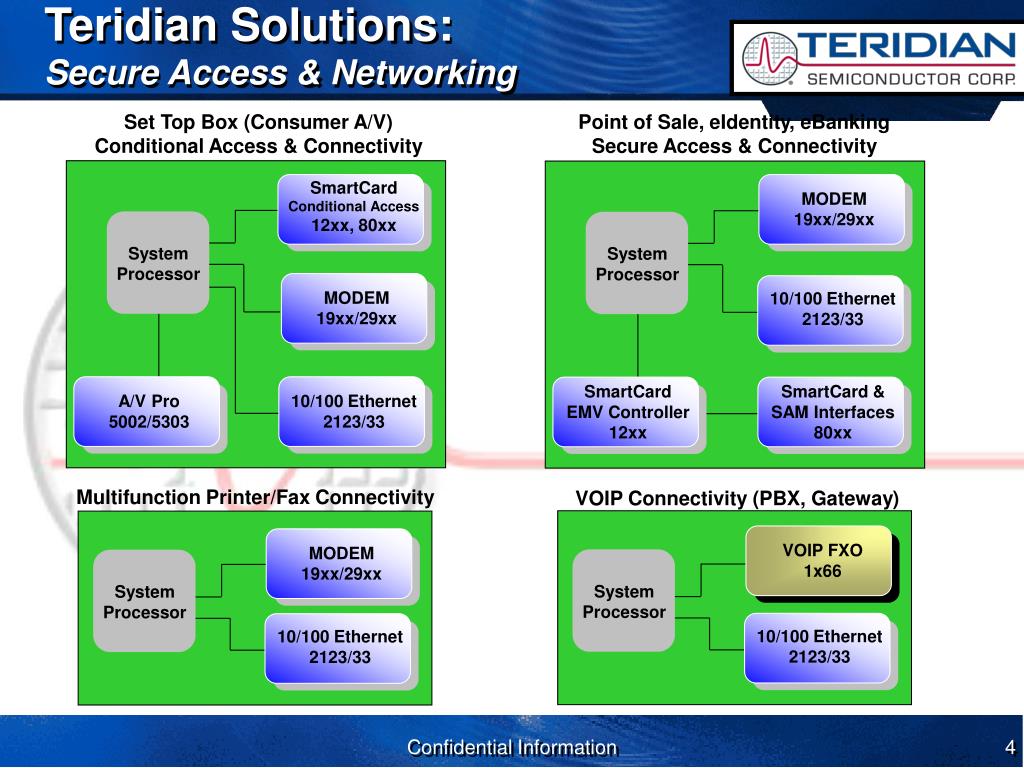

  4. Teridian Solutions: Secure Access & Networking SmartCard Conditional Access 12xx, 80xx System Processor System Processor System Processor System Processor 10/100 Ethernet 2123/33 10/100 Ethernet 2123/33 10/100 Ethernet 2123/33 A/V Pro 5002/5303 MODEM 19xx/29xx MODEM 19xx/29xx 10/100 Ethernet 2123/33 MODEM 19xx/29xx VOIP FXO 1x66 Set Top Box (Consumer A/V) Conditional Access & Connectivity Point of Sale, eIdentity, eBanking Secure Access & Connectivity SmartCard EMV Controller 12xx SmartCard & SAM Interfaces 80xx Multifunction Printer/Fax Connectivity VOIP Connectivity (PBX, Gateway) Confidential Information

  5. Quiz at the conclusion of the Q&A session Best Quiz performance in Series wins Prize (or similar prize) Confidential Information

  6. 73M1x66VoIP FXOMicroDAATM Distributor and Representative Training 6th June 2007 Keith Chu Sr. Product Line Manager Modem and VoIP Confidential Information

  7. Agenda • Welcome and Introduction • Teridian is Announcing • VOIP and FXO, a primer • The 73M1x66 FXO • MicroDAATM Technology • Collateral and Application Resources • Competitive Landscape • Tactical • Quiz – Prize for best performance in the Training series. Confidential Information

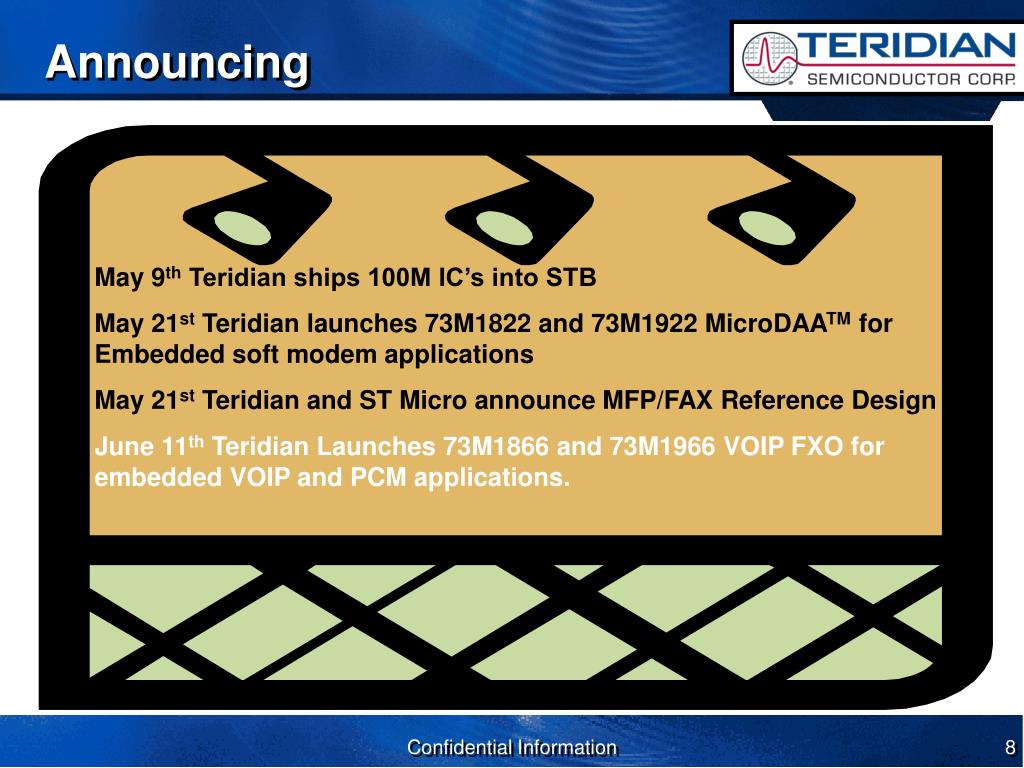

  8. Announcing May 9th Teridian ships 100M IC’s into STB May 21st Teridian launches 73M1822 and 73M1922 MicroDAATM for Embedded soft modem applications May 21st Teridian and ST Micro announce MFP/FAX Reference Design June 11th Teridian Launches 73M1866 and 73M1966 VOIP FXO for embedded VOIP and PCM applications. Confidential Information

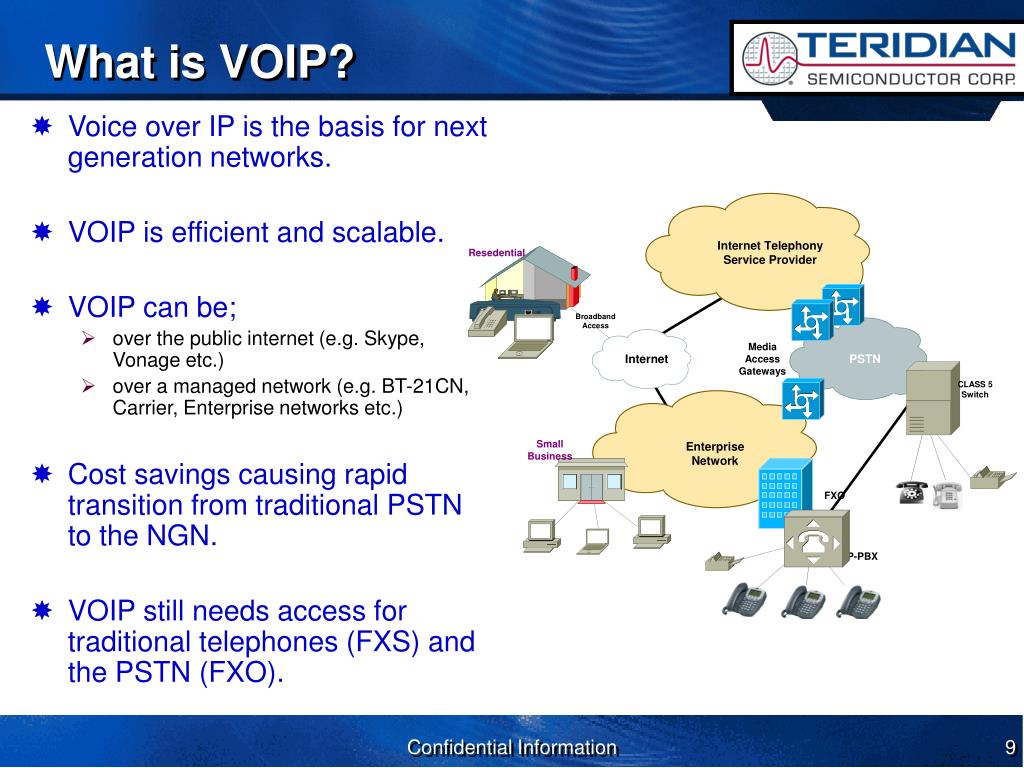

  9. What is VOIP? • Voice over IP is the basis for next generation networks. • VOIP is efficient and scalable. • VOIP can be; • over the public internet (e.g. Skype, Vonage etc.) • over a managed network (e.g. BT-21CN, Carrier, Enterprise networks etc.) • Cost savings causing rapid transition from traditional PSTN to the NGN. • VOIP still needs access for traditional telephones (FXS) and the PSTN (FXO). Confidential Information

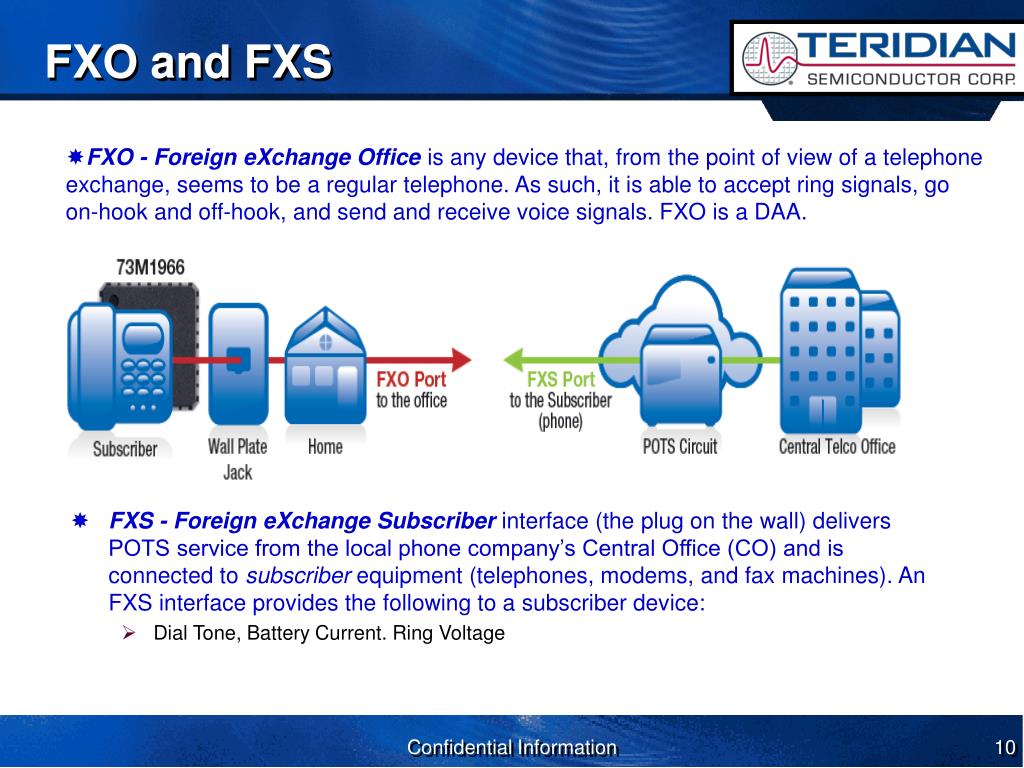

  10. FXO and FXS • FXO - Foreign eXchange Office is any device that, from the point of view of a telephone exchange, seems to be a regular telephone. As such, it is able to accept ring signals, go on-hook and off-hook, and send and receive voice signals. FXO is a DAA. • FXS - Foreign eXchange Subscriber interface (the plug on the wall) delivers POTS service from the local phone company’s Central Office (CO) and is connected to subscriber equipment (telephones, modems, and fax machines). An FXS interface provides the following to a subscriber device: • Dial Tone, Battery Current. Ring Voltage Confidential Information

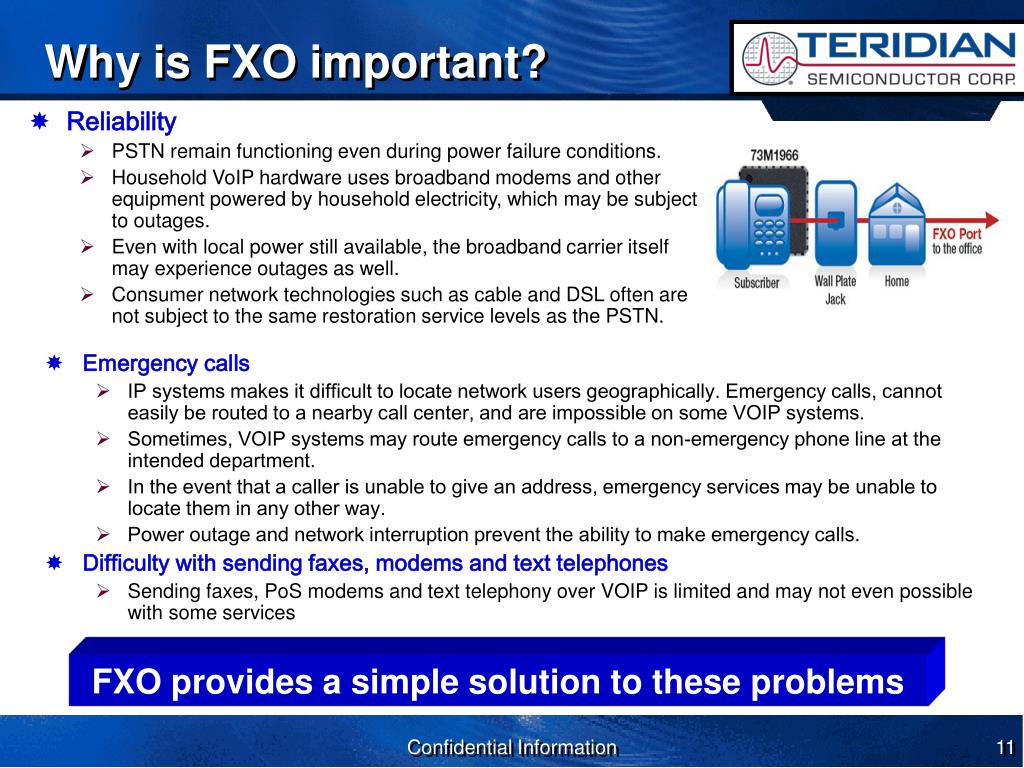

  11. Why is FXO important? • Reliability • PSTN remain functioning even during power failure conditions. • Household VoIP hardware uses broadband modems and other equipment powered by household electricity, which may be subject to outages. • Even with local power still available, the broadband carrier itself may experience outages as well. • Consumer network technologies such as cable and DSL often are not subject to the same restoration service levels as the PSTN. • Emergency calls • IP systems makes it difficult to locate network users geographically. Emergency calls, cannot easily be routed to a nearby call center, and are impossible on some VOIP systems. • Sometimes, VOIP systems may route emergency calls to a non-emergency phone line at the intended department. • In the event that a caller is unable to give an address, emergency services may be unable to locate them in any other way. • Power outage and network interruption prevent the ability to make emergency calls. • Difficulty with sending faxes, modems and text telephones • Sending faxes, PoS modems and text telephony over VOIP is limited and may not even possible with some services FXO provides a simple solution to these problems Confidential Information

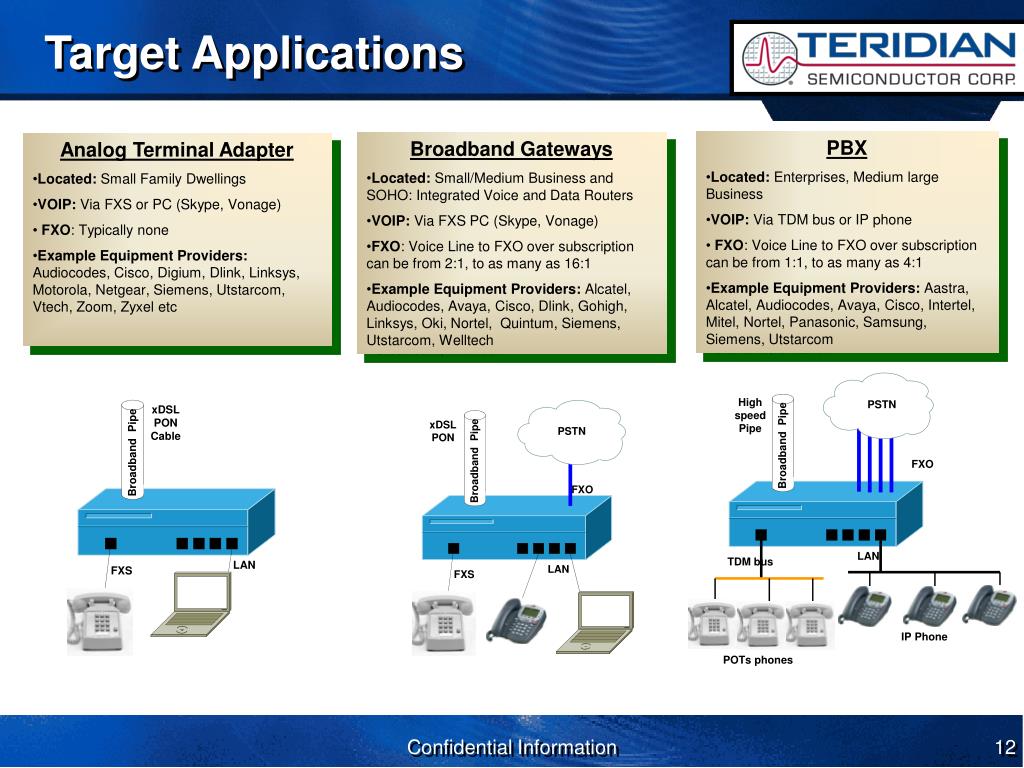

  12. Target Applications • PBX • Located: Enterprises, Medium large Business • VOIP: Via TDM bus or IP phone • FXO: Voice Line to FXO over subscription can be from 1:1, to as many as 4:1 • Example Equipment Providers: Aastra, Alcatel, Audiocodes, Avaya, Cisco, Intertel, Mitel, Nortel, Panasonic, Samsung, Siemens, Utstarcom • Broadband Gateways • Located: Small/Medium Business and SOHO: Integrated Voice and Data Routers • VOIP: Via FXS PC (Skype, Vonage) • FXO: Voice Line to FXO over subscription can be from 2:1, to as many as 16:1 • Example Equipment Providers: Alcatel, Audiocodes, Avaya, Cisco, Dlink, Gohigh, Linksys, Oki, Nortel, Quintum, Siemens, Utstarcom, Welltech • Analog Terminal Adapter • Located: Small Family Dwellings • VOIP: Via FXS or PC (Skype, Vonage) • FXO: Typically none • Example Equipment Providers: Audiocodes, Cisco, Digium, Dlink, Linksys, Motorola, Netgear, Siemens, Utstarcom, Vtech, Zoom, Zyxel etc Confidential Information

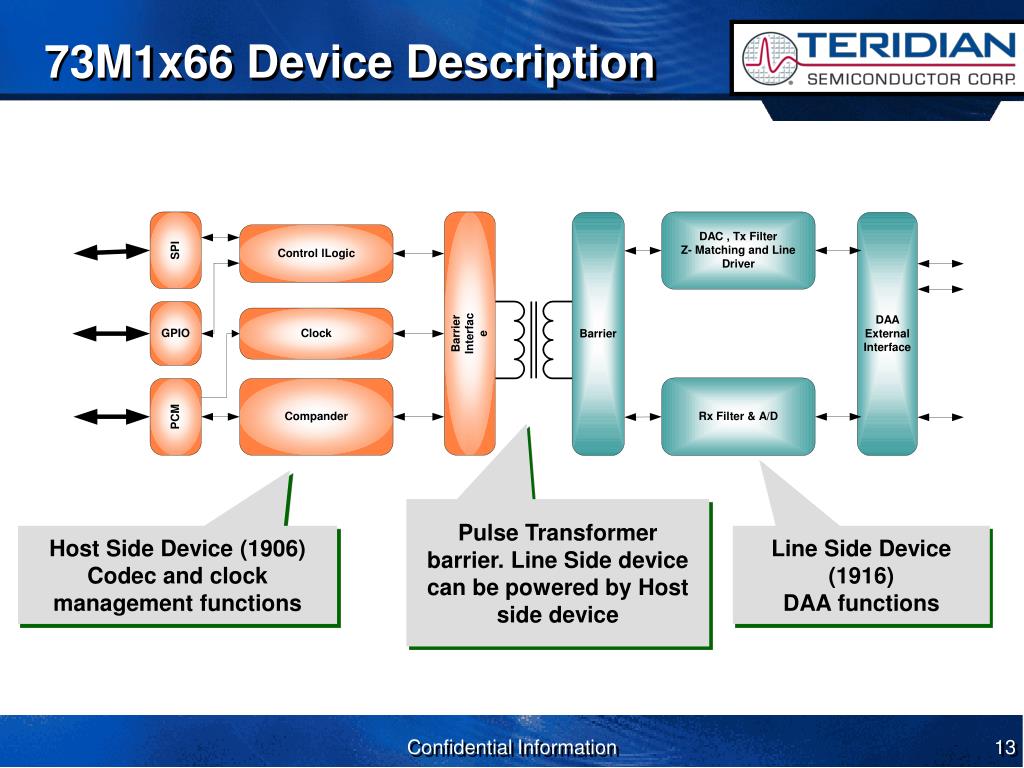

  13. 73M1x66 Device Description Pulse Transformer barrier. Line Side device can be powered by Host side device Host Side Device (1906) Codec and clock management functions Line Side Device (1916) DAA functions Confidential Information

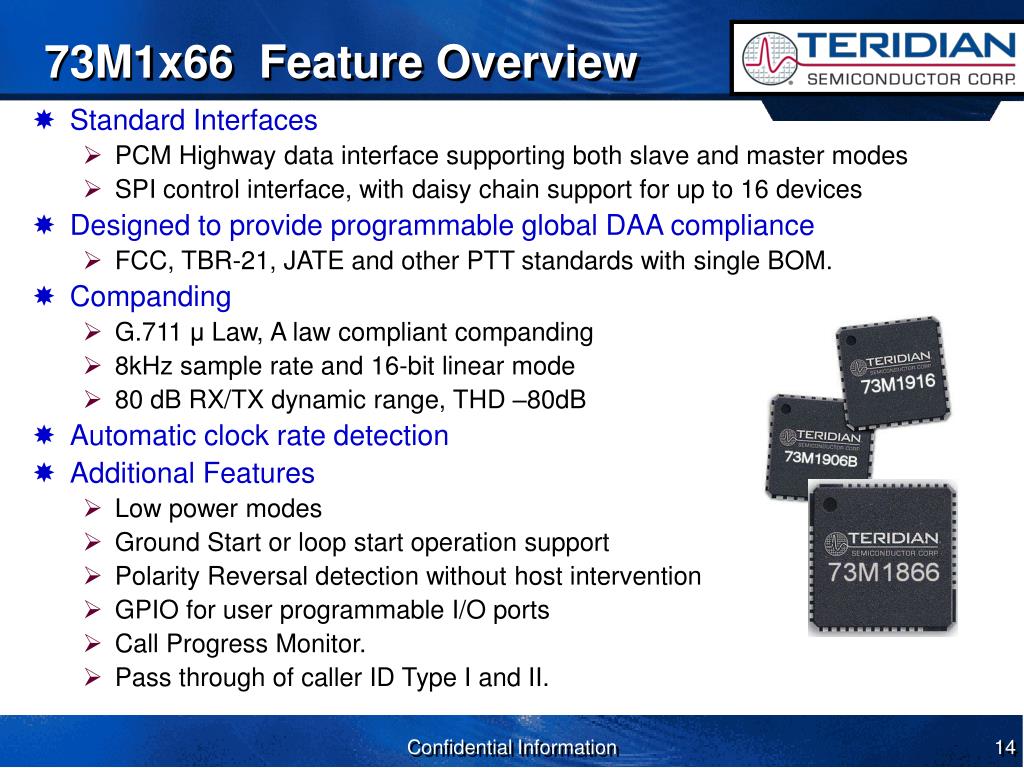

  14. 73M1x66 Feature Overview • Standard Interfaces • PCM Highway data interface supporting both slave and master modes • SPI control interface, with daisy chain support for up to 16 devices • Designed to provide programmable global DAA compliance • FCC, TBR-21, JATE and other PTT standards with single BOM. • Companding • G.711 μ Law, A law compliant companding • 8kHz sample rate and 16-bit linear mode • 80 dB RX/TX dynamic range, THD –80dB • Automatic clock rate detection • Additional Features • Low power modes • Ground Start or loop start operation support • Polarity Reversal detection without host intervention • GPIO for user programmable I/O ports • Call Progress Monitor. • Pass through of caller ID Type I and II. Confidential Information

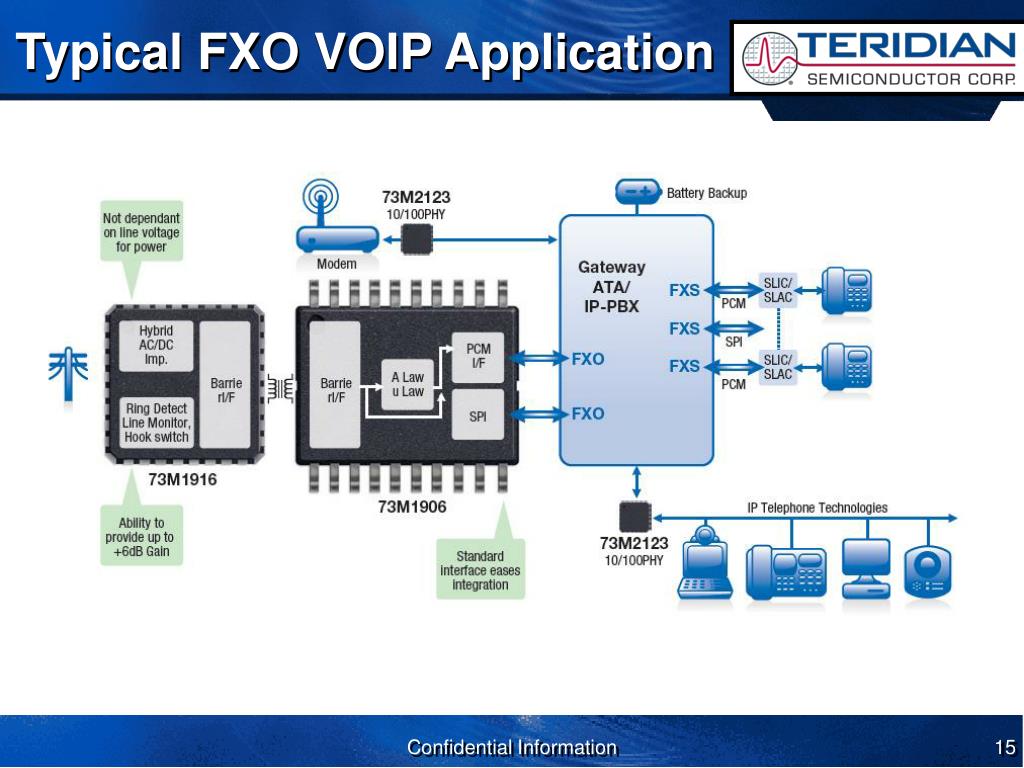

  15. Typical FXO VOIP Application Confidential Information

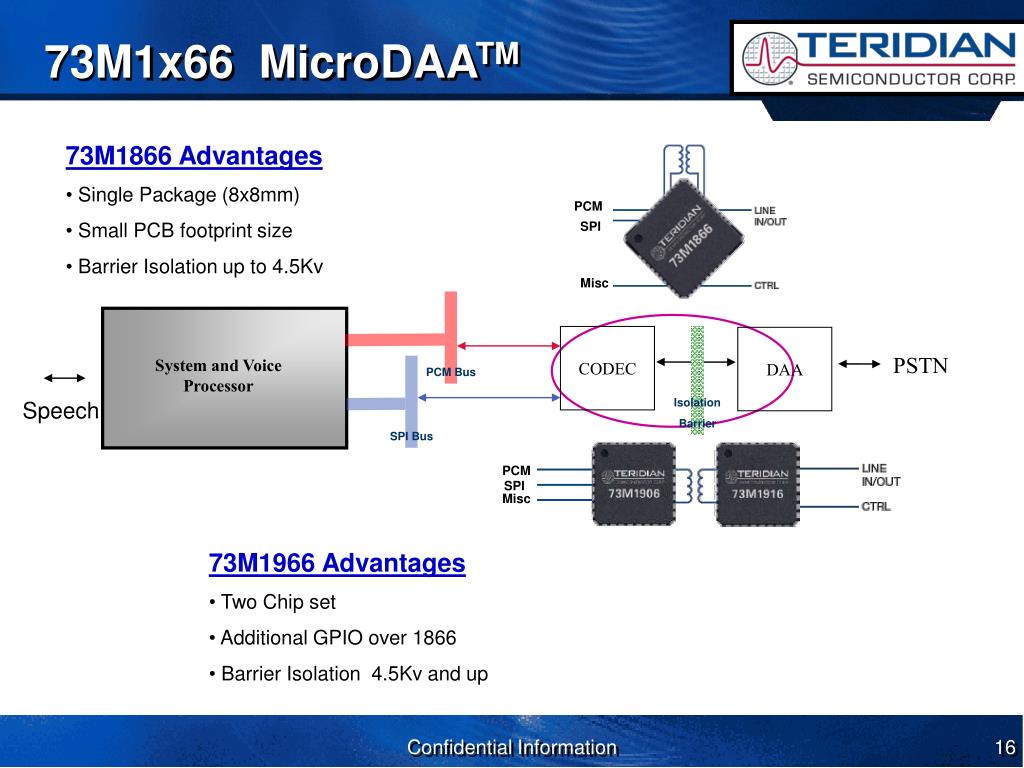

  16. SPI 73M1x66 MicroDAATM PCM Bus CODEC Isolation Barrier DAA System and Voice Processor PSTN SPI Bus Speech • 73M1866 Advantages • Single Package (8x8mm) • Small PCB footprint size • Barrier Isolation up to 4.5Kv PCM SPI Misc PCM SPI Misc • 73M1966 Advantages • Two Chip set • Additional GPIO over 1866 • Barrier Isolation 4.5Kv and up Confidential Information

  17. 73M1x66 MicroDAA Benefits Pulse Transformer Barrier Advantages • Best in Class RFI & Common Mode noise rejection • Differential Low impedance barrier I/F • Host powered line interface • Reliable operation with <8mA loop current • Barrier Isolation dependant upon physical distance and transformer • Better than 5KV - 73M1966 • Up to 4.5 KV – 73M1866 Programmability Advantages • Global PTT compliant • Programmable DC I-V characteristics • Wide set of selectable terminations for true global compliance and best in class return loss. 1906 (HIC) 1916 Confidential Information

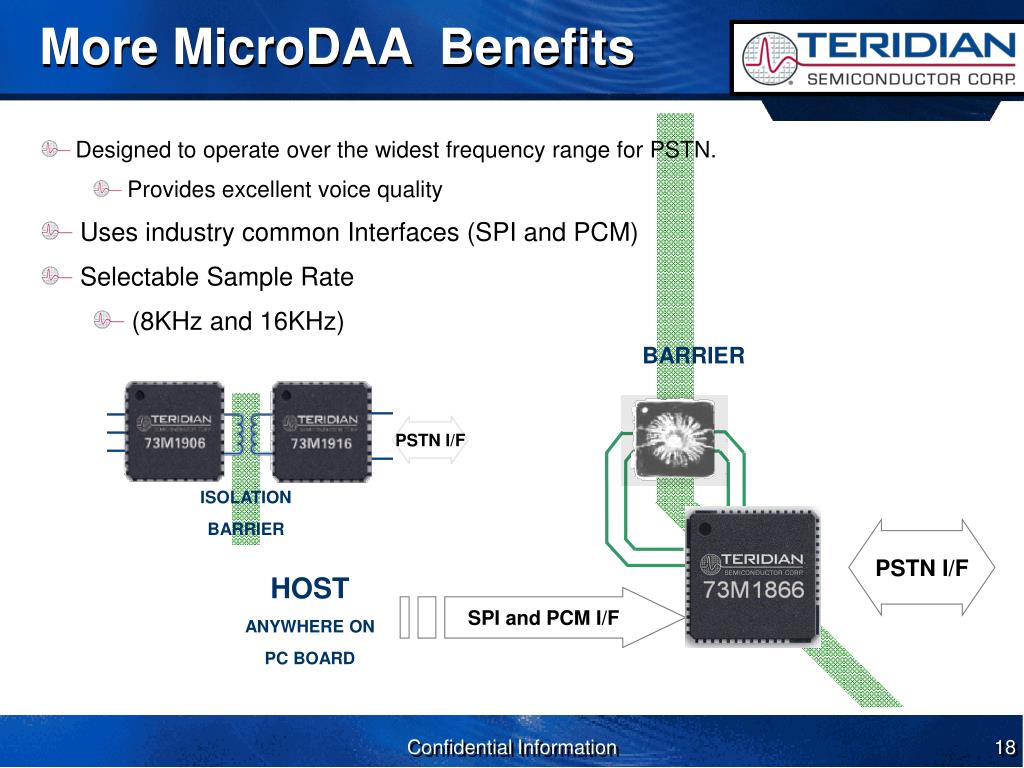

  18. More MicroDAA Benefits ISOLATION BARRIER PSTN I/F • Designed to operate over the widest frequency range for PSTN. • Provides excellent voice quality • Uses industry common Interfaces (SPI and PCM) • Selectable Sample Rate • (8KHz and 16KHz) BARRIER PSTN I/F HOST ANYWHERE ON PC BOARD SPI and PCM I/F Confidential Information

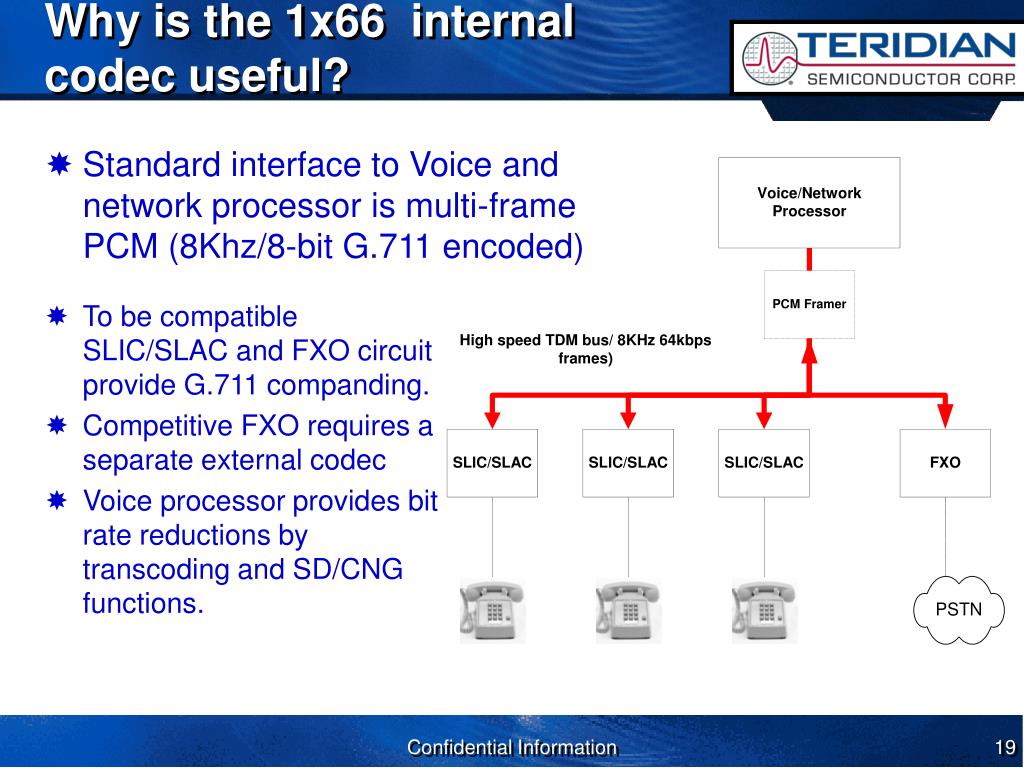

  19. Why is the 1x66 internal codec useful? • Standard interface to Voice and network processor is multi-frame PCM (8Khz/8-bit G.711 encoded) • To be compatible SLIC/SLAC and FXO circuit provide G.711 companding. • Competitive FXO requires a separate external codec • Voice processor provides bit rate reductions by transcoding and SD/CNG functions. Confidential Information

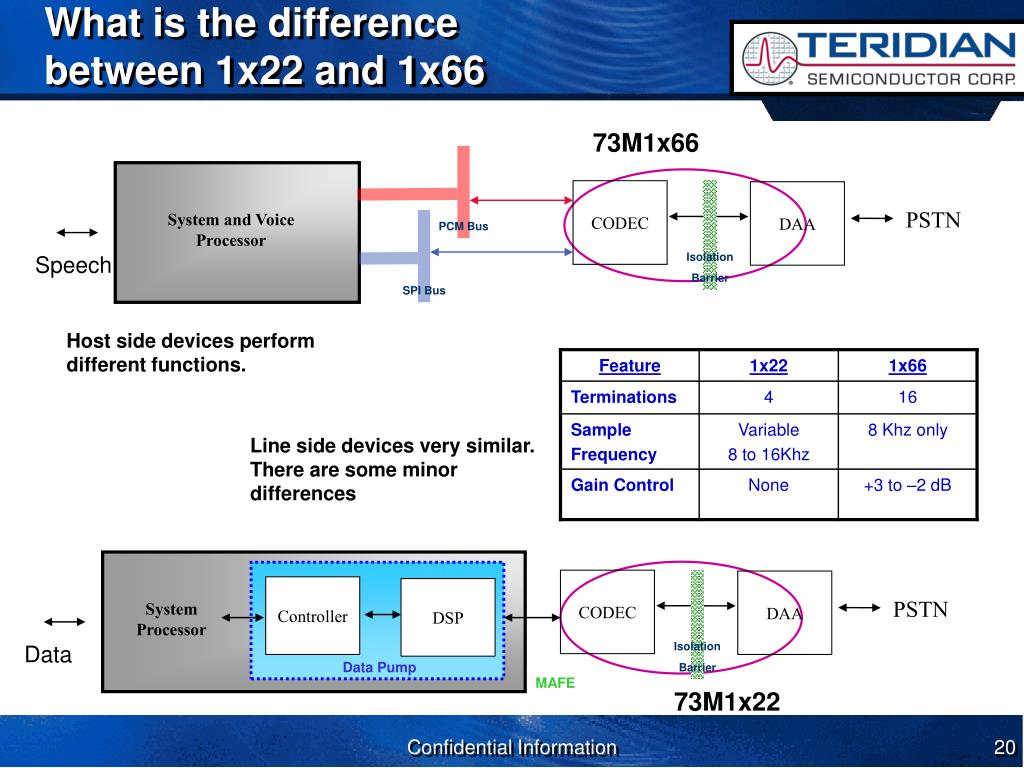

  20. What is the difference between 1x22 and 1x66 PCM Bus CODEC Isolation Barrier DAA System and Voice Processor PSTN SPI Bus Speech CODEC Isolation Barrier DAA Controller DSP System Processor PSTN Data Data Pump 73M1x66 Host side devices perform different functions. Line side devices very similar. There are some minor differences MAFE 73M1x22 Confidential Information

  21. System Firmware • EVM provides window based GUI • Currently available is a Linux 2.6 driver for ARM9 • SPI interface support • Basic control commands for 1x66 control and event indication • In development a Linux 2.4 MIP 32K driver • Support for driver software for other types of processor and operating systems provided on an as-needed-basis. Confidential Information

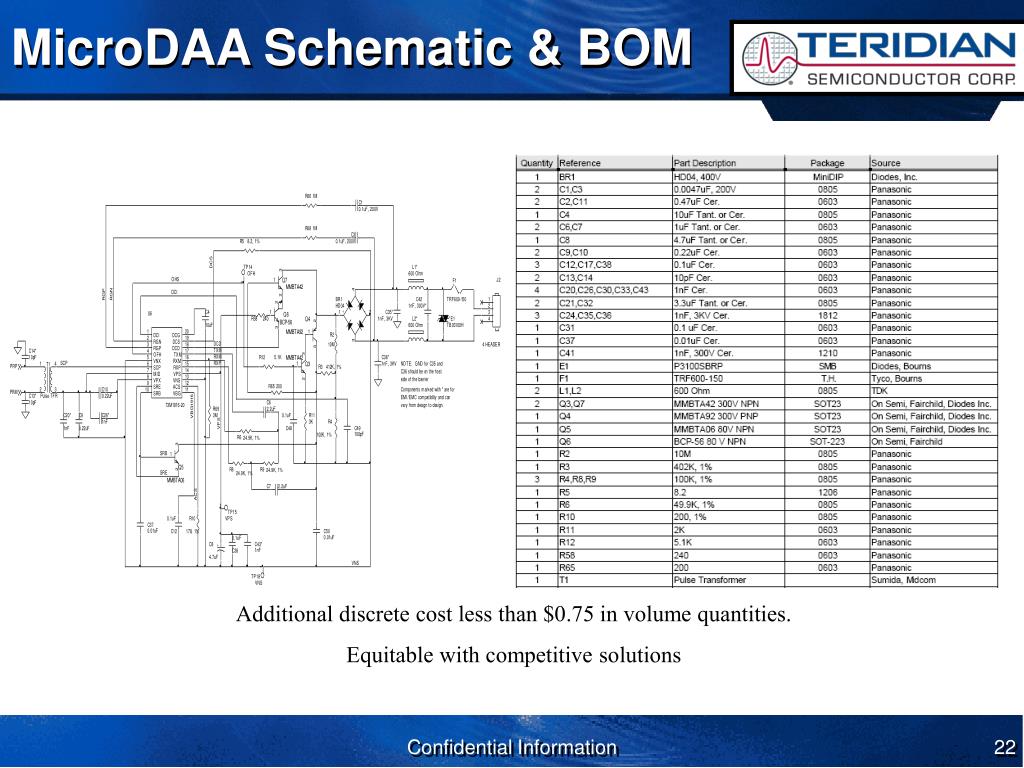

  22. MicroDAA Schematic & BOM Additional discrete cost less than $0.75 in volume quantities. Equitable with competitive solutions Confidential Information

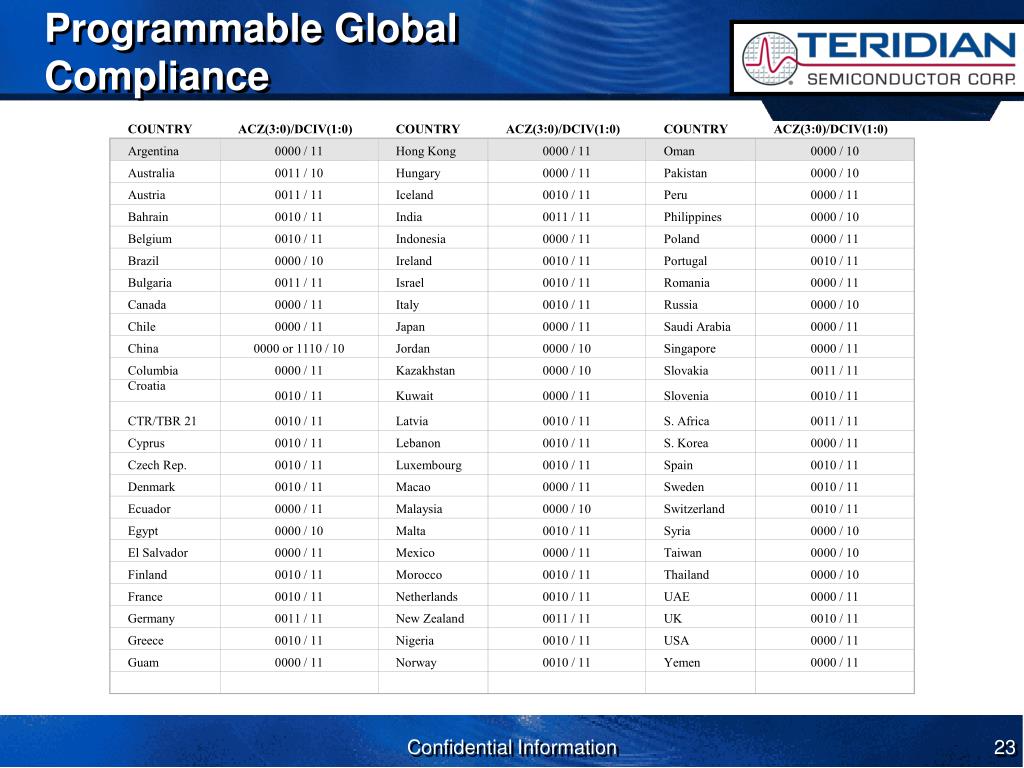

  23. Programmable Global Compliance COUNTRY ACZ(3:0)/DCIV(1:0) COUNTRY ACZ(3:0)/DCIV(1:0) COUNTRY ACZ(3:0)/DCIV(1:0) Argentina 0000 / 11 Hong Kong 0000 / 11 Oman 0000 / 10 Australia 0011 / 10 Hungary 0000 / 11 Pakistan 0000 / 10 Austria 0011 / 11 Iceland 0010 / 11 Peru 0000 / 11 Bahrain 0010 / 11 India 0011 / 11 Philippines 0000 / 10 Belgium 0010 / 11 Indonesia 0000 / 11 Poland 0000 / 11 Brazil 0000 / 10 Ireland 0010 / 11 Portugal 0010 / 11 Bulgaria 0011 / 11 Israel 0010 / 11 Romania 0000 / 11 Canada 0000 / 11 Italy 0010 / 11 Russia 0000 / 10 Chile 0000 / 11 Japan 0000 / 11 Saudi Arabia 0000 / 11 China 0000 or 1110 / 10 Jordan 0000 / 10 Singapore 0000 / 11 Columbia 0000 / 11 Kazakhstan 0000 / 10 Slovakia 0011 / 11 Croatia 0010 / 11 Kuwait 0000 / 11 Slovenia 0010 / 11 CTR/TBR 21 0010 / 11 Latvia 0010 / 11 S. Africa 0011 / 11 Cyprus 0010 / 11 Lebanon 0010 / 11 S. Korea 0000 / 11 Czech Rep. 0010 / 11 Luxembourg 0010 / 11 Spain 0010 / 11 Denmark 0010 / 11 Macao 0000 / 11 Sweden 0010 / 11 Ecuador 0000 / 11 Malaysia 0000 / 10 Switzerland 0010 / 11 Egypt 0000 / 10 Malta 0010 / 11 Syria 0000 / 10 El Salvador 0000 / 11 Mexico 0000 / 11 Taiwan 0000 / 10 Finland 0010 / 11 Morocco 0010 / 11 Thailand 0000 / 10 France 0010 / 11 Netherlands 0010 / 11 UAE 0000 / 11 Germany 0011 / 11 New Zealand 0011 / 11 UK 0010 / 11 Greece 0010 / 11 Nigeria 0010 / 11 USA 0000 / 11 Guam 0000 / 11 Norway 0010 / 11 Yemen 0000 / 11 Confidential Information

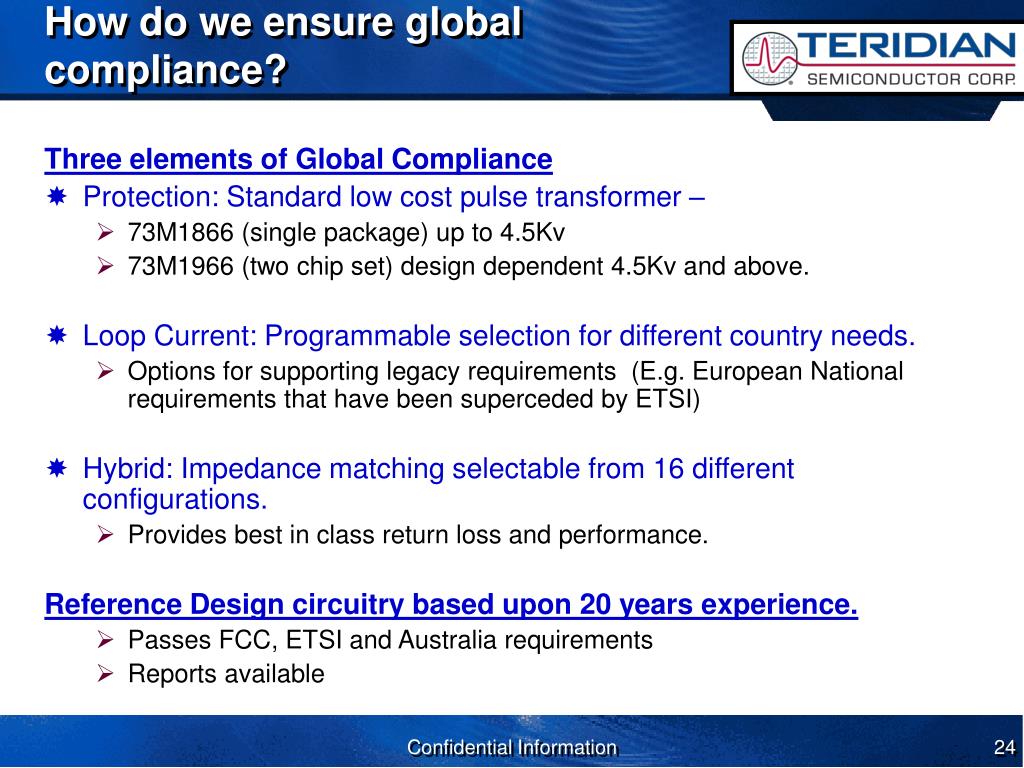

  24. How do we ensure global compliance? Three elements of Global Compliance • Protection: Standard low cost pulse transformer – • 73M1866 (single package) up to 4.5Kv • 73M1966 (two chip set) design dependent 4.5Kv and above. • Loop Current: Programmable selection for different country needs. • Options for supporting legacy requirements (E.g. European National requirements that have been superceded by ETSI) • Hybrid: Impedance matching selectable from 16 different configurations. • Provides best in class return loss and performance. Reference Design circuitry based upon 20 years experience. • Passes FCC, ETSI and Australia requirements • Reports available Confidential Information

  25. 73M1x66 Collateral Confidential Information

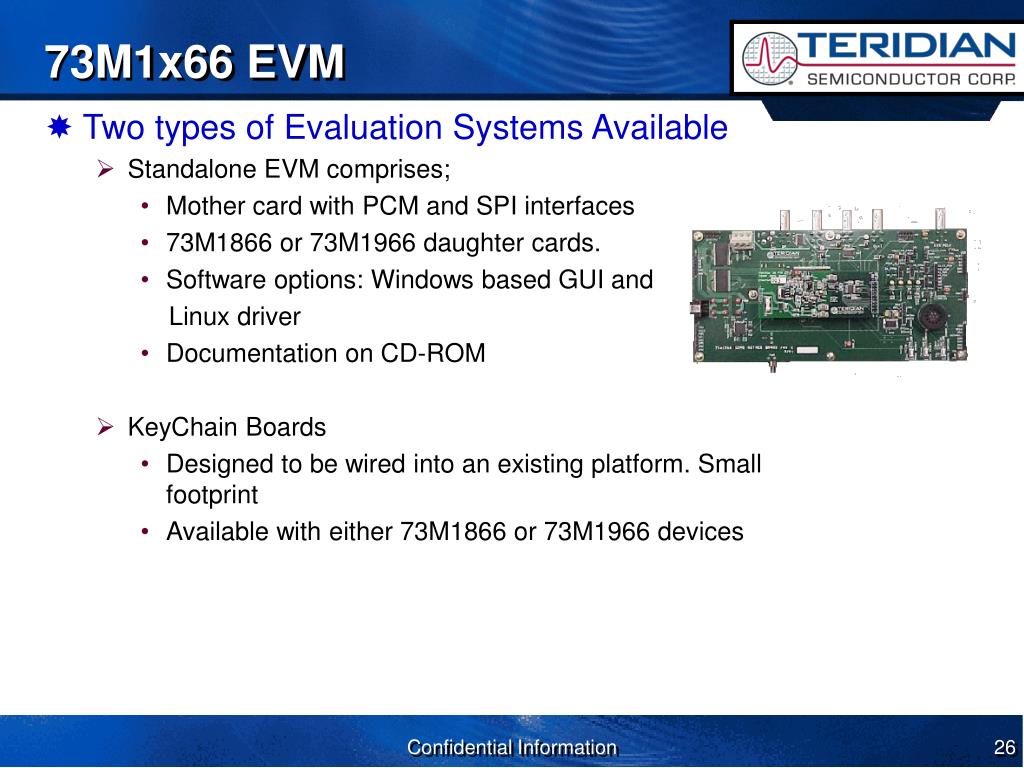

  26. 73M1x66 EVM • Two types of Evaluation Systems Available • Standalone EVM comprises; • Mother card with PCM and SPI interfaces • 73M1866 or 73M1966 daughter cards. • Software options: Windows based GUI and Linux driver • Documentation on CD-ROM • KeyChain Boards • Designed to be wired into an existing platform. Small footprint • Available with either 73M1866 or 73M1966 devices Confidential Information

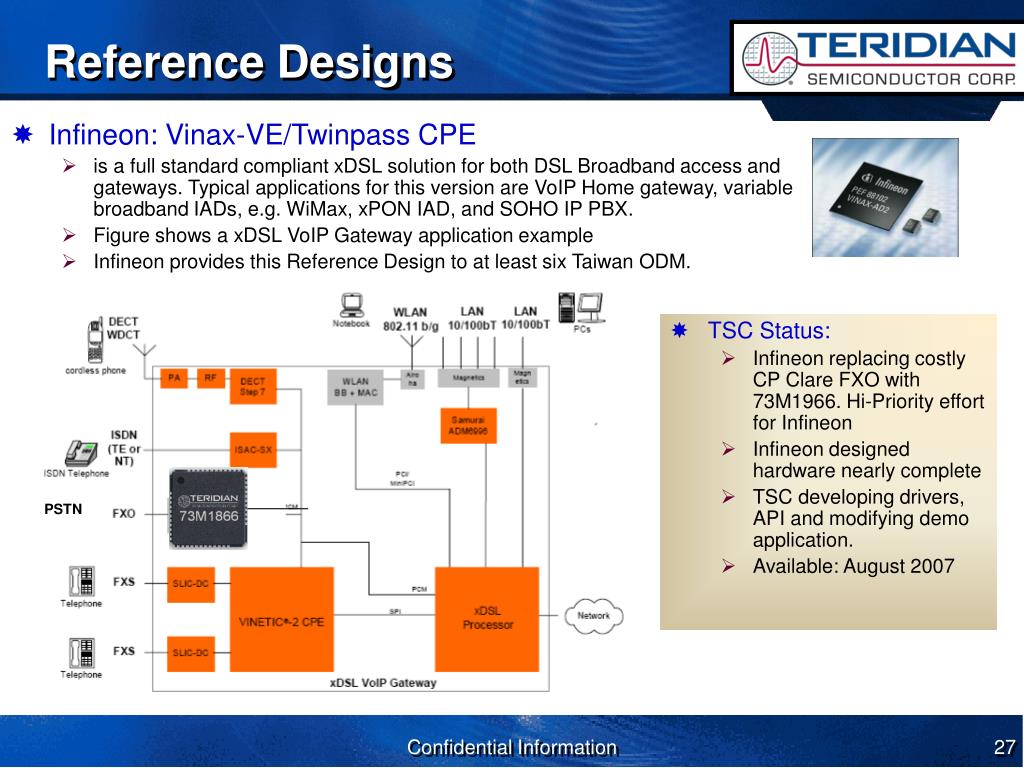

  27. Reference Designs • Infineon: Vinax-VE/Twinpass CPE • is a full standard compliant xDSL solution for both DSL Broadband access and gateways. Typical applications for this version are VoIP Home gateway, variable broadband IADs, e.g. WiMax, xPON IAD, and SOHO IP PBX. • Figure shows a xDSL VoIP Gateway application example • Infineon provides this Reference Design to at least six Taiwan ODM. • TSC Status: • Infineon replacing costly CP Clare FXO with 73M1966. Hi-Priority effort for Infineon • Infineon designed hardware nearly complete • TSC developing drivers, API and modifying demo application. • Available: August 2007 PSTN Confidential Information

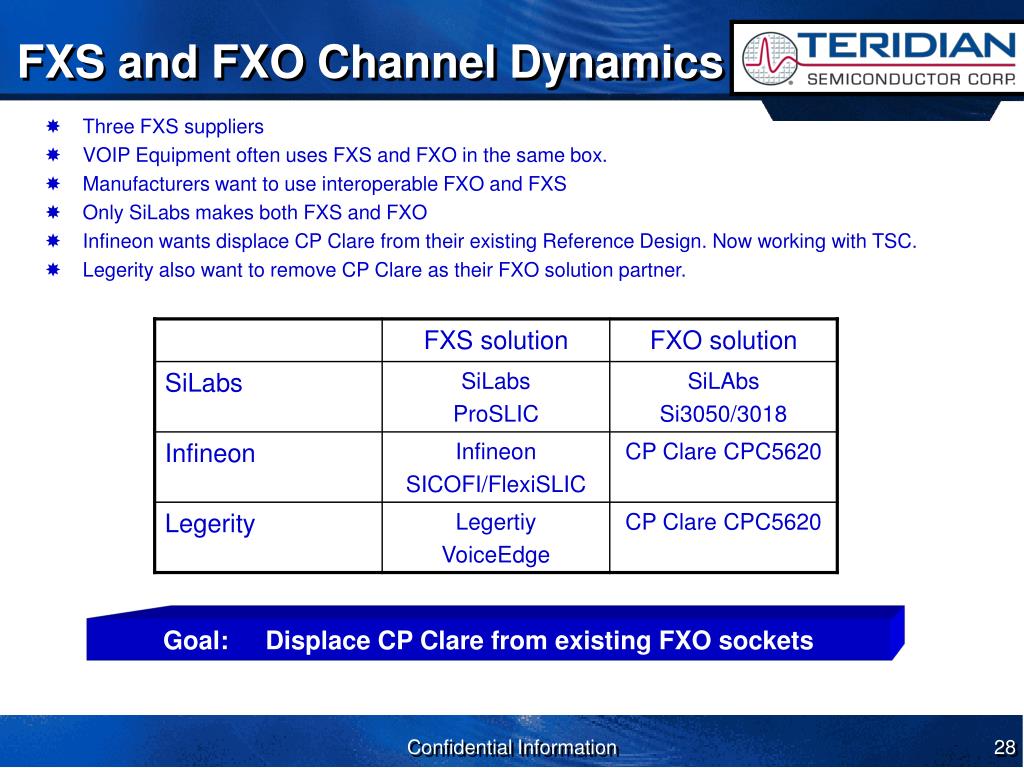

  28. FXS and FXO Channel Dynamics • Three FXS suppliers • VOIP Equipment often uses FXS and FXO in the same box. • Manufacturers want to use interoperable FXO and FXS • Only SiLabs makes both FXS and FXO • Infineon wants displace CP Clare from their existing Reference Design. Now working with TSC. • Legerity also want to remove CP Clare as their FXO solution partner. Goal: Displace CP Clare from existing FXO sockets Confidential Information

  29. Competitive LandscapeRival Comparison Confidential Information

  30. Pricing and Lead times • Samples available now • Standard Production lead times Confidential Information

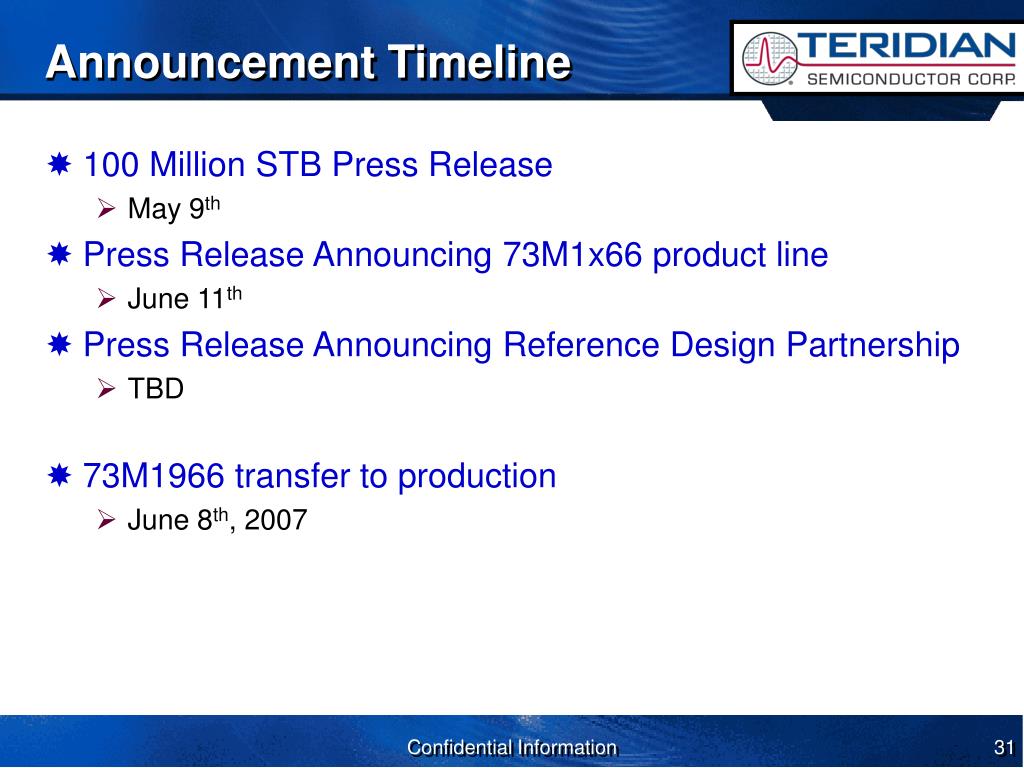

  31. Announcement Timeline • 100 Million STB Press Release • May 9th • Press Release Announcing 73M1x66 product line • June 11th • Press Release Announcing Reference Design Partnership • TBD • 73M1966 transfer to production • June 8th, 2007 Confidential Information

  32. Q & A

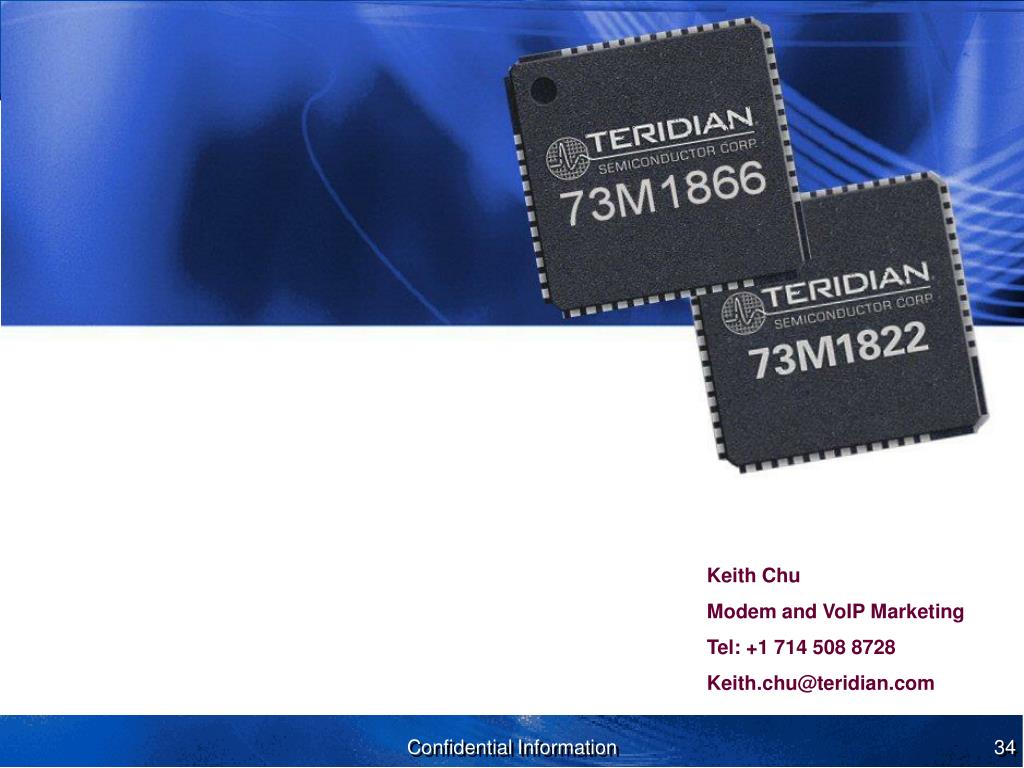

  33. Quiz Time Keith Chu Modem and VoIP Marketing Tel: +1 714 508 8728 Keith.chu@teridian.com Confidential Information

  34. Keith Chu Modem and VoIP Marketing Tel: +1 714 508 8728 Keith.chu@teridian.com Confidential Information
