Multi-Agent Semantic Web Systems: OWL Stephen Potter, CISA, School of Informatics,

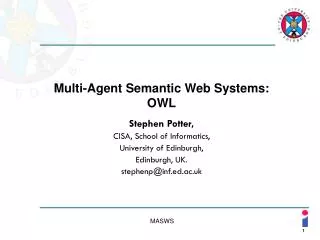

1. Multi-Agent Semantic Web Systems: OWL Stephen Potter, CISA, School of Informatics, University of Edinburgh, Edinburgh, UK. stephenp@inf.ed.ac.uk

2. OWL: Web Ontology Language • Description Logics have…: • …well-defined semantics; • …tractable inference algorithms. • OWL (Web Ontology Language) is… • …an ontology language based on DLs for the Semantic Web; • …a W3C standard; • …built on top of RDF (and semantically extends RDF(S)); • …expressed using an RDF/XML syntax.

3. The Description Logics Family • ALC • Sound and complete subsumption testing • ALCN • ALC + number restriction  n R • ALCR+ • ALC + transitively closed roles • SHIQ • SH family: ALC + transitive roles and role hierarchy • SHOQ(D) • Adds datatypes (D) and enumerated types to SHIQ • SHIF(D) • Adds datatypes transitive roles and role hierarchy, plus functional attributes to SHIQ (OWL-Lite) • SHOIN(D) • Adds nominals to class descriptions (oneOf {a,b,c}) and arbitrary cardinality constraints (OWL-DL)

4. OWL and the Semantic Web • XML provides document syntax; • XML Schema allows structuring of documents plus datatypes; • RDF provides a data model for talking about objects (resources) and their relationships; • RDF Schema provides a simple vocabulary for describing properties and classes of resources. • OWL provides a richer language for describing properties and classes • Eg. provides some relations between classes (such as disjointedness), characteristics of properties, cardinality, etc

5. OWL Species • OWL-Full: few restrictions on use of language constructs, but not decidable (closer to FOL). • Use if expressiveness is more important than complete reasoning. • OWL-DL: restricted version of OWL-Full, but with restrictions on the use of the language constructs to ensure decidability. Corresponds to a description logic. • OWL-Lite: a subset of OWL-DL – a simple description logic. • Use for simple class hierarchies with simple constraints; • (Provides a migration path for existing thesauri/taxonomies)

6. OWL Ontologies • OWL allows for the distributed nature of the web in several ways: • An ontology can be related to other ontologies (eg., by explicitly importing definitions). • OWL makes an open-world assumption (definitions not confined to a single scope) – something is false only if it can be proved to contradict other information in the ontology • OWL propositions are monotonic, that is, new information can never retract previous information – facts and entailments can be added, never deleted (however this new information can be contradictory). • Allows TBox (terminological statements) and ABox (assertions/individuals) to be represented.

7. Components of an OWL ontology • Classes • Properties • Individuals Thing Country United Kingdom Human James livesInCountry

8. First Things First • Introduce any XML namespace declarations: • Allows identifiers to be specified unambiguously • Makes the ontology more readable. <?xml version="1.0"?> <!DOCTYPE rdf:RDF [ <!ENTITY owl "http://www.w3.org/2002/07/owl#" > <!ENTITY xsd "http://www.w3.org/2001/XMLSchema#" > ... ]> <rdf:RDF xmlns = "http://www.inf.ed.ac.uk/ontology/example#" xml:base = " http://www.inf.ed.ac.uk/ontology/example#“ ... xmlns:owl = "http://www.w3.org/2002/07/owl#“> • Declare the ontology and any meta-information <owl:Ontology rdf:about=""> <rdfs:comment>An example OWL ontology</rdfs:comment> <rdfs:label>Example Ontology</rdfs:label> <owl:imports>...</owl:imports> ...

9. OWL Classes • OWL supports a number of different ways of defining a class. • In OWL-Lite: • As a simple named class; • …and in OWL-DL: • As the intersection of other classes; • As the union of other classes; • As the complement of another class; • Using class restrictions; • By enumerating the class.

10. Named Classes • If not stated, a class is assumed to be a subclass of owl:Thing: • Human ⊑ ⊤ • Use rdfs:subClassOf to explicitly subclass another class: • Student ⊑ Human Thing <owl:Class rdf:ID="Human"/> Student Human <owl:Class rdf:ID="Student"> <rdfs:subClassOf rdf:resource="#Human"/> </owl:Class>

11. OWL Individuals • Using a class definition: • …we can now create individuals of this class: • and perhaps elsewhere provide additional information: <owl:Class rdf:ID="Student"> <rdfs:subClassOf rdf:resource="#Human"/> </owl:Class> James_Smith Student <Student rdf:ID="James_Smith" /> <owl:Thing rdf:about="#James_Smith"> <livesInCountry rdf:resource="#UnitedKingdom" /> </owl:Thing>

12. OWL Properties • In DLs properties allow us to define general relationships between classes, and specific relationships between individuals. • OWL distinguishes between twotypes of properties: • Datatype properties describe relationships between individuals of some class and RDF literals or XML Schema datatypes. • Object properties describe relationships between individuals of two classes. Property relationship Domain Range

13. OWL Properties <owl:DatatypeProperty rdf:ID="hasName"> <rdfs:domain rdf:resource="#Human" /> <rdfs:range rdf:resource="&xsd;string"/> </owl:DatatypeProperty> • Eg: • <http://some.full.uri/example#James_Smith, ”James Smith”>: hasName • Eg: • <http://some.full.uri/example#James_Smith, http://some.other.uri/country#UnitedKingdom>: livesInCountry <owl:ObjectProperty rdf:ID="livesInCountry"> <rdfs:domain rdf:resource="#Human" /> <rdfs:range rdf:resource="#Country" /> </owl:ObjectProperty>

14. Property Characteristics • In addition, a property can be defined to be: • FunctionalProperty: a given individual has only one value of the property (eg. hasDateOfBirth). • InverseFunctionalProperty: the inverse of the property is functional (eg. birthDateOf). • SymmetricProperty: if a property relates x to y, then it can be inferred that it relates y to x (eg. nextTo). • TransitiveProperty: if a property relates x to y, and y to z, then it can also be inferred that it relates x to z (eg. locatedIn). • subPropertyOf another property. • inverseOf: (eg. birthDateOf is inverse of hasDateOfBirth).

15. OWL-DL Classes • OWL supports a number of different ways of defining a class. • In OWL-Lite: • As a simple named class; • …and in OWL-DL: • Using property restrictions; • As the intersection of other classes; • As the union of other classes; • As the complement of another class; • By enumerating the class.

16. Property Restrictions • Property Restrictions define a class of individuals based on the nature and/or number of relationships in which they participate. • Restrictions can be considered to fall into three groups: • Quantifier restrictions (someValuesFrom, allValuesFrom). • Cardinality restrictions (cardinality, minCardinallity, maxCardinality). • hasValue restriction.

17. someValuesFrom Restriction • The ‘existential’ restriction (∃). • Read as ‘has some values from’ or ‘at least one’. • Describes the class of individuals that have at least one kind of relationship along the specified property with an individual that is a member of a specified class. • So: ∃R.C defines the class of individuals that are in at least one relationship R with an individual of class C. • So: ∃eats.Plant defines the class of individuals that eat some/at least one (individuals from the set of) Plants. • { x | ∃y.(eats(x,y) ⋀ Plant(y)) }

18. someValuesFrom Restriction eats ∃eats.Plant eats Plant eats eats eats eats <owl:Restriction> <owl:onProperty rdf:resource="#eats" /> <owl:someValuesFrom rdf:resource="#Plant" /> </owl:Restriction>

19. allValuesFrom Restriction • The ‘universal’ restriction (∀). • Read as “has all values from” or “only”. • Describes the class of individuals that if they are in a particular relationship along the specified property, it is only with individuals that are a member of the specified class. • So: ∀R.C defines the class of individuals that, if they are in relationship R, it is only with individuals of class C. • So: ∀eats.Plant defines the class of individuals that, if they eat anything, they eat only (individuals from the set of) Plants. • { x | ∀y.(eats(x,y) → Plant(y)) }

20. allValuesFrom Restriction eats ∀eats.Plant eats Plant eats eats eats eats eats <owl:Restriction> <owl:onProperty rdf:resource="#eats" /> <owl:allValuesFrom rdf:resource="#Plant" /> </owl:Restriction>

21. Cardinality Restrictions • For a given property, cardinality restrictions allow us to define the number of relationships that individuals of a class participate in: • cardinality ("exactly"), minCardinality ("at least"), maxCardinality ("at most"). • Restricted to values of 0 and 1in OWL-Lite (positive integers allowed in OWL-DL). <owl:Class rdf:ID="PostgraduateStudent"> <rdfs:subClassOf> <owl:Restriction> <owl:onProperty rdf:resource="#hasMatriculationNumber"/> <owl:cardinality rdf:datatype="&xsd;nonNegativeInteger">1</owl:cardinality> </owl:Restriction> </rdfs:subClassOf> </owl:Class> • Note: stronger than a functionalProperty: ...every student has exactly one matric. number

22. hasValue Restrictions • hasValue restrictions allow us to define the class of individuals which have a particular property relationship with a particular individual. France livesInCountry livesInCountry ∋ UnitedKindom livesInCountry Country livesInCountry UnitedKindom livesInCountry <owl:Class rdf:ID="UKResidents"> <rdfs:subClassOf> <owl:Restriction> <owl:onProperty rdf:resource="#livesInCountry" /> <owl:hasValue rdf:resource="#UnitedKingdom" /> </owl:Restriction> </rdfs:subClassOf> </owl:Class>

23. Intersection of Classes: intersectionOf • Class defined as the intersection of two or more classes: • Woman ≡ Human ⊓ Female • (Could use more complicated class definitions.) Female Human <owl:Class rdf:ID="Woman"> <owl:intersectionOf rdf:parseType="Collection"> <owl:Class rdf:about="#Human" /> <owl:Class rdf:about="#Female" /> </owl:intersectionOf> </owl:Class>

24. Union of Classes: unionOf • Class defined as the union of two or more classes: • Parent ≡ Father ⊔ Mother Father Mother <owl:Class rdf:ID="Parent"> <owl:unionOf rdf:parseType="Collection"> <owl:Class rdf:about="#Father" /> <owl:Class rdf:about="#Mother" /> </owl:unionOf> </owl:Class>

25. Complement Classes: complementOf • Class defined as the complement of another class: • Childless ≡ ¬Parent Childless Parent <owl:Class rdf:ID="Childless"> <owl:complementOf rdf:resource="#Parent" /> </owl:Class>

26. Enumerated Classes: oneOf • An enumerated class is specified by explicitly and exhaustively listing the individuals that are members of the class. Spain Italy Greece HolidayDestinations <owl:Class rdf:ID="HolidayDestinations"> <owl:oneOf rdf:parseType="Collection"> <owl:Thing rdf:about="#Spain"/> <owl:Thing rdf:about="#Italy"/> <owl:Thing rdf:about="#Greece"/> </owl:oneOf> </owl:Class>

27. Disjointness: disjointWith • Specifying disjointness ensures that a member of one class is not also a member of any disjoint class. • ie., An animal cannot also be a plant nor a mineral. • Note: this does not imply that Plant and Mineral are also disjoint - we need to say this explicitly! <owl:Class rdf:ID="Animal"> <owl:disjointWith rdf:resource="#Plant"/> <owl:disjointWith rdf:resource="#Mineral"/> </owl:Class>

28. Equivalences • We can say that a class (property, individual) is equivalent to a second class (property, individual). • indicates that the two classes (properties) have exactly the same instances (tuples) as members. • (use equivalentProperty for properties, and owl:sameAs for individuals.) • equivalentClass allows the specification of necessary and sufficent conditions for class membership (subClassOf gives just necessary). • Can be used for relating elements of one ontology to those of another. • Can also say that two individuals are differentFrom each other. <owl:Class rdf:ID="Country"> <owl:equivalentClass rdf:resource="&otheront;Nation"/> </owl:Class>

29. Ontology Versioning • OWL recognises the fact that ontologies develop over time: • Also backwardCompatibleWith and incompatibleWith. • Can indicate that particular classes/properties have become deprecated. • Only in OWL-Full can you make these sorts of statements… • …and the semantics are not defined anyway. <owl:Ontology rdf:about=""> ... <owl:priorVersion rdf:resource="http://www.inf.ed.ac.uk/ontology/old-example"/> ... </owl:Ontology>

30. Reasoning in OWL-DL • For OWL-Lite and OWL-DL ontologies, we can use automated reasoners to infer information that is not explicitly stated in the ontology. • Standard reasoning 'services' include: • classification: construct class hierarchy based on definitions of the classes. • subsumption testing: does C⊑ D ? • ie. do all members of set C necessarily belong to set D under all possible interpretations? • equivalence testing: does C≡D ? • ie. is set C equivalent to set D under all possible interpretations? • satisfiability/consistency testing: is C consistent wrt TBox? • ie. is the set C non-empty under at least one interpretation? • instance checking: is a given individual an instance of a specified class?

31. OWL Summary • OWL is a W3C standard language for specifying ontologies for the Semantic Web: • language includes some elements that support distributed ontology and knowledge base use/development. • It is layered on top of RDF and RDFS, and is based on description logics. • There are three species of OWL: OWL-Lite, OWL-DL and OWL-Full. • We can perform reasoning over ontologies written in OWL-Lite and OWL-DL.

32. Further Reading… • W3C OWL web site: • http://www.w3.org/2004/OWL/ • OWL Web Ontology Language Overview: • http://www.w3.org/TR/2004/REC-owl-features-20040210/ • CO-ODE web site: • http://www.co-ode.org/
