  1. The OpenGIS ConsortiumGeog 516 Presentation #2 Rueben Schulz March 2004

  2. Overview • The OpenGIS Consortium • Specifications • Benefits • Issues • Impact and Examples

  3. The OpenGIS Consortium • Non-profit trade association (1994) • Develop geoprocessing interoperability standards • Grew out of interoperability initiatives in the GRASS community • 257 Members, include: • Government • Industry • Universities • Similar to W3C and ISO

  4. Vision “A world in which everyone benefits from geographic information and services made available across any network, application, or platform.”

  5. Specifications • Simple Features (Vectors) • Grid Coverages (Rasters) • Coordinate Transformation Services (CTS) • Geography Markup Language (GML) • Filter Encodings • Styled Layer Descriptor (SLD) • Web Map Services (WMS) • Web Feature Service (WFS) • Web Coverage Service (WCS) • Web Map Context Documents • Catalogue Interface (CAT) • Location Services

  6. Simple Features (Vector) • Specification currently version 1.1 • Defines a set of basic geometry types: • Point, line, polygon, multi-point, multi-line, multi-polygon, multi-geometry • Defines operations on these • Includes ways of storing geometries and features • WKT, WKB, GML • Work on a new abstract specification • ISO-19107 (an ISO partnership) • Lots of different geometries (not simple) • 3D shapes, surfaces, TINs, and many more

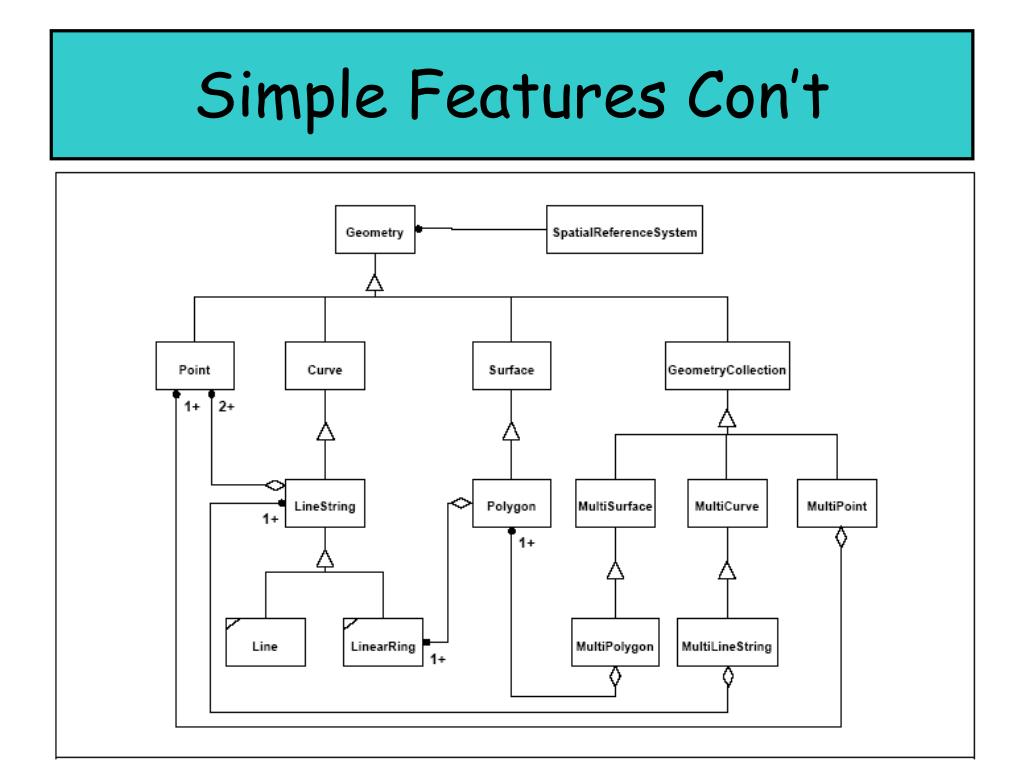

  7. Simple Features Con’t

  8. Grid Coverages (Raster) • Defines interfaces for: • accessing, analyzing and processing raster datasets • Grid coverage can generate a value for any point in its domain. • May be backed by a: • Set of polygons that cover entire area • Grid of values (traditional raster) • Mathematical function

  9. Coordinate Transformations • Describes Coordinate Reference System‘s (CRS) and general methods to convert between them. • Also specifies ways of storing these objects as text • Well Known Text (WKT) and XML • WKT example: GEOGCS["WGS 84", DATUM["WGS_1984",SPHEROID["WGS 84",6378137,298.257223563],TOWGS84[0,0,0,0,0,0,0], PRIMEM["23W",23],UNIT["DMSH",0.0174532925199433], AXIS["Long",EAST],AXIS["Lat",NORTH]] • Compliments efforts by European Petroleum Survey Group (EPSG) • New specification underway (ISO – 19111)

  10. Web GIS Standards • Standard protocols for: • Web Map Services (WMS) • Sends images of maps across the web • Useful for base maps, but does not give access to underlying data • Web Feature Service (WFS) • Sends vector geometries (GML), can do analysis / editing on these • Web Coverage Service (WCS) • Sends rasters (grid coverage), can do analysis on these

  11. Benefits • Users can easily move between vendors • Data interchange • Concepts about GIS/RS the same; single set of terms and definitions • Efficient and share R&D - best minds from many different industries can meet and work. • Document ideas for other people to learn from • Can advance state of the art or increase completeness of a product • Increase competition and innovation

  12. Issues • Specifications need to be implemented to be of any benefit • Vendors have products implemented before specification • Specification may need to be extended in incompatible ways to do everything vendor wants now • Bad for large companies • Makes it easier for users to change vendors • Removes some competitive advantage • Specifications keep changing

  13. Impact and Examples • US Geospatial 1 Stop Portal - WMS, WFS, CAT • Canadian GeoConnections Discovery Portal - WMS, WFS, CAT • ESRI’s ArcGIS - Simple Features, Spatial References • OGC Imperoperability Addon to support GML, WMS, WFS • PostGIS, ArcSDE, Oracle Spatial, and IBM DB2 - support Simple Features for SQL • Java Topology Suite (JTS) – Simple Features • GeoTools2 – “leading open source Java library for developing OpenGIS solutions” • MapServer – WMS • GeoServer – WMS and reference implementation for WFS • ESRI’s ArcIMS - WMS and WFS through an addon

  14. Impact and Examples con’t

  15. References • DigitalEarth.Org “OGC December Meeting Summary” at http://digitalearth.org/story/2002/12/12/143552/20 • ESRI “GIS Standards and Interoperability” at http://www.esri.com/software/opengis/index.html • Federal Computer Week "Interior e-gov tack irks GIS vendors: GIS Consortium, vendor work on parallel tasks“ at http://www.fcw.com/fcw/articles/2003/0414/news-gis-04-14-03.asp • The OpenGIS Consortium at http://www.opengis.org
