phylum chordata
Phylum Chordata
  • The chordates are a group of particular interest to us as we belong to it, being members of the subphylum Vertebrata.
  • The chordates include all of the vertebrates (fish, amphibians, reptiles, mammals and birds), but also two non-vertebrate subphyla: the Urochordata and the Cephalochordata.
phylum chordata2

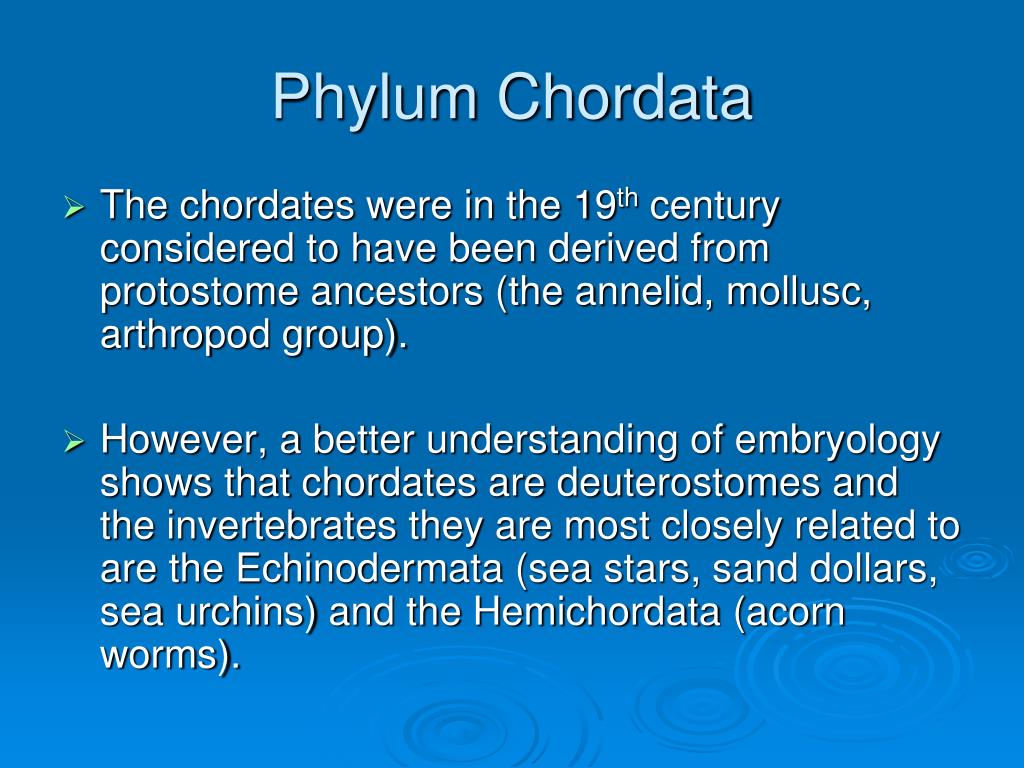

Phylum Chordata
  • The chordates were in the 19th century considered to have been derived from protostome ancestors (the annelid, mollusc, arthropod group).
  • However, a better understanding of embryology shows that chordates are deuterostomes and the invertebrates they are most closely related to are the Echinodermata (sea stars, sand dollars, sea urchins) and the Hemichordata (acorn worms).

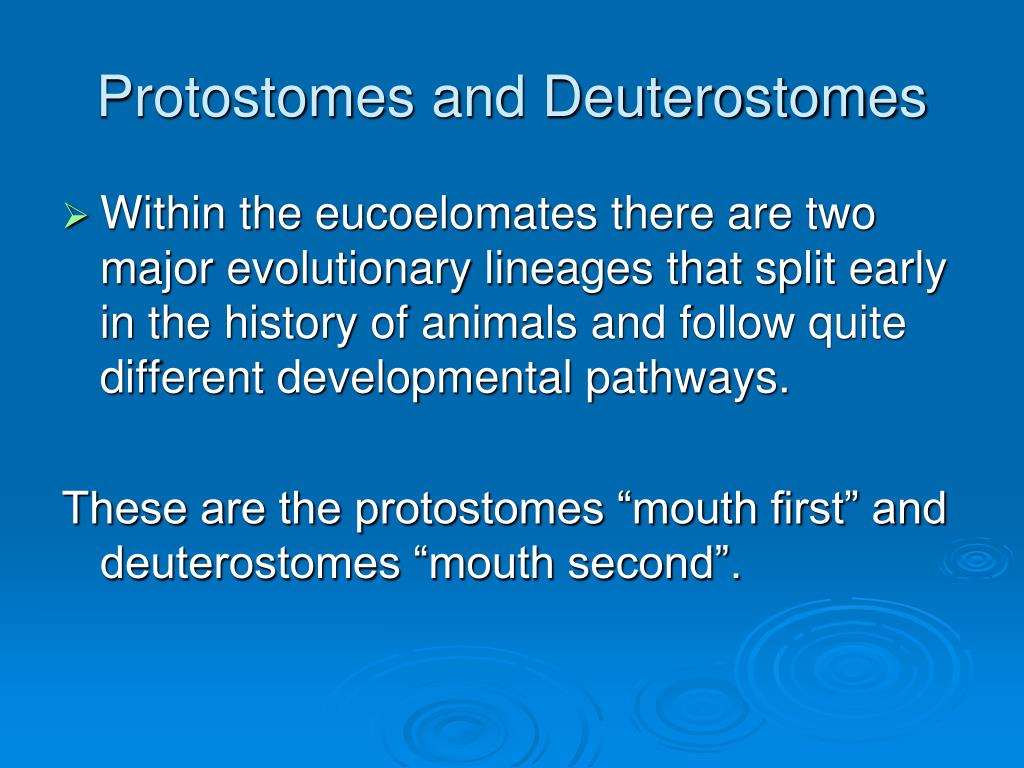

protostomes and deuterostomes
Protostomes and Deuterostomes
  • Within the eucoelomates there are two major evolutionary lineages that split early in the history of animals and follow quite different developmental pathways.

These are the protostomes “mouth first” and deuterostomes “mouth second”.

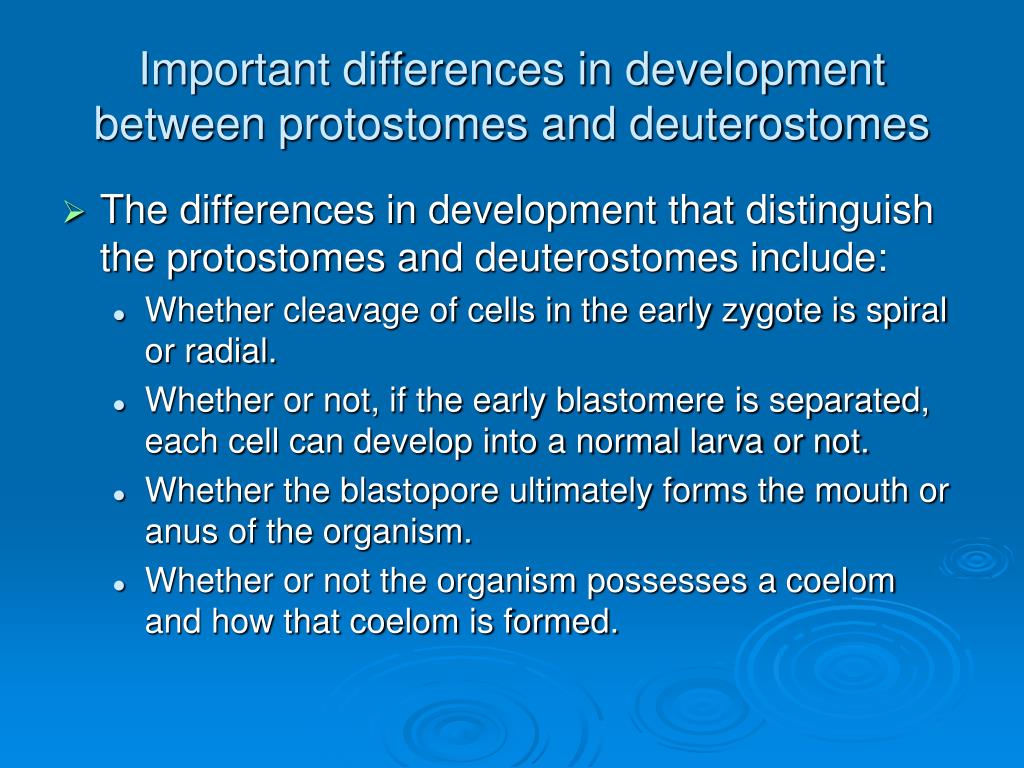

important differences in development between protostomes and deuterostomes
Important differences in development between protostomes and deuterostomes
  • The differences in development that distinguish the protostomes and deuterostomes include:
    • Whether cleavage of cells in the early zygote is spiral or radial.
    • Whether or not, if the early blastomere is separated, each cell can develop into a normal larva or not.
    • Whether the blastopore ultimately forms the mouth or anus of the organism.
    • Whether or not the organism possesses a coelom and how that coelom is formed.
protostomes and deuterostomes7

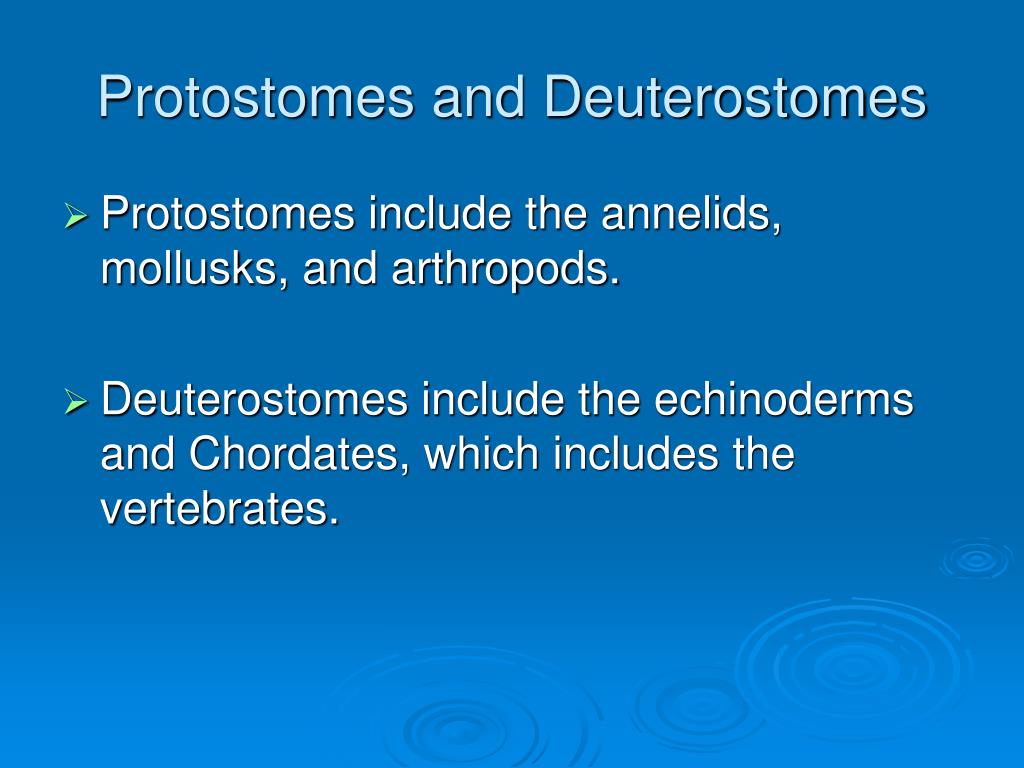

Protostomes and Deuterostomes
  • Protostomes include the annelids, mollusks, and arthropods.
  • Deuterostomes include the echinoderms and Chordates, which includes the vertebrates.
characteristics of the chordata

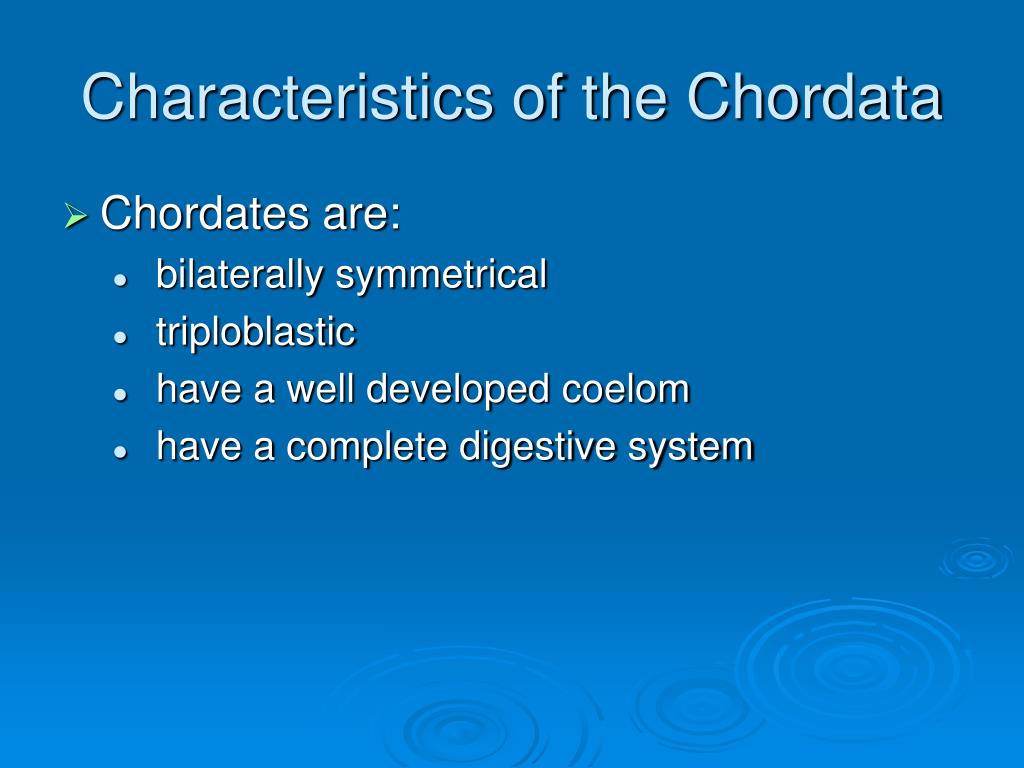

Characteristics of the Chordata
  • Chordates are:
    • bilaterally symmetrical
    • triploblastic
    • have a well developed coelom
    • have a complete digestive system

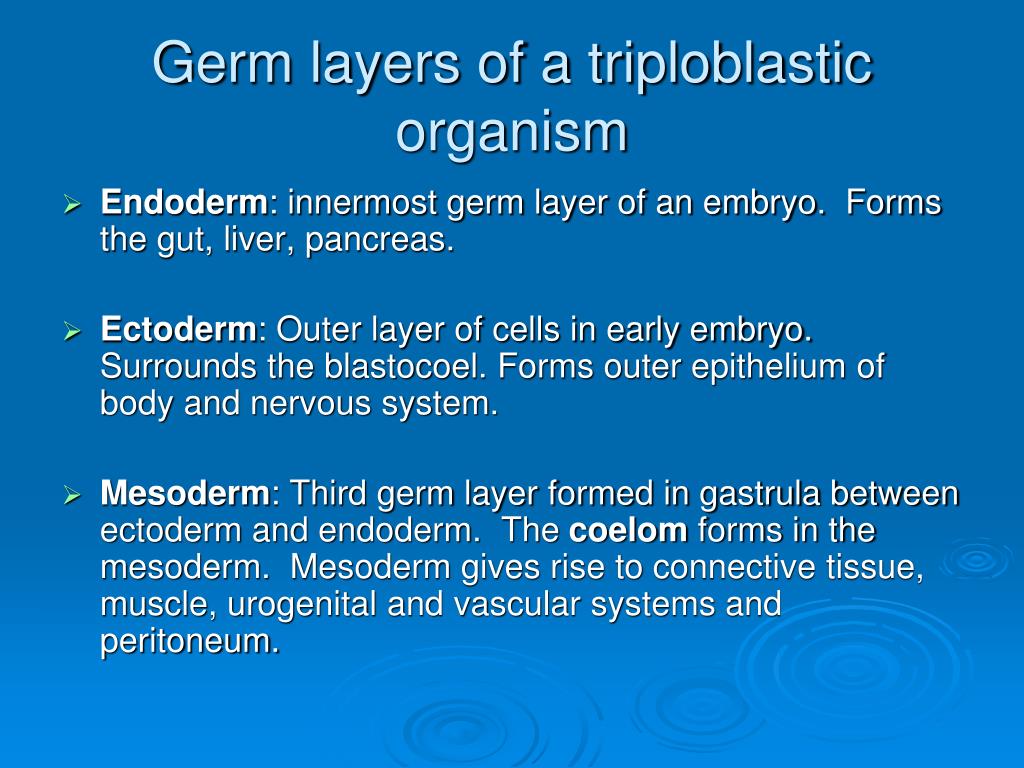

germ layers of a triploblastic organism
Germ layers of a triploblastic organism
  • Endoderm: innermost germ layer of an embryo. Forms the gut, liver, pancreas.
  • Ectoderm: Outer layer of cells in early embryo. Surrounds the blastocoel. Forms outer epithelium of body and nervous system.
  • Mesoderm: Third germ layer formed in gastrula between ectoderm and endoderm. The coelom forms in the mesoderm. Mesoderm gives rise to connective tissue, muscle, urogenital and vascular systems and peritoneum.

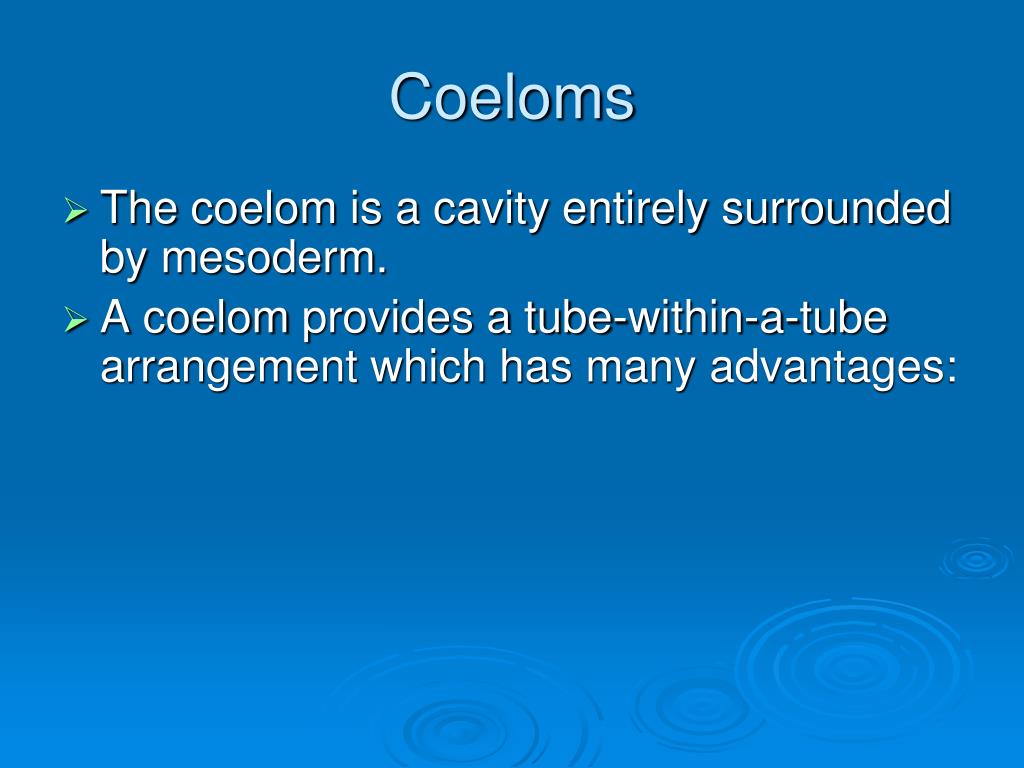

coeloms
Coeloms
  • The coelom is a cavity entirely surrounded by mesoderm.
  • A coelom provides a tube-within-a-tube arrangement which has many advantages:
advantages of a coelom

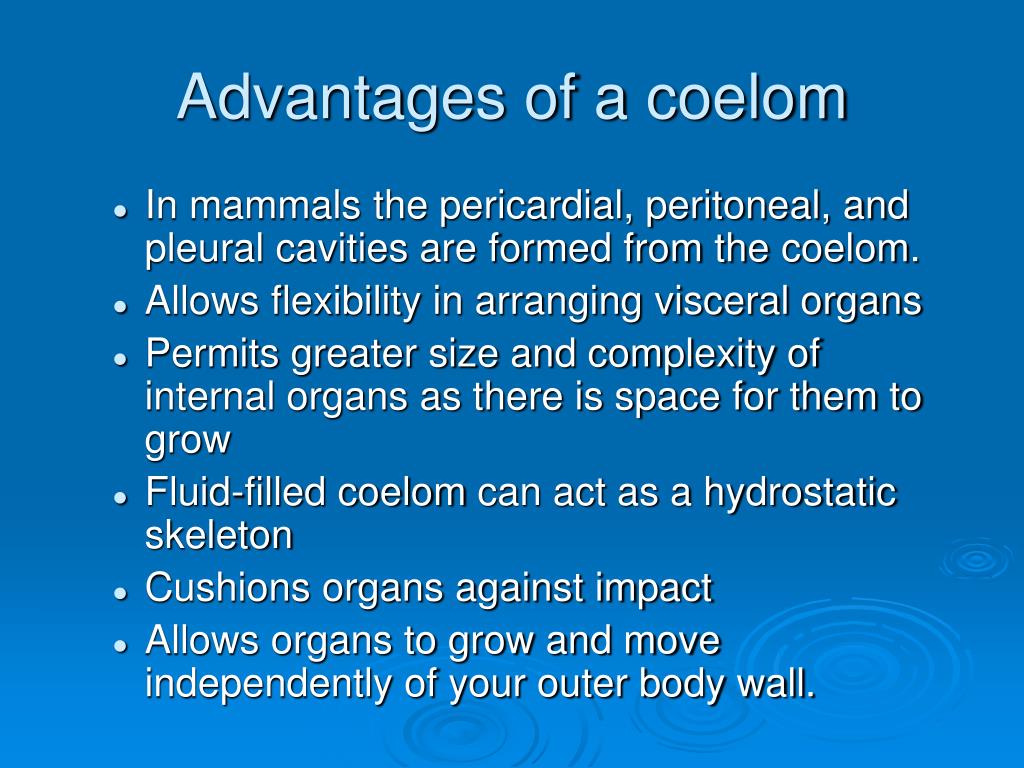

Advantages of a coelom
  • In mammals the pericardial, peritoneal, and pleural cavities are formed from the coelom.
  • Allows flexibility in arranging visceral organs
  • Permits greater size and complexity of internal organs as there is space for them to grow
  • Fluid-filled coelom can act as a hydrostatic skeleton
  • Cushions organs against impact
  • Allows organs to grow and move independently of your outer body wall.
five distinctive characteristics of the chordates

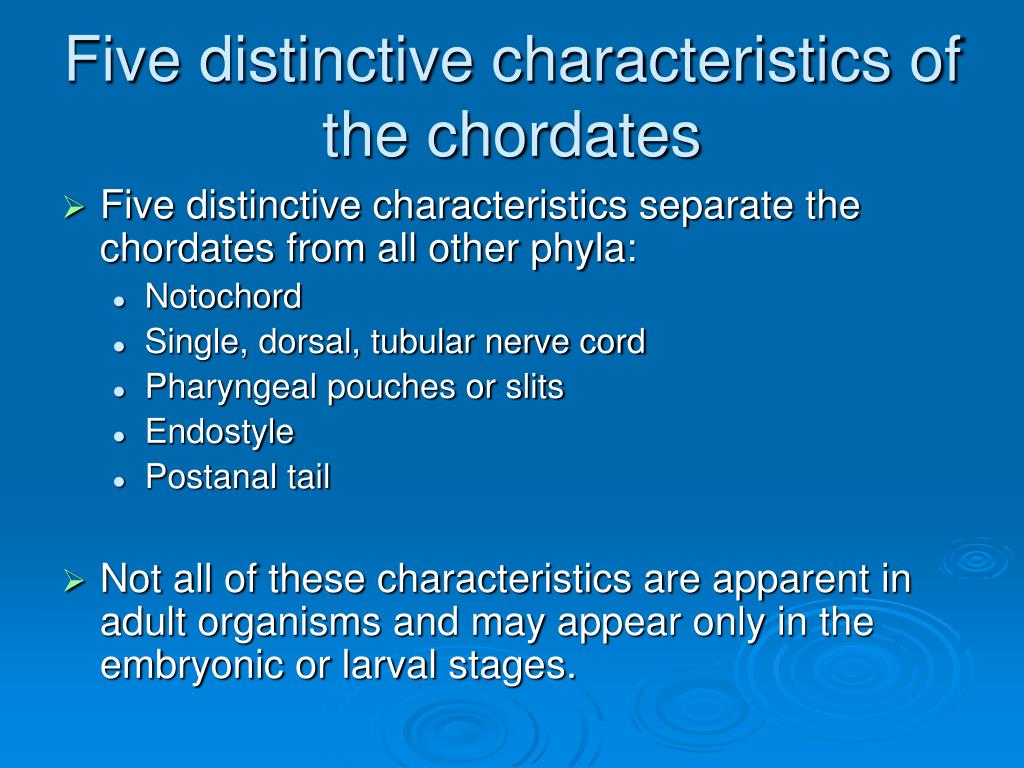

Five distinctive characteristics of the chordates
  • Five distinctive characteristics separate the chordates from all other phyla:
    • Notochord
    • Single, dorsal, tubular nerve cord
    • Pharyngeal pouches or slits
    • Endostyle
    • Postanal tail
  • Not all of these characteristics are apparent in adult organisms and may appear only in the embryonic or larval stages.
notochord

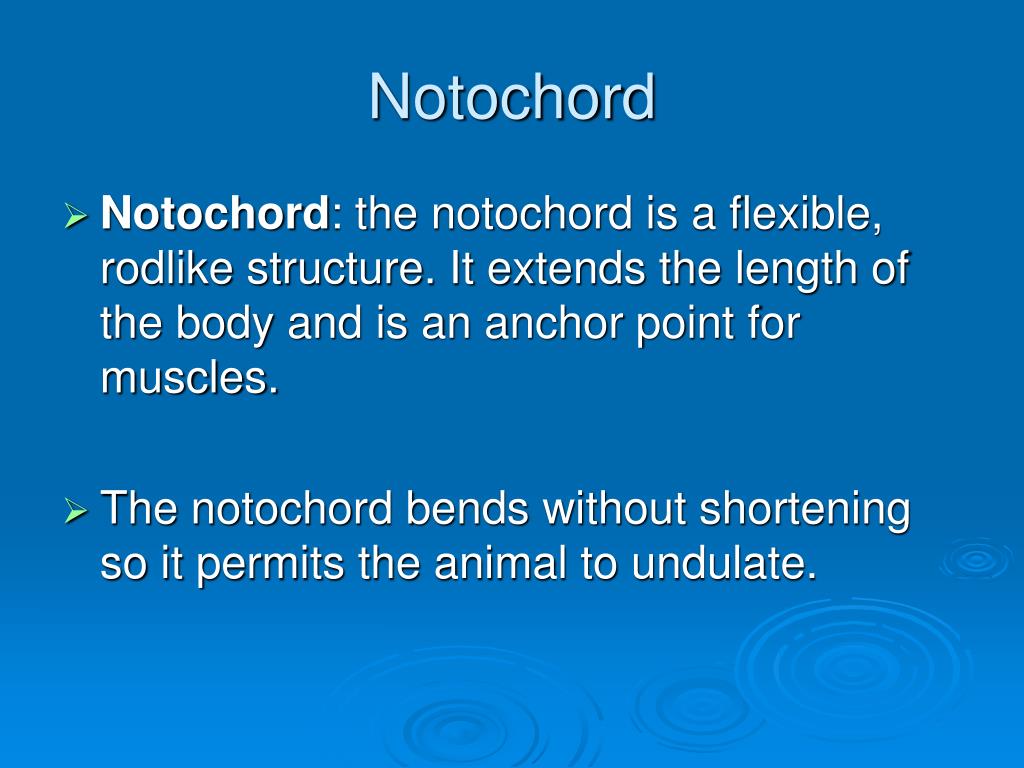

Notochord
  • Notochord: the notochord is a flexible, rodlike structure. It extends the length of the body and is an anchor point for muscles.
  • The notochord bends without shortening so it permits the animal to undulate.
notochord20

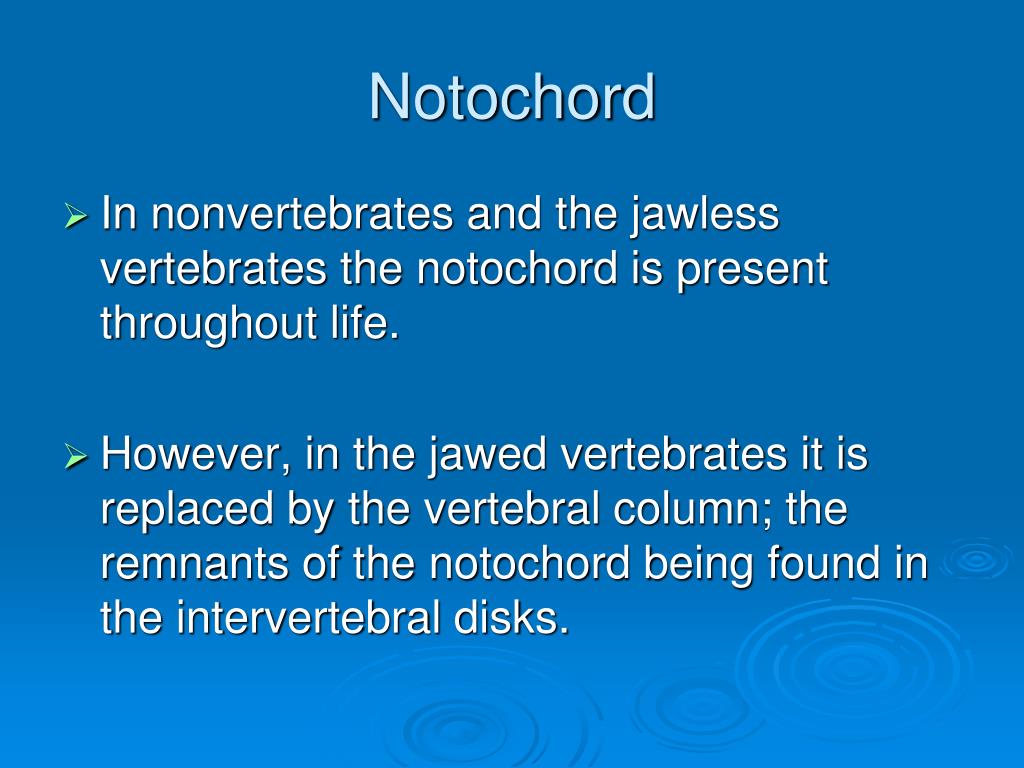

Notochord
  • In nonvertebrates and the jawless vertebrates the notochord is present throughout life.
  • However, in the jawed vertebrates it is replaced by the vertebral column; the remnants of the notochord being found in the intervertebral disks.
single dorsal tubular nerve cord
Single, dorsal, tubular nerve cord
  • In most invertebrates the nerve cord, if present, is ventral to the gut.
  • In chordates, in contrast, the nerve cord is dorsal to the gut and notochord. The nerve cord passes through the neural arches of the vertebrae, which protect it.
  • The nerve cord is enlarged in vertebrates into a brain, which is surrounded by a bony or cartilaginous cranium.
pharyngeal pouches and slits

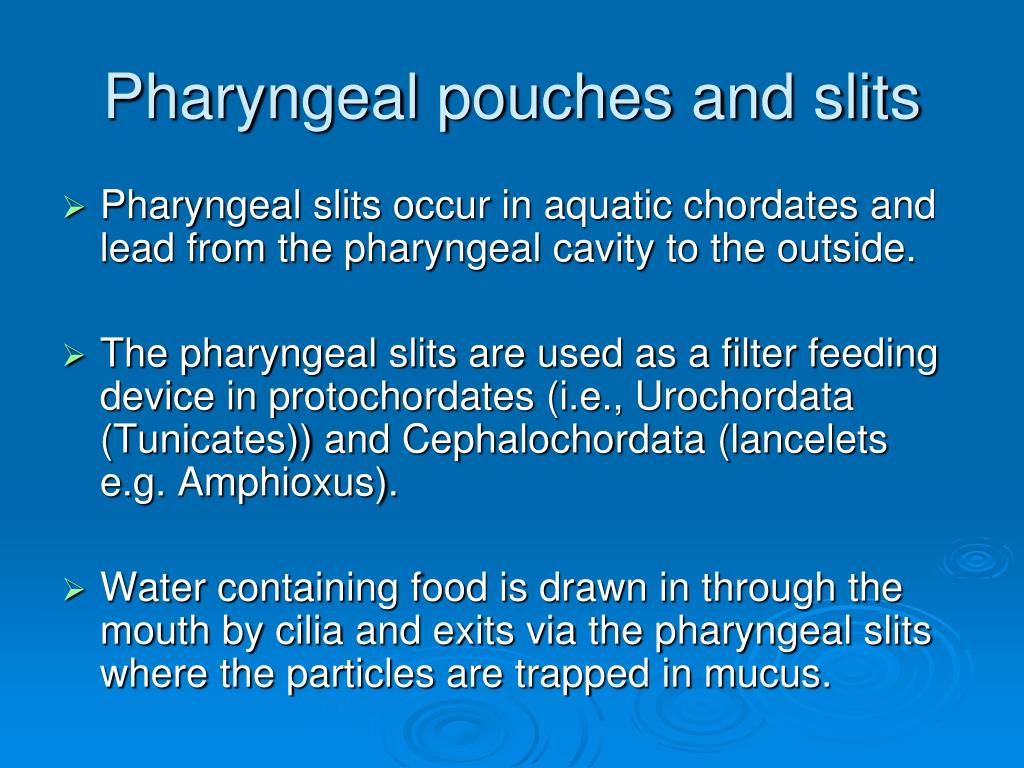

Pharyngeal pouches and slits
  • Pharyngeal slits occur in aquatic chordates and lead from the pharyngeal cavity to the outside.
  • The pharyngeal slits are used as a filter feeding device in protochordates (i.e., Urochordata (Tunicates)) and Cephalochordata (lancelets e.g. Amphioxus).
  • Water containing food is drawn in through the mouth by cilia and exits via the pharyngeal slits where the particles are trapped in mucus.
pharyngeal pouches and slits24

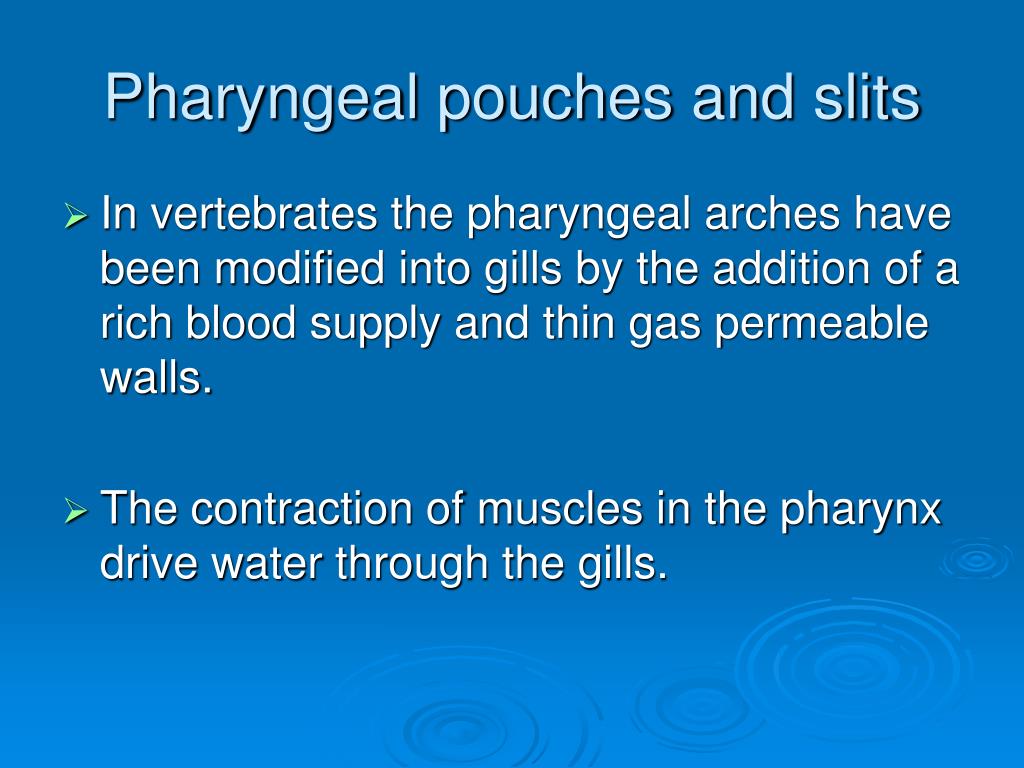

Pharyngeal pouches and slits
  • In vertebrates the pharyngeal arches have been modified into gills by the addition of a rich blood supply and thin gas permeable walls.
  • The contraction of muscles in the pharynx drive water through the gills.
pharyngeal pouches and slits25
Pharyngeal pouches and slits
  • In amniotes an opening may not form and rather than slits only grooves called pharyngeal pouches develop.
  • In tetrapods these pouches give rise during development to a variety of structures including the middle ear cavity, eustachian tube, and tonsils.
endostyle or thyroid gland
Endostyle or thyroid gland
  • The endostyle is found in protochordates and in lamprey larvae. It is located on the floor of the pharynx and secretes mucus, which is used to trap particles.
  • The endostyle works with the pharyngeal slits in filter feeding.
endostyle or thyroid gland27
Endostyle or thyroid gland
  • Some cells in the endostyle secrete iodinated proteins and are homologous with the iodinated-hormone secreting thyroid gland, which is found in adult lampreys and vertebrates.
postanal tail

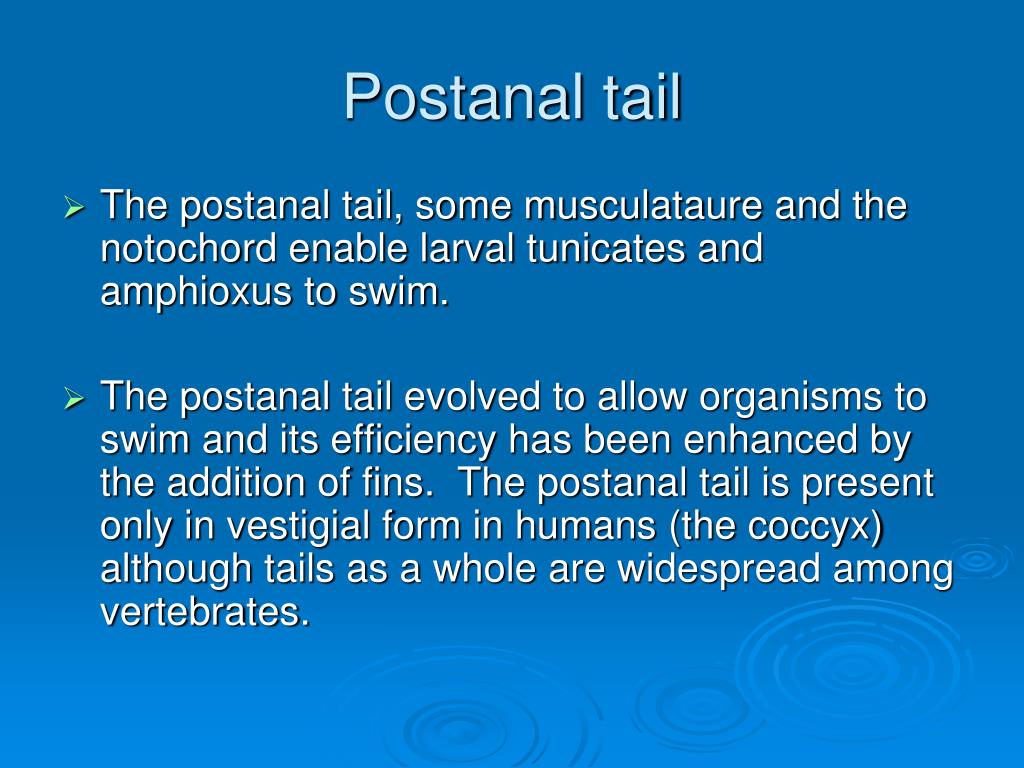

Postanal tail
  • The postanal tail, some musculataure and the notochord enable larval tunicates and amphioxus to swim.
  • The postanal tail evolved to allow organisms to swim and its efficiency has been enhanced by the addition of fins. The postanal tail is present only in vestigial form in humans (the coccyx) although tails as a whole are widespread among vertebrates.
classification of the chordata
Classification of the Chordata
  • There are three subphyla in the Chordata:
    • Subphylum Urochordata: tunicates
    • Subphylum Cephalochordata: lancelets
    • Subphylum Vertebrata: fish, amphibians, reptiles, birds, mammals, etc.
subphylum urochordata
Subphylum Urochordata
  • The Urochordata (“tunicates” named for the tough tunic that surrounds the adult) look like most unpromising candidates to be chordates and relatives of the vertebrates.
  • The largest group, the ascidians or sea squirts (Class Ascidiacea) as adults are marine, sessile, filter feeding organisms that live either solitarily or in colonies.
slide32

Ciona intestinalis

(a solitary sea squirt)

ascidians

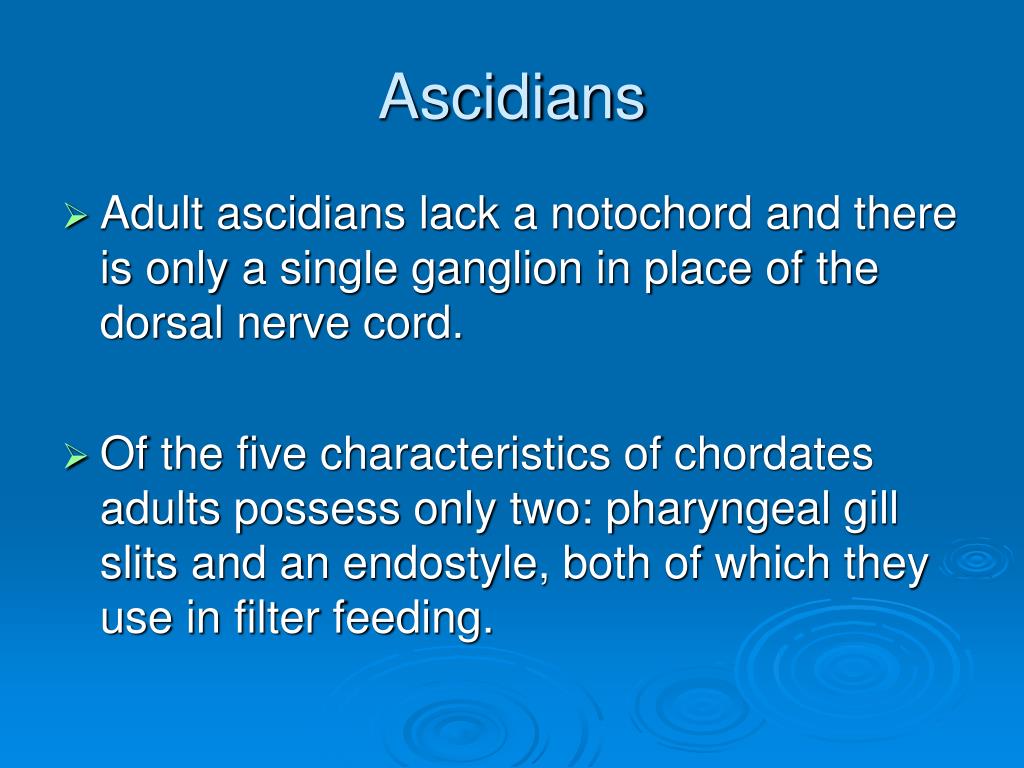

Ascidians
  • Adult ascidians lack a notochord and there is only a single ganglion in place of the dorsal nerve cord.
  • Of the five characteristics of chordates adults possess only two: pharyngeal gill slits and an endostyle, both of which they use in filter feeding.
ascidians36
Ascidians
  • The adult sea squirt draws water in through an incurrent siphon and pushes it back out an excurrent one.
  • Food particles are filtered out in the pharyngeal slits with mucus from the endostyle used to trap particles.
slide38

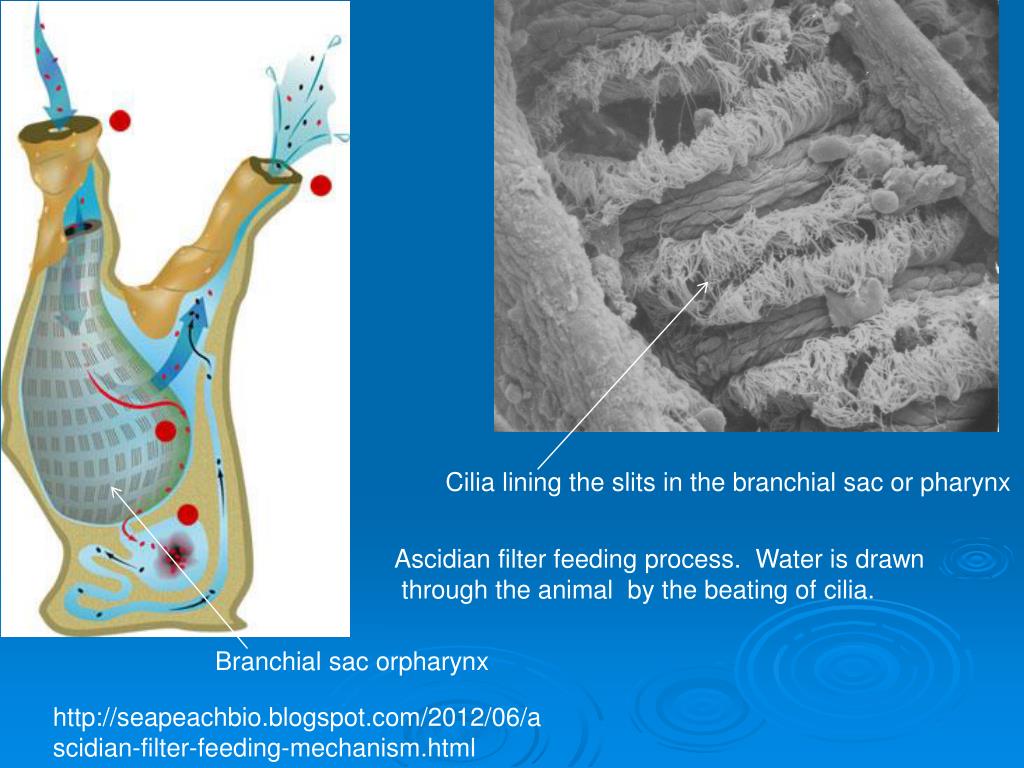

Cilia lining the slits in the branchial sac or pharynx

Ascidian filter feeding process. Water is drawn

through the animal by the beating of cilia.

Branchial sac orpharynx

http://seapeachbio.blogspot.com/2012/06/ascidian-filter-feeding-mechanism.html

larval ascidian
Larval Ascidian
  • Even though the adult ascidian hardly resembles a chordate its larva does.
  • Larval ascidians are very small and tadpole-like and possess all five chordate characteristics previously outlined.

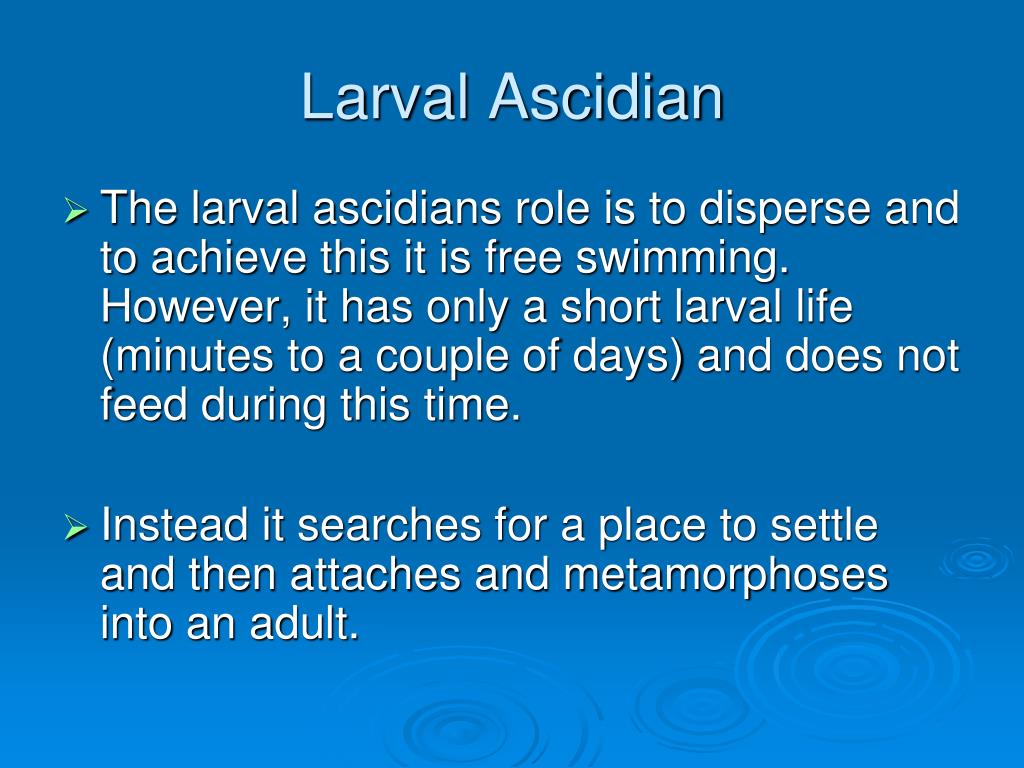

larval ascidian41
Larval Ascidian
  • The larval ascidians role is to disperse and to achieve this it is free swimming. However, it has only a short larval life (minutes to a couple of days) and does not feed during this time.
  • Instead it searches for a place to settle and then attaches and metamorphoses into an adult.

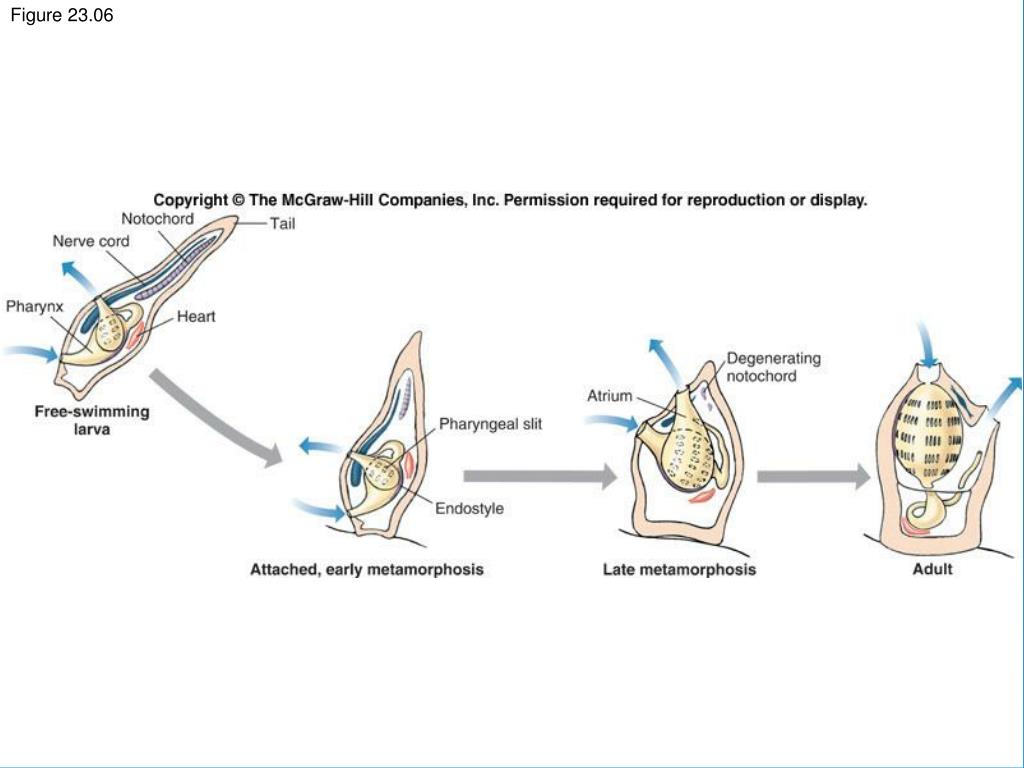

ascidian metamorphosis

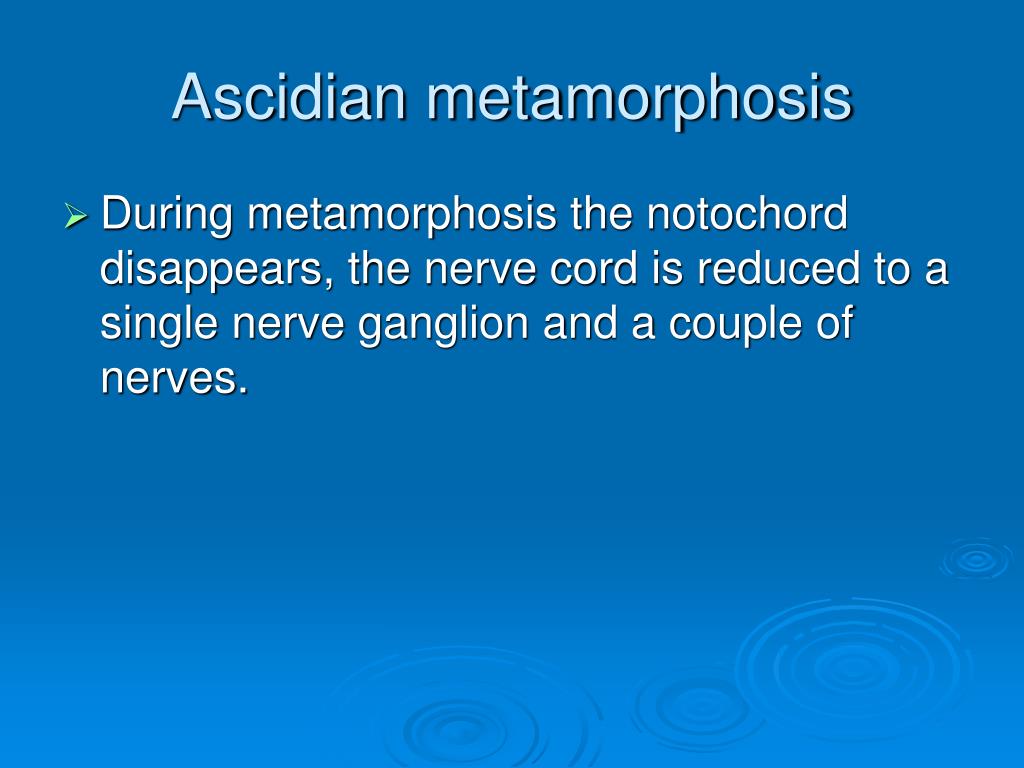

Ascidian metamorphosis
  • During metamorphosis the notochord disappears, the nerve cord is reduced to a single nerve ganglion and a couple of nerves.
other urochordate classes
Other Urochordate classes
  • Besides the ascidians there are two other classes of the Urochordata: the Larvacea and Thaliacea.
  • Both are small, transparent planktonic forms. Thaliaceans are cylindrical or spindle shaped whereas larvaceans are tadpolelike and resemble an ascidian larva.
garstang s hypothesis of chordate larval evolution

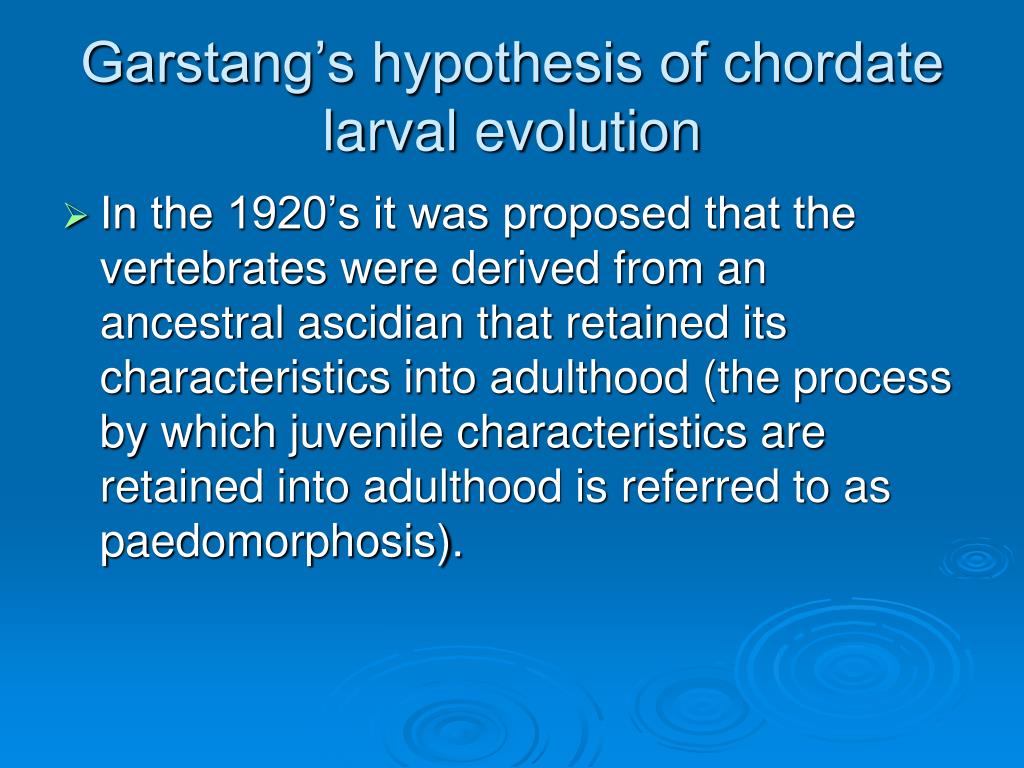

Garstang’s hypothesis of chordate larval evolution
  • In the 1920’s it was proposed that the vertebrates were derived from an ancestral ascidian that retained its characteristics into adulthood (the process by which juvenile characteristics are retained into adulthood is referred to as paedomorphosis).

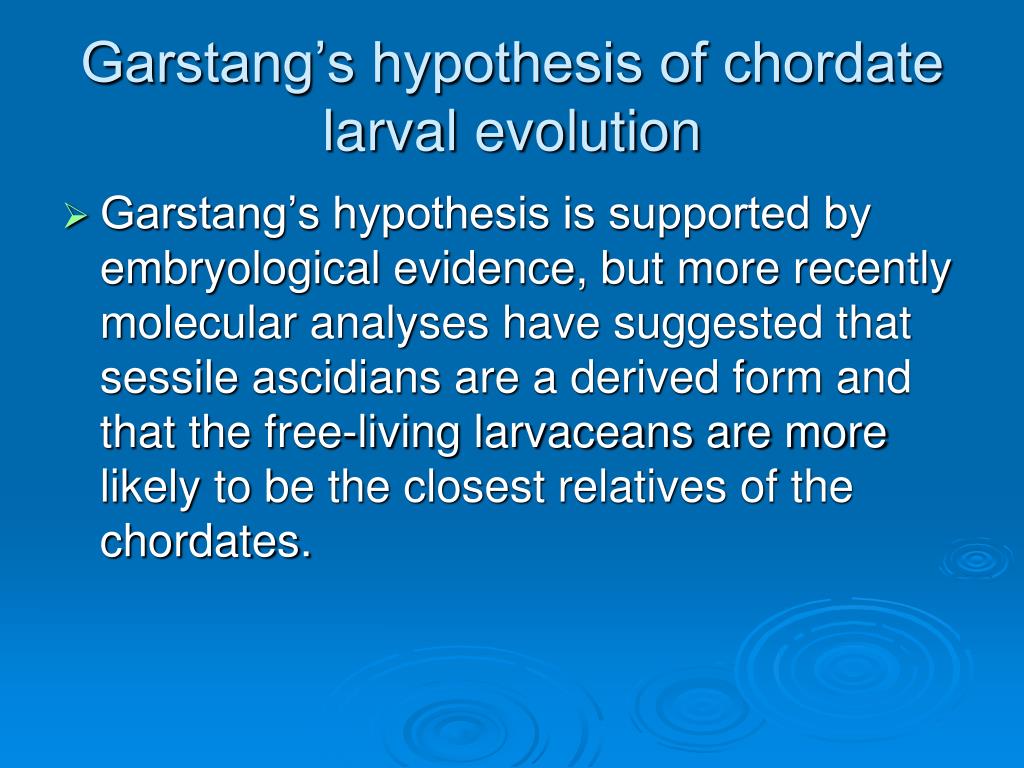

garstang s hypothesis of chordate larval evolution47
Garstang’s hypothesis of chordate larval evolution
  • Garstang’s hypothesis is supported by embryological evidence, but more recently molecular analyses have suggested that sessile ascidians are a derived form and that the free-living larvaceans are more likely to be the closest relatives of the chordates.
subphylum cephalochordata

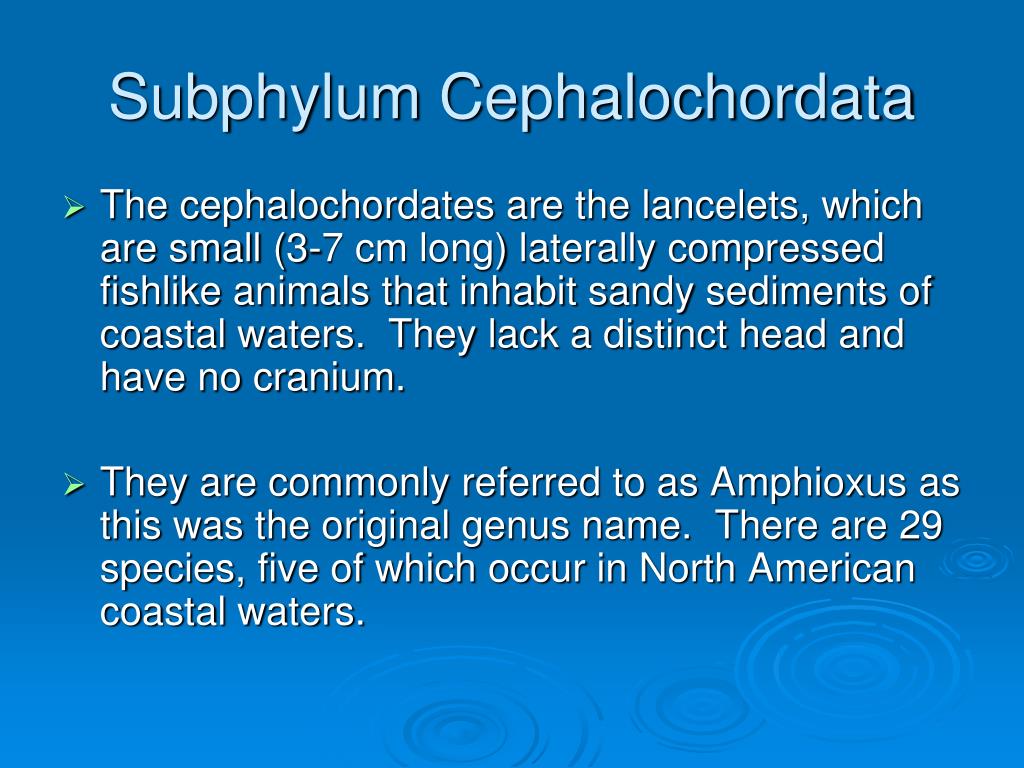

Subphylum Cephalochordata
  • The cephalochordates are the lancelets, which are small (3-7 cm long) laterally compressed fishlike animals that inhabit sandy sediments of coastal waters. They lack a distinct head and have no cranium.
  • They are commonly referred to as Amphioxus as this was the original genus name. There are 29 species, five of which occur in North American coastal waters.
amphioxus
Amphioxus
  • Amphioxus is a filter feeder.
  • Water enters the mouth and then passes through the pharyngeal slits, where food is trapped in mucus. Cilia then move the food to the gut.
amphioxus52
Amphioxus
  • Amphioxus is interesting because it displays the basic chordate characteristics in a simple and obvious form because of its transparency.
  • Amphioxus is considered to be the closest living relative of the vertebrates because it shares several characteristics with vertebrates that Urochordates do not possess.
amphioxus characteristics shared with vertebrates
Amphioxus characteristics shared with vertebrates
  • As well as possessing the chordate characteristics, amphioxus shares a number of traits with vertebrates including:
    • Segmented myomeres (muscle blocks)
    • Dorsal and ventral aortas
    • Branchial (gill) arches (blood vessels running over the gills).
characteristics of vertebrates not possessed by amphioxus
Characteristics of vertebrates not possessed by Amphioxus
  • Amphioxus however lacks several characteristics that biologists think the ancestor of vertebrates possessed. These include:
    • Tripartite brain (with forebrain, midbrain and hindbrain) protected by a cranium
    • Chambered heart
    • Muscular gut and pharynx
    • List continues on next slide
characteristics of vertebrates not possessed by amphioxus55
Characteristics of vertebrates not possessed by Amphioxus
  • Various special sensory organs (eyes, chemical and pressure receptors)
  • Neural crest (ectodermal cells that are found on the embryonic neural tube and are engaged in the formation of the cranium, tooth dentine, some endocrine glands and Schwann cells, which provide myelin insulation to nerve cells).
