Sheep Brain Dissection

Sheep Brain Dissection. Dorsal. Anterior (rostral). Posterior (Caudal). Ventral. 2 Cerebral Hemispheres. Lateral View. Mid-Saggital View. Sheep Brain. Human Brain. Lateral View. Mid-Saggital View. Sheep Brain. Human Brain. Just one long tube that is folded back on itself!.

Download Presentation

Sheep Brain Dissection

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

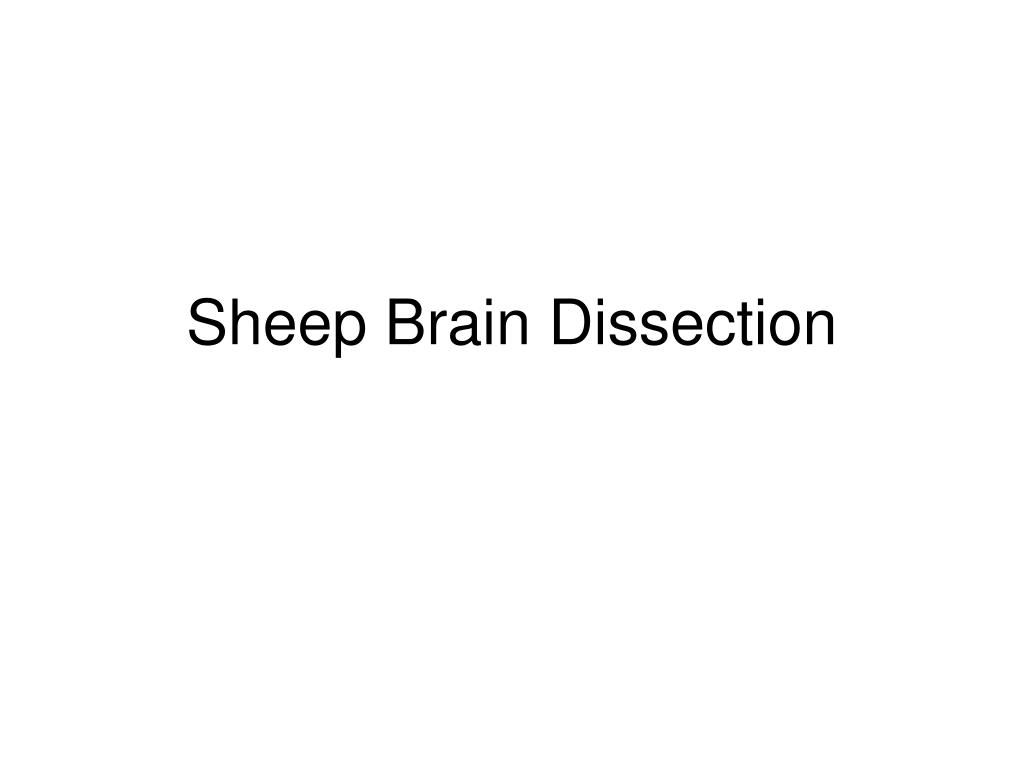

  1. Sheep Brain Dissection

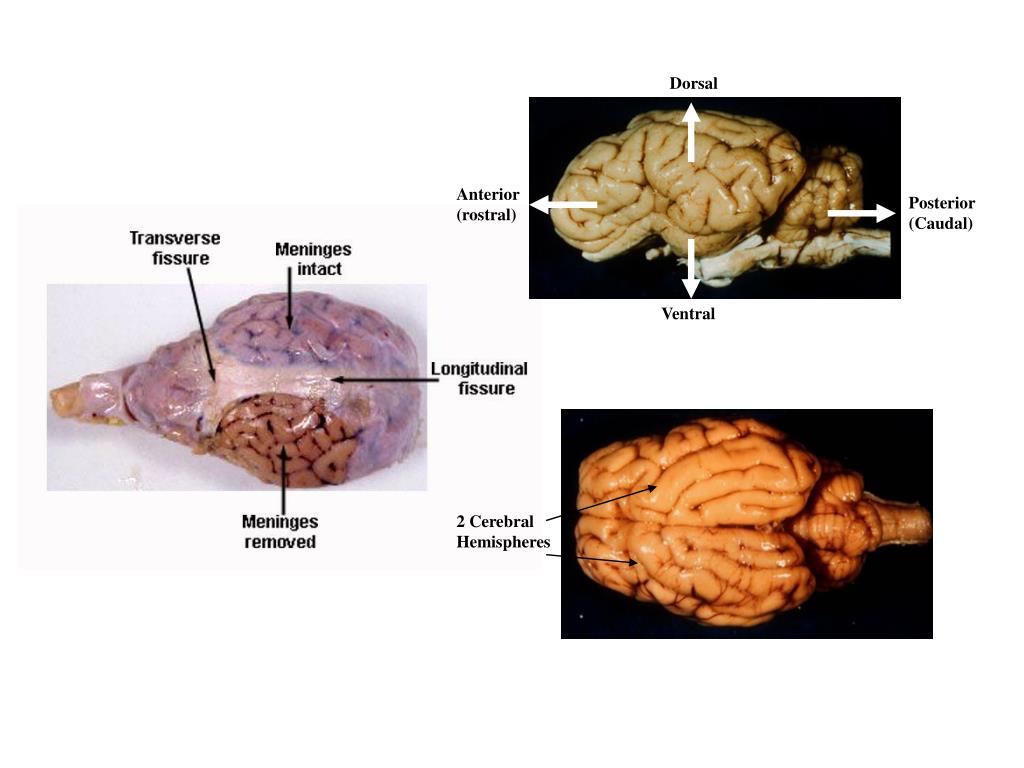

  2. Dorsal Anterior (rostral) Posterior (Caudal) Ventral 2 Cerebral Hemispheres

  3. Lateral View Mid-Saggital View Sheep Brain Human Brain

  4. Lateral View Mid-Saggital View Sheep Brain Human Brain Just one long tube that is folded back on itself!

  5. Base of Brain and Cranial Nerves

  6. Ventricles of the CNS Lateral Ventricles Third Ventricle Cerebral aqueduct Central Canal of the spinal cord Fourth Ventricle

  7. Regions of the Central Nervous System Forebrain Midbrain Hindbrain Spinal Cord Telencephalon Diencephalon Mesencephalon Metencephalon Myelencephalon

  8. Hindbrain (Metencephalon and Myelencephalon) Cerebellum Medulla Oblongata Pons Hindbrain Metencephalon Myelencephalon Cerebellum Pons Medulla Oblongata

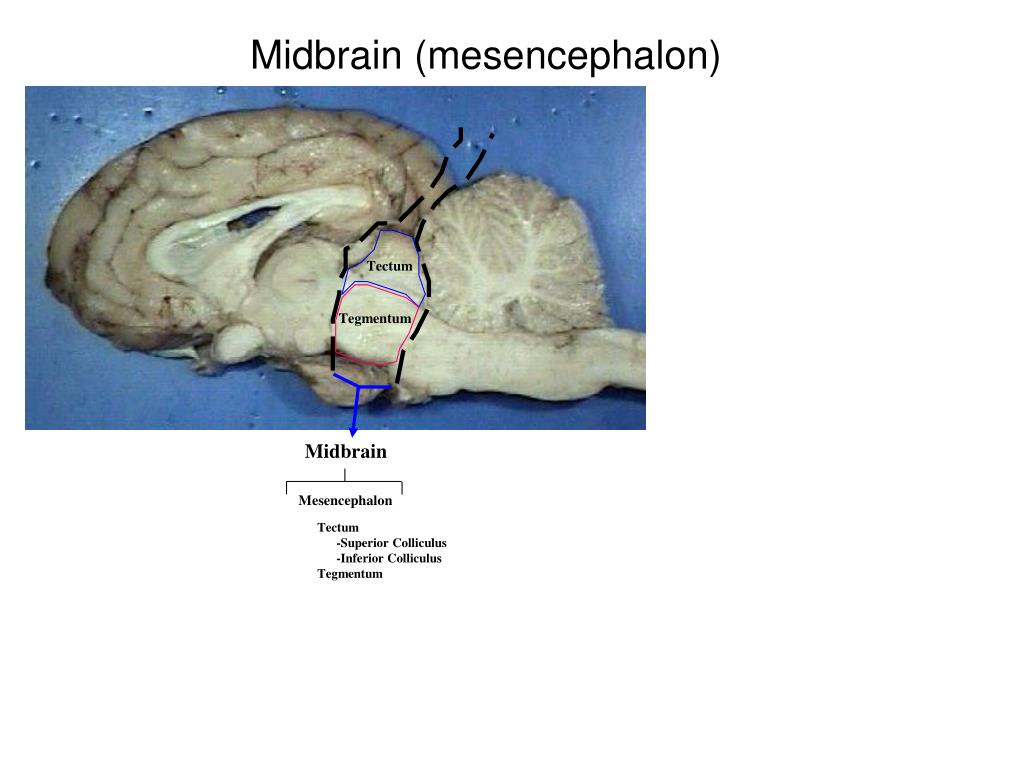

  9. Midbrain (mesencephalon) Tectum Tegmentum Midbrain Mesencephalon Tectum -Superior Colliculus -Inferior Colliculus Tegmentum

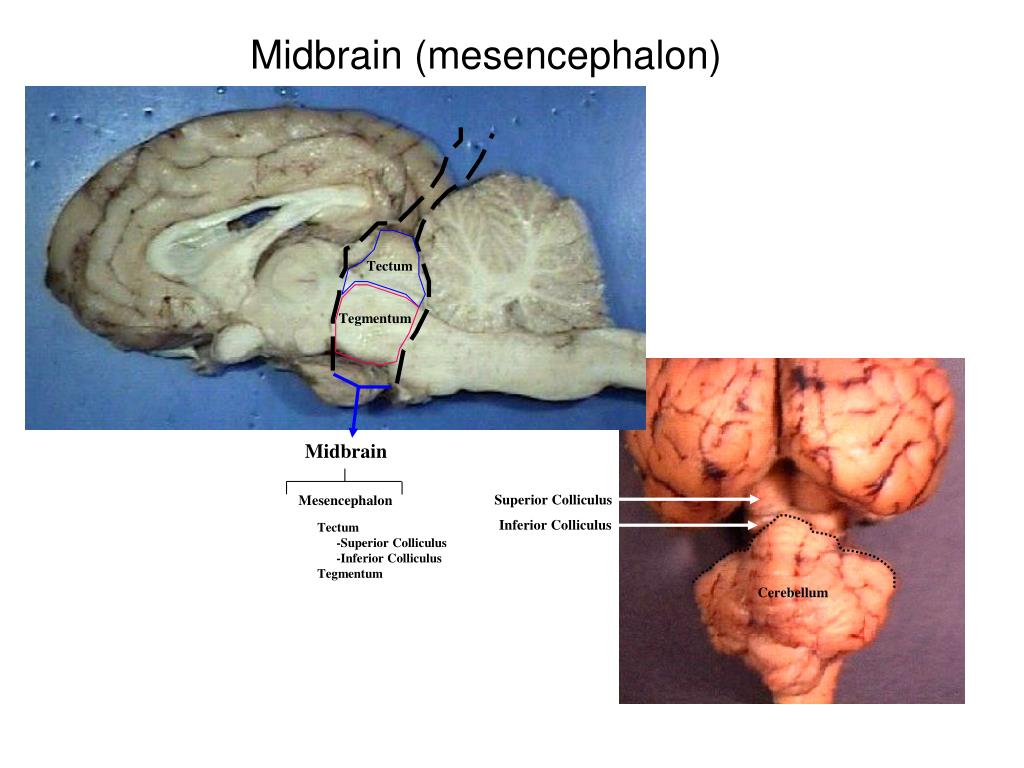

  10. Midbrain (mesencephalon) Superior Colliculus Inferior Colliculus Cerebellum Tectum Tegmentum Midbrain Mesencephalon Tectum -Superior Colliculus -Inferior Colliculus Tegmentum

  11. Forebrain Medial Side of Neocortex Corpus Collasum Thalamus Optic Chiasm Hypothalamus Forebrain Telencephalon Diencephalon Neocortex Basal Ganglia Amygdala Hippocampus “Limbic System” Thalamus Hypothalamus

  12. Telencephalon Neocortex Corpus Collasum White Matter (Fiber Tracts) Basal Ganglia Accumbens Lateral Ventricle

  13. Telencephalon and Diencephalon Neocortex Corpus Collasum White Matter (Fiber Tracts) Basal Ganglia Accumbens Lateral Ventricle Lateral Ventricle Hippocampus Thalamus Hypothalamus Third Ventricle

  14. Hippocampus Curves Around Hippocampus

  15. With Great Appreciation for those on the Internet…. http://starklab.slu.edu/neuro/SheepBrain.htm (William Stark) http://sps.k12.ar.us/massengale/sheep_brain_dissection_bi.htm (cant access) https://www.msu.edu/~brains/brains/ (Michigan State Univ.) http://www.anatomyatlases.org/ (Virtual Hospital at Univ. Iowa) http://www.humboldt.edu/~sheep/pge2.html (cant access but Humbolt Univ.) http://library.med.utah.edu/WebPath/HISTHTML/NEURANAT/CNS014A.html (Univ. Utah)
