1. Offshore Technical Integrity Safety Critical Elements and Performance Standards Tony Vaclavicek Genesis Technology Solutions Reliability Services Manager - Europe

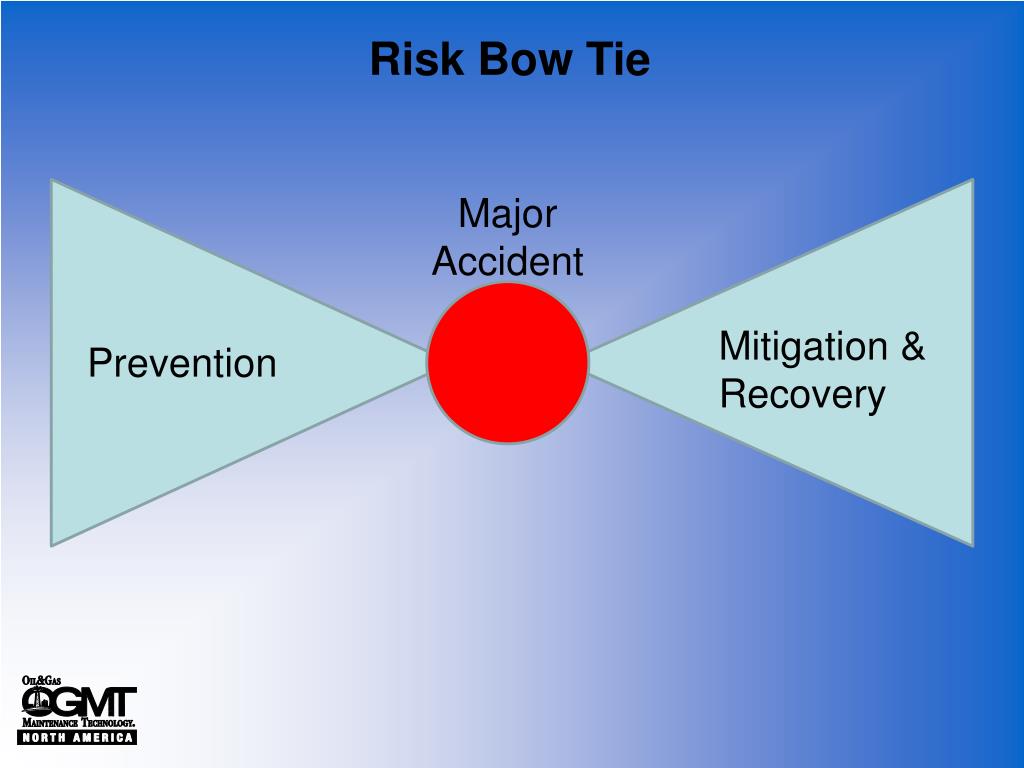

2. Risk Bow Tie Major Accident Mitigation & Recovery Prevention

3. Steps to Define Your Safety Critical Equipment (SCE) • Define your Barriers / Categories and Owners • Maintenance / Reporting Strategy • Initial Identification of SCEs • Review with Technical Authorities, Safety Engineering, Independent Verifier • Finalize your SCEs (30-50% of your asset register)

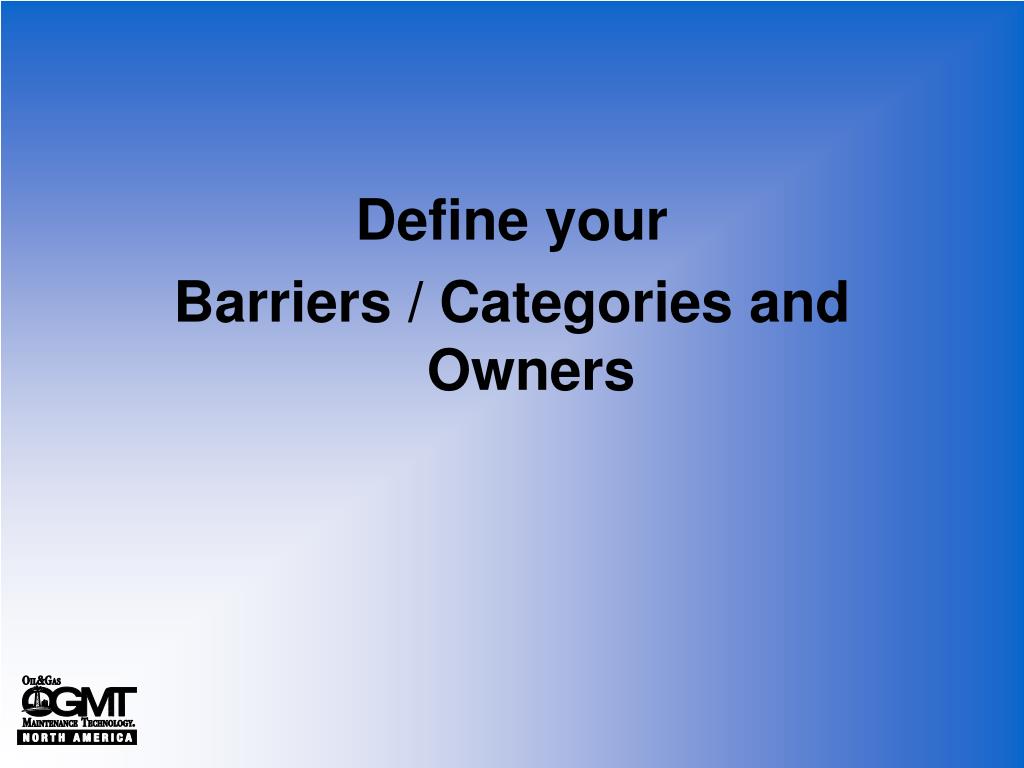

4. Define your Barriers / Categories and Owners

5. Ignition Control Structural Integrity Protection Systems Emergency Response Safe Operation Process Containment Detection Systems Shutdown Systems Lifesaving - Sub sea / Foundation Structures - Topsides & / Surface Structures - Heavy Lift Cranes - Mooring Systems - Drilling Systems Escalating Consequences • - Pressure Vessels • - Heat Exchangers • - Rotating Equipment • - Tanks • - Piping Systems • - Pipelines • Well Containment • - Tanker Loading • - Helicopter Refueling Equipment - Haz. Area Ventilation - Non-Haz. Area Ventilation - Certified Electrical Equipment - Cargo Tanks Inert Gas System - Earth Bonding - Miscellaneous Ignition Control - Fire & Gas Detection • - Deluge Systems • - PFP / Fire / Explosion Protection • - Helideck Foam Systems • - Firewater Pumps • - Firewater Ring main • - PFP • - Nav. Aids • - Collision Avoidance • - ESD • - HIPPS • - Relief System • - Ballast & Cargo Management • Chemical Injection • Power Management • Fine Water Spray • Gaseous Fire Protection - Depressurization ESD - Well Isolation Depressurization - Pipeline Isolation Valves - ESDVs Well Isolation - SSIVs Pipeline Isolation Valves - Drilling Well Topsides ESDVs Control Eqpt.- SSIVs • - Temporary Refuge • - Escape & Evacuation Routes • - Emergency / Escape Lighting • - Communication Systems • - UPS • - Helicopter Facilities • - Open Haz. / Non-Haz. Drains • Open Non-Haz. Drains • Em. Power • Manual Firefighting - PSE - Rescue Facilities - Lifeboats / TEMPSC - Tertiary Means of Escape

6. Define your Maintenance / Reporting Strategy

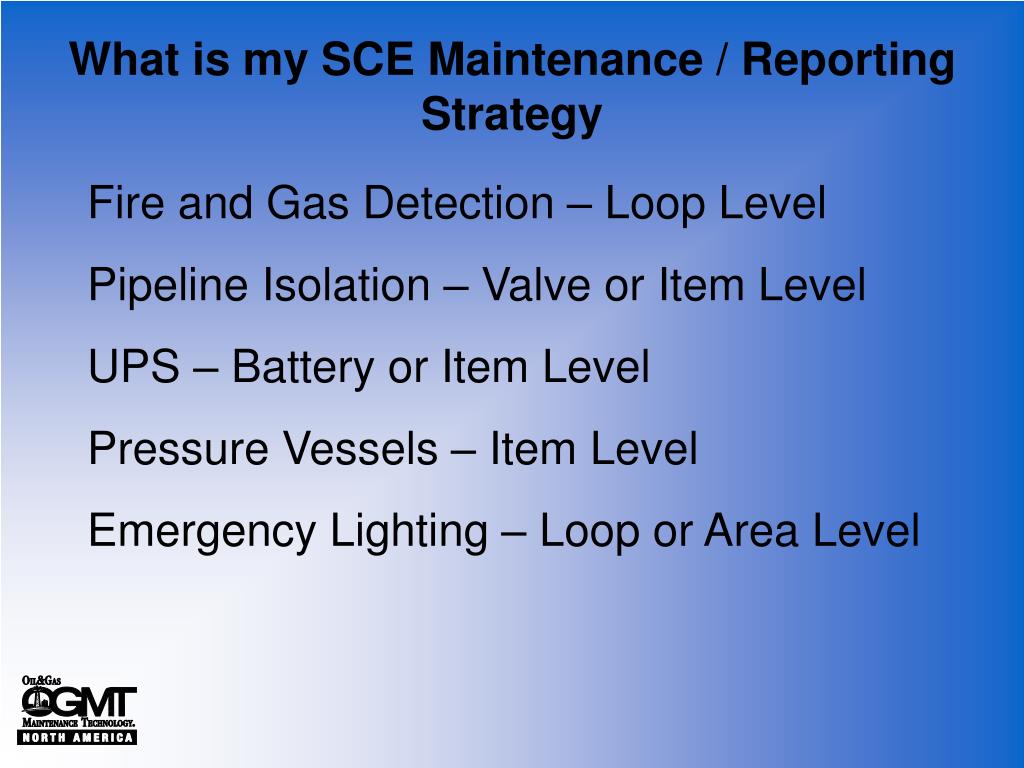

7. What is my SCE Maintenance / Reporting Strategy Fire and Gas Detection – Loop Level Pipeline Isolation – Valve or Item Level UPS – Battery or Item Level Pressure Vessels – Item Level Emergency Lighting – Loop or Area Level

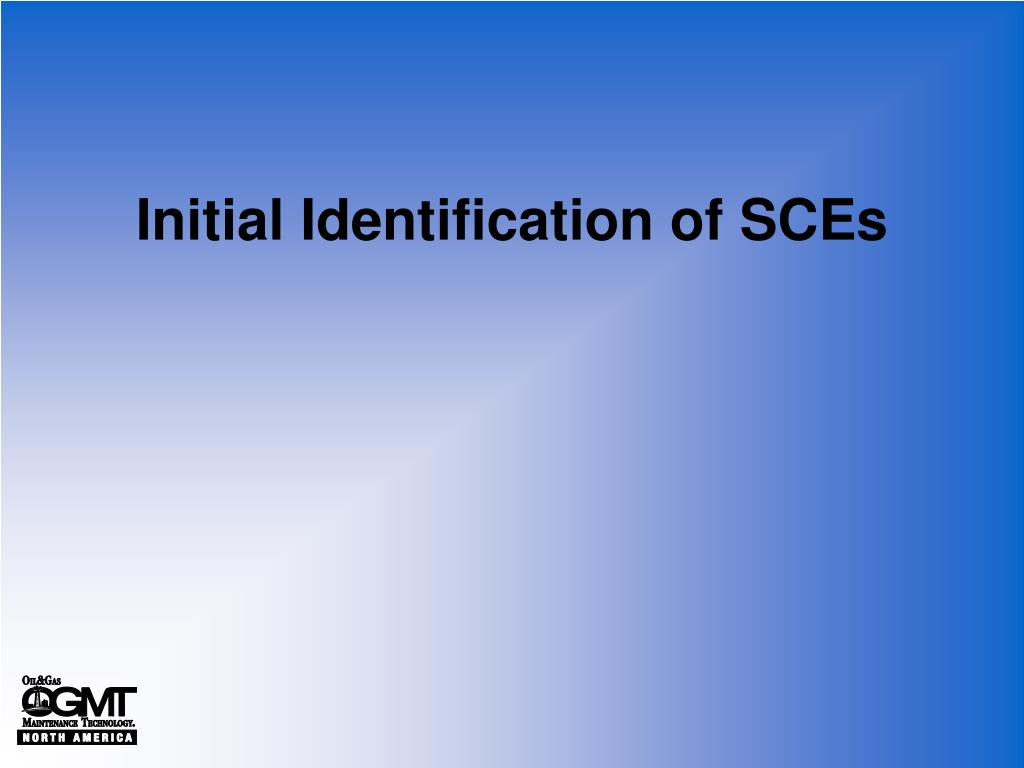

8. Initial Identification of SCEs

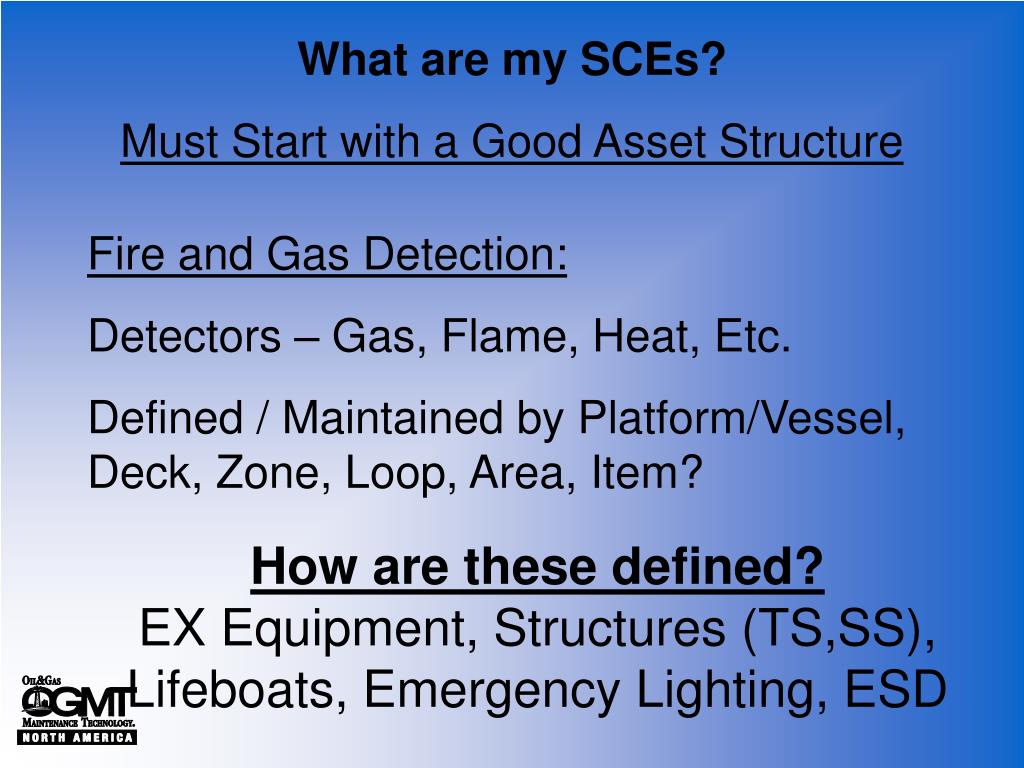

9. What are my SCEs? Must Start with a Good Asset Structure Fire and Gas Detection: Detectors – Gas, Flame, Heat, Etc. Defined / Maintained by Platform/Vessel, Deck, Zone, Loop, Area, Item? How are these defined? EX Equipment, Structures (TS,SS), Lifeboats, Emergency Lighting, ESD

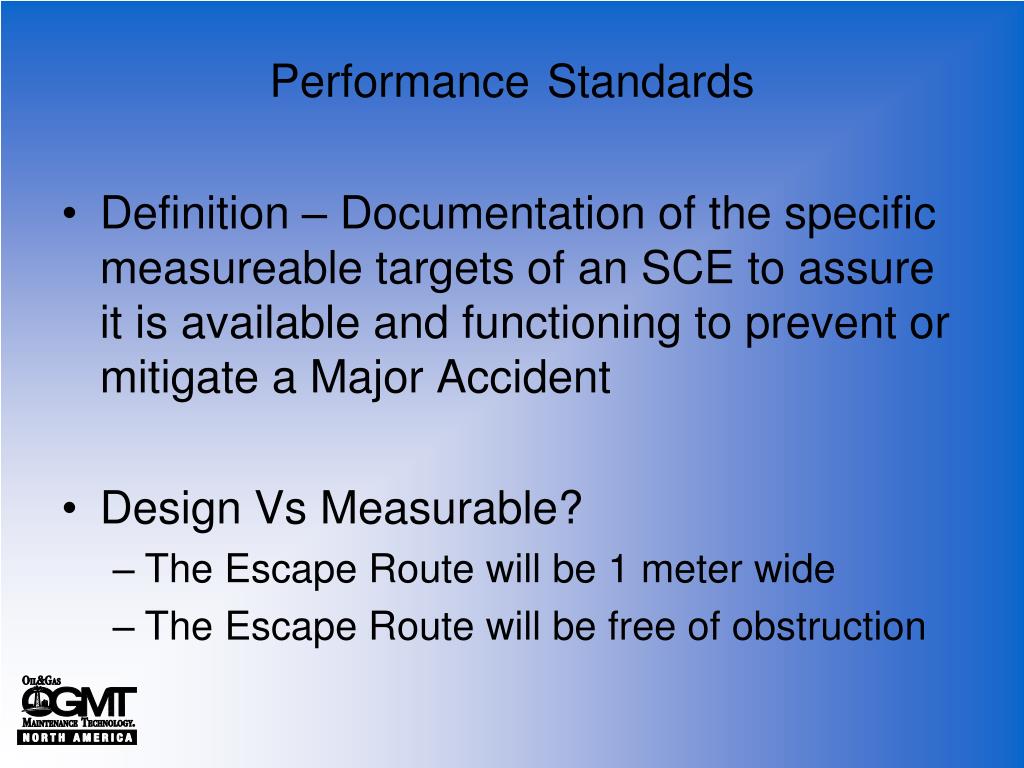

10. PerformanceStandards • Definition – Documentation of the specific measureable targets of an SCE to assure it is available and functioning to prevent or mitigate a Major Accident • Design Vs Measurable? • The Escape Route will be 1 meter wide • The Escape Route will be free of obstruction

11. Performance Standards should be:Understandable and Measurable • Technicians need to be able to pick up a PS and understand exactly what they are required to do. • The Assurance Activities should be measurable with either a Y/N or with a calculative response. • valve closes <30 seconds • Gas Detector alarms at >10 PPM • Emergency Lighting works? Y/N

12. Not Understandable and Not Measurable

13. Understandable and Measurable

14. Questions?Comments? Offshore Technical Integrity Safety Critical Elements and Performance Standards
