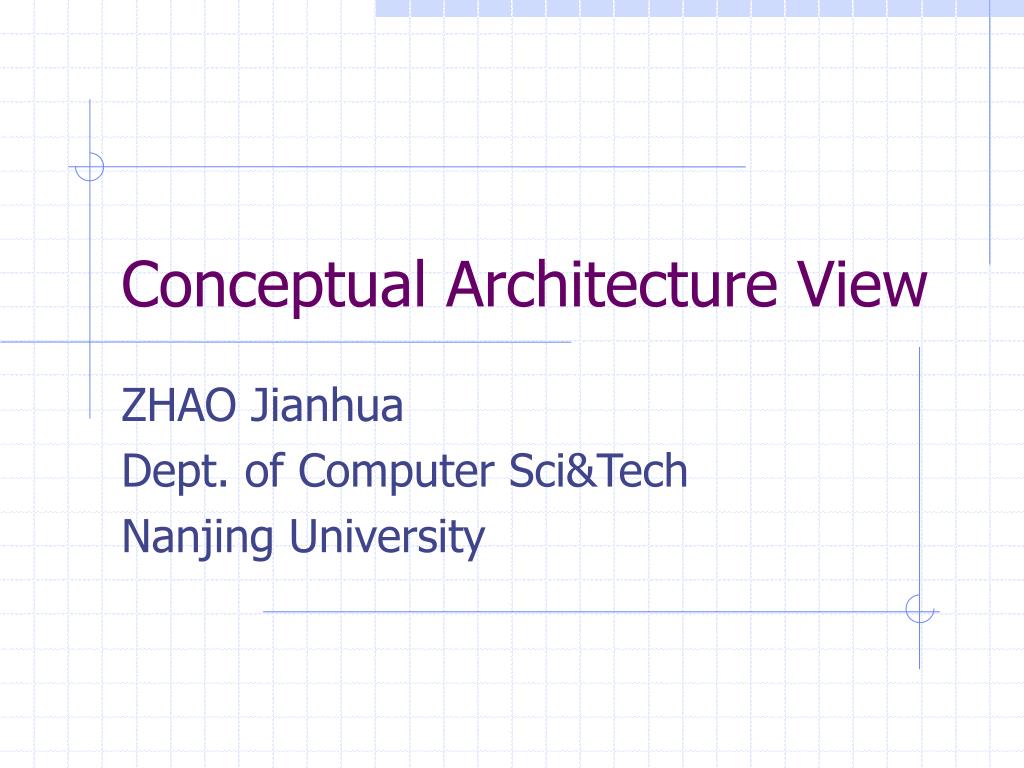

  1. Conceptual Architecture View ZHAO Jianhua Dept. of Computer Sci&Tech Nanjing University

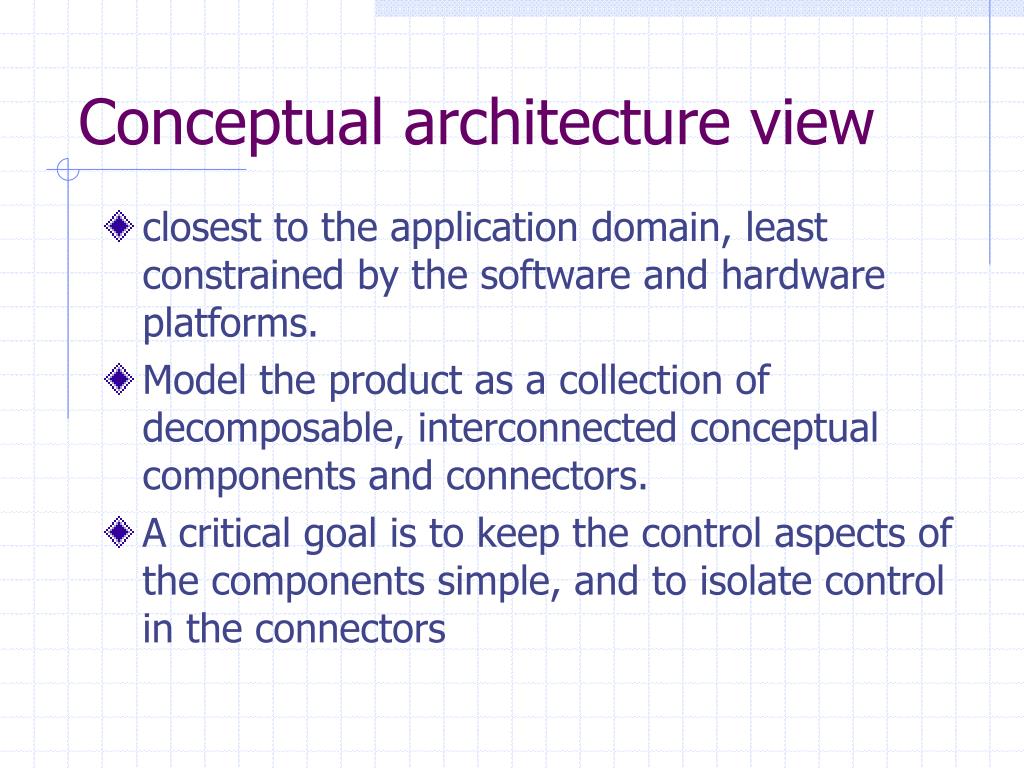

  2. Conceptual architecture view • closest to the application domain, least constrained by the software and hardware platforms. • Model the product as a collection of decomposable, interconnected conceptual components and connectors. • A critical goal is to keep the control aspects of the components simple, and to isolate control in the connectors

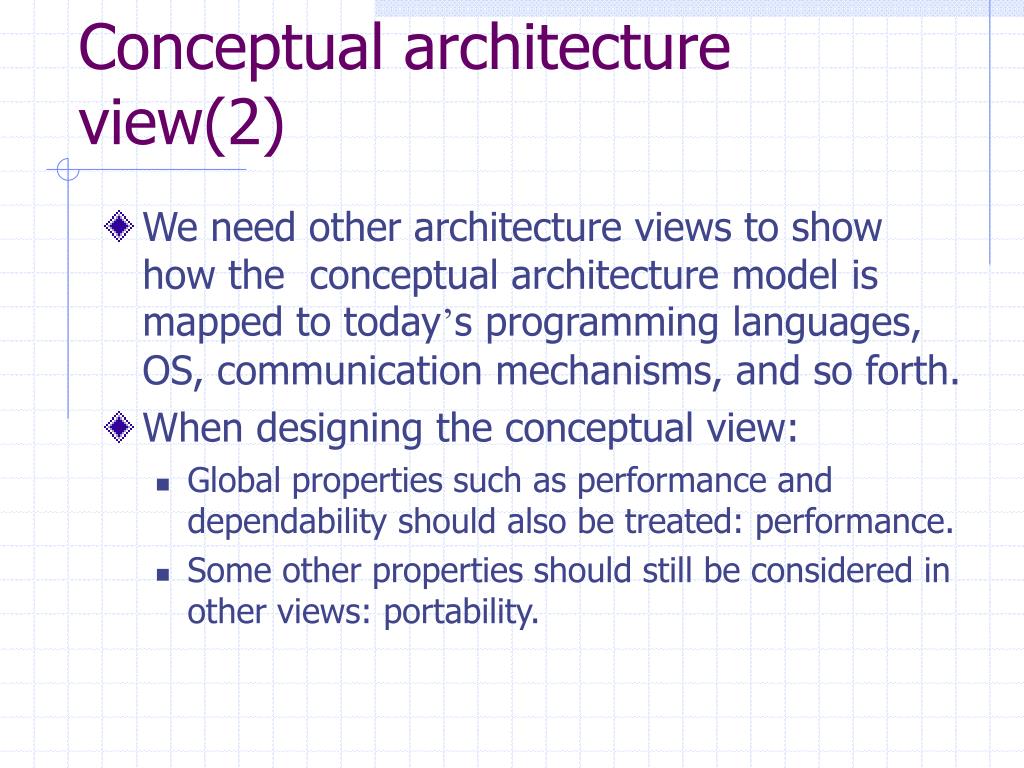

  3. Conceptual architecture view(2) • We need other architecture views to show how the conceptual architecture model is mapped to today’s programming languages, OS, communication mechanisms, and so forth. • When designing the conceptual view: • Global properties such as performance and dependability should also be treated: performance. • Some other properties should still be considered in other views: portability.

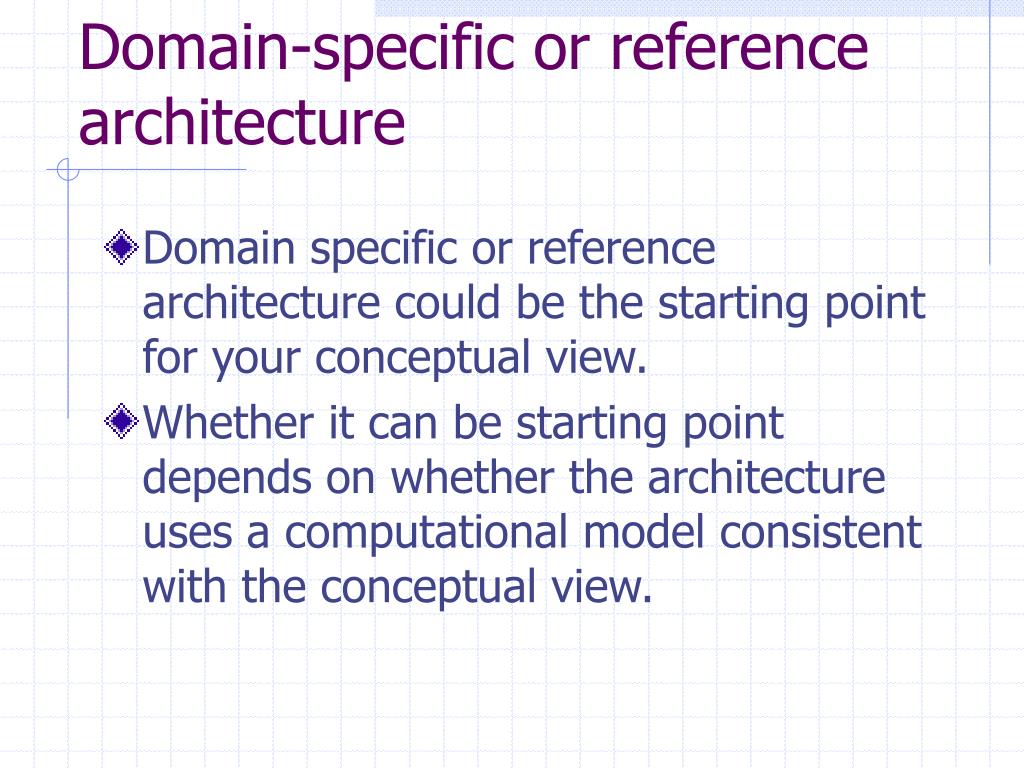

  4. Domain-specific or reference architecture • Domain specific or reference architecture could be the starting point for your conceptual view. • Whether it can be starting point depends on whether the architecture uses a computational model consistent with the conceptual view.

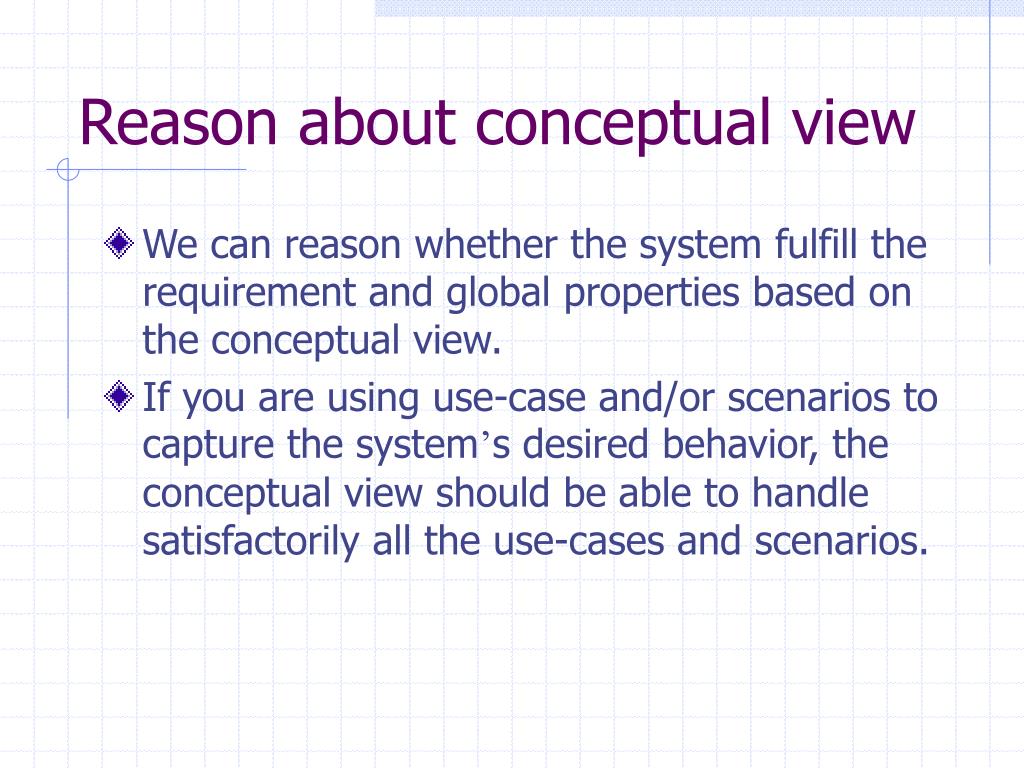

  5. Reason about conceptual view • We can reason whether the system fulfill the requirement and global properties based on the conceptual view. • If you are using use-case and/or scenarios to capture the system’s desired behavior, the conceptual view should be able to handle satisfactorily all the use-cases and scenarios.

  6. Design activities • Three phases to the conceptual view design: • Global analysis • Central design tasks • conceptual components • conceptual connectors • global evaluation • conceptual configuration • final design task • Resource budgets: assign resources to the components and connectors in the configuration.

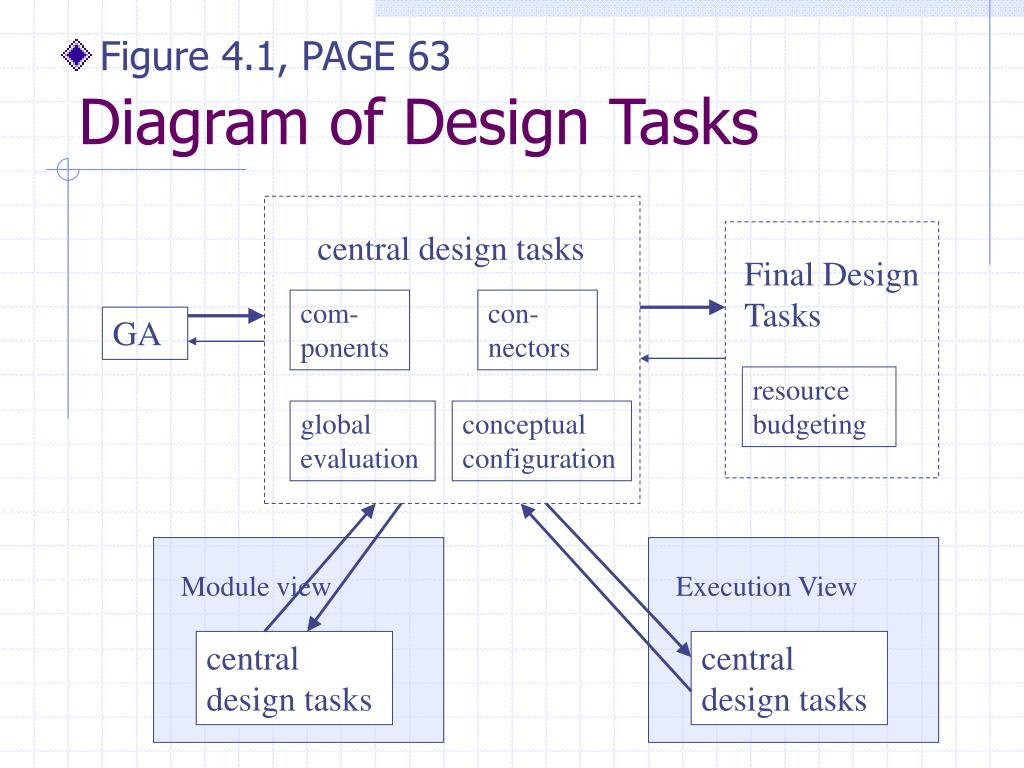

  7. Diagram of Design Tasks • Figure 4.1, PAGE 63 central design tasks Final Design Tasks com-ponents con-nectors GA resource budgeting global evaluation conceptual configuration Module view Execution View central design tasks central design tasks

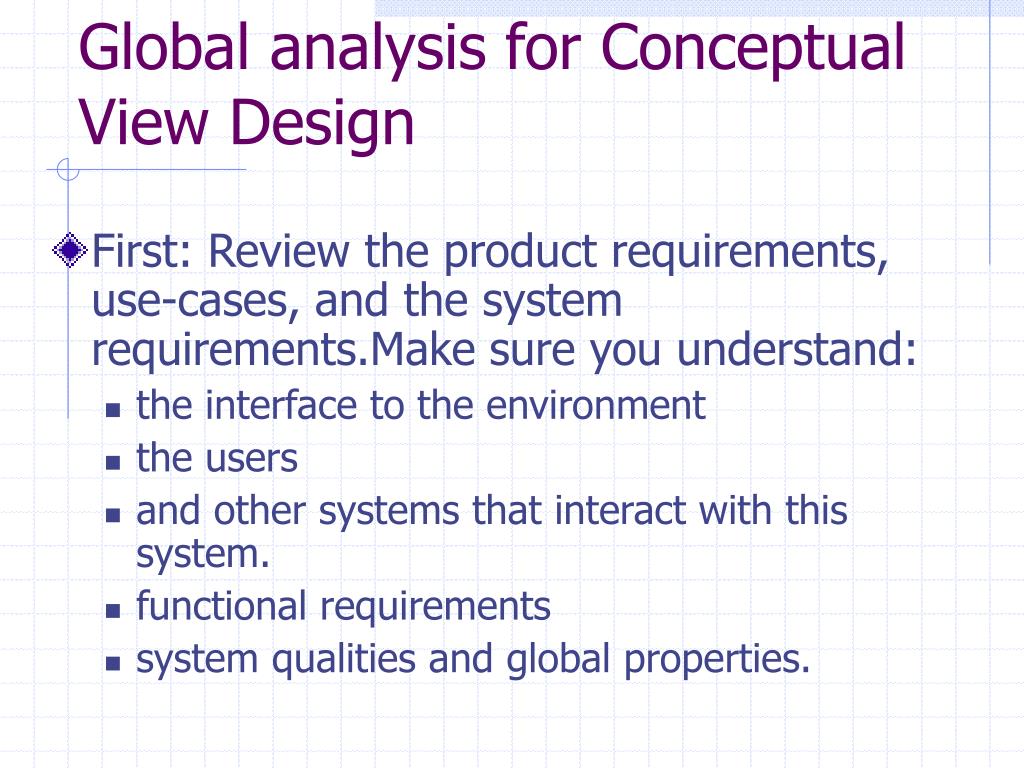

  8. Global analysis for Conceptual View Design • First: Review the product requirements, use-cases, and the system requirements.Make sure you understand: • the interface to the environment • the users • and other systems that interact with this system. • functional requirements • system qualities and global properties.

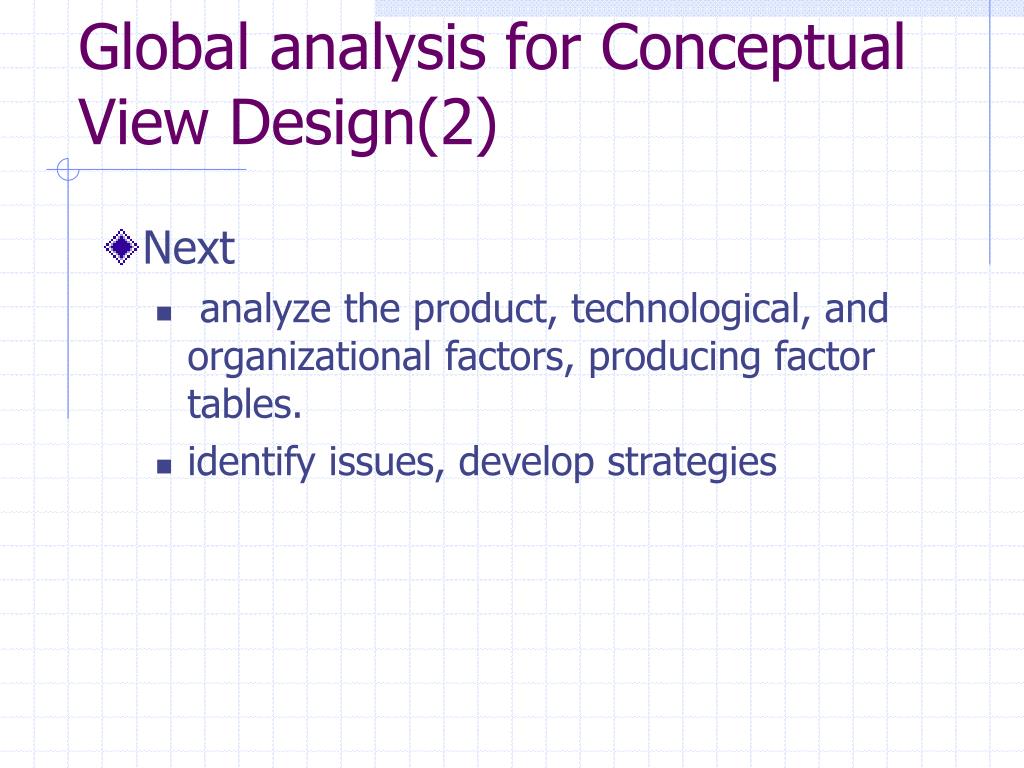

  9. Global analysis for Conceptual View Design(2) • Next • analyze the product, technological, and organizational factors, producing factor tables. • identify issues, develop strategies

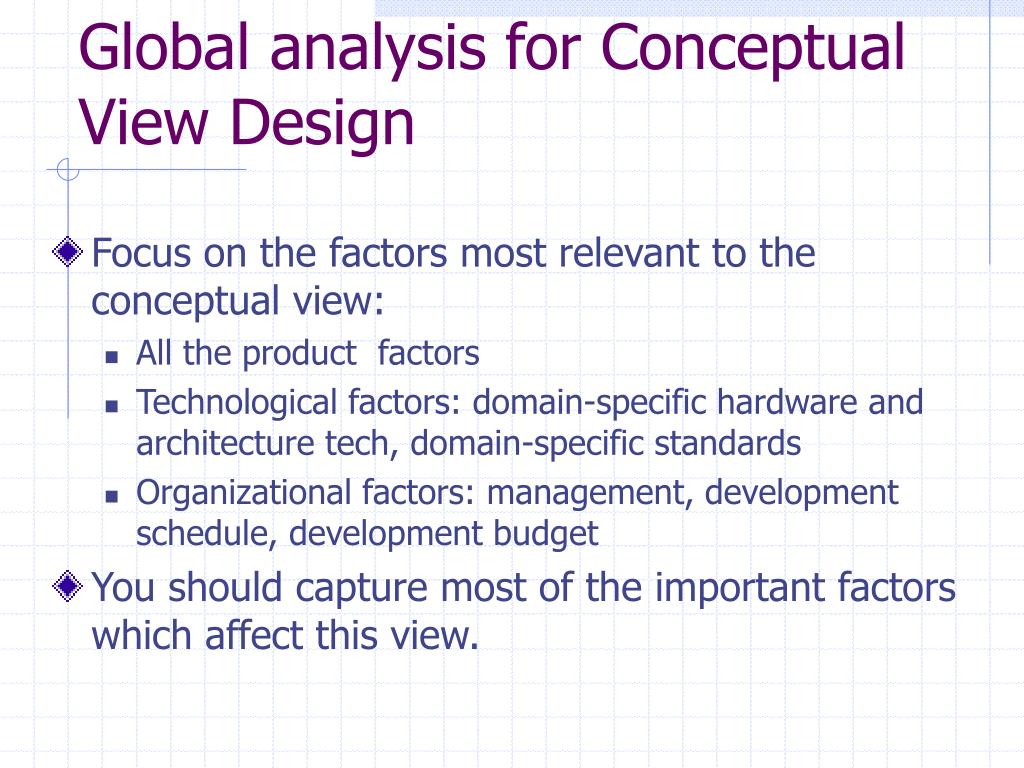

  10. Global analysis for Conceptual View Design • Focus on the factors most relevant to the conceptual view: • All the product factors • Technological factors: domain-specific hardware and architecture tech, domain-specific standards • Organizational factors: management, development schedule, development budget • You should capture most of the important factors which affect this view.

  11. Central Design Tasks • Using the strategies to guide the design • Define the components and the connectors. • The majority of components come from the requirement and the domain.

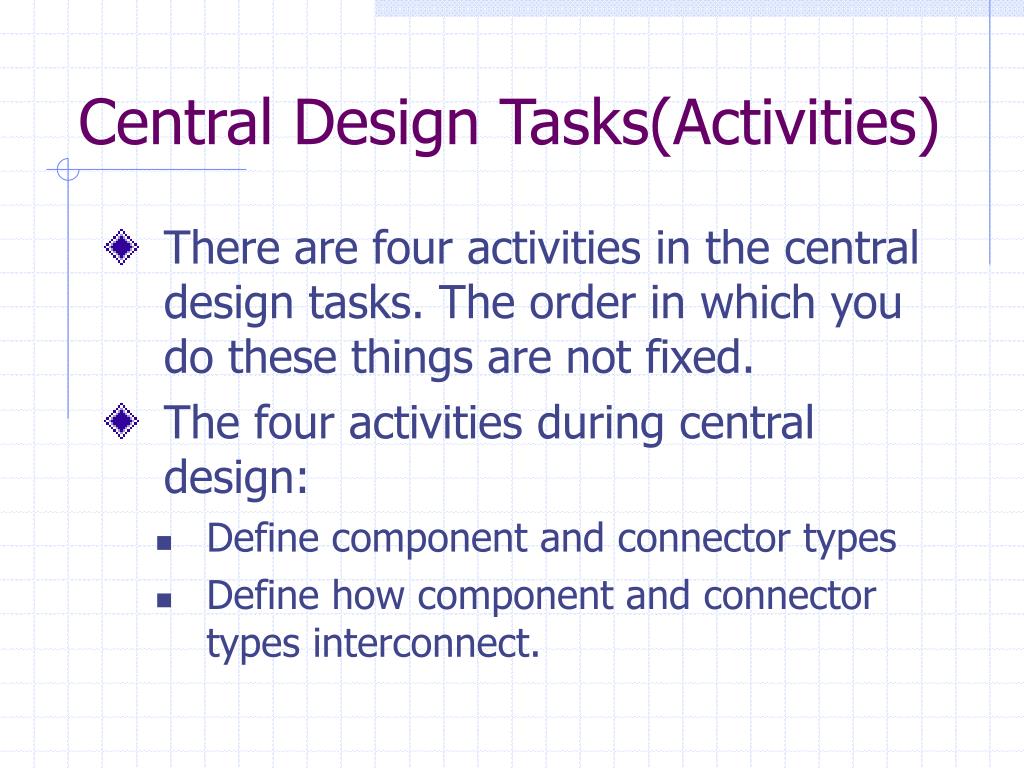

  12. Central Design Tasks(Activities) • There are four activities in the central design tasks. The order in which you do these things are not fixed. • The four activities during central design: • Define component and connector types • Define how component and connector types interconnect.

  13. Central Design Tasks(Activities) • Map the system functionality to components and connectors. • Functional behavior in components • Control aspects in connectors. • Define the instances of the component and connector types that exist in the product, and how they are interconnected.

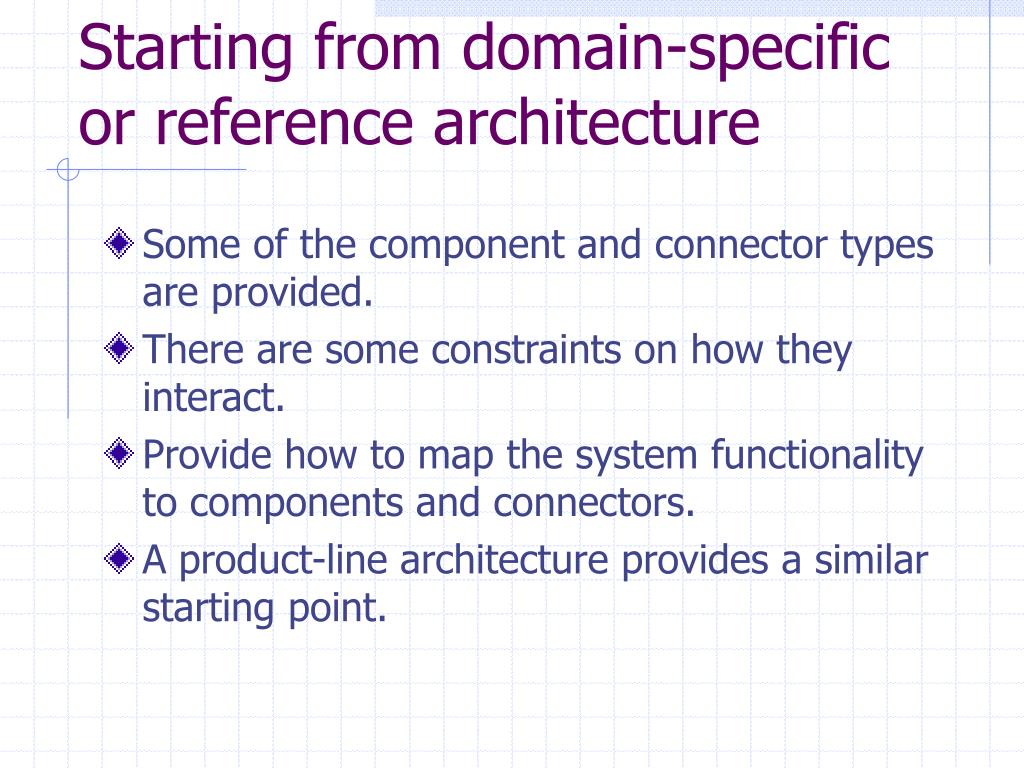

  14. Starting from domain-specific or reference architecture • Some of the component and connector types are provided. • There are some constraints on how they interact. • Provide how to map the system functionality to components and connectors. • A product-line architecture provides a similar starting point.

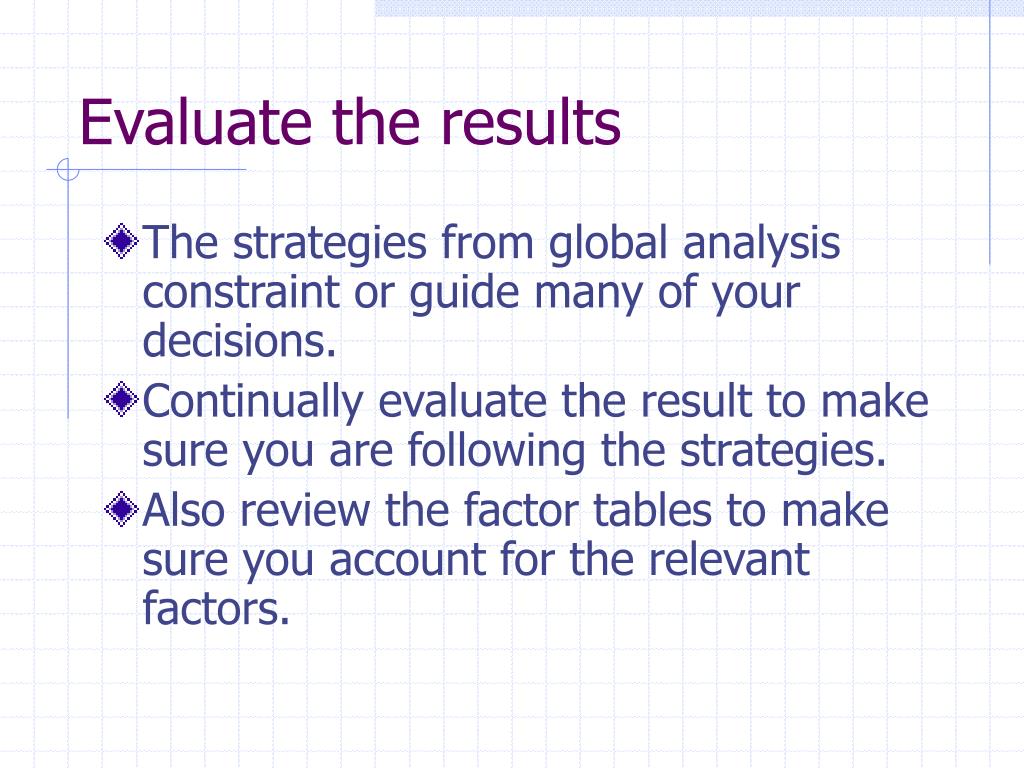

  15. Evaluate the results • The strategies from global analysis constraint or guide many of your decisions. • Continually evaluate the result to make sure you are following the strategies. • Also review the factor tables to make sure you account for the relevant factors.

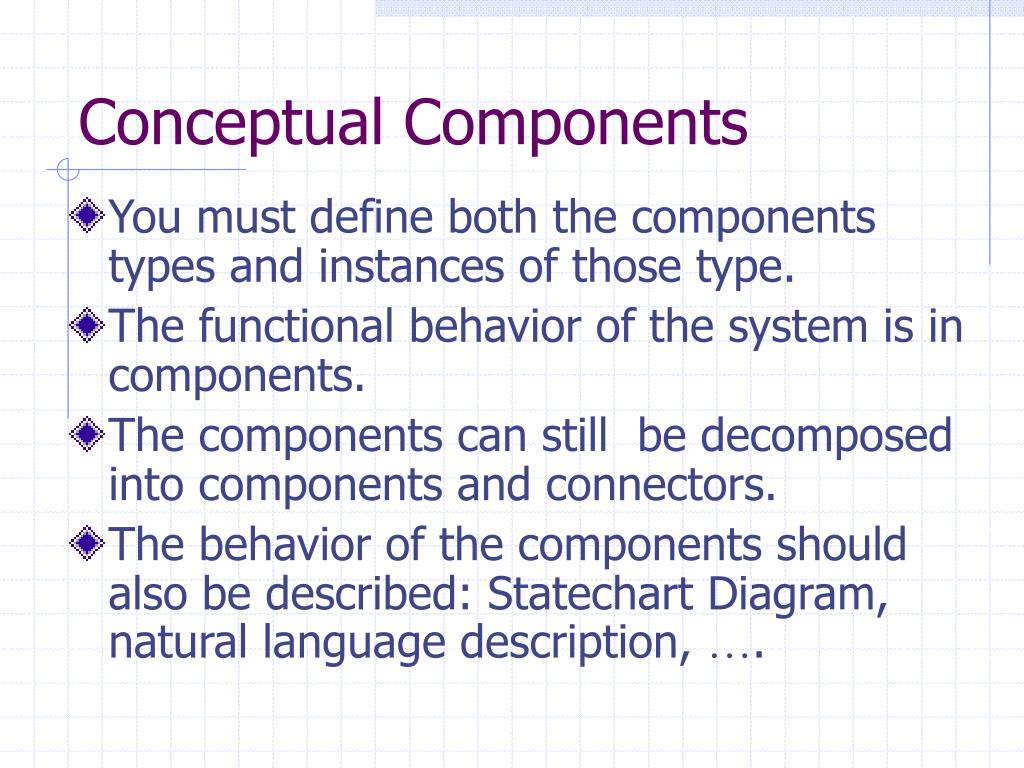

  16. Conceptual Components • You must define both the components types and instances of those type. • The functional behavior of the system is in components. • The components can still be decomposed into components and connectors. • The behavior of the components should also be described: Statechart Diagram, natural language description, ….

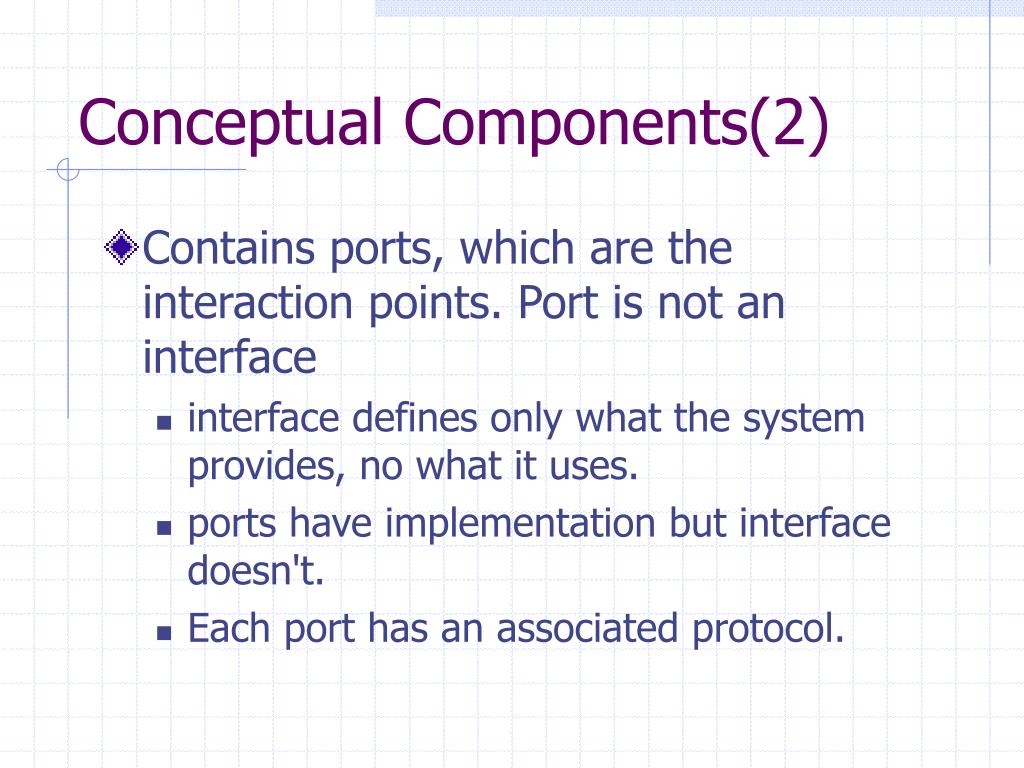

  17. Conceptual Components(2) • Contains ports, which are the interaction points. Port is not an interface • interface defines only what the system provides, no what it uses. • ports have implementation but interface doesn't. • Each port has an associated protocol.

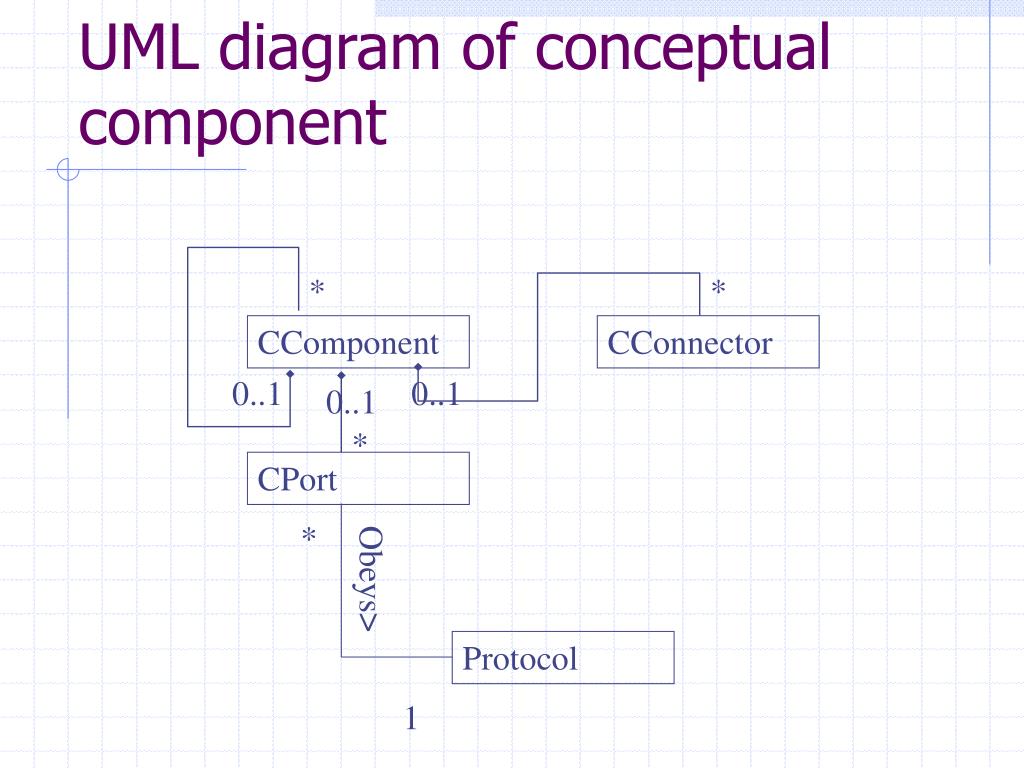

  18. * * CComponent CConnector 0..1 0..1 0..1 * CPort * Obeys> Protocol UML diagram of conceptual component 1

  19. Conceptual Connectors • Define the connector types and the instances of the types. • The control of the system is concentrated in the connectors. • Connectors can be decomposed into components and connectors.

  20. Conceptual Connectors • Connectors contain roles as the point of interaction with other architecture elements. • The roles obey an associated protocol. • You may need to describe the behavior of connectors. • you must focus on the control aspects.

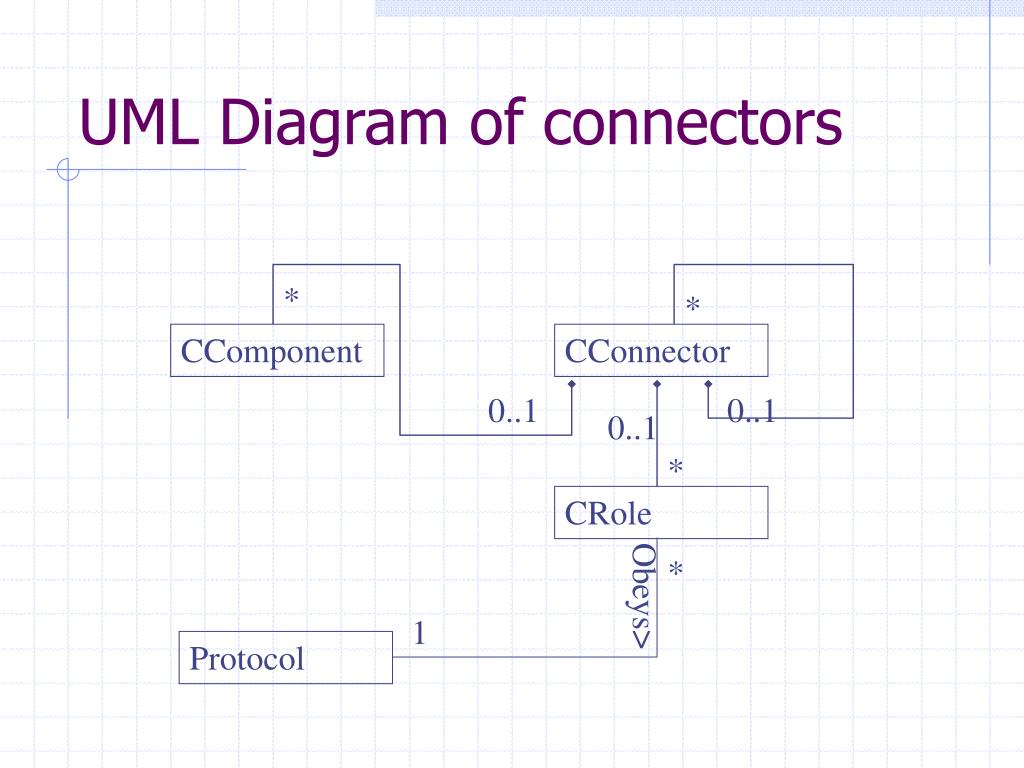

  21. * * CComponent CConnector 0..1 0..1 0..1 * CRole Obeys> * 1 Protocol UML Diagram of connectors

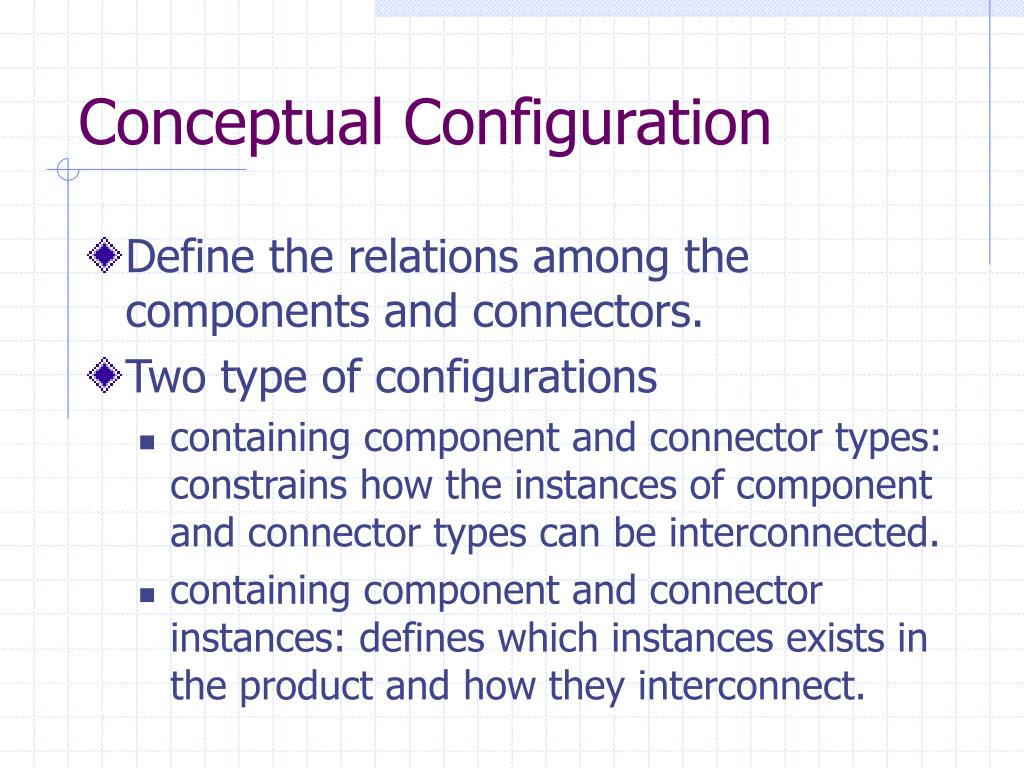

  22. Conceptual Configuration • Define the relations among the components and connectors. • Two type of configurations • containing component and connector types: constrains how the instances of component and connector types can be interconnected. • containing component and connector instances: defines which instances exists in the product and how they interconnect.

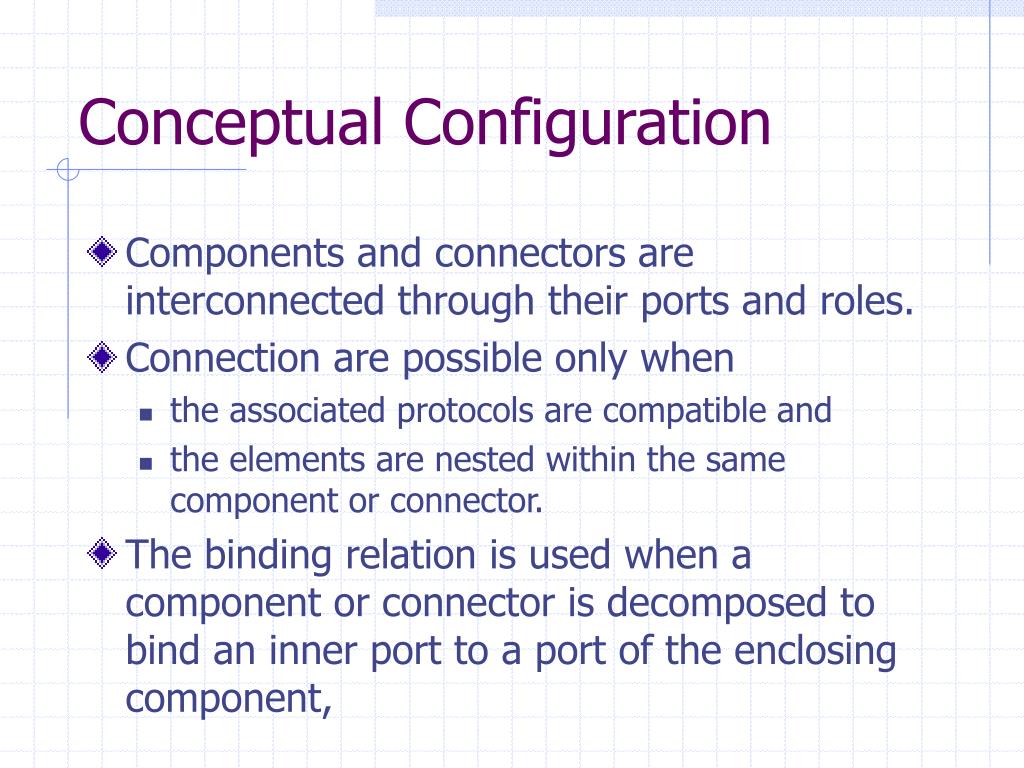

  23. Conceptual Configuration • Components and connectors are interconnected through their ports and roles. • Connection are possible only when • the associated protocols are compatible and • the elements are nested within the same component or connector. • The binding relation is used when a component or connector is decomposed to bind an inner port to a port of the enclosing component,

  24. * * * * CPort CRole cconnection * * cbinding cbinding UML Diagram of configuration {cconnection can connect cport and crole only when the respective ccomponent and cconnector are enclosed directly by the same element} {connected cport and crole should have compatible protocols} {cbinding can connect cport(crole) only to a cport(crole) of the enclosing ccomponent(cconnector)

  25. Global Evaluation • During the central design tasks you must also periodically evaluate the interactions among your decisions.

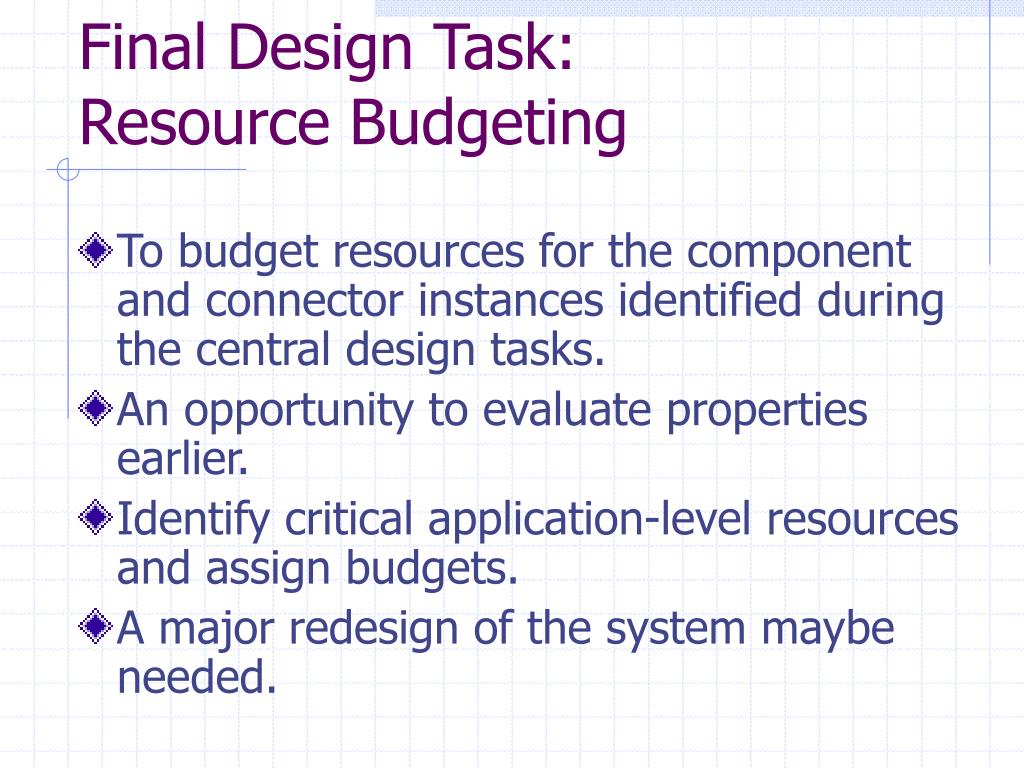

  26. Final Design Task: Resource Budgeting • To budget resources for the component and connector instances identified during the central design tasks. • An opportunity to evaluate properties earlier. • Identify critical application-level resources and assign budgets. • A major redesign of the system maybe needed.

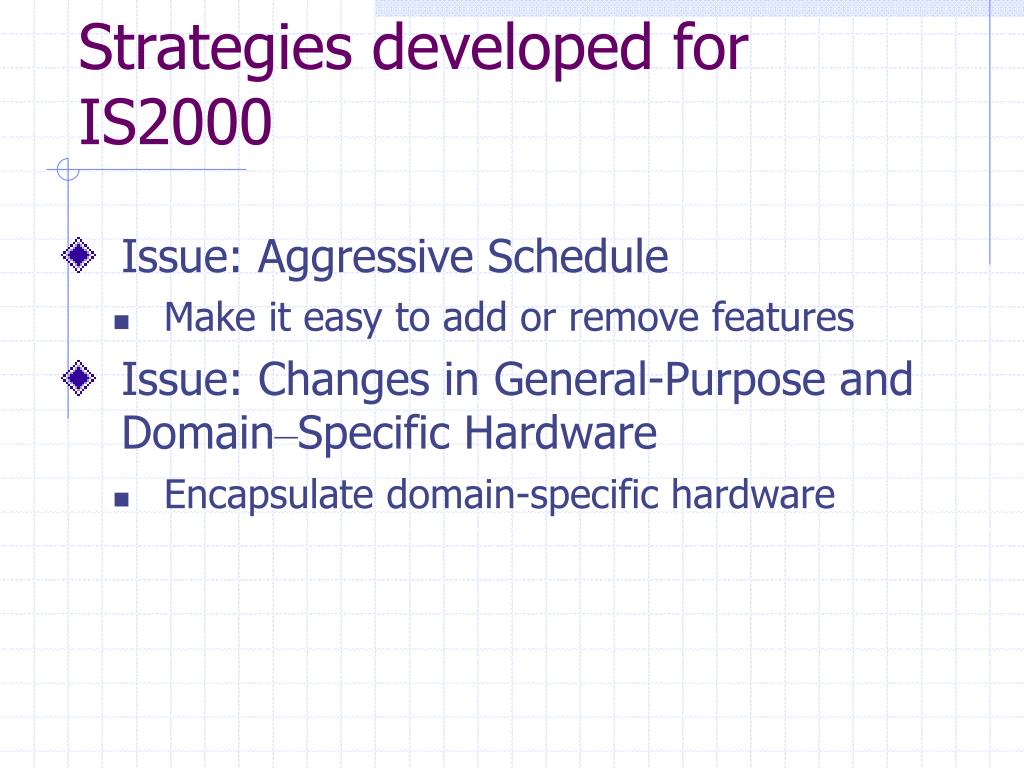

  27. Strategies developed for IS2000 • Issue: Aggressive Schedule • Make it easy to add or remove features • Issue: Changes in General-Purpose and Domain–Specific Hardware • Encapsulate domain-specific hardware

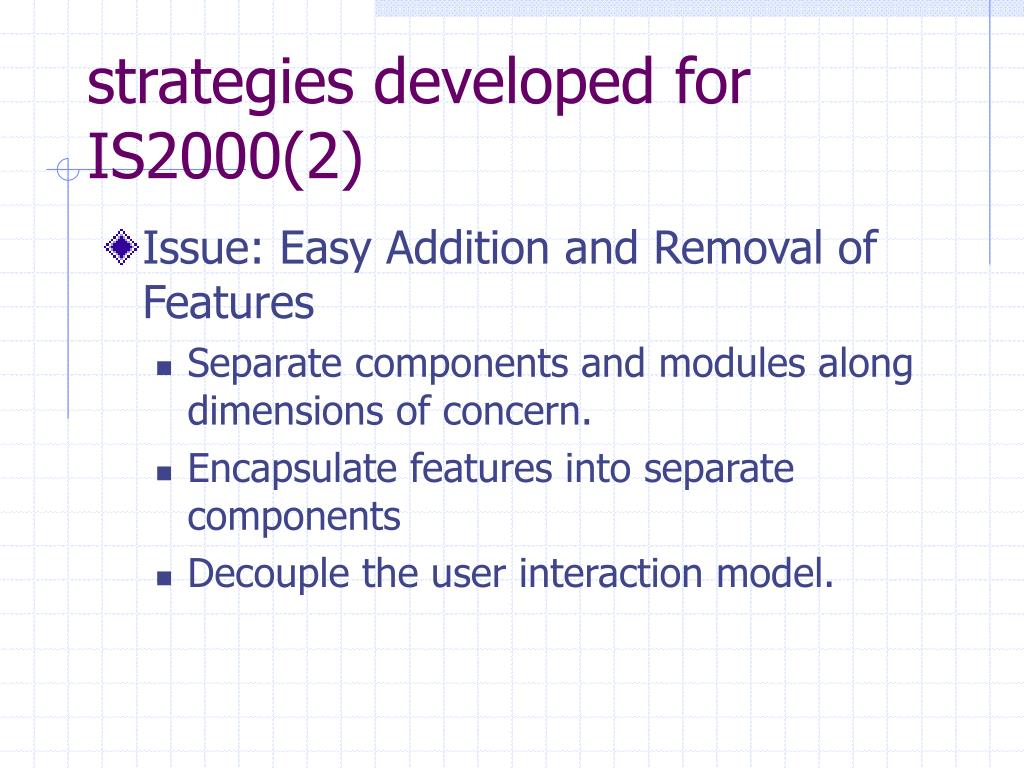

  28. strategies developed for IS2000(2) • Issue: Easy Addition and Removal of Features • Separate components and modules along dimensions of concern. • Encapsulate features into separate components • Decouple the user interaction model.

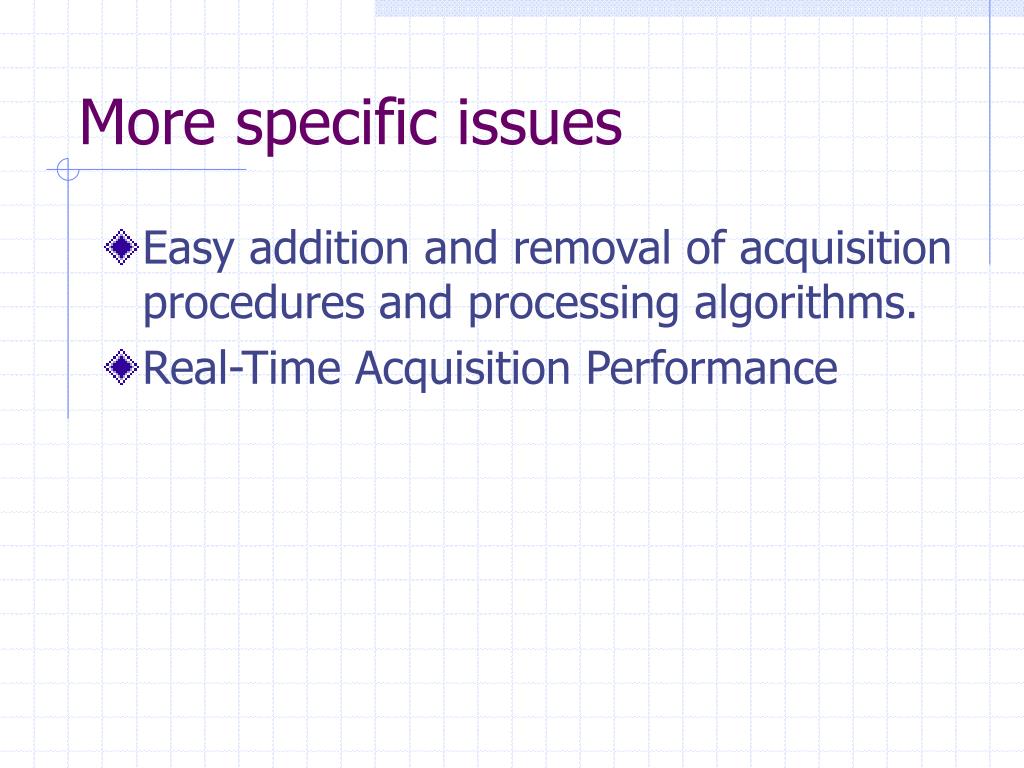

  29. More specific issues • Easy addition and removal of acquisition procedures and processing algorithms. • Real-Time Acquisition Performance

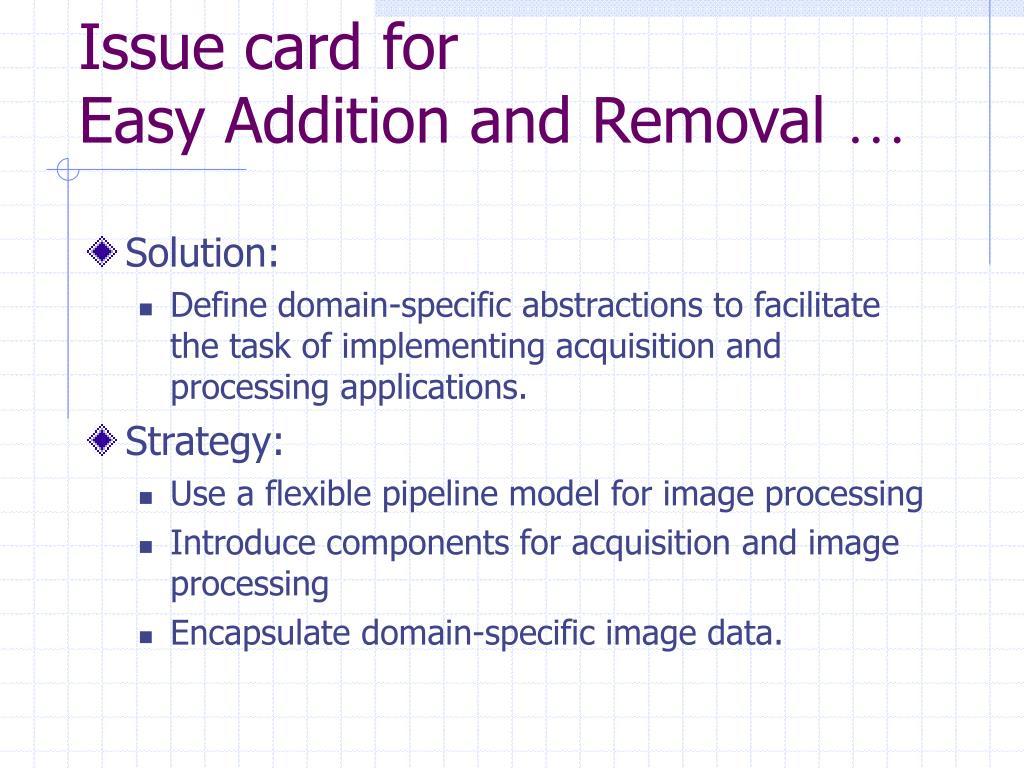

  30. Issue card for Easy Addition and Removal … • Solution: • Define domain-specific abstractions to facilitate the task of implementing acquisition and processing applications. • Strategy: • Use a flexible pipeline model for image processing • Introduce components for acquisition and image processing • Encapsulate domain-specific image data.

  31. Issue card forReal-Time Acquisition Performance • Solution: • Partition the system into separate components for algorithms, communication, and control to provide the flexibility to implement several different strategies. • Strategy: • Separate time-critical components form nontime-critical components.

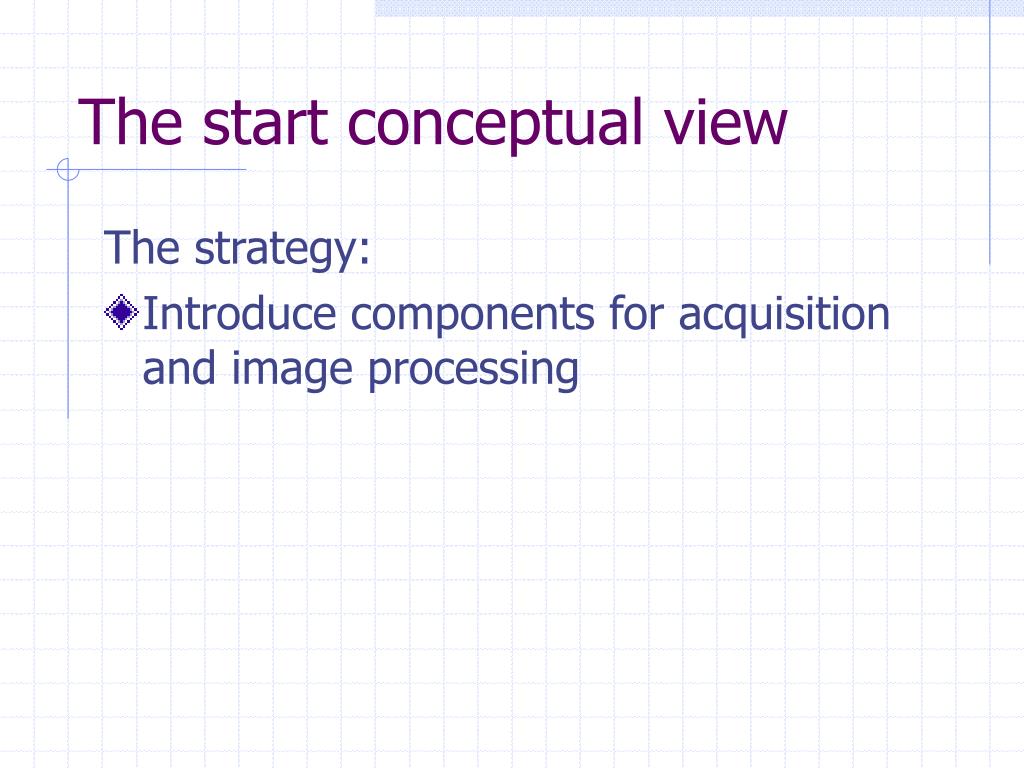

  32. The start conceptual view The strategy: • Introduce components for acquisition and image processing

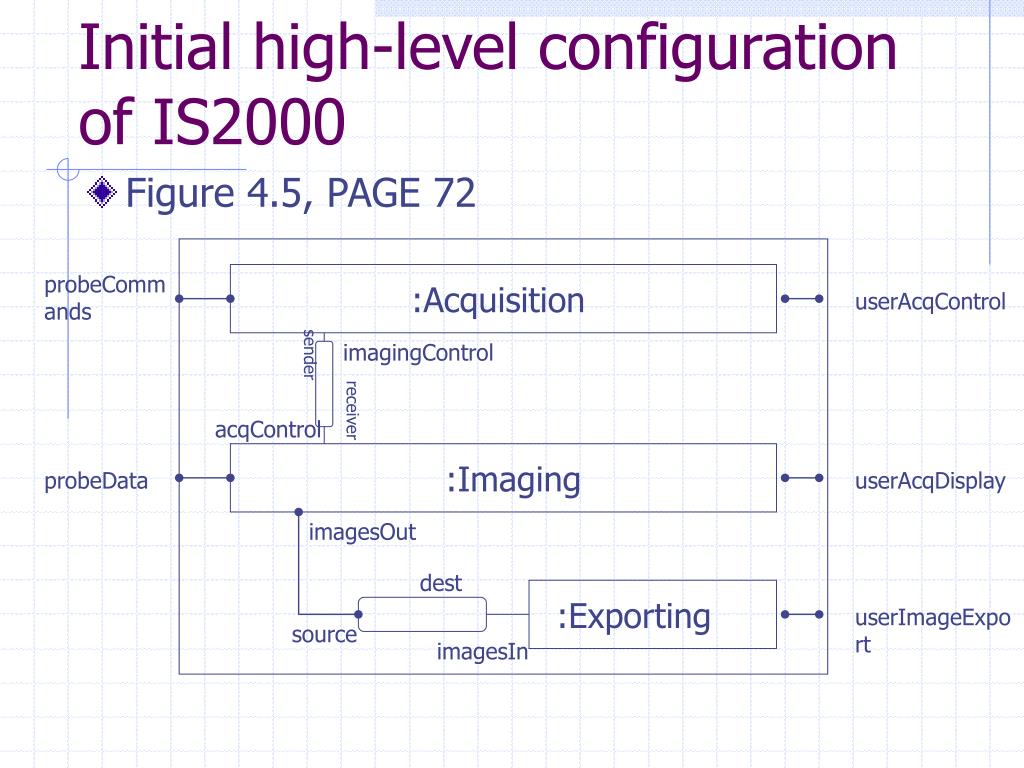

  33. Initial high-level configuration of IS2000 • Figure 4.5, PAGE 72 probeCommands :Acquisition userAcqControl sender imagingControl receiver acqControl :Imaging probeData userAcqDisplay imagesOut dest :Exporting userImageExport source imagesIn

  34. Decomposing the system • Encapsulate domain-specific hardware. • Create a component for communicating with the probe in both the Acquisition and the Imaging components: ProbeControl, DataCollection • They will be in same layer in module view.

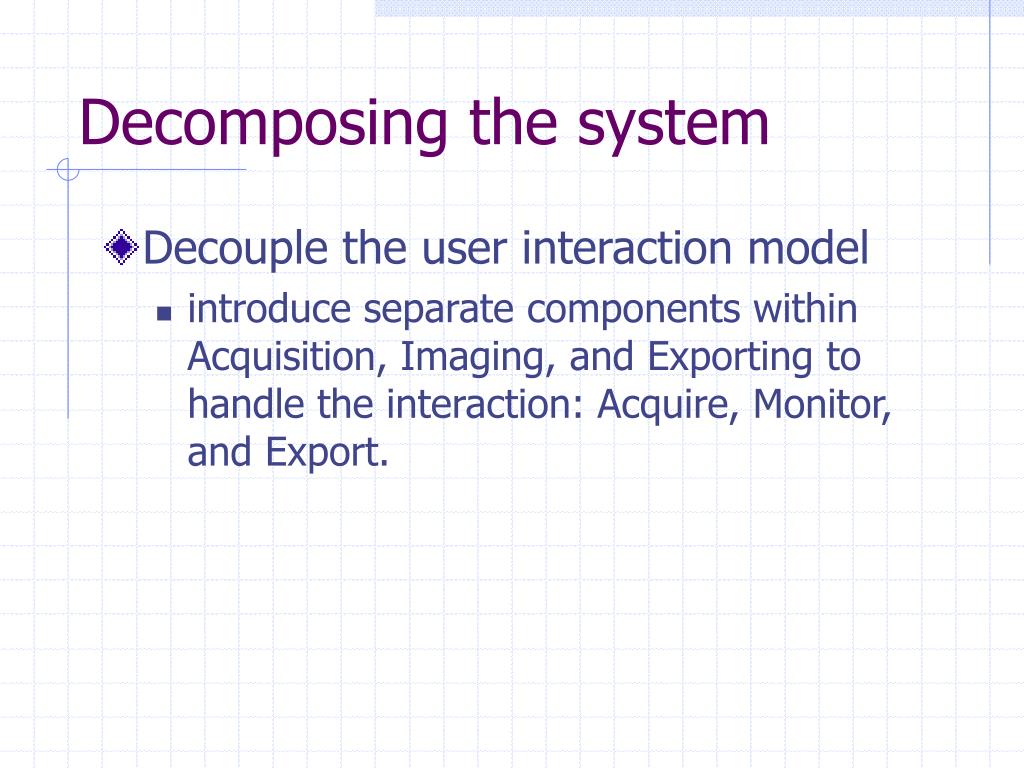

  35. Decomposing the system • Decouple the user interaction model • introduce separate components within Acquisition, Imaging, and Exporting to handle the interaction: Acquire, Monitor, and Export.

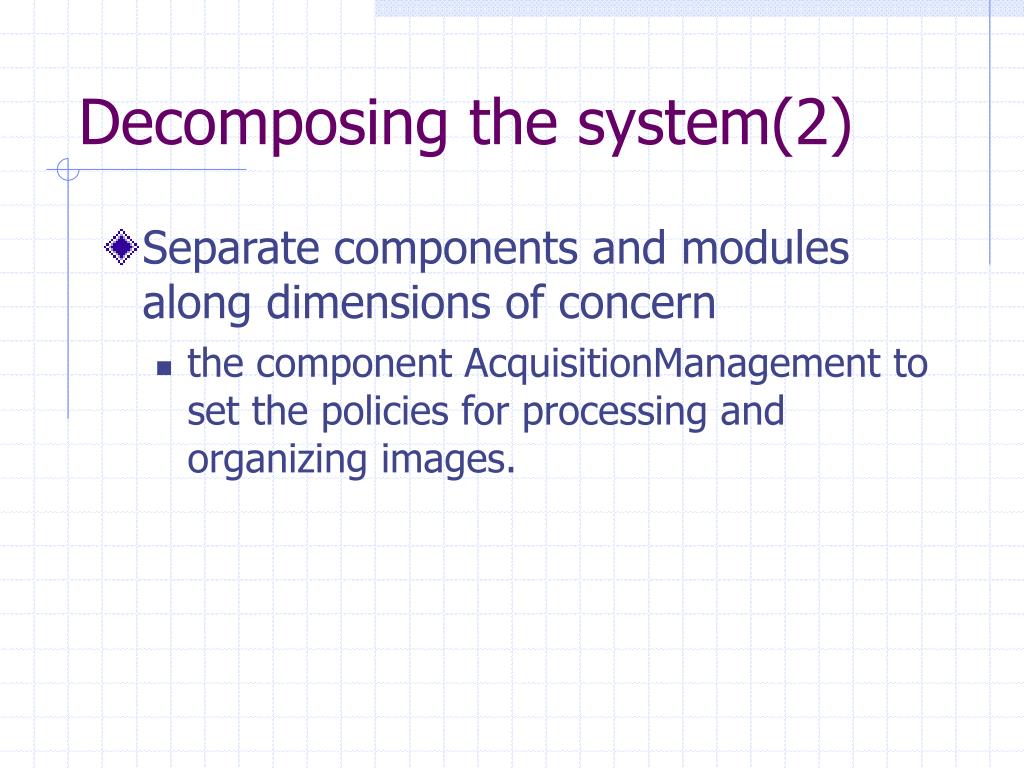

  36. Decomposing the system(2) • Separate components and modules along dimensions of concern • the component AcquisitionManagement to set the policies for processing and organizing images.

  37. Decomposing the system(2) • Separate time-critical from nontime-critical components • Split the processing of images into ImageProcessing and PostProcessing. • ImageProcessing for time-cirtical initial procesing of the raw data. • Encapsulate domain-specific image data • Decompose Exporting component into the Image Collection, Export, and Comm.

  38. Refined high-level configuration of IS2000 • Figure 4.6 PAGE 73 • It’s not the final configuration. • Not all the ports have been named. • connectors are only roughly defined.

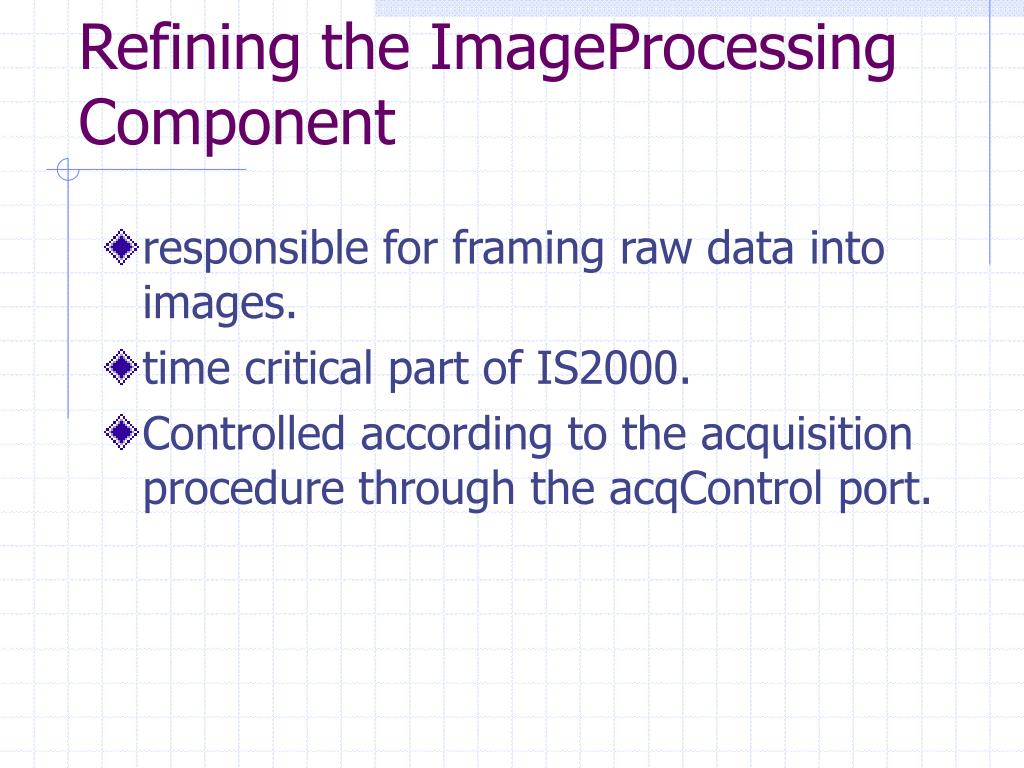

  39. Refining the ImageProcessing Component • responsible for framing raw data into images. • time critical part of IS2000. • Controlled according to the acquisition procedure through the acqControl port.

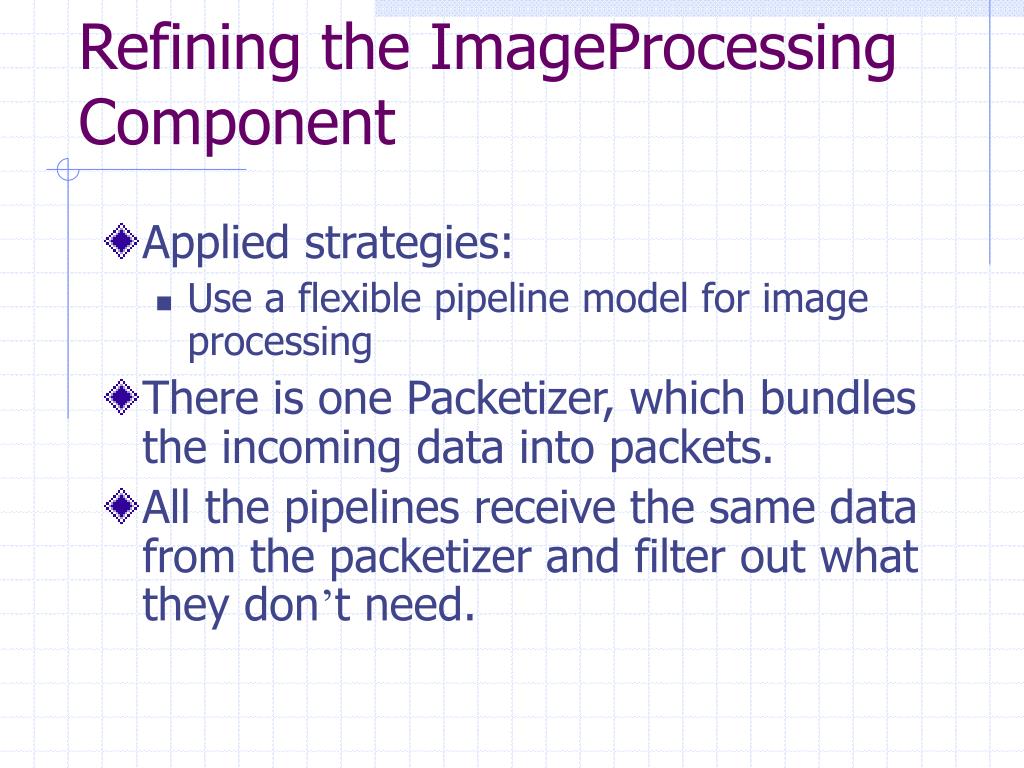

  40. Refining the ImageProcessing Component • Applied strategies: • Use a flexible pipeline model for image processing • There is one Packetizer, which bundles the incoming data into packets. • All the pipelines receive the same data from the packetizer and filter out what they don’t need.

  41. The diagram of ImageProcessing decomposition • Figure 4.7, PAGE 75 rawData Input acqControl packetOut Packetizer dest PacketPipe source acqControl ImagePipeline * franedOutput

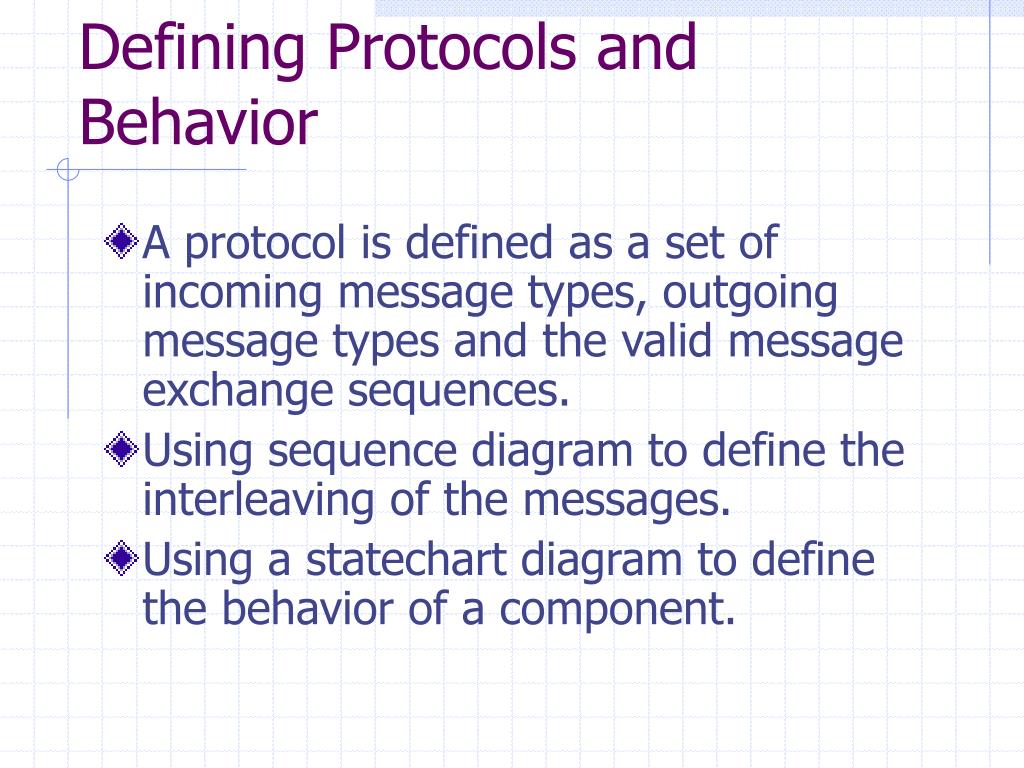

  42. Defining Protocols and Behavior • A protocol is defined as a set of incoming message types, outgoing message types and the valid message exchange sequences. • Using sequence diagram to define the interleaving of the messages. • Using a statechart diagram to define the behavior of a component.

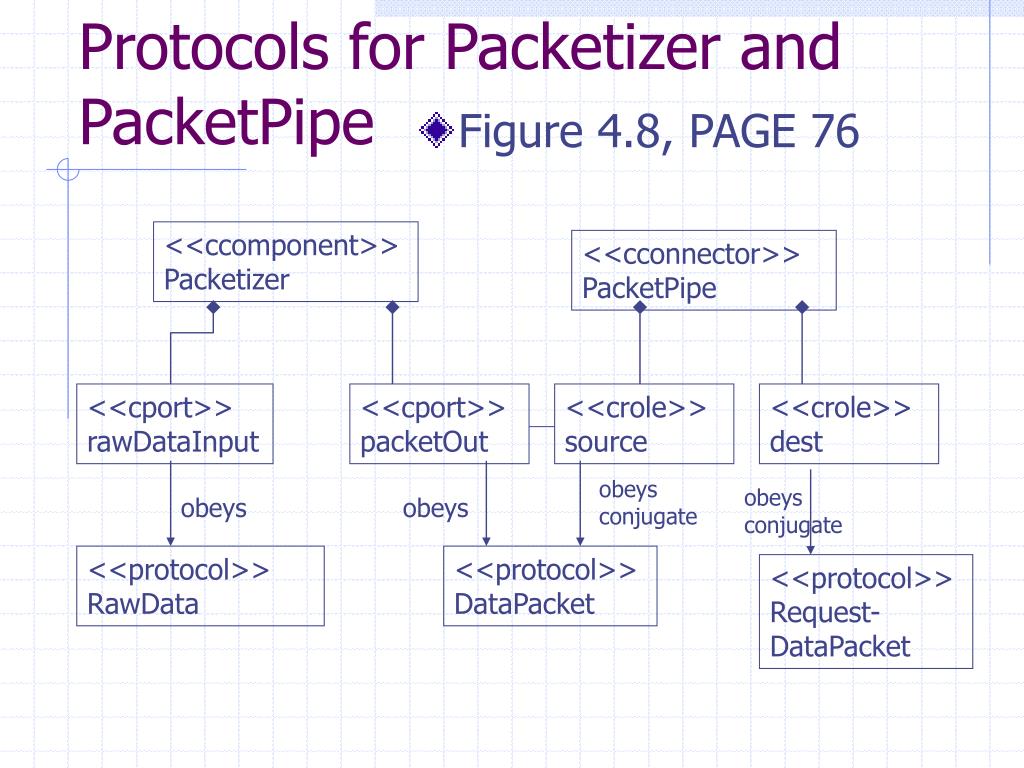

  43. Protocols for Packetizer and PacketPipe • Figure 4.8, PAGE 76 <<ccomponent>> Packetizer <<cconnector>> PacketPipe <<cport>> rawDataInput <<cport>> packetOut <<crole>> source <<crole>> dest obeys conjugate obeys conjugate obeys obeys <<protocol>> RawData <<protocol>> DataPacket <<protocol>> Request-DataPacket

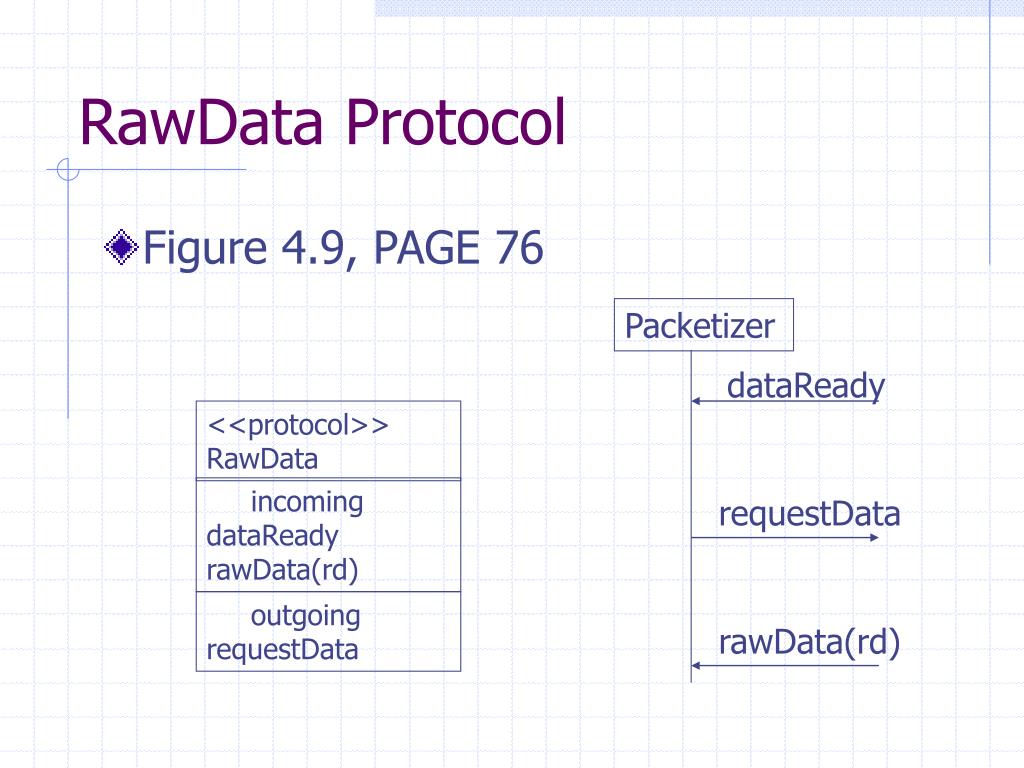

  44. Packetizer <<protocol>> RawData dataReady incoming dataReady rawData(rd) requestData outgoing requestData rawData(rd) RawData Protocol • Figure 4.9, PAGE 76

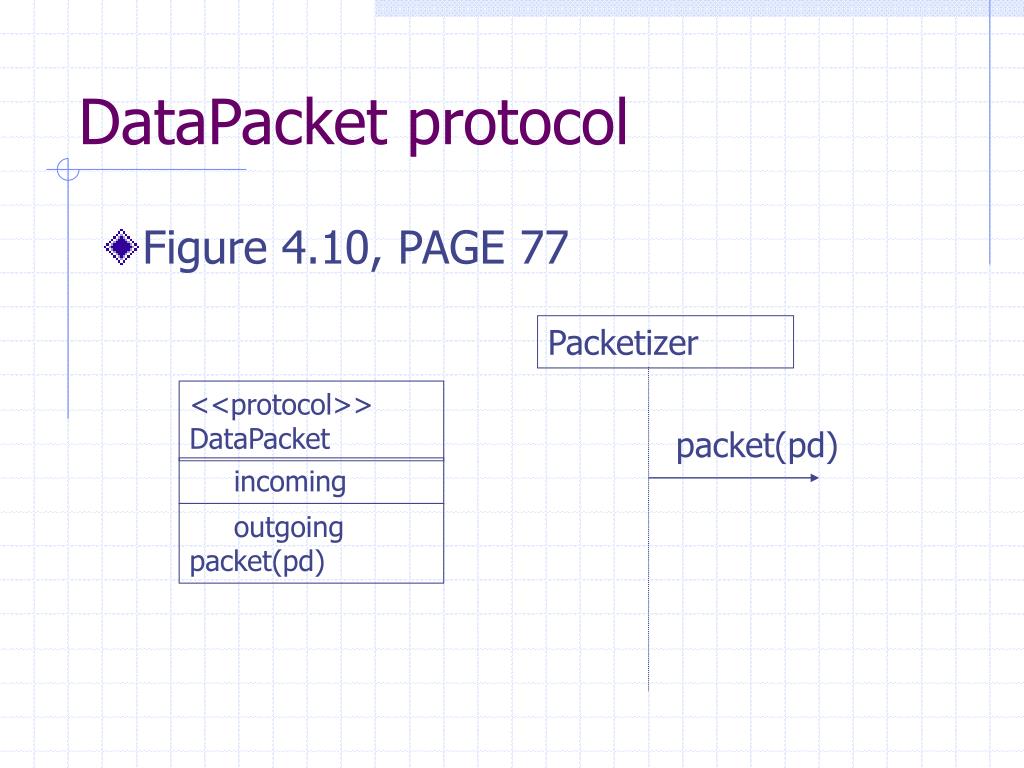

  45. <<protocol>> DataPacket incoming outgoing packet(pd) DataPacket protocol • Figure 4.10, PAGE 77 Packetizer packet(pd)

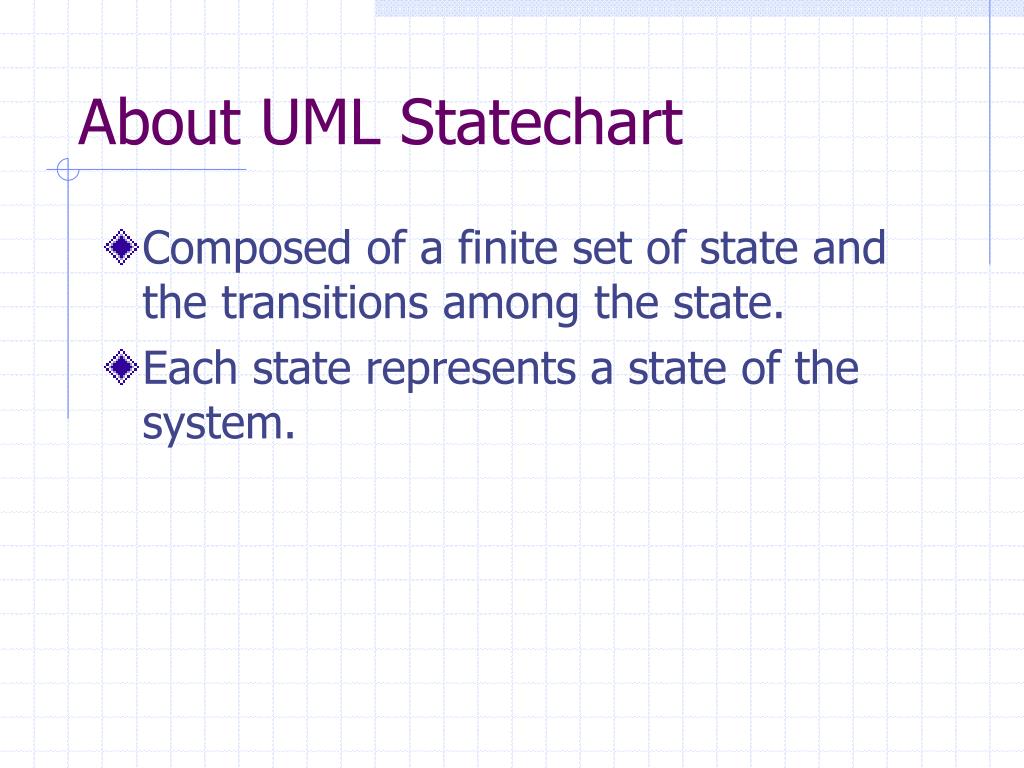

  46. About UML Statechart • Composed of a finite set of state and the transitions among the state. • Each state represents a state of the system.

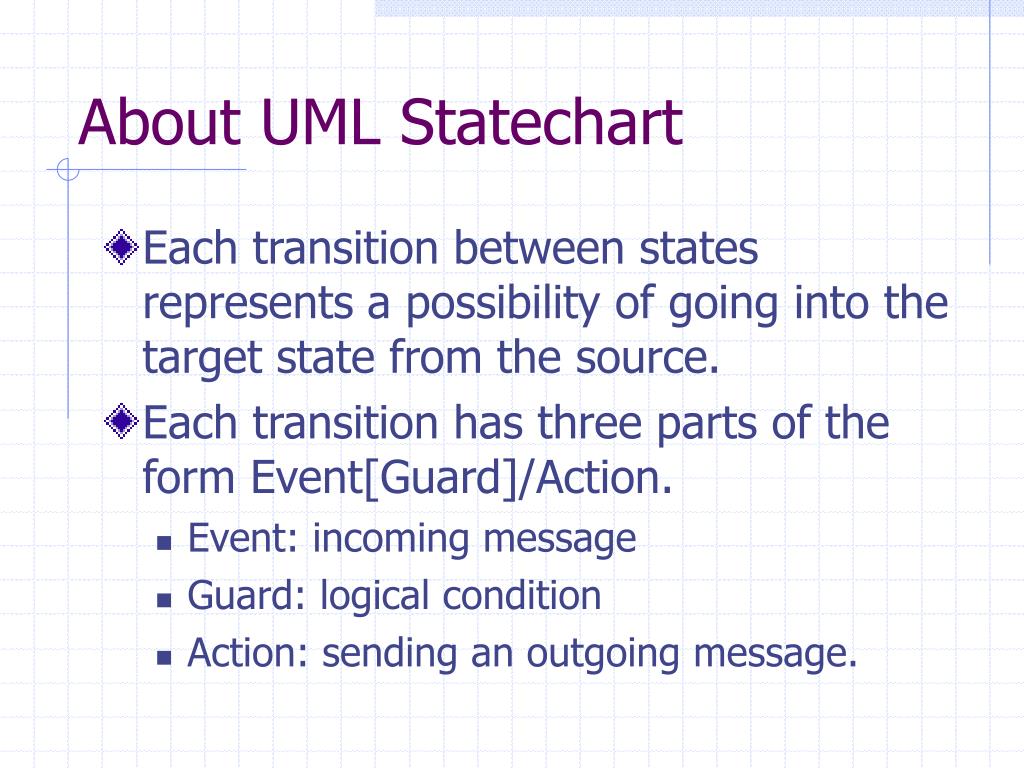

  47. About UML Statechart • Each transition between states represents a possibility of going into the target state from the source. • Each transition has three parts of the form Event[Guard]/Action. • Event: incoming message • Guard: logical condition • Action: sending an outgoing message.

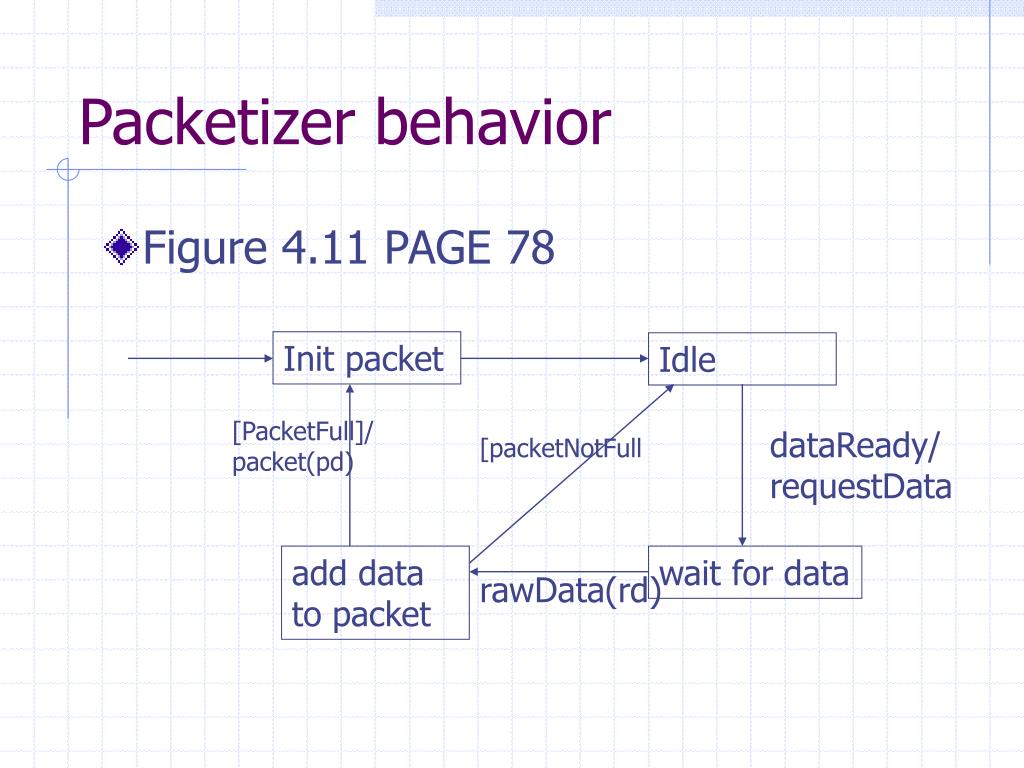

  48. Packetizer behavior • Figure 4.11 PAGE 78 Init packet Idle [PacketFull]/ packet(pd) dataReady/ requestData [packetNotFull add data to packet wait for data rawData(rd)

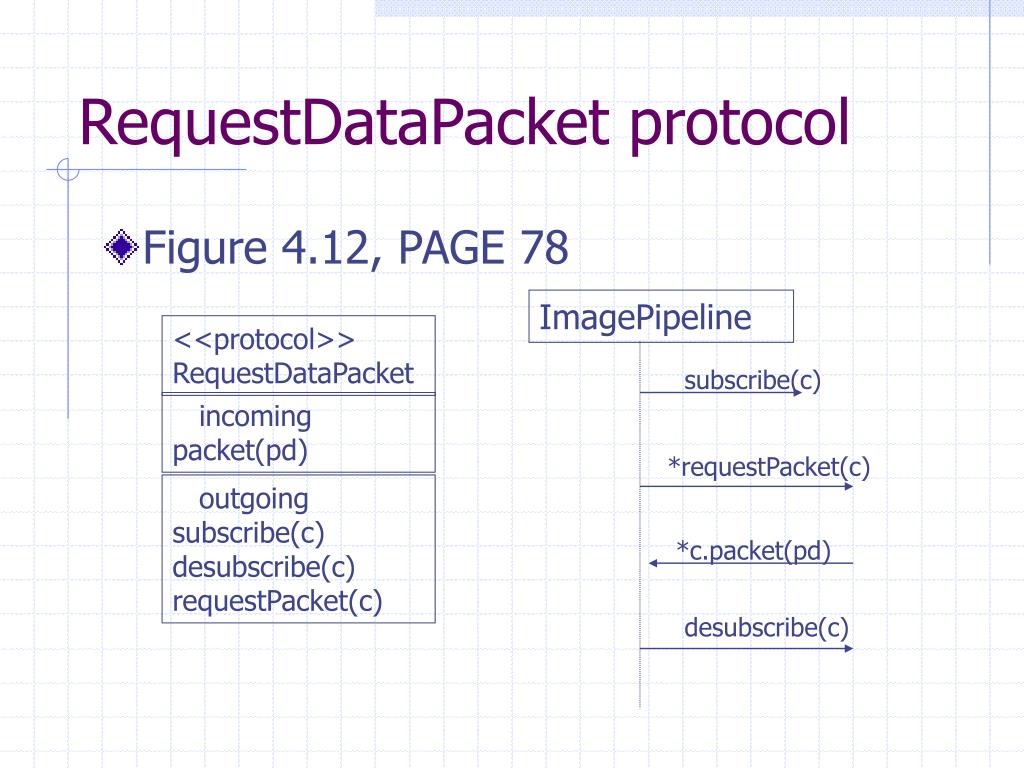

  49. <<protocol>> RequestDataPacket incoming packet(pd) outgoing subscribe(c) desubscribe(c) requestPacket(c) RequestDataPacket protocol • Figure 4.12, PAGE 78 ImagePipeline subscribe(c) *requestPacket(c) *c.packet(pd) desubscribe(c)

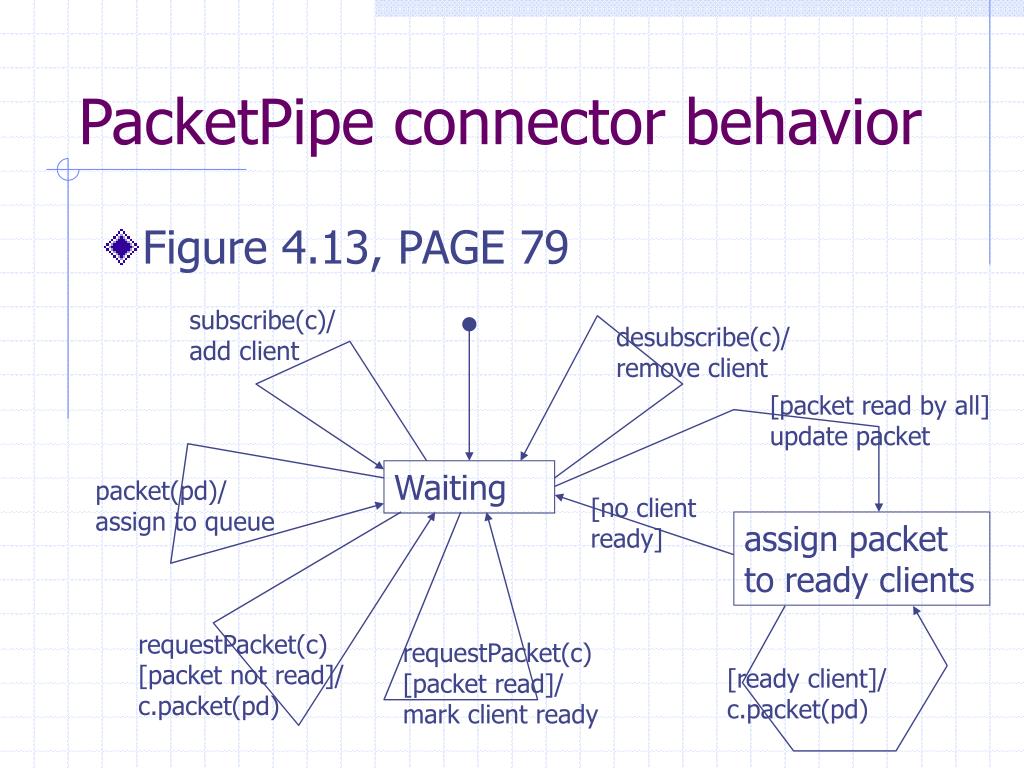

  50. PacketPipe connector behavior • Figure 4.13, PAGE 79 subscribe(c)/ add client desubscribe(c)/ remove client [packet read by all] update packet Waiting packet(pd)/ assign to queue [no client ready] assign packet to ready clients requestPacket(c) [packet not read]/ c.packet(pd) requestPacket(c) [packet read]/ mark client ready [ready client]/ c.packet(pd)
