tyco mx technology
tyco MX TECHNOLOGY

MX VIRTUALMulti-Sensor Detectors

mx virtual multi sensor detectors
MX VIRTUALMulti-Sensor Detectors
  • 25 Virtual detectors from 2 physical detectors
  • Suitable for all fire types
  • Adapts to changes in a buildings use
  • Reduces installation & maintenance costs
slide3

tyco MX TECHNOLOGY

MX VIRTUALMulti-Sensor Detectors

800PH Series Photo + Heat

800CH Series CO + Heat

Plus

800H Series Heat only

800I Series Ionisation

slide4

tyco MX TECHNOLOGY

MX VIRTUAL

Single Detector Modes(eg. HPO, Optical, Fixed heat, Compensated CO)

Dual Detector Modes(eg. HPO and Fixed Heat Detection)

Day/Night Mode switching (eg. ROR in the day, HPO at night)

tyco mx technology5
tyco MX TECHNOLOGY

MX VIRTUALDetector Key Features

  • Low cost
  • Environment friendly
  • Self verification for remote maintenance
  • Use existing low profile bases
  • Optional isolator withevery detector
tyco mx technology6
tyco MX TECHNOLOGY

MX VIRTUALDetector Key Features

  • Stores service information
  • Programmable 360º LED
  • Duct probe options
  • Temperature indication
  • CO & Smoke level indication
tyco mx technology7
tyco MX TECHNOLOGY

MX VIRTUALDetector Key Features

  • Easy to install (no address key)
  • Sounder (801SB) base
  • Relay (801RB) base
  • Isolator (801IB) base
  • Detector & functional base separately identifiable, but only 1 address
801ph lpcb approvals
801PH - LPCB Approvals

Heat enhanced optical (HPO)

FASTLOGIC 3 Sensitivities (Default)

Standard 2 Sensitivities

Optical

FASTLOGIC 3 Sensitivities

Standard 2 Sensitivities

Combinations

Optical + A2S 3 Sensitivities

Enhanced optical +A2S 3 Sensitivities

Heat

A1R

A2S

801ch lpcb approvals
801CH - LPCB Approvals

Carbon Monoxide

2 Sensitivities

Heat enhanced CO (CCO)

2 Sensitivities

Combinations

CCO + A1R 1 Sensitivity (Default)

Heat

A1R 1 Sensitivity

A2S 1 Sensitivity

801h lpcb
801H - LPCB

Elements Operating Modes Sensitivities

Heat A1R 1 A2S 1 CR 1

801I - LPCB

Elements Operating Modes Sensitivities

Ionisation Threshold level 3

other detectors
OTHER DETECTORS
  • Flame detectors
    • S271F +
  • Beam detectors
  • ASD detectors
  • Linear Heat detectors
    • LD40 (Cable)
    • MXF100 Minerva Fireline (FibreOptic)
  • Intrinsically Safe
    • Ph1 M300Ex
    • Ph2 800Ex
tyco mx technology12
tyco MX TECHNOLOGY

MX Loop Ancillaries

  • MX Loop Ancillaries are designed for flexible wiring configurations.
    • Faster installation
    • Faster commissioning
    • Meet customer requirements
  • Circuit styles are described using the NFPA 72 descriptions for initiating circuits and notification circuits.
core ancillaries

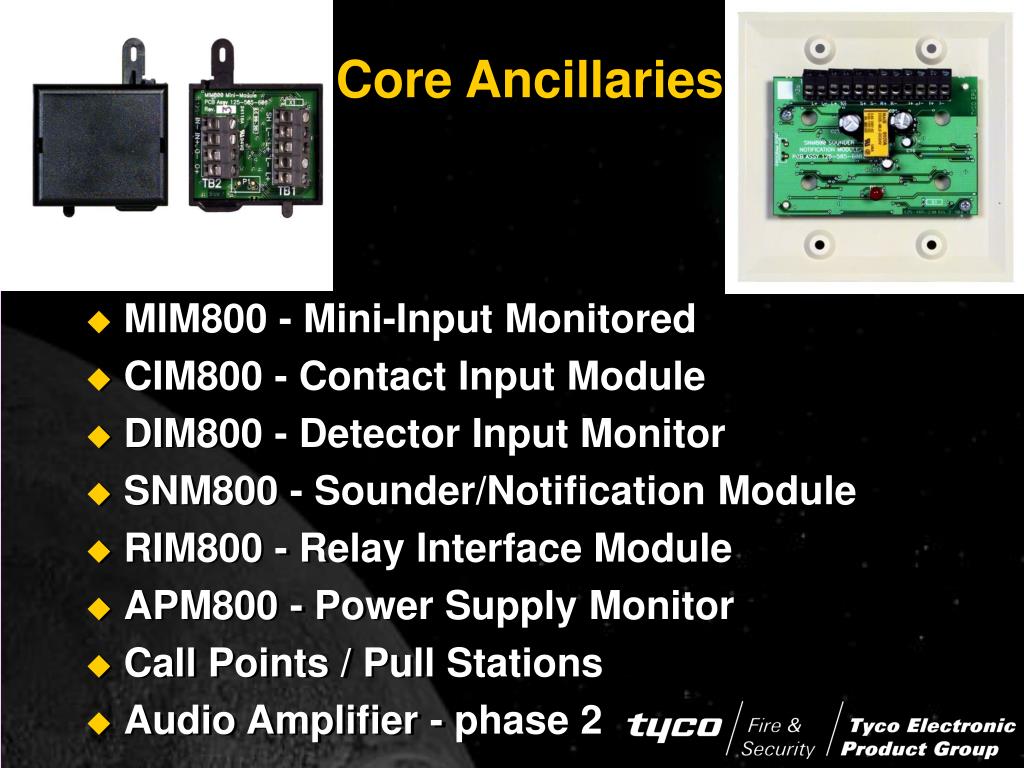

Core Ancillaries
  • MIM800 - Mini-Input Monitored
  • CIM800 - Contact Input Module
  • DIM800 - Detector Input Monitor
  • SNM800 - Sounder/Notification Module
  • RIM800 - Relay Interface Module
  • APM800 - Power Supply Monitor
  • Call Points / Pull Stations
  • Audio Amplifier - phase 2
non addressable devices
Non-Addressable Devices
  • SB520 - Sounder/Notification Booster
    • Used in conjunction with SNM800
    • Increases DC Sounder Capacity to 10 Amps
    • As used on Minerva / TFX
  • HVR800 - High Voltage, Self powered, Interposing, Relay
    • 120/240 VAC, @ 10A, 1 Form C Contact
    • No Supervision
    • Compatible with standard tyco MX relay Modules
general features
General Features
  • 250 A Average Standby Current Draw
  • Device Address Programming Concept
    • The ancillary can be programmed after the device has been fastened to the electrical junction box
    • The ancillary can be programmed after the device has been wired into the loop.
    • Connect a three pin cable from the device programmer to a header on the ancillary.
tyco mx technology16
tyco MX TECHNOLOGY

MX Loop Ancillaries and Detectors

  • Designed for flexible wiring configurations.
    • Faster installation
    • Faster commissioning
    • Meet customer requirements
  • Loop powered modules.
  • Easy and flexible programming.
  • Easily maintained and tested.
