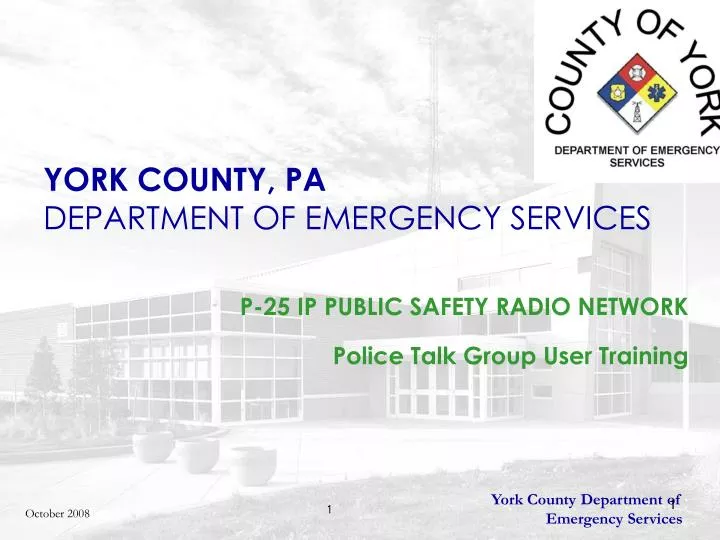

YORK COUNTY, PA DEPARTMENT OF EMERGENCY SERVICES. P-25 IP PUBLIC SAFETY RADIO NETWORK Police Talk Group User Training. Purpose and Outline. Provide background on the new radio system Compare the legacy system to the new system Outline the setup of the talk groups

elroy
Download Presentation

YORK COUNTY, PA DEPARTMENT OF EMERGENCY SERVICES

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. YORK COUNTY, PADEPARTMENT OF EMERGENCY SERVICES P-25 IP PUBLIC SAFETY RADIO NETWORK Police Talk Group User Training

  2. Purpose and Outline • Provide background on the new radio system • Compare the legacy system to the new system • Outline the setup of the talk groups • Discuss the Emergency Button activation procedure • Discuss the process for lost or stolen radios

  3. References York County Department of Emergency Services Communications Manual October 2008

  4. Legacy System 16 Towers Geographically limited Limited frequencies Not Trunked Susceptible to interference 15 to 30 years old Analog Paging New System 22 Towers County-wide coverage 99 % mobile coverage 97 % portable on street coverage 57 Frequencies/Channels 200+ talk paths/groups Digital Voice P 25 state of the art technology Digital paging Comparison of Legacy System to the New System October 2008

  5. Police Talk Groups – Police Dispatch Positions City 1 Metro 2 North 3 East 4 West 5 DA 6 Sheriff 7 October 2008

  6. City Police Talk Groups • City 1 • The only agency assigned to this talk group is York City Police • Radio Profile (All Radios) • City 1 (Main Talk Group) – Monitored by Dispatch • TAC 1A – (City 2 Talk Group) - Monitored by Dispatch • TAC 1B – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • TAC 1C – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • CAR-CAR 1 – (Used for car to car communications) – not routinely monitored

  7. City Police Talk Groups • Radio Profile (Supervisor Radios) – in addition to above channels • SPRV 1 – Supervisor Unit to Unit Channel – Not routinely monitored • PD ANN 1 – Announcement Group - Transmits on all City Police Talk Groups and used for emergency only • YCCHIEFS – Police Chiefs unit to unit channel • Routine Traffic • will always use the City 1 talk group • Major Incident Talk Group • If an incident warrants a secondary talk group, the request will go to the dispatcher and they will announce the secondary talk group for their operations • The first talk group that will be assigned for a major City Police incident would be TAC 1B • A second incident will be assigned TAC 1C

  8. Metro Police Talk Groups • Metro 2 • This includes the following police agencies: • Springettsbury Township PD • West Manchester Township PD • West York Borough PD • Spring Garden Township PD • Radio Profile (All Radios) • Metro 2 (Main Talk Group) – Monitored by Dispatch • TAC 2A – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • TAC 2B – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • TAC 2C– (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • CAR-CAR 2 – (Used for Car to Car Communications) – Not routinely monitored

  9. Metro Police Talk Groups • Radio Profile (Supervisor Radios) – in addition to above channels • SPRV 2 – (Supervisor Unit to Unit Channel) – Not routinely monitored • PD ANN 2 – (Announcement Group) - Transmits on all Metro Police Talk Groups and is used for emergencies only • YCCHIEFS – Police Chiefs unit to unit channel • Routine Traffic • will always use the Metro 2 talk group • Major Incident Talk Group • If an incident warrants a secondary talk group, the request will go to the dispatcher and they will announce the secondary talk group for their operations • The first talk group that will be assigned for a major Metro Police incident would be TAC 2B • A second incident will be assigned TAC 2C

  10. North Police Talk Groups • North 3 • This includes the following police agencies: • Northern Regional PD • Northeastern Regional PD • Carroll Township PD • Newberry Township PD • Fairview Township PD • Pinchot Park Rangers

  11. North Police Talk Groups • Radio Profile (All Radios) • North 3 (Main Talk Group) – Monitored by Dispatch • TAC 3A – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • TAC 3B – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • TAC 3C – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • CAR-CAR 3 – (Used for Car to Car Communications) – Not routinely monitored • Radio Profile (Supervisor Radios) – in addition to above channels • SPRV 3 – (Supervisor Unit to Unit Channel) – Not routinely monitored • PD ANN 3 – (Announcement Group) - Transmits on all North Police Talk Groups and is used for emergencies only • YCCHIEFS – Police Chiefs unit to unit channel

  12. North Police Talk Groups • Routine Traffic • will always use the North 3 talk group • Major Incident Talk Group • If an incident warrants a secondary talk group, the request will go to the dispatcher and they will announce the secondary talk group for their operations • The first talk group that will be assigned for a major North Police incident would be TAC 3B • A second incident will be assigned TAC 3C

  13. East Police Talk Groups • East 4 • This includes the following municipalities and police agencies: • York Area Regional PD • Lower Windsor Township PD • Wrightsville Borough PD • Hellam Township PD • North Hopewell Township PD • Stewartstown Borough PD • Sam Lewis Park Rangers • York County Park Rangers

  14. East Police Talk Groups • Radio Profile (All Radios) • East 4 (Main Talk Group) – Monitored by Dispatch • TAC 4A – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • TAC 4B – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • CAR-CAR 4 – (Used for Car to Car Communications) – Not routinely monitored • Radio Profile (Supervisor Radios) – in addition to above channels • SPRV 4 – (Supervisor Unit to Unit Channel) – Not routinely monitored • PD ANN 4 – (Announcement Group) - Transmits on all East Police Talk Groups and is used for emergencies only • YCCHIEFS – Police Chiefs unit to unit channel

  15. East Police Talk Groups • Routine Traffic • will always use the City 1 talk group • Major Incident Talk Group • If an incident warrants a secondary talk group, the request will go to the dispatcher and they will announce the secondary talk group for their operations • The first talk group that will be assigned for a major East Police incident would be TAC 4B • A second incident will be assigned TAC 4C

  16. West Police Talk Groups • West 5 • This includes the following municipalities and police agencies: • Southwestern Regional PD • Southern Regional PD • Penn Township PD • Hanover Borough PD • Codorus Park Rangers • West Manheim Township PD • PA Fish and PA Game Commission • Coast Guard Auxiliary

  17. West Police Talk Groups • Radio Profile (All Radios) • West 5 (Main Talk Group) – Monitored by Dispatch • TAC 5A – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • TAC 5B – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • TAC 5C – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • CAR-CAR 5 – (Used for Car to Car Communications) – Not routinely monitored • Radio Profile (Supervisor Radios) – in addition to above channels • SPRV 5 – (Supervisor Unit to Unit Channel) – Not routinely monitored • PD ANN 5 – (Announcement Group) - Transmits on all West Police Talk Groups and is used for emergencies only • YCCHIEFS – Police Chiefs unit to unit channel

  18. West Police Talk Groups • Routine Traffic • will always use the West 5 talk group • Major Incident Talk Group • If an incident warrants a secondary talk group, the request will go to the dispatcher and they will announce the secondary talk group for their operations • The first talk group that will be assigned for a major West Police incident would be TAC 5B • A second incident will be assigned TAC 5C

  19. DA 6 Radio Profile (All Radios) DA 6 (Main Talk Group) – Monitored by Dispatch TAC 6A – (Major Incident Talk Group) – Not Monitored if assigned to an incident by dispatch TAC 6B – (Major Incident Talk Group) – Not Monitored if assigned to an incident by dispatch TAC 6C – (Major Incident Talk Group) –Not Monitored if assigned to an incident by dispatch CAR-CAR 6 – (Used for Car to Car Communications) – Not routinely monitored Radio Profile (Supervisor Radios) – in addition to above channels SPRV 6 – (Supervisor Unit to Unit Channel) – Not routinely monitored PD ANN 6 – (Announcement Group) - Transmits on all DA Police Talk Groups and is used for emergencies only YCCHIEFS – Police Chiefs unit to unit channel

  20. Sheriff Police Talk Groups • Sheriff 7 • The only agency assigned to this talk group is the York County Sheriff’s Office • The Sheriff’s Office is transitioning to a 24 hour crime division • Radio Profile (All Radios) • Sheriff 7 (Main Talk Group) – Monitored by Dispatch • TAC 7A – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • TAC 7B – (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • TAC 7C - (Major Incident Talk Group) – Monitored if assigned to an incident by dispatch • Courts 1 – (Used in court room facilities) Not routinely monitored • Courts 2 – (Used in court room facilities) – Not routinely monitored October 2008

  21. Special Event Talk Groups • There are Four Special Event Talk Groups • SE-ADMIN A • SE-ADMIN B • SE-ADMIN C • SE-ADMIN D • Used for Special Events (e.g. Fair, Carnivals or other Special Events) • Not monitored by Dispatch Center • If an Agency wants these channels to be monitored they should provide a written request one week in advance of the event to the 911 Director or his/her designee • These talk groups could be used in conjunction with the Mobile Communications Unit (MCU) October 2008

  22. Interoperability Channels • This is a P-25 Radio System • Seamless Interoperability with Neighboring Agencies • Two Means to Tie into an Adjacent County, Turnpike, PSP and MSP. • Network Connectivity (e.g. Dauphin) – No intervention by Dispatcher. Direct talk group. • Non-Network Connectivity (e.g. Cumberland, Lancaster, Adams, Carroll, Baltimore, Harford Counties) – Patched by Dispatcher . October 2008

  23. Monitoring of Talk Groups • Not all Talk Groups are Monitored by the Dispatch Center • The General Public can Monitor the Radio Traffic if they have the Proper Monitoring Equipment • All Municipalities will be Afforded their Own Talk Group • These will be Recorded but not Monitored • Used solely for Intra-Municipality Communications October 2008

  24. Emergency Button Activation • Actual Emergency • Press and hold for 2 ½ seconds • Radio will BEEP and will display TX EMER • GIVE YOUR LOCATION! • Radio Transmits for 10 seconds – hands free • Emergency condition will be displayed at the console position with audible as well as visual display. • Other field unit radios will display RX EMER • Dispatcher will treat all activations as an emergency until verified by transmitting the following message: • Unit # Check your Display • If no response it will be handled as an emergency • Back up units will be dispatched

  25. Emergency Button Activation • Accidental Activation • Radio will BEEP • Display will show TX EMER • Radio will be locked • DO NOT TURN RADIO OFF • Call dispatcher and advise them that it was an accidental activation and wait for the dispatcher to clear the radio. • Field units CAN NOT clear the radio. The Dispatcher must clear the radio.

  26. Radio ID • All radios with the trunked radio system transmit a unique radio identifier (ID) on each push to talk (PTT) • The ID appears on each radio that is set to the same talk group as well as the Dispatcher’s console. • All users of the system are required to conduct themselves in a professional manner. • All users and radios must operate in compliance with all Federal Communications Commission (FCC) guidelines. • All users and radios must operate in compliance with all County established radio policies, procedures and guidelines. • The transmission of any music, off color, dead carrier, harassing or broadcast media will be considered to be a violation of radio operations procedures. October 2008

  27. LID Number Designations Each Service type has a number Each department has a number Each Subscriber unit has a unique ID number The ID number displayed in your radio display does have a meaning. It allows you to identify which radio is talking.

  28. Lets say the ID number in your display is: 6430111 Lets break it down and find out who it is? LID Number Designations

  29. 6430111 The First number is 6. This represents the POLICE service The Second and Third Numbers tell us the agency Springettsbury Twp The Fourth, Fifth and Sixth numbers tell us the unit it is assigned to (up to 3 numbers) Badge number 11 The Seventh number tells us it is portable number 1 LID Number Designations

  30. Lets look at another: 69543051 Lets break it down and find out who it is? LID Number Designations

  31. 69543051 The First number is 6. This represents the POLICE service The 95 tell us that it is a police mobile The Fourth and Fifth numbers tell us the agency Springettsbury Twp The Sixth and Seventh numbers tells us it is car number 05 The Eighth number tells us it is the first mobile number LID Number Designations

  32. Lost or Stolen Radios • If radio is lost or stolen contact the dispatch supervisor IMMEDIATELY. • The radio system manager will disable and remove that radio from the system database. October 2008

  33. Questions October 2008

  34. “Knowing is not enough, we must apply. Willing is not enough, we must do.” -Johann van Goethe German author, 1749-1832 October 2008
