  1. Ch 4. Memory Management Timothy Budd Oregon State University

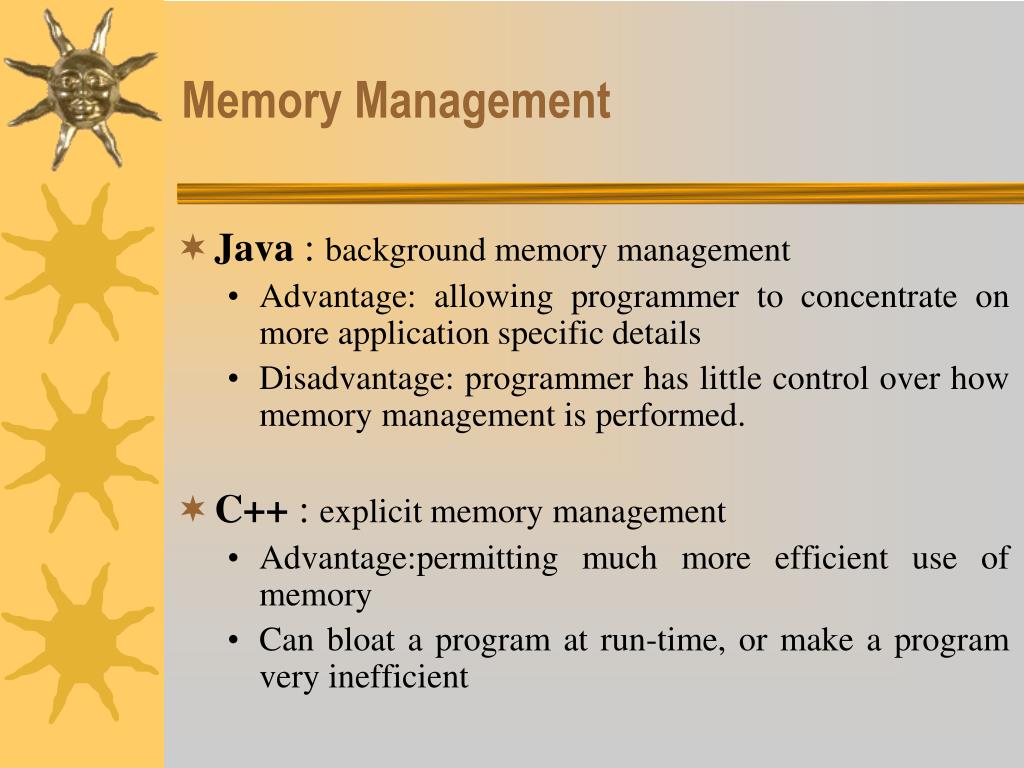

  2. Memory Management • Java : background memory management • Advantage: allowing programmer to concentrate on more application specific details • Disadvantage: programmer has little control over how memory management is performed. • C++ : explicit memory management • Advantage:permitting much more efficient use of memory • Can bloat a program at run‑time, or make a program very inefficient

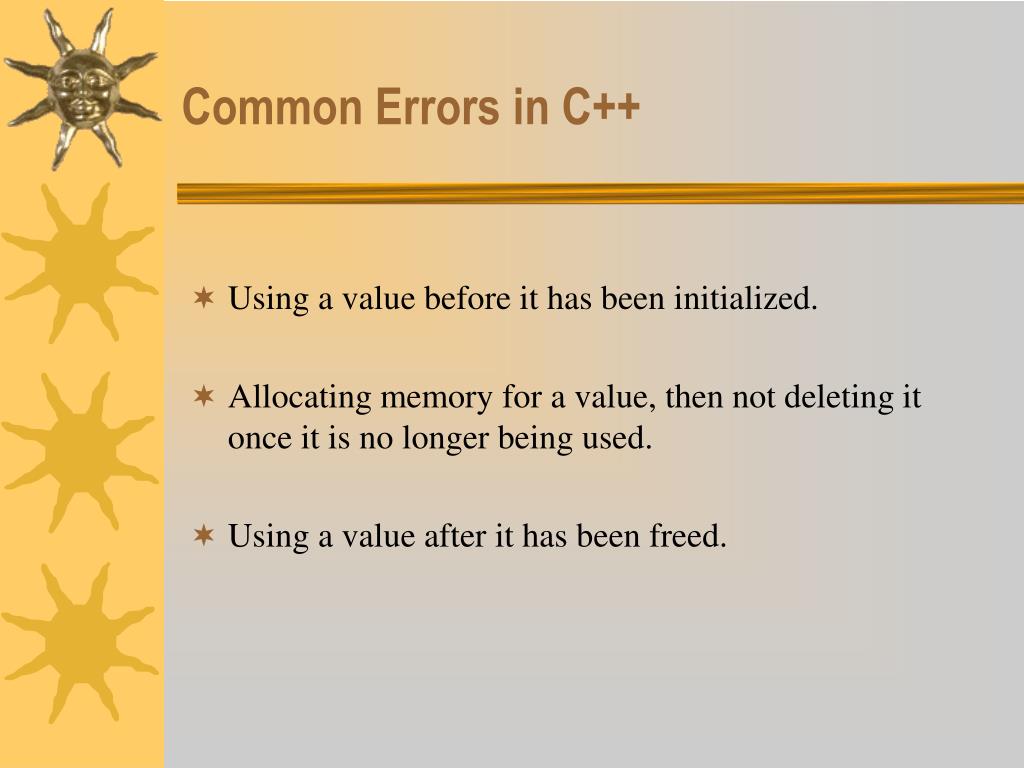

  3. Common Errors in C++ • Using a value before it has been initialized. • Allocating memory for a value, then not deleting it once it is no longer being used. • Using a value after it has been freed.

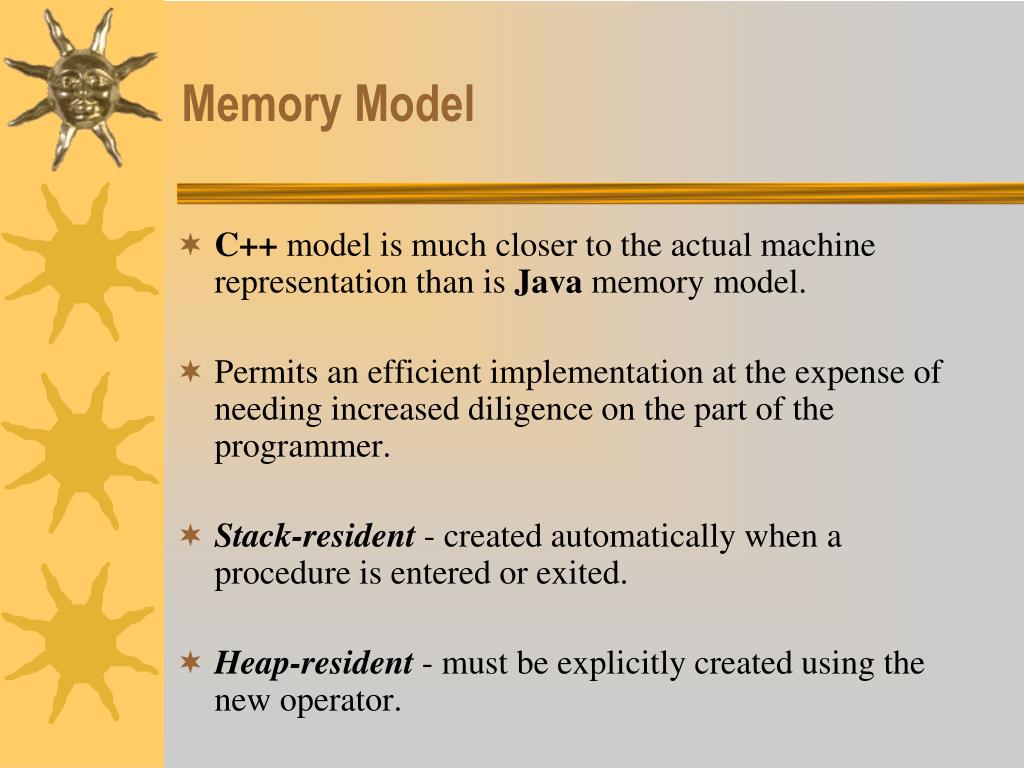

  4. Memory Model • C++ model is much closer to the actual machine representation than is Java memory model. • Permits an efficient implementation at the expense of needing increased diligence on the part of the programmer. • Stack‑resident - created automatically when a procedure is entered or exited. • Heap‑resident - must be explicitly created using the new operator.

  5. Stack Resident Memory Values • C++ • Both the stack and the heap are internal data structures managed by a run‑time system. • Values on a stack are strongly tied to procedure entry and exit. • When a procedure begins execution, a new section of the stack is created. • Java • only primitive values are truly stack resident. • objects and arrays are always allocated on the heap.

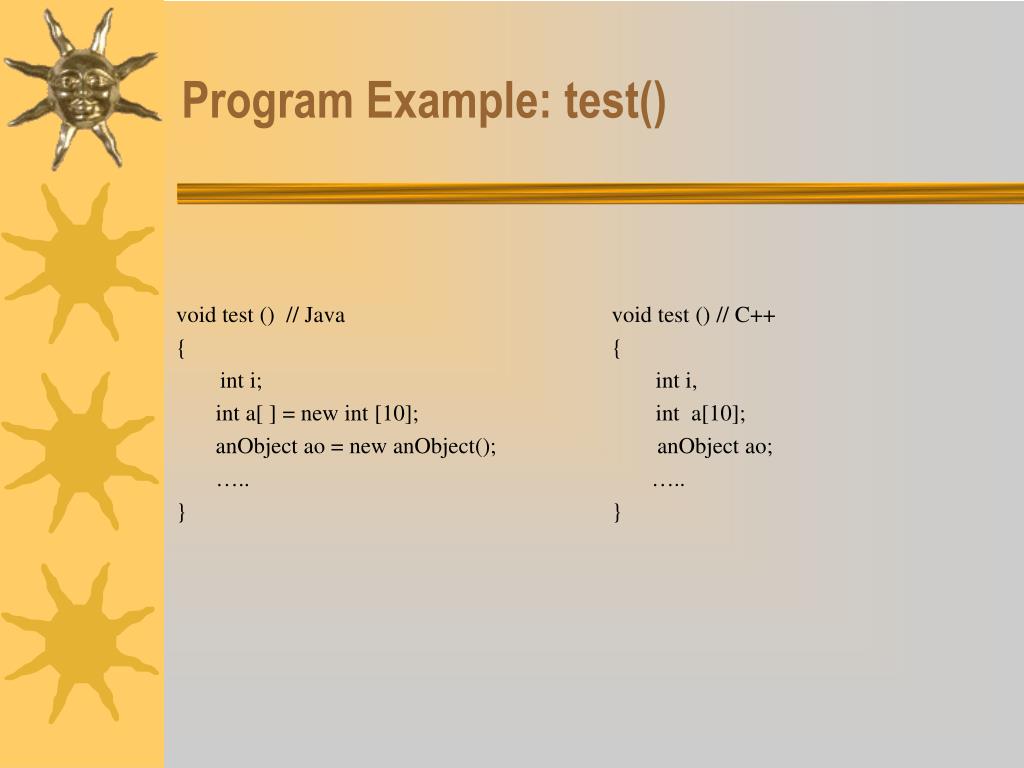

  6. void test () // Java { int i; int a[ ] = new int [10]; anObject ao = new anObject(); ….. } void test () // C++ { int i, int a[10]; anObject ao; ….. } Program Example: test()

  7. Drawbacks Using Stack • Lifetimeof stack resident memory values is tied to procedure entry & exit. Stack resident values cease to exist when a procedure returns. An attempt to use resident value after deletion will typically result in error or at least erratic behavior. • Sizeof stack resident memory values must be known at compile time, which is when the structure of the activation record is laid out.

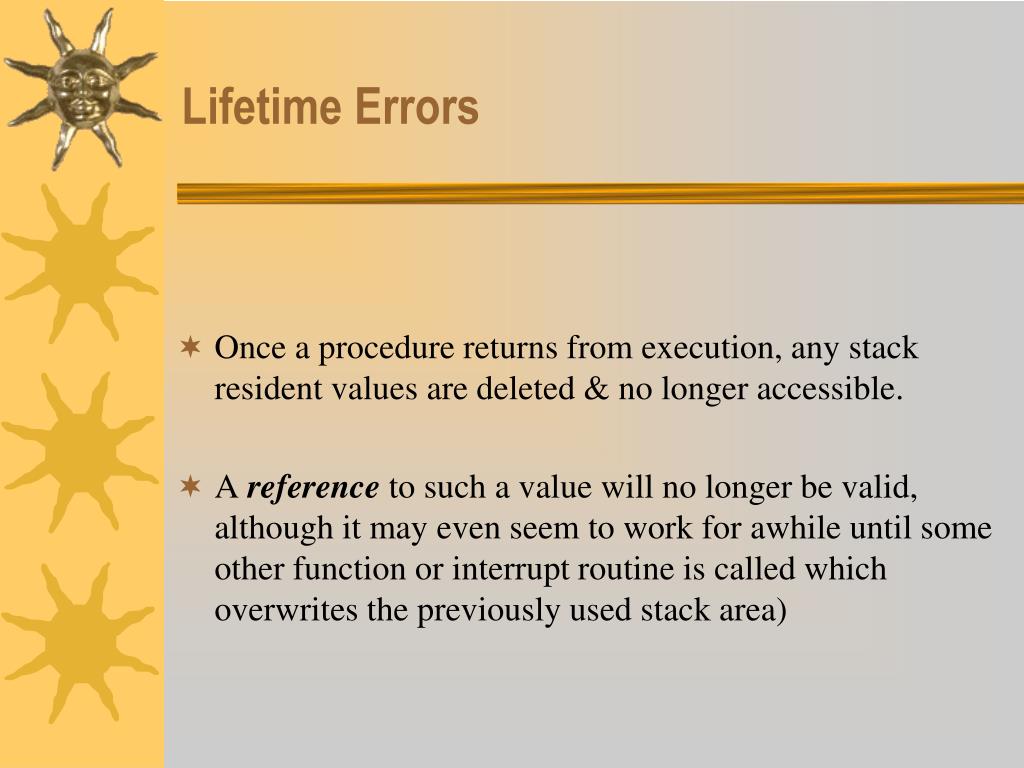

  8. Lifetime Errors • Once a procedure returns from execution, any stack resident values are deleted & no longer accessible. • A referenceto such a value will no longer be valid, although it may even seem to work for awhile until some other function or interrupt routine is called which overwrites the previously used stack area)

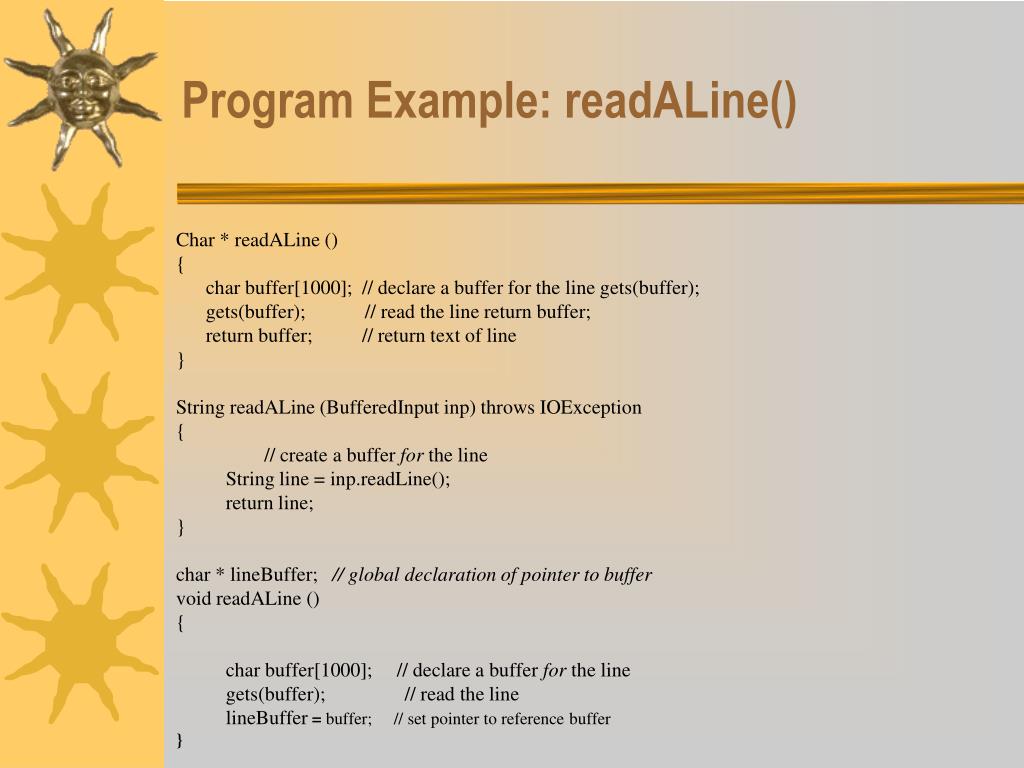

  9. Program Example: readALine() Char * readALine () { char buffer[1000]; // declare a buffer for the line gets(buffer); gets(buffer); // read the line return buffer; return buffer; // return text of line } String readALine (BufferedInput inp) throws IOException { // create a buffer for the line String line = inp.readLine(); return line; } char * lineBuffer; // global declaration of pointer to buffer void readALine () { char buffer[1000]; // declare a buffer for the line gets(buffer); // read the line lineBuffer = buffer; // set pointer to reference buffer }

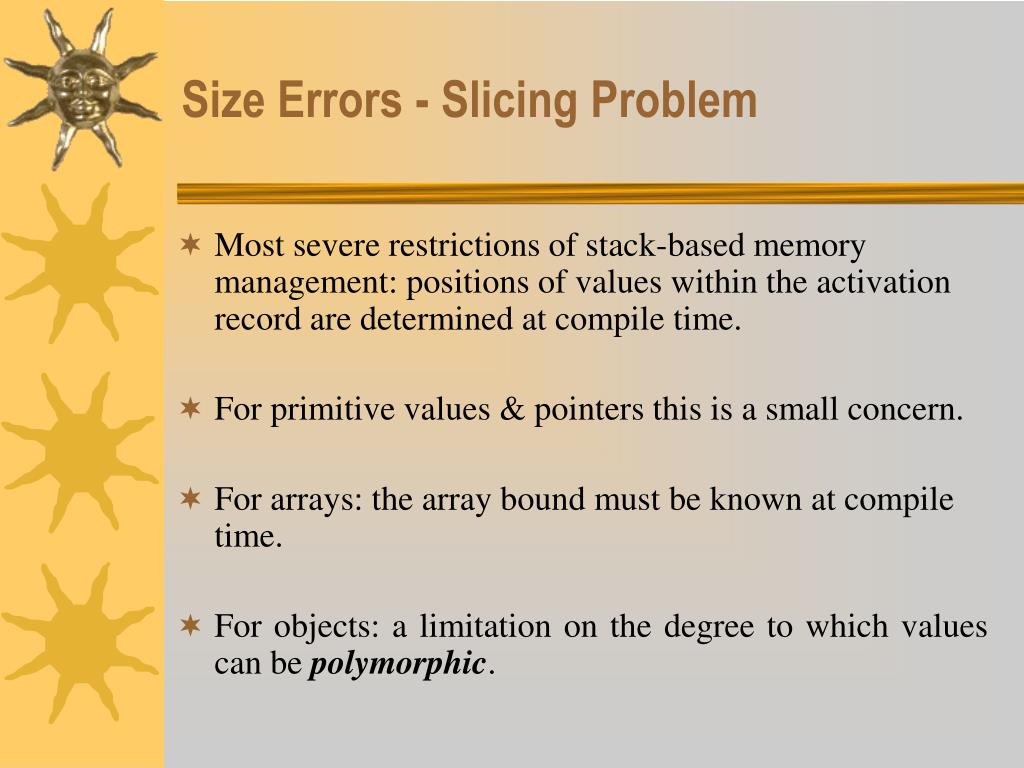

  10. Size Errors ‑ Slicing Problem • Most severe restrictions of stack‑based memory management: positions of values within the activation record are determined at compile time. • For primitive values & pointers this is a small concern. • For arrays: the array bound must be known at compile time. • For objects: a limitation on the degree to which values can be polymorphic.

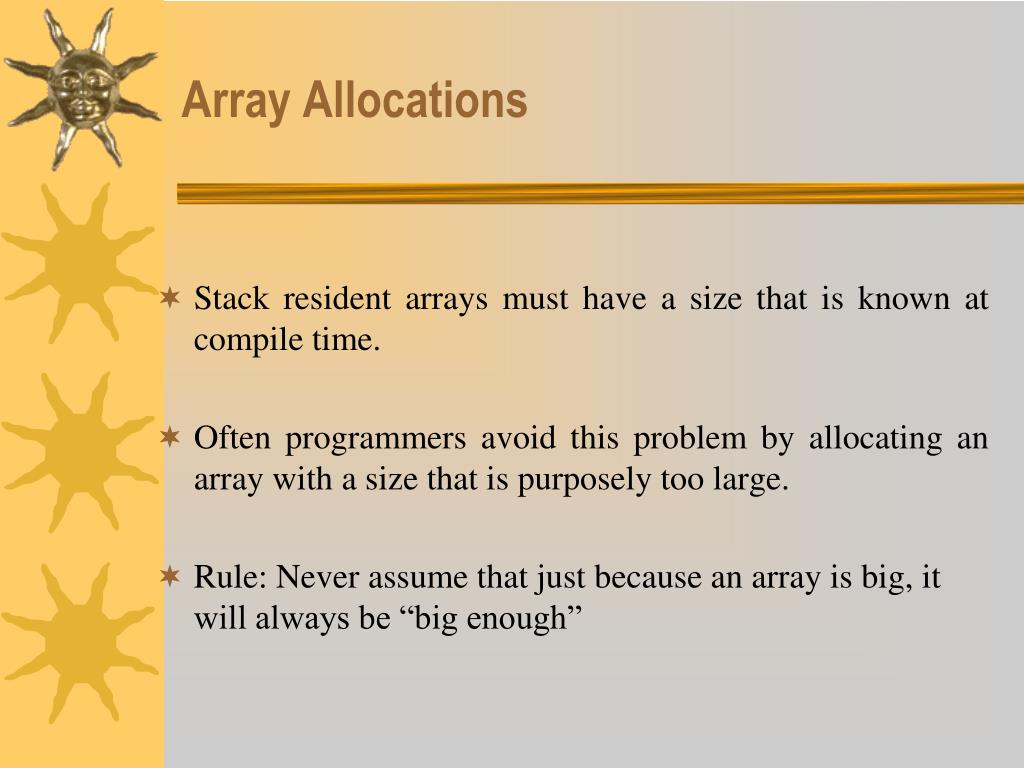

  11. Array Allocations • Stack resident arrays must have a size that is known at compile time. • Often programmers avoid this problem by allocating an array with a size that is purposely too large.   • Rule: Never assume that just because an array is big, it will always be “big enough”

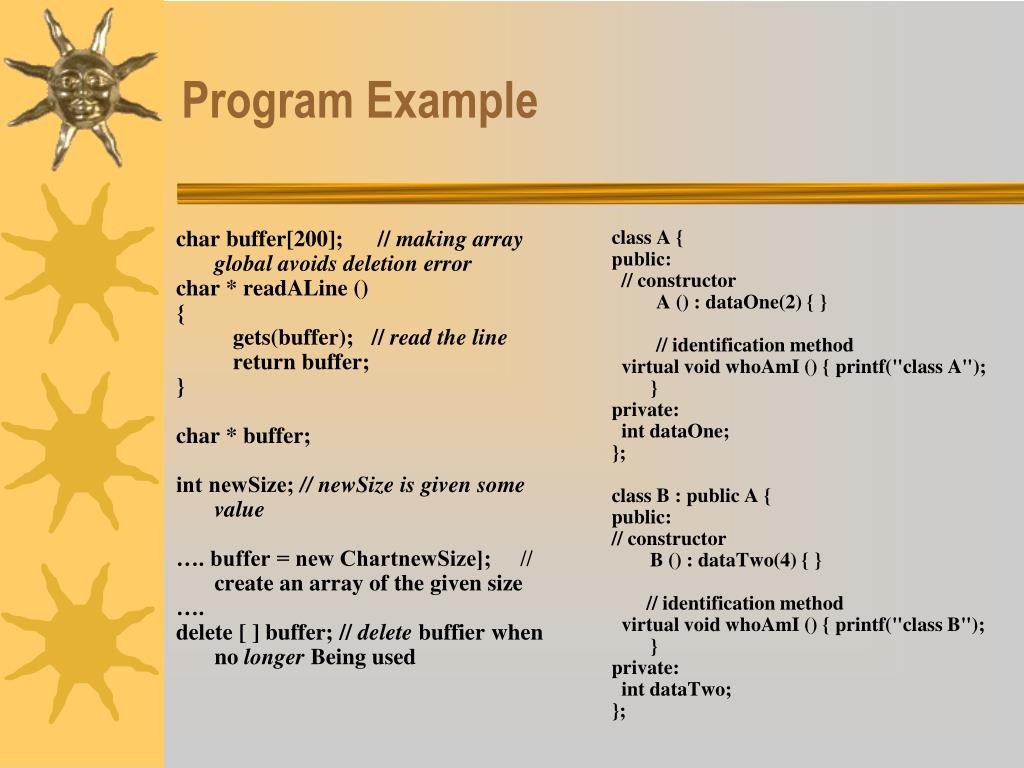

  12. char buffer[200]; // making array global avoids deletion error char * readALine () { gets(buffer); // read the line return buffer; } char * buffer; int newSize; // newSize is given some value …. buffer = new ChartnewSize]; // create an array of the given size …. delete [ ] buffer; // delete buffier when no longer Being used class A { public: // constructor A () : dataOne(2) { } // identification method virtual void whoAmI () {printf("class A"); } private: int dataOne; }; class B : public A { public: // constructor B () : dataTwo(4) { } // identification method virtual void whoAmI () { printf("class B"); } private: int dataTwo; }; Program Example

  13. Slicing Problem • Java: polymorphic -a variable declared as maintaining a value of one class can be holding a value derived from a child class. • In both Java and C++, it is legal to assign a value derived from class B to a variable declared as holding an instance of class A. A instanceOfA; // declare instances of B instanceOfB; // class A and B instanceOfA = instanceOfB;  instaceOfA.whoAmI();

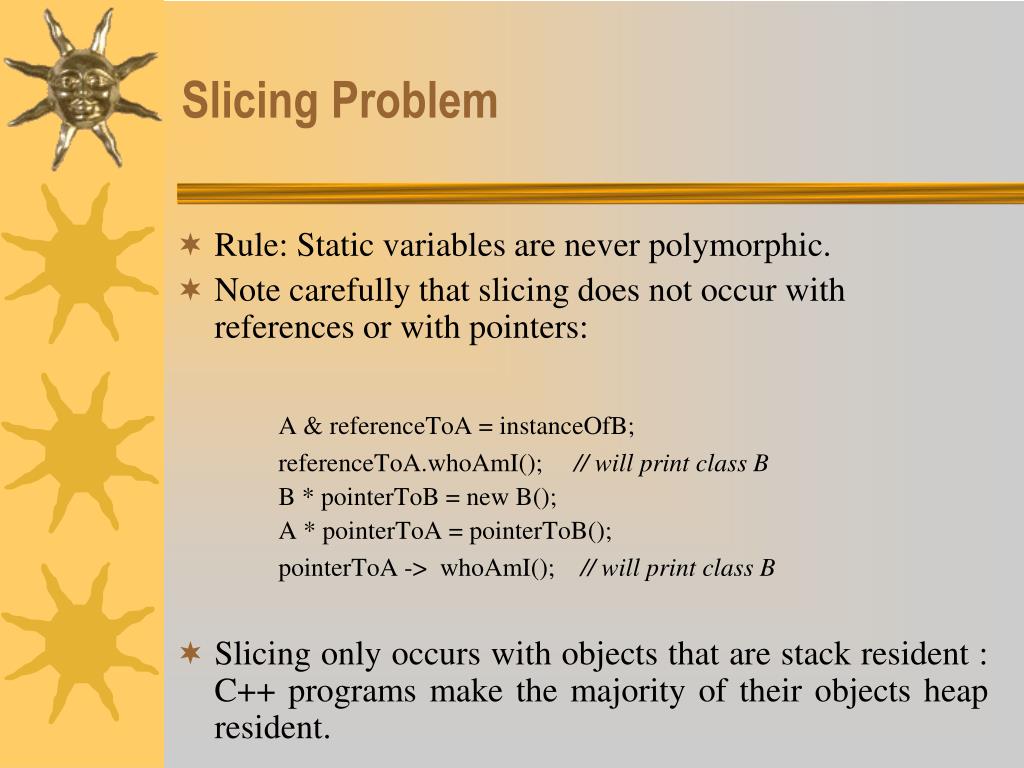

  14. Slicing Problem • Rule: Static variables are never polymorphic. • Note carefully that slicing does not occur with references or with pointers: A & referenceToA = instanceOfB; referenceToA.whoAmI(); // will print class B   B * pointerToB = new B(); A * pointerToA = pointerToB(); pointerToA -> whoAmI(); // will print class B • Slicing only occurs with objects that are stack resident : C++ programs make the majority of their objects heap resident.

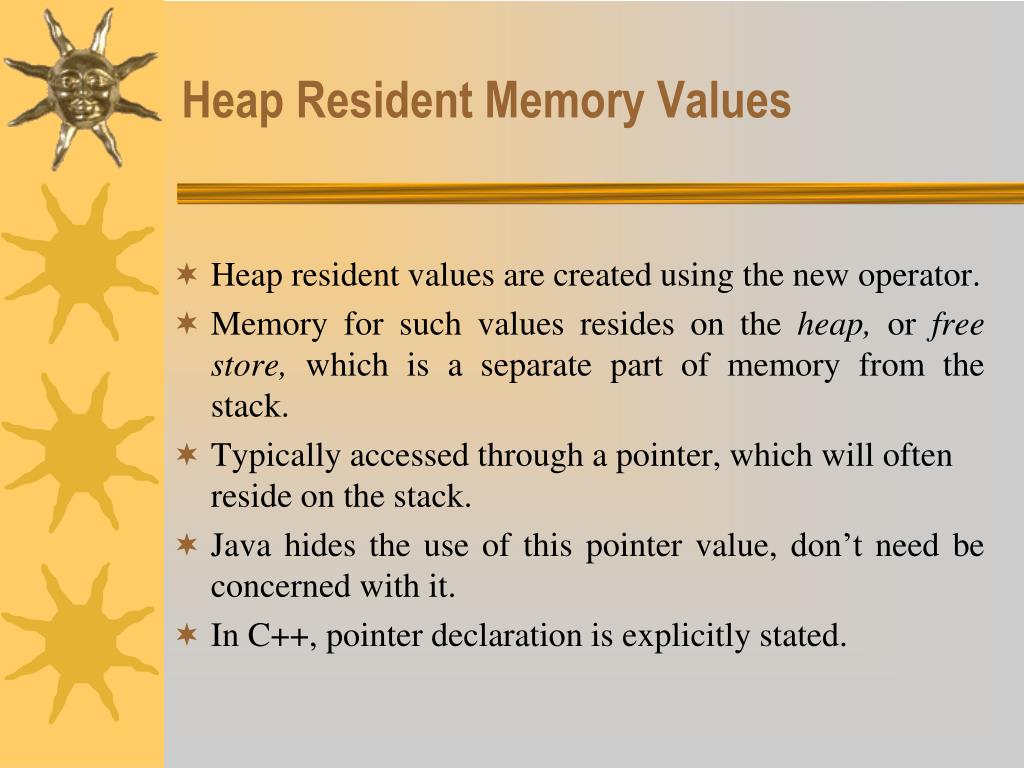

  15. Heap Resident Memory Values • Heap resident values are created using the new operator. • Memory for such values resides on the heap, or free store, which is a separate part of memory from the stack. • Typically accessed through a pointer, which will often reside on the stack. • Java hides the use of this pointer value, don’t need be concerned with it. • In C++, pointer declaration is explicitly stated.

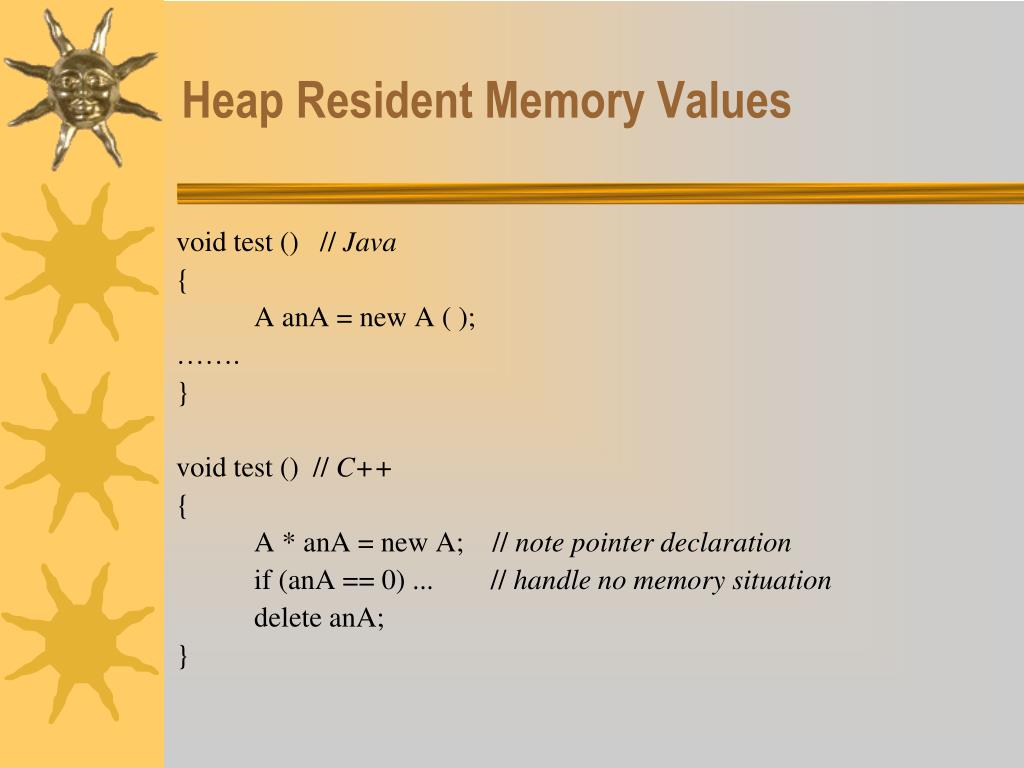

  16. Heap Resident Memory Values void test () // Java { A anA = new A ( ); ……. } void test () // C++ { A * anA = new A; // note pointer declaration if (anA == 0) ... // handle no memory situation delete anA; }

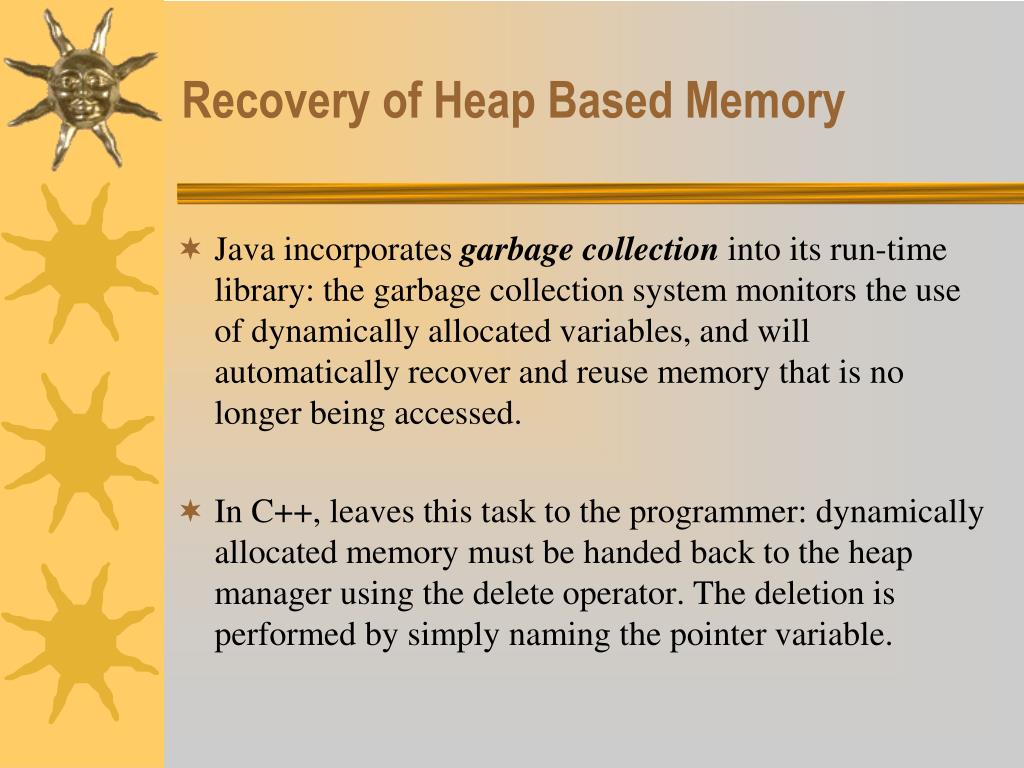

  17. Recovery of Heap Based Memory • Java incorporates garbage collectioninto its run‑time library: the garbage collection system monitors the use of dynamically allocated variables, and will automatically recover and reuse memory that is no longer being accessed. • In C++, leaves this task to the programmer: dynamically allocated memory must be handed back to the heap manager using the delete operator. The deletion is performed by simply naming the pointer variable.

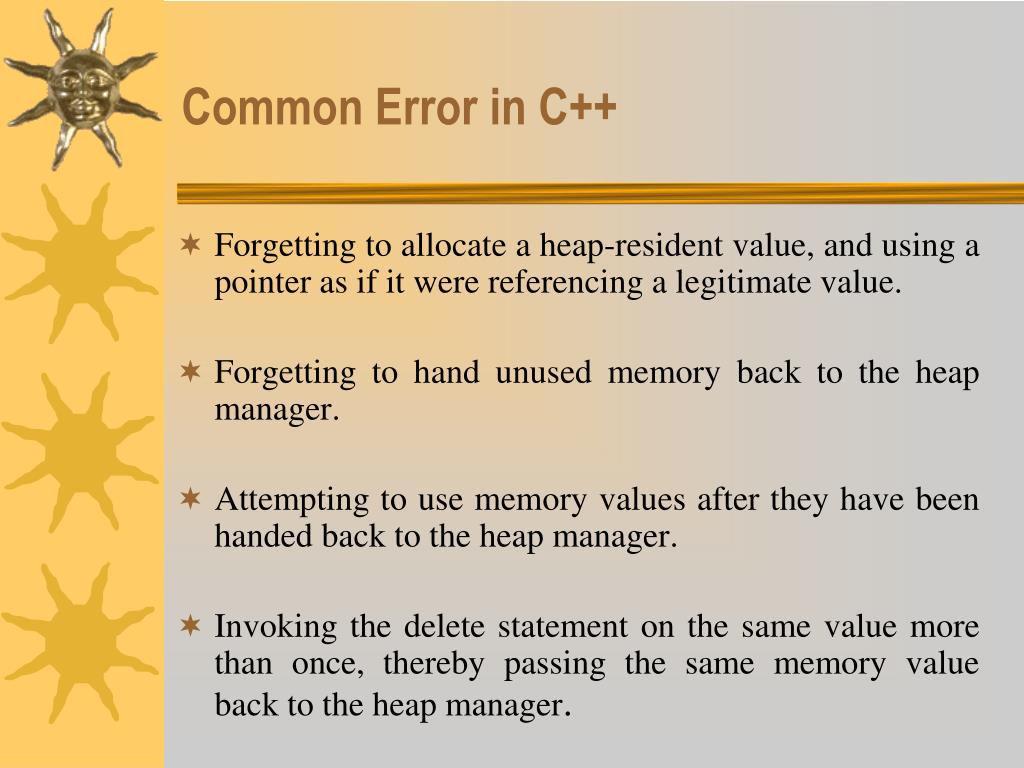

  18. Common Error in C++ • Forgetting to allocate a heap‑resident value, and using a pointer as if it were referencing a legitimate value. • Forgetting to hand unused memory back to the heap manager. • Attempting to use memory values after they have been handed back to the heap manager. • Invoking the delete statement on the same value more than once, thereby passing the same memory value back to the heap manager.

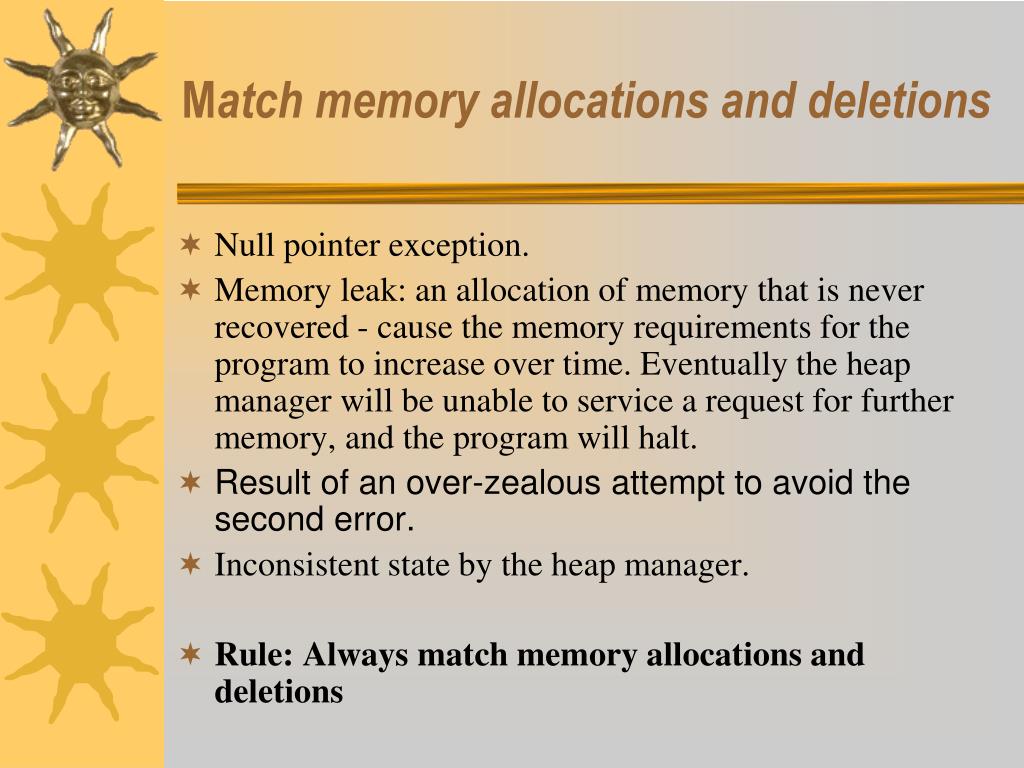

  19. Match memory allocations and deletions • Null pointer exception. • Memory leak: an allocation of memory that is never recovered- cause the memory requirements for the program to increase over time. Eventually the heap manager will be unable to service a request for further memory, and the program will halt. • Result of an over‑zealous attempt to avoid the second error. • Inconsistent state by the heap manager. • Rule: Always match memory allocations and deletions

  20. Simple Techniques to manage heap • Hide the allocation and release of dynamic memory values inside an object. • Maintaining a reference count that indicates the number of pointers to the value. When this count is decremented to zero, the value can be recovered.

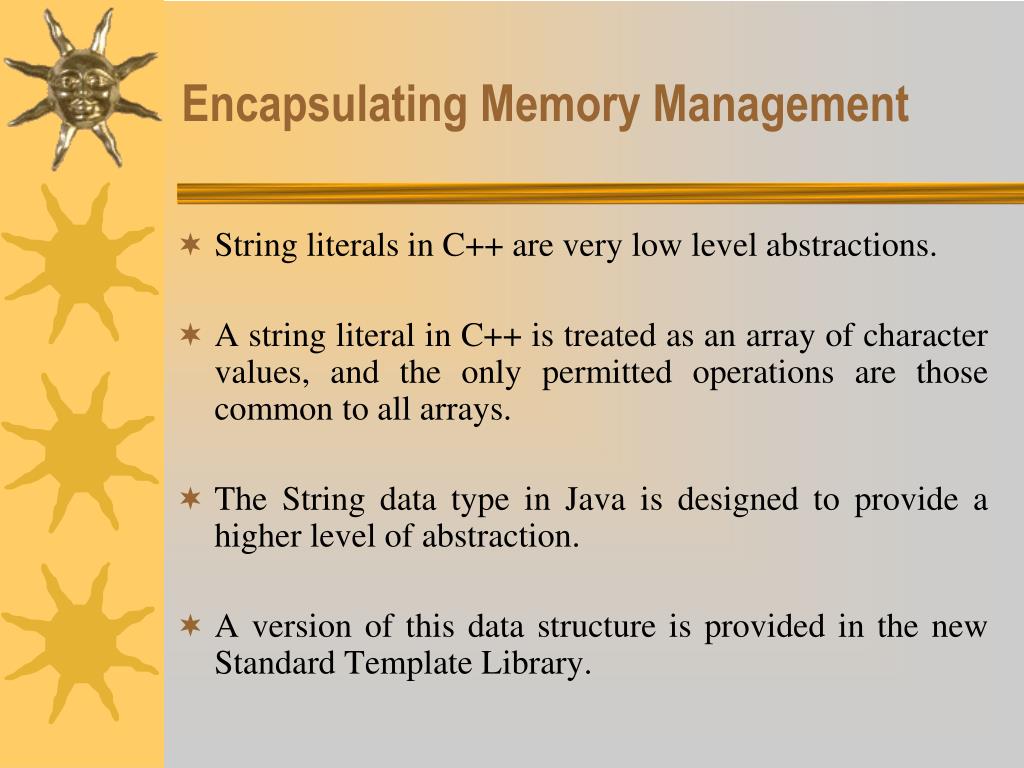

  21. Encapsulating Memory Management • String literals in C++ are very low level abstractions. • A string literal in C++ is treated as an array of character values, and the only permitted operations are those common to all arrays. • The String data type in Java is designed to provide a higher level of abstraction. • A version of this data structure is provided in the new Standard Template Library.

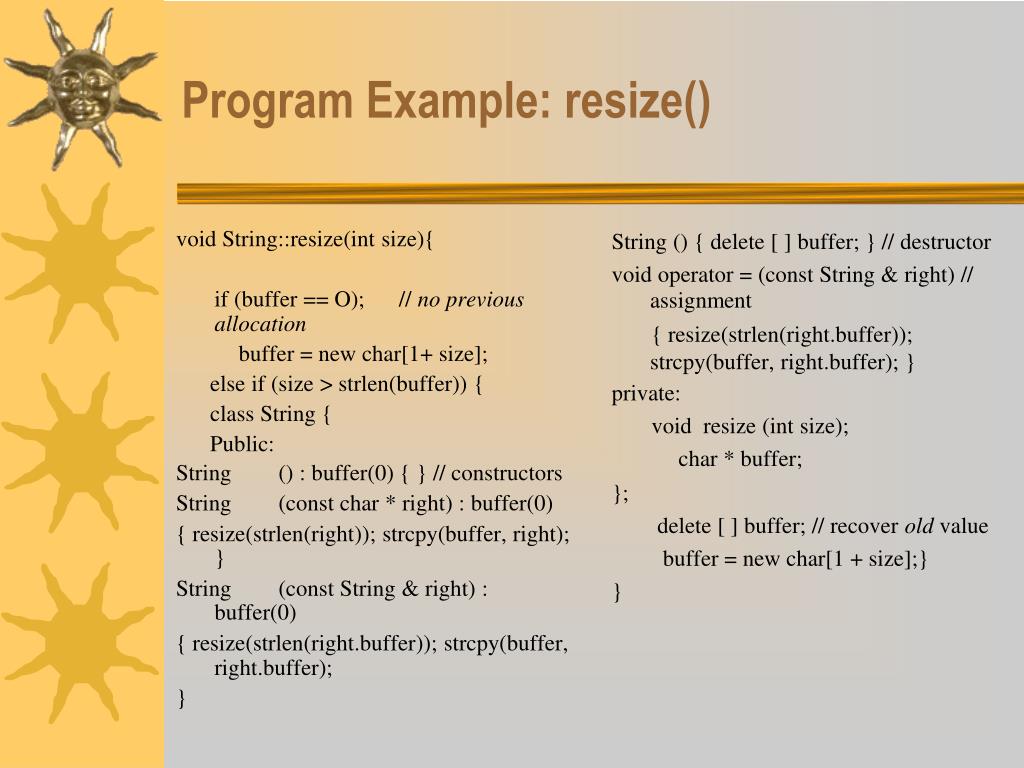

  22. void String::resize(int size){ if (buffer == O); // no previous allocation buffer = new char[1+ size]; else if (size > strlen(buffer)) {   class String { Public: String () : buffer(0) { } // constructors String (const char * right) : buffer(0) { resize(strlen(right)); strcpy(buffer, right); } String (const String & right) : buffer(0) { resize(strlen(right.buffer)); strcpy(buffer, right.buffer); } String () { delete [ ] buffer; } // destructor  void operator = (const String & right) // assignment { resize(strlen(right.buffer)); strcpy(buffer, right.buffer); } private: void resize (int size); char * buffer; }; delete [ ] buffer; // recover old value buffer = new char[1 + size];} } Program Example: resize()

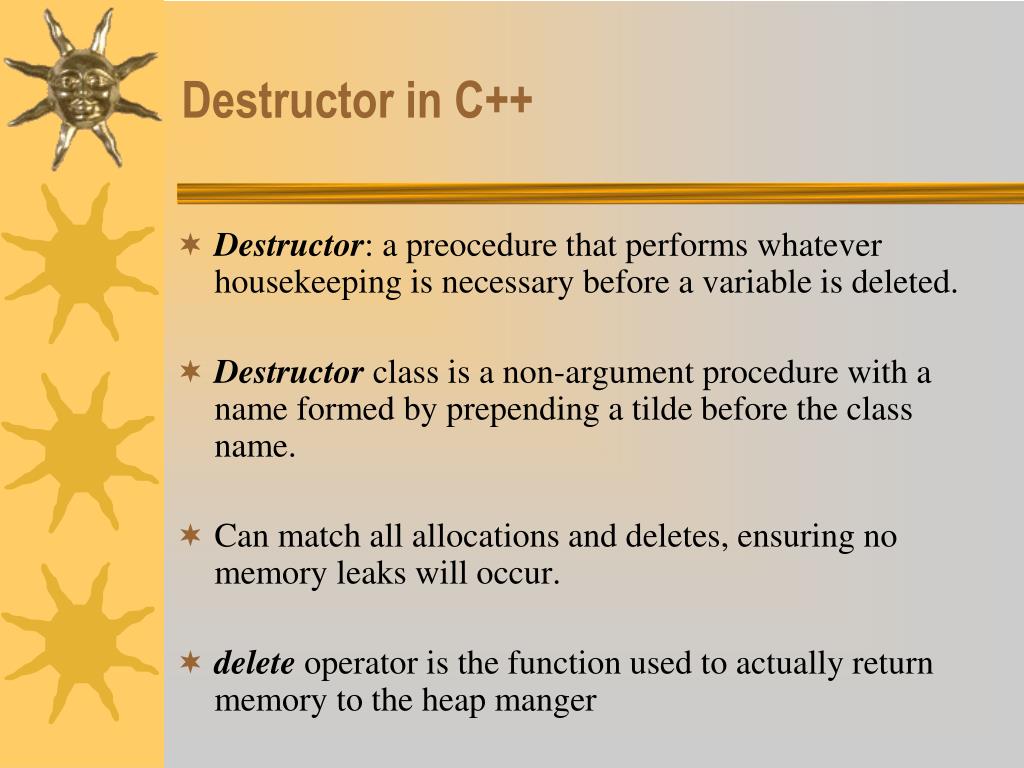

  23. Destructor in C++ • Destructor: a preocedure that performs whatever housekeeping is necessary before a variable is deleted. • Destructor class is a non‑argument procedure with a name formed by prepending a tilde before the class name. • Can match all allocations and deletes, ensuring no memory leaks will occur. • delete operator is the function used to actually return memory to the heap manger

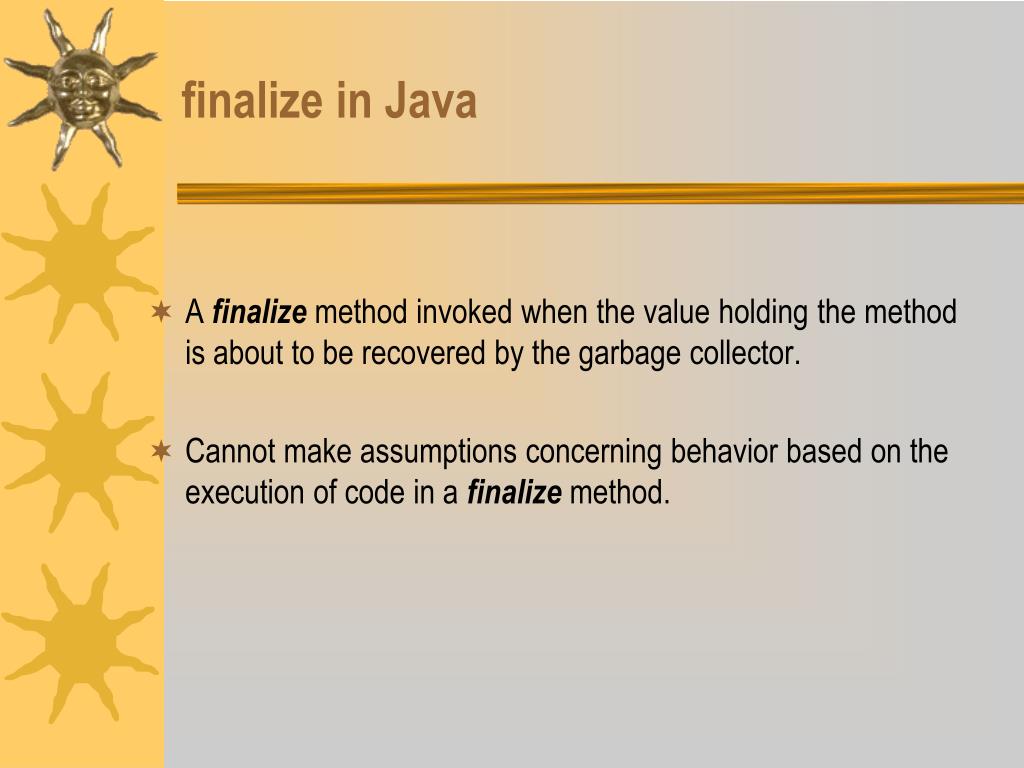

  24. finalize in Java • A finalize method invoked when the value holding the method is about to be recovered by the garbage collector. • Cannot make assumptions concerning behavior based on the execution of code in a finalize method.

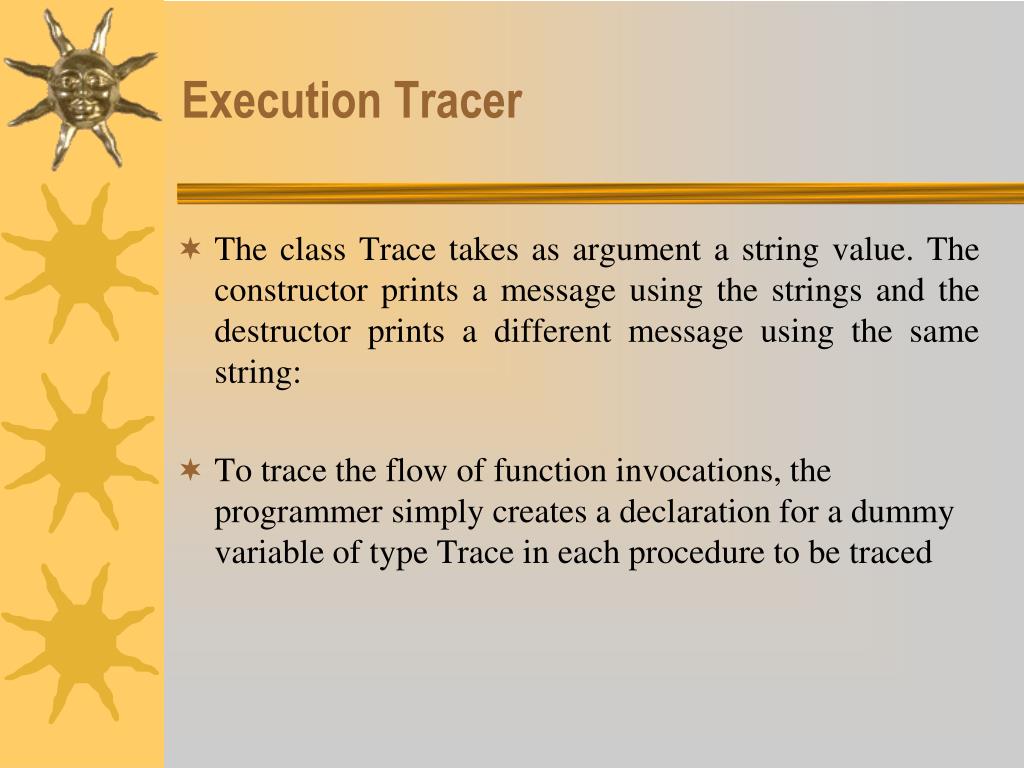

  25. Execution Tracer • The class Trace takes as argument a string value. The constructor prints a message using the strings and the destructor prints a different message using the same string: • To trace the flow of function invocations, the programmer simply creates a declaration for a dummy variable of type Trace in each procedure to be traced

  26. Program Example: class Trace class Trace { public: Trace (string); // constructor and destructor ~ trace (); private: string name; }; Trace: :Trace (string t) : name(t){ cout << "Entering " << name << end1; } Trace : : ~Trace (){ count << “Exiting “ << name << end1; }

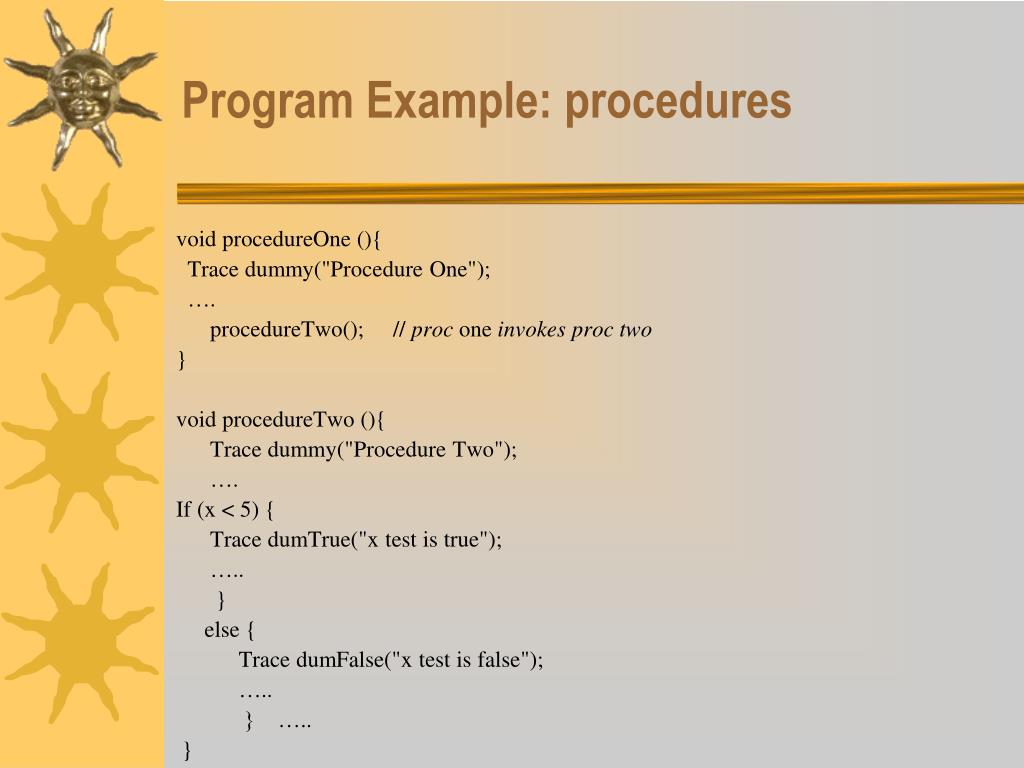

  27. Program Example: procedures void procedureOne (){ Trace dummy("Procedure One"); …. procedureTwo(); // proc one invokes proc two } void procedureTwo (){ Trace dummy("Procedure Two"); …. If (x < 5) { Trace dumTrue("x test is true"); ….. } else { Trace dumFalse("x test is false"); ….. } ….. }

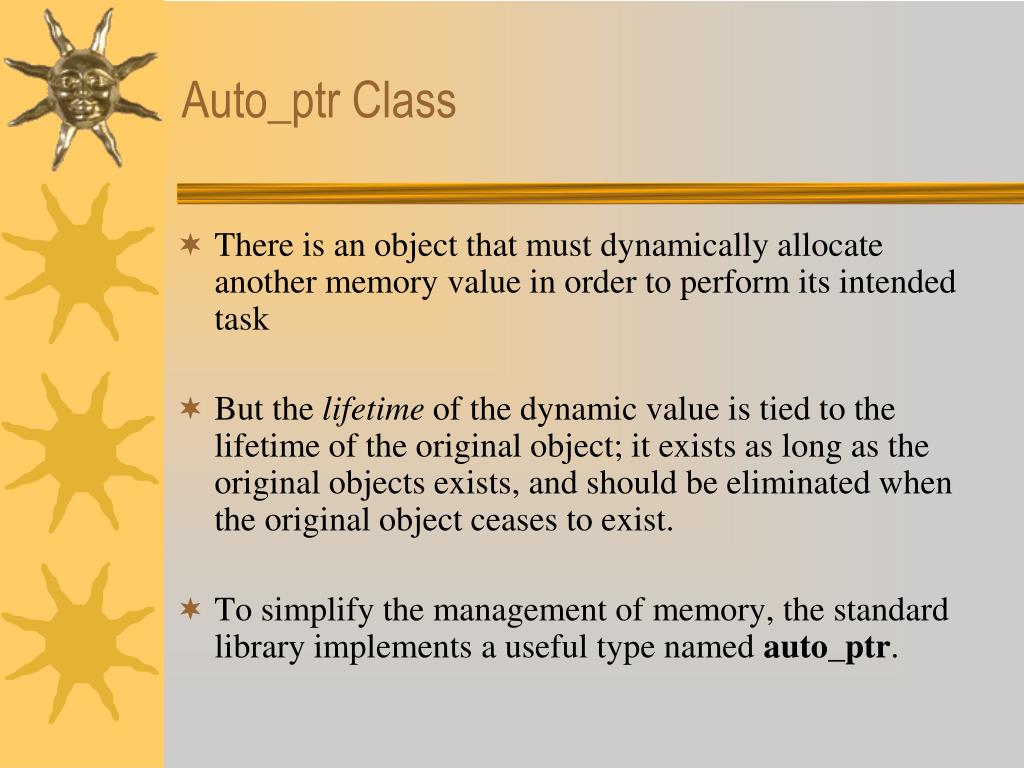

  28. Auto_ptr Class • There is an object that must dynamically allocate another memory value in order to perform its intended task • But the lifetime of the dynamic value is tied to the lifetime of the original object; it exists as long as the original objects exists, and should be eliminated when the original object ceases to exist. • To simplify the management of memory, the standard library implements a useful type named auto_ptr.

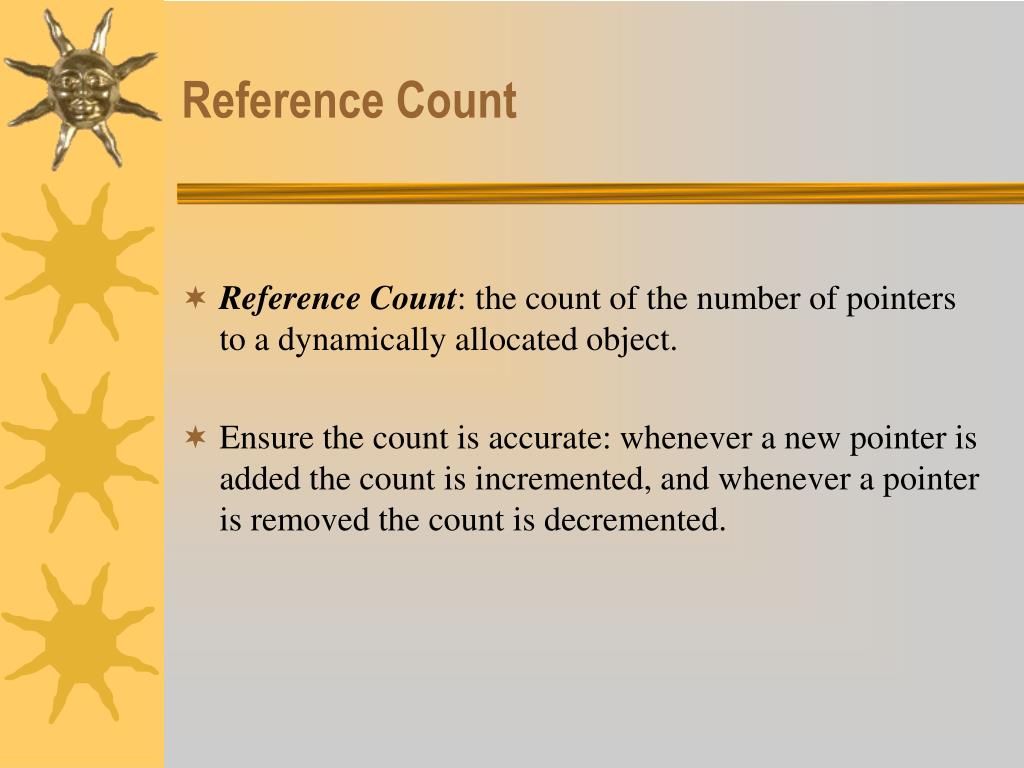

  29. Reference Count • Reference Count: the count of the number of pointers to a dynamically allocated object. • Ensure the count is accurate: whenever a new pointer is added the count is incremented, and whenever a pointer is removed the count is decremented.

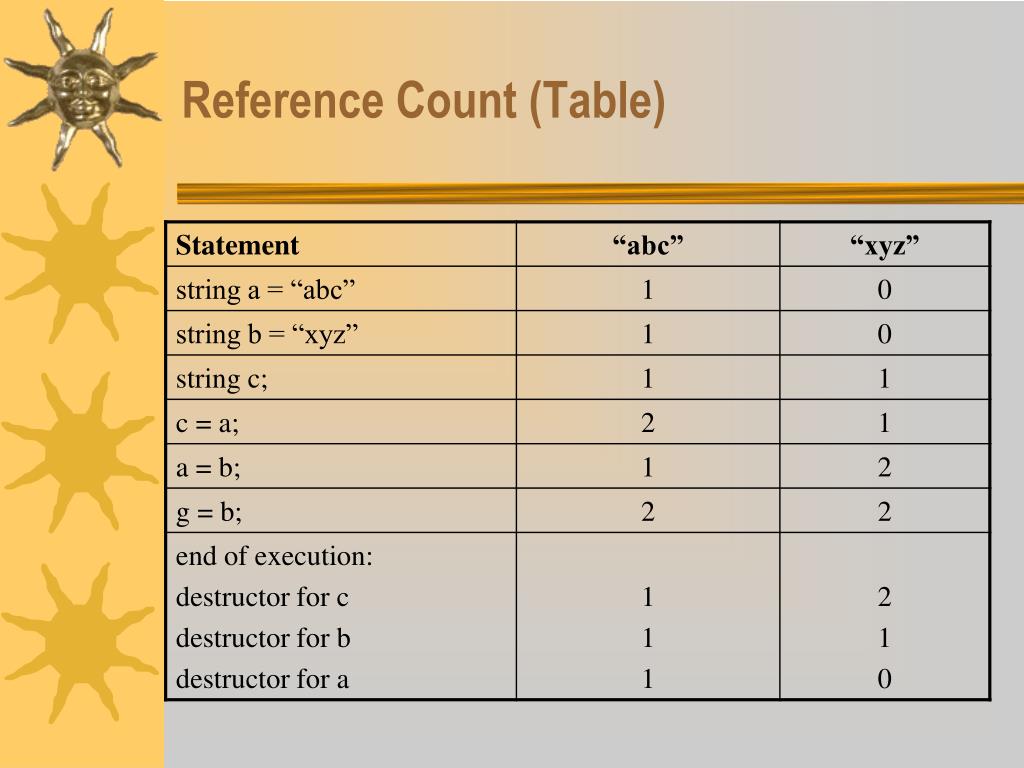

  30. Reference Count (Table)
