Low Energy Building Design 2010

1. Low Energy Building Design 2010 Presentation 3 TEAM ZERO Arnaud Gibert Bintou Ouedraogo Danny Tang Naeema Hafeez Paul Dupuy

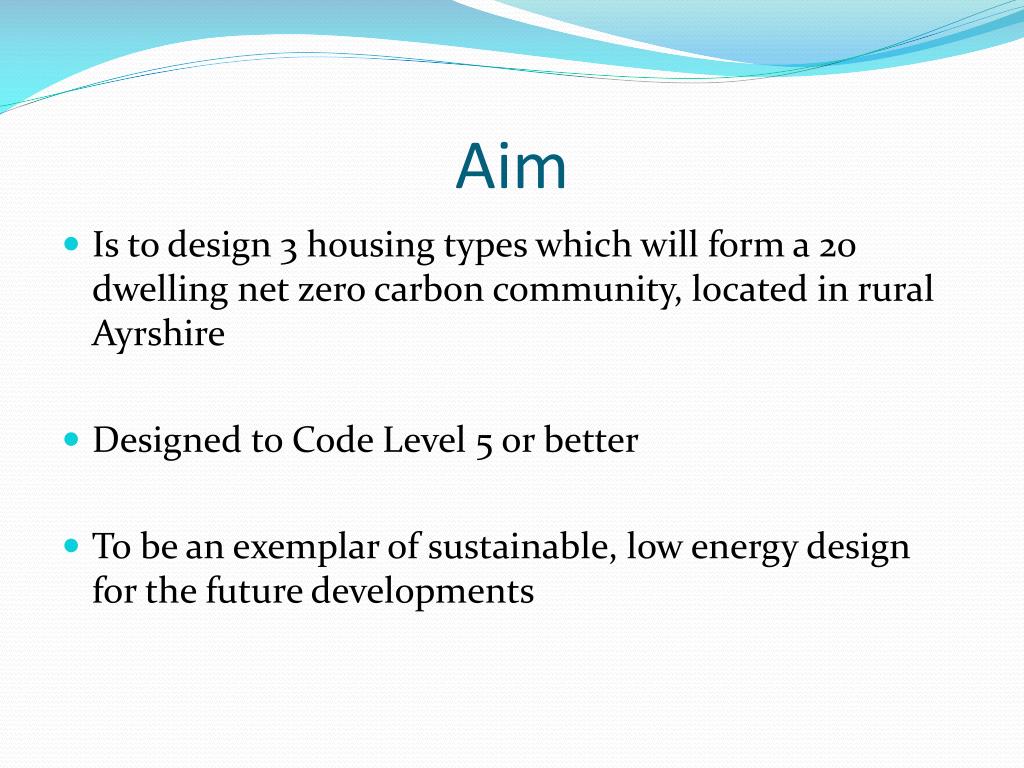

2. Aim • Is to design 3 housing types which will form a 20 dwelling net zero carbon community, located in rural Ayrshire • Designed to Code Level 5 or better • To be an exemplar of sustainable, low energy design for the future developments

3. 2 Bedroom

4. 3 Bedrooms

5. 4 Bedrooms

6. Materials • Concrete Foundation • 25% fly ash replacing Portland cement- 25% reduction in the embodied energy • Timber Frame Construction • Source: Approx. 50-55 miles from the site • Straw Bale with concrete stucco finish • Straw bale used as an infill material • Source: approx 55-60 miles from site • Cost of bales: approx. £1.50/ bale (pick up yourself) • OR £2.50-£3.50 (delivered, costs depends where and how far) • Triple Glazing windows with multiple low emissivity coatings and a xenon fill with timber frame • High performance glazing with timber frames help keep the heat trapped.

7. Embodied Energy

8. Embodied Energy • Embodied energy is a significant contribution to Scotland’s CO2 emissions • Conclusion • Embodied energy of a home varies according to its size, type of construction, building materials, where the building materials come from, and where the home is built. • To obtain a low embodied energy • Using lightweight construction, this is why timber frame was used for our project • Locally sourced materials, in this case straw bales, where such little energy is required to extract, process and manufacture this material.

9. Solar Gain/Loss

10. Heating System DHW LaZer2 Night By pass Gledhill BoilerMate Summer Water supply Winter

11. Electricity and lack of thermal power • PV panels and CHP • PV : Base load • Solar Century C21e • CHP : Baxi DACHS : • 5.5kWe ; 12.5kWth

12. Lighting • T5 28W, 2900 lumens • Compact Fluorescent 9W, 450 lumens • 2 Bedrooms houses: 376W • 3 Bedrooms houses: 460W • 4 Bedrooms houses: 551W

13. Ventilation • Heat Recovery System ComfoD 350 (95% efficiency) • 2 Bedrooms houses: 160m3/h • 45W • 3 Bedrooms houses: 180m3/h • 60W • 4 Bedrooms houses: 240m3/h • 120W

14. A, A+ and A++ appliances • For each houses 4 typical days (Winter, Spring, Summer and Autumn) Electrical consumption Table for electrical consumption (2bed. Houses), appliances + lighting + ventilation • 2 Bedrooms houses: 21kWh/m2/year • 3 Bedrooms houses: 22kWh/m2/year • 4 Bedrooms houses: 20kWh/m2/year

15. Electrical consumption

16. Trasnportation • Alternative transports • Walking, cycling, rollerblading • Public Transport Car sharing • Electrical Transports • Electric Car • Electric Bicycle • Cheap: Minimum cost £500

17. Transportation Blue Car withSolar Panels • Batscap Lithium MetalPolymerbattery, lifespan: 10 yrs and entirely recyclable • Recharging time : 4 hours • Automony: 250 km • Battery power rating: 30 kWh • Solar panels efficiency: 17.5% • Surface: 2.55m² • Irradiance: 152W/m² • Recharge Time only by solar panels: 443h E=P*t and P=S*G*Eff

18. Waste Water Management • BiotankbyBiokube • Certified and tested to European Standard EN 12566 • Installing this systems is low risk, high gain.  • Biokube guarantee that their system will perform as what has been stated by them. • The Biokube system is maintained and serviced by the supplier • 5 year warranty for part • Water can be used for irrigation purposes due to more efficient treatment (less than 10mg/l BOD : 15 mg/l Suspended Solids : 5 mg/l Ammonia).

19. BioKube Mars • Dimensions for BioKube Mars are Ø 200 cm., Height 150 cm. and Weight 320 kg. • Very compact in size for a system designed to clean wastewater up to 30 people. • The Mars system comes in a range of treatment capacities from 15PE to 30PE. • Annual Maintenance Cost - £170 • Cost to buy £7000- £8000 per tank

21. Plan of work • Gather all information • Finalise each component • Come up with a conclusion • Website

22. ANY QUESTIONS?!
