  1. Lighting for smart home

  2. Lighting for smart home • Lighting plan • Bid ins • Taking contact to wago-program

  3. Lighting plan

  4. Lighting plan

  5. Lighting plan

  6. Lighting plan

  7. Bid ins

  8. WAGO modular I/O system • Input 24VDC • Controlled by Codesys-program • Easy to use

  9. Panasonic BB-HCM511 • PoE-based ( PoE = Power over Ethernet) • Input 48VDC from ethernet • 10x digital zoom

  10. Eki 5-port POE Ethernet switch • Input 24/48VDC • Power output 15,4W per PoE port • Transmission distance up to 100m

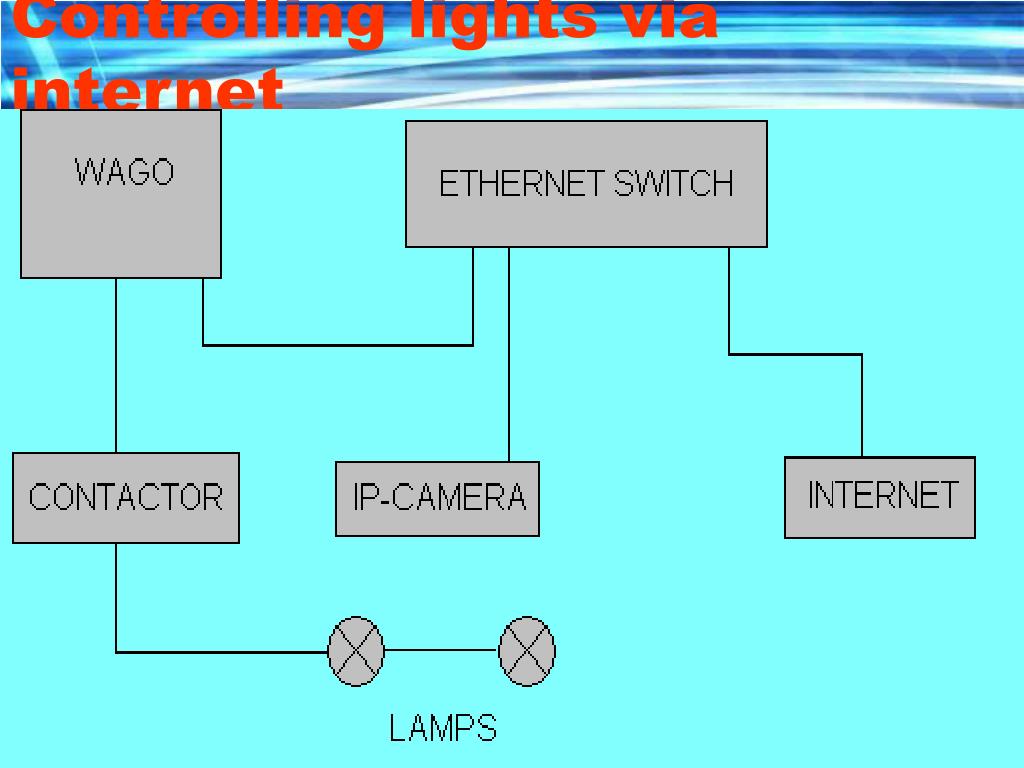

  11. Controlling lights via internet
