D1002475 - DC Power Pigtail Cord

D1002475 - DC Power Pigtail Cord. AC. This concept diagram emphasizes the DC Power Pigtails. AC. Customized Extension Cables. D1002209 Option 02 Extension Cords. LIGO-D1002475 Option 04. LIGO-D1002475 Option 01. LIGO-D1002475 Option 03. LIGO-D1002475 Option 02. D1002475 Pigtail Cords.

elke
Download Presentation

D1002475 - DC Power Pigtail Cord

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. D1002475 - DC Power Pigtail Cord AC This concept diagram emphasizes the DC Power Pigtails. AC Customized Extension Cables D1002209 Option 02 Extension Cords LIGO-D1002475 Option 04 LIGO-D1002475 Option 01 LIGO-D1002475 Option 03 LIGO-D1002475 Option 02 D1002475 Pigtail Cords D1002475 Pigtail Cords Pigtail Cords D1002475 Pigtail Cords D1002475 Pigtail Cords D1002209 Option 01 Extension Cords S S S S S S P P P P S S + + + + + + P P Chassis S – – – – – – P P S S P Chassis S S P P Chassis P S P P S S S P Chassis S D1002189 Opt 02 24VDC Power Strip S P Chassis S D1002189 Opt 01 18VDC Power Strips S S Chassis S S S Power Supplies Power Supplies Chassis S X 24 X 24 Subsystem Electronics Rack DC Power Supply Rack 1

  2. D1002475 Option 01 – 18V 20A Plug Pigtail +/- 18VDC 20A (Used between DC Power Strip and Extension Cable) Standard 3-foot cords, backshells and screws on connector P Orange 12/3 25A McMaster-Carr 7394K13 Cable Conec 3003W3PXX99A10X Connector Conec 131C11029X Male Contacts Digi-Key 17E-1657-15-ND Backshell

  3. D1002475 Option 02 – 18V 20A Socket Pigtail +/- 18VDC 20A (Used between DC Power Supplies and Extension Cable) Standard 3-foot cords, backshells and screws on connector S Orange 12/3 25A McMaster-Carr 7394K13 Cable Conec 3003W3SXX99A10X Connector Conec 132C11029X Female Contacts Digi-Key 17E-1657-15-ND Backshell

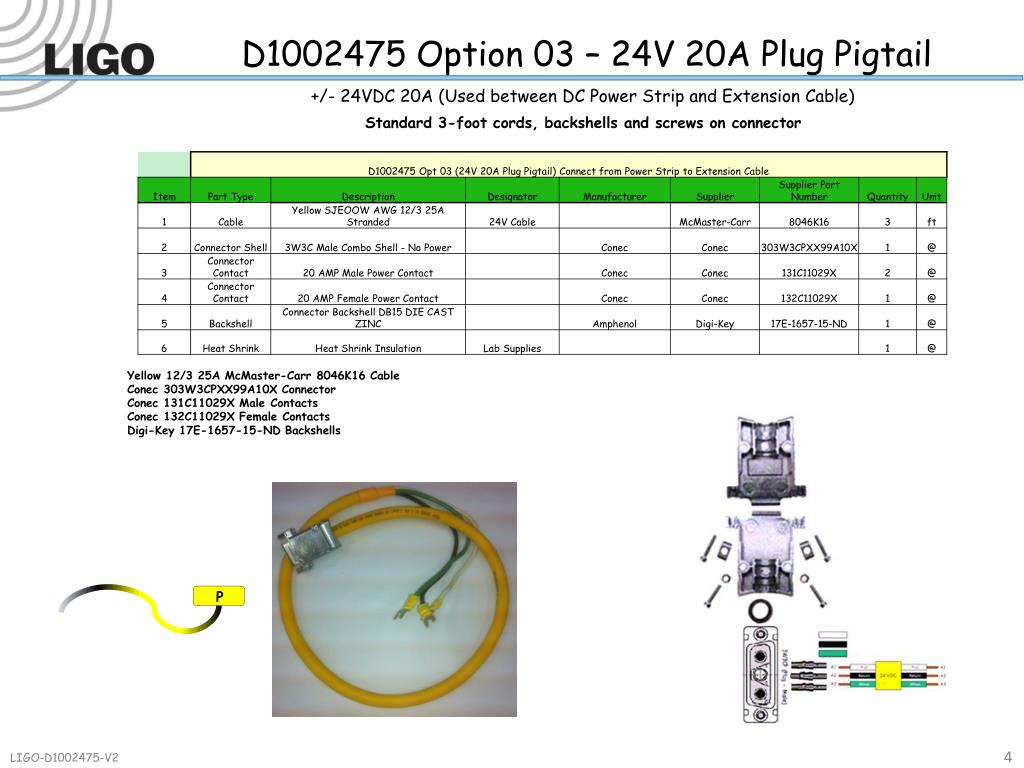

  4. D1002475 Option 03 – 24V 20A Plug Pigtail +/- 24VDC 20A (Used between DC Power Strip and Extension Cable) Standard 3-foot cords, backshells and screws on connector Yellow 12/3 25A McMaster-Carr 8046K16 Cable Conec 303W3CPXX99A10X Connector Conec 131C11029X Male Contacts Conec 132C11029X Female Contacts Digi-Key 17E-1657-15-ND Backshells P

  5. D1002475 Option 04 – 24V 20A Socket Pigtail +/- 24VDC 20A (Used between DC Power Supplies and Extension Cable) Standard 3-foot cords, backshells and screws on connector Yellow 12/3 25A McMaster-Carr 8046K16 Cable Conec 303W3CSXX99A10X Connector Conec 131C11029X Male Contacts Conec 132C11029X Female Contacts Digi-Key 17E-1657-15-ND Backshells S
