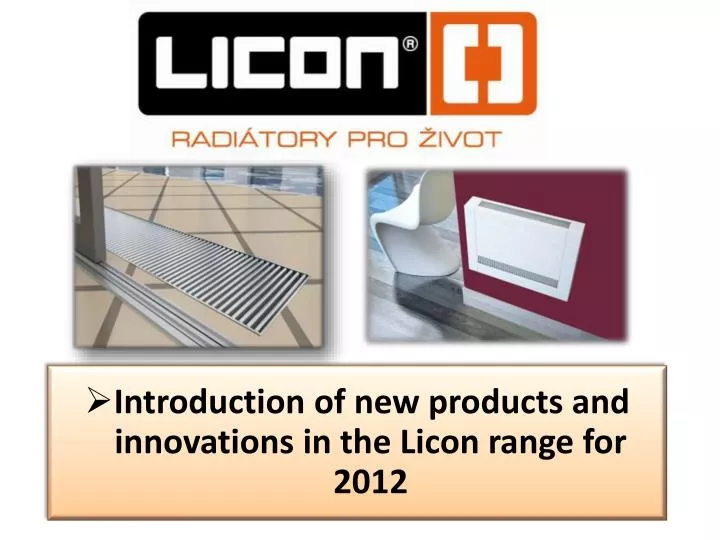

1. Introduction of new products and innovations in the Licon range for 2012

2. New products 2012 / natural convection Floor convectors Heating benches \\\\\ Heating registers Facade convectors Wall-mounted elements

3. News in the floor convector range • Extension of production ranges • Use of new premium materials • Swimming pool version

4. New division of floor convectors Economical Basic version of heating elements black varnished steel tub – register without surface finish Exclusive Higher emphasis on appearance black varnished steel tub black varnished register Inox Stainless-steel tub design and non-varnished heating register CAUTION, for dry environment only PKOC PKIOC

5. Depth of PK floor convectors 9 cm Width 16 cm Width 20 cm Width 28 cm Width 34 cm New type range, in all available lengths Width 42 cm with a J4 exchanger INNOVATION Depth of PK floor convectors 11 cm Width 16 cm Width 20 cm Width 28 cm Width 34 cm New type range, in all available lengths Width 42 cm with a J4 exchanger INNOVATION New J4 heat exchanger Increased heat outputs

6. Depth of PK floor convectors 15 cm Width 28 cm Width 34 cm New type range, in all available lengths Width 42 cm with a D4 exchanger New D4 heat exchanger, increased heat outputs INNOVATION Depth of PK floor convectors 19cm Width 28 cm Width 34 cm New type range, in all available lengths Width 42 cm with a D4 exchanger New D4 heat exchanger, increased heat outputs INNOVATION

7. Swimming pool design / Inpool Swimming pool design / InPool • Identified with letter B (PKB) • Suitable for premises with • Increased humidity – POOLS • Use of premium materials, • AISI 316 chemical stainless steel • Guarantee – operation conditions • Must be met • Recommended PM (new AL profile or Exclusive stainless steel) Water drain

8. News of heating benches • Production range extended with new types • Use of new premium • materials • Swimming pool design

9. Heating benches with an outlet grille OLE- Economical Economical The grille with a cut-out in the sheet-metal panelling has the same colour design as the bench Exclusive OL- Exclusive Higher emphasis on appearance The OL heating bench is fitted with a covering silver aluminium grille INNOVATION

10. Pool design of heating benches / Inpool • The swimming pool design is available for all the OL and OL/D types Swimming pool design / InPool • Identified with letter B (OLB, OLB/D) • Suitable for premises with • Increased humidity • Material - AISI 316 chemical stainless steel coated with white powder paint • Guarantee – operation conditions • must be met INNOVATION

11. Facade convectors - FK • Ideal solution for large glazed walls Installation on a horizontal beam between vertical supports Installation on a vertical support • Design freedom for • architects • An alternative for wet • environment is also available

12. Innovation of the OR heating exchanger INNOVATION Change of the position of the bleeding valve for easier bleeding

13. Suspended elements /OK • Significant design change INNOVATION • New design of the front cover • while maintaining the scope of production ranges. Lengths from 40 to 200 cm Heights 45 and 60 cm Depths 9 and 15 cm

14. Pool design of OK elements / InPool Swimming pool design / InPool • Identified with letter B (OKB) • Suitable for premises with • Increased humidity • Material - AISI 316 chemical stainless steel coated with white powder paint • Guarantee – operation conditions • must be met

15. New products 2012/ forced convection Floor convectors with a fan Heating benches with a fan Wall-mounted elements with a fan

16. Wall-mounted elements - OKIOC Heating and aftercooling New design High outputs Easy control Silent operation OC range product – provides all benefits of this range, i.e. mainly low noise and el. power input

17. OKIOC Innovative solution of heating and aftercooling New product specially designed for systems with a low heating water temperature, e.g. 35/30 Suitable for heat pump heating systems Heating output up to 7kW, cooling up to 1kW High efficiency at low gradients As compared to standard elements COOLING heat pump HEATING

18. Heating benches with a fan - OLOC New product specially designed for systems with a low heating water temperature down to 35/30 Suitable for heat pump heating systems

19. Heating benches with a fan - OLOC Exclusive OLOC 9/18 OLOC 9/24 Higher emphasis on appearance Use of an aluminium covering grille Steel casing, the same control as PKOC OLOC 15/18

20. News New division of PKOC Economical Basic version of heating elements black varnished steel tub – register without surface finish Exclusive Higher emphasis on appearance black varnished steel tub black varnished register Inox Stainless-steel tub design and non-varnished heating register CAUTION, for dry environment only

21. Overview of produced PKOC ranges PKOC 7/28 PKOC 9/28 PKOC 11/28 PKOC 11/34 New type range PKOC 11/42 with a J4 exchanger INNOVATION

22. PKOC for wet environment/PKBOC Swimming pool design PKBOC 11/34 InPool (stainless steel) • Identified with letter B (PKBOC) • Suitable for premises with • Increased humidity • Use of premium materials, • AISI 316 chemical stainless steel • Guarantee – operation and • guarantee conditions specified • by the manufacturer must be met Only one dimensional range with the depth of 11 cm and width of 34 cm

23. PKIOC For heating and aftercooling Inox PKIOC 9/20 • Heating, aftercooling • The smallest high-performance fan-coil. All stainless-steel design as standard • Total 6 offered lengths • that are identical to PKOC CAUTION, for dry environment only Economical Exclusive Inox PKIOC 13/34 Změna šířky z 28 na 34 cm Extension of production lengths with 150 cm and 250 cm The range contains 5 lengths from 1m to 3m Use of new fans with the diameter of 60 mm New design and higher outputs INNOVATION

24. PKWOC INNOVATION • 4-pipe systems – heating, cooling • Extension of production lengths with 150 cm and 250 cm • Use of new fans with the diameter of 60 mm • New design and higher outputs The heating system is connected from one side and cooling from the other one

25. Control for OC INNOVATION Considerably simplified control R- BOX – contains a module of galvanic separation of signals, significant simplification of installation on a DIN rail in a switchboard DC power supply unit - will be newly delivered for installation on a DIN rail in a switchboard DC power supply unit R box

26. Control for OC INNOVATION Mbox replaced with a connection terminal board (F box) in each OC convector The new RAB 11 thermostat fully replaces the older RAB 10 model The new RDF 400 thermostat replaces the RDF 210 type F box Siemens RAB 11 Siemens RDF 400

27. Controlfor OC – F box

28. Covering grilles, PM/aluminium High design level New anodizing colours New design

29. Covering grilles, PM/stainless steel Exclusive design of the stainless-steel covering grille The covering grille is available including a stainless-steel frame Suitable for places subject to high loads (high load-bearing capacity thanks to a dense grid) Suitable for wet and dry environments, mat. AISI 304 i 316

30. Covering grilles, PM/stainless steel – square profile New design of the stainless-steel covering grille Suitable for places subject to high loads (high load-bearing capacity) For dry environment only

31. Catalogue 2012 You will find more detailed technical and output parameters in the Technical Catalogue 2012 LICON HEAT S.R.O. Průmyslová zóna Liberec Sever 460 11 Liberec CZECH REPUBLIC Tel.: +420 485 131 157 Fax: +420 485 130 331 E-mail: info@licon.cz http:// www.licon.cz Coming soon
