Preamp Monte Carlo

Preamp Monte Carlo. Family of pulses ( PAOUT ) representing complete process spread [1 pC input]. Amplifier2001_TrMc_gain_1_16feb02..xls. MC - Peaking Time. Preamp Peaking Time 51.6 ± 2.8 ns. PA_MC_2002.xls. MC - Peaking Time. x1 Peaking Time 58.0 ± 3.6 ns. PA_MC_2002.xls. Preamp dR/R.

elizabeth-whitley
Download Presentation

Preamp Monte Carlo

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Preamp Monte Carlo Family of pulses (PAOUT) representing complete process spread [1 pC input] Amplifier2001_TrMc_gain_1_16feb02..xls

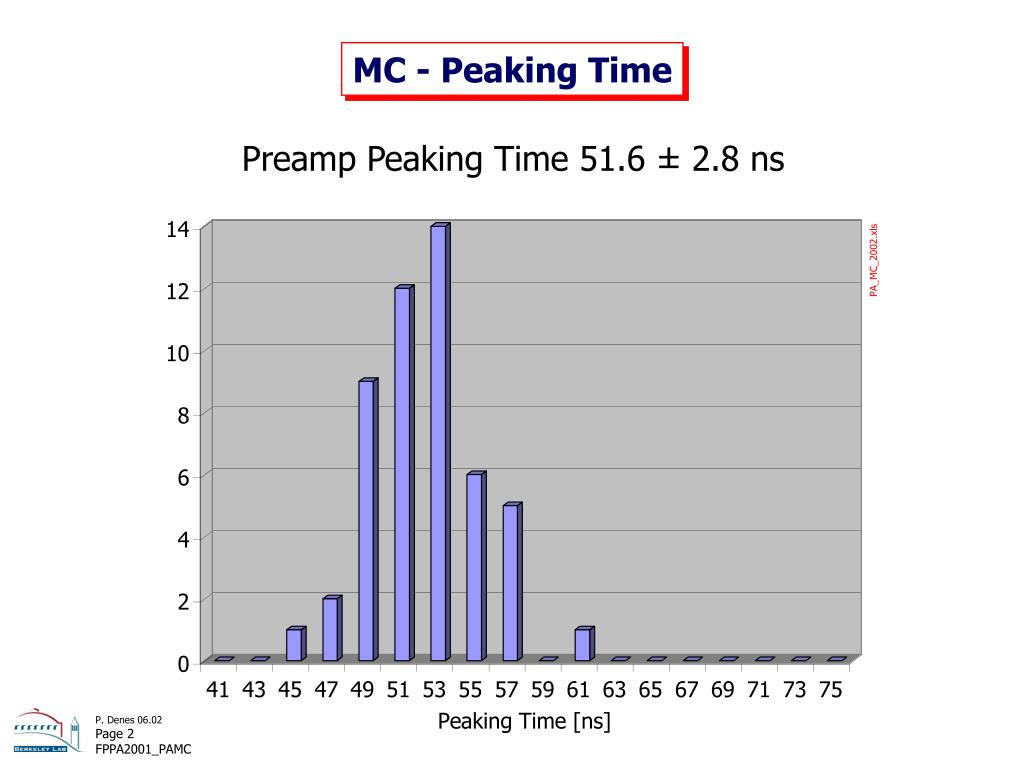

  2. MC - Peaking Time Preamp Peaking Time 51.6 ± 2.8 ns PA_MC_2002.xls

  3. MC - Peaking Time x1 Peaking Time 58.0 ± 3.6 ns PA_MC_2002.xls

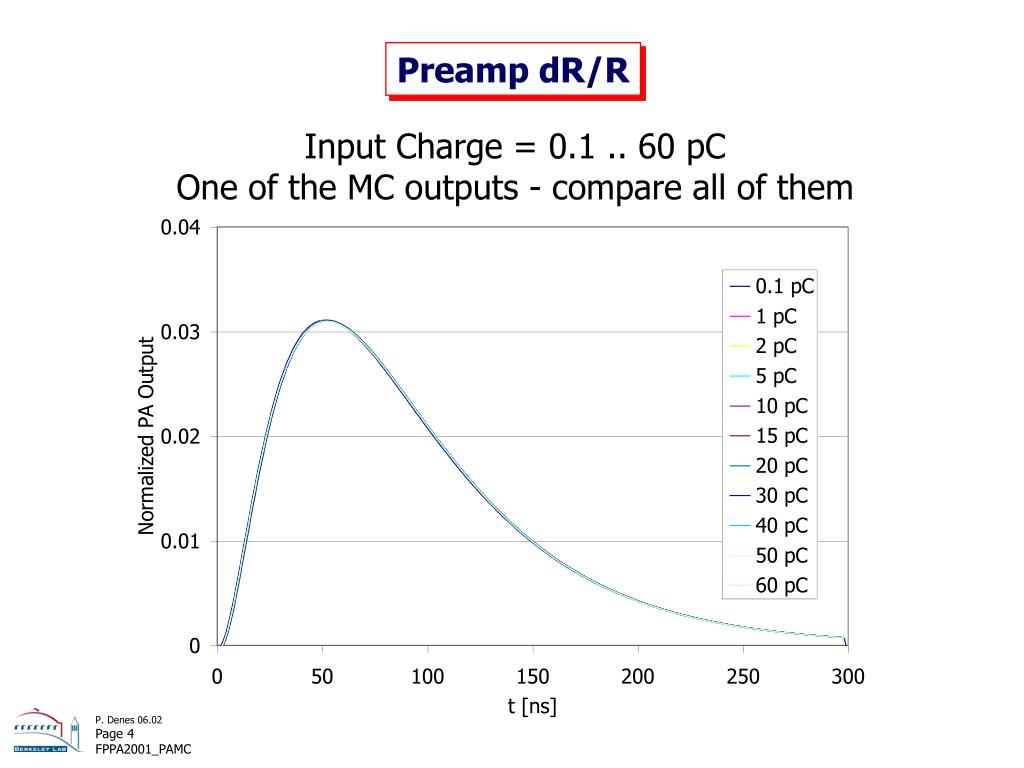

  4. Preamp dR/R Input Charge = 0.1 .. 60 pC One of the MC outputs - compare all of them

  5. Reminder: FPPA2001

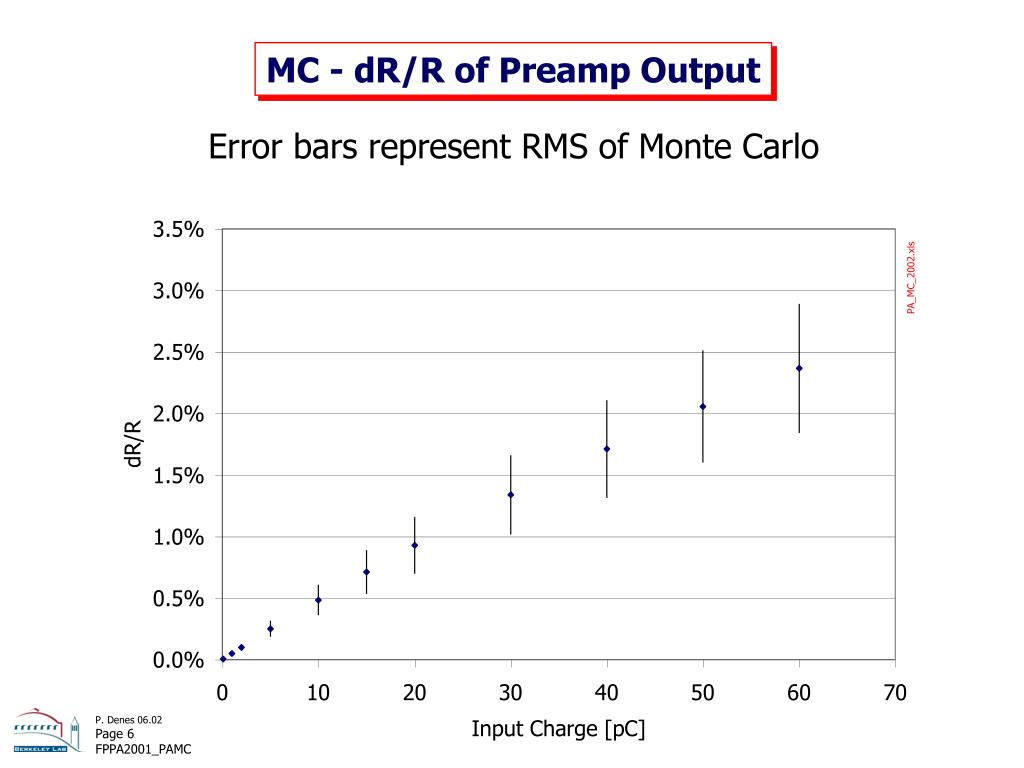

  6. MC - dR/R of Preamp Output Error bars represent RMS of Monte Carlo PA_MC_2002.xls

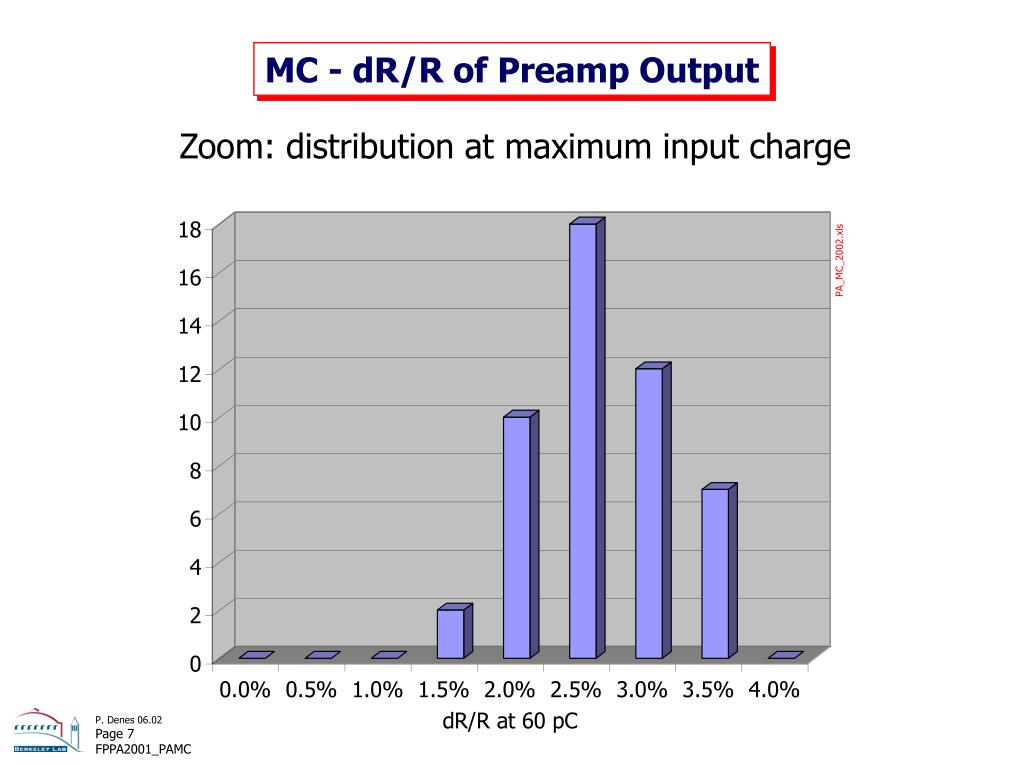

  7. MC - dR/R of Preamp Output Zoom: distribution at maximum input charge PA_MC_2002.xls

  8. MC - dR/R of x1 Output Error bars represent RMS of Monte Carlo PA_MC_2002.xls

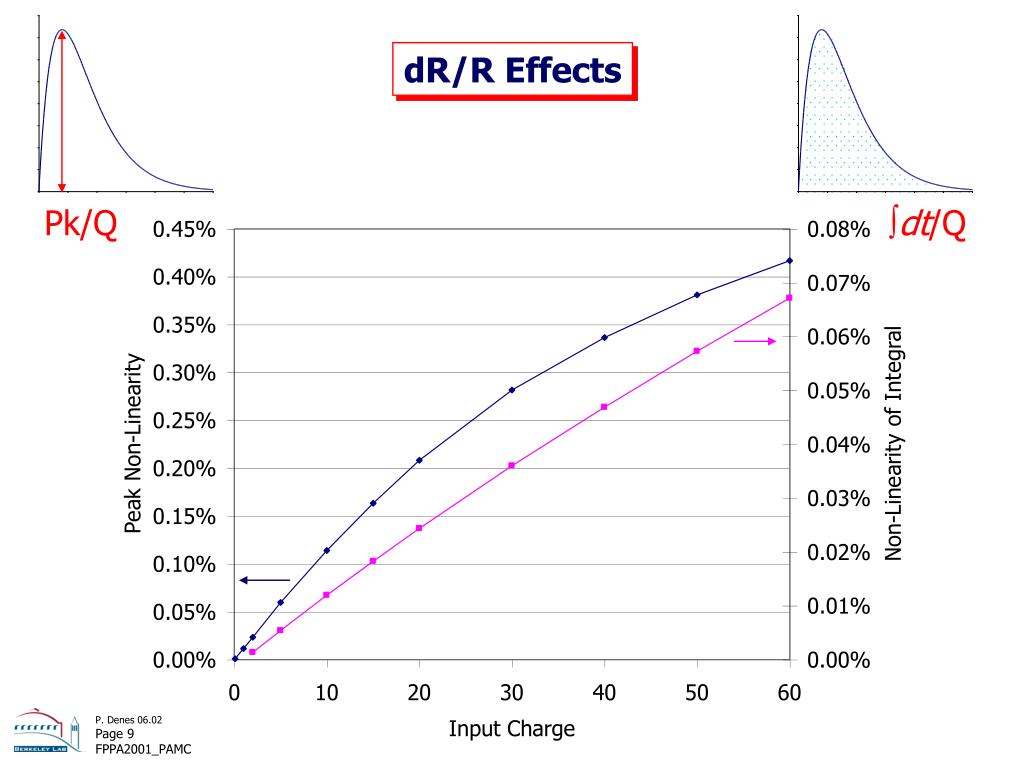

  9. dR/R Effects Pk/Q dt/Q

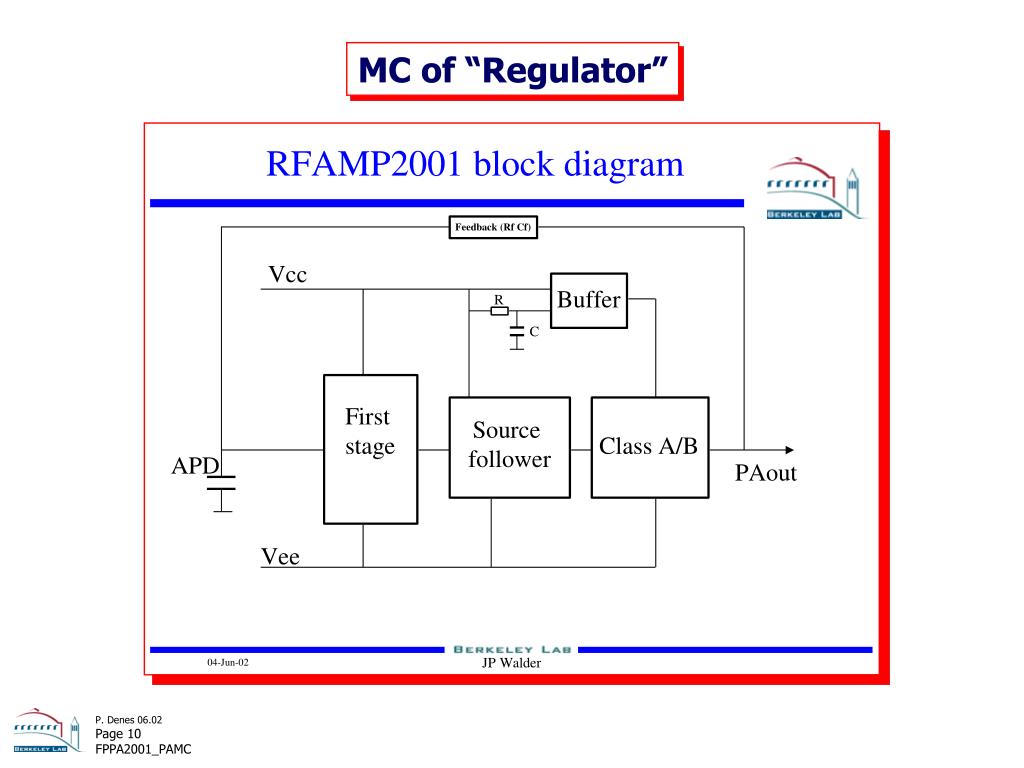

  10. MC of “Regulator”

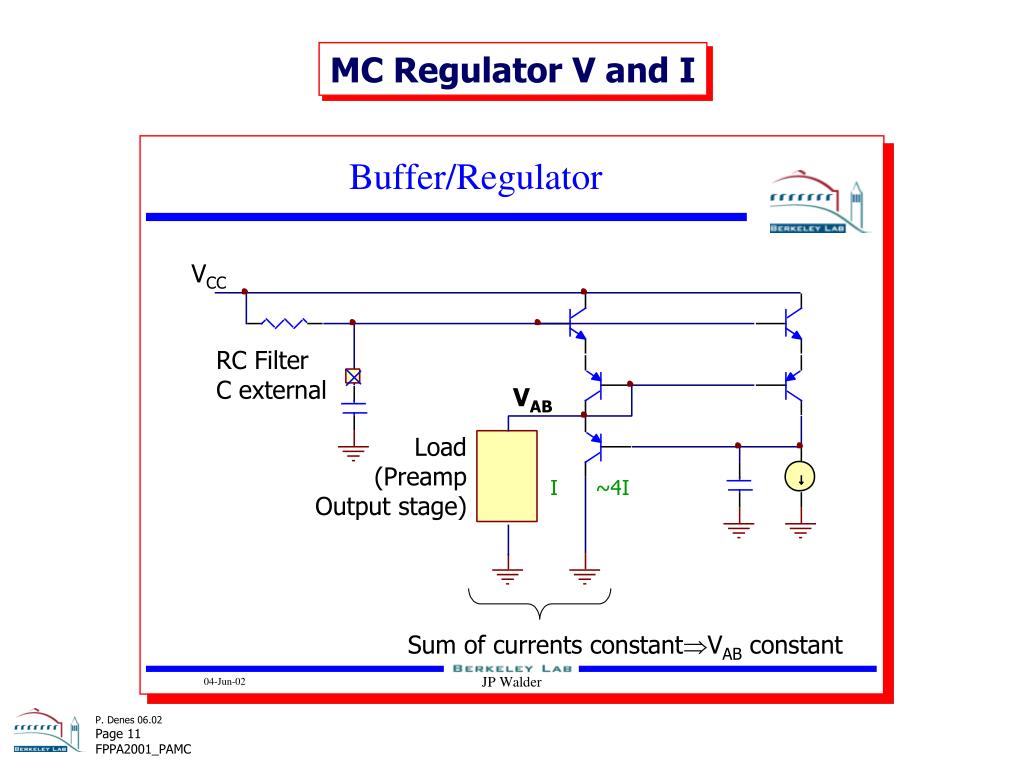

  11. MC Regulator V and I

  12. Preamp Monte Carlo “Regulator” Output: 3.33 ± 0.02 V PA_MC_2002.xls

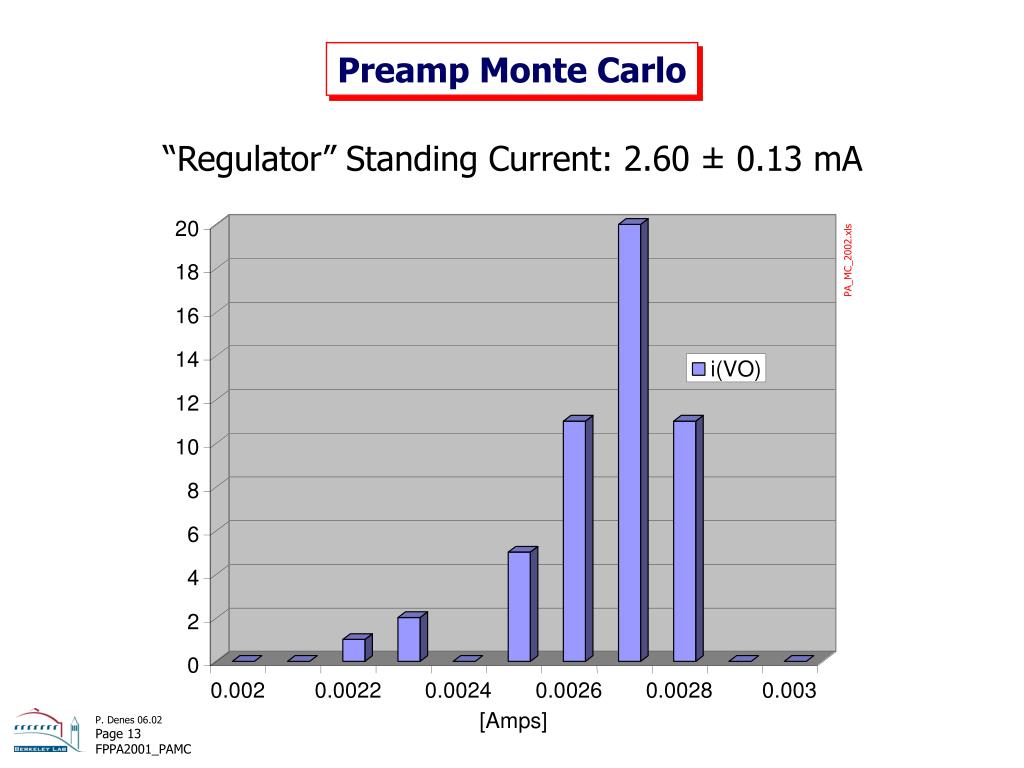

  13. Preamp Monte Carlo “Regulator” Standing Current: 2.60 ± 0.13 mA PA_MC_2002.xls

  14. “In22” Sensitivity AC simulation performed on preamp extracted layout First stage Class A/B stage To ext cap PAout To ext cap V22 DC feedback loop Baseline control

  15. “In22” Sensitivity DC Feedback doing its job Paout / In22
