dye penetrant pt procedure
Dye Penetrant (PT) Procedure
  • By: Associate Professor Stephen Collins
  • Last revised: March 13, 2005
  • For informational PT only.
  • This is not an authorized procedure for inspection to any code or specification.
safety
Safety
  • You must have documented MSDS training on PT materials before using them.
  • Wear safety glasses and gloves (illustrations here do not show gloves, but you must wear them when handling PT materials)
1 degrease the surface to be inspected
1. Degrease the surface to be inspected.
  • Skip this step if no grease or oil is present.
  • Coat the area to be inspected with Cleaner
  • Let grease dissolve, wipe dry with clean cloth
  • Allow Cleaner to evaporate

2

1

2 clean the surface by sanding or wire brushing
2. Clean the surface by sanding or wire brushing.
  • Skip this step if surface is clean and smooth.
  • Grinding leaves deep scratches, making it difficult to clean. Follow up with sanding.
3 apply the penetrant
3. Apply the penetrant
  • holding the spray can back about 12” from the surface using a sweeping motion.
  • Use only enough penetrant to cover the inspection area.
4 let stand for 10 minutes
4. Let stand for 10 minutes
  • to allow penetrant to enter flaws open to the surface.
5 wipe the surface
5.Wipe the surface
  • with a clean dry rag to remove penetrant
6 clean the surface
6. Clean the surface
  • using a rag premoistened with cleaner/solvent.
  • Do not flush the surface with cleaner/solvent
  • Repeat until all

traces of penetrant

are removed, rag

comes up clean.

7 let stand for 10 minutes

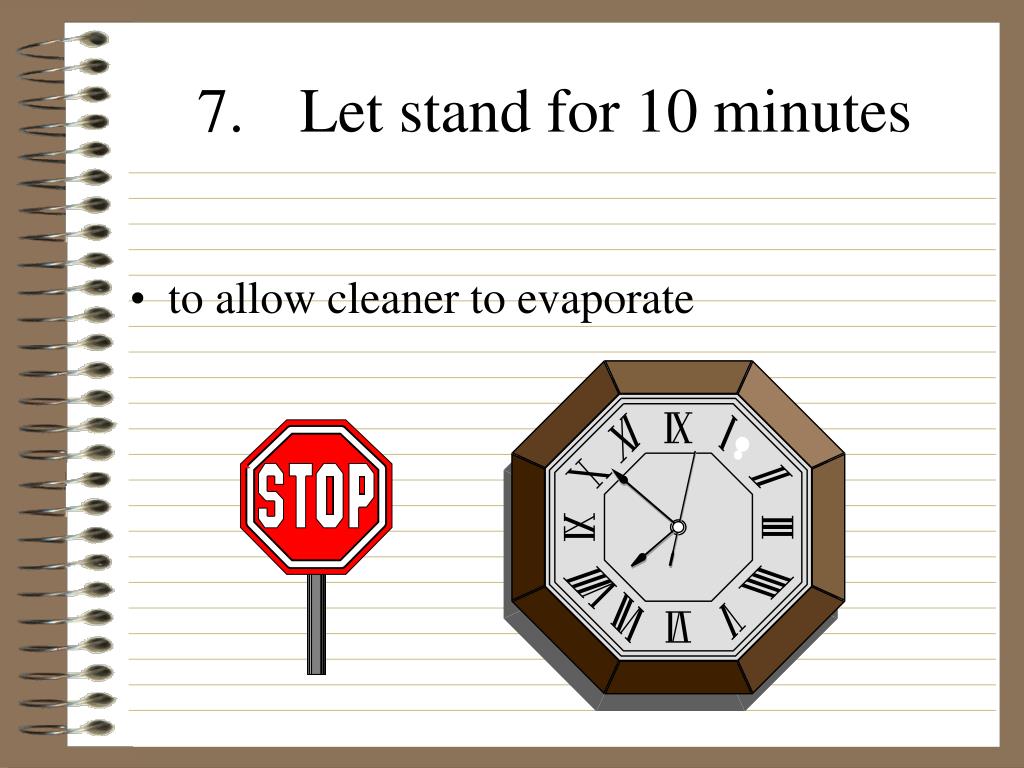

7. Let stand for 10 minutes
  • to allow cleaner to evaporate
8 apply the developer

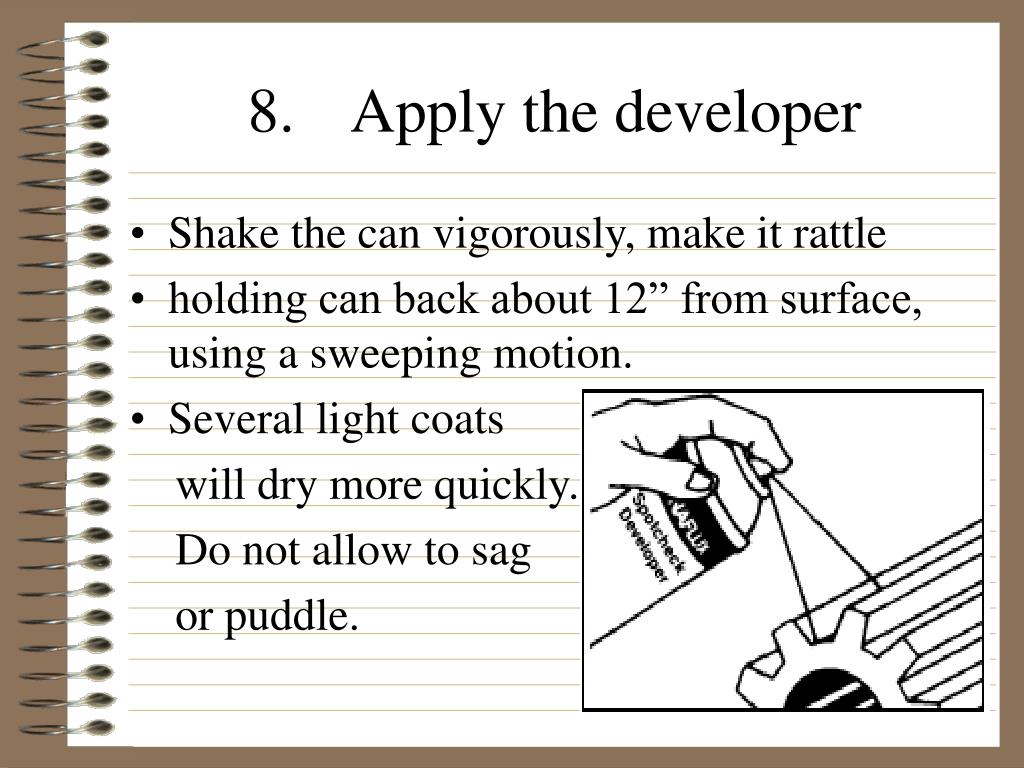

8. Apply the developer
  • Shake the can vigorously, make it rattle
  • holding can back about 12” from surface, using a sweeping motion.
  • Several light coats

will dry more quickly.

Do not allow to sag

or puddle.

9 let stand for 10 minutes
9. Let stand for 10 minutes
  • observing indications as they develop to aid in identification.
  • Interpret and

evaluate any

flaws by

comparison

to a suitable

standard.

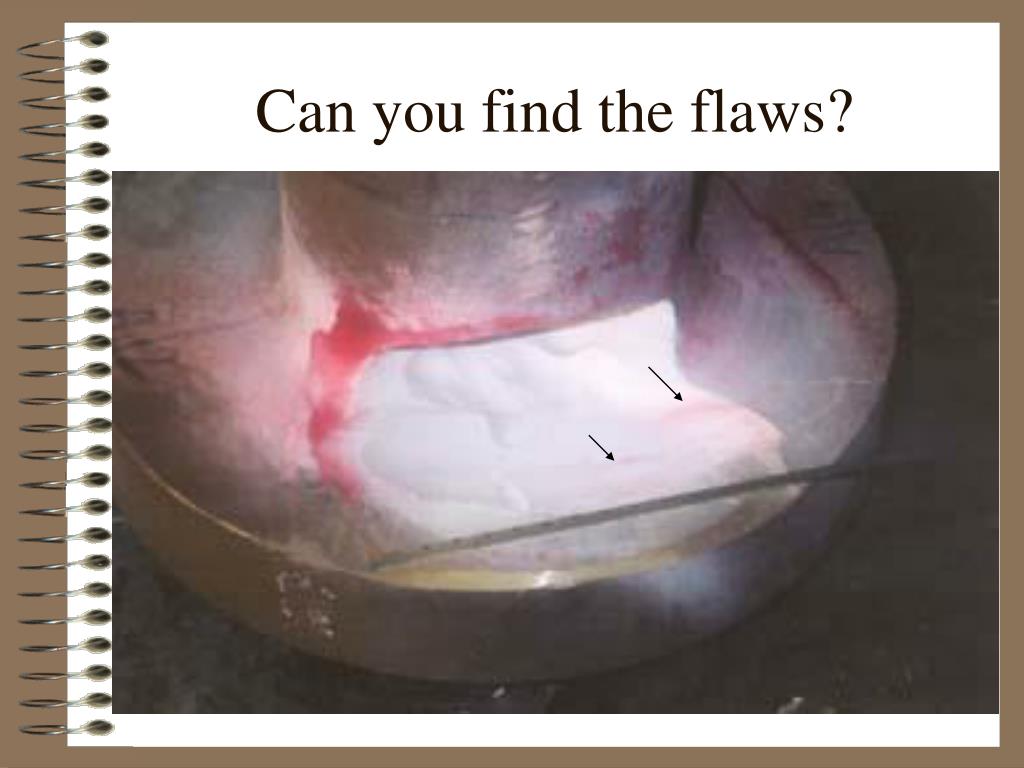

examples of pt
Examples of PT
  • Excavations of defects in castings
references
References
  • Magnaflux Corporation (2005) Spotcheck Dye Penetrant Operating Instructions. Retrieved March 13, 2005 from http://www.magnaflux.com/files/library/operating/Spotcheck~reg_Kit_Operating_Instructions.pdf
  • NDT Resource Center (n.a.) Introduction to Dye Penetrant Testing. Retrieved March 13, 2005 from http://www.ndt-ed.org/EducationResources/CommunityCollege/PenetrantTest/Introduction/history.htm
links
Links
  • http://technology.open.ac.uk/materials/mem/mem-dye.html The Open University, Faculty of Technology Dye Penetrant Testing.
  • http://www.nde.lanl.gov/default.htm Los Alamos National Laboratory, Engineering Sciences & Applications (ESA) Division
  • http://www.ndt.net/index.html NDT Net, the e-Journal of Nondestructive testing
