  1. MSD-920-2 and MSD-970-1 Automatic Battery Test Systems

  2. MSD-970-1 Solution to Battery Servicing National Stock Number 6130-01-508-3397

  3. MSD-920-2 Solution to Portable Battery Servicing National Stock Number In Process

  4. MSD-970-1 & MSD-920-2Features • Programmed Battery Profiles • Selectable Stored Battery Profiles • Store Capacity Up to 80 Profiles • Up to 10 Steps Per Battery Profile • Constant Current Charging • Constant Voltage Charging • Constant Current Discharging • Open Circuit Stand • Ampere Hour Capacity Test

  5. MSD-970-1 and MSD-920-2 Features • Profile History Collection • Tests Any Secondary Battery Chemistry • PC Interface for Serial Data Collection • User Interface via LCD and 16 Key Keypad • Pause / Resume Function • NiCad Beep Function • Profile Completion Beep Function • Minimized Alignment and Adjustment Process • Modified Step Execution (i.e. Boost Charge) • Reversed Battery Protection

  6. MSD-970-1 Specifications • Input Power • 240 Vac, Single Phase, 60 Hz • 120 Vac, Single Phase, 60 Hz • Dimensions :12 5/8” x 21” x 20” • Power Cord Adds 2” to the Depth • Weight: 103 lbs.

  7. MSD-970-1 Specifications • Constant Current Charge (0.02 - 70 Amps) • Constant Potential Charge (1 - 40 Volts) • Charge Termination Can Be By: • End of Charge Battery Voltage • End of Charge Battery Current • Battery Temperature Rise • Time • Negative Voltage Slope Sensing

  8. MSD-970-1 Specifications • Constant Current Discharge (0.02 - 70 Amps) • Discharge Termination Can Be By: • End of Discharge Voltage • Battery Temperature Rise • Time • Open Circuit Stand Termination (Time) • Active Temperature Compensation

  9. MSD-920-2 Specifications • Input Power • 240 Vac, Single Phase, 60 Hz • 120 Vac, Single Phase, 60 Hz • Dimensions: 9” x 23” x 14” • Weight: 47 lbs.

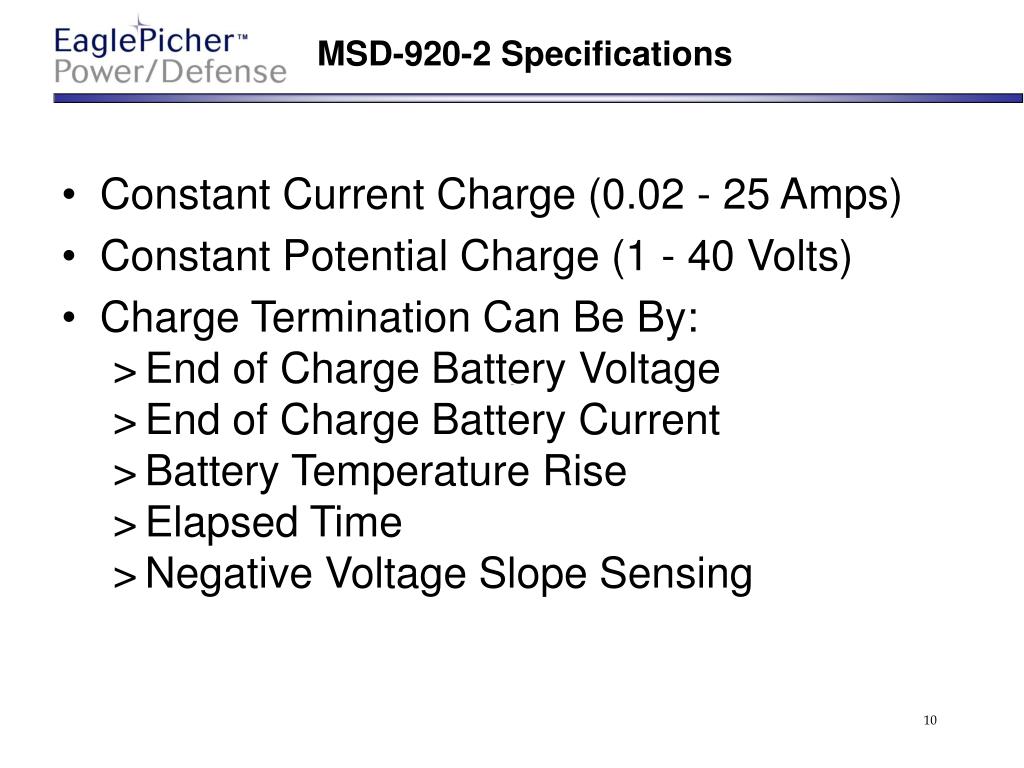

  10. MSD-920-2 Specifications • Constant Current Charge (0.02 - 25 Amps) • Constant Potential Charge (1 - 40 Volts) • Charge Termination Can Be By: • End of Charge Battery Voltage • End of Charge Battery Current • Battery Temperature Rise • Elapsed Time • Negative Voltage Slope Sensing

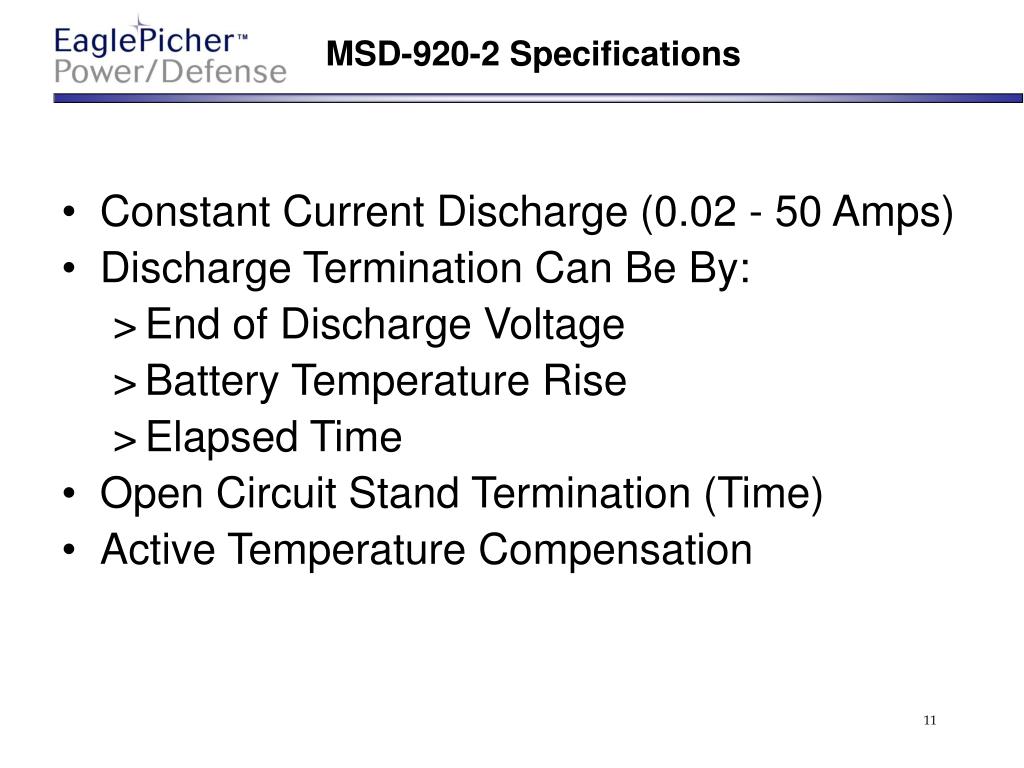

  11. MSD-920-2 Specifications • Constant Current Discharge (0.02 - 50 Amps) • Discharge Termination Can Be By: • End of Discharge Voltage • Battery Temperature Rise • Elapsed Time • Open Circuit Stand Termination (Time) • Active Temperature Compensation

  12. MSD-970-1 and MSD-920-2 Monitored Parameters • Profile Statistics • Elapsed Time for Step and Profile • Step Number / Step Type • Charge Current • Charge Voltage • Temperature • Ampere Hours • Charge / Discharge / Recharge

  13. Contact Information Greg Miller EaglePicher Technologies, LLC 3220 Industrial Road Joplin, MO. 64801 Voice: (417) 623-8333 Fax: (417) 623-0233 E-mail: inquiry.electronics@eaglepicher.com
