Chemical Reaction Balancer Tool

Balance chemical reactions with aqueous species, minerals, and gases. Calculate equilibrium constants and view log K values. Create balanced reactions with specific species such as Hematite and Gypsum. Set water activity levels and determine equilibrium temperatures.

elin
Download Presentation

Chemical Reaction Balancer Tool

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

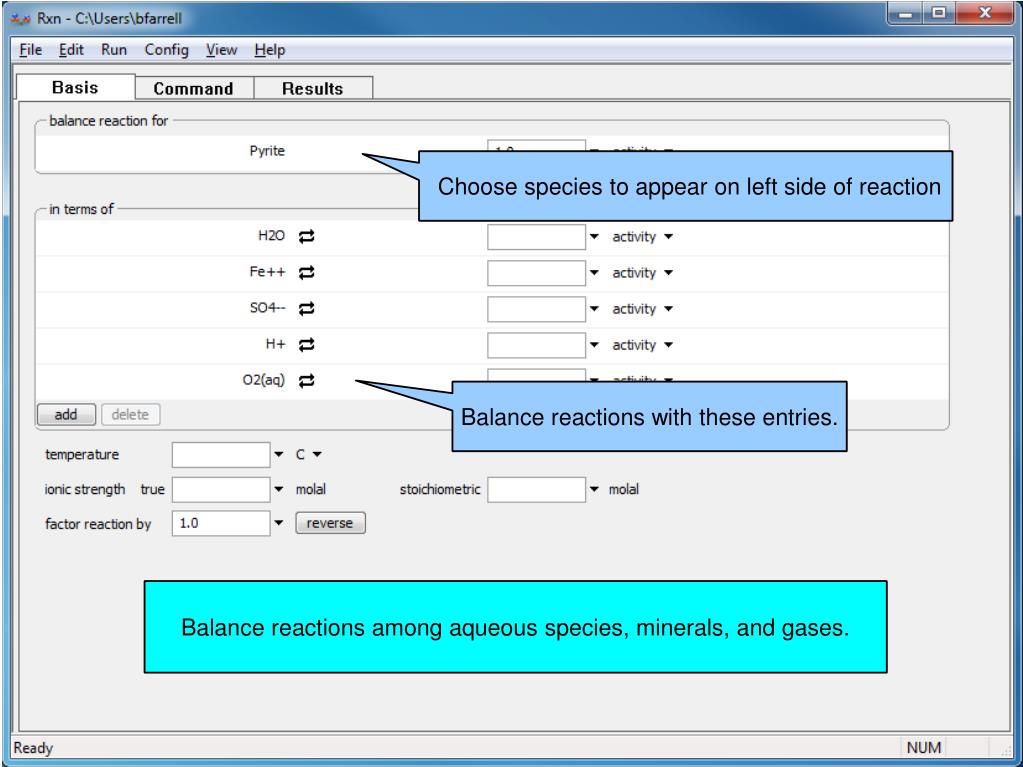

  1. Choose species to appear on left side of reaction Balance reactions with these entries. Balance reactions among aqueous species, minerals, and gases.

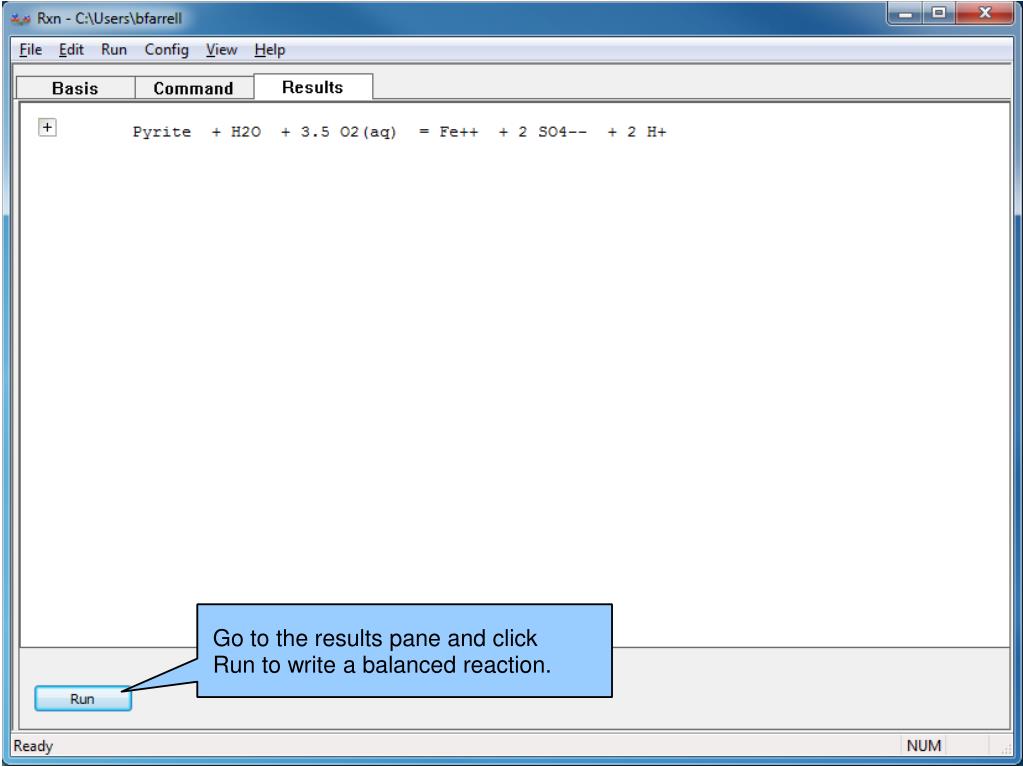

  2. Go to the results pane and click Run to write a balanced reaction.

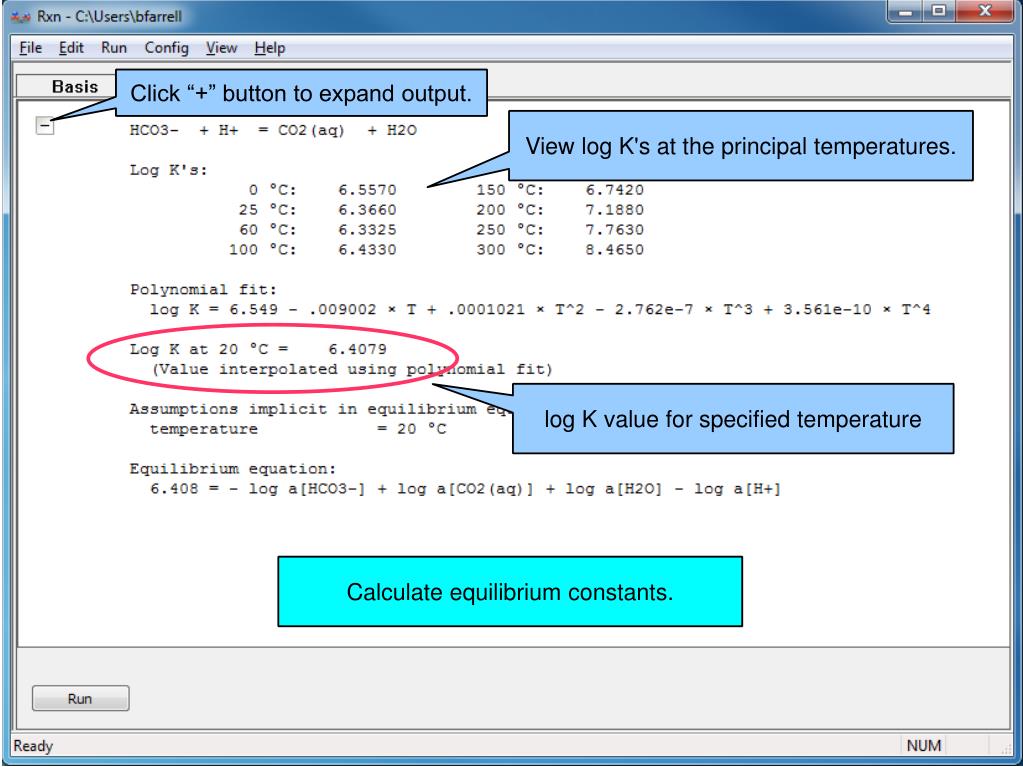

  3. Click “+” button to expand output. View log K's at the principal temperatures. log K value for specified temperature Calculate equilibrium constants.

  4. Create a balanced reaction with Hematite. Set activity of water and Fe++ Choose pH and Eh units. Figure equilibrium equations.

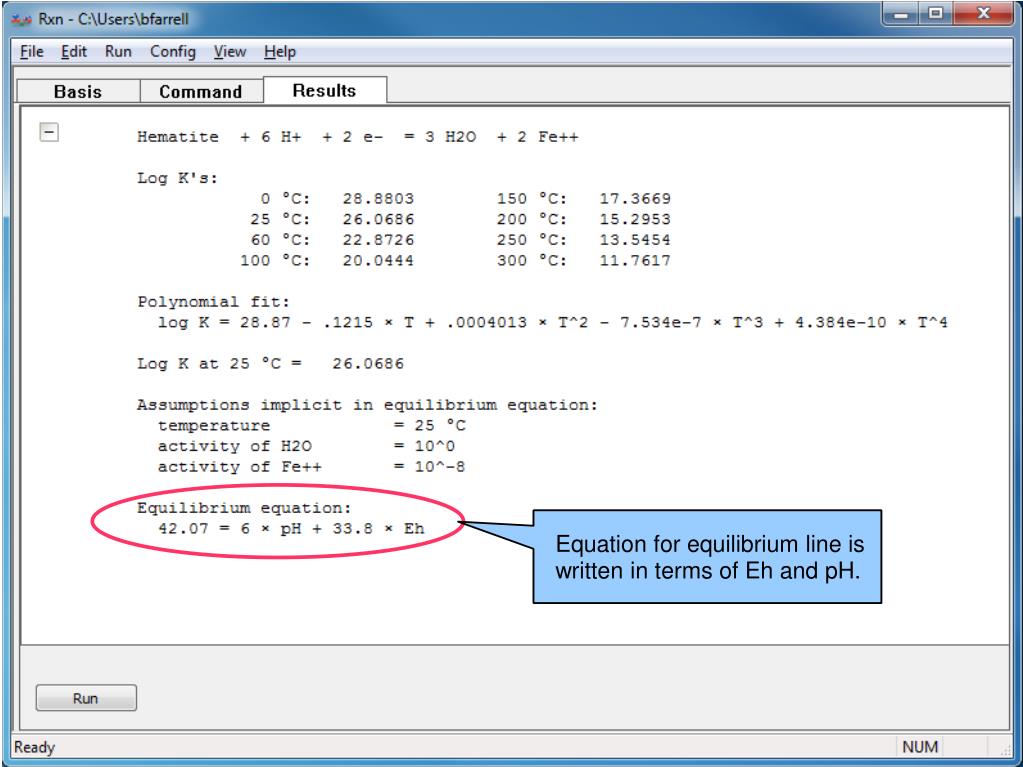

  5. Equation for equilibrium line is written in terms of Eh and pH.

  6. Balance reaction between Gypsum and Anhydrite. Set the water activity to 0.7 to simulate equilibrium in a brine. Determine equilibrium temperatures.

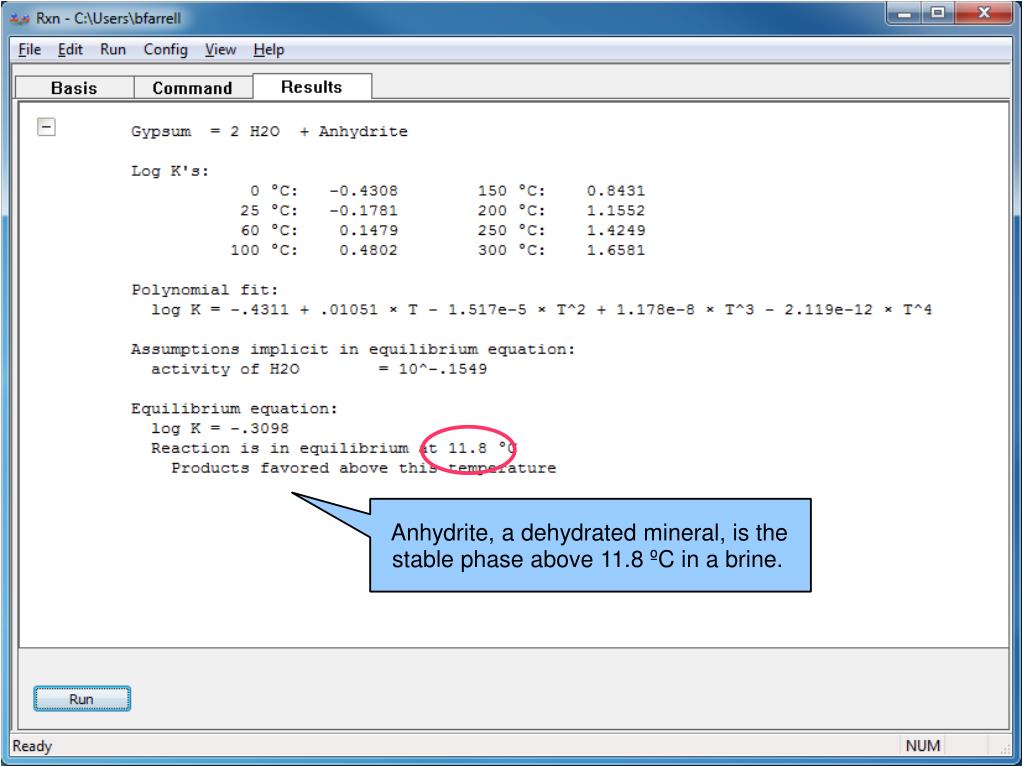

  7. Anhydrite, a dehydrated mineral, is the stable phase above 11.8 ºC in a brine.
