  1. Smart & Quality Flash Module SQFlash Product Line Roadmap & Sales Kit Embedded Core Group H2, 2011

  2. What Do Customers Find in the Market? • Higher Cost • Longer Lead Time Industrial-grade focus Company Cost • Unstable Quality • No Security Features • Lack Longevity • Weak Technical Support ?? Commercial-grade focus Company Quality

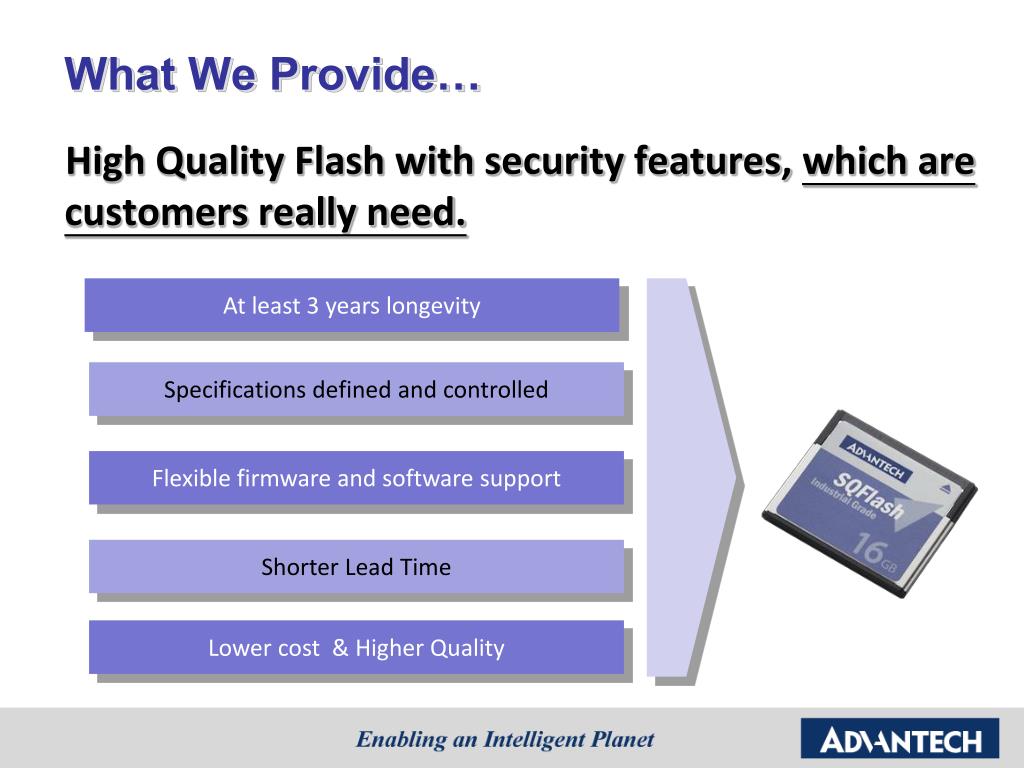

  3. What We Provide… High Quality Flash with security features, which are customers really need. • At least 3 years longevity • Specifications defined and controlled • Flexible firmware and software support • Shorter Lead Time • Lower cost & Higher Quality

  4. H/W Superiority – Reliable Flash Chip • Adopt reliable and high performance SLC Chip • SLC physical erase cycle limitation is 100k (MLC only 10K) • Write speed of SLC is double faster than MLC

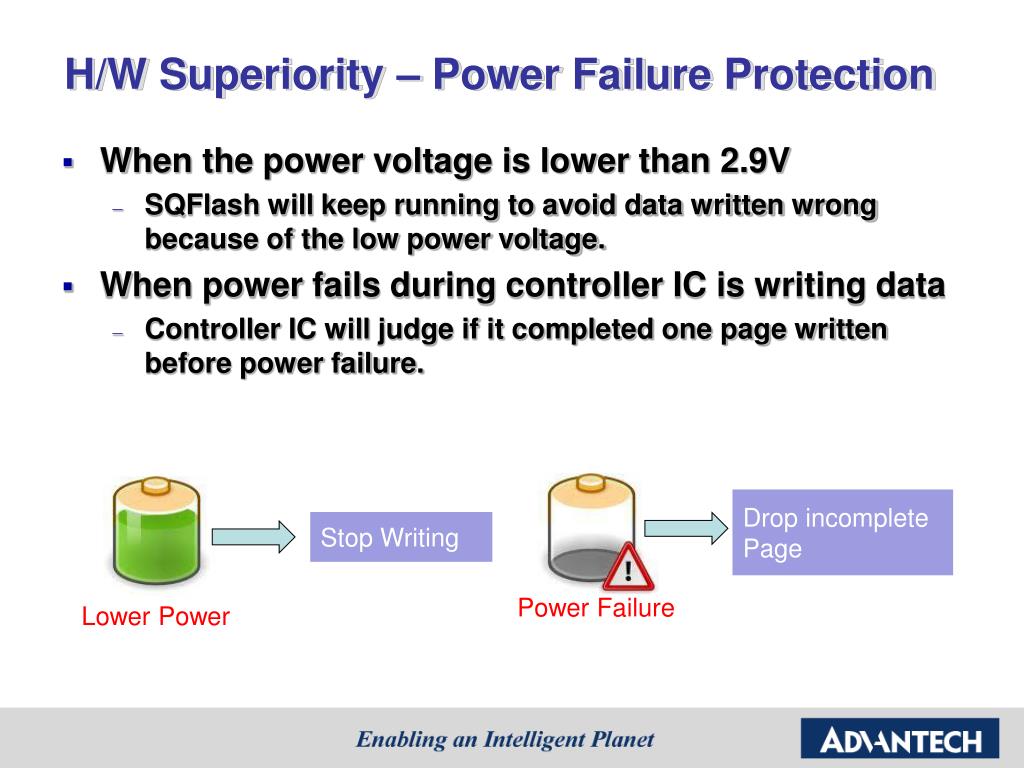

  5. H/W Superiority – Power Failure Protection • When the power voltage is lower than 2.9V • SQFlash will keep running to avoid data written wrong because of the low power voltage. • When power fails during controller IC is writing data • Controller IC will judge if it completed one page written before power failure. Drop incomplete Page Stop Writing Power Failure Lower Power

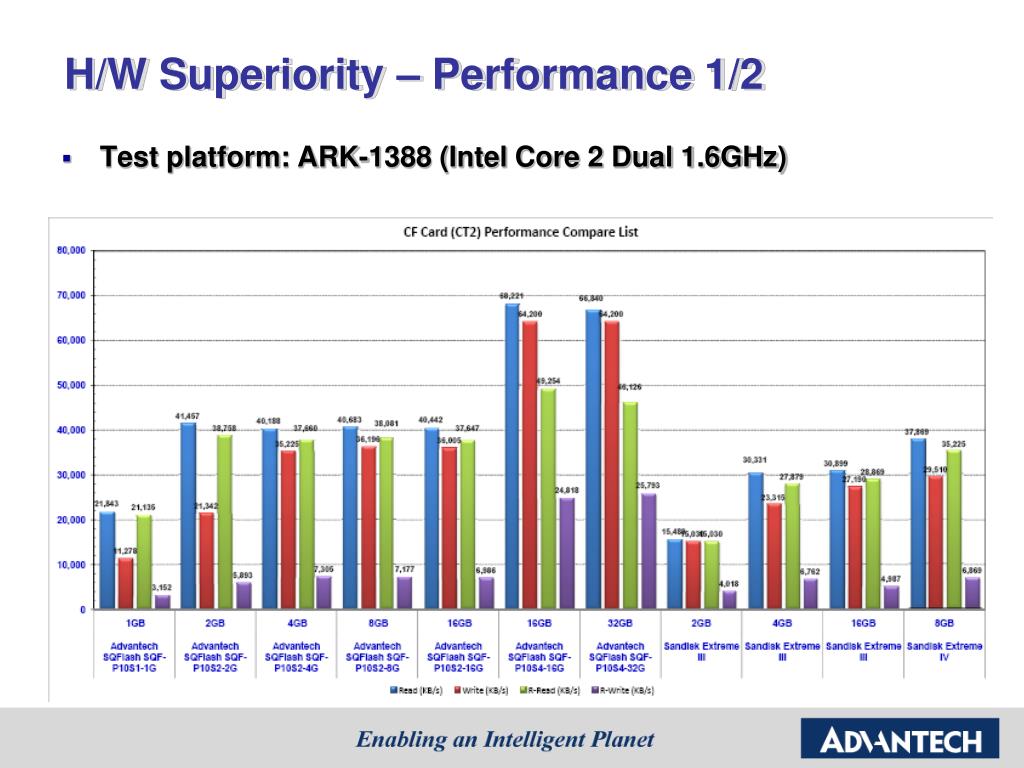

  6. H/W Superiority – Performance 1/2 • Test platform: ARK-1388 (Intel Core 2 Dual 1.6GHz)

  7. H/W Superiority – Performance 2/2 • SATA Extreme SQF-S25M8-256G-S5C Performance • Test Platform Chipset: Intel G43/ICH10

  8. SQFlash Product Introduction

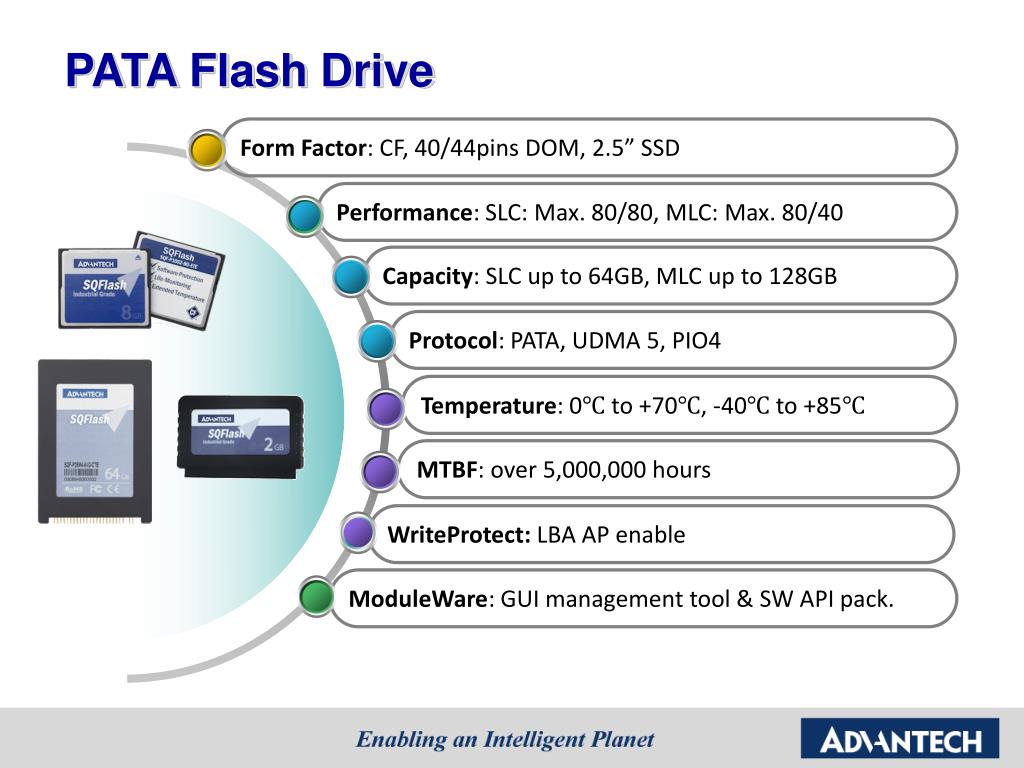

  9. PATA Flash Drive Form Factor: CF, 40/44pins DOM, 2.5” SSD Performance: SLC: Max. 80/80, MLC: Max. 80/40 Capacity: SLC up to 64GB, MLC up to 128GB Protocol: PATA, UDMA 5, PIO4 Temperature: 0℃ to +70℃, -40℃ to +85℃ MTBF: over 5,000,000 hours WriteProtect: LBA AP enable ModuleWare: GUI management tool & SW API pack.

  10. SATA Flash Drive with New Controller Form Factor: Half-Slim SATA Module / 2.5” SATA SSD / mSATA Performance: SLC: Max. 250/210, MLC: Max. 230/210 Capacity: SLC up to 128GB, MLC up to 512GB Protocol: SATA II 3.0G Temperature: 0℃ to +70℃, -40℃ to +85℃ MTBF: over 2,000,000 hours OS Optimization: AHCI / TRIM supported ModuleWare: GUI management tool & SW API pack.

  11. SQF-SLM SATA Module Form Factor: Half-Slim SATA Module, JEDEC MO-297 Protocol: SATA II, with standard 7 + 15 pin connector Performance: SLC: Max. 145/100, MLC: Max. 135/90 Capacity: SLC up to 32GB, MLC up to 128GB SQF-SLM Temperature: 0℃ to +70℃, -40℃ to +85℃ Dimension: 54.0 x 39.0 x 4.5 MTBF: over 2,000,000 hours SQF-SLM (Extreme) ModuleWare: GUI management tool & SW API pack.

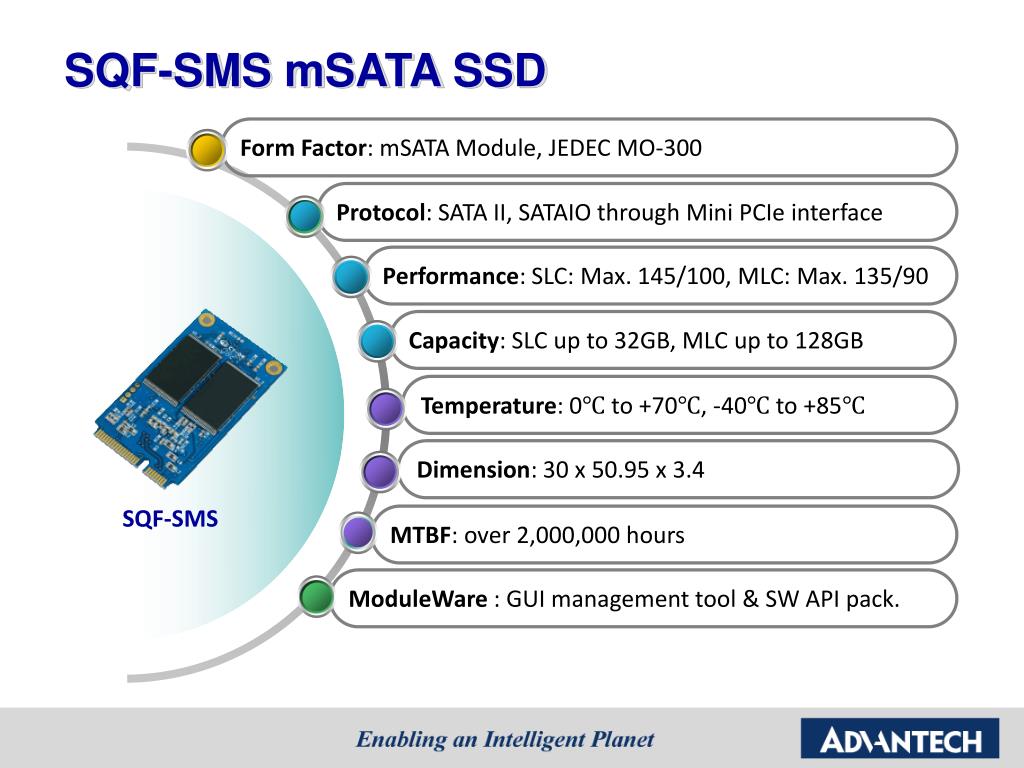

  12. SQF-SMS mSATA SSD Form Factor: mSATA Module, JEDEC MO-300 Protocol: SATA II, SATAIO through Mini PCIe interface Performance: SLC: Max. 145/100, MLC: Max. 135/90 Capacity: SLC up to 32GB, MLC up to 128GB Temperature: 0℃ to +70℃, -40℃ to +85℃ Dimension: 30 x 50.95 x 3.4 SQF-SMS MTBF: over 2,000,000 hours ModuleWare: GUI management tool & SW API pack.

  13. SQF-PCM Mini PCIe Disk Module Form Factor: Mini PCIe Protocol: Native Mini PCI Express Performance: SLC: Max. 300/150, MLC: Max. 300/80 Capacity: SLC up to 64GB, MLC up to 128GB Temperature: 0℃ to +70℃ Dimension: 54.0 x 39.0 x 4.5 SQF-PCM MTBF: over 2,000,000 hours IOPS: SLC: 6000/4500, MLC: 6000/2500

  14. SQFlashModuleWare

  15. SQFlash Value-added Software

  16. Flash Lock • Lock SQFlash with corresponding platform • Lock with one or multi-platforms • Unlock by BIOS with password protected BIOS

  17. Get Flash Lock Ready… Access Code from Advantech SQFlash FW Part Partition Access Code

  18. Flash Lock Utility • Auto recognize support capability • One click to enable

  19. Flash Lock Workflow • Generate Password from Access Code • Write Password into BIOS • Set Flag to enable status Flag BIOS Password Unlock mechanism Enable Enable Password Lock at 1st reboot, unlock every time Access Code from Advantech

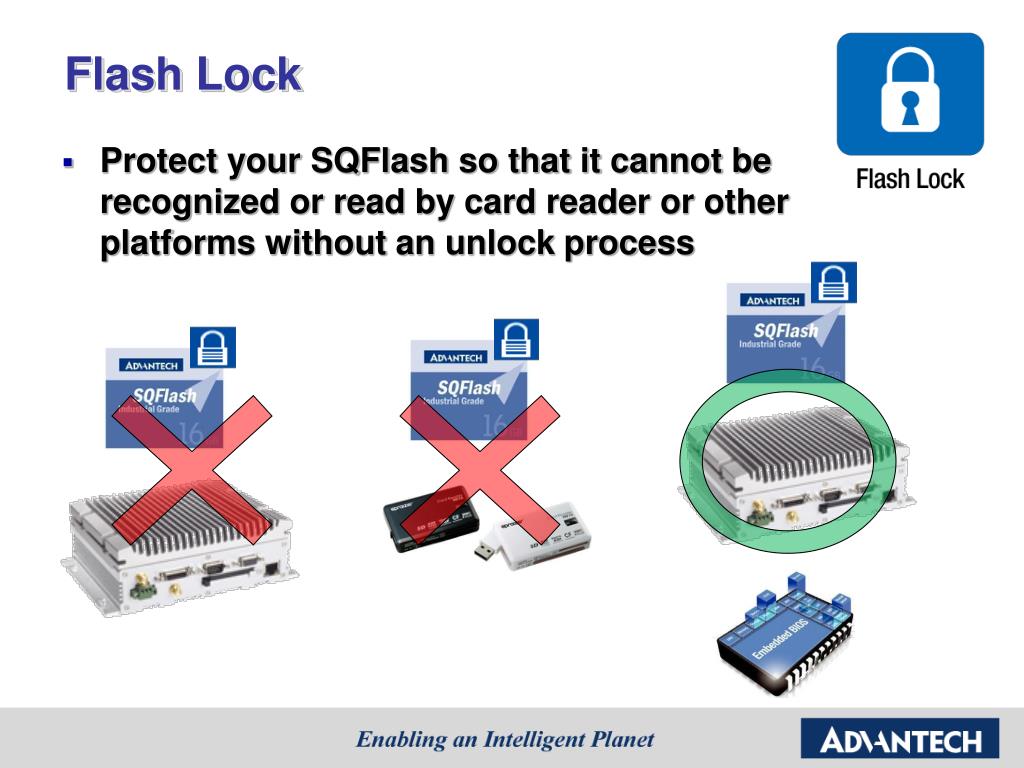

  20. Flash Lock • Protect your SQFlash so that it cannot be recognized or read by card reader or other platforms without an unlock process

  21. Security ID

  22. Security ID Mechanism Access Code from Advantech SQFlash API Up to 256 bytes Security ID defined by user Store into hidden area of SQFlash API implemented into software

  23. Security ID Workflow Access Code Security ID Check SQFlash Check User’s App

  24. Security ID Structure • SID 1 in Partition • SID 2 in Controller reserved area SID 2 SID 1 SQFlash FW Part Partition Access Code

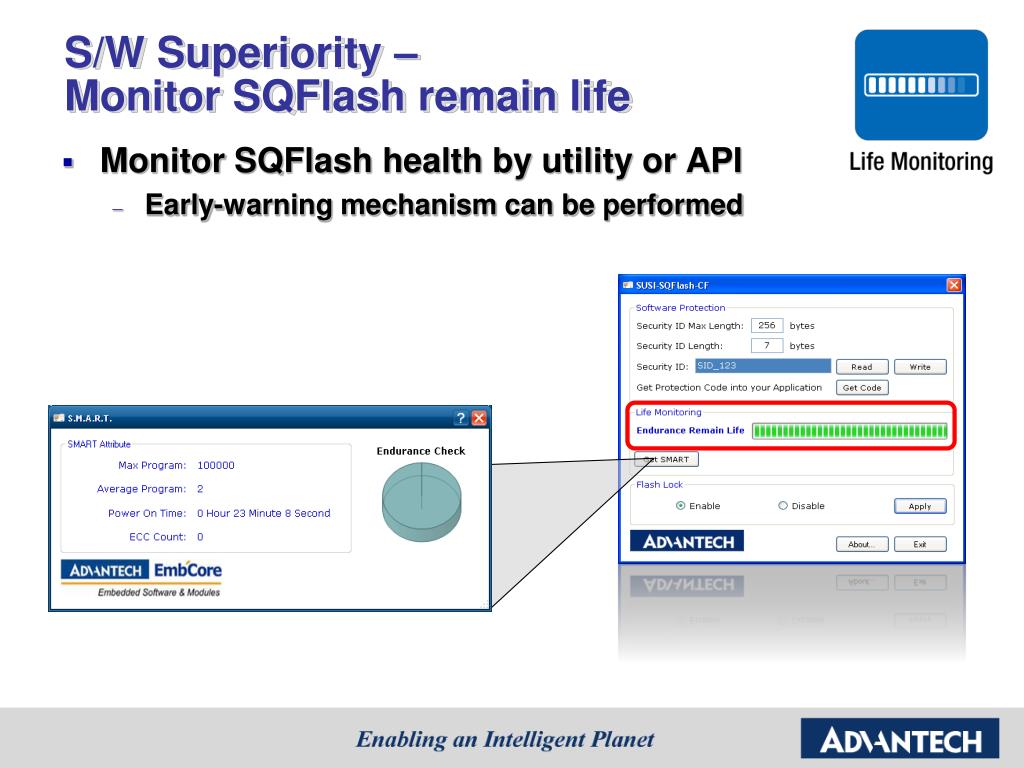

  25. S/W Superiority – Monitor SQFlash remain life • Monitor SQFlash health by utility or API • Early-warning mechanism can be performed

  26. Emergency Erase • Standard ATA Command “Secure Erase” • Execute under OS run-time • Erase all data and control firmware in event of crisis Erase Data, including FW block

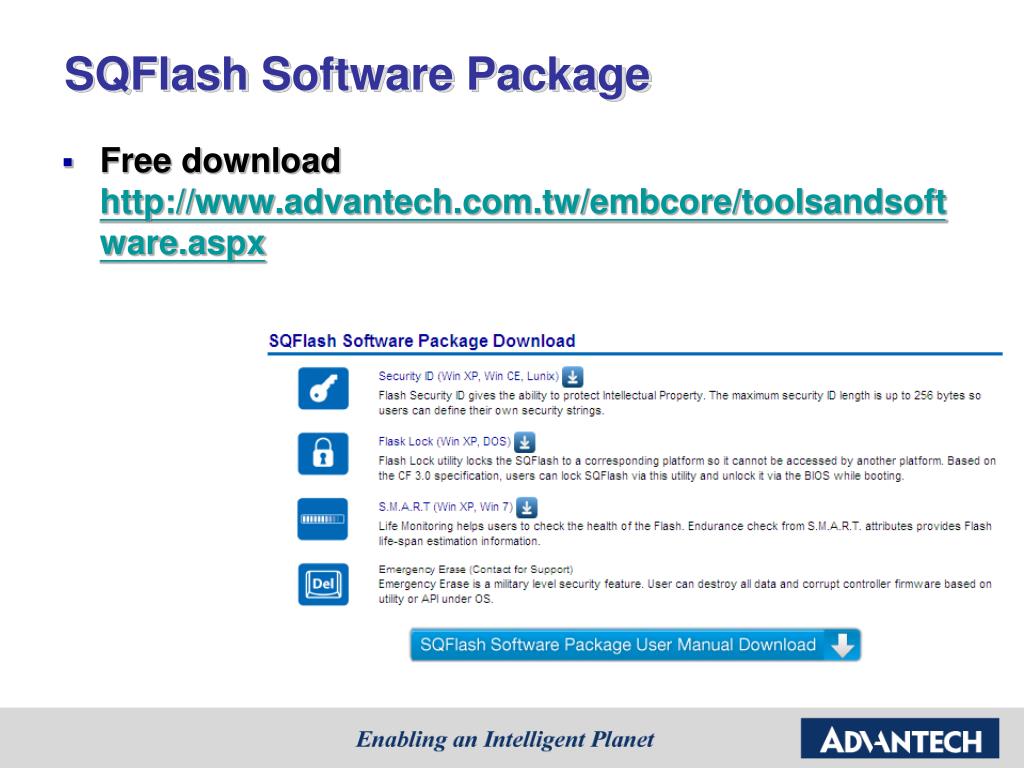

  27. SQFlash Software Package • Free download http://www.advantech.com.tw/embcore/toolsandsoftware.aspx

  28. SQFlash Product Roadmap (PATA) -20 ~ 70°C -20 ~ 85°C -40 ~ 85°C • 2.5” PATA SSD • PS3016-P7 • 4-channel support • Toshiba 43nm SLC/ 32nm MLC • 4GB ~ 128GB SQF-PDM-II SQF-P25-II SQF-P10-II DOM SSD CARD • CompactFlash • PS3016-P6 / PS3016-P8 • 2-channel / 4-channel support • Toshiba 43nm SLC • 256MB ~ 32GB • 40/44 Pins PATA DOM • PS3016-P6 / PS3016-P8 • 2-channel / 4-channel support • Toshiba 43nm SLC • 1GB ~ 16GB Developing Planning Available 2011 2012

  29. SQFlash Product Roadmap (SATA) -20 ~ 70°C -20 ~ 85°C -40 ~ 85°C • 2.5” SATA SSD • TDK solution • 4-channel support • Samsung SLC NAND Flash • 4GB ~ 32GB SQF-SLM SQF-S25 SQF-SDM SQF-S10 DOM SSD CARD • SATA Slim – MO-297 • TDK solution • 4-channel support • Samsung SLC NAND Flash • 2GB ~ 32GB • SATA DOM • TDK solution • 4-channel support • Samsung SLC NAND Flash • 2GB ~ 32GB • CFast • TDK solution • 4-channel support • Samsung SLC NAND Flash • 2GB ~ 32GB Developing Planning Available 2011 2012

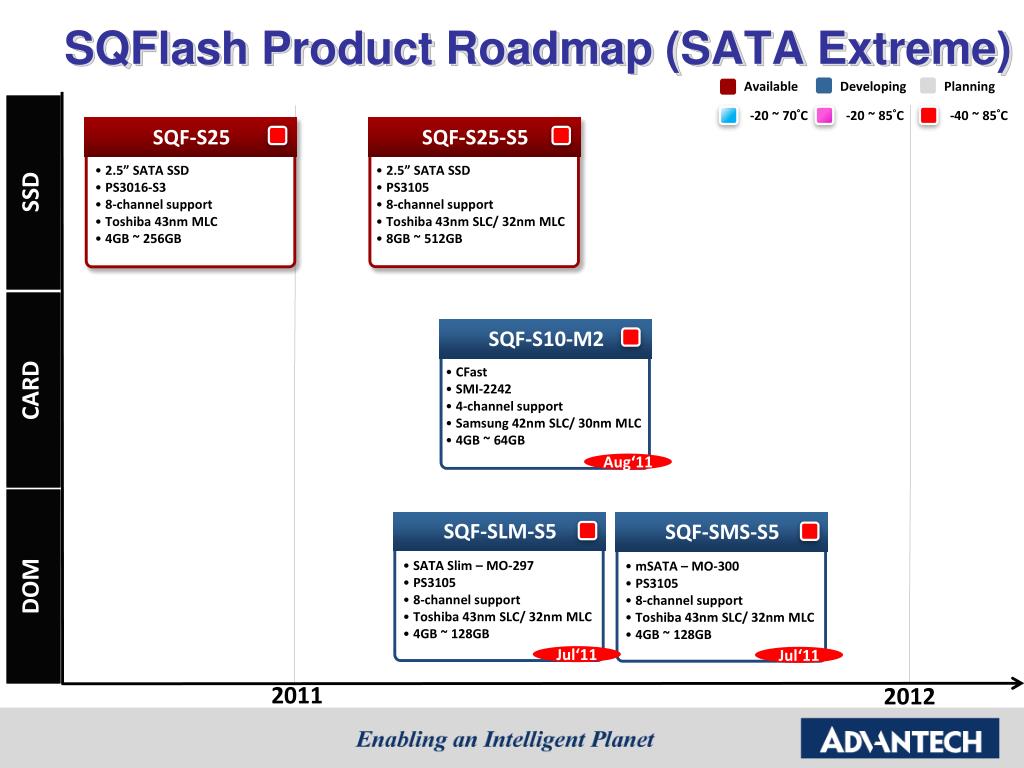

  30. SQFlash Product Roadmap (SATA Extreme) -20 ~ 70°C -20 ~ 85°C -40 ~ 85°C SQF-S10-M2 SQF-SMS-S5 SQF-SLM-S5 Aug‘11 SQF-S25-S5 SQF-S25 SSD DOM CARD • CFast • SMI-2242 • 4-channel support • Samsung 42nm SLC/ 30nm MLC • 4GB ~ 64GB • mSATA– MO-300 • PS3105 • 8-channel support • Toshiba 43nm SLC/ 32nm MLC • 4GB ~ 128GB • SATA Slim – MO-297 • PS3105 • 8-channel support • Toshiba 43nm SLC/ 32nm MLC • 4GB ~ 128GB • 2.5” SATA SSD • PS3105 • 8-channel support • Toshiba 43nm SLC/ 32nm MLC • 8GB ~ 512GB • 2.5” SATA SSD • PS3016-S3 • 8-channel support • Toshiba 43nm MLC • 4GB ~ 256GB Jul‘11 Jul‘11 Developing Planning Available 2011 2012

  31. SQFlash Product Roadmap (Others) SQF-PCM -20 ~ 70°C -20 ~ 85°C -40 ~ 85°C • Mini PCIe Disk Module • Marvell Plato • 4-channel support • Micron 43nm SLC/ 30nm MLC • 16GB ~ 128GB Q3‘11 SQF-UDM SQF-ISD SQF-PCI DOM SSD CARD • Industrial SD Card • PS8006 • 2-channel support • Toshiba 43nm SLC • 1GB ~ 8GB • 2.54mm USB DOM • PS2232 • 2-channel support • Toshiba 43nm SLC • 1GB ~ 8GB • PCIex1 Disk Module • Marvell Plato • 4-channel support • Micron 43nm SLC/ 30nm MLC • 16GB ~ 128GB Developing Q4‘11 Planning Available 2011 2012

  32. Available Embedded Platforms & Services SQF-PDM SQF-P25 SQF-P10 2.5” PATA SSD CompactFlash Card PATA DOM PATA SQF-SMS SQF-SDM SQF-S25 SQF-SLM SQF-S10 SATA 2.5” SATA SSD SATA Slim mSATA SATA DOM CFast Card SATA Extreme SQF-PCM Mini PCIe Disk Module PCIe • Native PCI express protocol • Standard form factor • Ultra-high random access performance Coming Soon!

  33. Best for all Embedded Devices

  34. Thank You.
