slide1
SAP QM

Prepared by Lavanya.M

quality management
Quality Management

Quality Management Module deals with all

traditional functions of quality in an organization.

The integration of the QM application component

in the SAP system allows quality management

tasks to be combined with those in other

applications (such as materials management,

production, sales and distribution and cost

accounting).

features
Features

The QM application component supports tasks associated with quality planning, quality

inspection and quality control. In addition, it controls the creation of quality certificates and manages

problems with the help of quality notifications.

The following components are available in QM:

  • Basic data (for example, material master, catalogs, inspection characteristics, inspection methods and sampling procedures).
  • Inspection planning (inspection plans, reference operation sets, material specifications).
  • QM in procurement.
  • QM in sales and distribution
  • Inspection lot processing (inspection lot creation and inspection lot completion)
  • Results recording
  • Defects recording
  • Sample management
  • Quality Information System
  • Dynamic modification of the inspection scope
  • Quality certificates
  • Quality notifications
  • Test equipment management

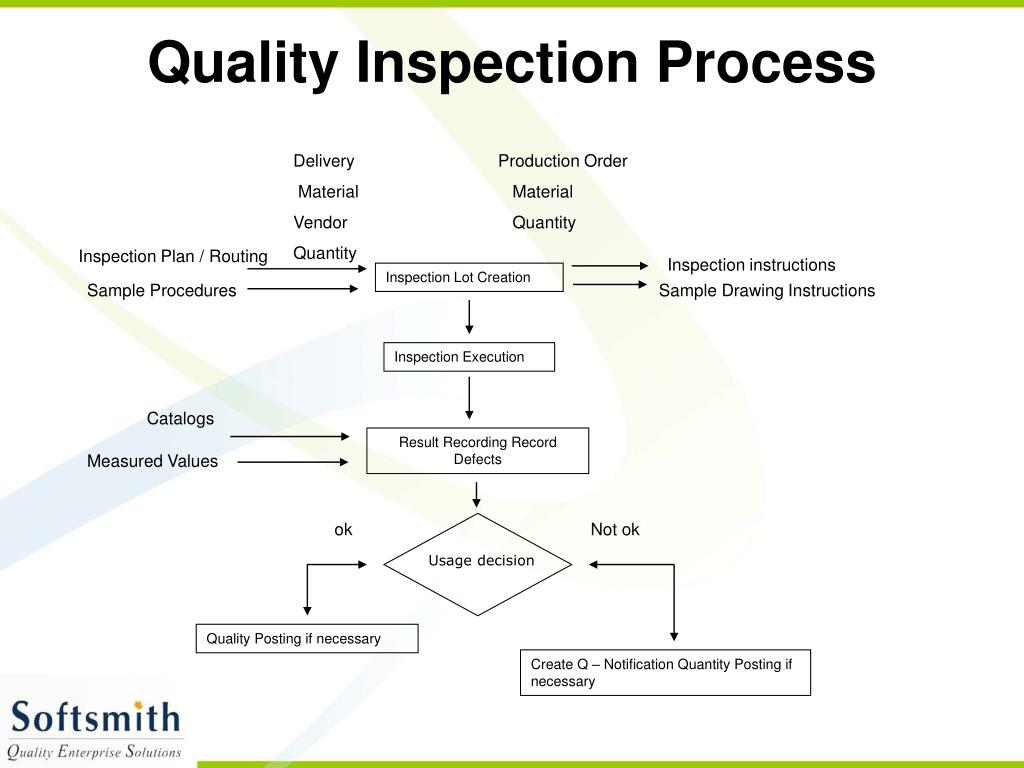

quality inspection process

Delivery Production Order

Material Material

Vendor Quantity

Quantity

Inspection Plan / Routing

Inspection instructions

Inspection Lot Creation

Sample Procedures

Sample Drawing Instructions

Inspection Execution

Catalogs

Result Recording Record Defects

Measured Values

ok

Not ok

Quality Posting if necessary

Create Q – Notification Quantity Posting if necessary

Quality Inspection Process

Usage decision

quality planning
Quality Planning

Quality planning enables you to manage basic data for quality, inspection planning and material specifications.

The integration of the Quality planning component in the SAP system allows

quality planning tasks to be combined with those of other components such

as materials management, batch management, inventory management,

variant configuration and cost accounting.

Quality inspection covers the following functions:

  • Master data management (material master, catalogs, selected sets, master inspection characteristics, class characteristics, inspection methods, sampling procedures, sampling schemes, dynamic modification rules, sample-drawing procedures, QM work centers).
  • Inspection planning (inspection plans, reference operation sets, material specifications).
quality inspection

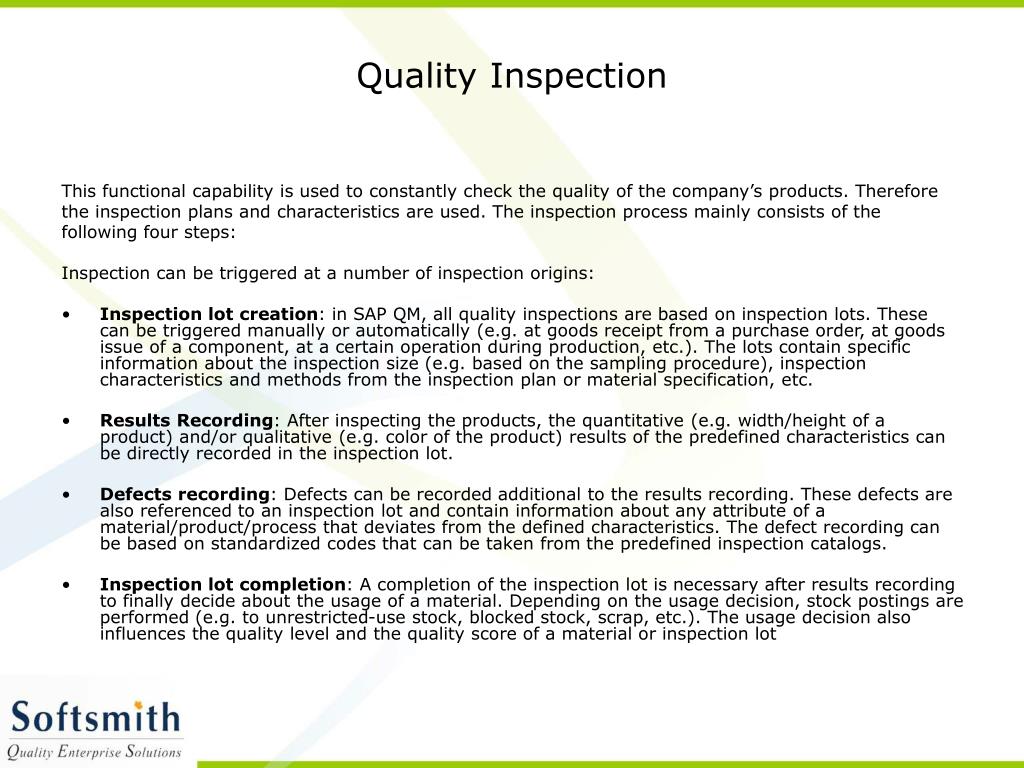

Quality Inspection

This functional capability is used to constantly check the quality of the company’s products. Therefore

the inspection plans and characteristics are used. The inspection process mainly consists of the

following four steps:

Inspection can be triggered at a number of inspection origins:

  • Inspection lot creation: in SAP QM, all quality inspections are based on inspection lots. These can be triggered manually or automatically (e.g. at goods receipt from a purchase order, at goods issue of a component, at a certain operation during production, etc.). The lots contain specific information about the inspection size (e.g. based on the sampling procedure), inspection characteristics and methods from the inspection plan or material specification, etc.
  • Results Recording: After inspecting the products, the quantitative (e.g. width/height of a product) and/or qualitative (e.g. color of the product) results of the predefined characteristics can be directly recorded in the inspection lot.
  • Defects recording: Defects can be recorded additional to the results recording. These defects are also referenced to an inspection lot and contain information about any attribute of a material/product/process that deviates from the defined characteristics. The defect recording can be based on standardized codes that can be taken from the predefined inspection catalogs.
  • Inspection lot completion: A completion of the inspection lot is necessary after results recording to finally decide about the usage of a material. Depending on the usage decision, stock postings are performed (e.g. to unrestricted-use stock, blocked stock, scrap, etc.). The usage decision also influences the quality level and the quality score of a material or inspection lot
creation of inspection plan

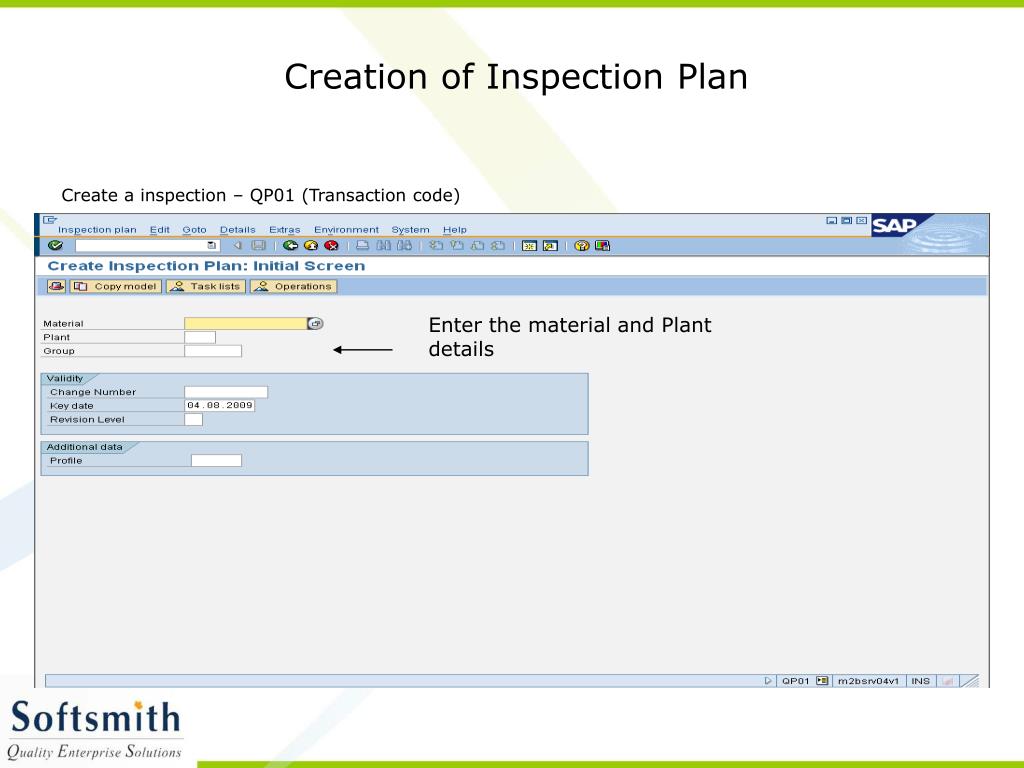

Creation of Inspection Plan

Create a inspection – QP01 (Transaction code)

Enter the material and Plant details

creation of inspection contd
Creation of Inspection (Contd.)

Enter the mandatory details in the screen, click on Task list

task details
Task Details

Enter the Task info and Lot size of the Materials and click on operations

operation overview
Operation overview

Enter the Control Key and work center, click on save.

inspection lot creation

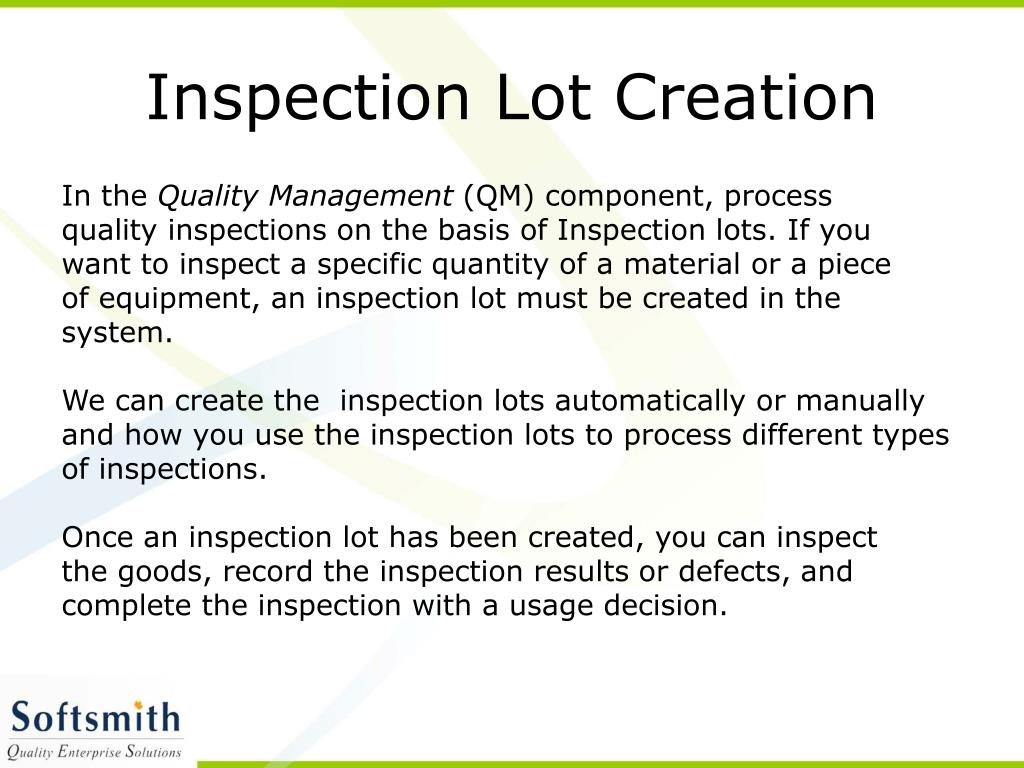

Inspection Lot Creation

In the Quality Management (QM) component, process

quality inspections on the basis of Inspection lots. If you

want to inspect a specific quantity of a material or a piece

of equipment, an inspection lot must be created in the

system.

We can create the inspection lots automatically or manually

and how you use the inspection lots to process different types

of inspections.

Once an inspection lot has been created, you can inspect

the goods, record the inspection results or defects, and

complete the inspection with a usage decision.

inspection lot
Inspection Lot

Create a inspection lot – QA01 (Transaction code)

Enter the Material and plant details, with the Inspection lot origin and click on Enter

Note:The system uses inspection lot origin and the inspection type to determine how an inspection lot will be created and processed. The inspection lot origins are predefined by SAP in Customizing for Inspection Lot Creation. You cannot define your own inspection lot origins.

inspection lot contd

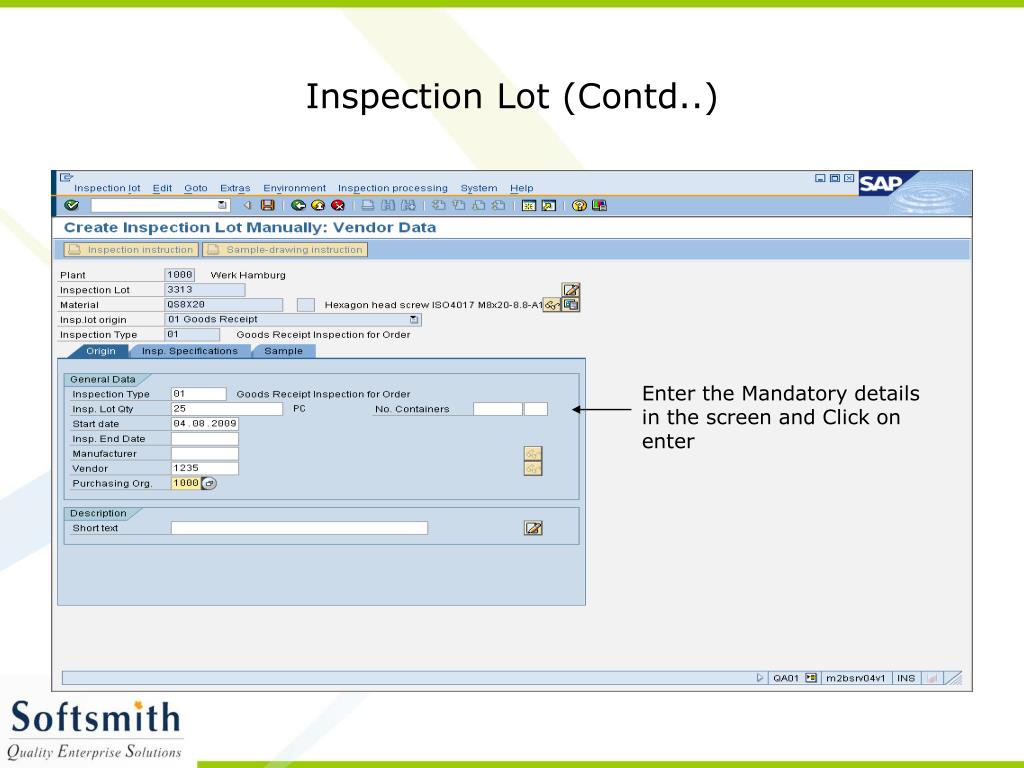

Inspection Lot (Contd..)

Enter the Mandatory details in the screen and Click on enter

inspection lot creation contd
Inspection lot creation (contd..)

Now click on save

Once you click on Enter in the Previous screen. The message will be displayed as below.

inspection lot contd15

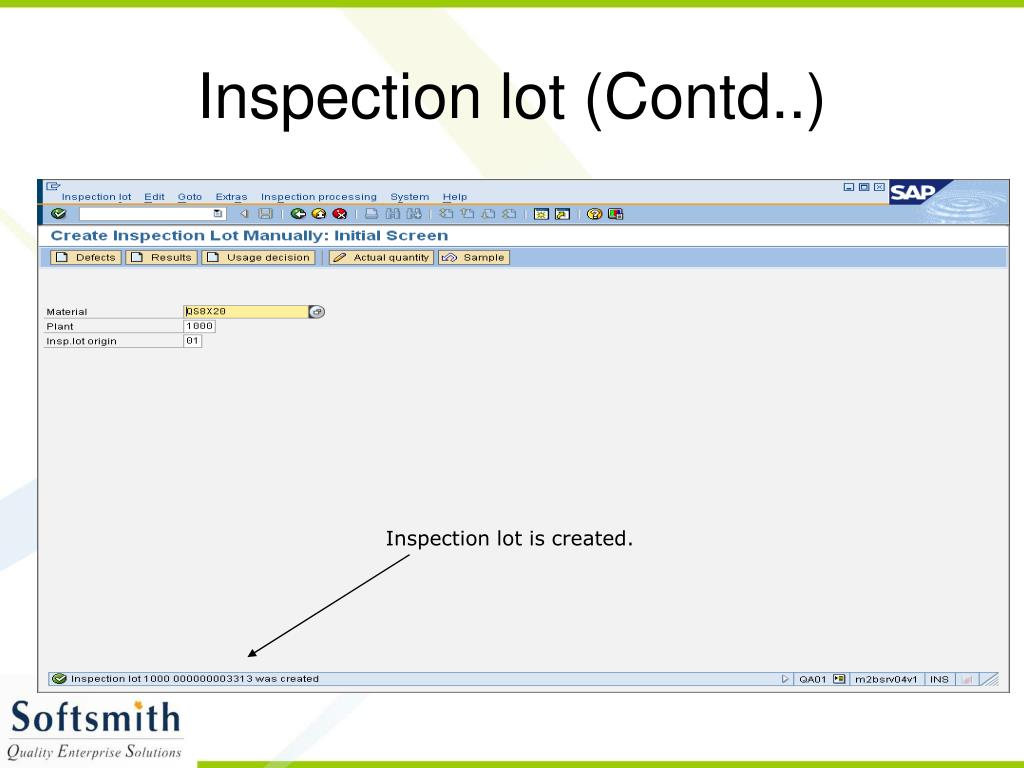

Inspection lot (Contd..)

Inspection lot is created.

result recording

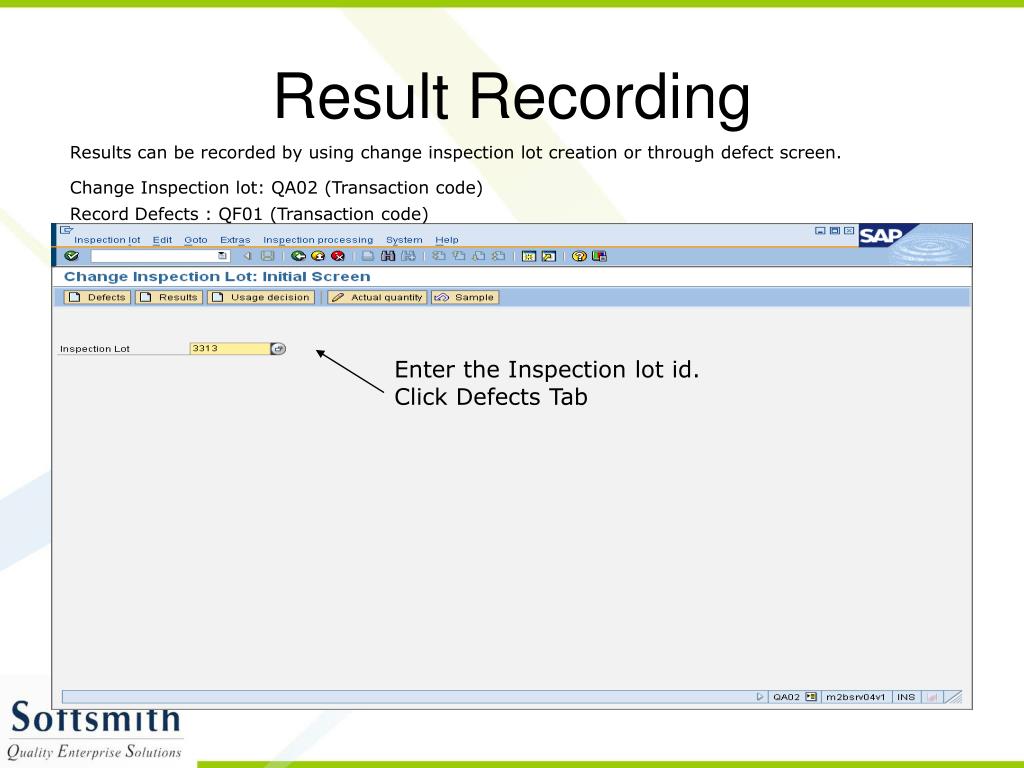

Result Recording

Results can be recorded by using change inspection lot creation or through defect screen.

Change Inspection lot: QA02 (Transaction code)

Record Defects : QF01 (Transaction code)

Enter the Inspection lot id. Click Defects Tab

result recording contd

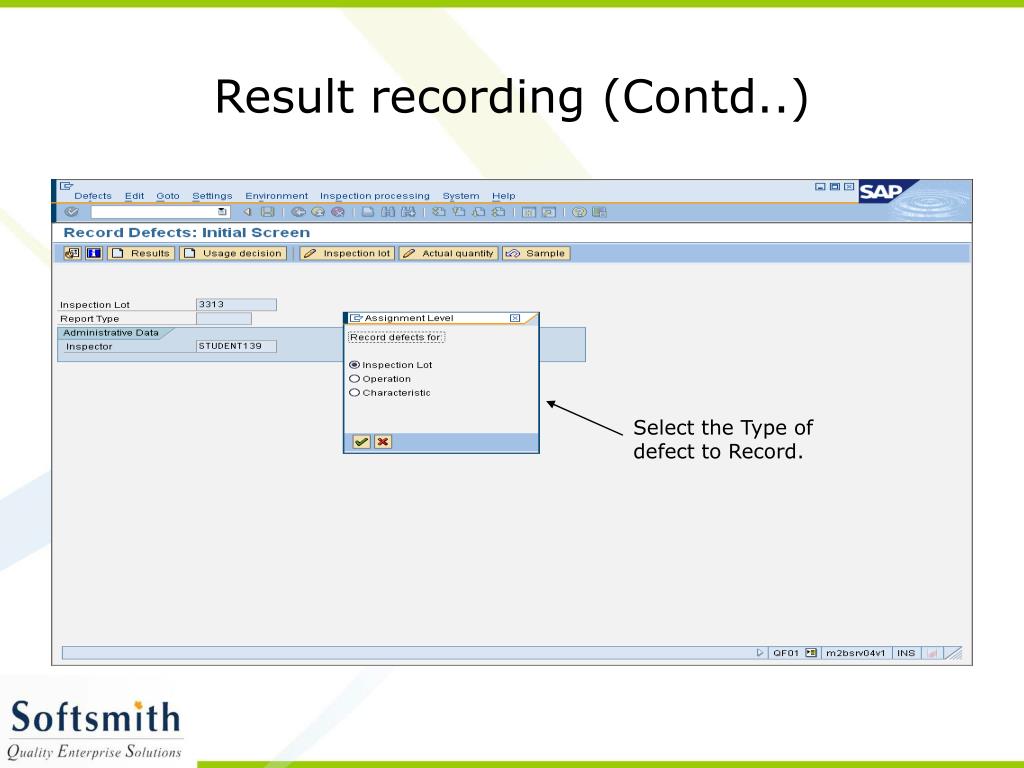

Result recording (Contd..)

Select the Type of defect to Record.

record defects contd
Record Defects (Contd..)

Choose the record Type click on enter

The report category defines the form and content of the defects data. It links a catalog profile (schematized value list) to a confirmation profile (recording form).

The defects data is recorded on the basis of report categories and stored in the form of quality notifications.

defect screen

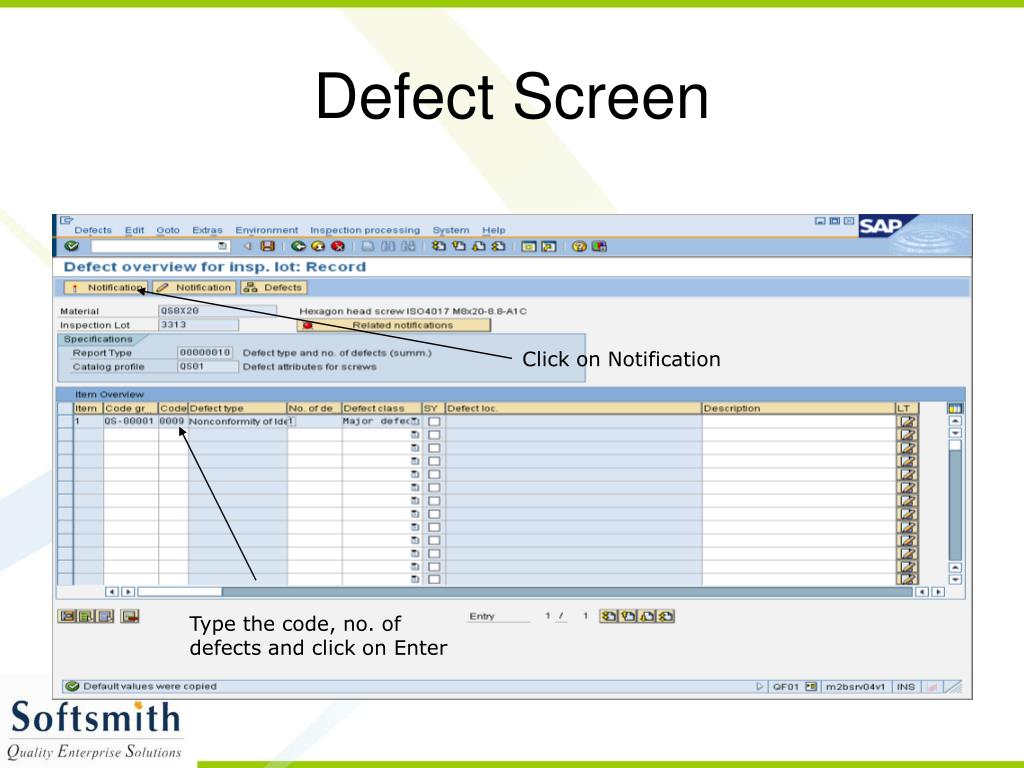

Defect Screen

Click on Notification

Type the code, no. of defects and click on Enter

quality notifications

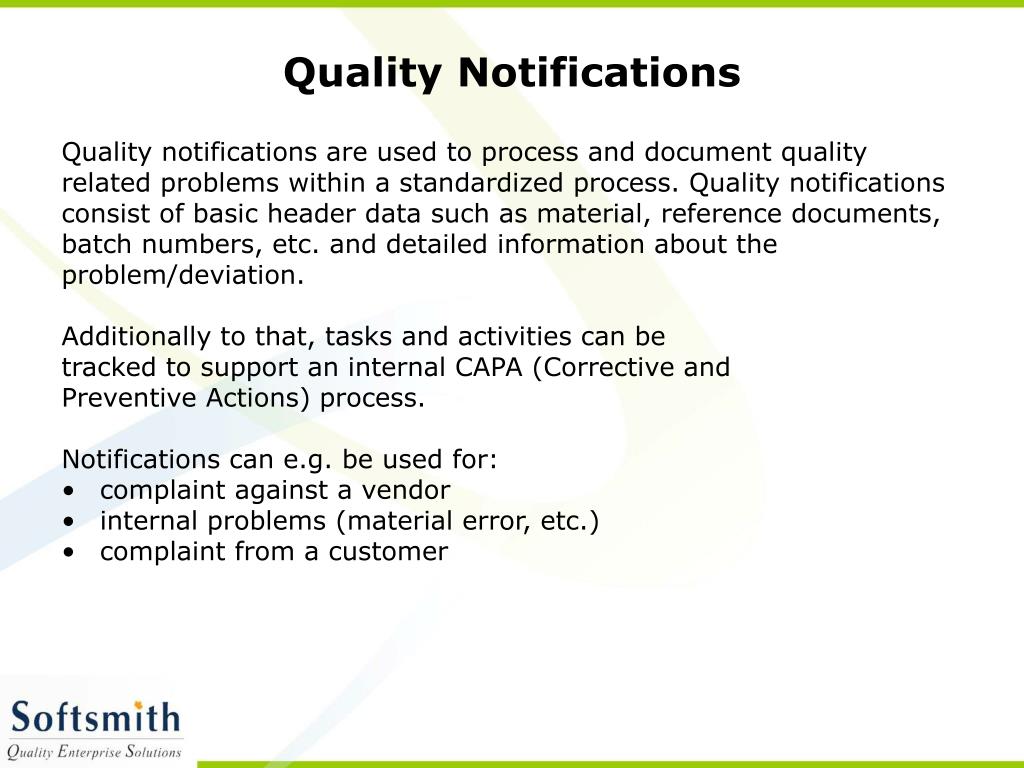

Quality Notifications

Quality notifications are used to process and document quality

related problems within a standardized process. Quality notifications

consist of basic header data such as material, reference documents,

batch numbers, etc. and detailed information about the

problem/deviation.

Additionally to that, tasks and activities can be

tracked to support an internal CAPA (Corrective and

Preventive Actions) process.

Notifications can e.g. be used for:

  • complaint against a vendor
  • internal problems (material error, etc.)
  • complaint from a customer
notification screen
Notification Screen

Enter the Details in all Tabs and click on back icon and click on save button.

Type the Task

notification screen contd
Notification screen (Contd..)

Result, notification and Defect data saved

usage decision
Usage Decision

Enter the Inspection lot and Click on usage decision

usage decision contd

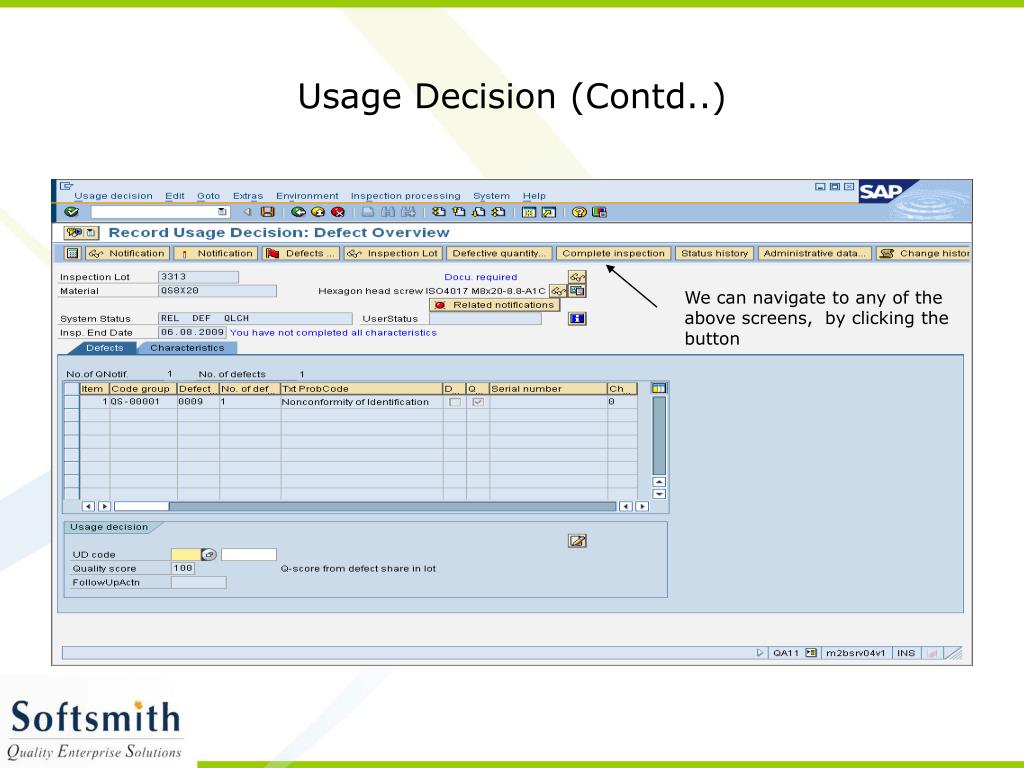

Usage Decision (Contd..)

We can navigate to any of the above screens, by clicking the button

usage decision contd25

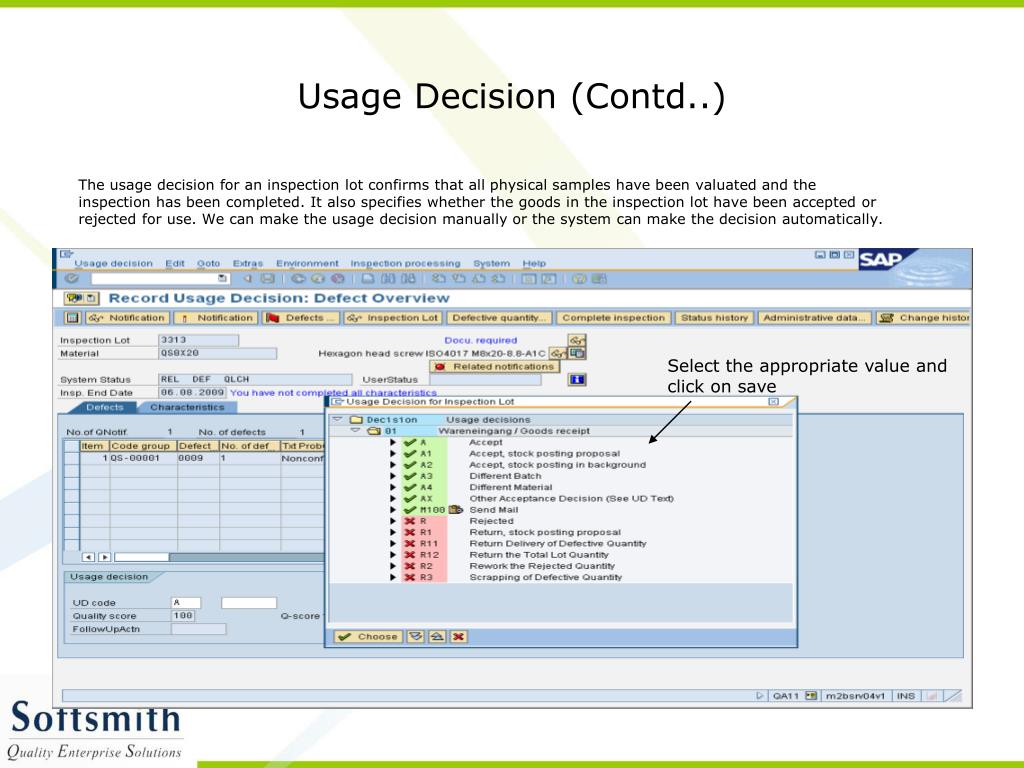

Usage Decision (Contd..)

The usage decision for an inspection lot confirms that all physical samples have been valuated and the inspection has been completed. It also specifies whether the goods in the inspection lot have been accepted or rejected for use. We can make the usage decision manually or the system can make the decision automatically.

Select the appropriate value and click on save

usage decision contd26
Usage Decision (Contd..)

Click on back Button

Enter the comments

usage decision contd27
Usage Decision (Contd..)

Usage decision is saved for the material

quality certificates
Quality Certificates

Quality certificates document the following of certain quality requirements. They

are mostly used during the collaboration with suppliers or subcontractors

(incoming certificates) to document the quality standards of incoming goods or

when acting as a supplier, to document the company’s quality standards

themselves (outgoing certificates).

Quality certificates can guarantee:

  • the following of certain manufacturing / quality processes
  • the execution of predefined inspections. These can be either defined by norms (e.g. GMP: Good Manufacturing Processes), law, customers, ...
  • defect-free inspection results for a delivery, assigned to the quality certificate
quality certificate
Quality Certificate

Enter the Certificate code and press Enter

To create Certificate use QC51 (Transaction code)

quality certificate contd
Quality Certificate contd.

You can Navigate any above screens, click on the respective Tabs

We can Track the Certificate status details

sap reports
SAP Reports
  • Reports are collection of records that are helpful for arriving at important decisions.
  • Reports can be filtered based on requirements parameters. For e.g., TCode MM60 we can filter based on Material ans Plant or Plant or Material or it can even be a blind filter.
standard sap qm reports

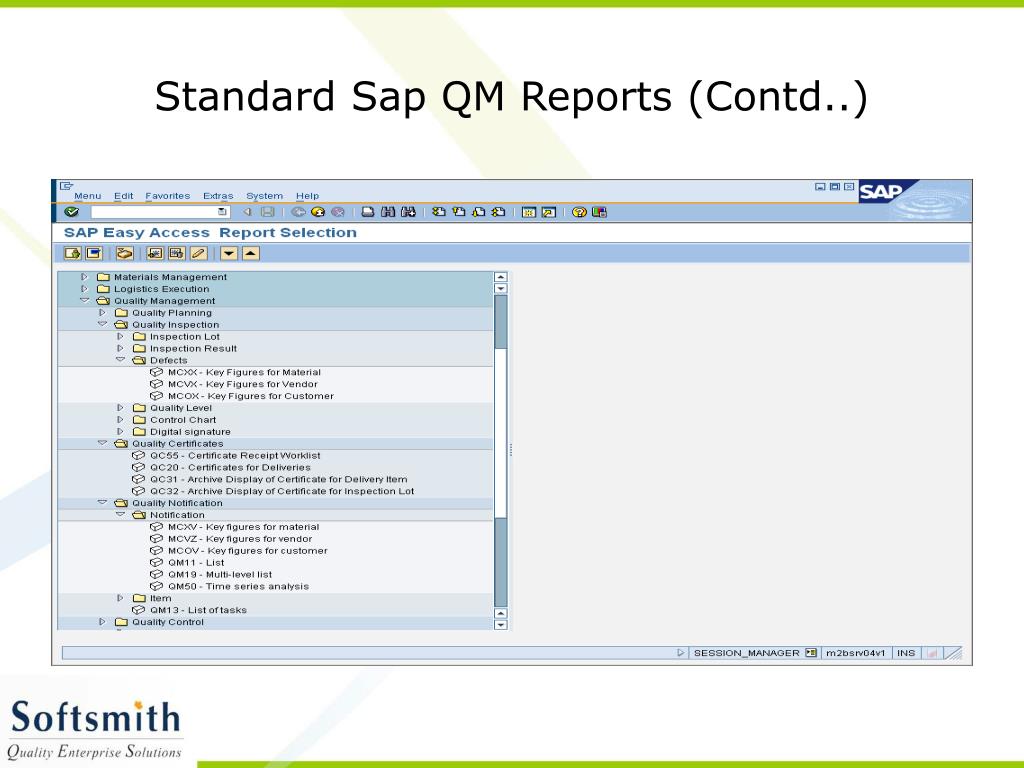

Standard Sap QM Reports

Standard Reports in QM

comments queries
Comments & Queries-

Queries are always welcome.

Send emails to:

webinar@softsmith.com

Thanks & Happy Learning..
