Phases of Photosynthesis

1. Phases of Photosynthesis • Photosynthesis occurs in 2 phases, which include 3 main goals: A. The Light Reactions 1. Capturing light energy 2. Using the light energy to create chemical energy (ATP and NADPH (electron carrier in plants)) B. The Light Independent Reactions 3. Using the free energy from ATP and reducing power of NADPH to synthesize organic compounds from atmospheric carbon.

2. Where They Occur • The Light Reactions require chlorophyll and occur on the thylakoid membrane. • The Light Independent reactions (aka The Calvin Cycle) take place in the stroma.

3. Light Reactions • When light strikes the thylakoid membrane, the photosystems absorb a photon and the energy is passed from pigment to pigment until it reaches the reaction center (P680 or P700). • The light energy excites the electrons in the chlorophyll a molecules.

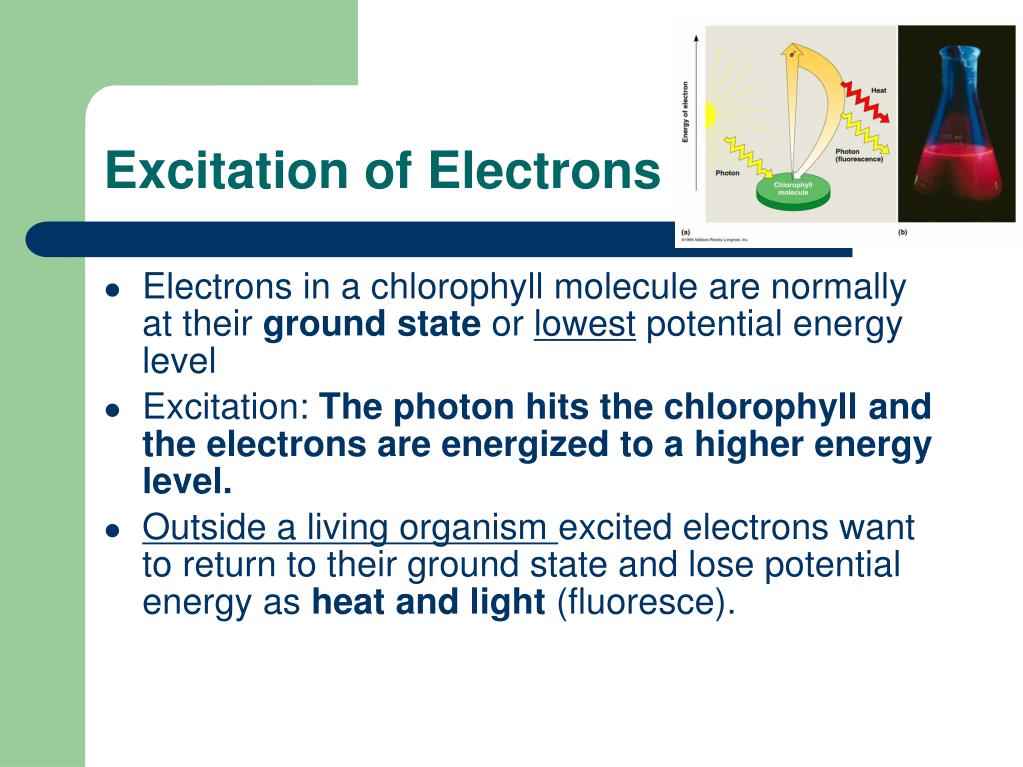

4. Excitation of Electrons • Electrons in a chlorophyll molecule are normally at their ground state or lowest potential energy level • Excitation: The photon hits the chlorophyll and the electrons are energized to a higher energy level. • Outside a living organism excited electrons want to return to their ground state and lose potential energy as heat and light (fluoresce).

5. Non-Cyclic Electron Flow • In a cell the excited electron is capturedby a special molecule called the primary electron acceptor (no fluorescing). • The energy of the electrons is used to produce ATP and NADPH in a two-part process called non-cyclic electron flow.

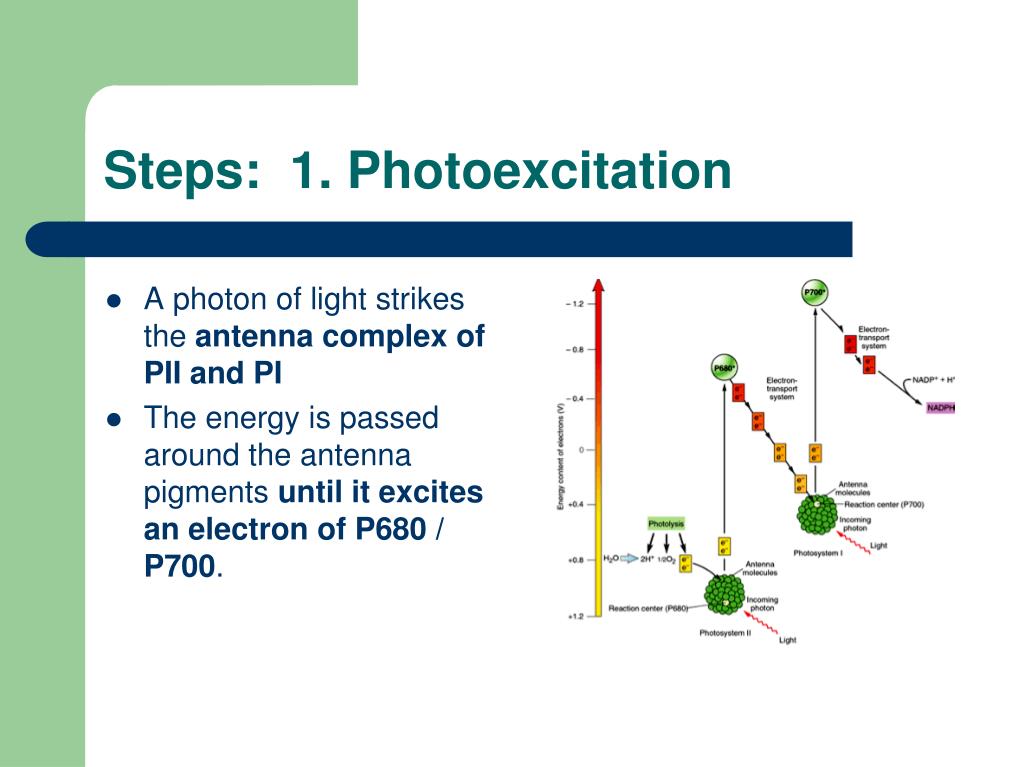

6. Steps: 1. Photoexcitation • A photon of light strikes the antenna complex of PII and PI • The energy is passed around the antenna pigments until it excites an electron of P680 / P700.

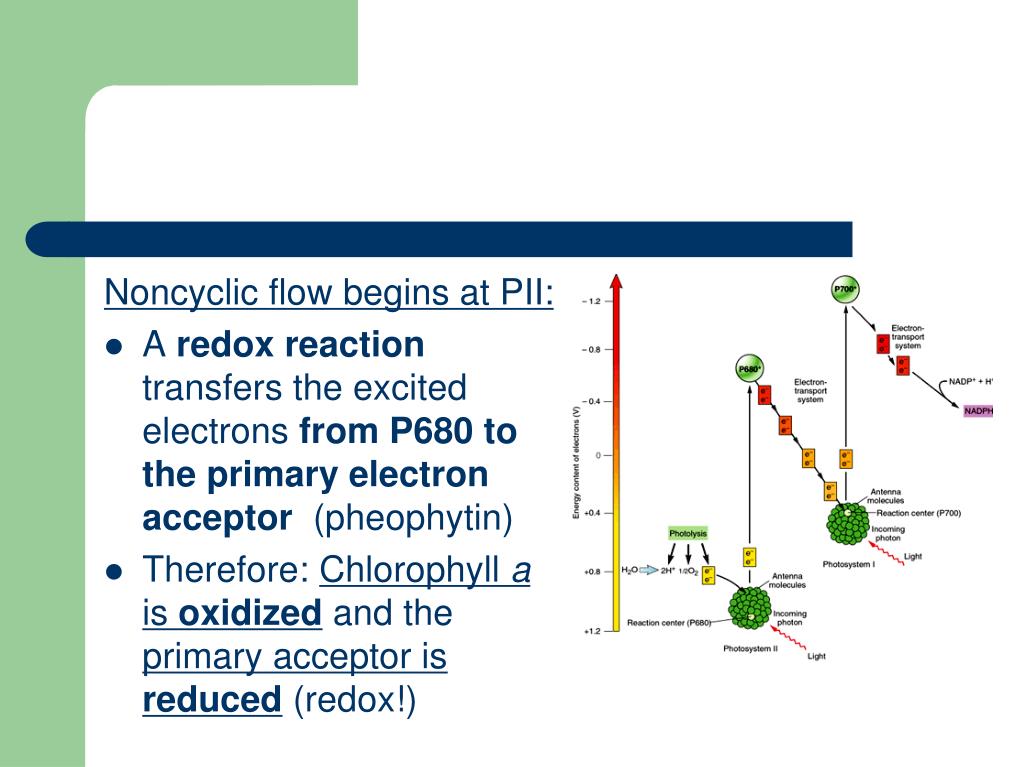

7. Noncyclic flow begins at PII: • A redox reaction transfers the excited electrons from P680 to the primary electron acceptor (pheophytin) • Therefore: Chlorophyll a is oxidizedand the primary acceptor is reduced (redox!)

8. 2. Electron Transport i. • . From the primary electron acceptor (pheophytin), the electrons travel by redox through a series of membrane bound electron carriers (cytochrome complexes, aka an ETC)

9. Electron Transport ii. They power a proton pump called the Q cycle. • Protons are pumped from the stromainto the thylakoid lumen creating a proton gradient. • (High concentration inside thylakoid and low outside).

10. Electron Transport iii. At the end of the ETC the electrons from PII are transferred to PI(to replace the electrons it loses...next)

11. iv. At PI: • The excited electrons from P700 pass to an electron acceptor (ferredoxin (Fd)). • From Fd they move through a short ETC to the enzyme NADP reductase. • The enzyme uses two electrons and two protons from the stroma to reduce NADP+ to NADPH.

12. v. The PII electrons are also replaced: • A Z proteinsplits water into oxygen, 2 hydrogen ions and 2 electrons. • The electrons replace the missing electrons from P680. • Oxygen leaves as a waste product • Protons stay in the thylakoid lumen

13. 3. Photophosphorylation • A proton gradient was set up in PII. There is a high concentration of H+ in the lumen. • Protons move through an ATPase along the proton gradient from the thylakoid lumen into the stroma. ATP is generated. • This process is called photophosphorylation since light creates the proton gradient.

14. Summary of the Light Reactions The ATP and NADPH go on to the Light Independent reactions...the Calvin Cycle

15. CYCLIC ELECTRON FLOW • In some cases (low O2, low levels of NADP+, low ATP to NADPH ratio) electrons take a cyclic pathway instead to increase ATP production. • Only PI is used. P700 loses its electron pair to ferredoxin (Fd) but then electrons go through the Q cycle (ETC of PII) and back to P700. • This generates a proton gradient for ATP synthesis, but does not release electrons to generate NADPH. • Plants cycle back and forth through cyclic and non-cyclic to maintain adequate levels of both ATP and NADPH.
