  1. Electrical Synapses Or Shemesh March 2010 shemesh72369@gmail.com

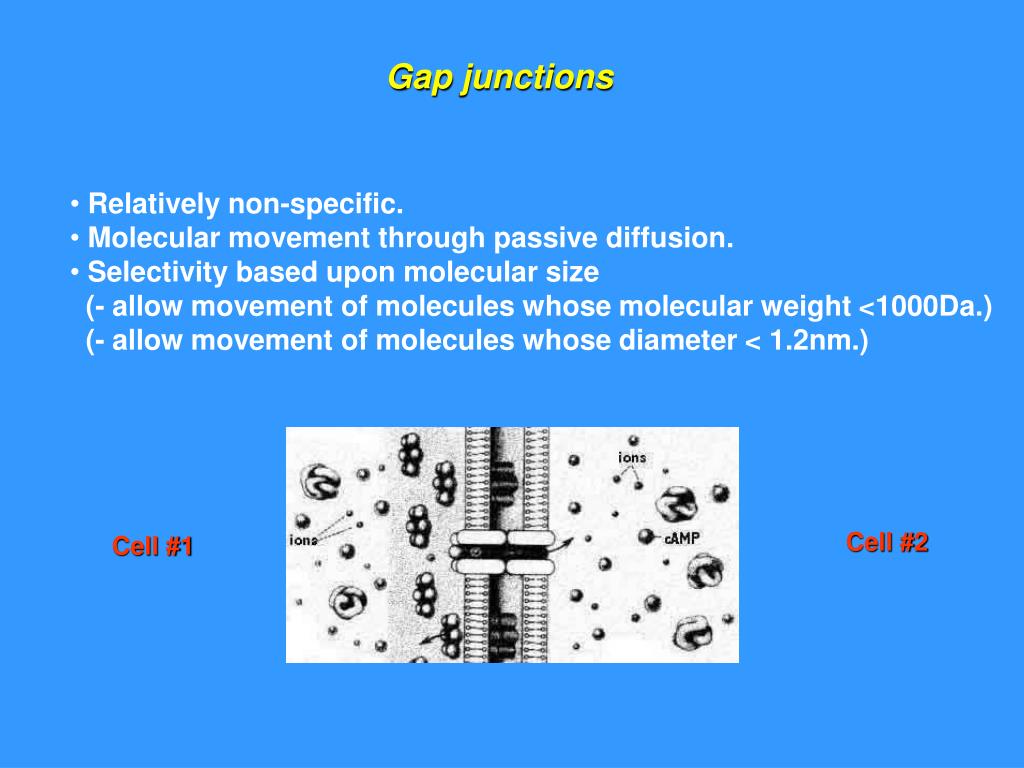

  2. Gap junctions • Relatively non-specific. • Molecular movement through passive diffusion. • Selectivity based upon molecular size • (- allow movement of molecules whose molecular weight <1000Da.) • (- allow movement of molecules whose diameter < 1.2nm.) Cell #2 Cell #1

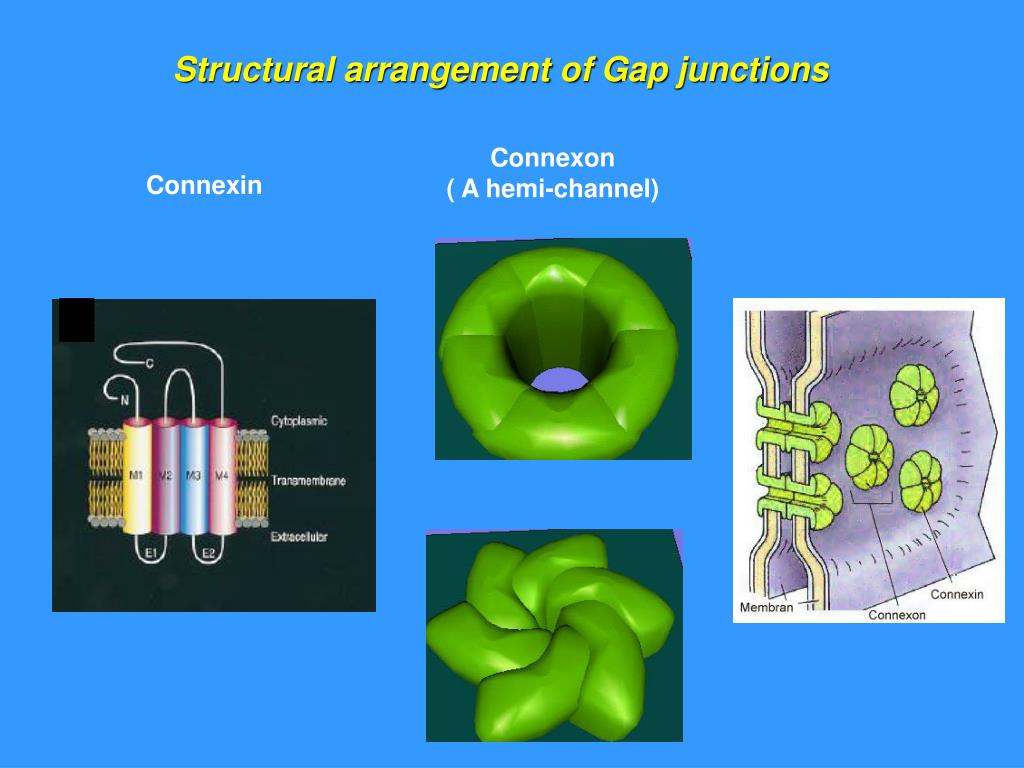

  3. Structural arrangement of Gap junctions Connexon ( A hemi-channel) Connexin

  4. Structural arrangement of Gap junctions Two docked connexons (a gap junction channel) Gap junction plaque

  5. Electric synapses vs. Chemical synapses

  6. Cell 1 Cell 2 Two coupled cells in Vitro

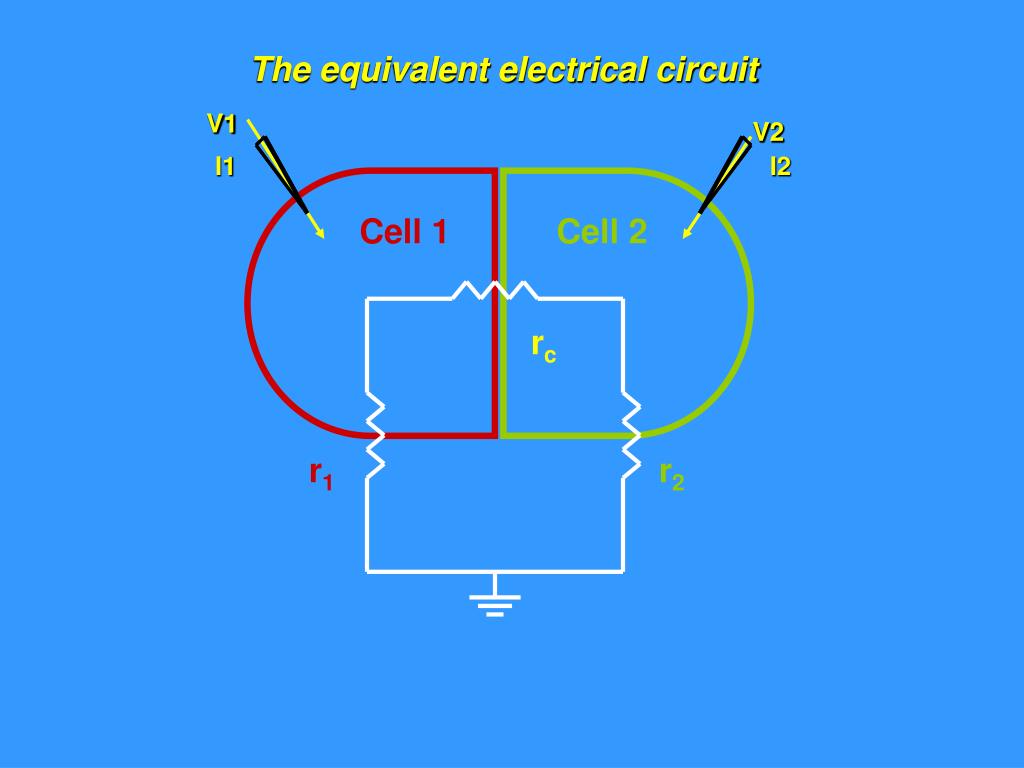

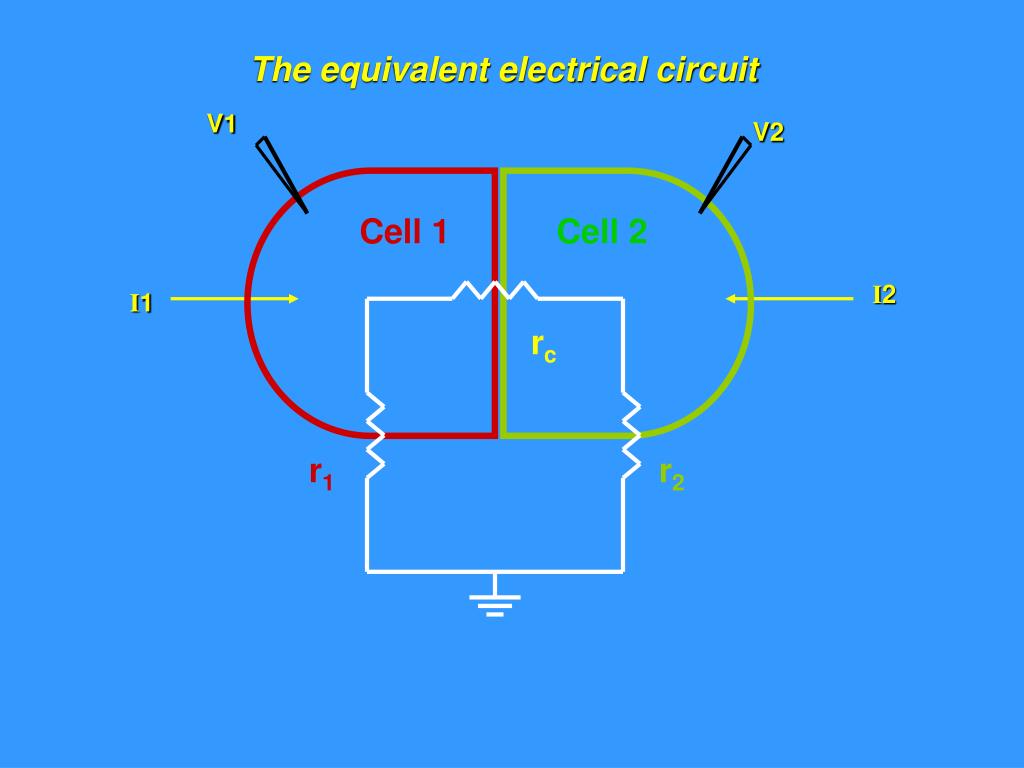

  7. The equivalent electrical circuit V1 V2 Cell 1 Cell 2 rc r1 r2 I2 I1

  8. The equivalent electrical circuit V1 V2 Cell 1 Cell 2 rc r1 r2 The equivalent electrical circuit V1 V2 I1 I2

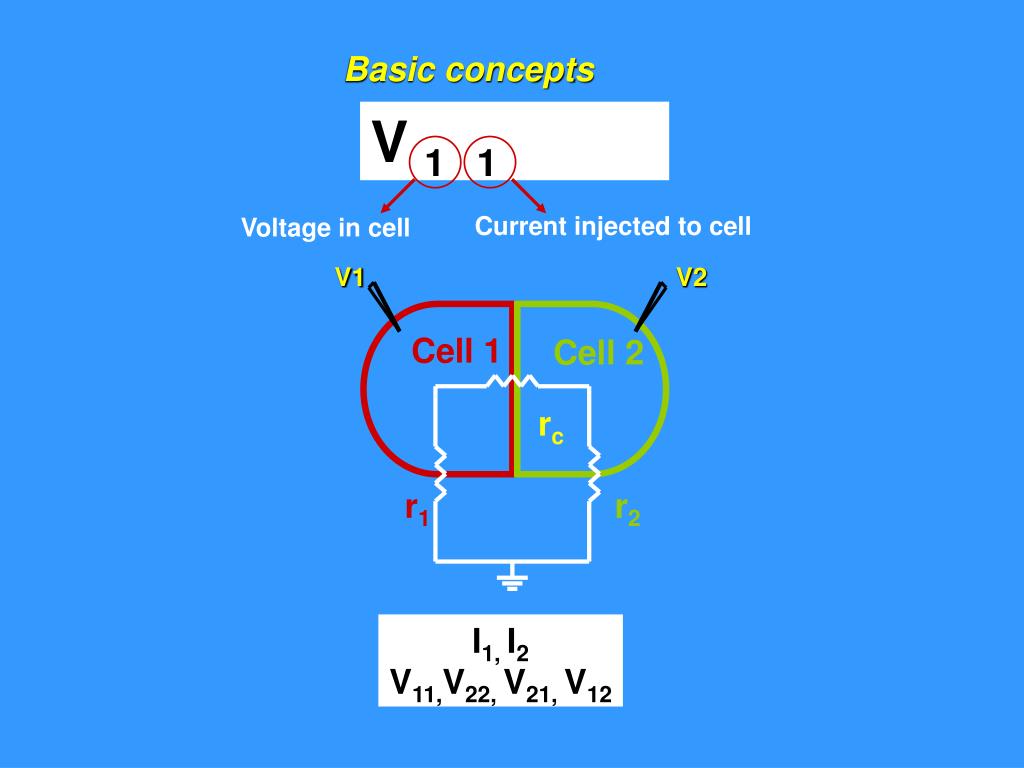

  9. V1 V2 Cell 1 Cell 2 rc r1 r2 Basic concepts V 1 1 Current injected to cell Voltage in cell I1, I2 V11,V22, V21, V12

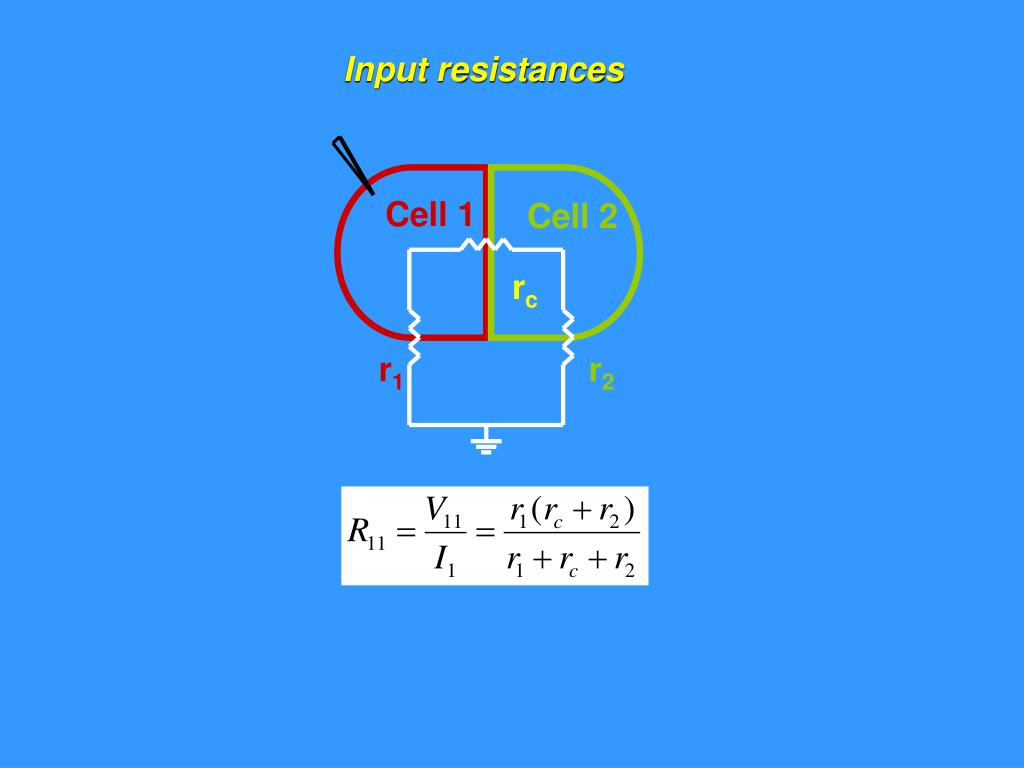

  10. Cell 1 Cell 2 rc r1 r2 Input resistances

  11. Cell 1 Cell 2 rc r1 r2 Input resistances If rc << r2 and rc << r1 Then

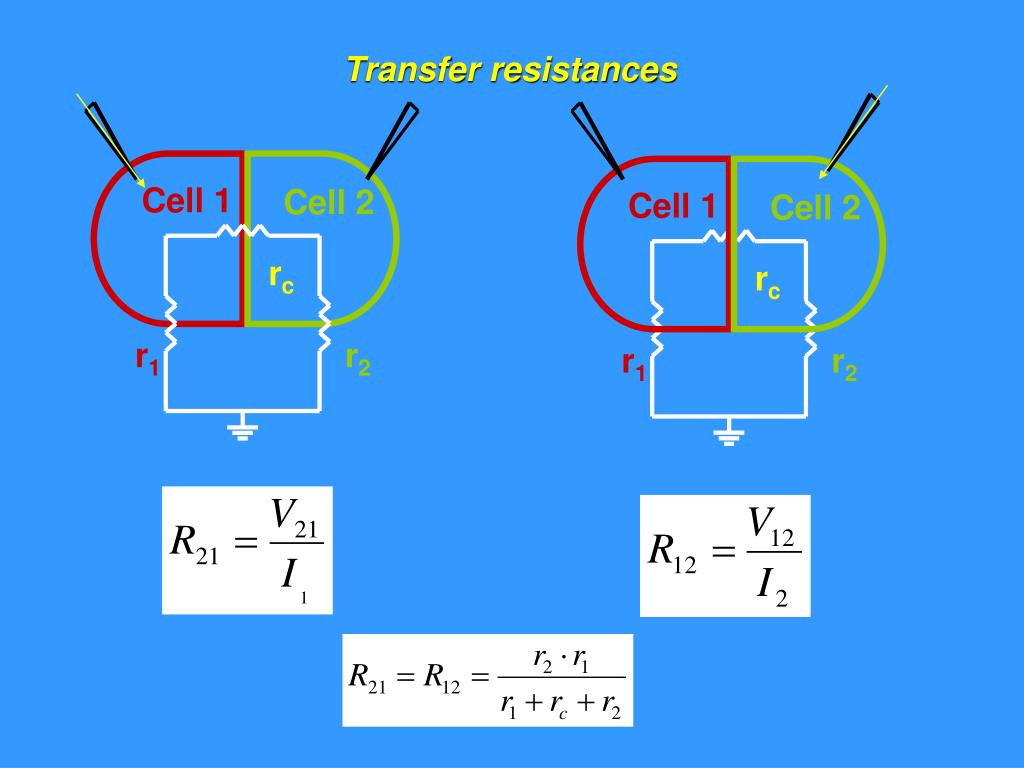

  12. Cell 1 Cell 2 Cell 1 Cell 2 rc rc r1 r2 r1 r2 Transfer resistances

  13. Cell 1 Cell 1 Cell 2 Cell 2 Coupling coefficients Potential in un-injected cell Potential in injected cell

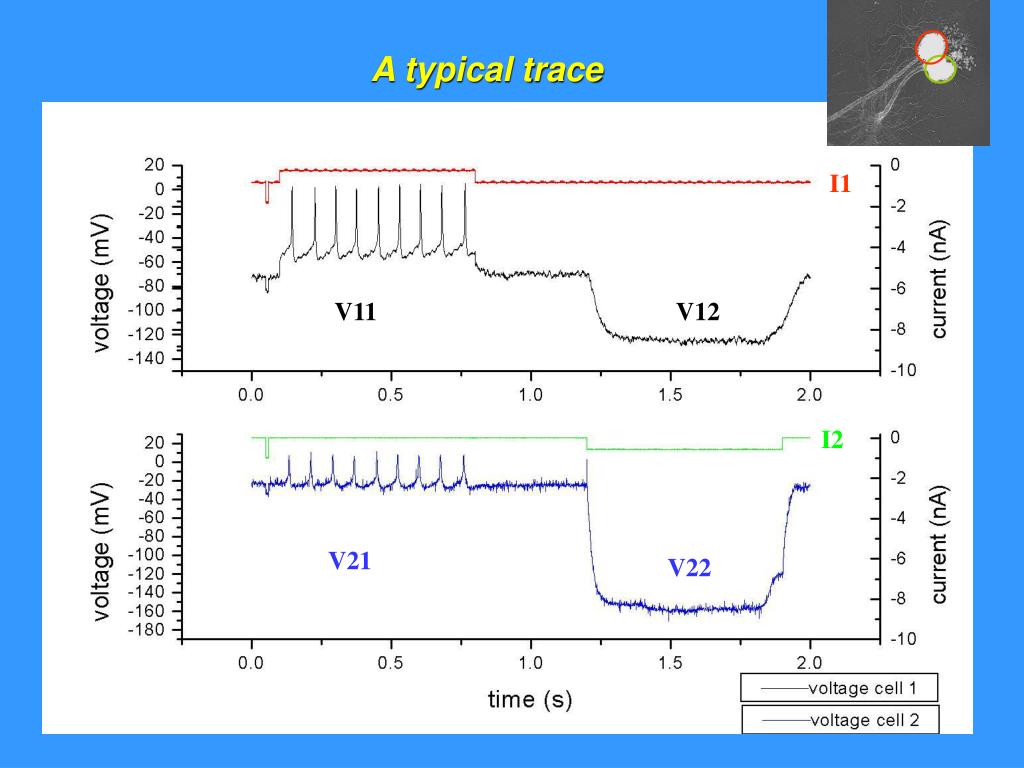

  14. A typical trace I1 V11 V12 I2 V21 V22

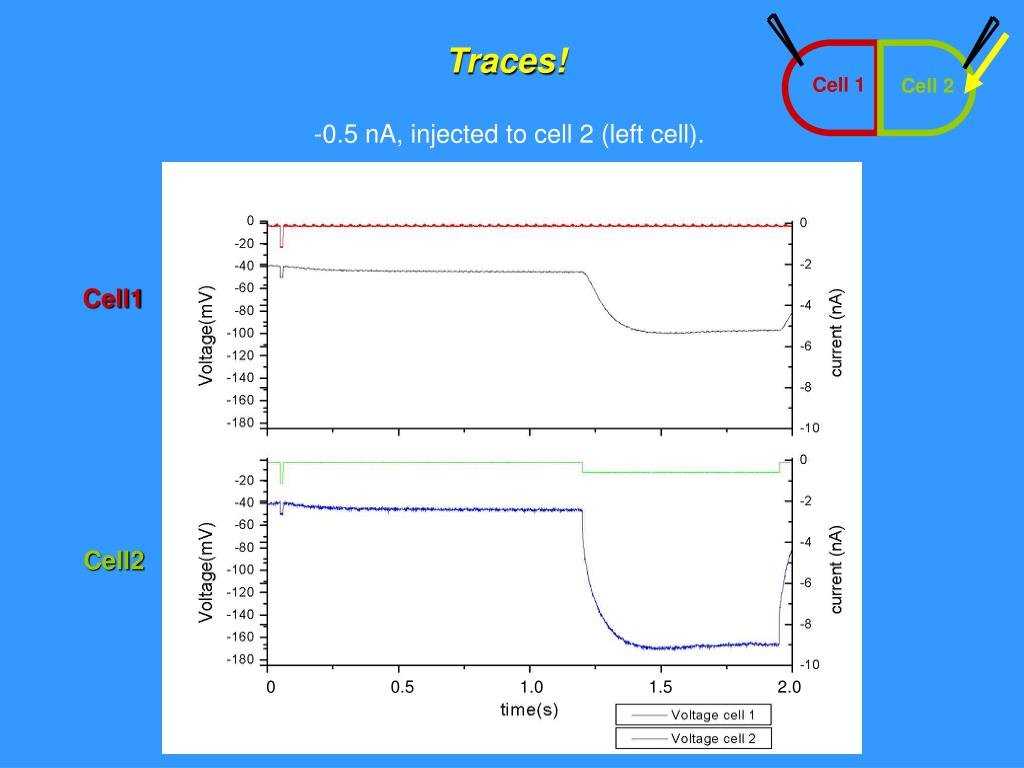

  15. Cell 1 Cell 2 0 0.5 1.0 1.5 2.0 Traces! -0.5 nA, injected to cell 2 (left cell). Cell1 Cell2

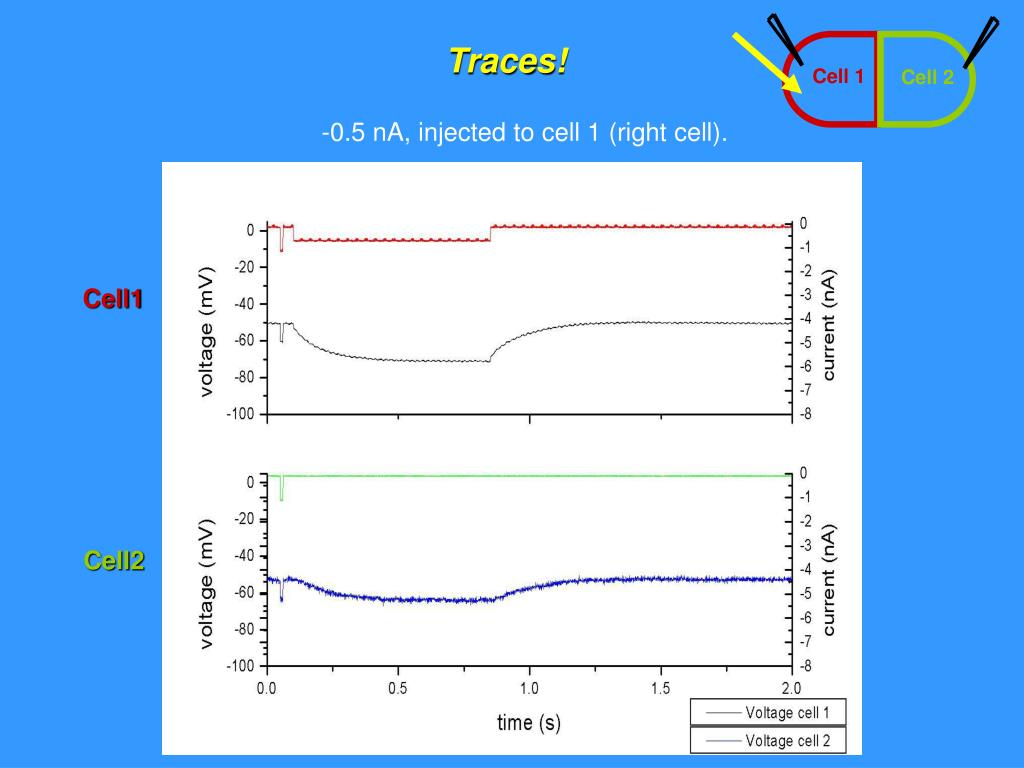

  16. Cell 1 Cell 2 Traces! -0.5 nA, injected to cell 1 (right cell). Cell1 Cell2

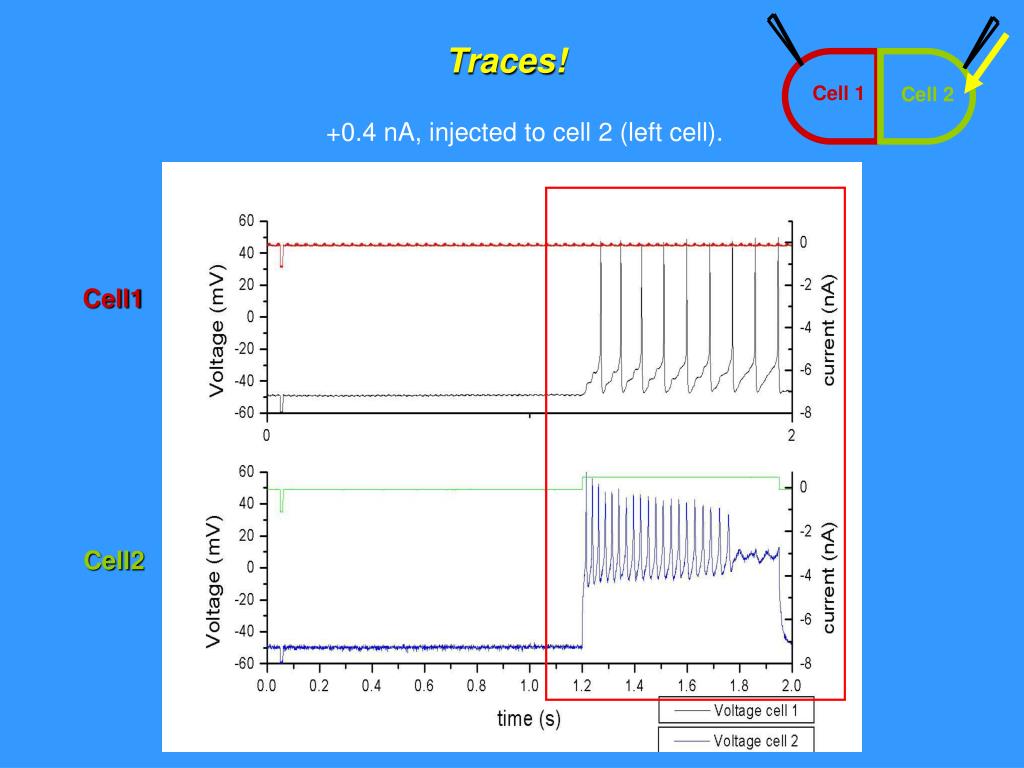

  17. Cell 1 Cell 2 Traces! +0.4 nA, injected to cell 2 (left cell). Cell1 Cell2

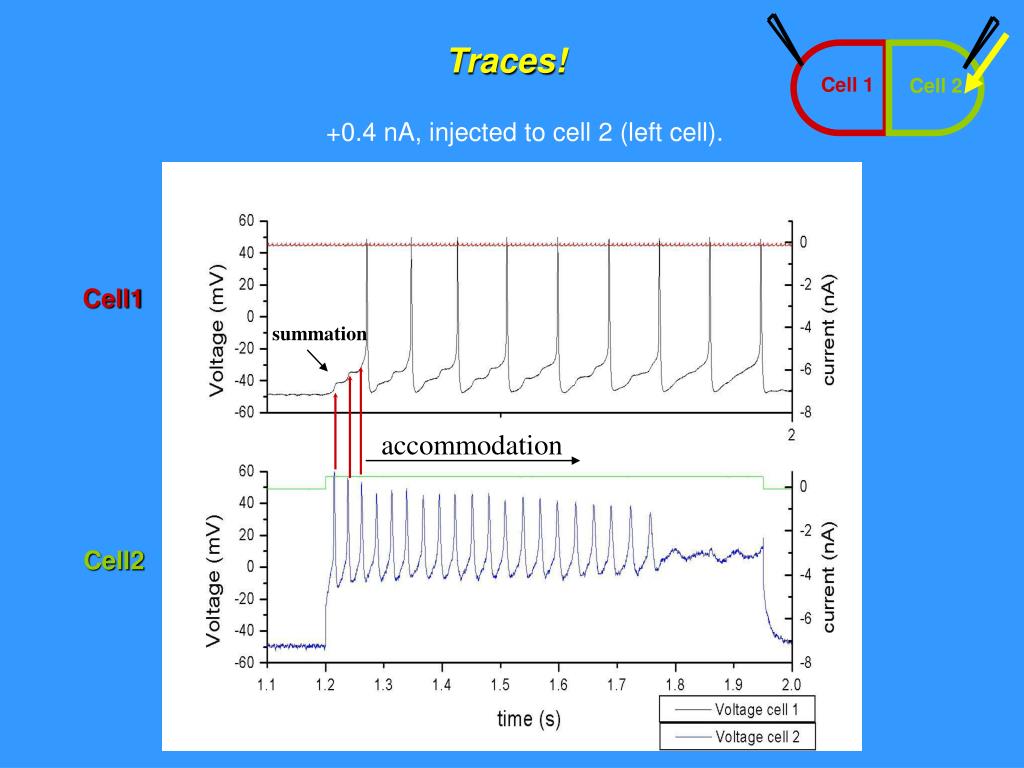

  18. Cell 1 Cell 2 Traces! +0.4 nA, injected to cell 2 (left cell). Cell1 summation accommodation Cell2
