Top-Loading-Steam-Sterilizer

Top Loading Steam Sterilizer is a robust stainless steel autoclave equipped with two stainless steel sterilizing baskets. Its digital display and touch keys simplify operation, while the built-in sensor provides crucial indicators for fluctuations. With a 35-liter capacity and a sterilization volume of u03c6 318u00d7450 mm, it accommodates a variety of items. Operating at a working pressure of 0.22 MPa, it offers an adjustable temperature range from 105u00b0C to 134u00b0C. Moreover, it automatically sets overpressure, adjusting from 0.22 MPa to 0.23 MPa, ensuring precise and efficient sterilization.

eleza_labmate
Download Presentation

Top-Loading-Steam-Sterilizer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

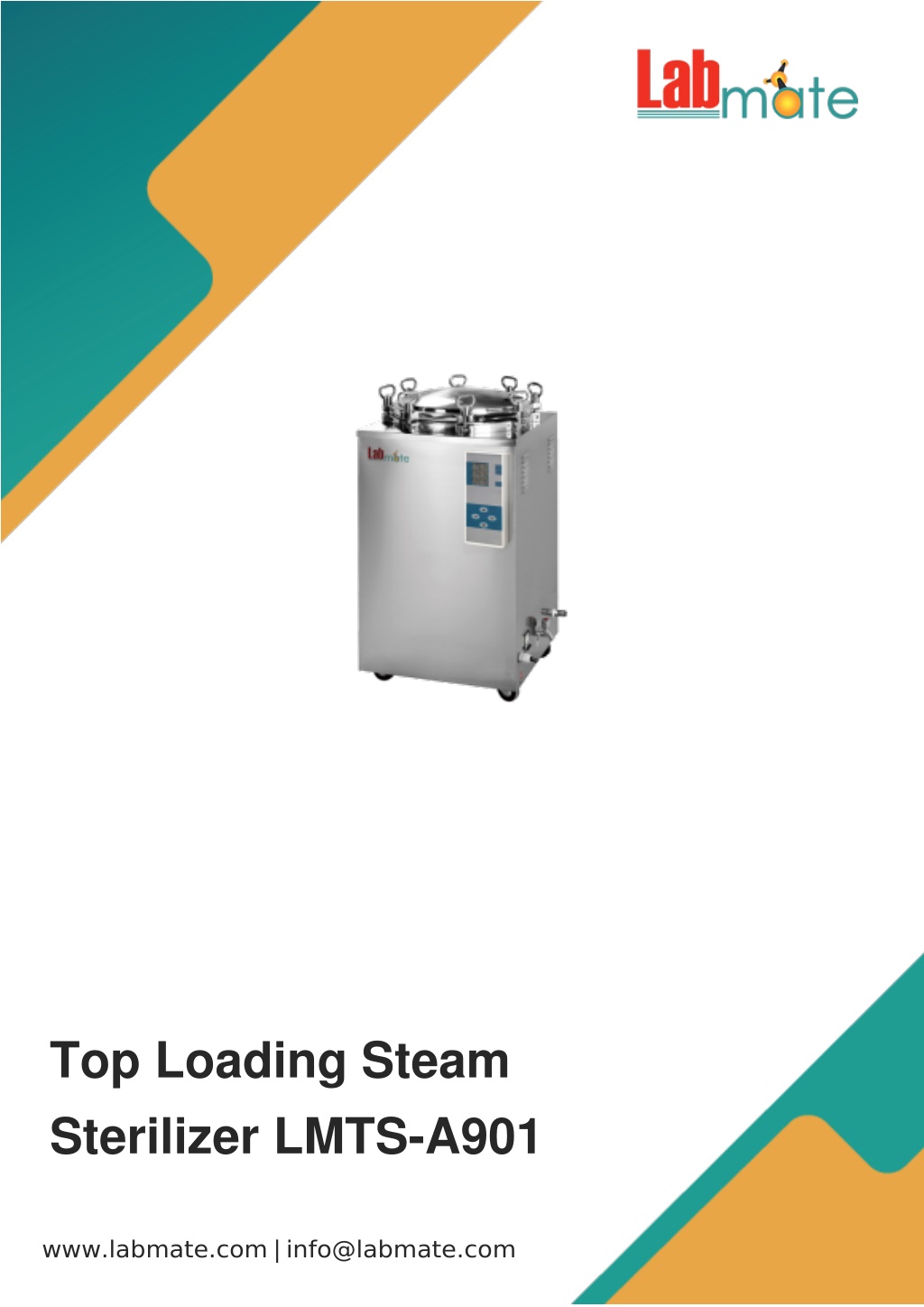

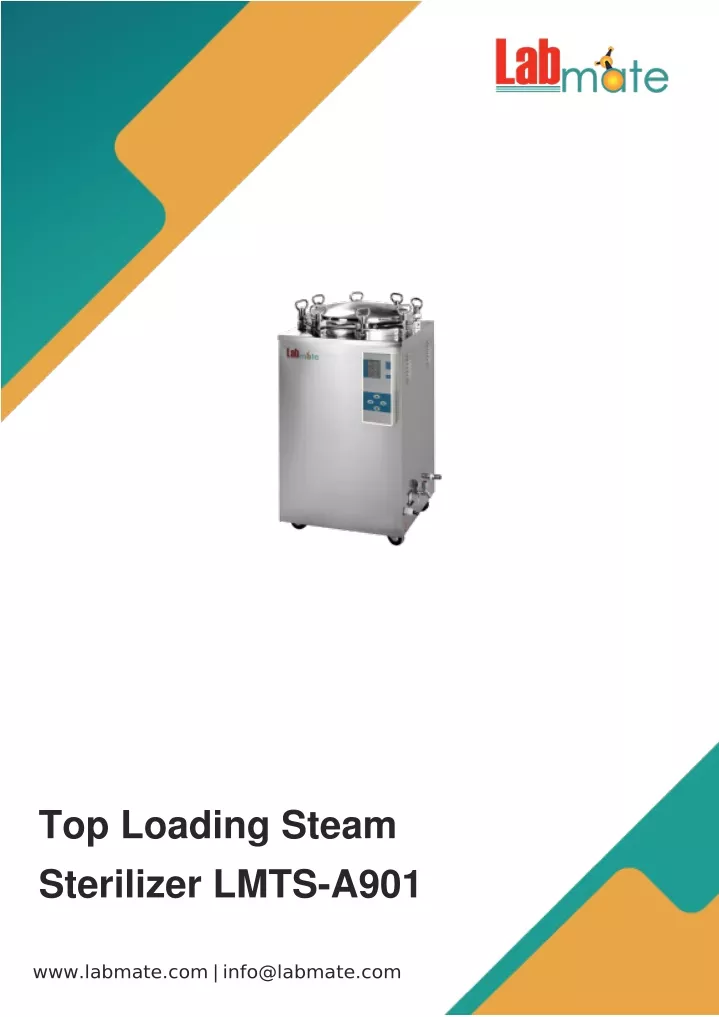

  1. Top Loading Steam Sterilizer LMTS-A901 www.labmate.com info@labmate.com |

  2. Overview Top Loading Steam Sterilizer LMTS-A901 it is a stainless steel well-built autoclave with a two stainless steel sterilizing baskets, having a digital display, and having touch keys for operating. It has the inbuilt sensor for the indications of fluctuations. It has the capacity of 35 L with the sterilization volume of φ 318×450 mm. The working pressure of a sterilization is 0.22 MPa with an adjustable temperature of 105 ˚C to 134 ˚C. The over pressure can be automatically set by adjusting 0.22 MPa to 0.23 MPa. Specifications : Capacity 35 L Sterilization Volume φ318×H450 mm Working Pressure 0.22 MPa Max. Working Pressure 0.23 MPa Working Temperature 134 °C Adjustable Temperature 105 to 134 °C Time Period 0 to 99 min Power 2.5 to 4.5 Heat Average ≤± 1°C Product Dimensions (mm) 480×460×850 Gross Weight 56 kg Net Weight 42 kg Transport Package Dimensions (mm) 570×550×970 mm

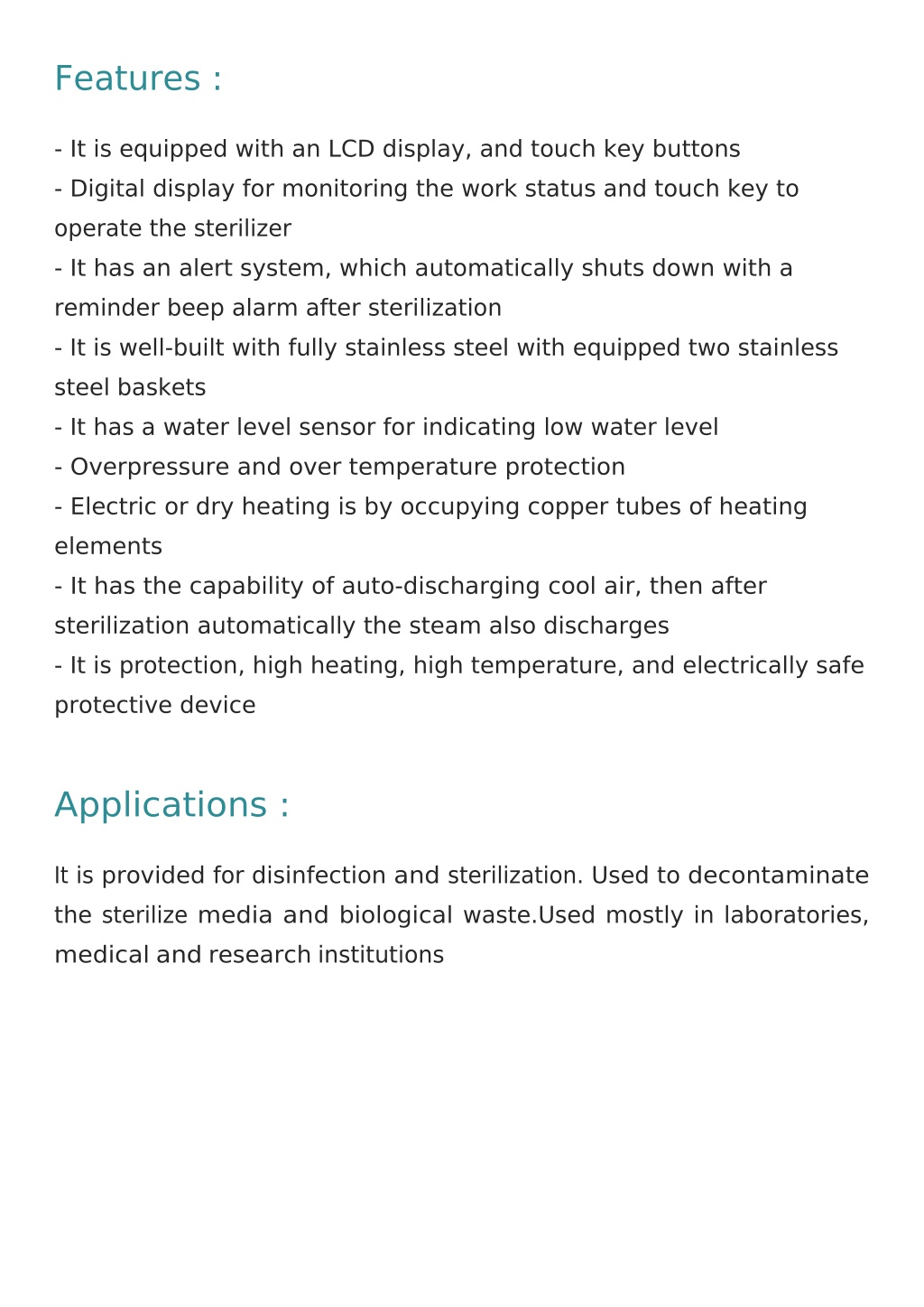

  3. Features : - It is equipped with an LCD display, and touch key buttons - Digital display for monitoring the work status and touch key to operate the sterilizer - It has an alert system, which automatically shuts down with a reminder beep alarm after sterilization - It is well-built with fully stainless steel with equipped two stainless steel baskets - It has a water level sensor for indicating low water level - Overpressure and over temperature protection - Electric or dry heating is by occupying copper tubes of heating elements - It has the capability of auto-discharging cool air, then after sterilization automatically the steam also discharges - It is protection, high heating, high temperature, and electrically safe protective device Applications : It is provided for disinfection and sterilization. Used to decontaminate the sterilize media and biological waste.Used mostly in laboratories, medical and research institutions

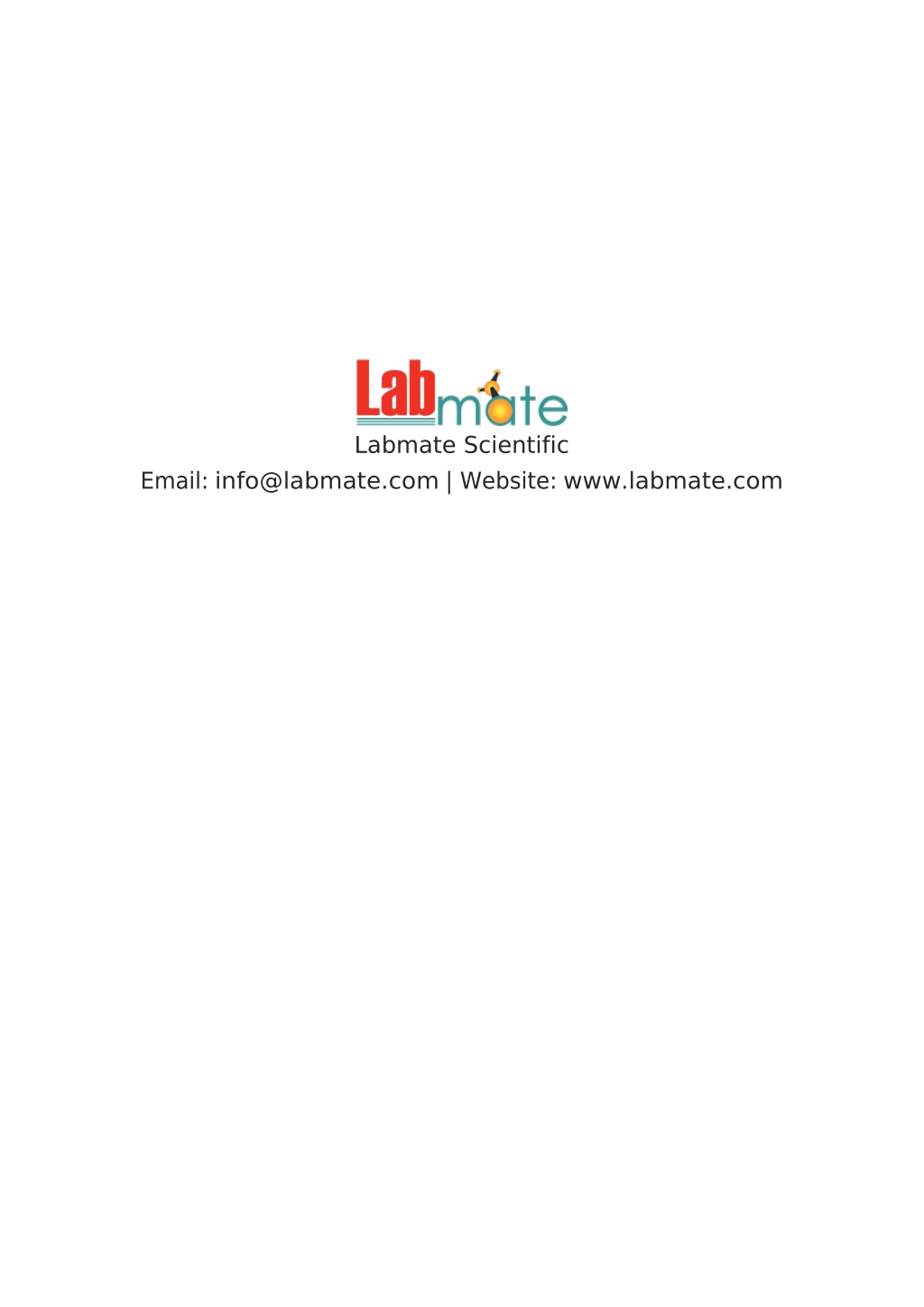

  4. Labmate Scientific | Website: Email: info@labmate.com www.labmate.com
