Vertical-Pressure-Steam-Sterilizer

The Vertical Pressure Steam Sterilizer is a digital marvel, meticulously crafted from stainless steel, and equipped with two stainless steel sterilizing baskets. It's a dependable, user-friendly sterilizer with a digital display that provides real-time work status updates. With a 35-liter capacity and a sterilizing chamber volume of u03c6318u00d7h430 mm, it caters to a variety of sterilization needs. Operating at 0.22 MPa pressure, it offers an adjustable temperature range from 105u00b0C to 134u00b0C. It also features a water shortage alert and a status completion reminder.

eleza_labmate
Download Presentation

Vertical-Pressure-Steam-Sterilizer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

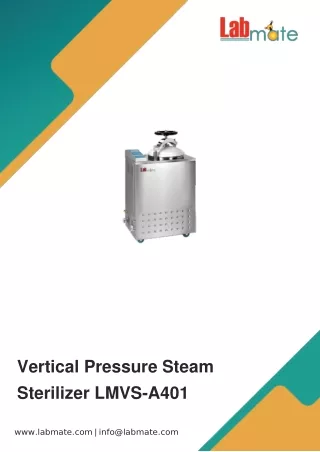

  1. Vertical Pressure Steam Sterilizer LMVS-A401 www.labmate.com info@labmate.com |

  2. Overview Vertical Pressure Steam Sterilizer LMVS-A401 is a digital-display based sterilizer; fully well-built with stainless steel, with two stainless steel sterilizing baskets. It is safe and reliable easy to operate with touch keys and display shows the work status. The capacity of sterilizer is 35 L with the sterilizing chamber volume of φ318×h430 mm. it works with pressure of 0.22 MPa, with the adjustable temperature of 105 to 134 ˚C. It possesses an alert buzz for the indication of water lacking and reminding the status of sterilization is done. Specifications : Capacity 35 L Sterilization Volume φ318×H450 mm Working Pressure 0.22 MPa Max. Working Pressure 0.23 MPa Working Temperature 134 ˚C Adjustable Temperature 105 to134 ˚C Time Period 0 to 99 min Power 2.5 to 4.5 Heat Average ≤± 1 ˚C Product Dimensions (mm) 450×450×1010mm Gross Weight 72 kg Net Weight 65 kg Transport Package Dimensions (mm) 570×550×1150mm

  3. Features : - It has an LCD display, and touch key buttons mode system - It is easy to operate safe and reliable - It has an alert system, which automatically shuts down with a reminder beep alarm after sterilization - It is well-built with fully stainless steel with equipped two stainless steel baskets - It has a water level sensor for indicating low water level - self-aerated type seal - It has the capability of releasing automatic safety valves - protection over high temperature and high pressure - Hand wheel type of quick open door - It is provided with a safety interlock door system - Possible to install drying system based on user request - It has the capability of ensuring inner air from dressing - It is an electric safety protective device - It has an anti-dry heating and heater protection for safe and reliable function Applications : These are used to decontaminate certain biological waste, sterile media and instruments. It used for the process of disinfection and sterilization. It is widely used in medical and laboratories.It used in order to kill the microorganisms and bacteria

  4. Labmate Scientific | Website: Email: info@labmate.com www.labmate.com
