Curriculum Review LOG 103 Reliability, Availability & Maintainability (RAM) Presented to theLife Cycle Logistics (LCL) Functional Integrated Product Team (FIPT)Presented byPatrick M. Dallosta, CPLPerformance Learning DirectorDefense Acquisition University
Agenda • Key Personnel • FY 13 LCL Certification Curriculum “Path Ahead” • LCL Competency – DAU Curriculum Crosswalk • Background • Current Status • Course Description • Course Content / TLOs & ELOs / Course Outline • MTM / Projected Throughput • PLD Assessment / Impact on Training • Questions & Answers

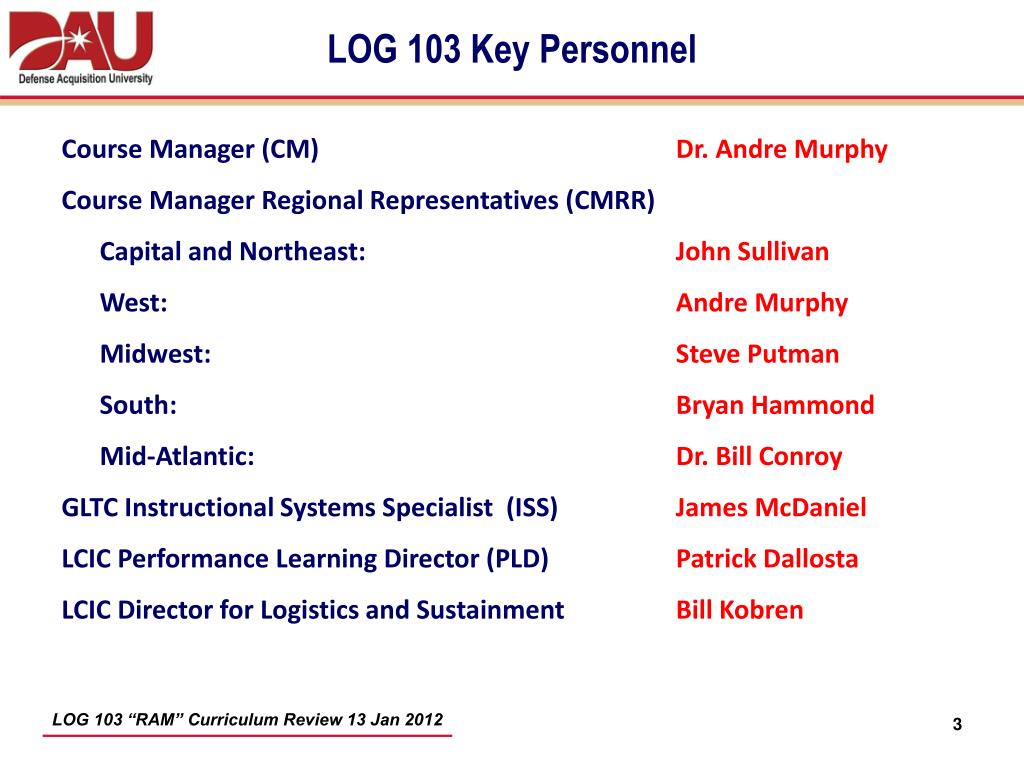

LOG 103 Key Personnel • Course Manager (CM)Dr. Andre Murphy • Course Manager Regional Representatives (CMRR) • Capital and Northeast: John Sullivan • West:Andre Murphy • Midwest: Steve Putman • South: Bryan Hammond • Mid-Atlantic: Dr. Bill Conroy • GLTC Instructional Systems Specialist (ISS) James McDaniel • LCIC Performance Learning Director (PLD) Patrick Dallosta • LCIC Director for Logistics and SustainmentBill Kobren
FY12 Life Cycle Logistics Certification Training Level III Certification Level I Certification Level II Certification LOG 101 Acquisition Logistics Fundamentals Choice of one of: RQM 110, ACQ 265, BCF 215 , LOG 204 P LOG-206 Intermediate Systems Sustainment P NOTE: There are NO prerequisites for LOG 235 ACQ 201B Intermediate Systems Acquisition LOG 200 Intermediate Acquisition Logistics 2 CL Modules: PBL & Designing for Support 18-32 hrs, on-line/clsrm P LOG 235 Performance Based Logistics 27 hrs, on-line 3 CL Modules: LCSP, BCA & Log Assessment 21 hours, on-line LOG 102 Systems Sustainment Management 32 hours on-line 4.5 days classroom 3 hrs ea, on-line P 54 hours, online P P 3 hrs ea, on-line P ACQ 201A Intermediate Systems Acquisition LOG 201 Intermediate Acquisition Logistics ACQ 101 Fundamentals of Systems Acquisition Management P LOG 340 Life Cycle Product Support 25 hrs, on-line LOG 103 Reliability, Availability & Maintainability P 37 hours, on-line 4.5 days classroom 4.5 days classroom 25 hrs, on-line P LOG 350 Enterprise Life Cycle Logistics Management 2 CL Modules: Life Cycle Mgt/ Sustainment Metrics & Supportability Analysis 26 hrs, on-line SYS 101 SPRDE Fundamentals P 9.5 days classroom • Knowledge based • GS 5-9 & E7-O3 • Experience: 1 yr • 144 total hours • Application/case based • GS 9-12 & E7-O4 • Experience: 2 yrs • 228 total hours • Case/scenario based • GS 13-14 & E7-O5 • Experience: 4 yrs • 139-153 total hours 4+8 hrs ea, on-line 35hrs, on-line Level II “Core Plus” Courses & CL Modules (See DAU iCatalog for details) Level I “Core Plus” Courses & CL Modules (See DAU iCatalog for details) Level III “Core Plus” Courses & CL Modules (See DAU iCatalog for details) P = Prerequisite

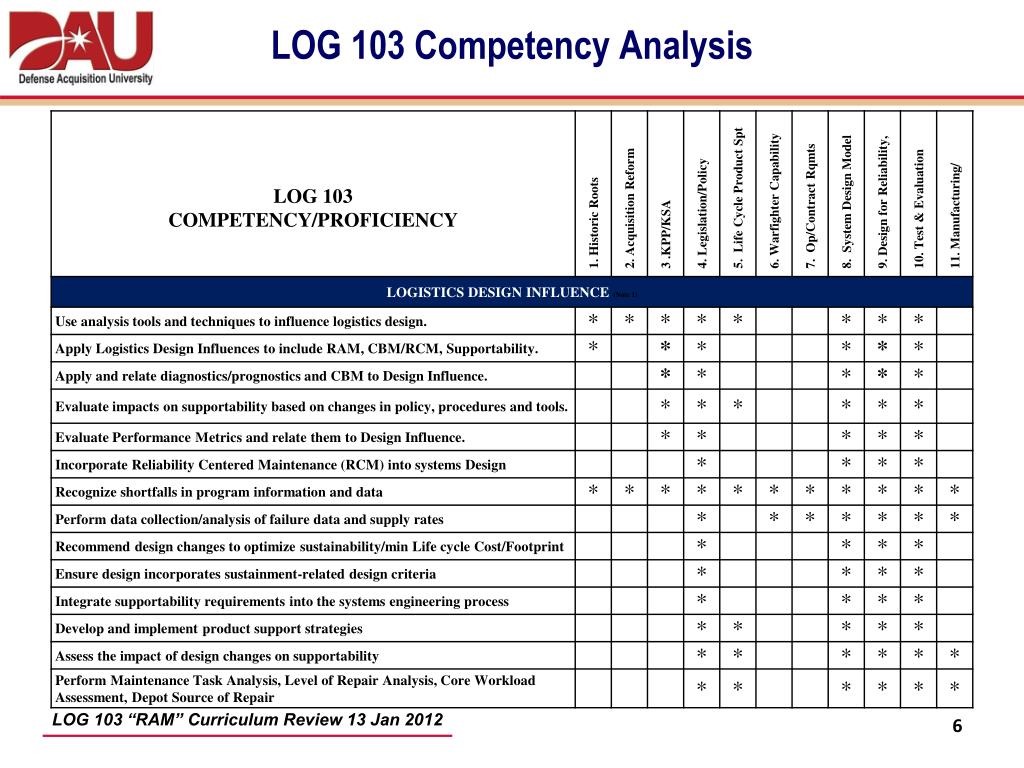

LCL Competency – DAU Curriculum Crosswalk Legend: Principal course that addresses the competency Deployed course/significant upgrade in progress Courses where the competency is a major learning point New course in development/planning Addressed, but not major learning point

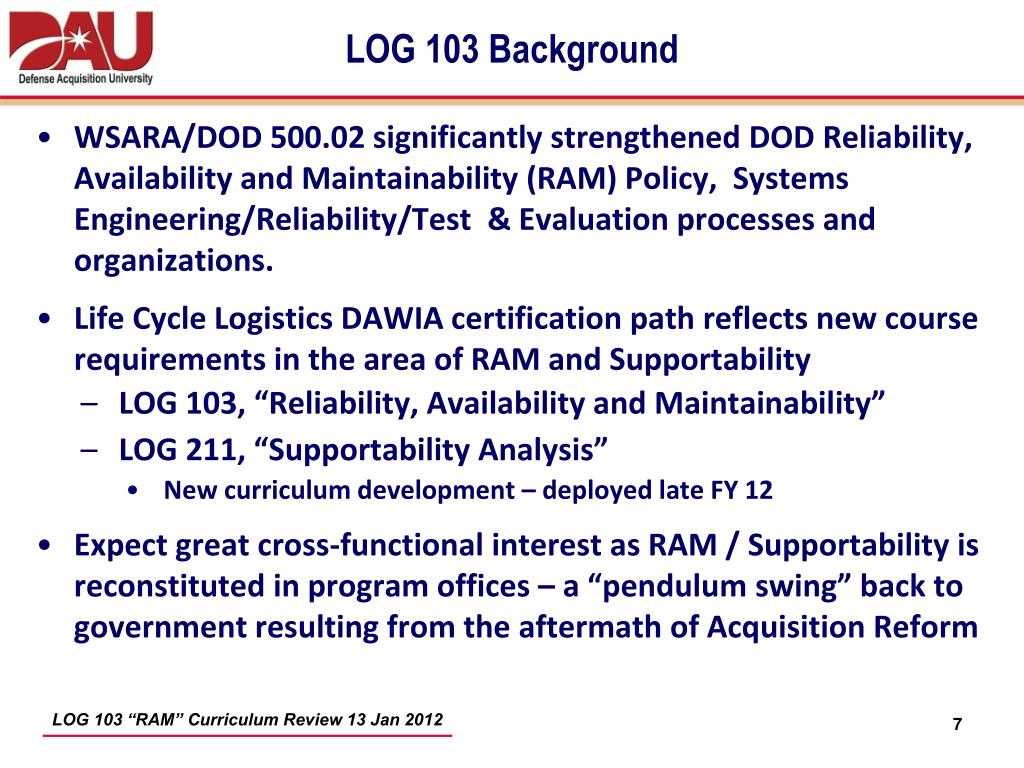

WSARA/DOD 500.02 significantly strengthened DOD Reliability, Availability and Maintainability (RAM) Policy, Systems Engineering/Reliability/Test & Evaluation processes and organizations. Life Cycle Logistics DAWIA certification path reflects new course requirements in the area of RAM and Supportability LOG 103, “Reliability, Availability and Maintainability” LOG 211, “Supportability Analysis” New curriculum development – deployed late FY 12 Expect great cross-functional interest as RAM / Supportability is reconstituted in program offices – a “pendulum swing” back to government resulting from the aftermath of Acquisition Reform LOG 103 Background

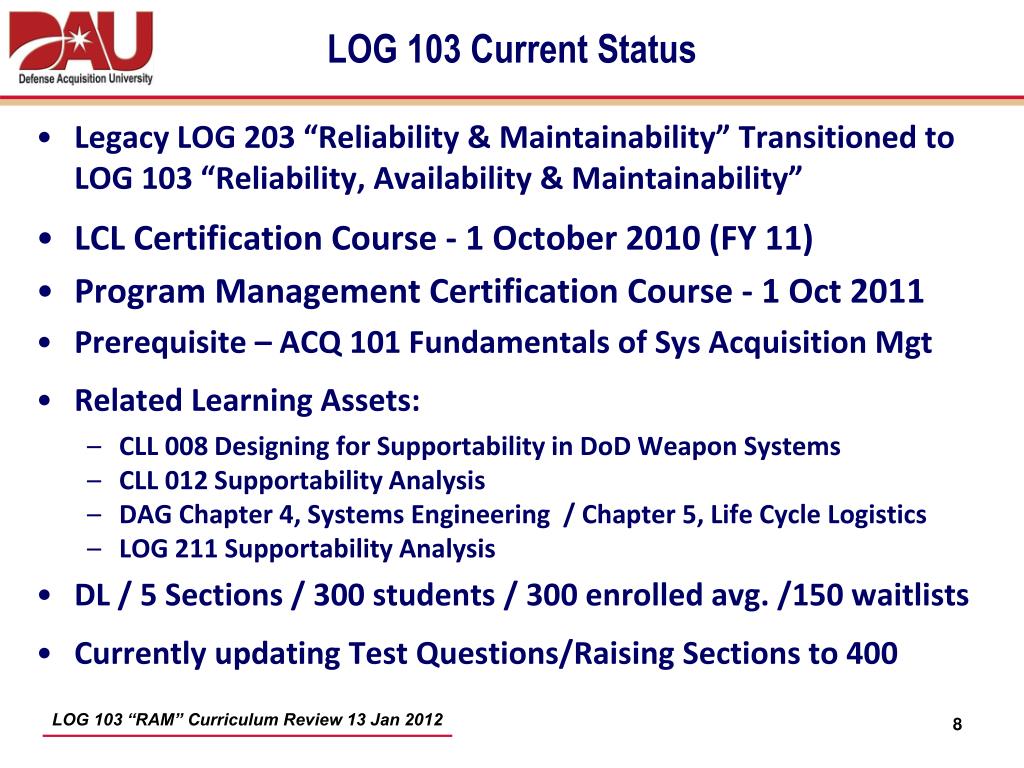

LOG 103 Current Status • Legacy LOG 203 “Reliability & Maintainability” Transitioned to LOG 103 “Reliability, Availability & Maintainability” • LCL Certification Course - 1 October 2010 (FY 11) • Program Management Certification Course - 1 Oct 2011 • Prerequisite – ACQ 101 Fundamentals of Sys Acquisition Mgt • Related Learning Assets: • CLL 008 Designing for Supportability in DoD Weapon Systems • CLL 012 Supportability Analysis • DAG Chapter 4, Systems Engineering / Chapter 5, Life Cycle Logistics • LOG 211 Supportability Analysis • DL / 5 Sections / 300 students / 300 enrolled avg. /150 waitlists • Currently updating Test Questions/Raising Sections to 400

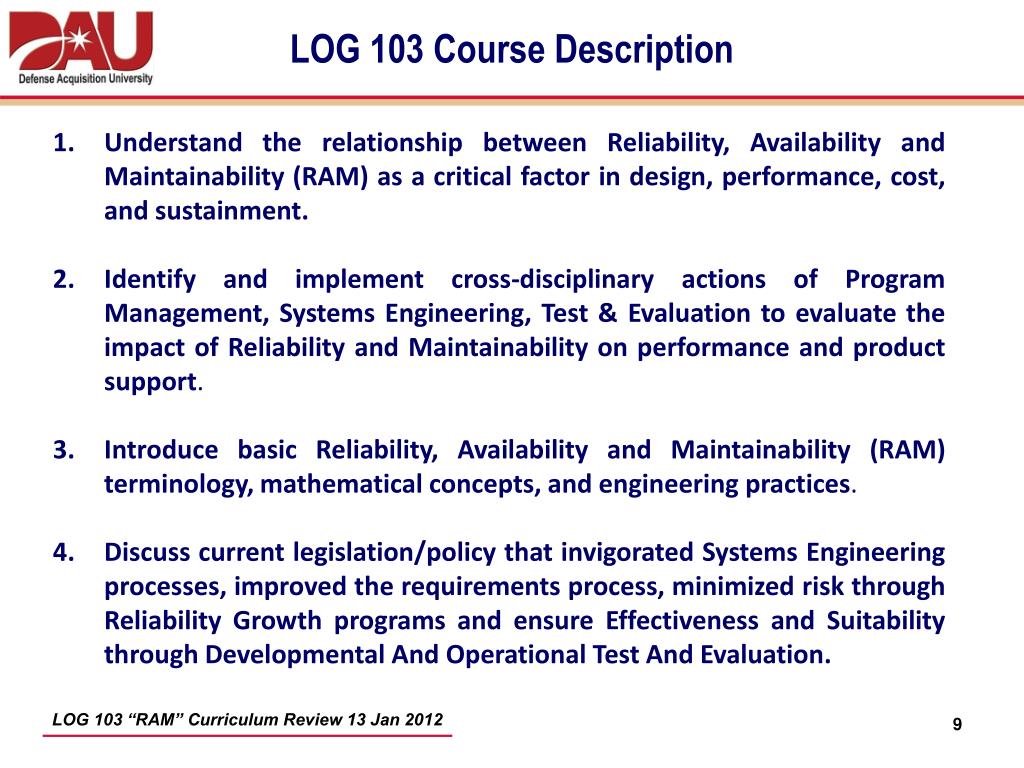

LOG 103 Course Description Understand the relationship between Reliability, Availability and Maintainability (RAM) as a critical factor in design, performance, cost, and sustainment. Identify and implement cross-disciplinary actions of Program Management, Systems Engineering, Test & Evaluation to evaluate the impact of Reliability and Maintainability on performance and product support. Introduce basic Reliability, Availability and Maintainability (RAM) terminology, mathematical concepts, and engineering practices. Discuss current legislation/policy that invigorated Systems Engineering processes, improved the requirements process, minimized risk through Reliability Growth programs and ensure Effectiveness and Suitability through Developmental And Operational Test And Evaluation.

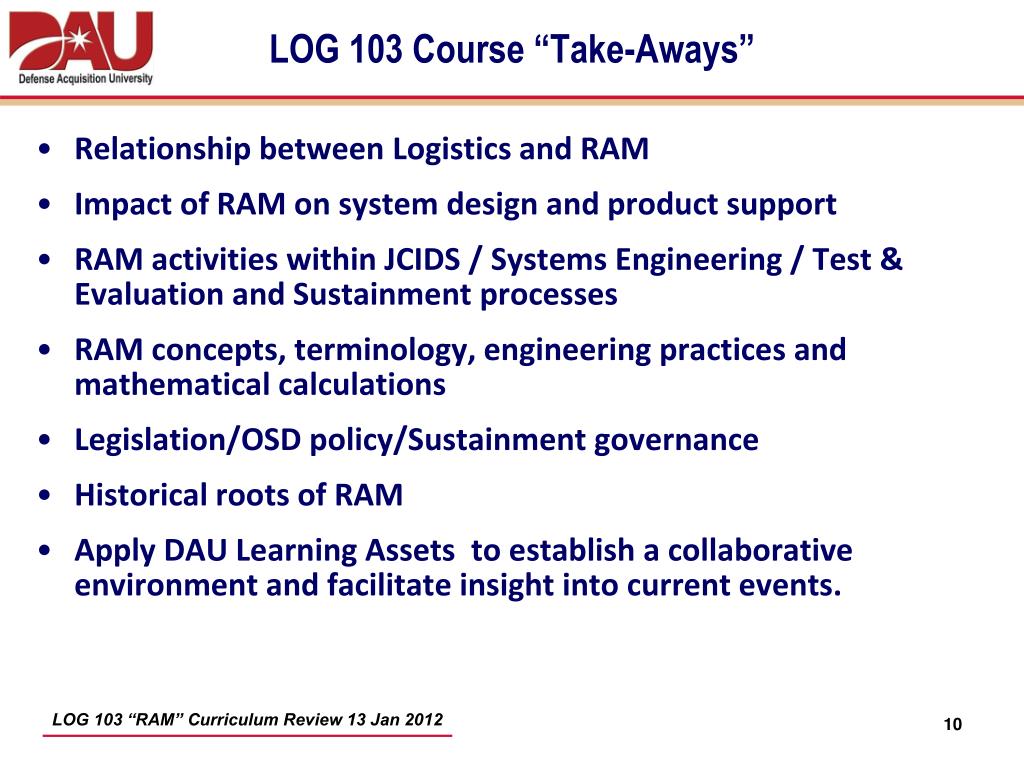

LOG 103 Course “Take-Aways” • Relationship between Logistics and RAM • Impact of RAM on system design and product support • RAM activities within JCIDS / Systems Engineering / Test & Evaluation and Sustainment processes • RAM concepts, terminology, engineering practices and mathematical calculations • Legislation/OSD policy/Sustainment governance • Historical roots of RAM • Apply DAU Learning Assets to establish a collaborative environment and facilitate insight into current events. 10

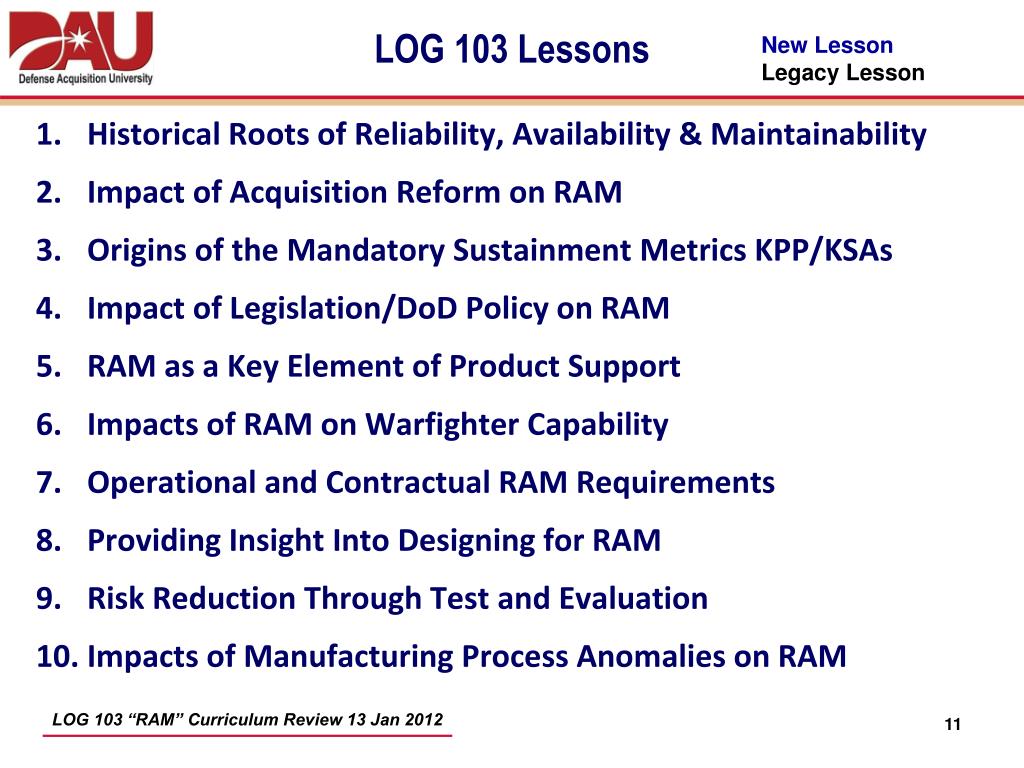

New Lesson Legacy Lesson LOG 103 Lessons • Historical Roots of Reliability, Availability & Maintainability • Impact of Acquisition Reform on RAM • Origins of the Mandatory Sustainment Metrics KPP/KSAs • Impact of Legislation/DoD Policy on RAM • RAM as a Key Element of Product Support • Impacts of RAM on Warfighter Capability • Operational and Contractual RAM Requirements • Providing Insight Into Designing for RAM • Risk Reduction Through Test and Evaluation • Impacts of Manufacturing Process Anomalies on RAM 11
LOG 103 Metrics That Matter (MTM) 5.98 5.90 6.07 5.67 5.89 5.81 5.98 5.74 * Data (from Data Mart) period 1 Oct 2011 thru 31 Dec 2011 12
LOG 103 Projected Throughput LOG 203 FY 09 COMPARISION 1,140 * Period of Mar 15 – Sep 30 2010 13
LOG 103 PLD Assessment • Rigorous discussion of RAM concepts • Expands students’ knowledge beyond the ‘traditional logistics’ perspective. • Consistent statements • “…glad I took this course…I’m glad I passed.” • “…never really understood what RAM was before.” • “…it was difficult, but I really learned a lot.” • “…really had to think about the answers.” • “…I had to take something, so I chose this because it was different.”

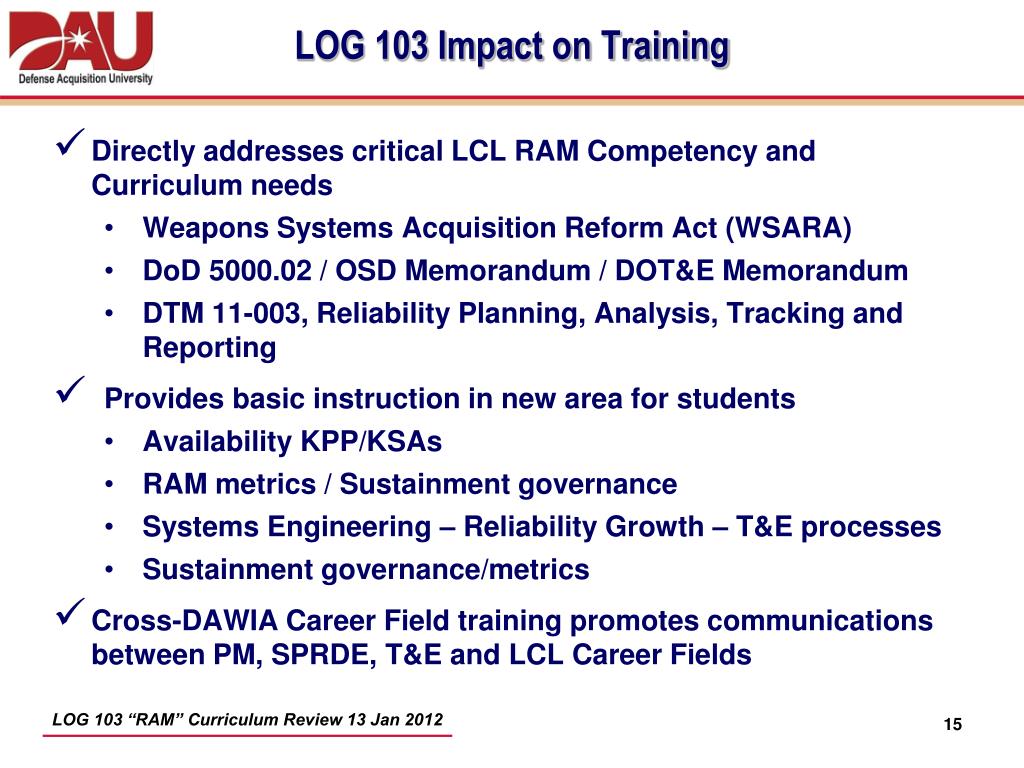

LOG 103 Impact on Training • Directly addresses critical LCL RAM Competency and Curriculum needs • Weapons Systems Acquisition Reform Act (WSARA) • DoD 5000.02 / OSD Memorandum / DOT&E Memorandum • DTM 11-003, Reliability Planning, Analysis, Tracking and Reporting • Provides basic instruction in new area for students • Availability KPP/KSAs • RAM metrics / Sustainment governance • Systems Engineering – Reliability Growth – T&E processes • Sustainment governance/metrics • Cross-DAWIA Career Field training promotes communications between PM, SPRDE, T&E and LCL Career Fields
Questions & Answers LOG 103 Curriculum Review Thank you for the Opportunity to Serve the Life Cycle Logistics (LCL) Functional Integrated Product Team (FIPT) 27
Back-up Go Ravens 17
LOG 103 TLO/ELO - 1 • Lesson 1: Historical Roots of Reliability, Availability, and Maintainability (RAM) • TLO:Recognize historical roots of reliability, availability, and maintainability (RAM) • ELOs: • Identify significant events that transformed and improved reliability. • Indicate documentation used to write current RAM policy. • Identify how RAM impacts sustainment and cost. • Identify how developmental test and evaluation aids RAM achievement. • Indicate the role of RAM in the systems engineering process. • Identify how RAM aids supportability and impacts logistics. • Recognize how operational test and evaluation aids weapon system effectiveness and suitability.

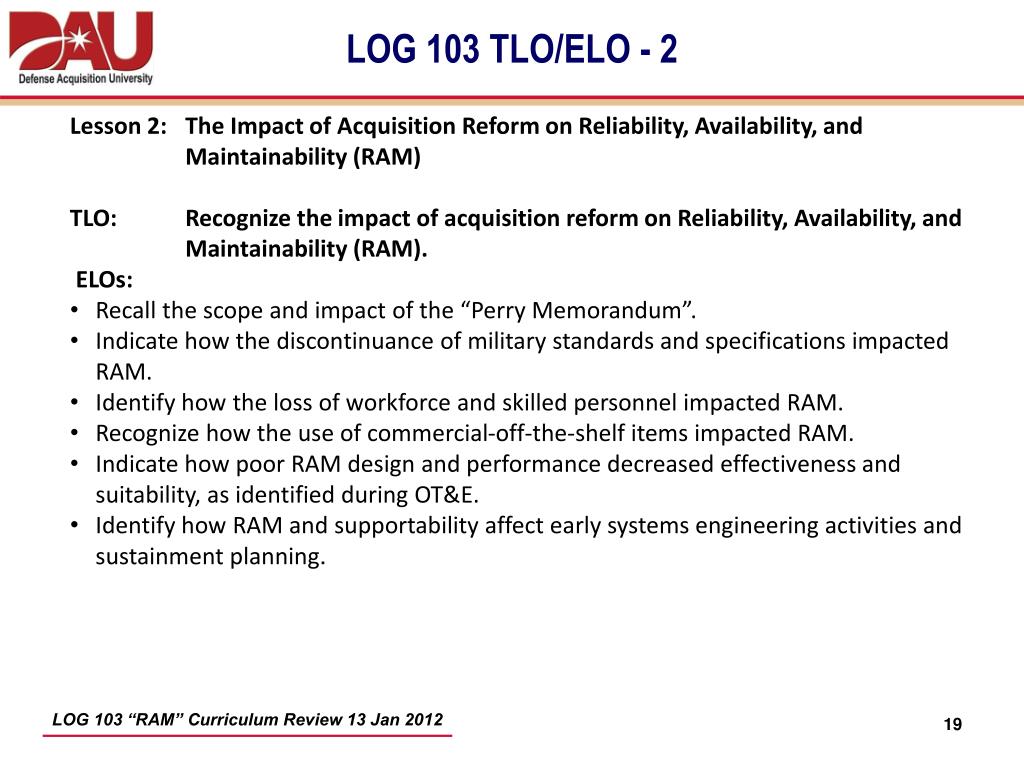

LOG 103 TLO/ELO - 2 • Lesson 2: The Impact of Acquisition Reform on Reliability, Availability, and Maintainability (RAM) • TLO: Recognize the impact of acquisition reform on Reliability, Availability, and Maintainability (RAM). • ELOs: • Recall the scope and impact of the “Perry Memorandum”. • Indicate how the discontinuance of military standards and specifications impacted RAM. • Identify how the loss of workforce and skilled personnel impacted RAM. • Recognize how the use of commercial-off-the-shelf items impacted RAM. • Indicate how poor RAM design and performance decreased effectiveness and suitability, as identified during OT&E. • Identify how RAM and supportability affect early systems engineering activities and sustainment planning.
LOG 103 TLO/ELO - 3 • Lesson 3: Mandatory Sustainment Availability Key Performance Parameter (KPP) and Supporting Key System Attributes (KSA) of Materiel Reliability and Ownership Costs • TLO: Recognize how the availability KPP and the material reliability and ownership costs KSAs strengthen Reliability, Availability, and Maintainability (RAM). • ELOs: • Identify the origin of the availability KPP, the material reliability KSA, and the ownership cost KSA. • Identify the impact of the availability KPP/KSA on the Joint Capabilities Integration and Development System (JCIDS) process. • Indicate the role of the combat developer in the refinement of the KPP/KSAs within the JCIDS process. • Recall how the Reliability, Availability, Maintainability – Cost Rationale Report Handbook is used to calculate the availability KPP and its KSAs. • Recognize the use of enabling technologies in meeting availability KPP/KSA requirements.

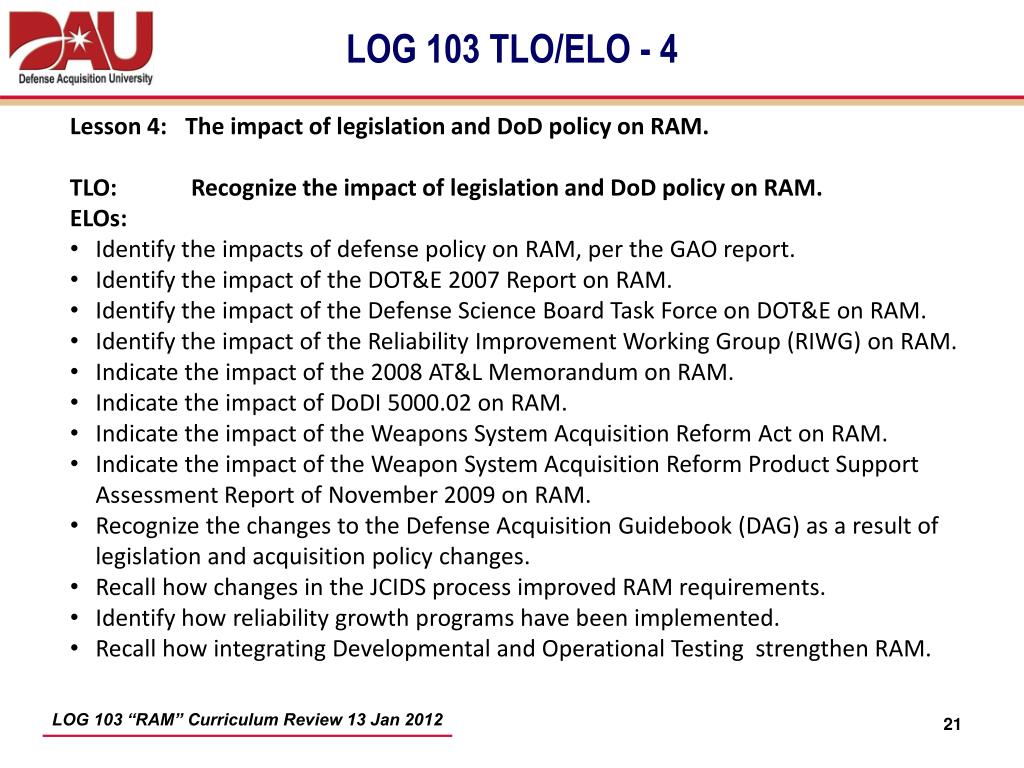

LOG 103 TLO/ELO - 4 • Lesson 4: The impact of legislation and DoD policy on RAM. • TLO: Recognize the impact of legislation and DoD policy on RAM. • ELOs: • Identify the impacts of defense policy on RAM, per the GAO report. • Identify the impact of the DOT&E 2007 Report on RAM. • Identify the impact of the Defense Science Board Task Force on DOT&E on RAM. • Identify the impact of the Reliability Improvement Working Group (RIWG) on RAM. • Indicate the impact of the 2008 AT&L Memorandum on RAM. • Indicate the impact of DoDI 5000.02 on RAM. • Indicate the impact of the Weapons System Acquisition Reform Act on RAM. • Indicate the impact of the Weapon System Acquisition Reform Product Support Assessment Report of November 2009 on RAM. • Recognize the changes to the Defense Acquisition Guidebook (DAG) as a result of legislation and acquisition policy changes. • Recall how changes in the JCIDS process improved RAM requirements. • Identify how reliability growth programs have been implemented. • Recall how integrating Developmental and Operational Testing strengthen RAM.
LOG 103 TLO/ELO - 5 • Lesson 5: RAM as a Key Element of Life Cycle Performance-Based Product Support • TLO:Recognize how RAM is a key element of Life Cycle Performance-Based Product Support. • ELOs: • Identify the key elements of availability. • Identify the four key elements in the definition of reliability. • Indicate two key MTBxs that are logistics reliability parameters. • Identify the key elements of maintainability. • Recognize how RAM affects support costs. • Recognize how Availability KPP/KSA trade spaces are balanced. • Recall how RAM is a key driver in the development of a Performance-Based Product Support Strategy. • Recall how RAM is a key driver in demand forecasting, spares planning, provisioning, and supply support. • Recall how RAM is a key driver of Total Ownership Costs. • Recall how RAM is a key driver of Sustainment Maturity Levels.
LOG 103 TLO/ELO - 6 • Lesson 6: Impacts of RAM on Warfighter Capability • TLO: Given a scenario, recognize how RAM impacts Warfighter Capability • ELOs: • Identify User RAM requirements • Recall how the Joint Capabilities Integration and Development System (JCIDS) Process works • List the measures of combat capability that are enhanced by RAM • Note changes

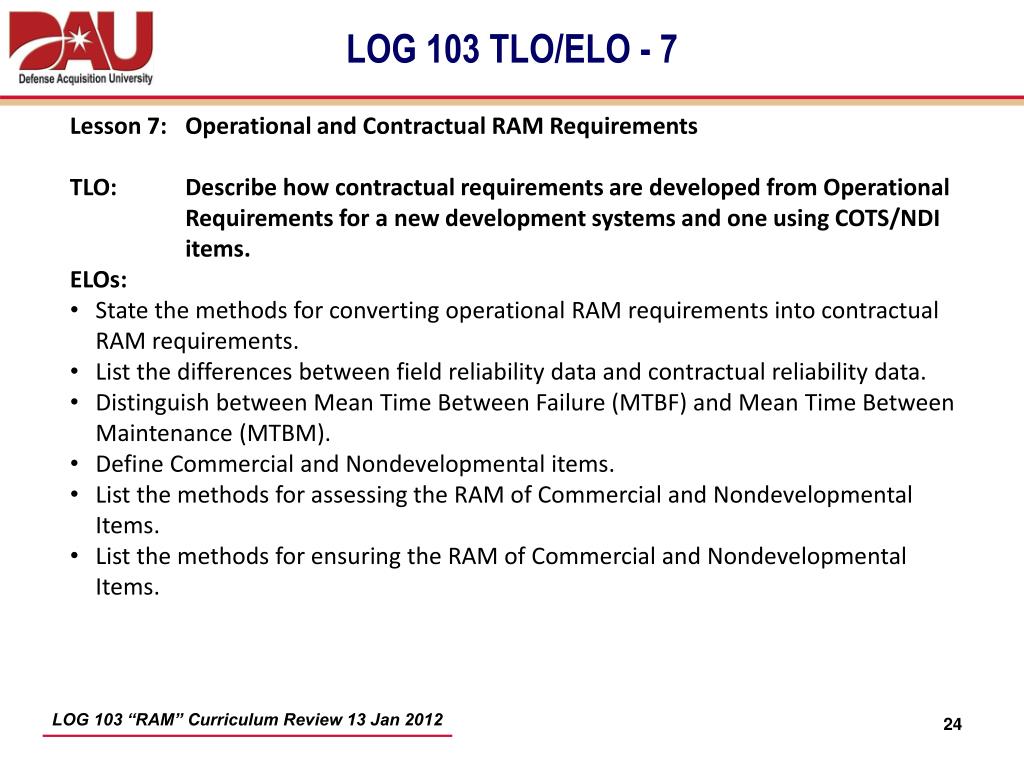

LOG 103 TLO/ELO - 7 • Lesson 7: Operational and Contractual RAM Requirements • TLO: Describe how contractual requirements are developed from Operational Requirements for a new development systems and one using COTS/NDI items. • ELOs: • State the methods for converting operational RAM requirements into contractual RAM requirements. • List the differences between field reliability data and contractual reliability data. • Distinguish between Mean Time Between Failure (MTBF) and Mean Time Between Maintenance (MTBM). • Define Commercial and Nondevelopmental items. • List the methods for assessing the RAM of Commercial and Nondevelopmental Items. • List the methods for ensuring the RAM of Commercial and Nondevelopmental Items.
