  1. Mediterranean Water Mediterranean water in the Atlantic, Levantine Intermediate Water (LIW), Adriatic/ Ionian/ West Mediterranean deep water

  2. Table of content • Seas at stake • Mediterranean Water • Circulations in the Mediterranean Sea

  3. The term Mediterranean derives from the Latinmediterraneus, 'inland' (medius, 'middle' + terra, 'land, earth'),The Mediterranean Sea has been known by a number of alternative names throughout human history.:Mare Nostrum (Latin, Our Sea) by the Romans. In the Bible, it is referred to as the Great Sea. In modern Hebrew, it is called "ha-Yam ha-Tichon" (הים התיכון), "the middle sea", Mediterranean Sea

  4. Adriatic Sea • The Adriatic Sea is an arm of the Mediterranean See separating the Apennine peninsula (Italy) from the Balkans • The name has existed since the antiquity; in Latin it was Mare Hadriaticum. In modern languages, it is Mare Adriatico in Italian

  5. Ionian Sea • The Ionian Sea (Greek Ιόνιο Πέλαγος, Italian Mare Ionio) is an arm of the Mediterranean Sea, south of the Adriatic Sea • Ionius was the son of King Adrias of Illyria who gave his name to the Adriatic. • The sea is one of the most seismic areas in the world.

  6. Mediterranean waters • The Mediterranean sea is composed of a series of adjacent water masses • The temperature, salinity, and density vary dramatically from one water mass to the next.

  7. Mediterranean Waters • Mediterranean Sea very salty and warm: • Average temperature: 13C • Average Salinity : 37 ppt • Sea with most evaporation! uncommon

  8. Mediterranean Waters • During the last decade, oceanographers have focused much attention on the Mediterranean Sea • One reason for the growing interest is that the Mediterranean affects the Northern Atlantic Ocean much more than previously realized: • The second reason is the well-recognized role of the Mediterranean Sea as a laboratory for studying ocean processes that are important to global climate.

  9. Mediteranean Waters •  The Mediterranean Sea is essentially divided into two basins, the eastern and the western • The basins are separated by the shallow Sicily Straits, which prevent the water masses from the deep and bottom layers of the two basins from mixing

  10. Mediterranean Waters • three convection areas: • The Gulf of Lion which produces West Mediterranean Deep Water (WMDW) • the Adriatic Sea which produces East Mediterranean Deep Water (EMDW) • Levantine Basin which generates Levantine Intermediate Water (LIW)

  11. Mediterranean Water • Mediterranean hydrodynamics are driven by three layers of water masses: a surface layer, an intermediate layer, and a deep layer that sinks to the bottom

  12. Mediterranean Water • surface layer : thickness varying from 250 to 1,000 feet • intermediate layer : warm and saline water coming from the eastern Mediterranean characterized by temperature and salinity maxima at 1,300 feet situated at depths between 1,000 and 2,000 feet • deep layer : occupies the remaining zone between the intermediate layer and the bottom. In general, the water of this layer is very homogeneous.

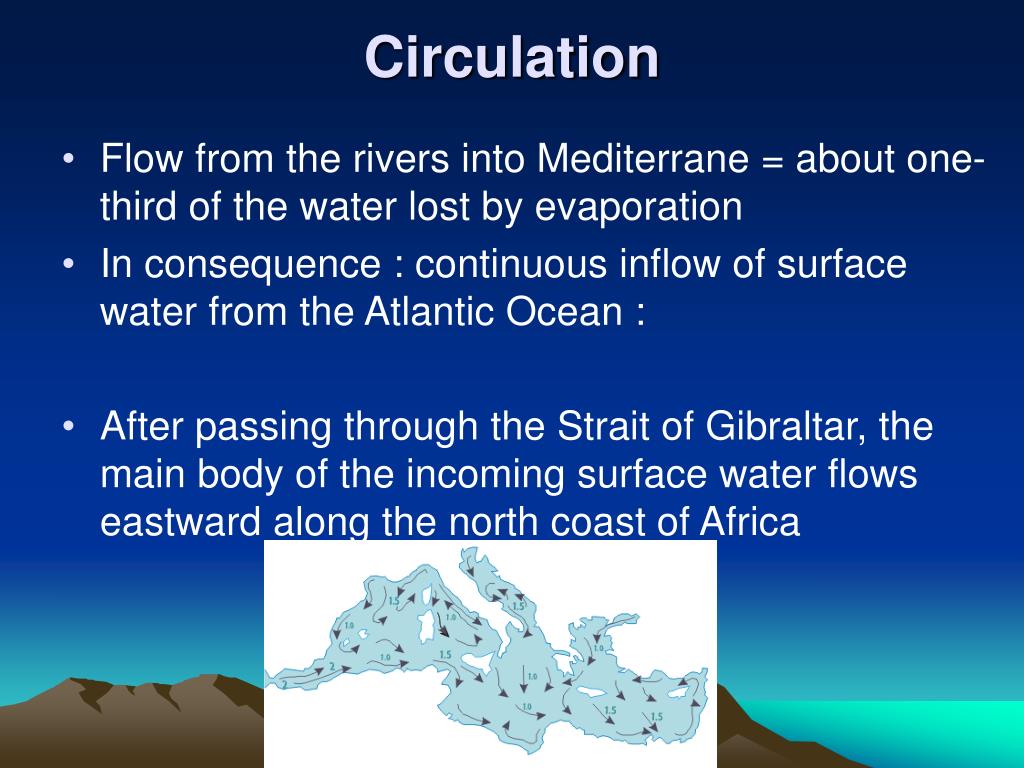

  13. Circulation • Flow from the rivers into Mediterrane = about one-third of the water lost by evaporation • In consequence : continuous inflow of surface water from the Atlantic Ocean : • After passing through the Strait of Gibraltar, the main body of the incoming surface water flows eastward along the north coast of Africa

  14. Circulation •  This current is the most constant component of the circulation of the Mediterranean. • more powerful in summer, when evaporation in the Mediterranean is at a maximum. • This inflow of Atlantic water loses its strength as it proceeds eastward

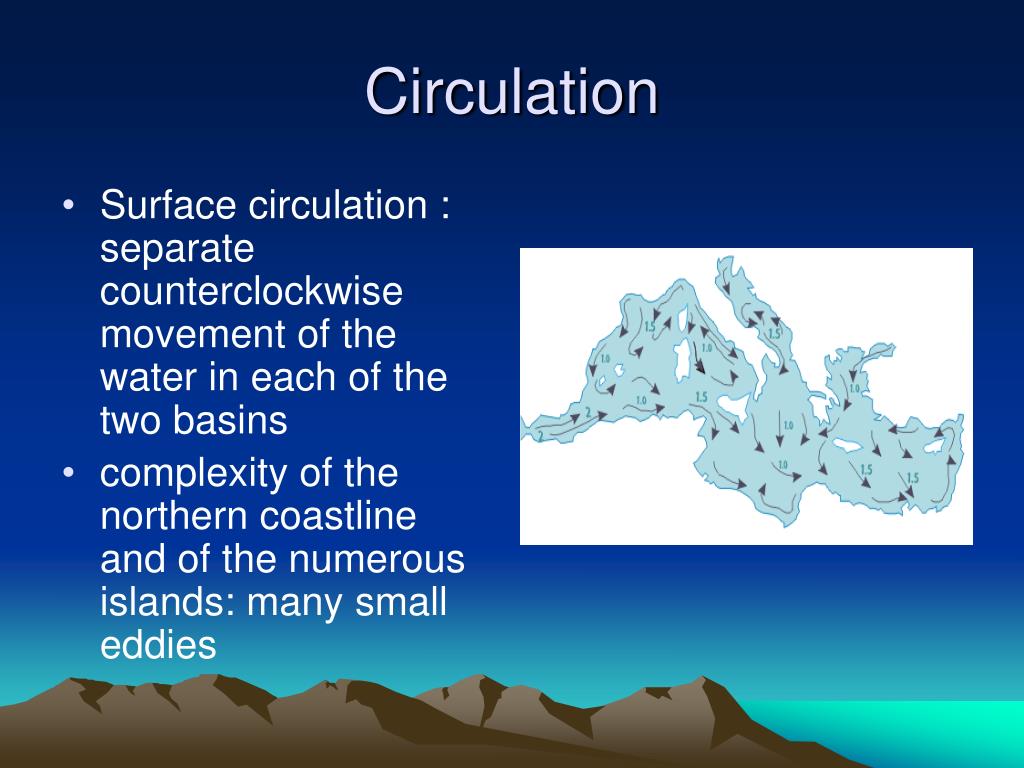

  15. Circulation • Surface circulation : separate counterclockwise movement of the water in each of the two basins • complexity of the northern coastline and of the numerous islands: many small eddies

  16. Circulation • Winter: inland winds (Mistral and Tramontane) are dry and cold • Therefore convection in West Mediterranean generates deep water • Mediterranean surface water becomes more saline through the intense evaporation • Therefore: its density increases • Therefore: It sinks • The excess of this denser bottom water emerges into the Atlantic Ocean over the Strait of Gibraltar : • westward subsurface current below the inward current

  17. Circulation • The inflowing water extends from the surface down to 230 or 260 feet. • The outflowing waters is below • The Mediterranean has been metaphorically described as breathing: inhaling surface water from the Atlantic and exhaling deep water in a countercurrent below
