Intro to Ajax

Intro to Ajax. Fred Stluka Jan 25, 2006. What is Ajax?. "Asynchronous JavaScript and XML" New name for an old technique: JavaScript + DHTML + XMLHttpRequest In use since at least 1997 I've used it since 2000 Finally someone gave it a name Already enabled in your Web server and browser

edmund
Download Presentation

Intro to Ajax

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

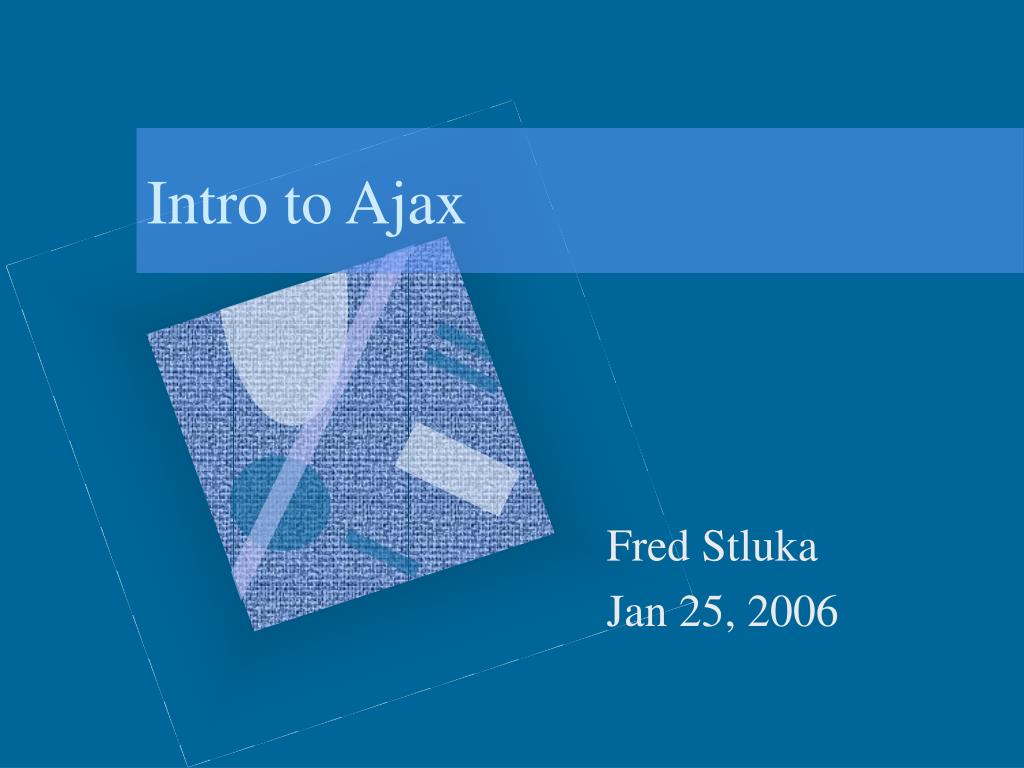

  1. Intro to Ajax Fred Stluka Jan 25, 2006

  2. What is Ajax? • "Asynchronous JavaScript and XML" • New name for an old technique: • JavaScript + DHTML + XMLHttpRequest • In use since at least 1997 • I've used it since 2000 • Finally someone gave it a name • Already enabled in your Web server and browser • Use JavaScript asynchronously behind the scenes to load additional data (typically XML) without discarding and reloading the entire Web page. Intro to Ajax Fred Stluka

  3. Why use Ajax? • Your users will soon demand it • Not just another cool (geeky) technology • Very user-visible effect • Rich UI experience in a Web page • Portable across browsers • Plus, all advantages of zero-install Web app • No install done for this demo • No "DLL Hell" Intro to Ajax Fred Stluka

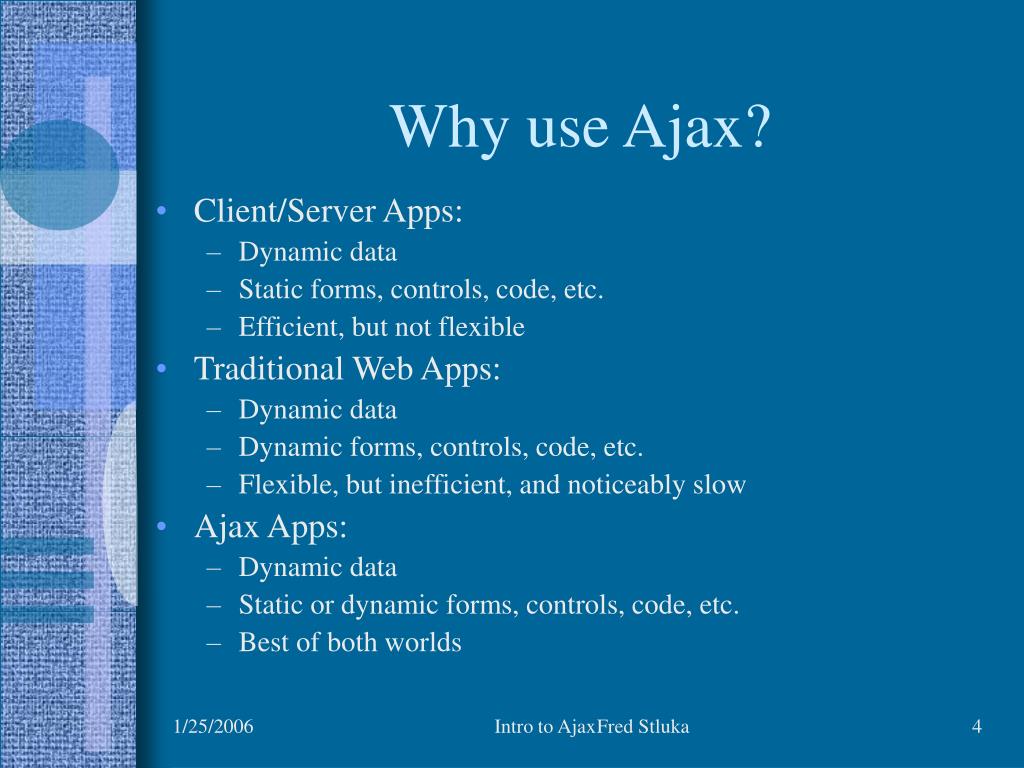

  4. Why use Ajax? • Client/Server Apps: • Dynamic data • Static forms, controls, code, etc. • Efficient, but not flexible • Traditional Web Apps: • Dynamic data • Dynamic forms, controls, code, etc. • Flexible, but inefficient, and noticeably slow • Ajax Apps: • Dynamic data • Static or dynamic forms, controls, code, etc. • Best of both worlds Intro to Ajax Fred Stluka

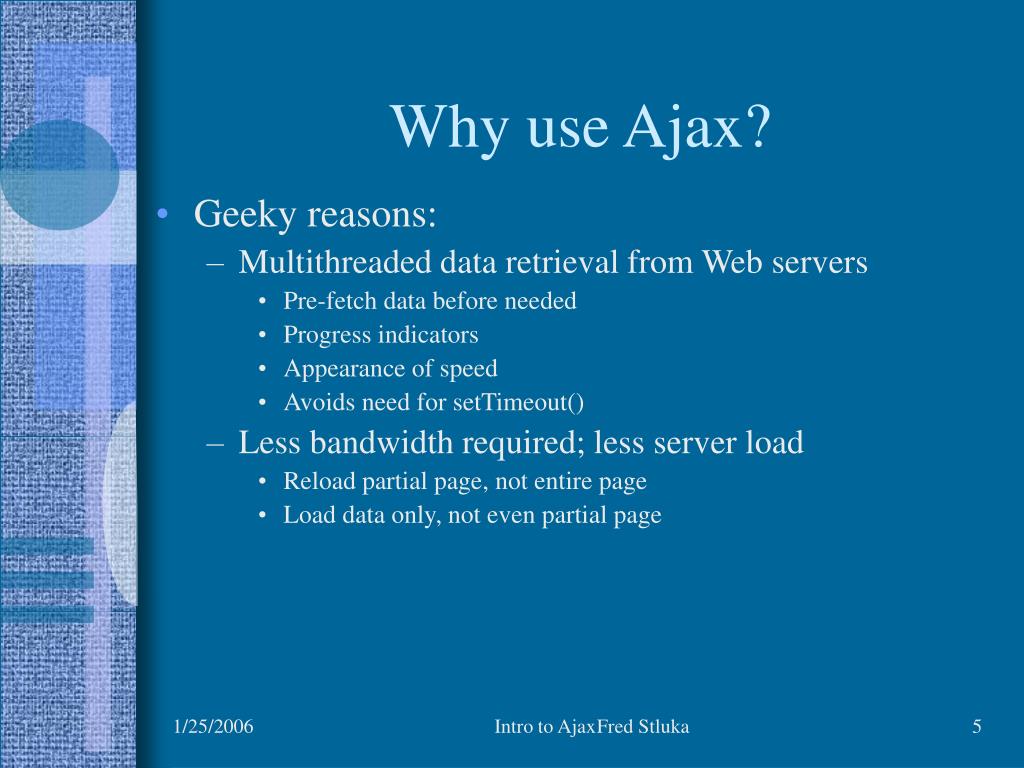

  5. Why use Ajax? • Geeky reasons: • Multithreaded data retrieval from Web servers • Pre-fetch data before needed • Progress indicators • Appearance of speed • Avoids need for setTimeout() • Less bandwidth required; less server load • Reload partial page, not entire page • Load data only, not even partial page Intro to Ajax Fred Stluka

  6. How much to use Ajax? • As little or as much as you like • No need to abandon what you already do • One more item in your "bag of tricks" • Start by jazzing up your existing UI Intro to Ajax Fred Stluka

  7. How to use Ajax? Simple! Use the XMLHttpRequest Object Intro to Ajax Fred Stluka

  8. XMLHttpRequest Methods • open (“method”, “URL”, [async, username, password]) • Assigns destination URL, method, etc. • send (params) • Sends request including postable string or DOM object data • abort () • Terminates current request • getAllResponseHeaders () • Returns headers (name/value pairs) as a string • getResponseHeader (“header”) • Returns value of a given header • setRequestHeader (“label”,”value”) • Sets Request Headers before sending Intro to Ajax Fred Stluka

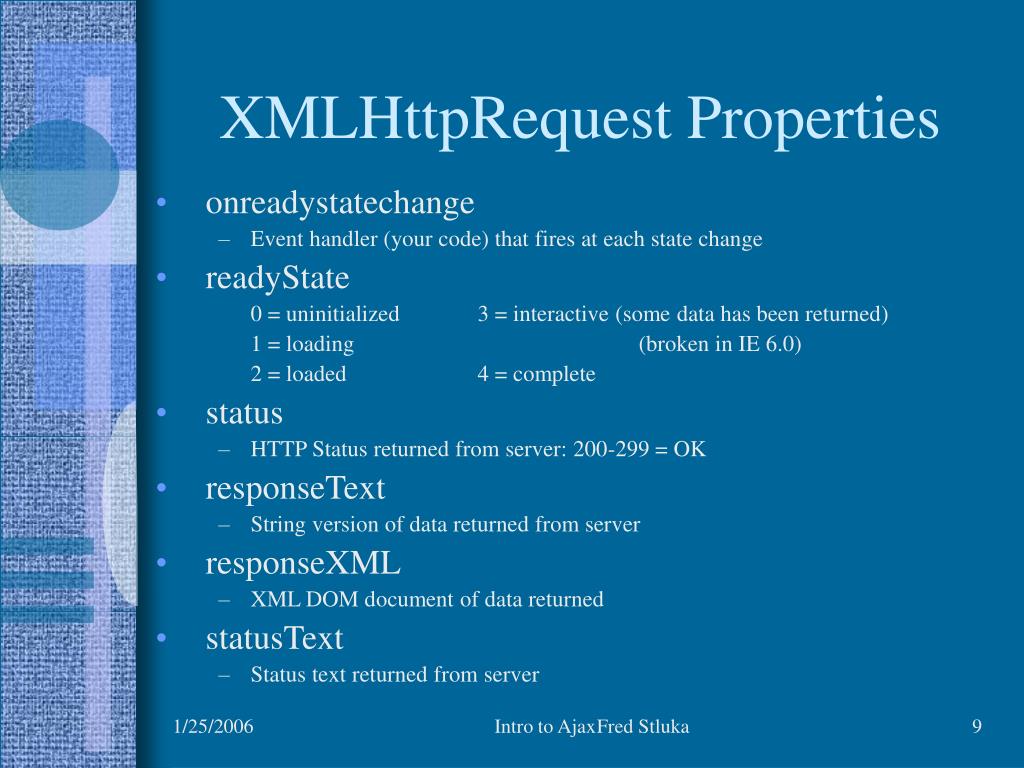

  9. XMLHttpRequest Properties • onreadystatechange • Event handler (your code) that fires at each state change • readyState 0 = uninitialized 3 = interactive (some data has been returned) 1 = loading (broken in IE 6.0) 2 = loaded 4 = complete • status • HTTP Status returned from server: 200-299 = OK • responseText • String version of data returned from server • responseXML • XML DOM document of data returned • statusText • Status text returned from server Intro to Ajax Fred Stluka

  10. Simple Example var req = new XMLHttpRequest(); req.onreadystatechange = myHandler; req.open("GET", "servlet", true); req.send("p1=abc"); ... function myHandler() { if (req.readyState == 4) { doSomethingWith(req.responseXML); } else if (req.readyState == 3) { showProgressIndicator(); } } Intro to Ajax Fred Stluka

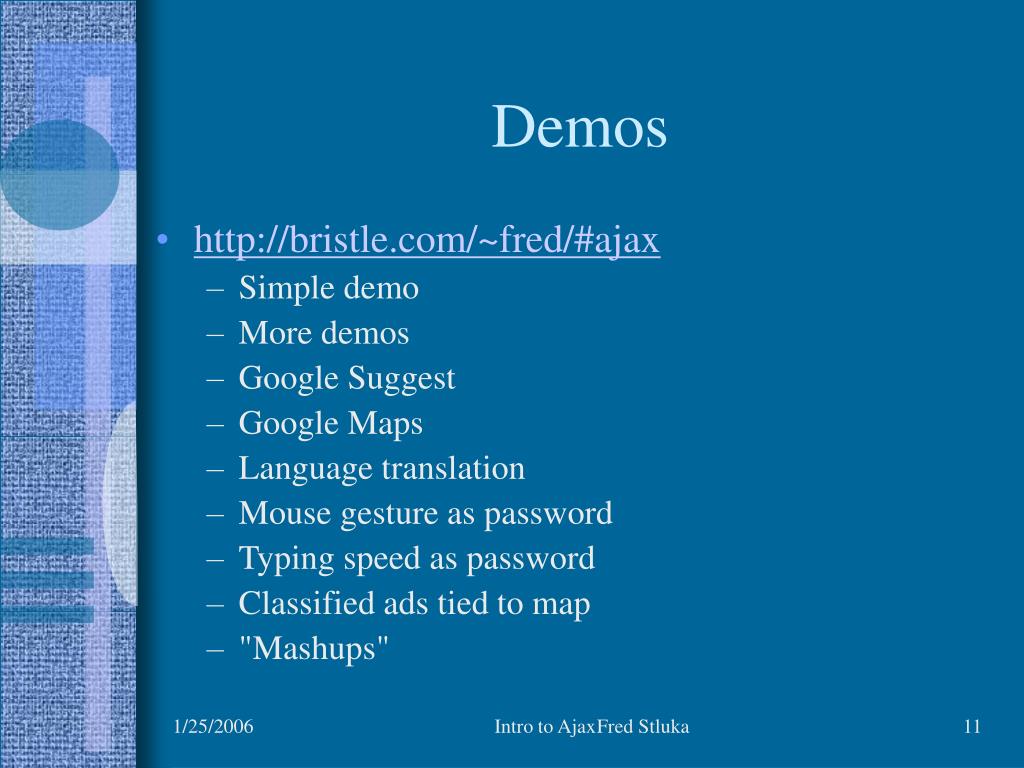

  11. Demos • http://bristle.com/~fred/#ajax • Simple demo • More demos • Google Suggest • Google Maps • Language translation • Mouse gesture as password • Typing speed as password • Classified ads tied to map • "Mashups" Intro to Ajax Fred Stluka

  12. Security Issues • Can only hit domain the Web page came from • Cannot access a 3rd party Web Service • However: • You can wrap those requests through your own server • User can allow access to specific sites via browser security settings • IFRAME can access any site (instead of XMLHttpRequest) Intro to Ajax Fred Stluka

  13. Advanced Topics • http://bristle.com/~fred/#ajax • XSLT and XPath support (Sarissa) • Serializing Java Beans as XML • XMLBeans, JAXB, Zeus, Jbind, Castor, Betwixt • Serializing Java Beans as JavaScript objects • JSON -- JavaScript Object Notation • 2-way Mapping of Java Beans to JavaScript objects • DWR -- Direct Web Remoting • Ajax Component Libraries and Toolkits: • Dojo, Prototype, HTC, XBL • Implemented as JSP tag libraries or pure JavaScript • Ajax Frameworks • Ajax Patterns Intro to Ajax Fred Stluka
