  1. Electric field and Potential Tutoring schedule

  2. Recall the Electric Field?

  3. Recall the Electric Field?

  4. Field lines? Useful conceptualization of the electric field.

  5. Field Lines:

  6. Field Lines:

  7. A field line always • Begins on a positive charge (or infinity) • Ends on a negative charge (or infinity)

  8. Figuring field lines

  9. Field Lines:

  10. Field Lines: Big step!

  11. Field Lines:

  12. Field Lines: Big step!

  13. Field Lines: Big steps give rough idea of field lines

  14. Field Lines: Lot’s of little steps more accurate

  15. A any point along a field line, the electric field points in the direction tangent to the line. But the field line by itself tells us nothing about the magnitude of E

  16. Note: color Scheme is backward

  17. Note: Electric field lines are not the path a test particle would follow Hockey demo again !! http://phet.colorado.edu/en/simulation/electric-hockey All they do is indicate the direction of the electric field (at any given point). But, you can get a little more info too …

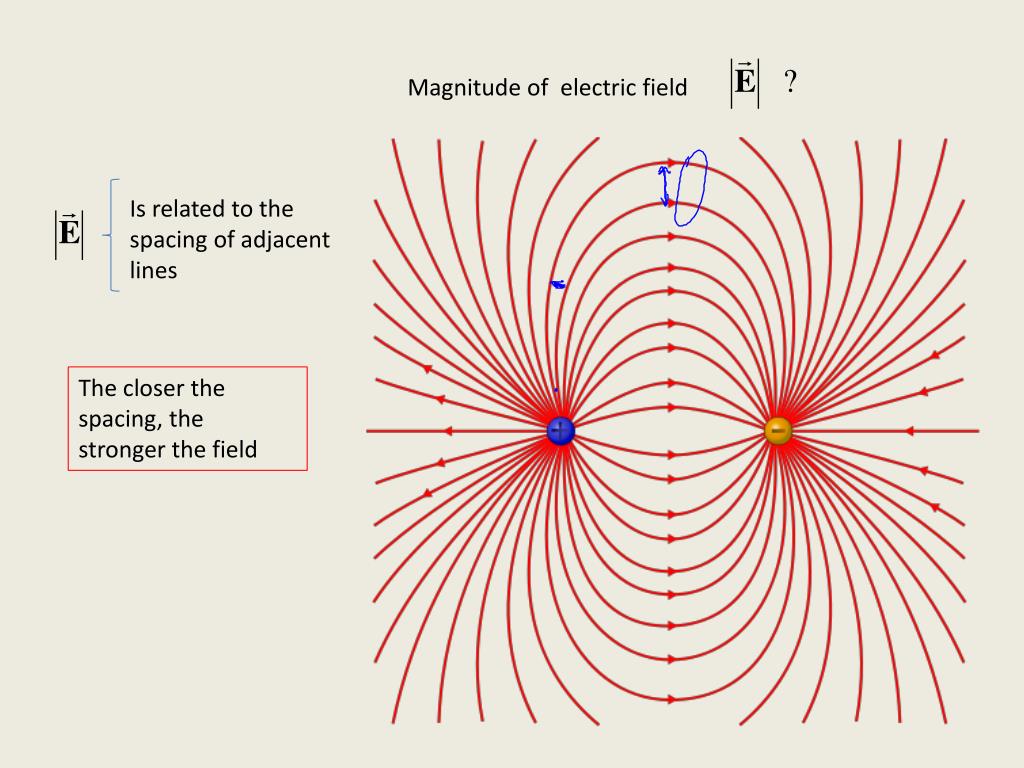

  18. Magnitude of electric field Is related to the spacing of adjacent lines The closer the spacing, the stronger the field

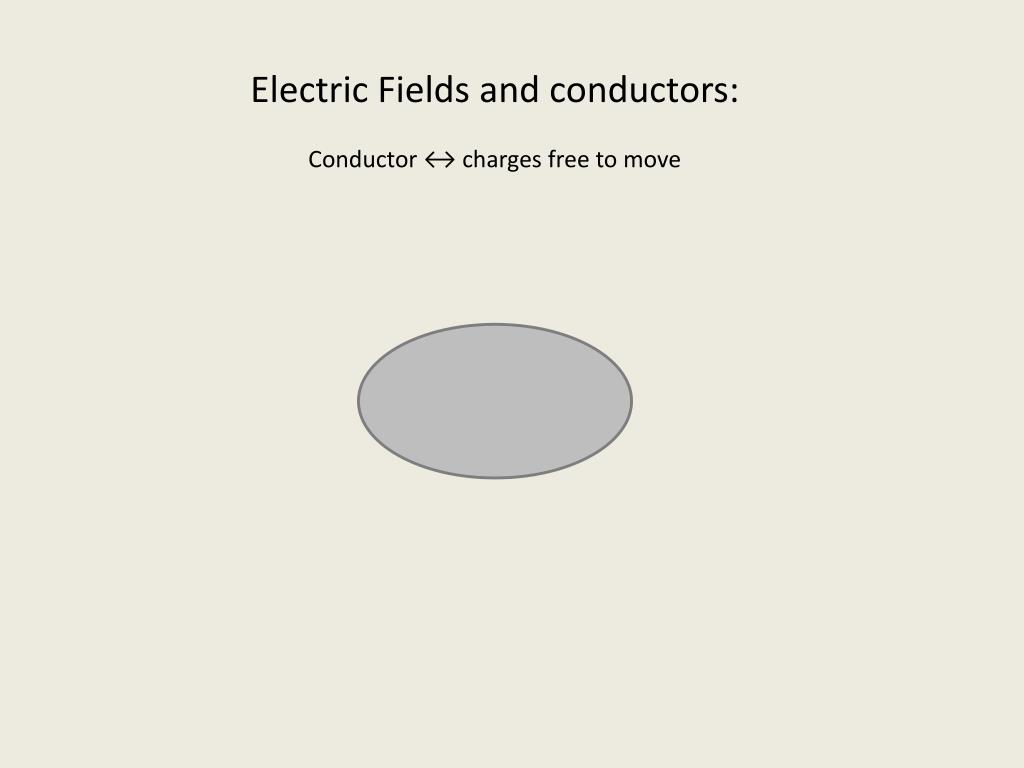

  19. Electric Fields and conductors: Conductor ↔ charges free to move

  20. Electric Fields and conductors: Conductor ↔ charges free to move + + + − + − + − + − − −

  21. How it works:

  22. How it works:

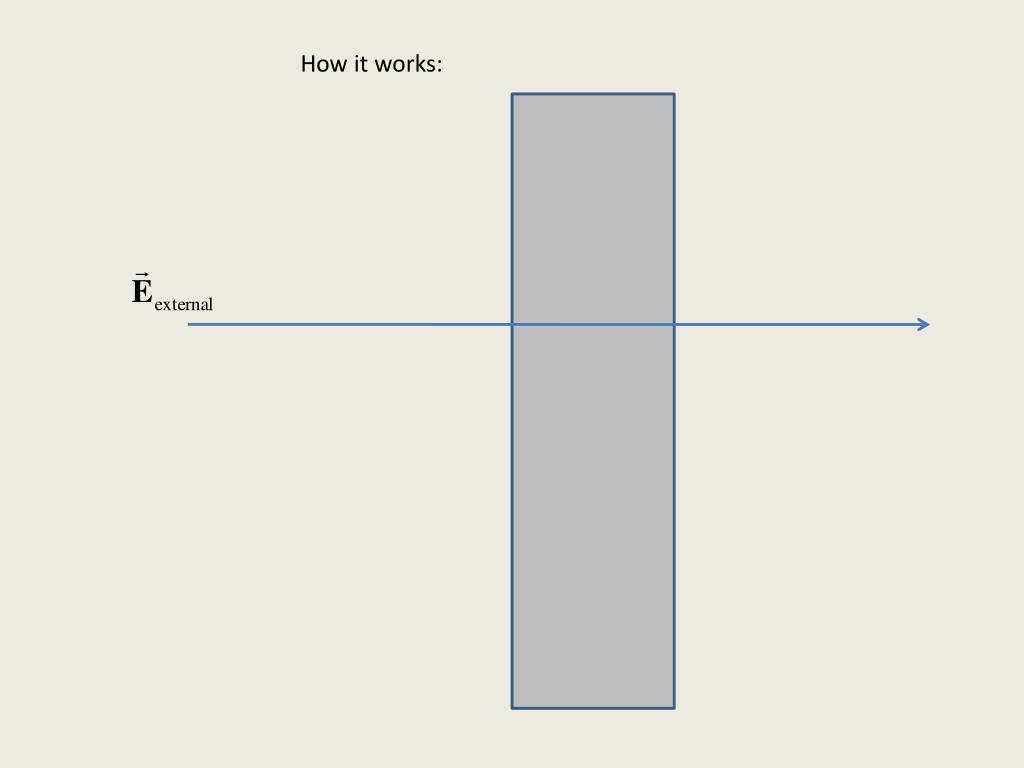

  23. How it works:

  24. How it works:

  25. How it works:

  26. How it works:

  27. How it works:

  28. How it works:

  29. How it works:

  30. How it works: Eventually …..

  31. How it works: The mobile charges rearrange themselves until everywhere in the conductor

  32. So in the static case : • Electric field is zero inside a conductor • No Net charge on the inside of a conductor • free charge must all be on surface • Electric field just outside the conductor must be perpendicular to the surface! • Magnitude of this Electric field is related to the density of charge on the surface at that point. (Gauss’s Law again)

  33. Van de Graff again:

  34. Van de Graff again:

  35. Van de Graff again:

  36. Van de Graff again:

  37. Van de Graff again:

  38. Van de Graff again:

  39. Van de Graff again:

  40. Van de Graff again:

  41. Van de Graff again:

  42. Van de Graff again:

  43. Van de Graff again:

  44. Van de Graff again:

  45. Van de Graff again:

  46. Van de Graff again:

  47. Van de Graff again:

  48. Van de Graff again:
