video networking bringing cctv to a new level of flexibility

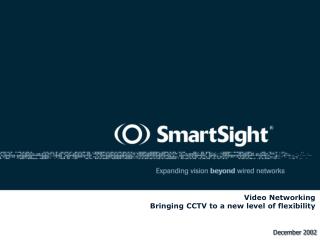

Video Networking

Bringing CCTV to a new level of flexibility

December 2002

slide2

Versalis

Typical Applications

slide3

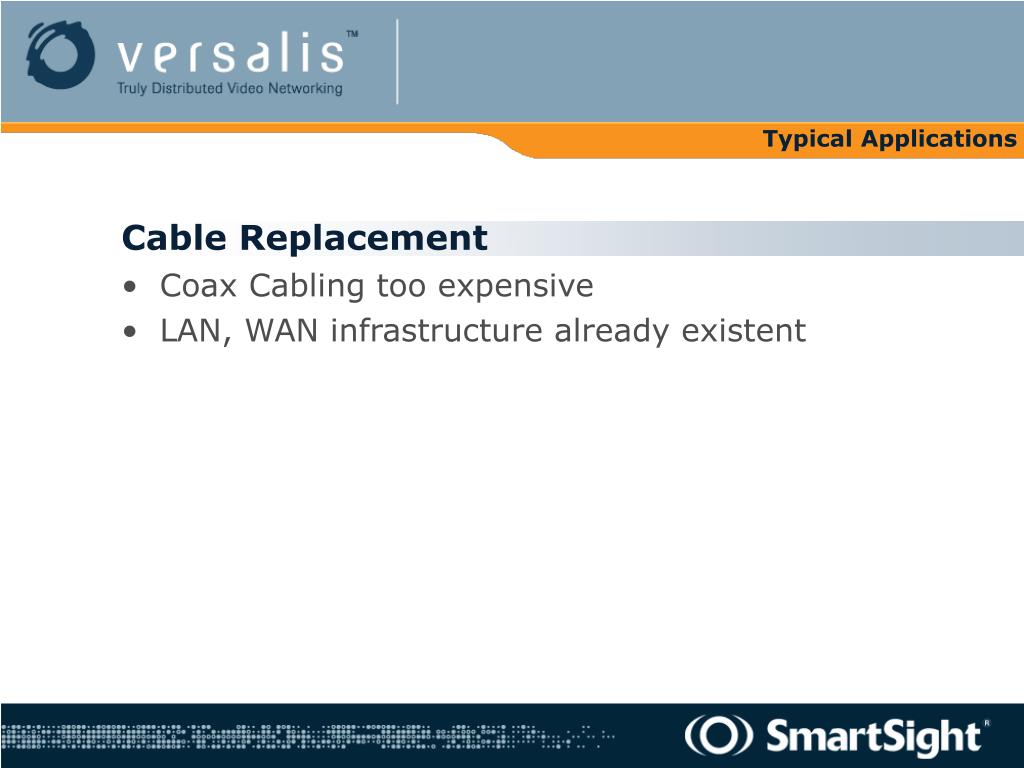

Typical Applications

Cable Replacement

  • Coax Cabling too expensive
  • LAN, WAN infrastructure already existent
slide4

Typical Applications

Facility Surveillance

  • Hospital
  • Production lines
  • Schools
  • Universities
  • Construction sites
  • Oil & Gas
  • Utilities
  • Water reservoirs
slide5

Typical Applications

Business and Corporate

  • SME
  • Large Corporations

Retail

  • Retail Stores
  • Retail chains

Transportation

  • Traffic management
  • Transit system
  • Airports
slide6

Typical Applications

Government Agencies

  • Detention centres
  • Federal Buildings
  • Military

Law Enforcement

  • Stadiums
  • Homelands
  • Police
slide9

Distributed Video Networking

Distributed viewing, storage and CAPTURE

  • The only networked video solution that combines:
    • Distributed viewing, storage and CAPTURE
  • The matrix is the network
    • uses existing LAN WAN infrastructures
slide10

Distributed Video Networking

Distributed viewing, storage and CAPTURE

  • No single point of failure
  • Archiving in multiple locations for redundancy
  • Cameras are IP addressed
  • Instantaneous access to all cameras
    • from anywhere on the network
slide11

Distributed Video Networking

Compelling video-over-IP solution

  • Leading edge digital technology
  • Cameras are not connected directly to DVRs
  • Real time video 30 FPS
    • no matter the number of cameras
    • Simultaneous viewing by multiple users / locations
slide12

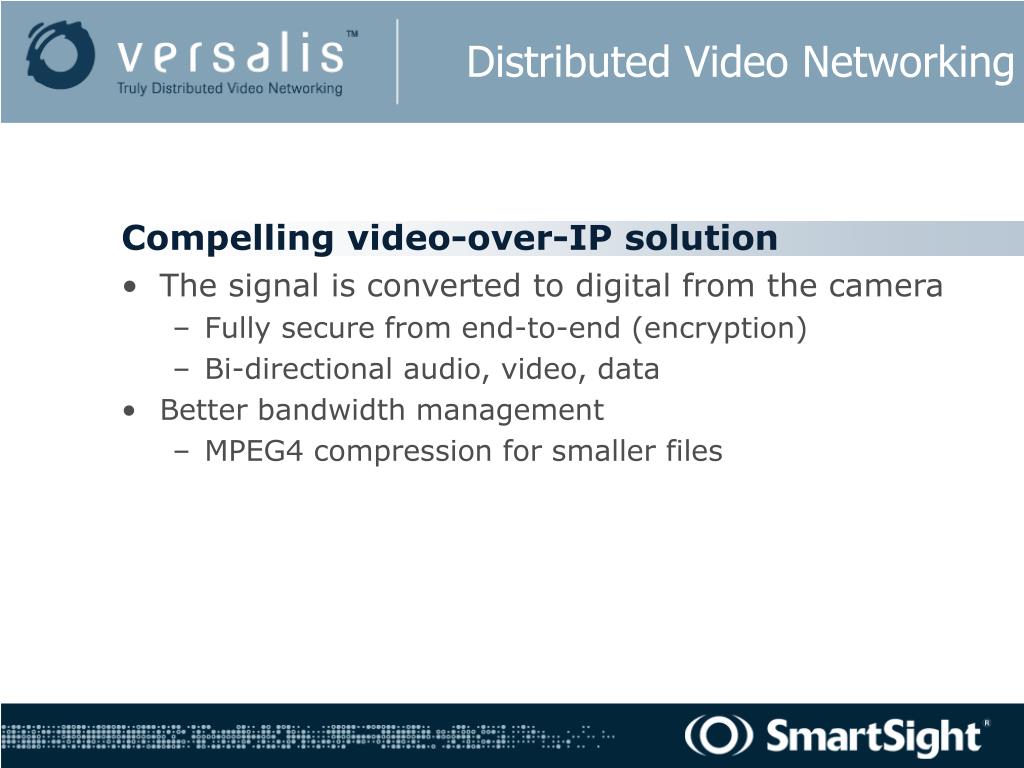

Distributed Video Networking

Compelling video-over-IP solution

  • The signal is converted to digital from the camera
    • Fully secure from end-to-end (encryption)
    • Bi-directional audio, video, data
  • Better bandwidth management
    • MPEG4 compression for smaller files
slide13

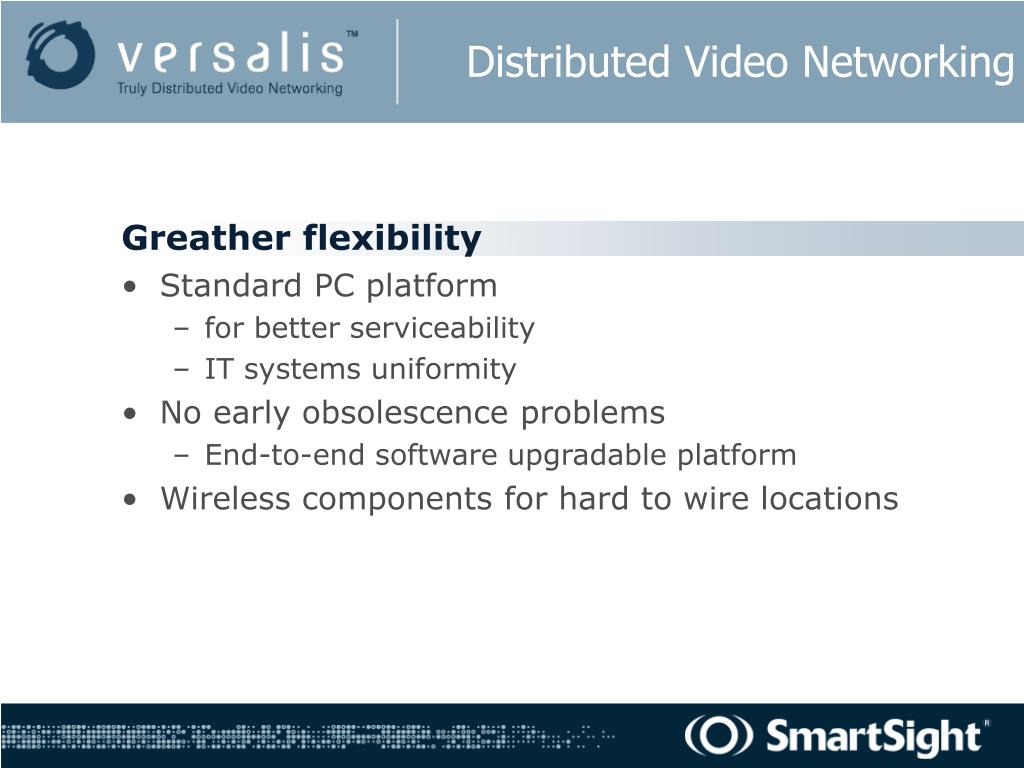

Distributed Video Networking

Greather flexibility

  • Standard PC platform
    • for better serviceability
    • IT systems uniformity
  • No early obsolescence problems
    • End-to-end software upgradable platform
  • Wireless components for hard to wire locations
slide14

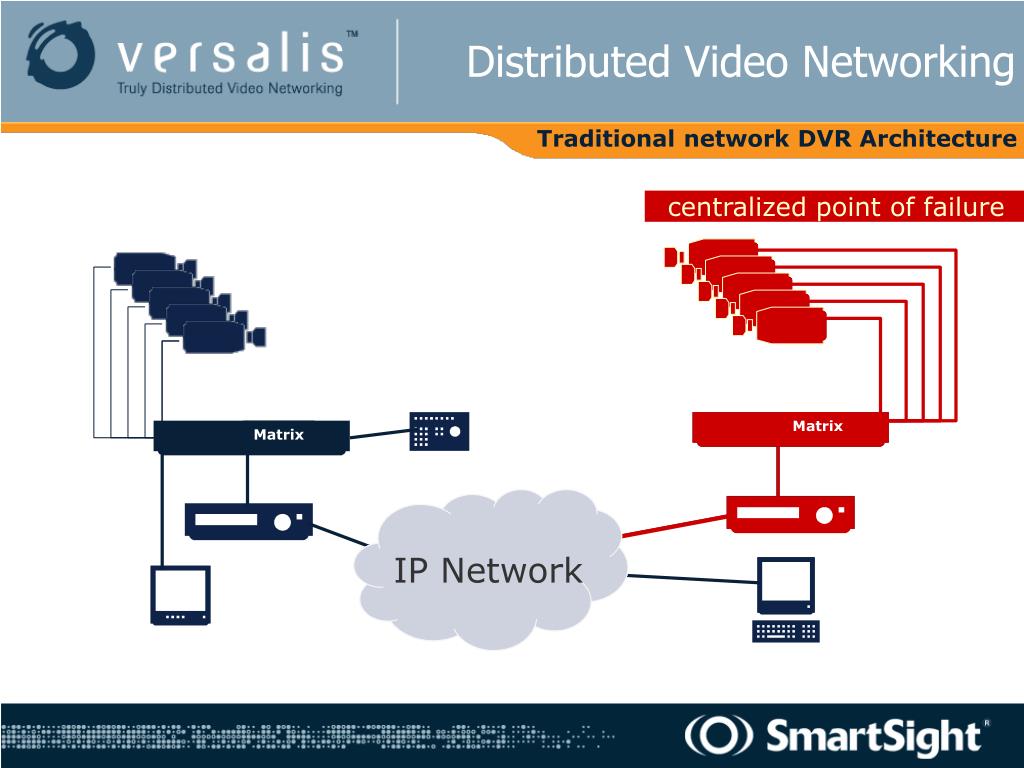

Traditional network DVR Architecture

Matrix

Matrix

Matrix

Distributed Video Networking

centralized point of failure

slide15

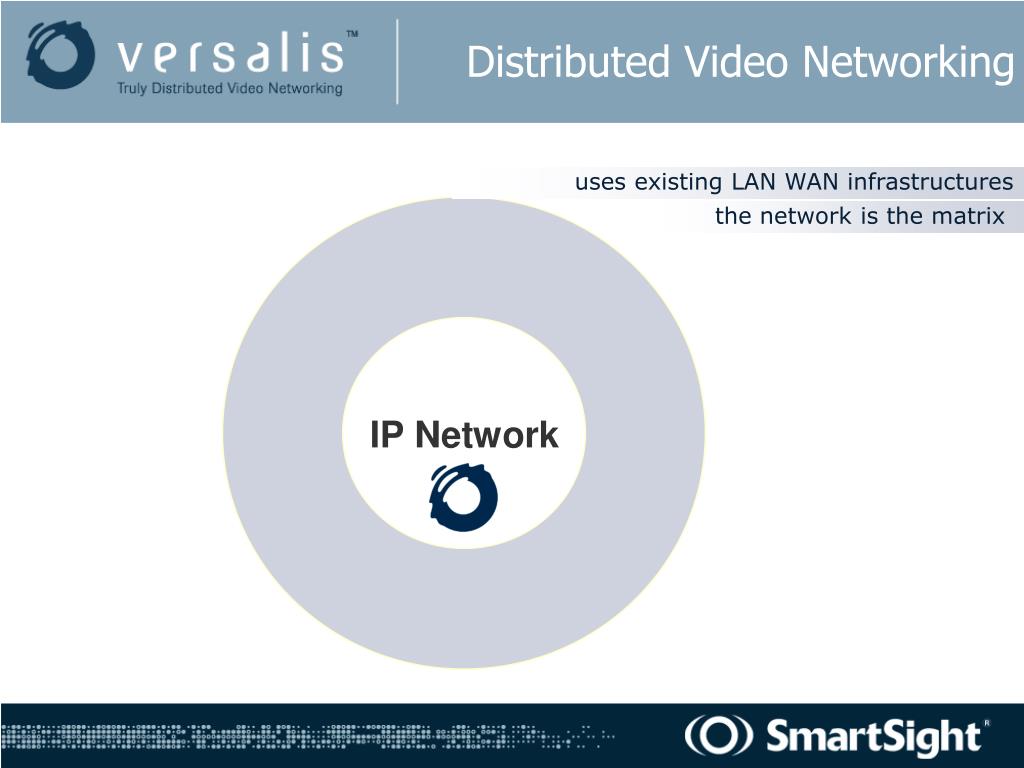

Distributed Video Networking

uses existing LAN WAN infrastructures

the network is the matrix

slide16

Distributed Capture

Distributed Video Networking

MPEG 4 compression - better bandwidth management

SSL encrypted communications

IP addressed cameras

real time video 30 FPS

slide17

Distributed Storage - Management

1

2

Distributed Video Networking

archiving in multiple locations

archive to any mapped drive

up to 64 cameras per server

unlimited server scalability

slide18

Distributed Viewing

1

Web access

2

Distributed Video Networking

instantaneous access to all cameras

multicast support for low bandwidth

unlimited number of clients

wireless PDA access option

slide19

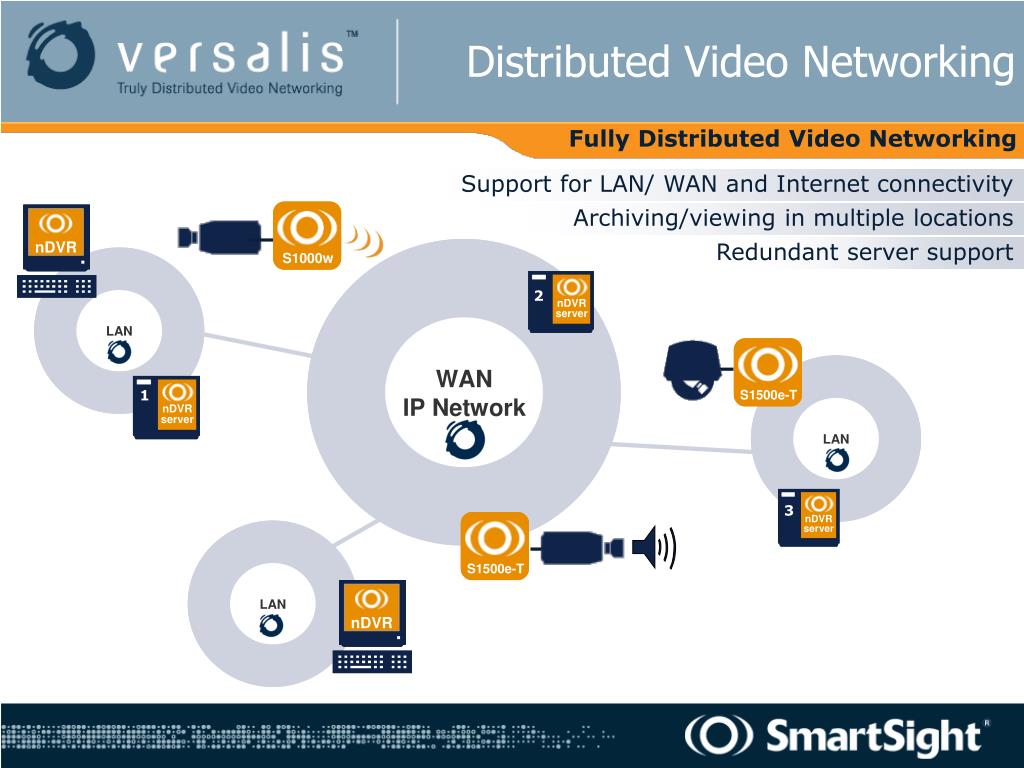

Fully Distributed Video Networking

2

1

3

Distributed Video Networking

Support for LAN/ WAN and Internet connectivity

Archiving/viewing in multiple locations

Redundant server support

slide20

Server Station

Outdoor PTZ camera

fixed camera

Web access

On or Offsite Digital Storage

On or Offsite monitoring

Analog CCTV

Redundant

Archive DB

Distributed Video Networking

slide21

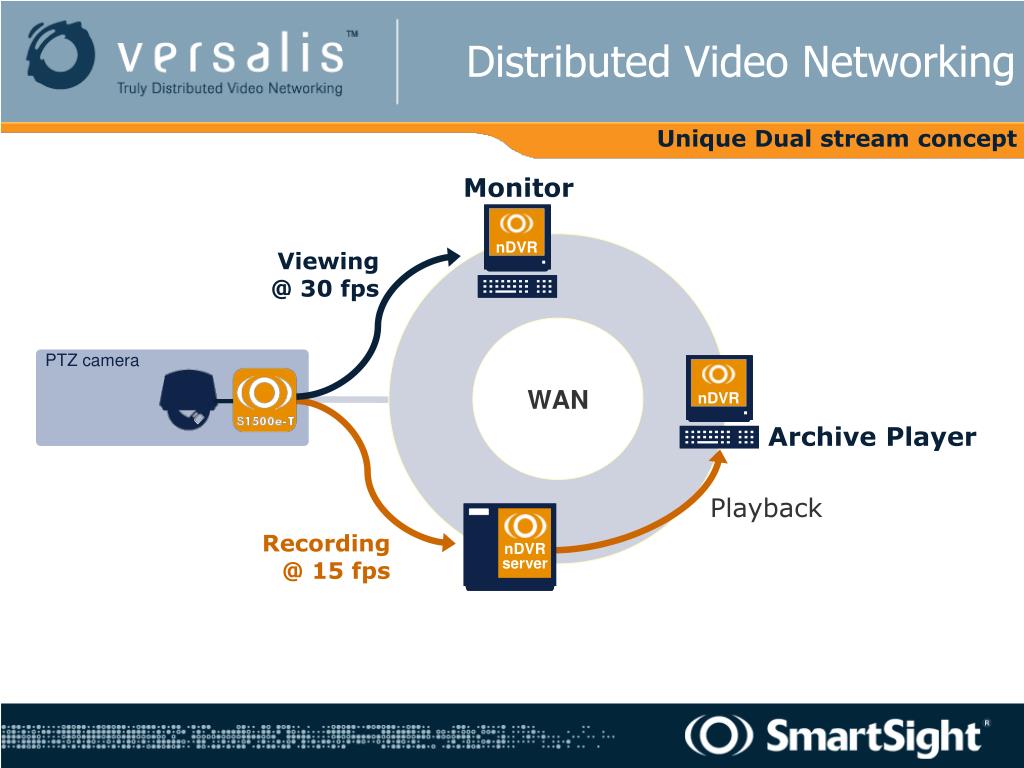

Unique Dual stream concept

PTZ camera

Viewing

@ 30 fps

Archive Player

Recording

@ 15 fps

Distributed Video Networking

Monitor

Playback

slide22

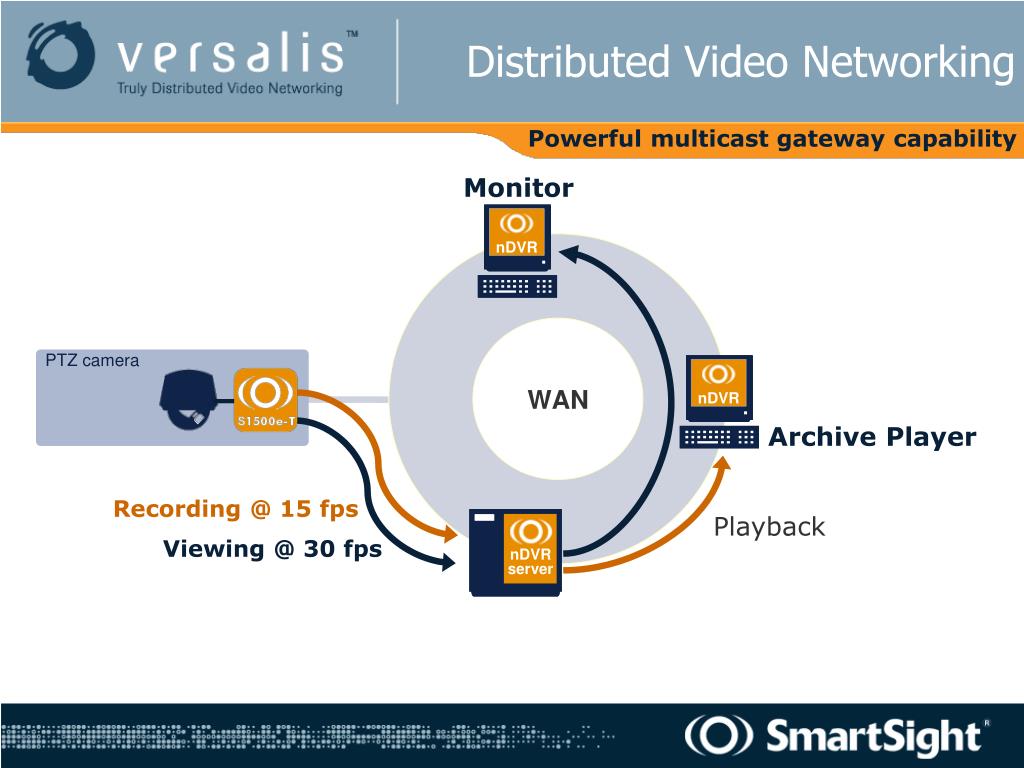

Powerful multicast gateway capability

PTZ camera

Archive Player

Recording @ 15 fps

Viewing @ 30 fps

Distributed Video Networking

Monitor

Playback

slide23

Distributed Video Networking

Versalis Components

slide24

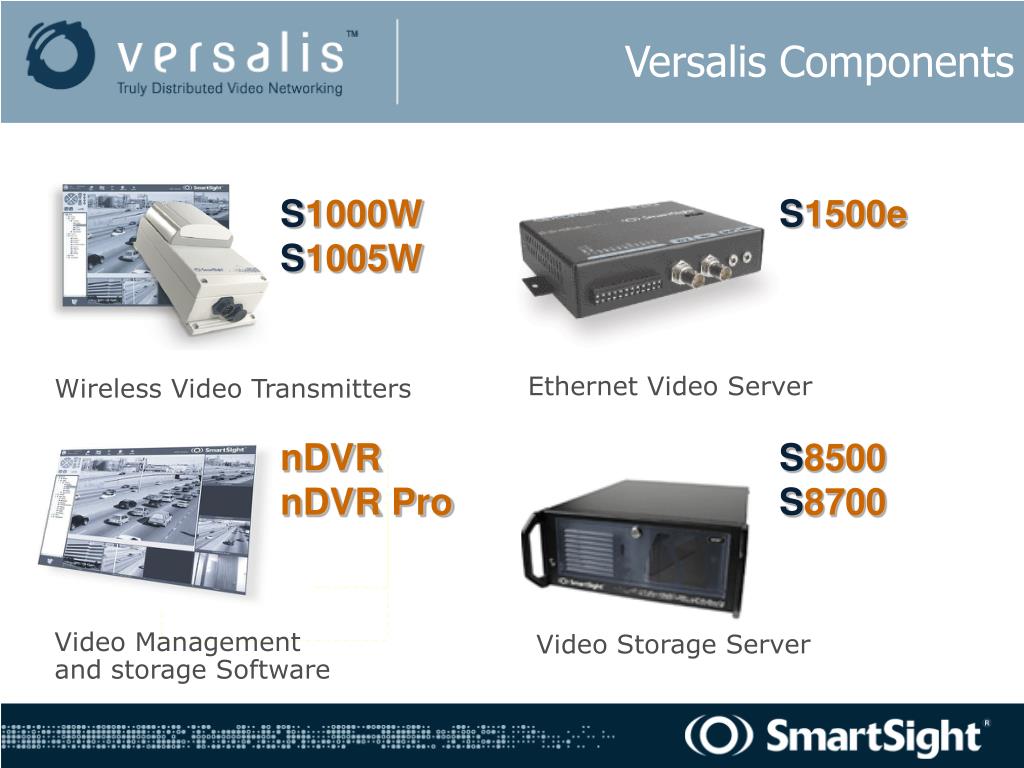

Versalis Components

S1000WS1005W

S1500e

Ethernet Video Server

Wireless Video Transmitters

nDVRnDVR Pro

S8500S8700

Video Management and storage Software

Video Storage Server

slide25

Video Managementand Storage Software

Versalis Components - nDVR

SCALABLE.

DISTRIBUTED.

INTUITIVE.

slide27

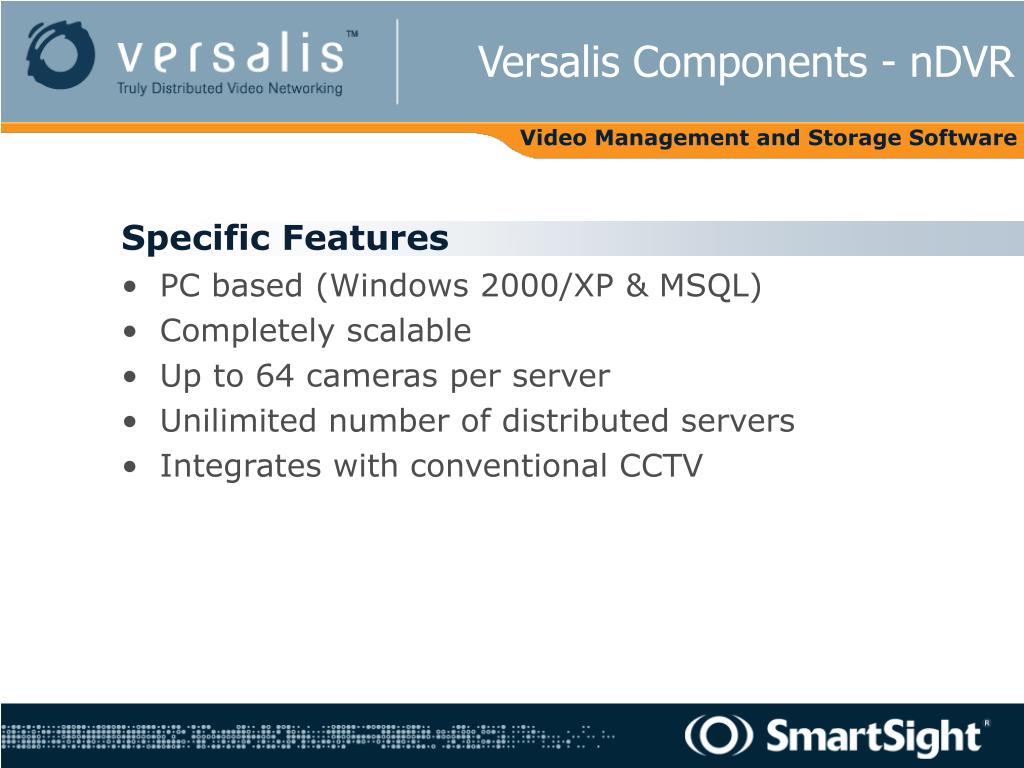

Video Managementand Storage Software

Versalis Components - nDVR

Specific Features

  • PC based (Windows 2000/XP & MSQL)
  • Completely scalable
  • Up to 64 cameras per server
  • Unilimited number of distributed servers
  • Integrates with conventional CCTV
slide28

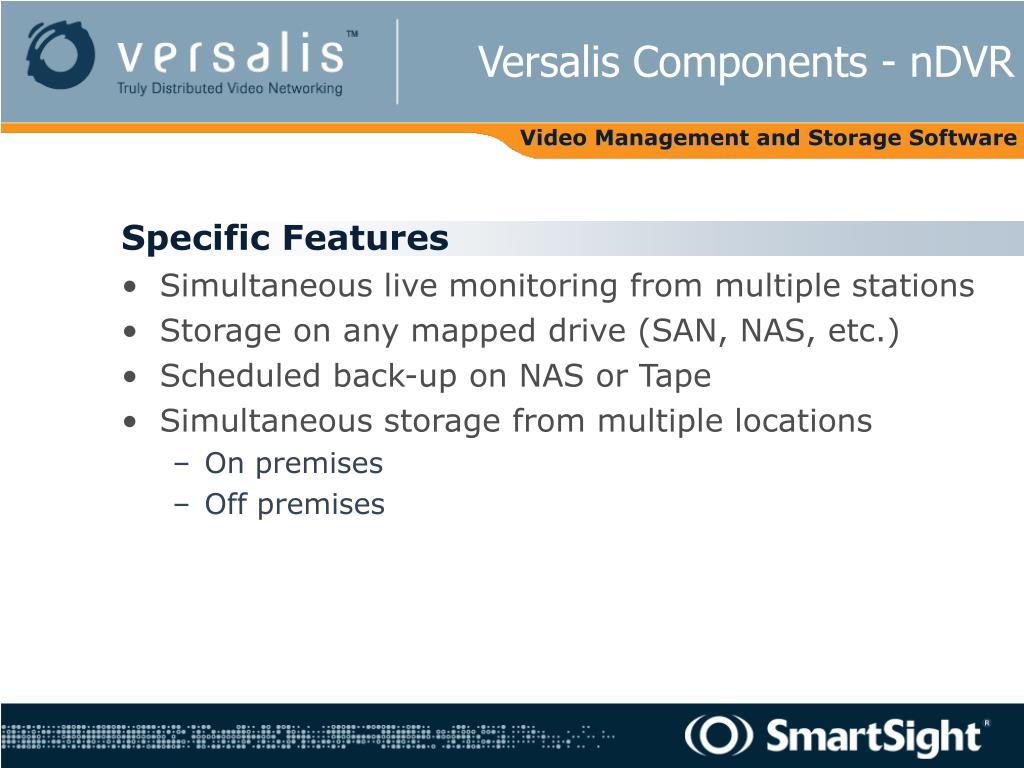

Video Managementand Storage Software

Versalis Components - nDVR

Specific Features

  • Simultaneous live monitoring from multiple stations
  • Storage on any mapped drive (SAN, NAS, etc.)
  • Scheduled back-up on NAS or Tape
  • Simultaneous storage from multiple locations
    • On premises
    • Off premises
slide29

Video Managementand Storage Software

Versalis Components - nDVR

Specific Features

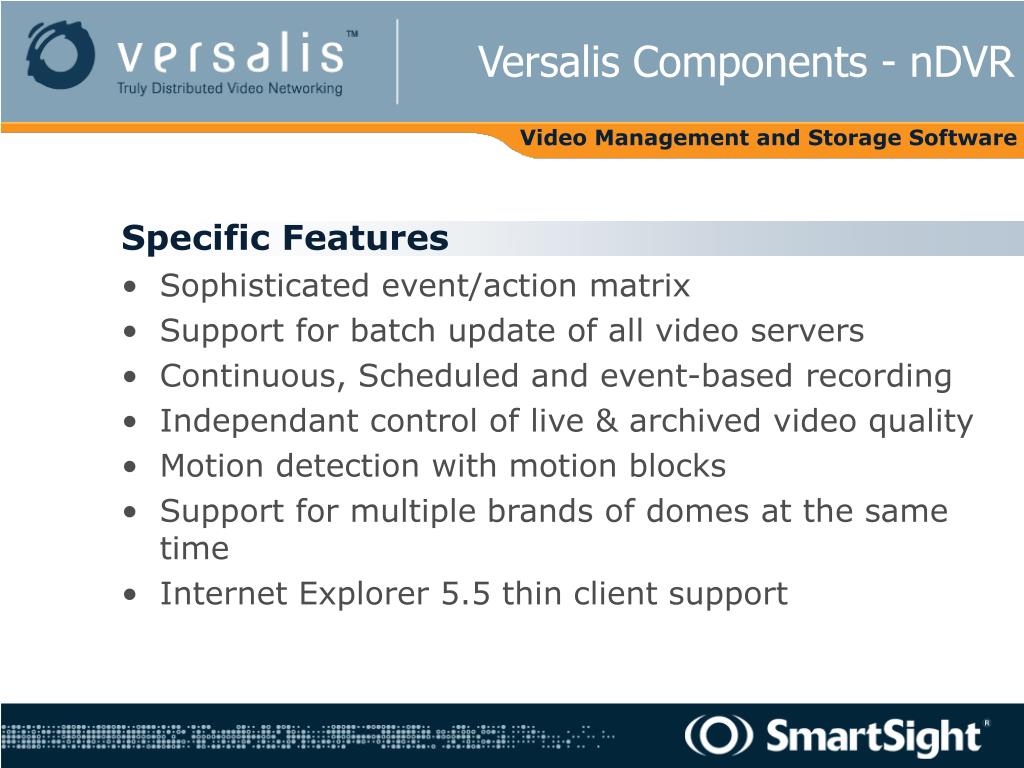

  • Sophisticated event/action matrix
  • Support for batch update of all video servers
  • Continuous, Scheduled and event-based recording
  • Independant control of live & archived video quality
  • Motion detection with motion blocks
  • Support for multiple brands of domes at the same time
  • Internet Explorer 5.5 thin client support
slide30

Video Managementand Storage Software

Versalis Components - nDVR

Specific Features

  • Investigation and video archive search tool
    • Search by Time, date, motion, events and bookmarks
    • Playback of up to 16 archived video streams (synchronously or asynchronously)
    • Frame by frame and fast forward control
    • Convert to JPG/Bitmap
    • Transfer video clip to CD-ROM with autorun playback software
slide31

Video Managementand Storage Software

Versalis Components - nDVR

Specific Features

  • Third party product integration (access control, etc.) via SDK
  • Support for ATM/POS
  • Watermarking
    • Digital authentification and tamper-proofing of recorder video (248 bit RSA)
slide32

Video Managementand Storage Server

Versalis Components - S8500 S8700

DIGITAL.

NETWORKED

DISTRIBUTED.

slide33

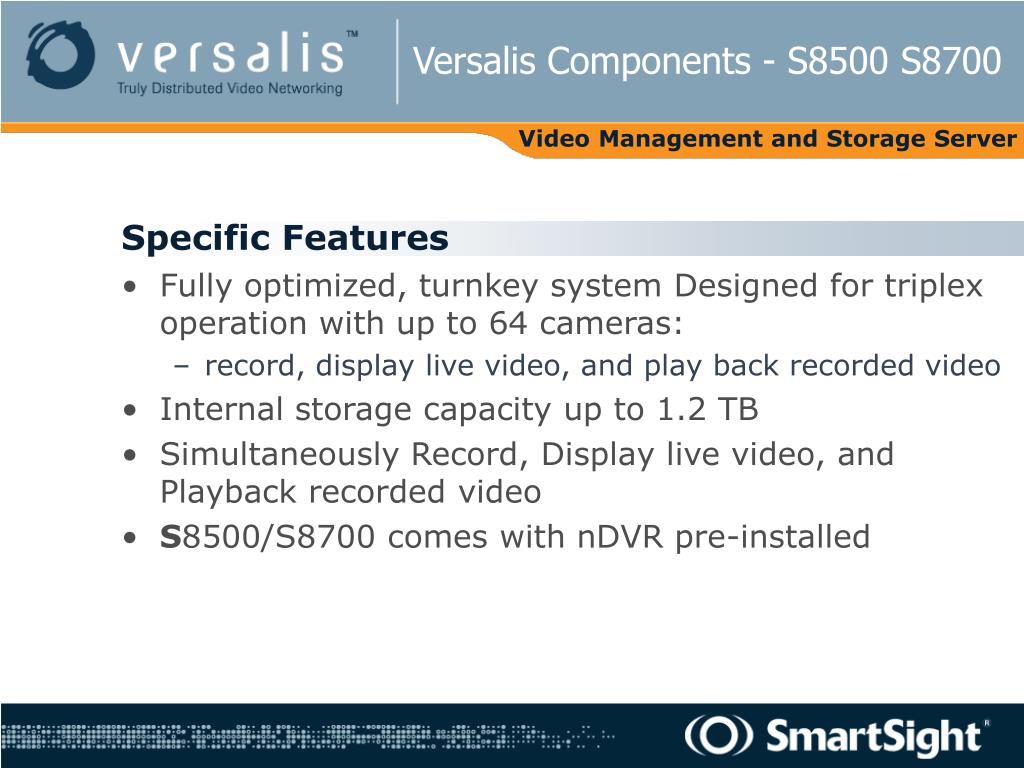

Video Managementand Storage Server

Versalis Components - S8500 S8700

Specific Features

  • Fully optimized, turnkey system Designed for triplex operation with up to 64 cameras:
    • record, display live video, and play back recorded video
  • Internal storage capacity up to 1.2 TB
  • Simultaneously Record, Display live video, and Playback recorded video
  • S8500/S8700 comes with nDVR pre-installed
slide34

Video Managementand Storage Server

Versalis Components - S8500 S8700

Specific Features

  • RAID5 support
    • disk failure protection of archived video
  • RAID1 configuration for disk failure protection of:
    • nDVR server application and SQL database
    • Windows 2000 Professional OS
slide35

Video Managementand Storage Server

Versalis Components - S8500 S8700

Specific Features

  • Record up to 64 cameras at a full 30 fps
    • While simultaneously viewing or playing back recorded video from multiple stations
slide36

Ethernet VideoServer

Versalis Components – S1500e

DIGITAL.

ENCRYPTED.

NETWORKED.

slide37

Ethernet VideoServer

Versalis Components – S1500e

Specific Features

  • Scalable resolution from 176 x 120 pixels to 704 x 480 pixels
  • Optional bi-directional audio interface
  • Video loss alarm
  • SSL-based user authentication
  • Dual-stream MPEG-4-based video for each input
    • Stream 1: high-res, low-frame-rate recording
    • Stream 2: lower-res, high-frame-rate viewing over the Internet or over the LAN
slide38

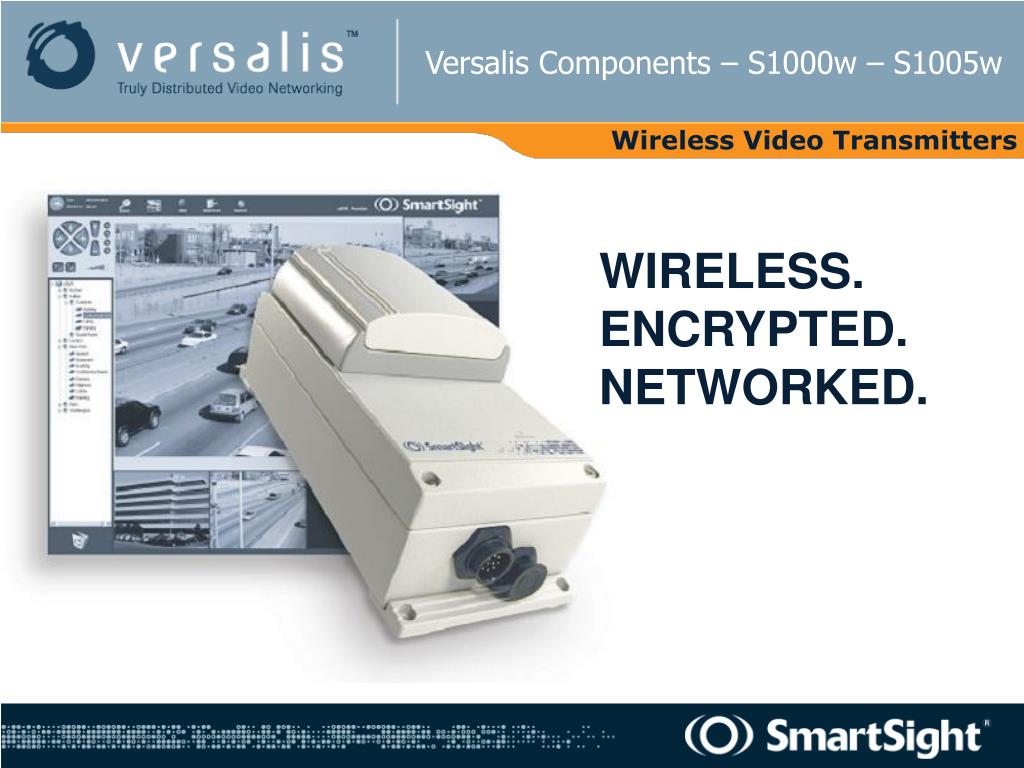

Wireless VideoTransmitters

Versalis Components – S1000w – S1005w

WIRELESS.

ENCRYPTED.

NETWORKED.

slide39

Wireless VideoTransmitters

Versalis Components – S1000w – S1005w

Specific Features

  • Industry’s first wireless Ethernet(802.11)video system
  • License exempt
    • 2.4 GHz ISM band (S1000w)
    • 5.3 GHz UNII band (S1005w)
  • Point-to-Multipoint

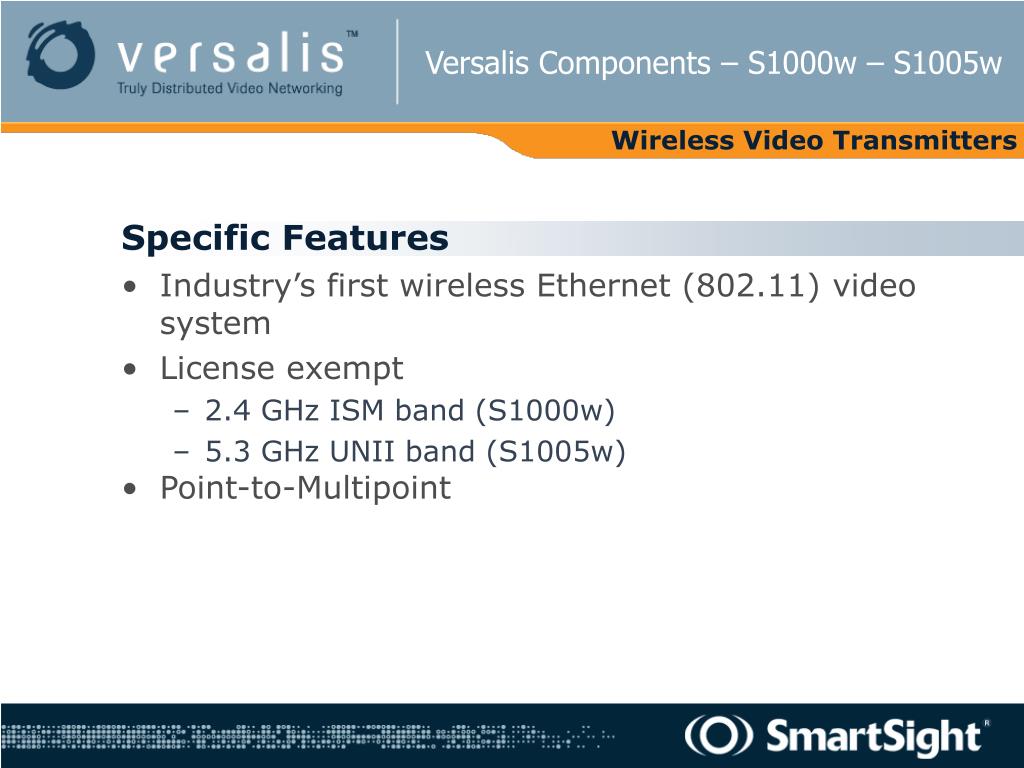

slide40

Wireless VideoTransmitters

Versalis Components – S1000w – S1005w

Specific Features

  • Delivers high quality MPEG-4-based video at 30 fps
  • Special mode for hidden node problems
thank you

Thank You

Thank You

December 2002
