1. J. Green Why do we need Good results? Chemical Industry • Purpose: To produce chemicals..... • to the correct specification • profitably • without harm to the environment • safely • lawfully • whilst protecting intellectual property Analytical Chemistry has its part to play.....

2. J. Green Why do we need Good results? Fit for purpose Accurate Precise Qualitative / Quantitative Consistent Allow decisions to be made Provided in an appropriate form Provided on time Obtained at minimum cost & effort Retrievable /Traceable Validated Repeatable Reproducible Good Results

3. J. Green Why do we need Good results? Industrial Functions • Manufacture • Research & Development • Supplying the customer • Health Safety and Environment

4. J. Green Why do we need Good results? Industrial Research(Example) Example - conversion of butane into ethene • Possible dehydrogenation reaction butane ethene + propene + butene • Important parameters: • Conversion of butane into products • Selectivity of conversion to ethene • Analytical requirements • accuracy  to ensure scale-up is valid • sensitivity  to detect low concentrations • flexibility  to identify unexpected products

5. J. Green Why do we need Good results? Chemical Manufacture • Analytical Requirements • precision of measurement • monitors progress of reaction • detects process fluctuations • accuracy less important • frequency of analysis • minimum cost & effort • display of results/feedback protocols

6. J. Green Why do we need Good results? Supplying the Customer • Accuracy • ensures product is ‘in-spec’ • Demonstrate validity • a recognised method • Reproducibility • comparable result whoever carries out the analysis • Consistent • same sample same result

7. J. Green Why do we need Good results? Analytical Techniques & Product Purity • High purity is expensive • More steps required in fractional crystallisation • Less take-off in distillation columns • Better analytical techniques reduce the cost of obtaining high purity • Greater precision allows required purity to be targeted more closely

8. J. Green Why do we need Good results? Analytical Confidence Limits • All measurements have errors associated with them • Quoted values should therefore be expressed with an associated confidence interval [X ± x units] • To be assured that a sample conforms to a quoted specification limit an analytical value must be obtained for the sample that takes the confidence interval into account. Example: • Technique gives value ± 1% • Sample must be >97% pure • Therefore technique must deliver a value of 98% to be confident of sample purity being >97% pure

9. J. Green Why do we need Good results? Cost Cost Saving due to Improved Analysis 98.1% 95% 100% 96% 97% 98% 99% 98.5% Purity (%) Analytical Techniques & Cost of Quality

10. J. Green Why do we need Good results? Analytical Techniques and Asset Utilisation • Chemical plant is expensive • Maximum utilisation is desirable • Analytical techniques help to maximise the utilisation • Reduce turnround times on batch operations • Increase throughput on continuous plant

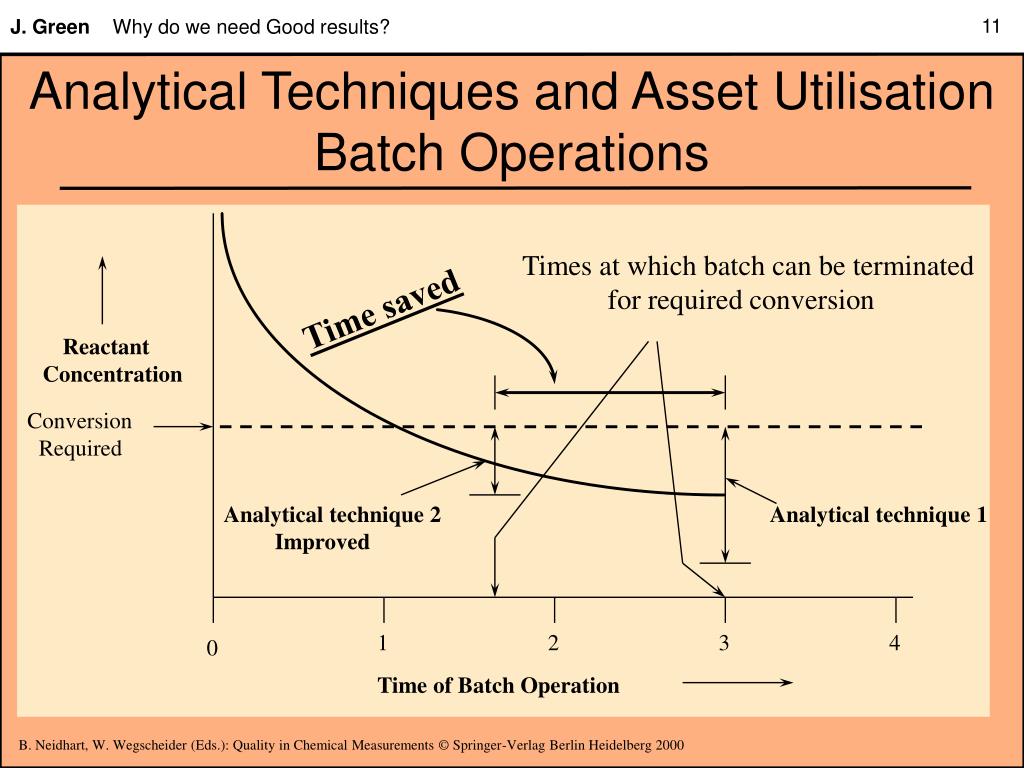

11. J. Green Why do we need Good results? Times at which batch can be terminated for required conversion Time saved Reactant Concentration Conversion Required Analytical technique 2 Improved Analytical technique 1 1 2 3 4 0 Time of Batch Operation Analytical Techniques and Asset UtilisationBatch Operations

12. J. Green Why do we need Good results? Analytical technique 2 Throughput Analytical technique 1 Increased Throughput Required Purity 96% 97% 98% 99% Purity of product required Analytical Techniques & Asset UtilisationContinuous Processes

13. J. Green Why do we need Good results? Analytical Chemistry & Environmental Responsibilities • Emissions to Air • Emissions to Water • Waste disposal - off-site • Technical challenges • low concentrations in air/water/solids • sample collection times • sensitive techniques required for temporal resolution • samples containing contaminants

14. J. Green Why do we need Good results? Corrosion Measurements • Chemical Plant Maintenance • Regular shutdowns / unplanned shutdowns • Components replaced • Corrosion /Production /Shutdown Frequency • Relationship between corrosion & process variables ..... • higher productivity whilst maintaining plant integrity • lower frequency of shutdowns

15. J. Green Why do we need Good results? Valid Analytical Measurement Principles • Analytical Measurements should be made to satisfy an agreed objective • Analytical Methods should be made using methods and equipment which have been tested to ensure they are fit for purpose • Staff making analytical measurements should be both qualified and competent to undertake the task • There should be regular independent assessment of the technical performance of a laboratory • Analytical measurements made in one location should be consistent with those made elsewhere • Organisations making analytical measurements should have well defined quality control and quality assurance procedures.
