Presentation Transcript

  1. AOpen NB Naming System 18xx Desktop solution: 183x: PIII 184x: P4 3-Spindle Mobile solution: 173x: PIII 174x: P4 17xx Mobile solution: 153x: PIII 154x: P4 15xx 2-Spindle Mobile solution: 123x: PIII 124x: P4 12xx 1-Spindle

  2. AOpen NB Roadmap Update 1845 1845:Intel DT P4, 845 with ATI M6P, 14.1/15, 802.11b, Li+, 1394, TV-out, USB 1.1, DDR 1745 1745:Intel Mobile P4 Northwood, 845M (Brookdale), 35W thermal, 39.9~41.9mm, 14.1/15, 802.11b, Li+, 1394,TV-out, USB 2.0, DDR 3-Spindle 1547 1547:Intel mobile P4 Northwood, 35W thermal, Ali M1671, nVIDIA GeForce2 Go 100 /200(4X AGP), 2 USBs,14.1”/15.0, Li+, Optional wireless, Dock 1545 1545:Intel mobile P4 Northwood, 35W thermal, Ali M1671, nVIDIA GeForce2 Go 100 /200(4X AGP), 2 USBs,14.1”/15.0, Li+, Optional wireless, Dock 2-Spindle 1535 1535:uFCPGA, Tualatin, Almador, ATI M6D VGA, 14.1/15 SXGA+, Li+, FIR, optional wireless & Finger print 1235 1-Spindle 1235:Intel Tualatin, Almador-M, 12.1”, Li+, 19~22mm thin, docking station Q2/02 Q3/02 Q4/02

  3. 3-Spindle Model 17XX series 18XX series

  4. 1745 & 1845 ID Design

  5. 1745 & 1845BTO Remove 3 screws for keyboard Every antenna could be removed with only a screw. No screws require to remove the middle cover Remove the power switch PCB connector .

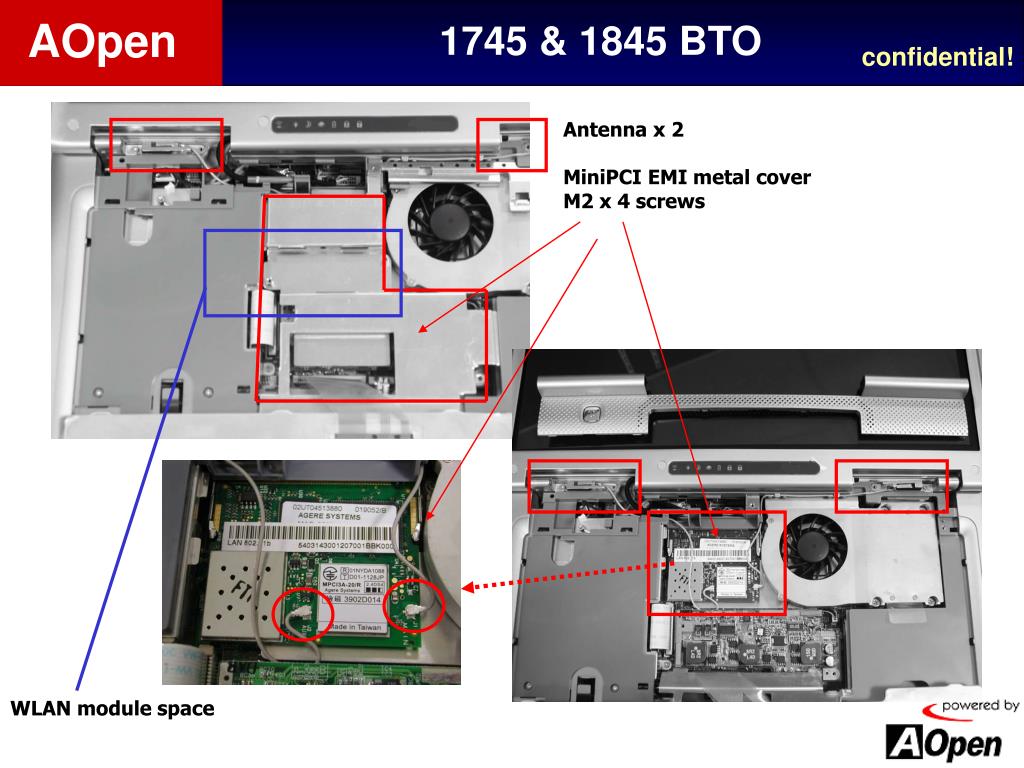

  6. 1745 & 1845BTO Antenna x 2 MiniPCI EMI metal cover M2 x 4 screws WLAN module space

  7. 1845 Specifications – P4 D/T CPU • Intel P4 socket P478, supporting Northwood 2.0/2.2/2.4GHz CPU (SFF from 1.6 GHz) • Intel 845 DDR support, PC133; ATI M6P w/ 16/32MB VRAM • Expandable to 1024MB DDR using two DIMM slots • 14.1” or 15” XGA TFT LCD • Swappable CD-ROM, DVD, CD-RW, Combo drive, 2nd HDD • 88.8Wh 12-cell Li+ battery pack(2.5 hours) • 90W AC adapter • 326 x 275 x 39.9~43.6mm(Bump area 45.6mm) • 7.4 lbs (3.36 kgs) with 15.0” TFT, HDD, Li+ battery, CD-ROM, 7.1 lbs for 14.1” LCD

  8. 1845 Specifications – P4 D/T CPU • Internal keyboard, touchpad and internet 4-way scroll key • Two speakers, volume control via wheel • I/O: RJ-11, RJ-45, DC-in, VGA, parallel, serial, PS/2, 1394, Line-out, mic-in(Line-in), two USBs(1.1), two type II PCMCIA slots, TV-out • Optional 56Kbps MDC software modem (International DAA) • LAN onboard option • Four launch keys (e-mail, internet, P1, P2); one wireless switch key on keyboard module • Optional MiniPCI 802.11b module with antennae • Optional 20GB+ HDD or higher capacity • Supporting Win XP

  9. 1745 Specifications – Mobile P4 • Intel Mobile Northwood, supporting P4 1.4GHz and above with Speedstep technology • Intel 845M DDR support; ATI M7P with ext. 16/32MB VGA • Expandable to 1024MB DDR using two DIMM slots • 14.1” or 15” XGA TFT LCD • Swappable CD-ROM, DVD, CD-RW, Combo drive, 2nd HDD • 3.5 hours battery life with 57.5 Wh 8-cell Li+ battery pack • 70W AC adapter • 6.7 lbs (3.0 kgs) with 15.0” TFT, HDD, Li+ battery, CD-ROM, 6.4 lbs for 14.1” LCD • 326 x 275 x 39.9(Bump area 41.9mm)

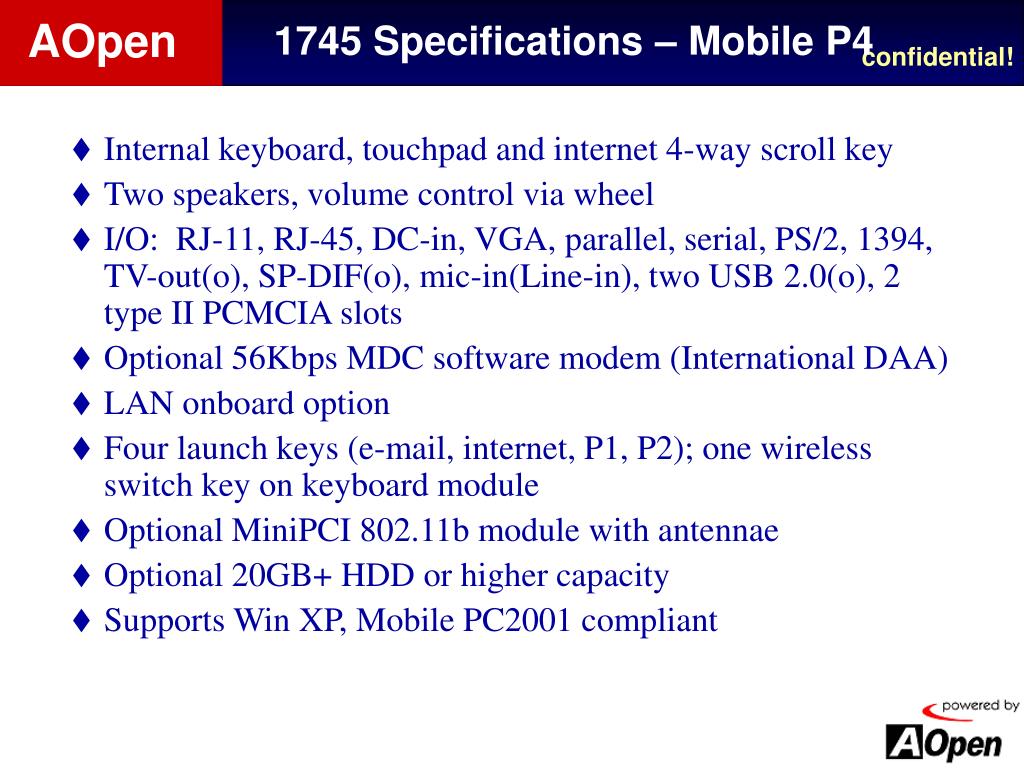

  10. 1745 Specifications – Mobile P4 • Internal keyboard, touchpad and internet 4-way scroll key • Two speakers, volume control via wheel • I/O: RJ-11, RJ-45, DC-in, VGA, parallel, serial, PS/2, 1394, TV-out(o), SP-DIF(o), mic-in(Line-in), two USB 2.0(o), 2 type II PCMCIA slots • Optional 56Kbps MDC software modem (International DAA) • LAN onboard option • Four launch keys (e-mail, internet, P1, P2); one wireless switch key on keyboard module • Optional MiniPCI 802.11b module with antennae • Optional 20GB+ HDD or higher capacity • Supports Win XP, Mobile PC2001 compliant

  11. Product Comparison Table
