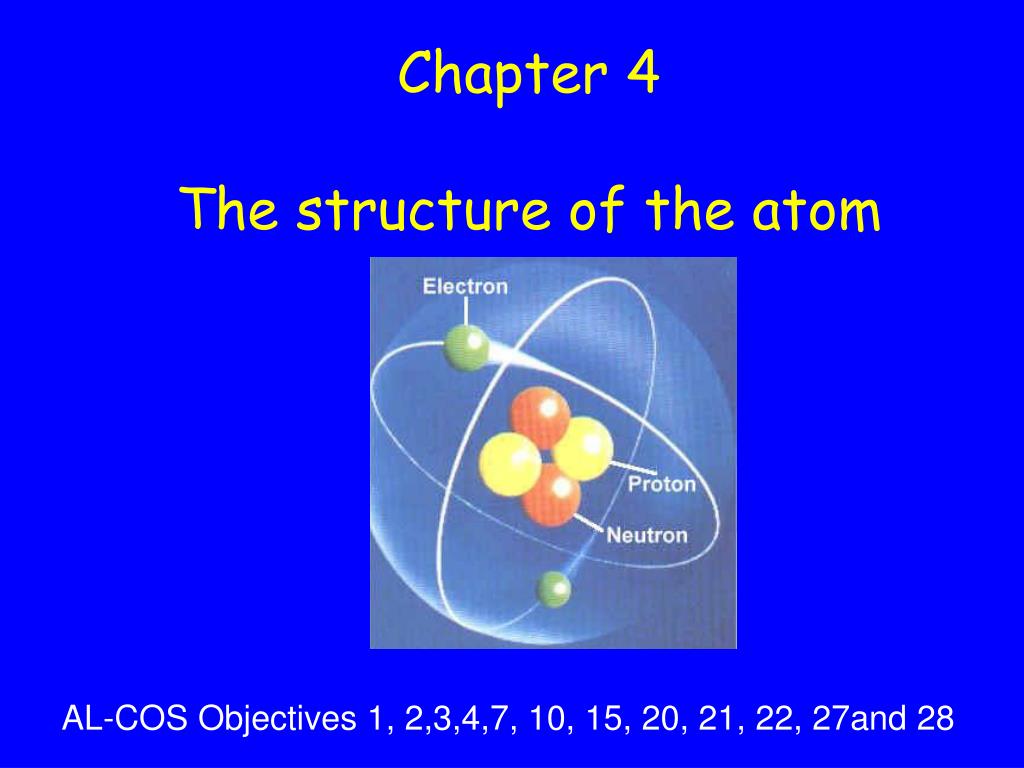

  1. Chapter 4The structure of the atom AL-COS Objectives 1, 2,3,4,7, 10, 15, 20, 21, 22, 27and 28

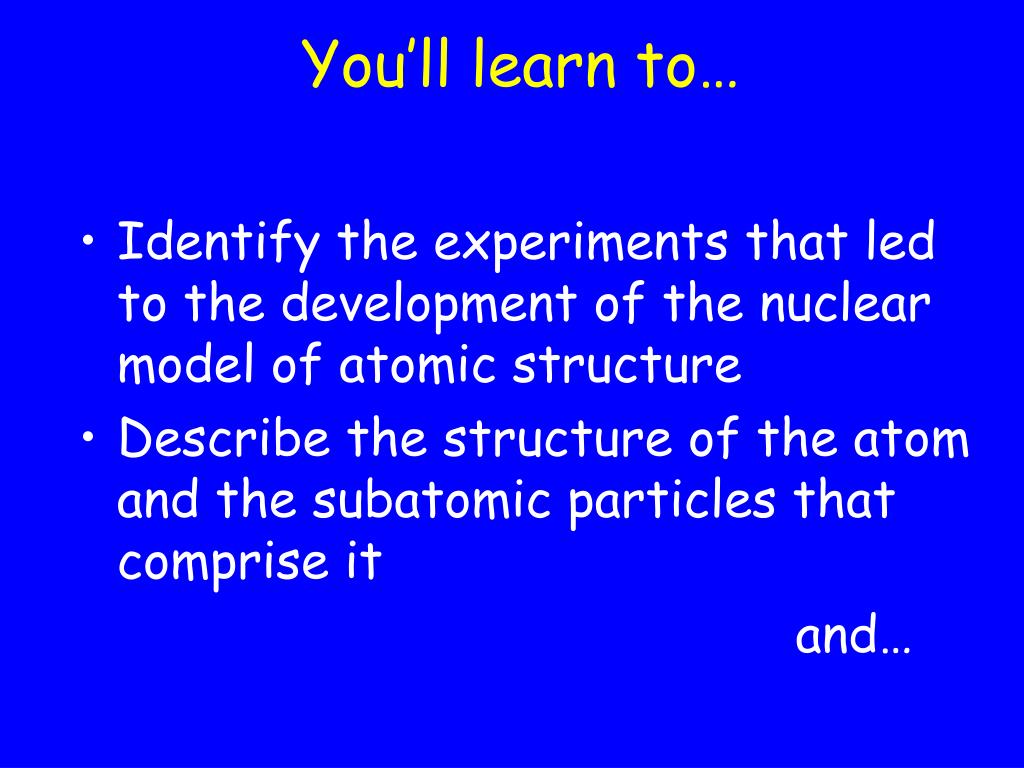

  2. You’ll learn to… • Identify the experiments that led to the development of the nuclear model of atomic structure • Describe the structure of the atom and the subatomic particles that comprise it and…

  3. You’ll also learn… • Explain the relationship between nuclear stability and radioactivity • Write equations representing nuclear decay • Discuss the atomic models of Democritus, Thomson, Rutherford, and Bohr

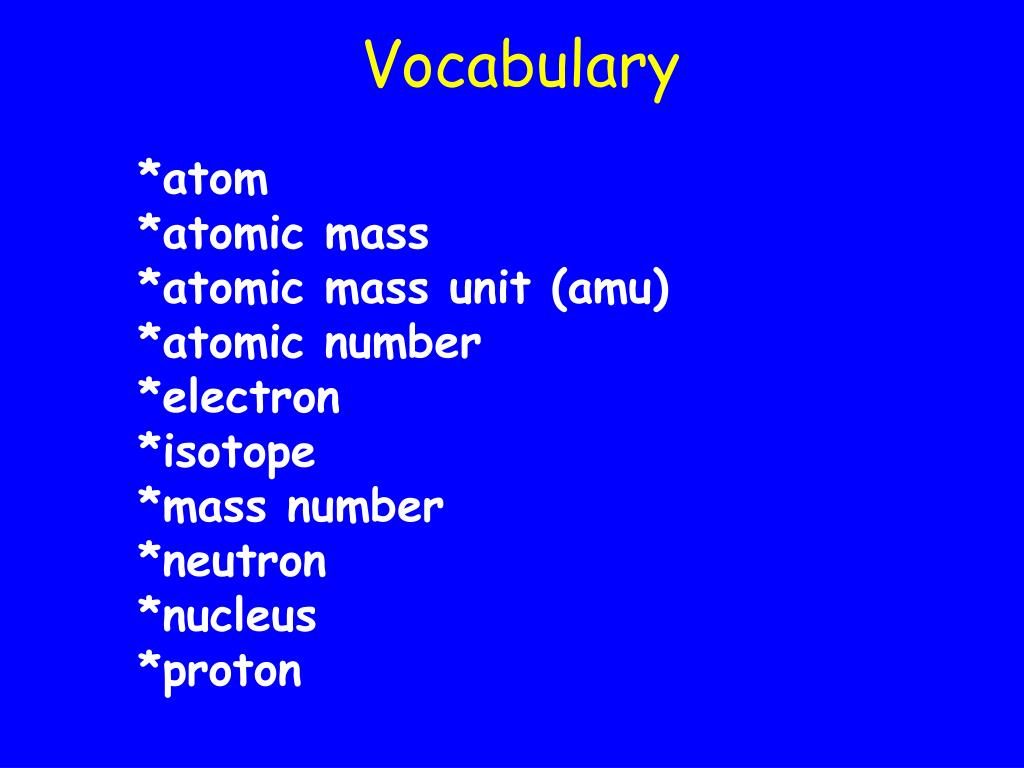

  4. Vocabulary *atom *atomic mass *atomic mass unit (amu) *atomic number *electron *isotope *mass number *neutron *nucleus *proton

  5. Early Theories of Matter • Democritus ( 460-370 BC)

  6. A man ahead of his time… • First to believe matter was not infintely divisible • Believed matter to be made of small particles he called “atomos” • Believed these particles could not be created or destroyed

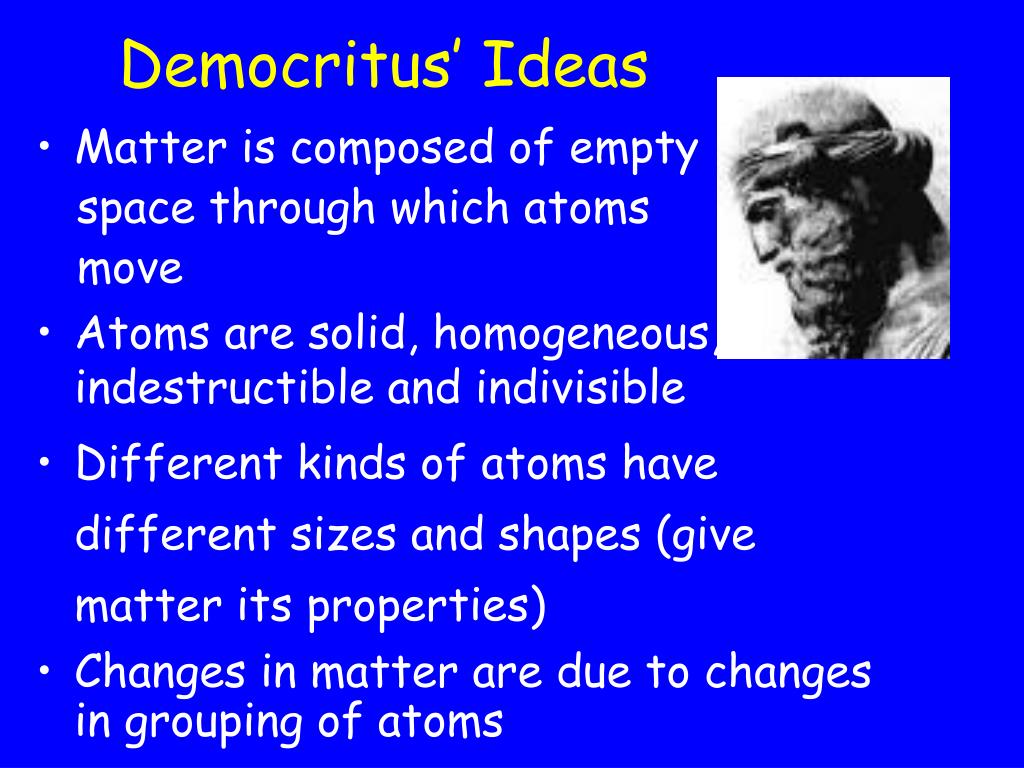

  7. Democritus’ Ideas • Matter is composed of empty space through which atoms move • Atoms are solid, homogeneous, indestructible and indivisible • Different kinds of atoms have different sizes and shapes (give matter its properties) • Changes in matter are due to changes in grouping of atoms

  8. Aristotle • One of most influential Greek philosophers

  9. Aristotle • Believed matter was formed of air, water, earth and fire • Did not believe in the “nothingness” of space • All of his ideas were NOT based on empirical (experimental) science – just ideas

  10. Aristotle Given credit for setting the field of science back nearly 2000 years!

  11. John Dalton(1766-1844) • Revived the ideas of Democritus • First atomic model • A teacher in England

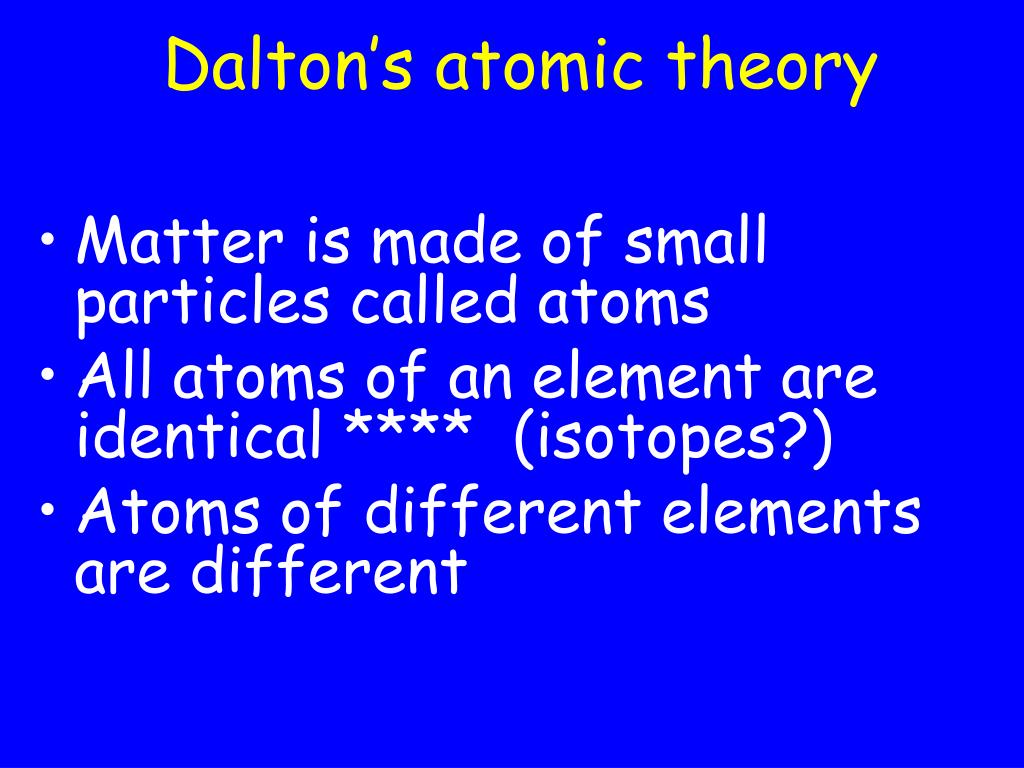

  12. Dalton’s atomic theory • Matter is made of small particles called atoms • All atoms of an element are identical **** (isotopes?) • Atoms of different elements are different

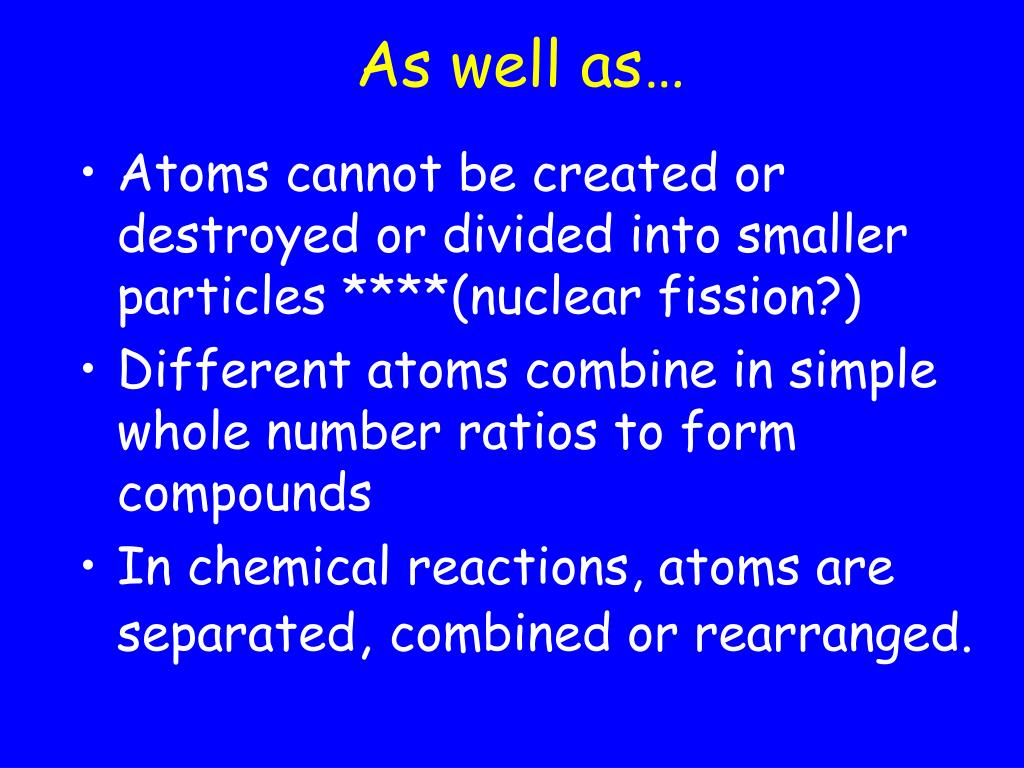

  13. As well as… • Atoms cannot be created or destroyed or divided into smaller particles ****(nuclear fission?) • Different atoms combine in simple whole number ratios to form compounds • In chemical reactions, atoms are separated, combined or rearranged.

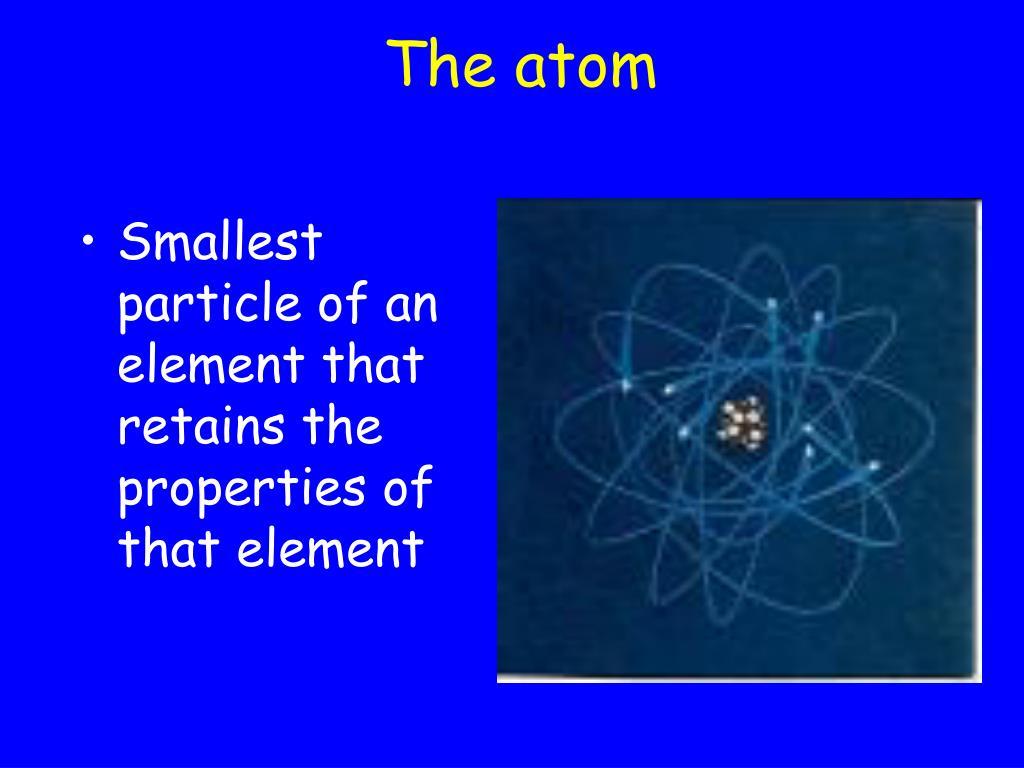

  14. The atom • Smallest particle of an element that retains the properties of that element

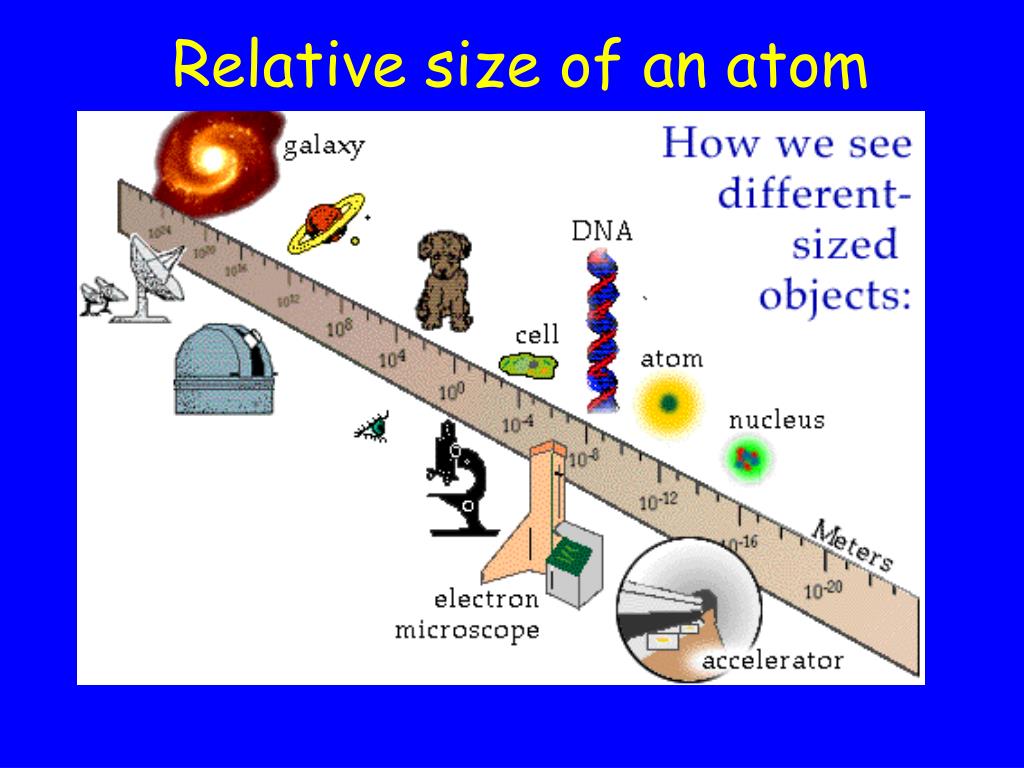

  15. Relative size of an atom

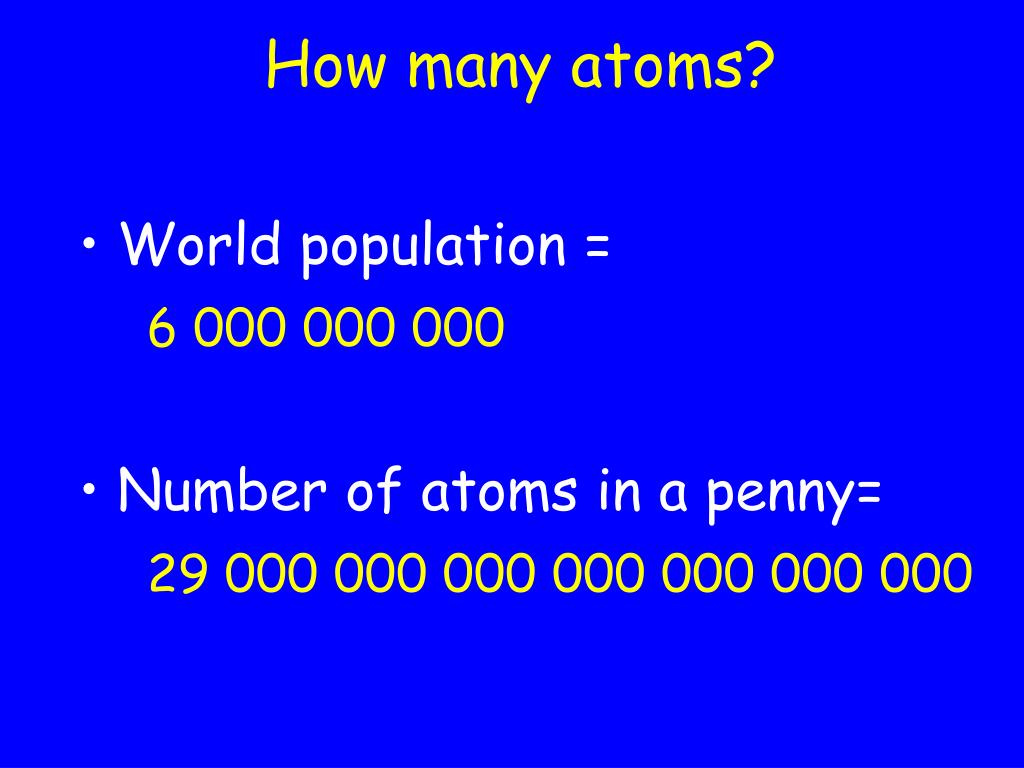

  16. How many atoms? • World population = 6 000 000 000 • Number of atoms in a penny= 29 000 000 000 000 000 000 000

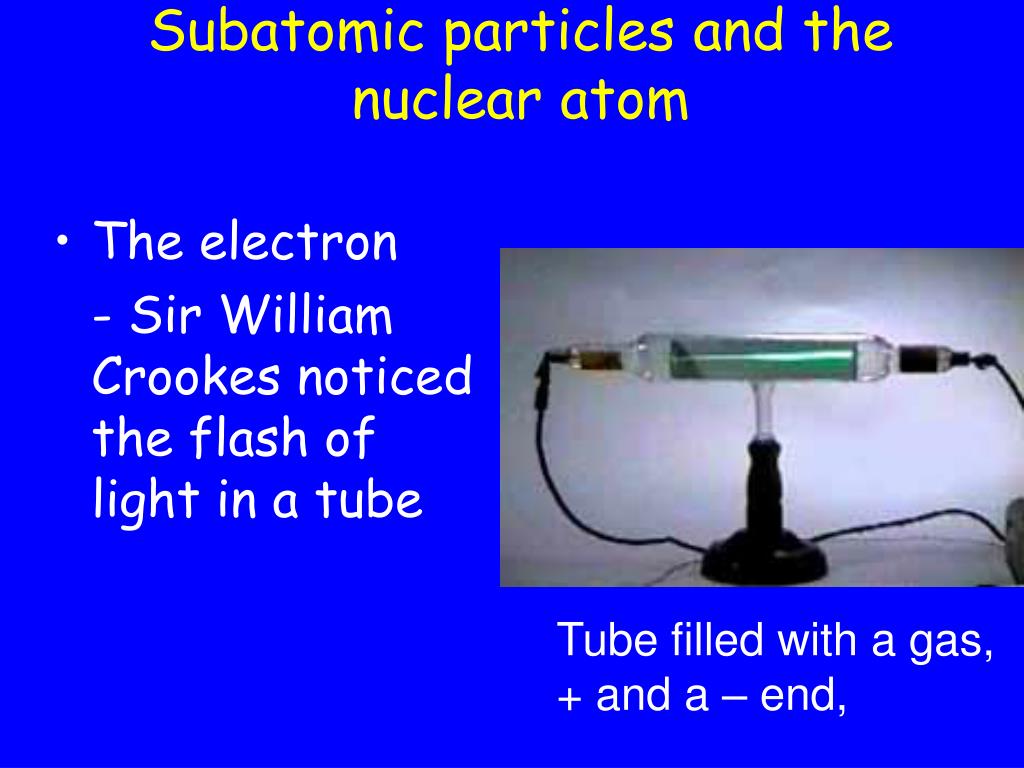

  17. Subatomic particles and the nuclear atom • The electron - Sir William Crookes noticed the flash of light in a tube Tube filled with a gas, + and a – end,

  18. The cathode ray Scientists were convinced this cathode ray was really a stream of charged particles -> electrons!

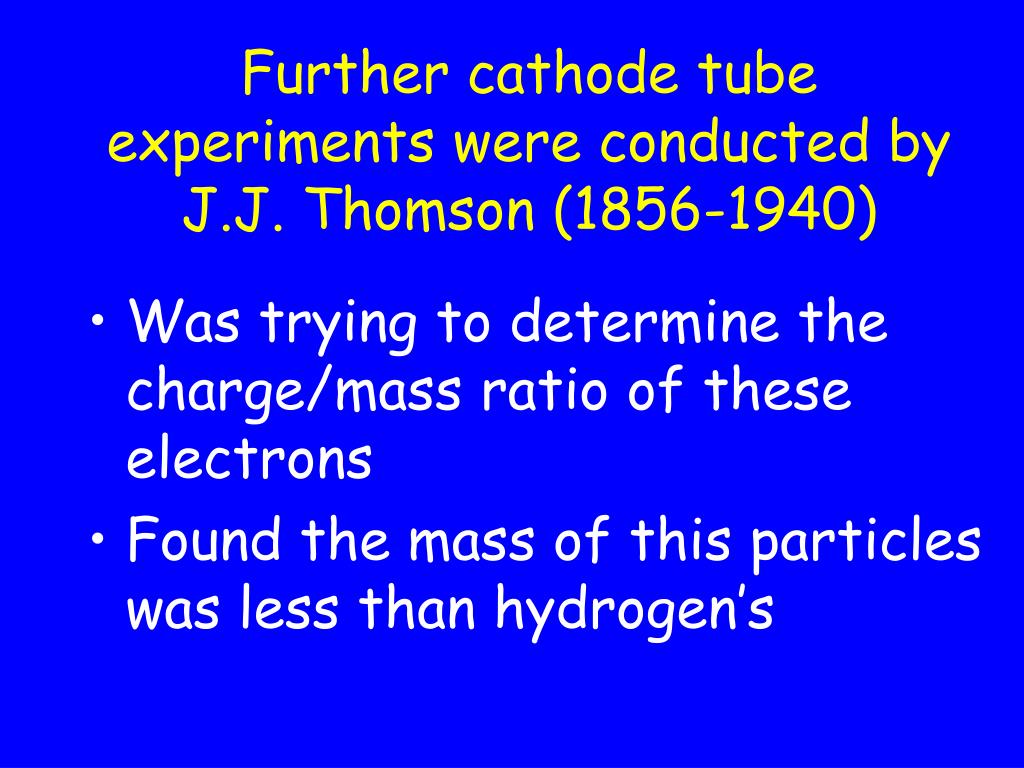

  19. Further cathode tube experiments were conducted by J.J. Thomson (1856-1940) • Was trying to determine the charge/mass ratio of these electrons • Found the mass of this particles was less than hydrogen’s

  20. J.J. Thomson • Identified the first subatomic particle – the electron • Atoms were divisible into smaller particles

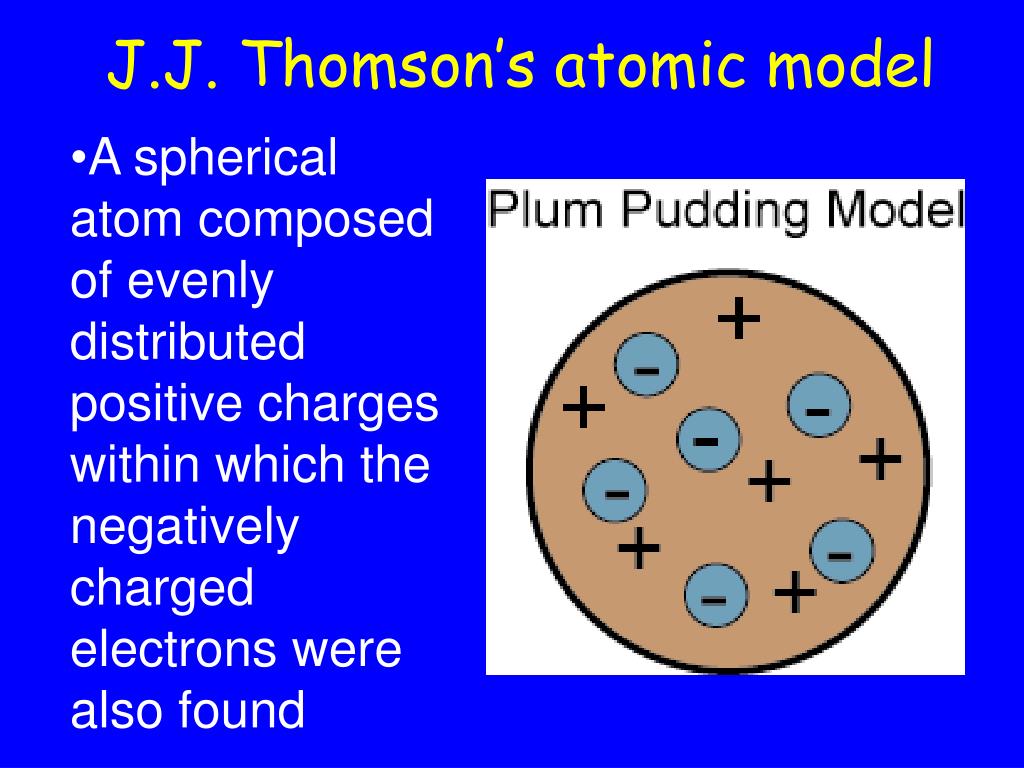

  21. J.J. Thomson’s atomic model • A spherical atom composed of evenly distributed positive charges within which the negatively charged electrons were also found

  22. Robert Millikan (1868-1953) • American physicist • Determined the charge of an electron • Calculated the mass of a single electron (e-)

  23. Sir Ernest Rutherford • Originally from New Zealand • Won a scholarship competition to study at Cambridge Univ. in England • Won the Nobel prize in 1908 for discovering radioactivity

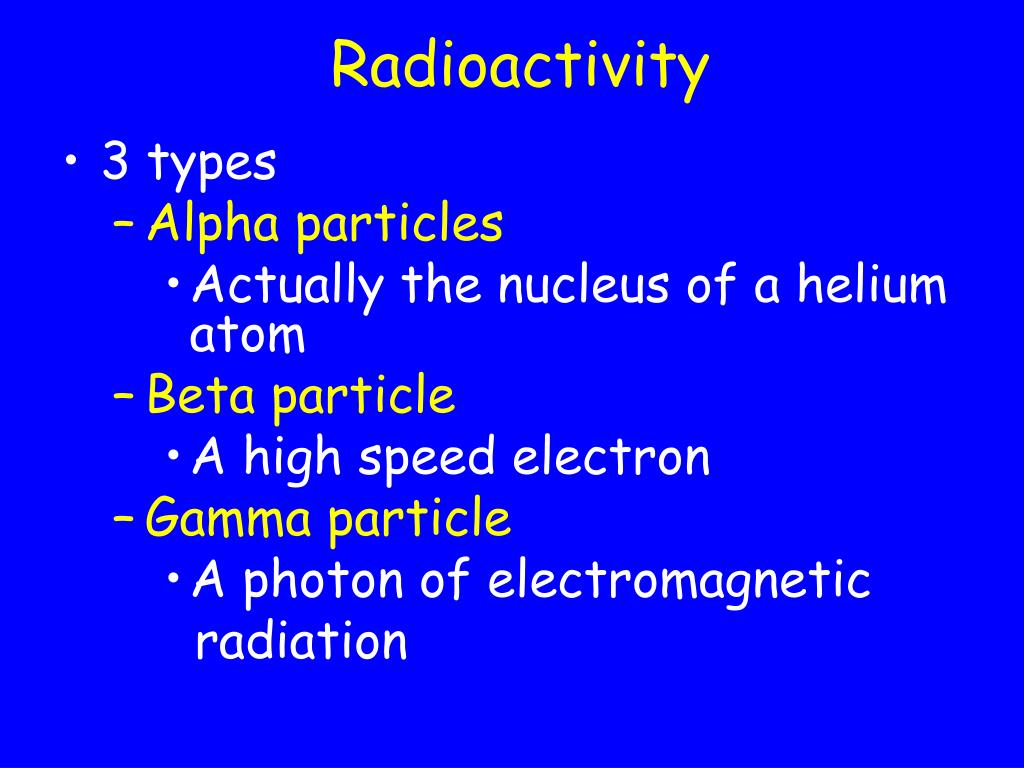

  24. Radioactivity • 3 types • Alpha particles • Actually the nucleus of a helium atom • Beta particle • A high speed electron • Gamma particle • A photon of electromagnetic radiation

  25. Radiation can be shielded by..

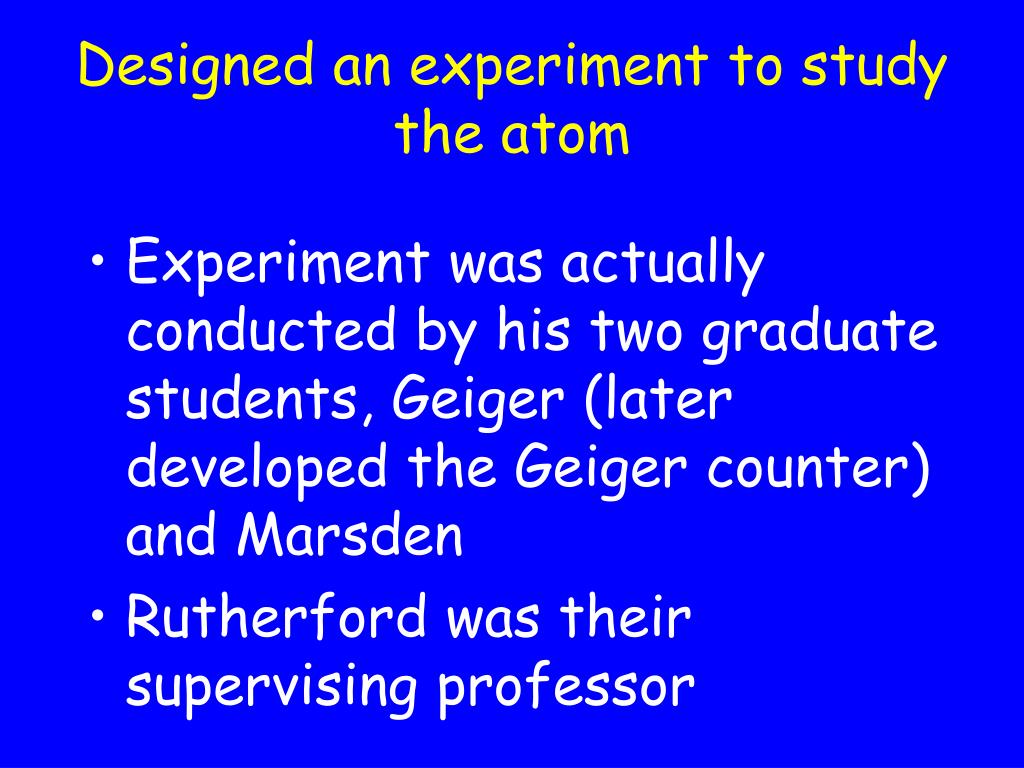

  26. Designed an experiment to study the atom • Experiment was actually conducted by his two graduate students, Geiger (later developed the Geiger counter) and Marsden • Rutherford was their supervising professor

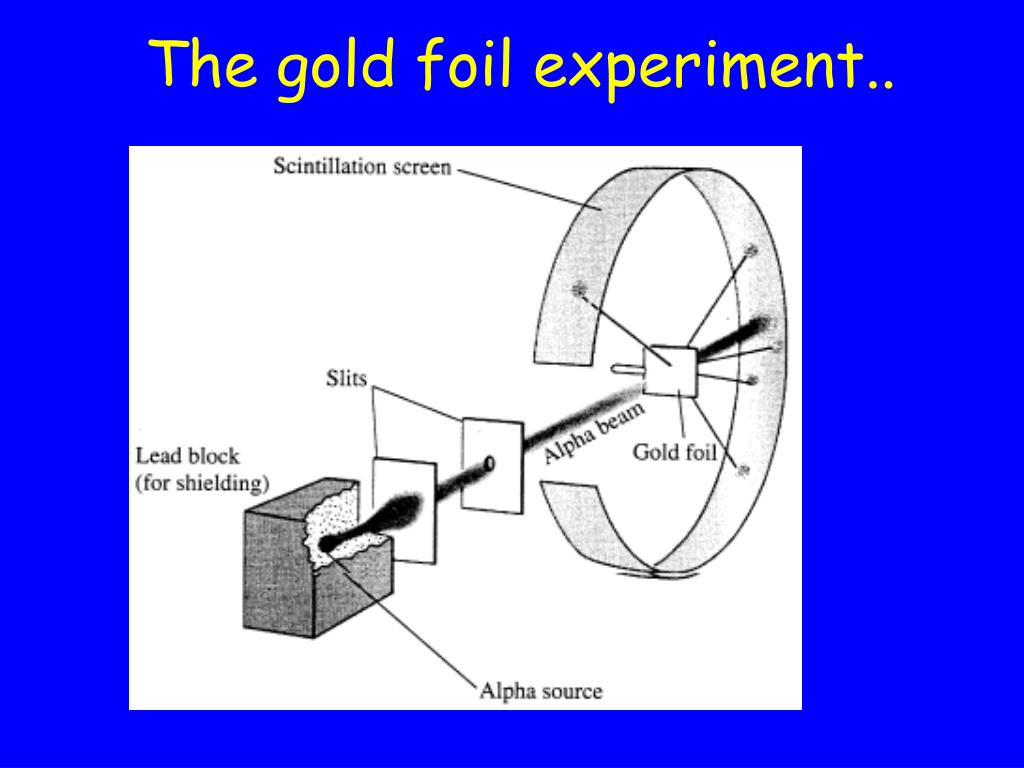

  27. The gold foil experiment..

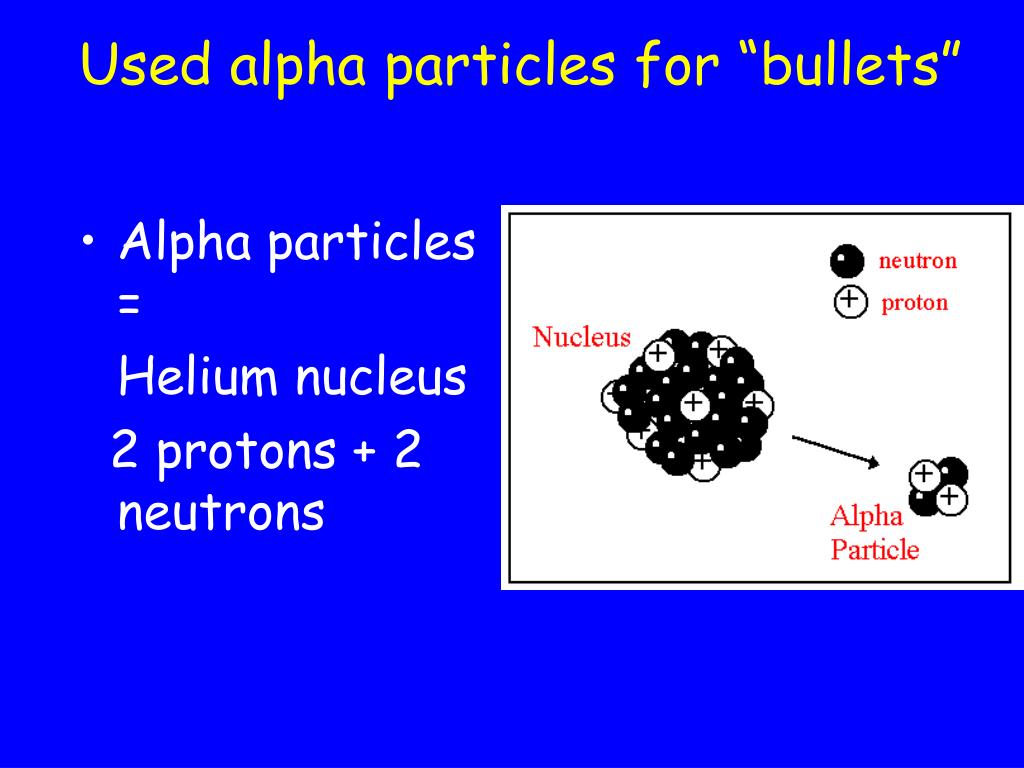

  28. Used alpha particles for “bullets” • Alpha particles = Helium nucleus 2 protons + 2 neutrons

  29. What happened in the experiment

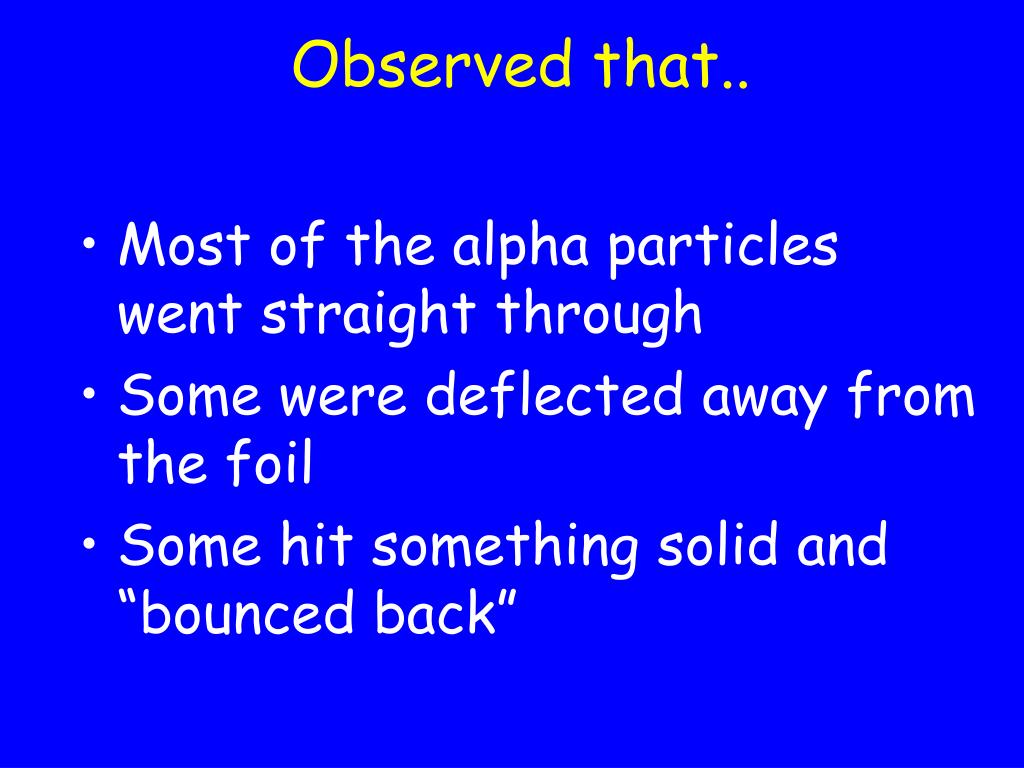

  30. Observed that.. • Most of the alpha particles went straight through • Some were deflected away from the foil • Some hit something solid and “bounced back”

  31. What was learned? • Most of an atom is empty space • The nucleus has a positive charge (He nucleus was also positive, which caused the deflection) • The nucleus, when hit straight on, is dense and solid – not a plum pudding!

  32. Other subatomic particles • Proton • Discovered by Goldstein using a cathode ray tube (1920’s) • Neutron • Discovered by James Chadwick in 1932

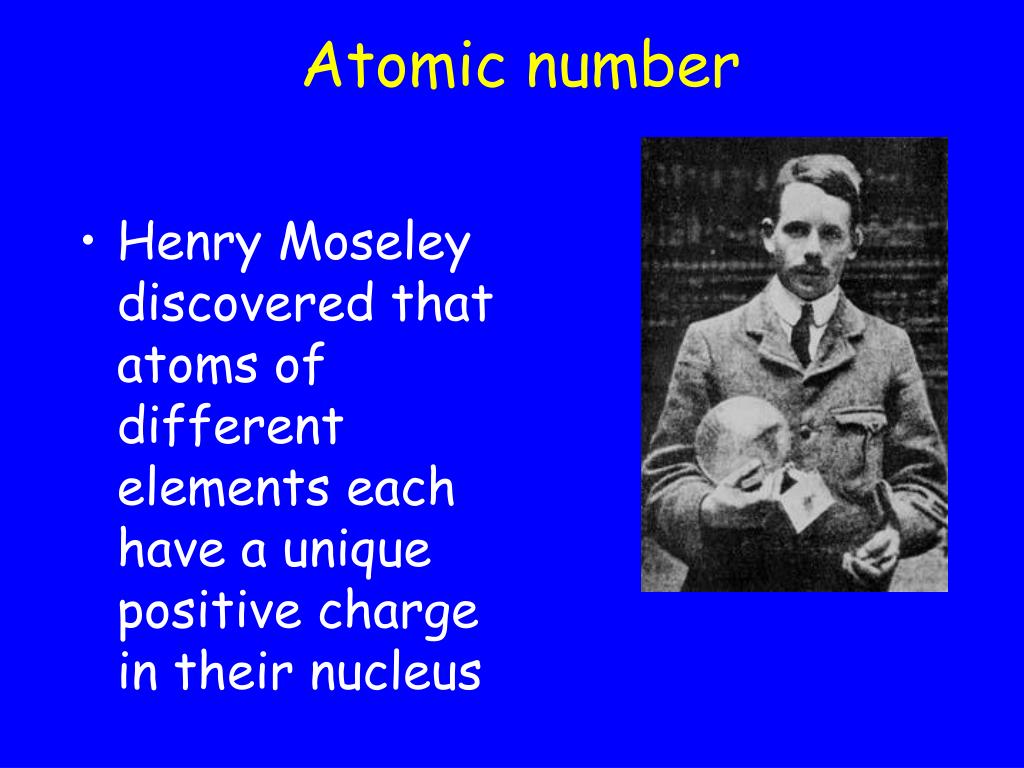

  33. Atomic number • Henry Moseley discovered that atoms of different elements each have a unique positive charge in their nucleus

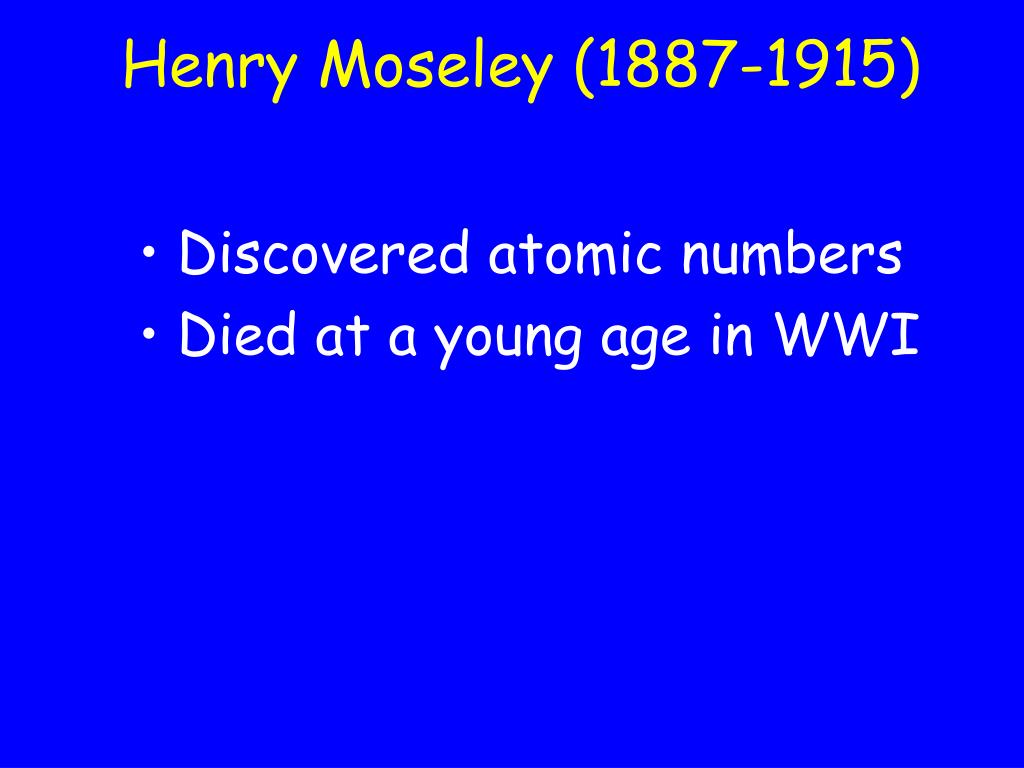

  34. Henry Moseley (1887-1915) • Discovered atomic numbers • Died at a young age in WWI

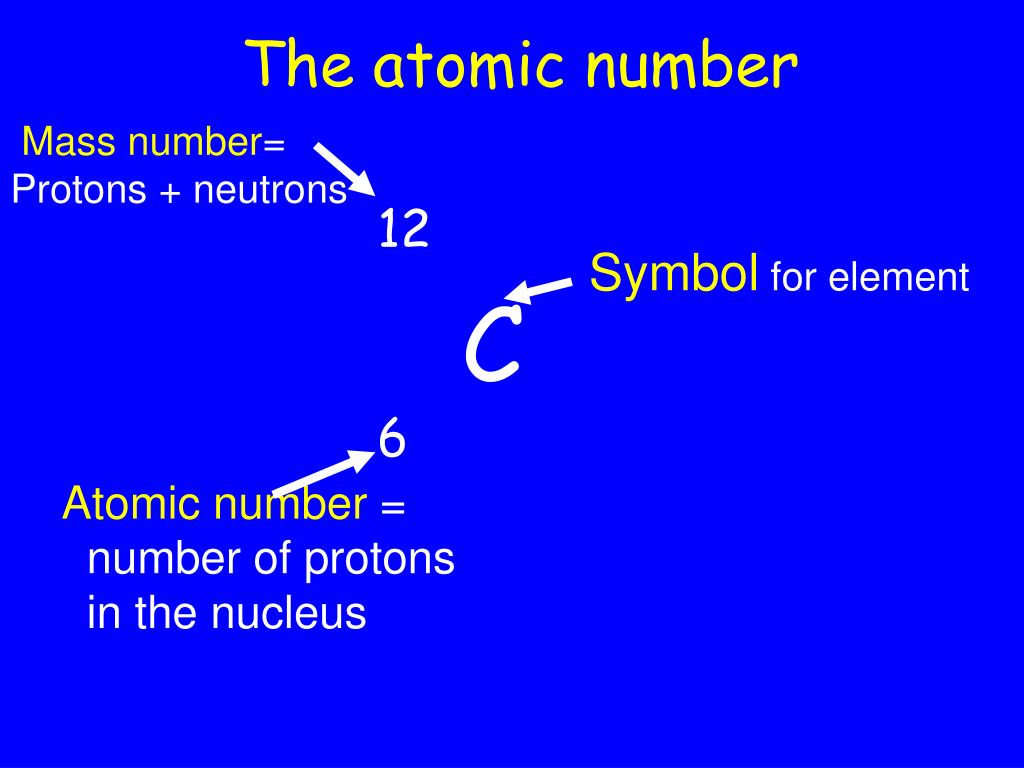

  35. The atomic number Mass number= Protons + neutrons 12 C 6 Symbol for element Atomic number = number of protons in the nucleus

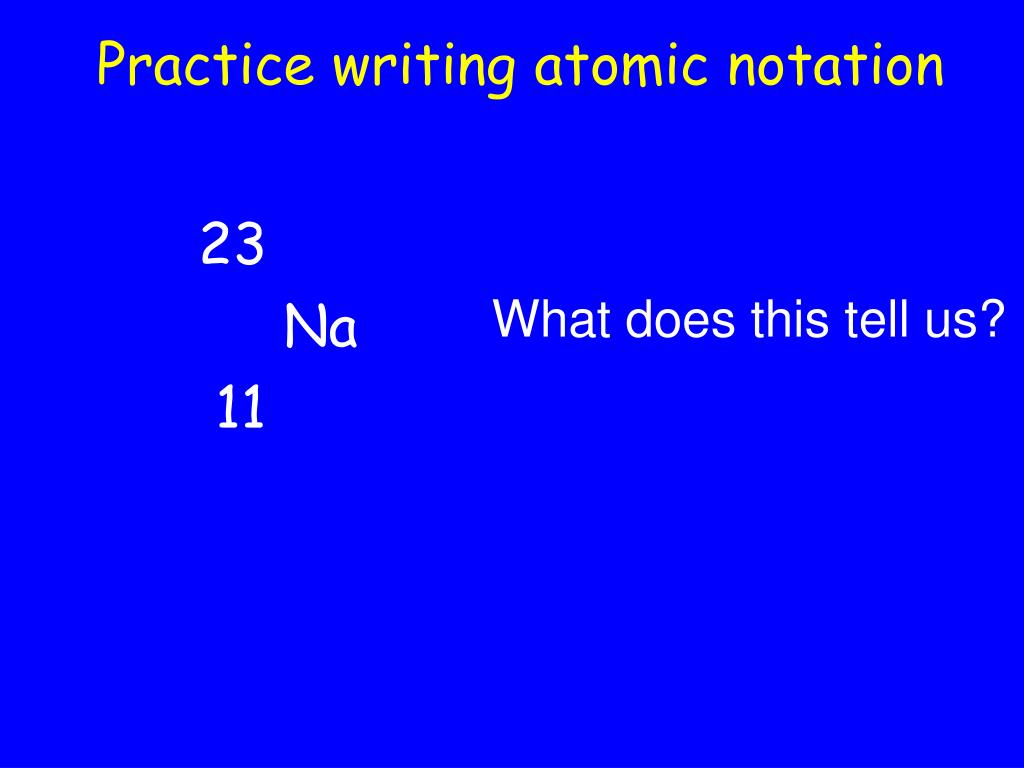

  36. Practice writing atomic notation 23 Na 11 What does this tell us?

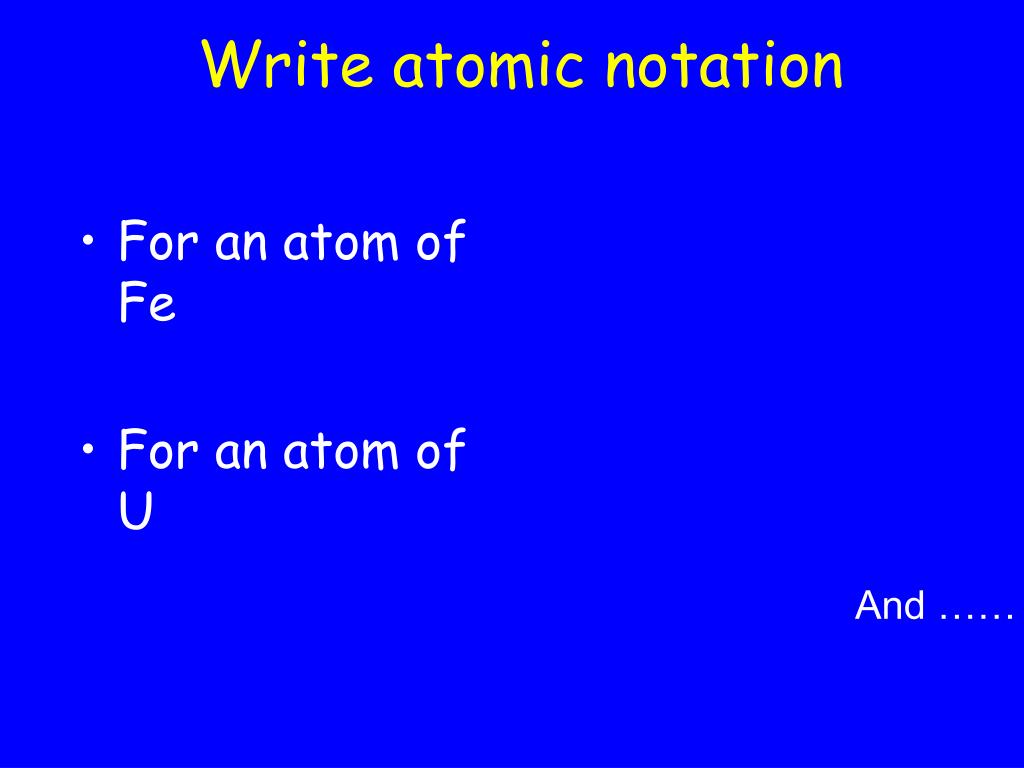

  37. Write atomic notation • For an atom of Fe • For an atom of U And ……

  38. 56 238 Fe U 26 92

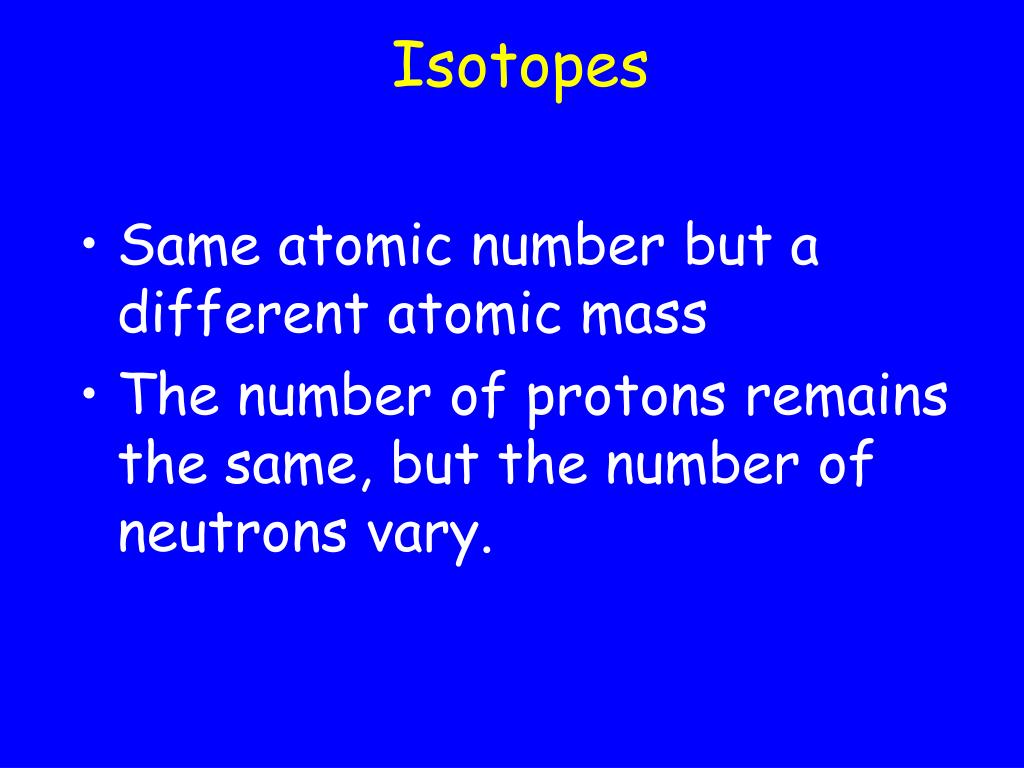

  39. Isotopes • Same atomic number but a different atomic mass • The number of protons remains the same, but the number of neutrons vary.

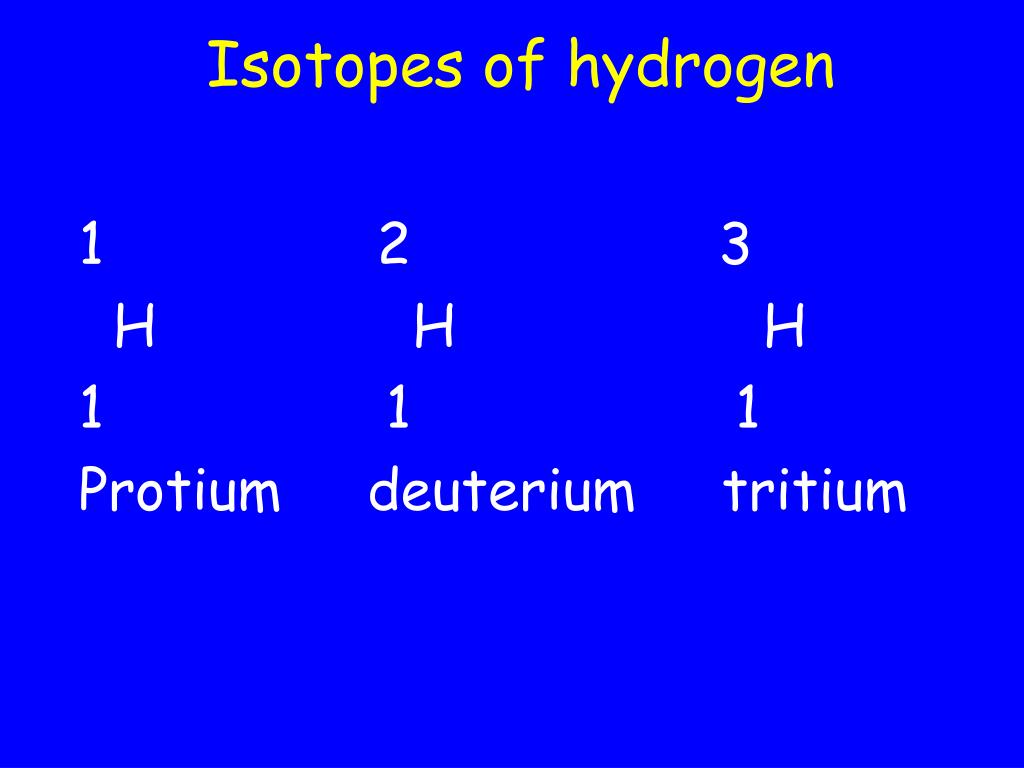

  40. Isotopes of hydrogen 1 2 3 H H H • 1 1 Protium deuterium tritium

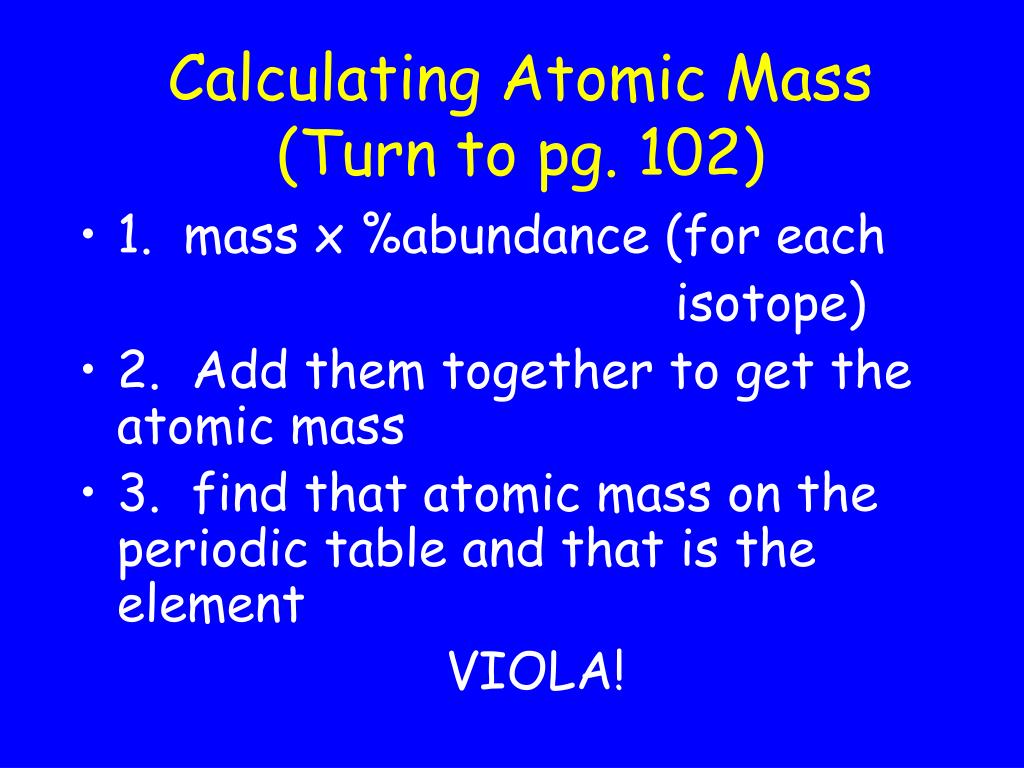

  41. Calculating Atomic Mass(Turn to pg. 102) • 1. mass x %abundance (for each isotope) • 2. Add them together to get the atomic mass • 3. find that atomic mass on the periodic table and that is the element VIOLA!

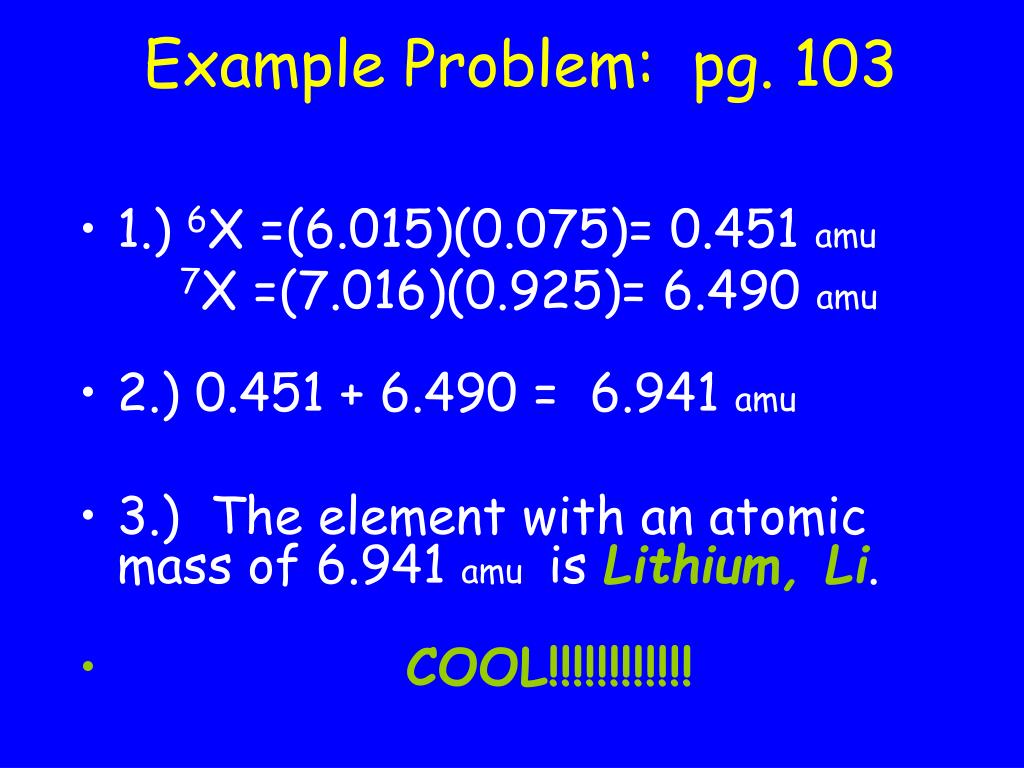

  42. Example Problem: pg. 103 • 1.) 6X =(6.015)(0.075)= 0.451 amu 7X =(7.016)(0.925)= 6.490 amu • 2.) 0.451 + 6.490 = 6.941 amu • 3.) The element with an atomic mass of 6.941 amu is Lithium, Li. • COOL!!!!!!!!!!!!

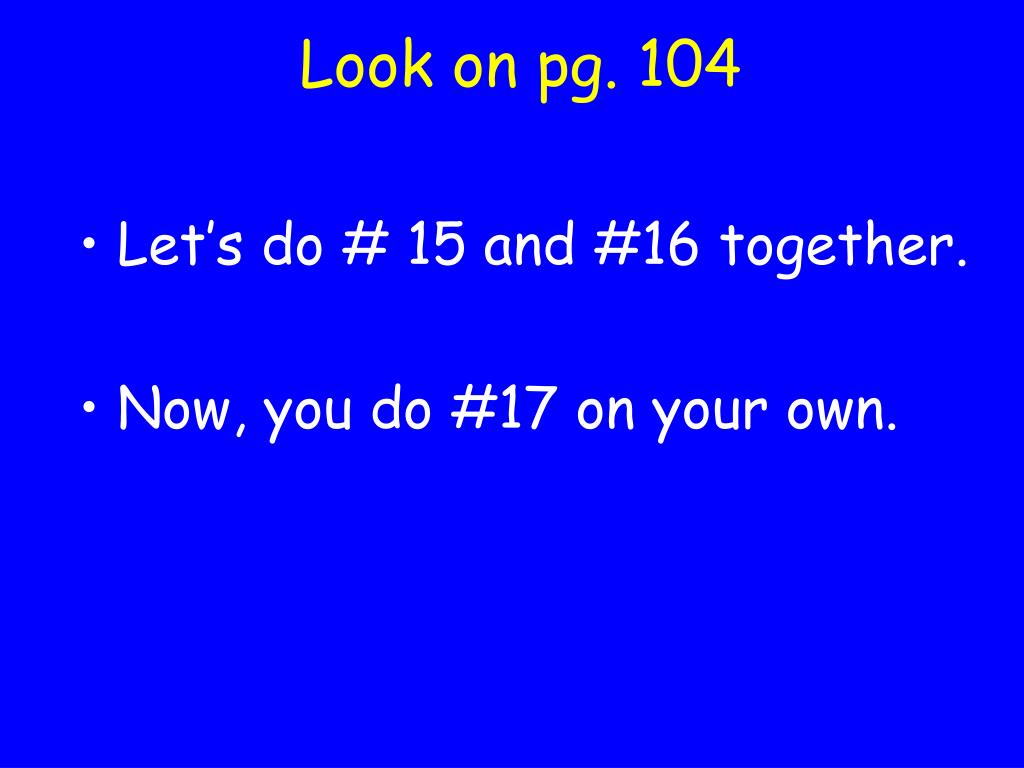

  43. Look on pg. 104 • Let’s do # 15 and #16 together. • Now, you do #17 on your own.

  44. Pg. 104, #15 (10.013)(0.198) = 1.982 amu (11.009)(0.802) = 8.829 amu 10.811 amu

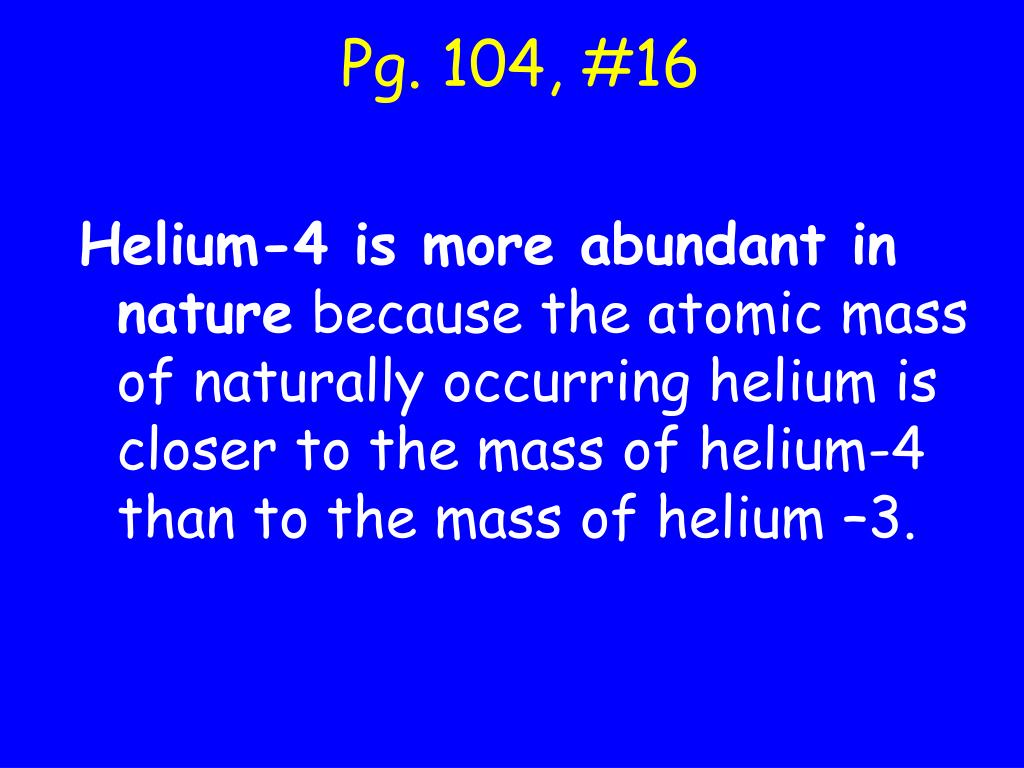

  45. Pg. 104, #16 Helium-4 is more abundant in nature because the atomic mass of naturally occurring helium is closer to the mass of helium-4 than to the mass of helium –3.

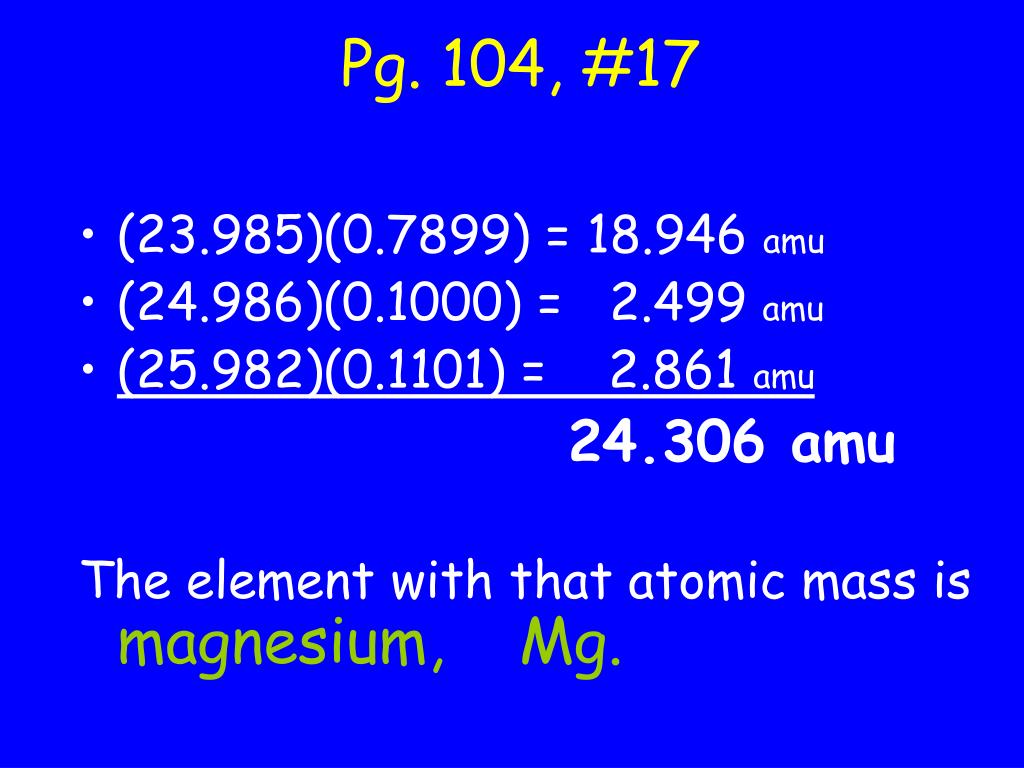

  46. Pg. 104, #17 • (23.985)(0.7899) = 18.946 amu • (24.986)(0.1000) = 2.499 amu • (25.982)(0.1101) = 2.861 amu 24.306 amu The element with that atomic mass is magnesium, Mg.

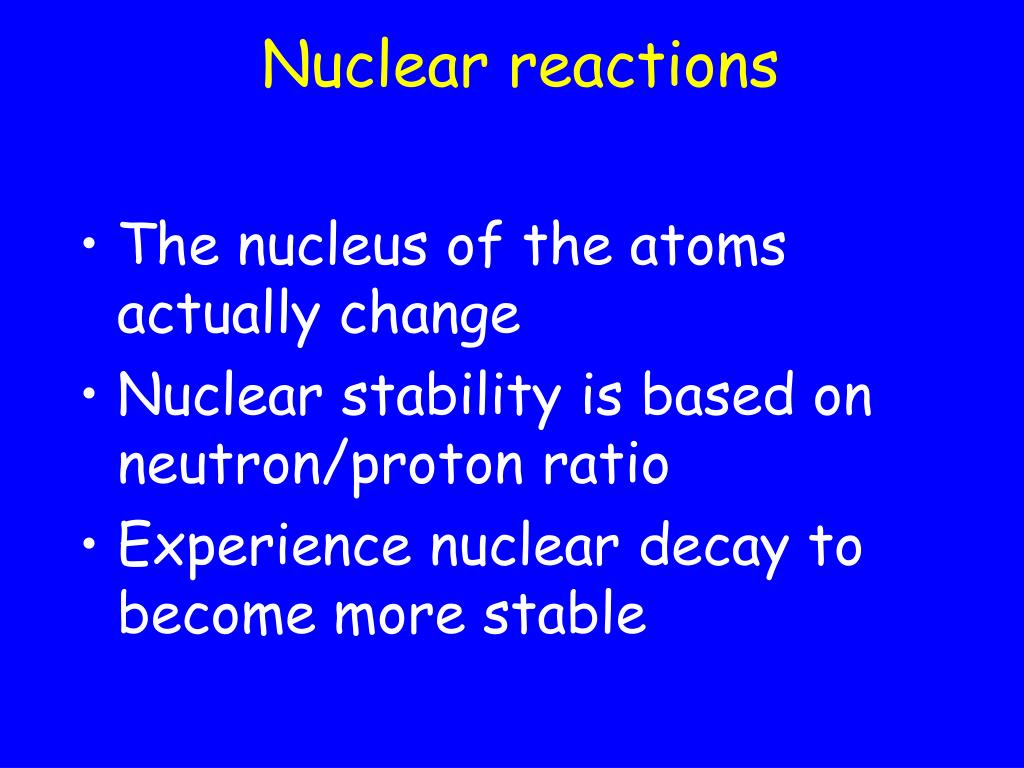

  47. Nuclear reactions • The nucleus of the atoms actually change • Nuclear stability is based on neutron/proton ratio • Experience nuclear decay to become more stable

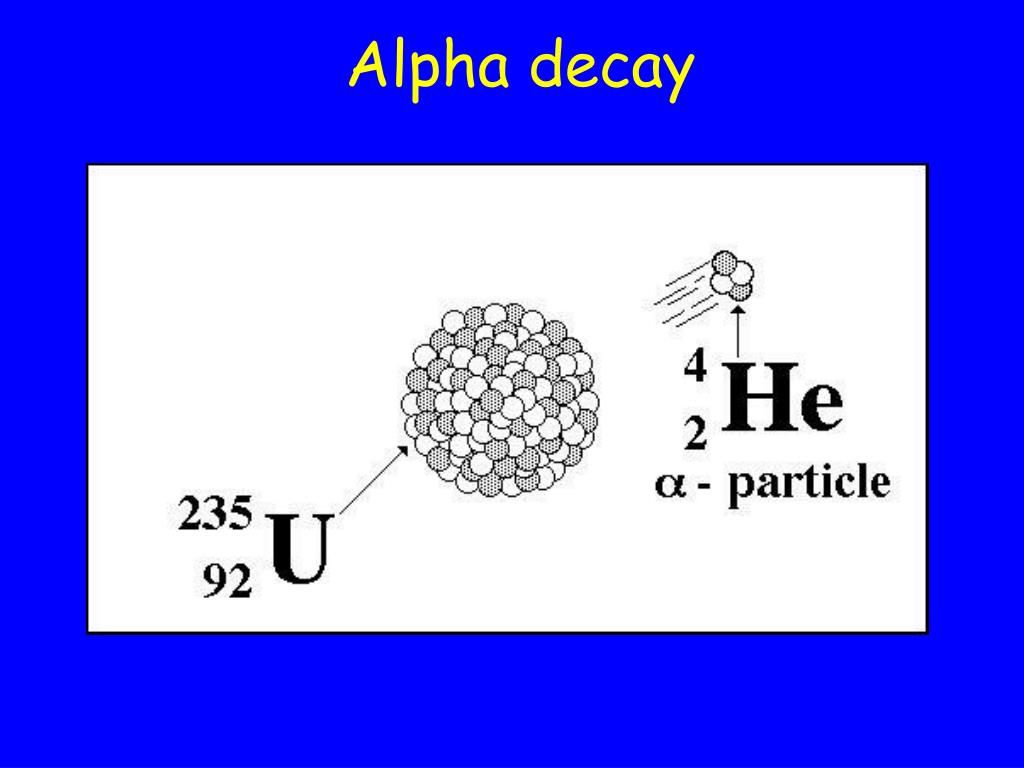

  48. Alpha decay

  49. Nuclear equation becomes 238 234 4 U  Th + He 92 90 2

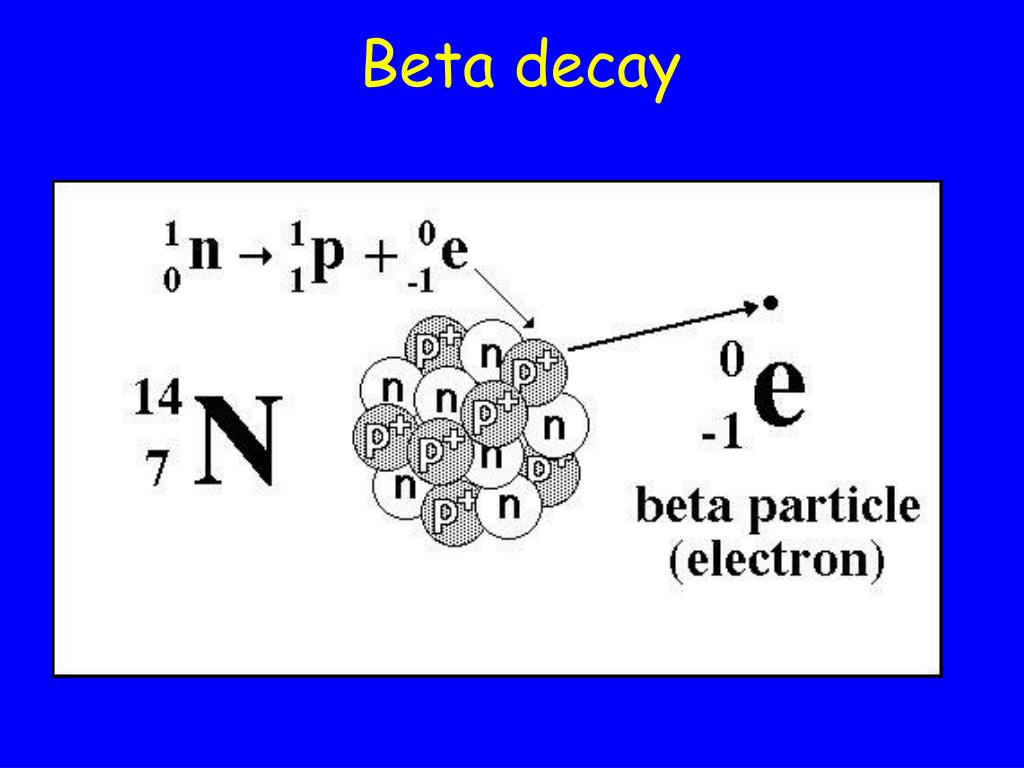

  50. Beta decay
