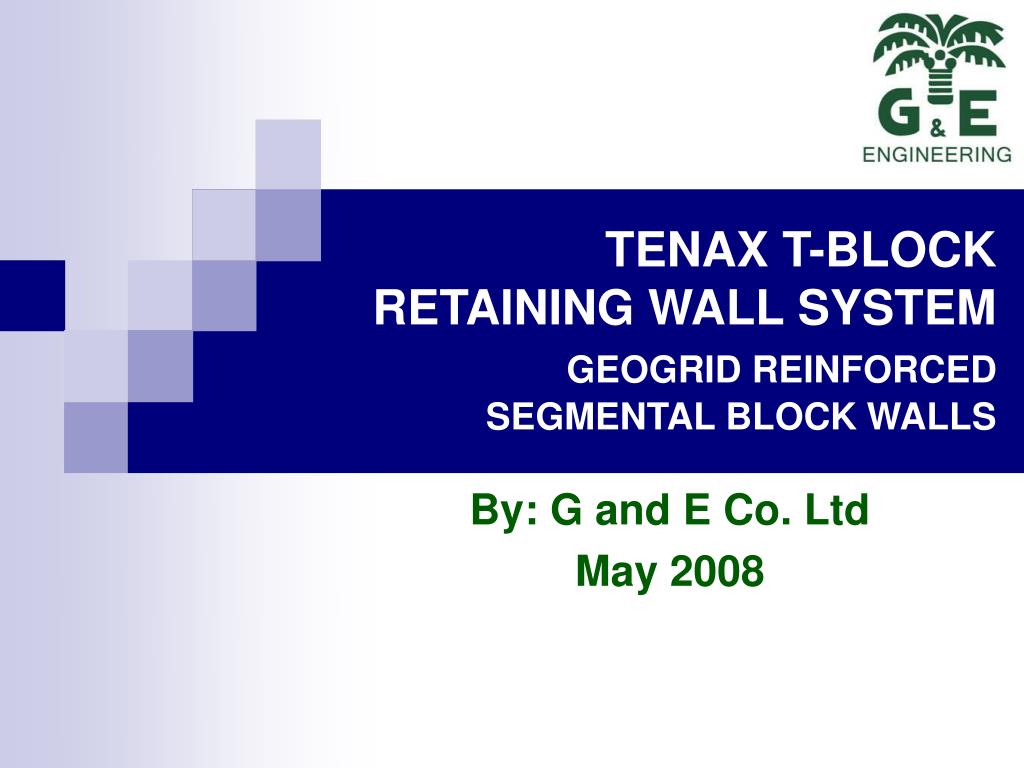

TENAX T-BLOCKRETAINING WALL SYSTEMGEOGRID REINFORCED SEGMENTAL BLOCK WALLS

By: G and E Co. Ltd

May 2008

what is tenax t block system
What is TENAX T-Block System?

The construction of mechanical stabilized wall with a Tenax patented connector between HDPE geogrids and segmental concrete blocks. The connectors are locked into the geogrids which are wedged between two layers of blocks to maintain wall stability.

This mechanical connection allows the system to utilize optimum full long term strength of the geogrids in the design.As the geogrids are interlocked level between blocks,wall rotation would not occur as in some other systems do.

the t block concrete unit
The T-Block Concrete Unit

A modular precast concrete block facing unit, a polymeric T-clip connector and layers of TENAX TT SAMP geogrid reinforcement.

Tongue and Groove Connection

Precast Concrete Block Facing Unit

the t block system soil geogrid t clip block
The T-BlockSystemSoil - Geogrid – T-clip – Block

T-Clip connector provides effective mechanical connection with the geogrid and the concrete block units to form a totally integrated system

benefits of the t block system
Benefits of the T-Block System
  • Fast and easy to construct
  • Large cost savings over traditional reinforced concrete structures
  • Design fully complied to Geoguide 6
  • No piling and heavy foundation
  • Possibility of usingexisting backfill
  • Area behind wall can be trafficked immediately
  • Variety of facing aesthetics to suit client needs
  • Easy conformity to any alignment & profile
  • Minimizeenergy, concrete and steel reinforcement
some examples major roads
Some Examples – Major Roads

South, Korea – Chunsugyo-Saebeari Highway: Segmental Retaining Wall System

Dubai –design for the landscaping structures on major road projects

some examples walls
Some Examples - Walls

Ireland – The T-Block System optimizes the cost and space availability within site boundary constraints

Seoul, Korea – This wall shows the flexibility of the T-Block System that maximizes the use of a small, busy urban area, and yet, with ample parking facilities and aesthetically pleasing recreational areas

rich architectural finish
RichArchitectural Finish
  • Split faced block
  • Triple split faced block
  • Smooth faced block
  • Dry stone faced triple block
  • Trapezoidal flute block
  • Resoil block
versatile styles and colors
Versatile Styles and Colors

Available in a wide range of face styles and colors

Walls of the interchange were built with blocks designed and produced locally
