  1. Measuring Info pack • 8 February 2007

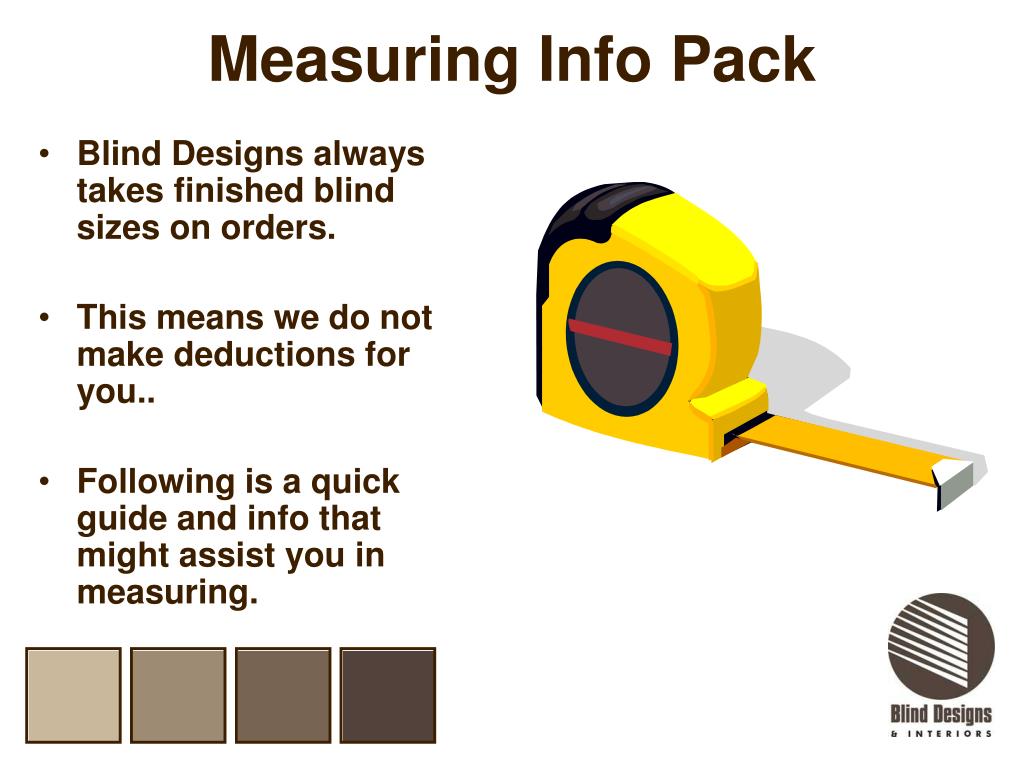

  2. Measuring Info Pack • Blind Designs always takes finished blind sizes on orders. • This means we do not make deductions for you.. • Following is a quick guide and info that might assist you in measuring.

  3. Measuring Info Pack • Wood Venetian • Below is a quick reference to deductions etc.

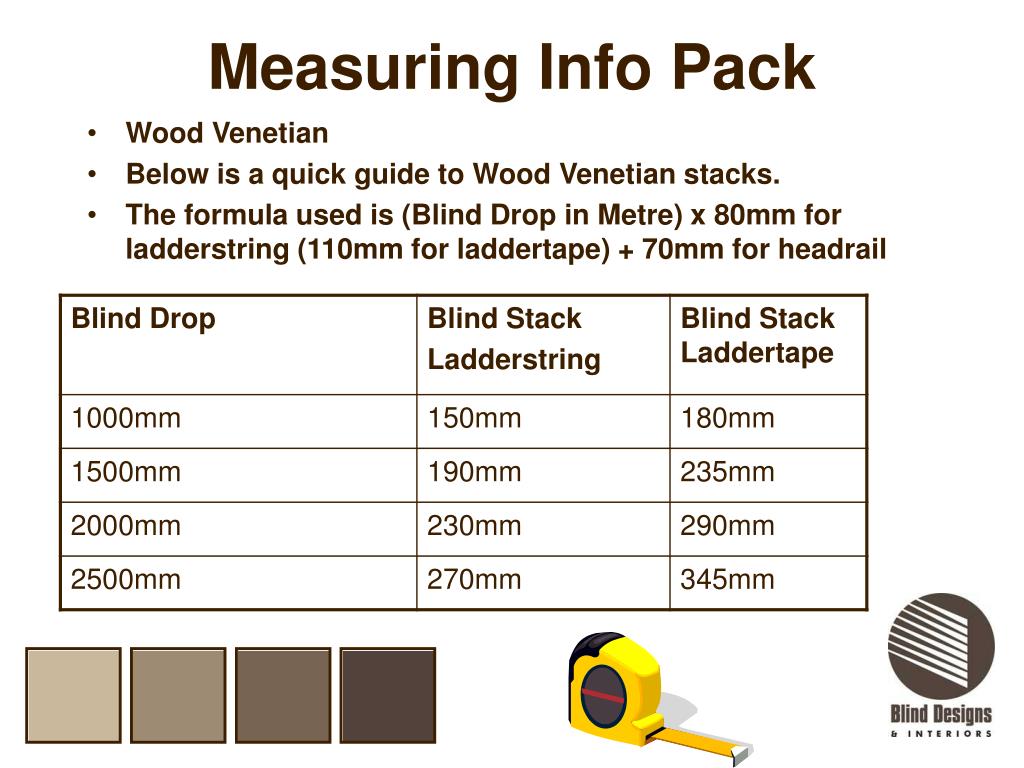

  4. Measuring Info Pack • Wood Venetian • Below is a quick guide to Wood Venetian stacks. • The formula used is (Blind Drop in Metre) x 80mm for ladderstring (110mm for laddertape) + 70mm for headrail

  5. Measuring Info Pack • Wood Venetian • Quick tips • Consider Splitting controls instead of Grouping. This stops cords getting tangled. • Do you need a specific Valance size? • Do you need a specific control drop? Normal control drop is 2/3 the length of the blind. • Do you have at least 70mm in the reveal? • Do you need a cleat? This must be ordered as extra.

  6. Measuring Info Pack • Wood Venetian

  7. Measuring Info Pack • Wood Venetian

  8. Measuring Info Pack • Wood Venetian

  9. Measuring Info Pack • Bamboo • Below is a quick reference to deductions etc.

  10. Measuring Info Pack • Bamboo • Below is a quick guide to Bamboo Roman Stacks • You have a choice to order Minimum, Medium and Maximum Stack. • If you do not specify Medium will be ordered.

  11. Measuring Info Pack • Bamboo • Quick tips • As a quick rule Roman Style outside the reveal, Roll-up in the reveal. • Do you need a specific Valance size? • Do you need a specific control drop? Normal control drop is 2/3 the length of the blind. • Do you have at least 60mm in the reveal? • Rebated Rod is a simple to install and User friendly option for Face Fix Roman blinds.

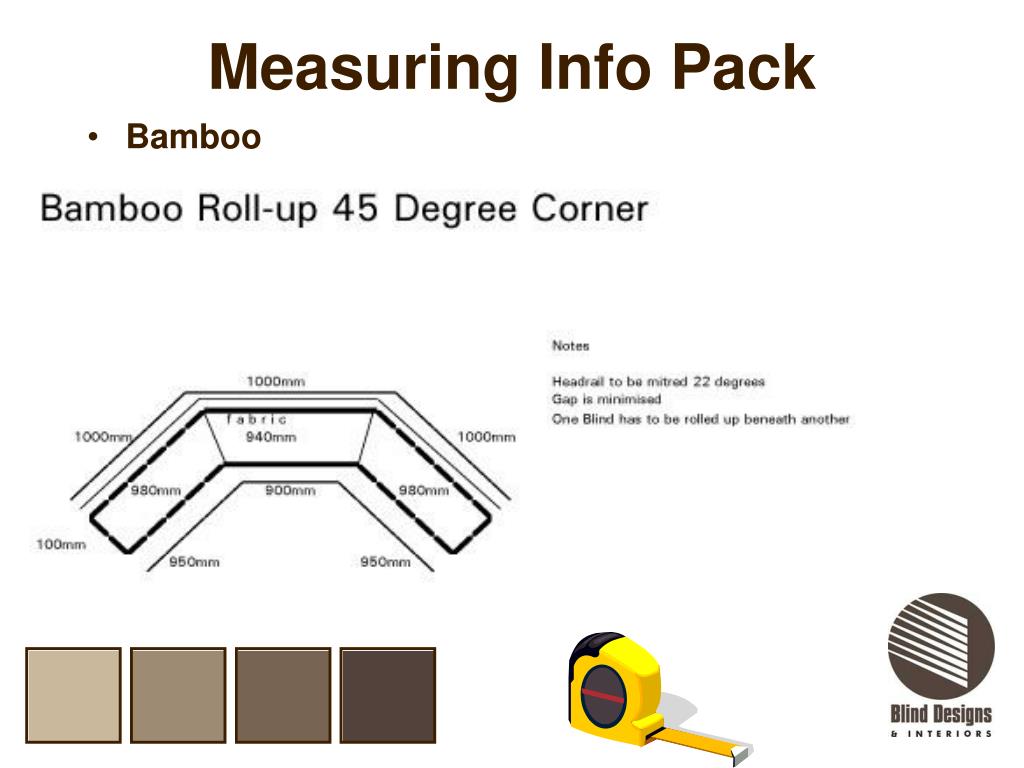

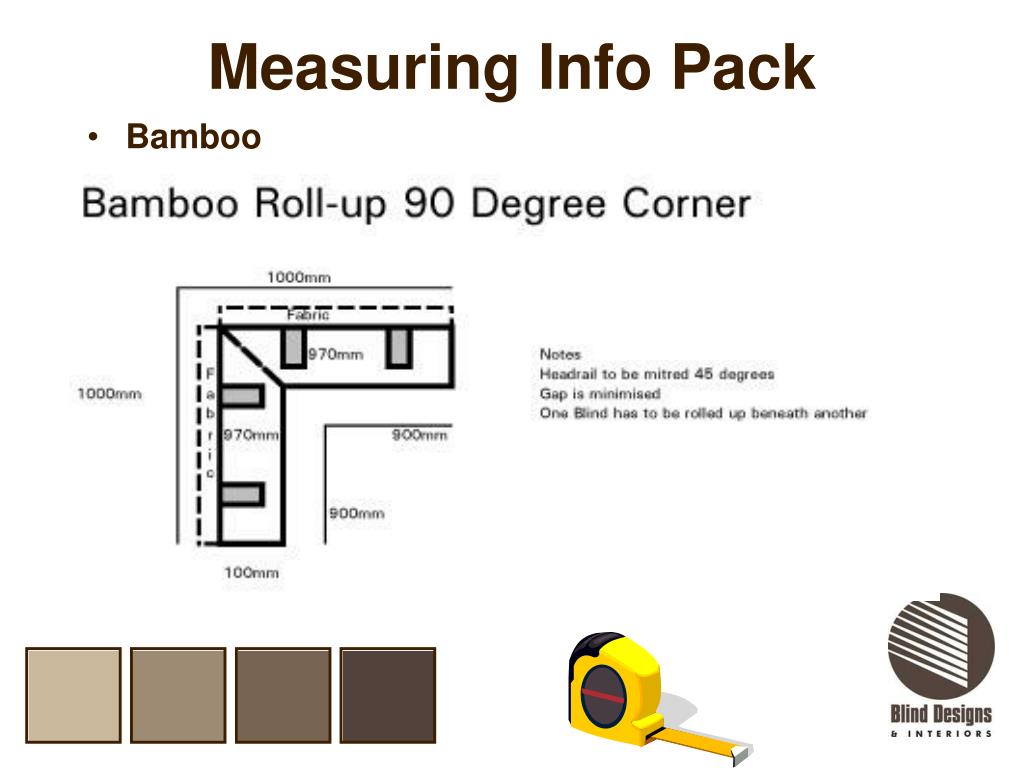

  12. Measuring Info Pack • Bamboo

  13. Measuring Info Pack • Bamboo

  14. Measuring Info Pack • Bamboo

  15. Measuring Info Pack • Bamboo

  16. Measuring Info Pack • Bamboo

  17. Measuring Info Pack • Retro Venetian • Below is a quick reference to deductions etc.

  18. Measuring Info Pack • Retro Venetian • Quick tips • Consider Splitting controls instead of Grouping. This stops cords getting tangled. • Do you need a specific Valance size? • Do you need a specific control drop? Normal control drop is 2/3 the length of the blind. • Do you have at least 70mm in the reveal? • Do you need a cleat? This must be ordered as extra.

  19. Measuring Info Pack • Retro Venetian

  20. Measuring Info Pack • Retro Venetian

  21. Measuring Info Pack • Retro Venetian

  22. Measuring Info Pack • 35mm Aluminium • Below is a quick reference to deductions etc.

  23. Measuring Info Pack • 35mm Aluminium • Quick tips • Do you need a specific control drop? Normal control drop is 2/3 the length of the blind. • Do you have at least 35mm in the reveal?

  24. Measuring Info Pack • 35mm Aluminium

  25. Measuring Info Pack • Roller Blind • Below is a quick reference to deductions etc.

  26. Measuring Info Pack • Roller • Quick tips • Make Customer aware of gaps, especially two blinds in one window. • Have you considered a Half Round Valance? • Do you need a specific control drop? Normal control drop is 200mm short of the length of the blind. • Check which bracket system you will receive and see how much space you need in the reveal. • No cut outs can be ordered on Rollers • Indicate if you want waterfall or standard roll. • Waterfall is a quick way to avoid obstacles (window sills and handles)

  27. Measuring Info Pack • Roller

  28. Measuring Info Pack • Roller

  29. Measuring Info Pack • Roller

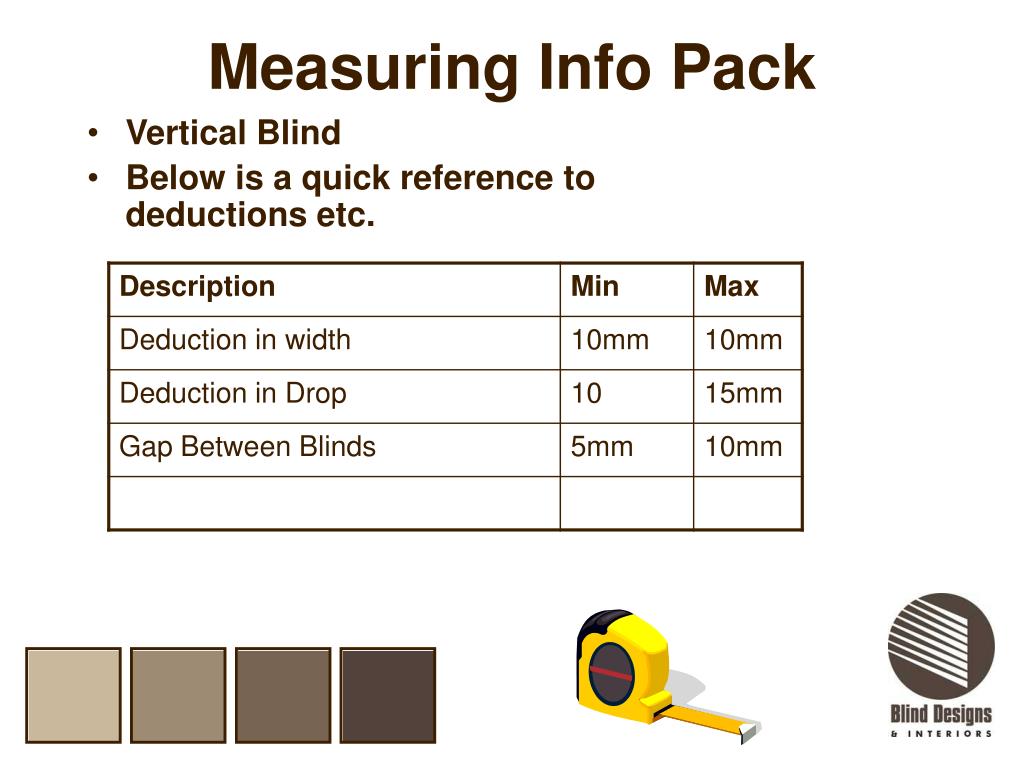

  30. Measuring Info Pack • Vertical Blind • Below is a quick reference to deductions etc.

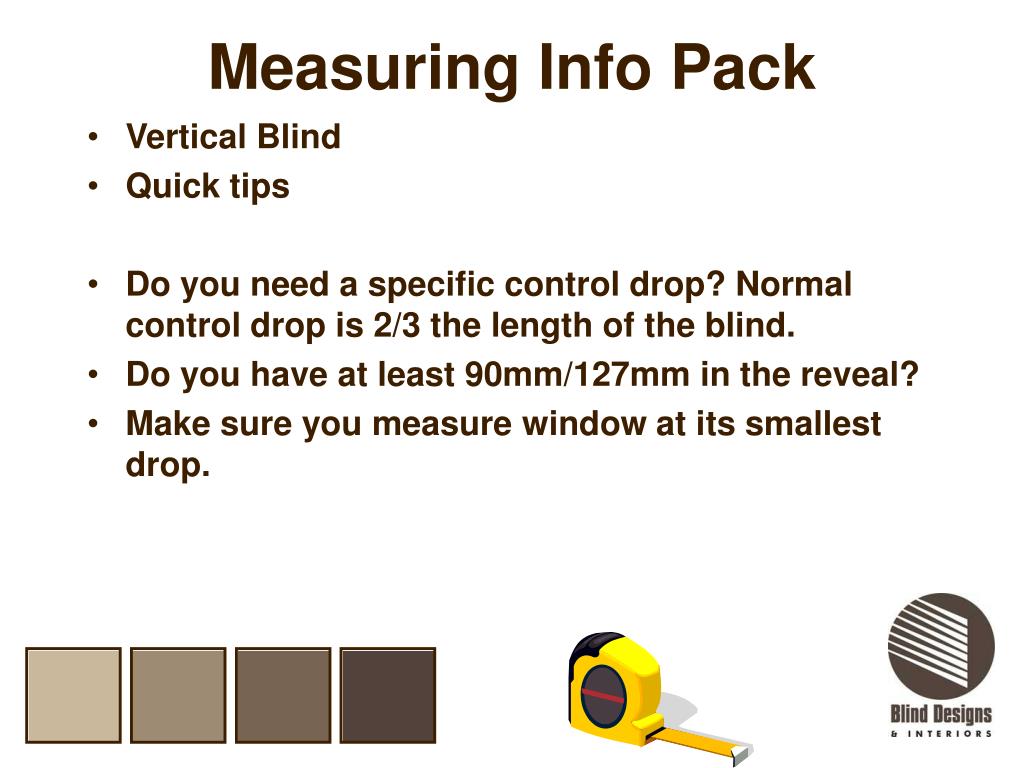

  31. Measuring Info Pack • Vertical Blind • Quick tips • Do you need a specific control drop? Normal control drop is 2/3 the length of the blind. • Do you have at least 90mm/127mm in the reveal? • Make sure you measure window at its smallest drop.

  32. Measuring Info Pack • Sliding Panel • Below is a quick reference to deductions etc.
